TOYOTA SOLARA 2007 Accessories, Audio & Navigation (in English)

120
Incoming call display
You can select the method of the receiving
call display.
Touch “Full” or “Icon”.
“Full” mode When a call is received,. . . . .
the Hands−free screen is
displayed and you can
operate it on the screen.
“Icon” mode The message is displayed . . . . .
on the upper side of the
screen. You can only op-
erate the steering switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any button) after the
preset time.
Touch “ON” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.
The Bluetooth connection status at
startup
When the ignition key is in the “ACC” or
“ON” position and the Bluetoothr is auto-
matically connected, the connection
check is displayed.

121
Touch “ON” or “OFF” of “Show Bluetooth*
connection status at start up”.
*: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”.(e) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.

122
Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display the
“Select Group” screen.
2. Select the group you want to transfer
the data to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.

123

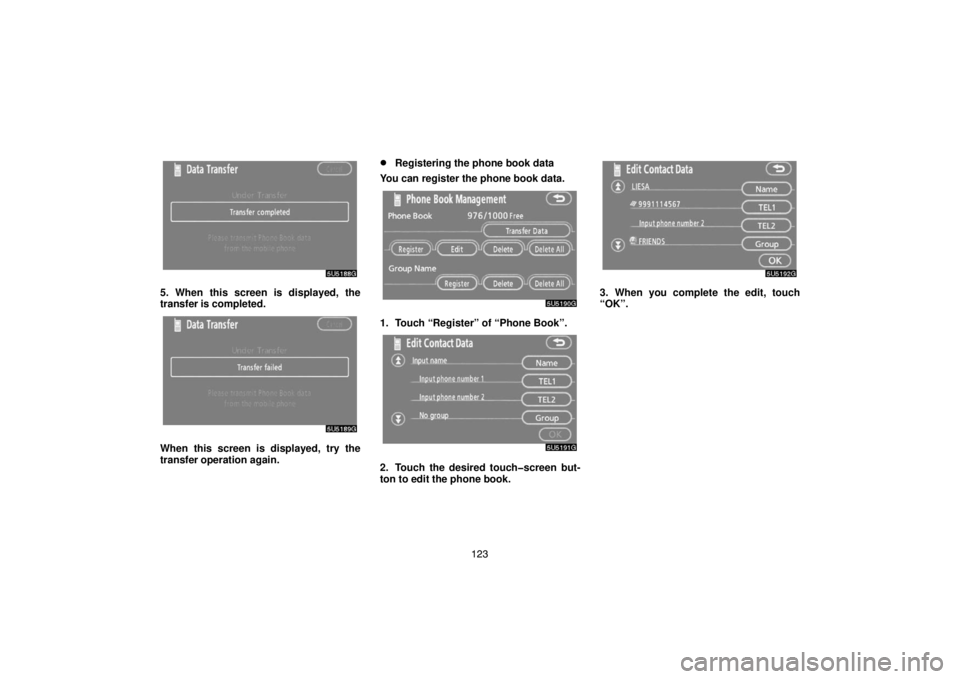

5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.
Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone Book”.
2. Touch the desired touchscreen but-
ton to edit the phone book.
3. When you complete the edit, touch
“OK”.

124
Editing the name
When you don’t input the name, the num-
ber is displayed.
1. Touch “Name”.
2. Use the software keyboard to input the
name.
Editing the phone number
You can register a phone number in
“TEL1” and “TEL 2” separately. Up to 2
numbers a person can be registered.
1. Touch “TEL1” or “TEL2”.
2. Input the number and touch “OK”.
3. Select the desired icon.

125

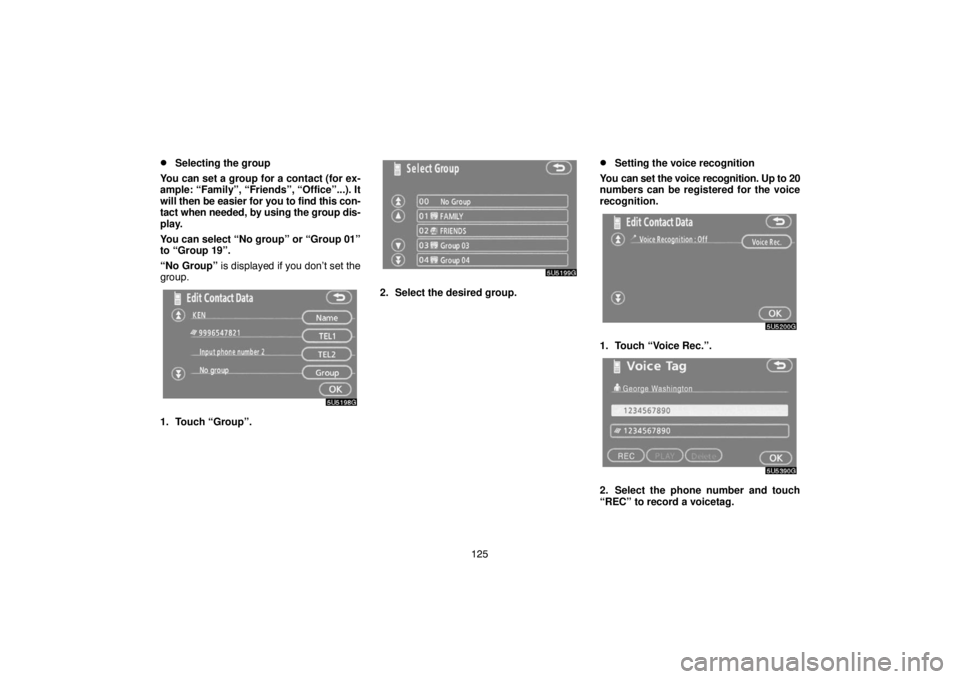

Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...). It
will then be easier for you to find this con-
tact when needed, by using the group dis-
play.
You can select “No group” or “Group 01”
to “Group 19”.
“No Group” is displayed if you don’t set the
group.
1. Touch “Group”.
2. Select the desired group.
Setting the voice recognition
You can set the voice recognition. Up to 20
numbers can be registered for the voice
recognition.
1. Touch “Voice Rec.”.
2. Select the phone number and touch
“REC” to record a voicetag.

126

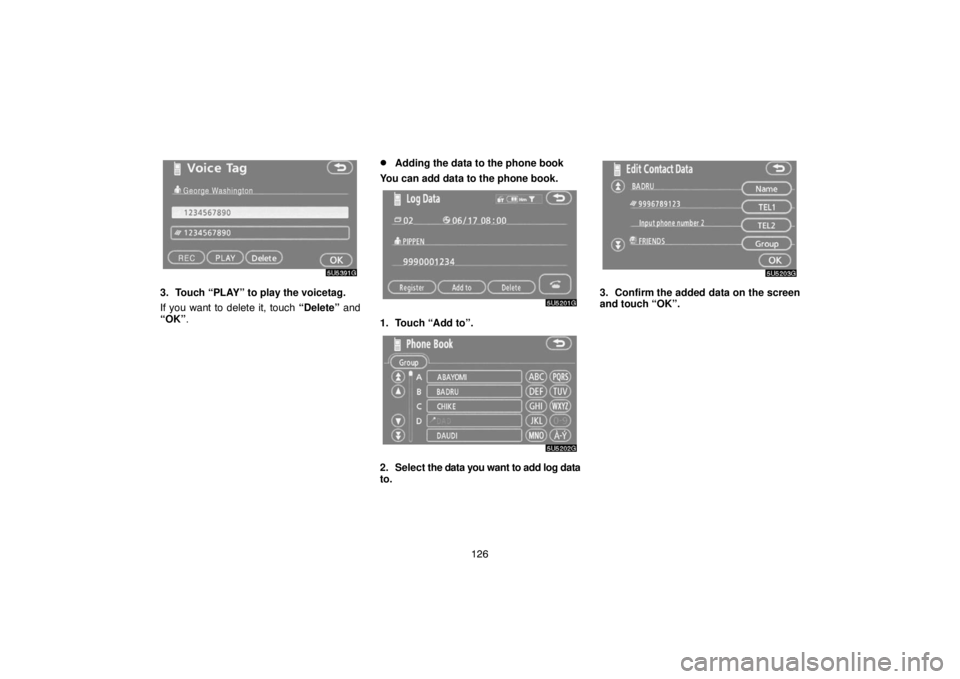

3. Touch “PLAY” to play the voicetag.
If you want to delete it, touch “Delete” and
“OK”.
Adding the data to the phone book
You can add data to the phone book.
1. Touch “Add to”.
2. Select the data you want to add log data
to.
3. Confirm the added data on the screen
and touch “OK”.

127

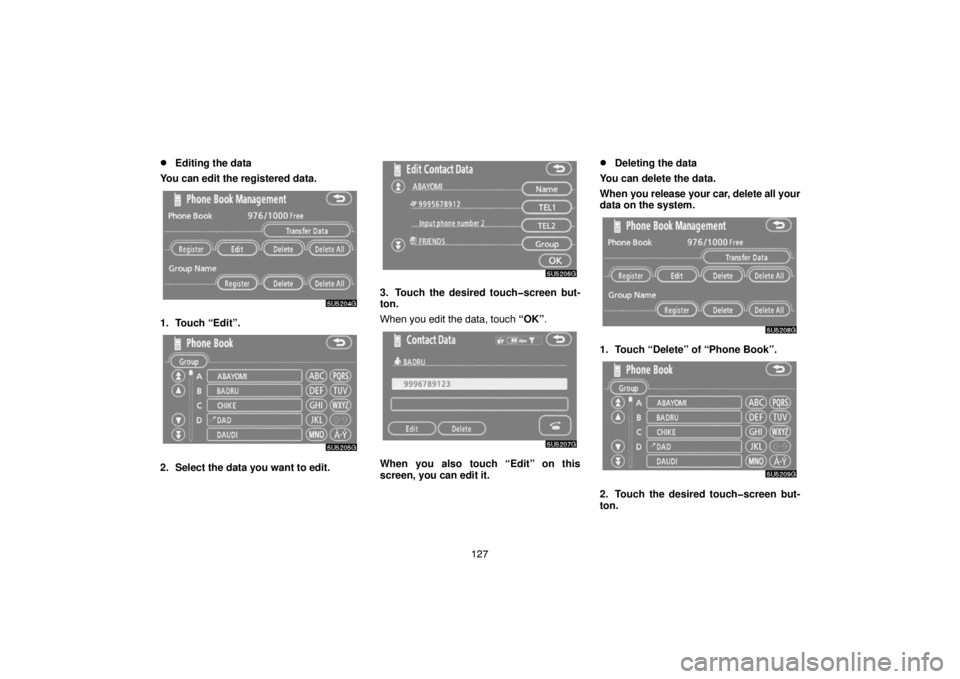

Editing the data
You can edit the registered data.
1. Touch “Edit”.
2. Select the data you want to edit.
3. Touch the desired touchscreen but-
ton.
When you edit the data, touch “OK”.
When you also touch “Edit” on this
screen, you can edit it.
Deleting the data
You can delete the data.
When you release your car, delete all your
data on the system.
1. Touch “Delete” of “Phone Book”.
2. Touch the desired touchscreen but-
ton.

128

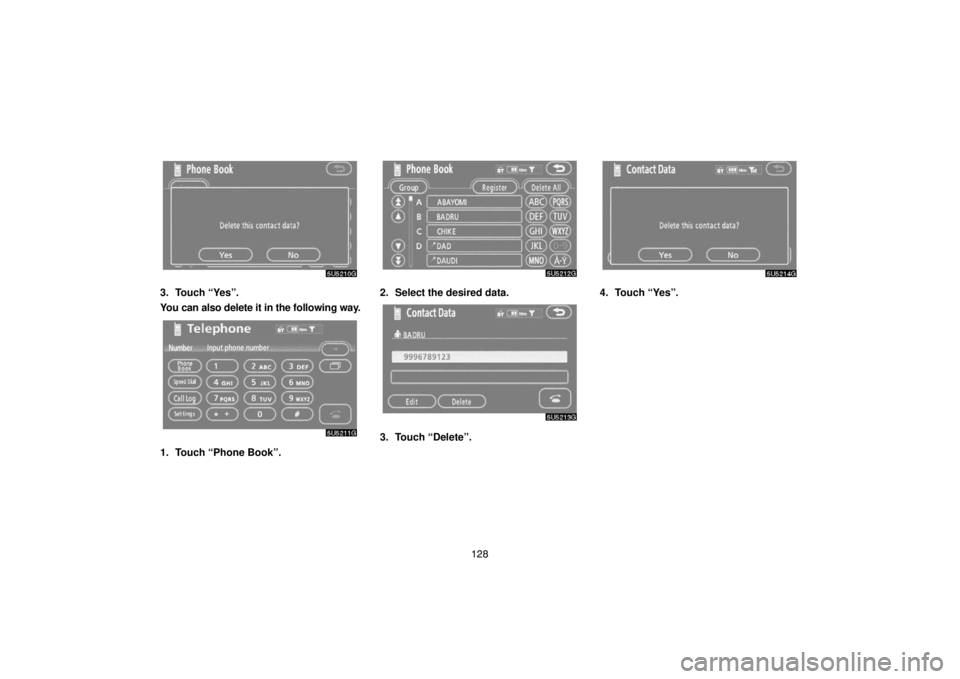

3. Touch “Yes”.
You can also delete it in the following way.
1. Touch “Phone Book”.
2. Select the desired data.
3. Touch “Delete”.
4. Touch “Yes”.

129

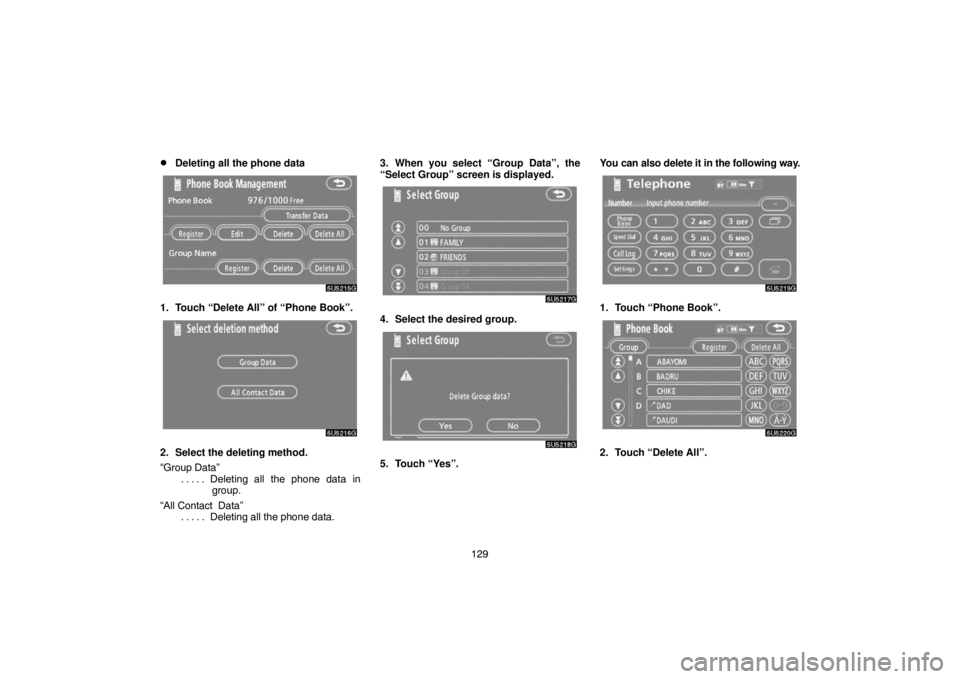

Deleting all the phone data
1. Touch “Delete All” of “Phone Book”.
2. Select the deleting method.
“Group Data”
Deleting all the phone data in . . . . .
group.
“All Contact Data”
Deleting all the phone data. . . . . . 3. When you select “Group Data”, the
“Select Group” screen is displayed.
4. Select the desired group.
5. Touch “Yes”.You can also delete it in the following way.
1. Touch “Phone Book”.
2. Touch “Delete All”.
