TOYOTA SOLARA 2007 Accessories, Audio & Navigation (in English)

160

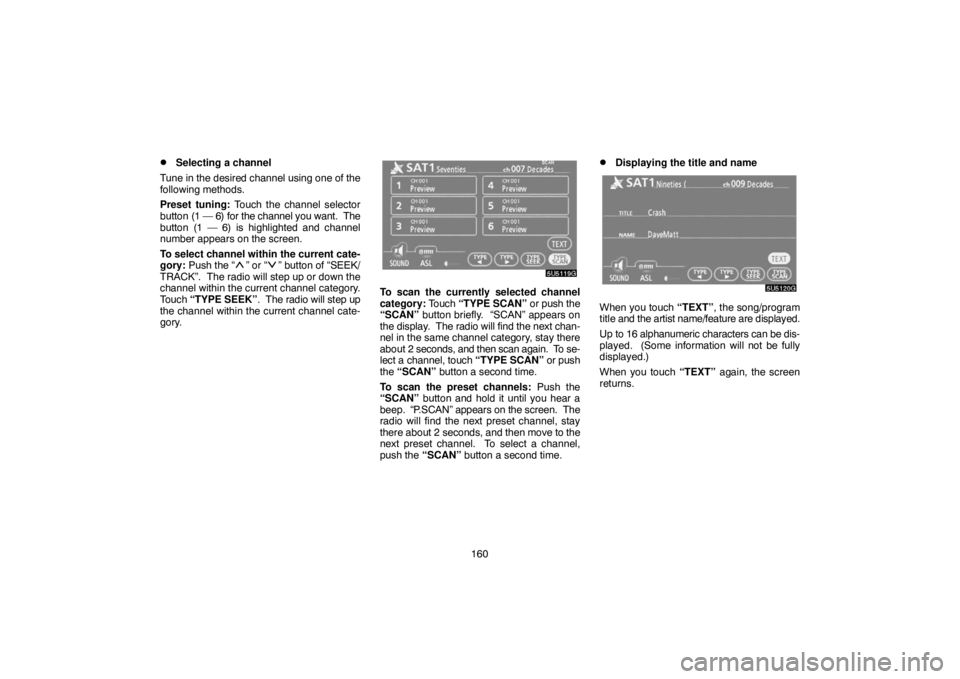

Selecting a channel
Tune in the desired channel using one of the
following methods.
Preset tuning: Touch the channel selector
button (1 — 6) for the channel you want. The
button (1 — 6) is highlighted and channel
number appears on the screen.
To select channel within the current cate-
gory: Push the “
” or “” button of “SEEK/
TRACK”. The radio will step up or down the
channel within the current channel category.
Touch “TYPE SEEK”. The radio will step up
the channel within the current channel cate-
gory.
To scan the currently selected channel
category: Touch “TYPE SCAN” or push the
“SCAN” button briefly. “SCAN” appears on
the display. The radio will find the next chan-
nel in the same channel category, stay there
about 2 seconds, and then scan again. To se-
lect a channel, touch “TYPE SCAN” or push
the “SCAN” button a second time.
To scan the preset channels: Push the
“SCAN” button and hold it until you hear a
beep. “P.SCAN” appears on the screen. The
radio will find the next preset channel, stay
there about 2 seconds, and then move to the
next preset channel. To select a channel,
push the “SCAN” button a second time.
Displaying the title and name
When you touch “TEXT”, the song/program
title and the artist name/feature are displayed.
Up to 16 alphanumeric characters can be dis-
played. (Some information will not be fully
displayed.)
When you touch “TEXT” again, the screen
returns.

161
If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Referring to the table below to identify the problem, take the
suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM antenna cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna cable. See a Toyota certified dealer for assistance.
UPDATING
You have not subscribed to the XM satellite radio. The radio is being updated with the latest encryption code.
Contact the XM satellite radio for subscription information. When a contract is canceled, you can choose the
“CH000” and all free−to−air channels.
The premium channel you selected is not authorized. Wait for about 2 seconds until the radio returns to the pre-
vious channel or “CH001”. If it does not change automatically, select another channel. If you want to listen to the
premium channel, contact the XM satellite radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select another channel.
−−−−−There is no song/program title or artist name/feature associated with the channel at that time. No action needed.
−−−The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous
channel or “CH001”. If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call (800) 967−2346 during the following hours:
Monday — Saturday: 6 a.m. — 2 a.m. Sunday: 8 a.m. — 8 p.m. (ET)

162
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to Part
15 of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a resi-
dential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the in-
structions, may cause harmful interfer-
ence to radio communications. Howev-
er, there is no guarantee that interfer-
ence will not occur in a particular instal-
lation.
If this equipment does cause harmful in-
terference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user is
encouraged to try to correct the interfer-
ence by one or more of the following
measures:
— Reorient or relocate the receiving an-
tenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
Information to user
Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
INFORMATION
This XM tuner supports “Audio Ser-
vices” (Music and Talk) of only XM satel-
lite radio and “Text Information”* linked
to the respective “Audio Services”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.
— CD changer operation
The CD changer can play audio CDs, CD
text, WMA discs, MP3 discs.
Audio CD, CD text 166. . . . . . . . . . . .
MP3/WMA disc 168. . . . . . . . . . . . . .
For appropriate discs for this changer, see
“Audio system operating hints” on page 174.

163 (a) Inserting discs
The ignition switch must be in the “ACC” or
“ON” position.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “LOAD·” button. The
“LOAD·EJECT” screen appears.
2. Touch “LOAD”. The display opens.
3. The amber indicators at either side of
the slot start blinking. When the indica-
tors change to green, insert only one disc.
After the disc is loaded, the amber indica-
tors at either side of the slot start blinking
again. When the indicators change to
green, you can insert the next disc.
4. Push the “LOAD·
” button to close
the display.
The changer will automatically start playing
from the last disc you inserted.
If the label faces down, the disc cannot be
played. In this case, “CD  CHECK” ap-
pears on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.

164
NOTICE
Do not obstruct the display while it is
moving. It could damage your audio
system.
Do not insert one disc stacked on top
of another one or feed them in contin-
uously, to prevent discs from getting
stuck in the changer.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
(b) Ejecting discs
A single disc alone:
1. Push the “LOAD·” button. The
“LOAD·EJECT” screen appears.
2. Touch the disc number to be ejected.The display opens and the amber indicators
at either side of the slot start blinking. After
the disc is ejected, the amber indicators
change to green. A disc can be inserted.
All the discs:
1. Push the “LOAD·
” button. The
“LOAD·EJECT” screen appears.
2. Touch “All_CD ”.
The display opens and the amber indicators
at either side of the slot start blinking. After
the disc is ejected, the blinking indicators stay
on.

165 3. Remove the disc.
The indicators start blinking again and the
next disc is ejected.
If a disc is not remove within 15 seconds after
it is ejected, the operation will be canceled.
When all the discs are removed, the amber in-
dicators change to green. A disc can be in-
serted.
The numbers of the trays where the disc is not

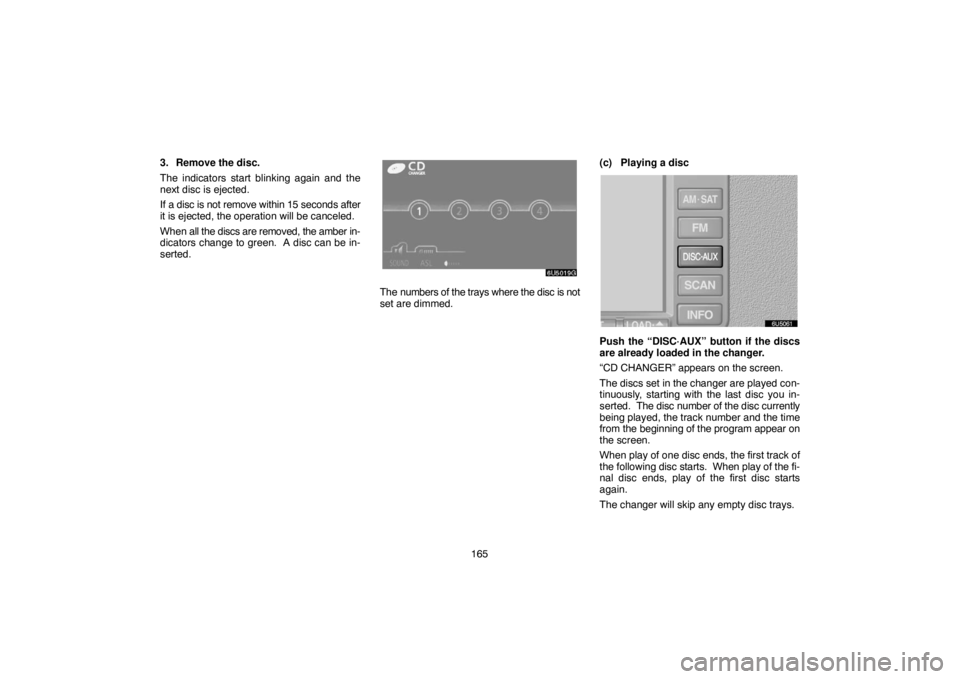

set are dimmed.(c) Playing a disc
Push the “DISC·AUX” button if the discs
are already loaded in the changer.
“CD CHANGER” appears on the screen.
The discs set in the changer are played con-
tinuously, starting with the last disc you in-
serted. The disc number of the disc currently
being played, the track number and the time
from the beginning of the program appear on
the screen.
When play of one disc ends, the first track of
the following disc starts. When play of the fi-
nal disc ends, play of the first disc starts
again.
The changer will skip any empty disc trays.

166 (d) Selecting a desired disc
Touch the desired disc number on the
screen.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.(e) Operating an audio CD
Playing an audio CD
Push the “AUDIO” button to display this
screen.
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC·AUX” button.
You can operate the touch−screen buttons
and choose the number of the disc you want
to play. The selected disc is automatically
played.
Selecting a desired track
“SEEK/TRACK” button: Use for a direct ac-
cess to a desired track.
Push the “
” or “” button of “SEEK/
TRACK” and repeat it until the desired track
number appears on the screen. As you re-
lease the button, the changer will start playing
the selected track from the beginning.
“TRACK LIST”: The desired track can be se-
lected from a list. This function is available
only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is dis-
played.

167
Touch the desired track number. The changer
will start playing the selected track from the
beginning.
: By touching this button, the list moves
up by 6 track groups. If this button is touched
when the top page of the list is displayed, the
last page is displayed.
: By touching this button, the list moves
down by 6 track groups. If this button is
touched when the last page of the list is dis-
played, the top page is displayed.
Fast forward: Push the “
” button of
“SEEK/TRACK” and hold it to fast forward
the disc. When you release the button, the
changer will resume playing from that posi-
tion.
Reverse: Push the “
” button of “SEEK/
TRACK” and hold it to reverse the disc.
When you release the button, the changer will
resume playing.
Searching for a desired track or a disc
Searching for a desired track —
While the disc is playing, touch “SCAN”
on the screen or push the “SCAN” button
briefly.
“SCAN” appears on the screen. The changer
will play the next track for 10 seconds, then
scan again. To select a track, touch “SCAN”
on the screen or push the “SCAN” button
once again. If the changer reaches the end
of the disc, it will start playing at track 1.
After all the tracks are scanned in one pass,
normal play resumes.Searching for a desired disc —
While the disc is playing, touch “SCAN”
on the screen or push the “SCAN” button
and hold it until “D·SCAN” appears on the
screen.
The program at the beginning of each audio
disc will be played for 10 seconds. To contin-
ue listening to a desired track, touch “SCAN”
on the screen or push the “SCAN” button
once again.
After all the audio discs are scanned in one
pass, normal play resumes.

168
Other functions
“RPT”: Use it for automatic repeat of the
track or disc you are currently listening to.
Repeating a track —
While the track is playing, touch “RPT”
briefly.
“RPT” appears on the screen. When the track
is finished, the changer will automatically go
back to the beginning of the track and play the
track again. To cancel it, touch “RPT” once
again.
Repeating a disc —
While the disc is playing, touch “RPT” and
hold it until the “D·RPT” appears on the
screen.
When the disc is finished, the changer will au-
tomatically go back to the beginning of the
disc and play the disc again. To cancel it,
touch “RPT” once again.“RAND”: Use it for automatic and random
selection.
Playing the tracks on one disc in random
order —
While the disc is playing, touch “RAND”
briefly.
“RAND” appears on the screen. The system
selects a track on the disc being listened to in
random order. To cancel it, touch “RAND”
once again.
Playing the tracks on all the audio discs in
random order —
While the disc is playing, touch “RAND”
and hold it until the “D·RAND” appears on
the screen.
The system selects a track on all the audio
discs in the changer in random order. To can-
cel it, touch “RAND” once again.
If a CD−TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.(f) Operating a MP3/WMA disc
Playing a MP3/WMA disc
Push the “AUDIO” button and touch a
MP3/WMA disc number to display this
screen.
You can operate the touch−screen buttons
and choose the number of the disc you want
to play. The selected disc is automatically
played.

169
Selecting a desired folder
“FOLDER”: Touch this button to go to the
next folder.
“FOLDER ”: Touch this button to go to the
previous folder.
“FOLDER LIST”: The desired folder can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “FOLDER LIST”. The folder list is dis-
played.
Touch the desired folder number. The chang-
er will start playing the first file of the selected
folder.
: By touching this button, the list moves
up by 6 folder groups. If this button is touched
when the top page of the list is displayed, the
last page is displayed.
: By touching this button, the list moves
down by 6 folder groups. If this button is
touched when the last page of the list is dis-
played, the top page is displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently playing
is displayed. This function is available only
when the vehicle is not moving.
Selecting a desired file
“SEEK/TRACK” button: Use for direct ac-
cess to a desired file.
Push the “
” or “” button of “SEEK/
TRACK” and repeat it until the desired file
number appears on the display. As you re-
lease the button, the changer will start playing
the selected file from the beginning. When
“RAND” or “FLD·RPT” is on, the file number
within the folder you are currently being lis-
tened to appears.
