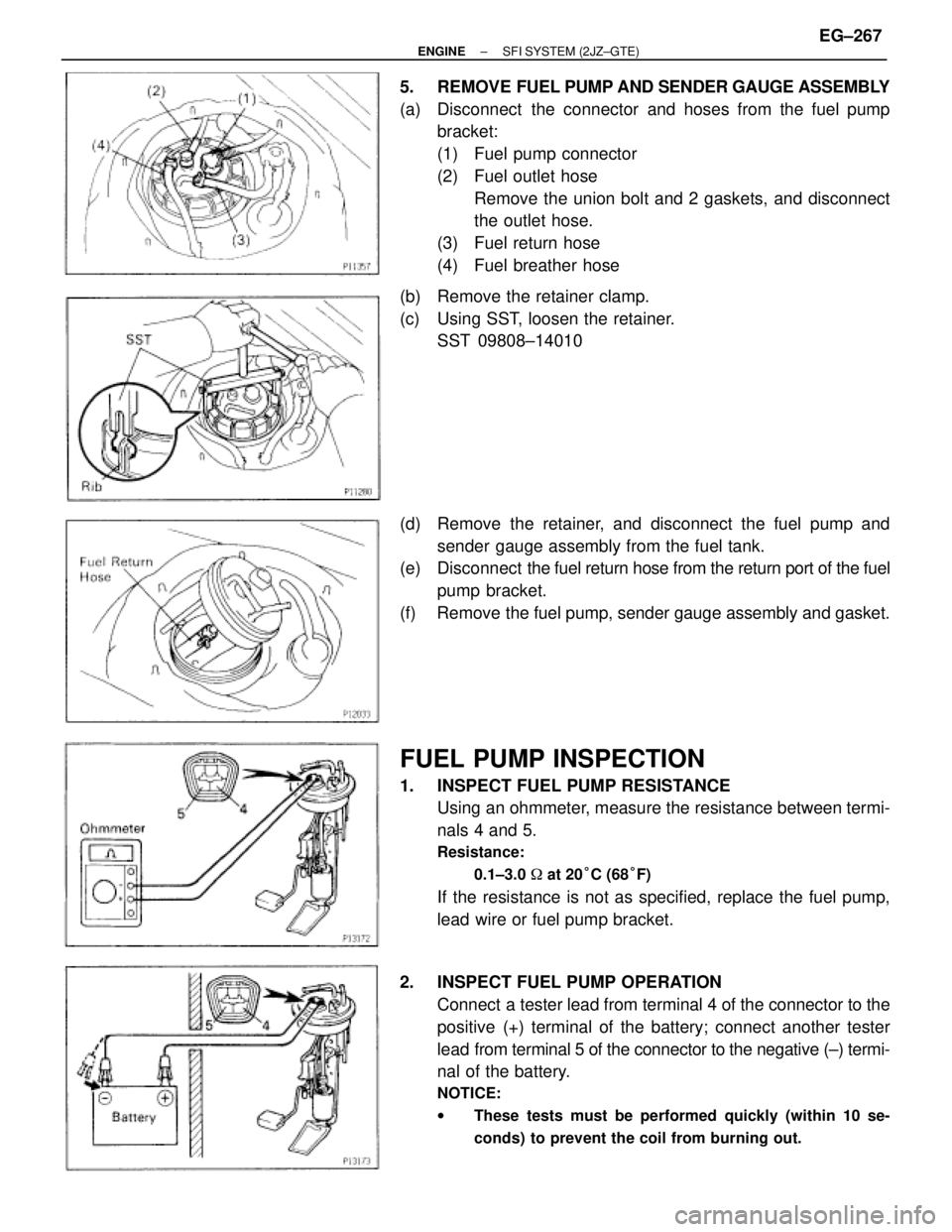

5. REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Disconnect the connector and hoses from the fuel pump
bracket:
(1) Fuel pump connector
(2) Fuel outlet hose
Remove the union bolt and 2 gaskets, and disconnect
the outlet hose.
(3) Fuel return hose
(4) Fuel breather hose
(b) Remove the retainer clamp.
(c) Using SST, loosen the retainer.
SST 09808±14010
(d) Remove the retainer, and disconnect the fuel pump and
sender gauge assembly from the fuel tank.
(e) Disconnect the fuel return hose from the return port of the fuel
pump bracket.
(f) Remove the fuel pump, sender gauge assembly and gasket.
FUEL PUMP INSPECTION
1. INSPECT FUEL PUMP RESISTANCE
Using an ohmmeter, measure the resistance between termi-
nals 4 and 5.
Resistance:
0.1±3.0
at 20°C (68°F)
If the resistance is not as specified, replace the fuel pump,
lead wire or fuel pump bracket.
2. INSPECT FUEL PUMP OPERATION
Connect a tester lead from terminal 4 of the connector to the
positive (+) terminal of the battery; connect another tester
lead from terminal 5 of the connector to the negative (±) termi-
nal of the battery.
NOTICE:
wThese tests must be performed quickly (within 10 se-
conds) to prevent the coil from burning out.
± ENGINESFI SYSTEM (2JZ±GTE)EG±267

wKeep the fuel pump as far away from the battery as pos-
sible.
wAlways connect or disconnect at the battery.
If operation is not as specified, replace the fuel pump, lead
wire or fuel pump bracket.

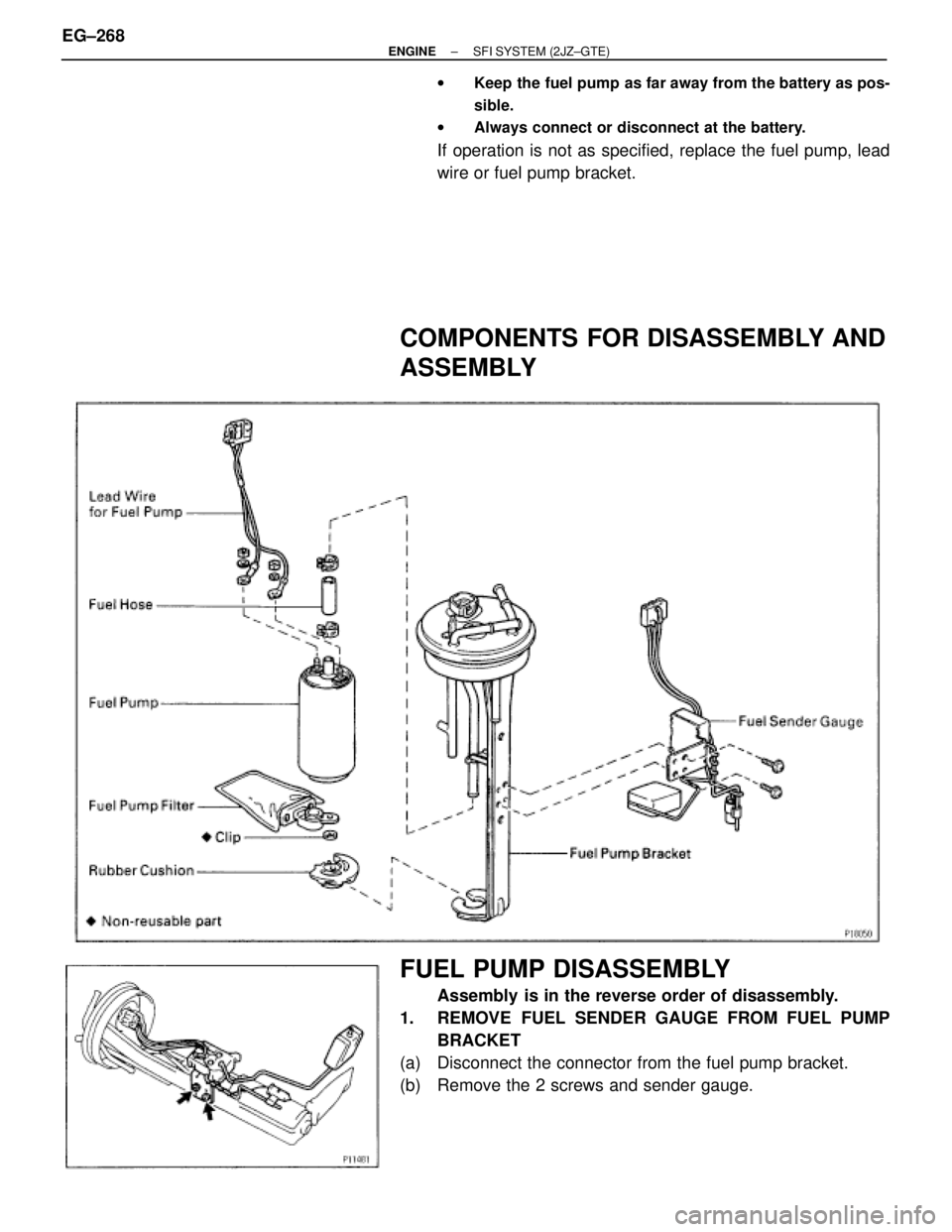

COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
FUEL PUMP DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP
BRACKET
(a) Disconnect the connector from the fuel pump bracket.
(b) Remove the 2 screws and sender gauge. EG±268
± ENGINESFI SYSTEM (2JZ±GTE)

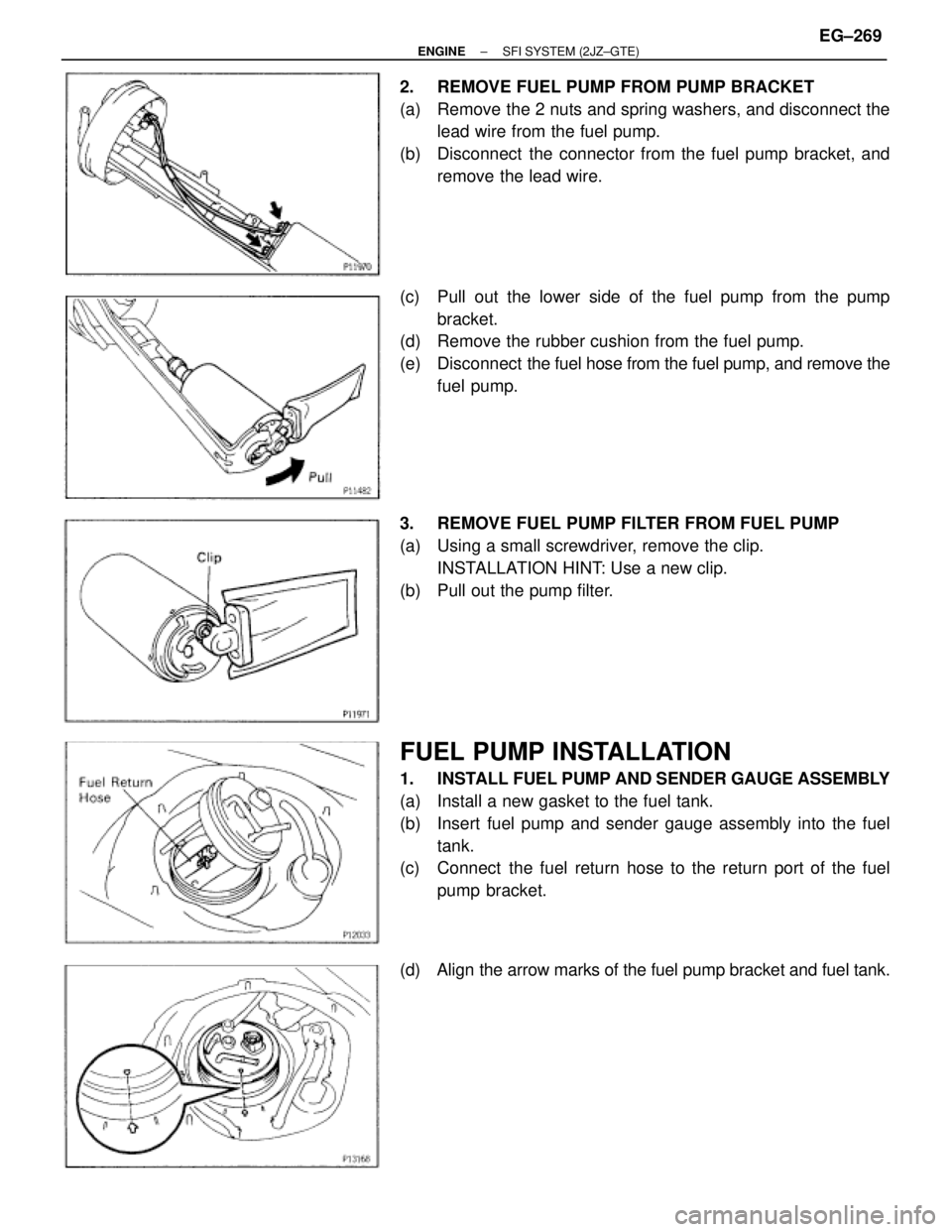

2. REMOVE FUEL PUMP FROM PUMP BRACKET
(a) Remove the 2 nuts and spring washers, and disconnect the
lead wire from the fuel pump.
(b) Disconnect the connector from the fuel pump bracket, and
remove the lead wire.
(c) Pull out the lower side of the fuel pump from the pump
bracket.
(d) Remove the rubber cushion from the fuel pump.
(e) Disconnect the fuel hose from the fuel pump, and remove the
fuel pump.
3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, remove the clip.
INSTALLATION HINT: Use a new clip.
(b) Pull out the pump filter.
FUEL PUMP INSTALLATION
1. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Install a new gasket to the fuel tank.
(b) Insert fuel pump and sender gauge assembly into the fuel
tank.
(c) Connect the fuel return hose to the return port of the fuel
pump bracket.
(d) Align the arrow marks of the fuel pump bracket and fuel tank.
± ENGINESFI SYSTEM (2JZ±GTE)EG±269

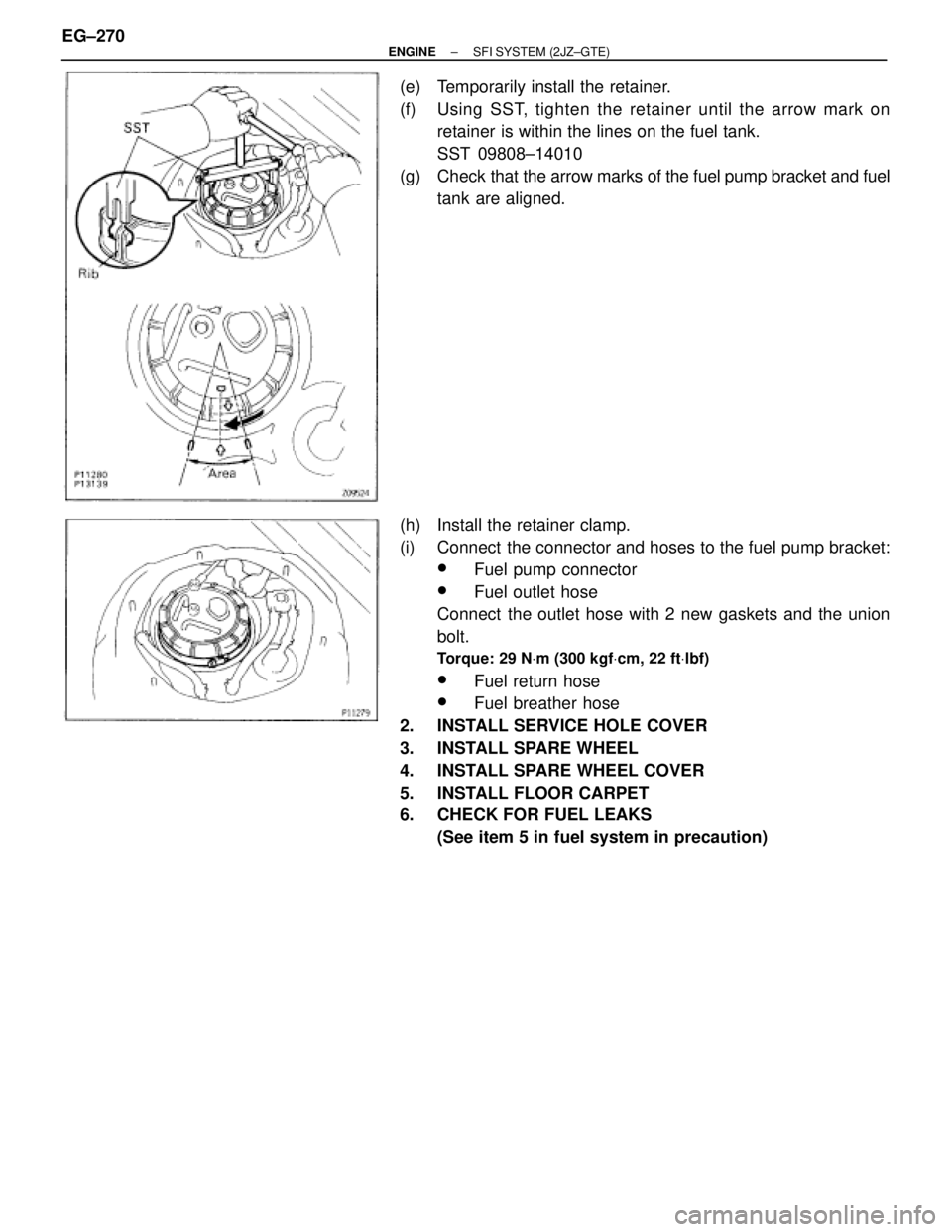

(e) Temporarily install the retainer.
(f) Using SST, tighten the retainer until the arrow mark on
retainer is within the lines on the fuel tank.
SST 09808±14010
(g) Check that the arrow marks of the fuel pump bracket and fuel
tank are aligned.
(h) Install the retainer clamp.
(i) Connect the connector and hoses to the fuel pump bracket:
wFuel pump connector
wFuel outlet hose
Connect the outlet hose with 2 new gaskets and the union
bolt.
Torque: 29 NVm (300 kgfVcm, 22 ftVlbf)
wFuel return hose
wFuel breather hose
2. INSTALL SERVICE HOLE COVER
3. INSTALL SPARE WHEEL
4. INSTALL SPARE WHEEL COVER
5. INSTALL FLOOR CARPET
6. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution) EG±270
± ENGINESFI SYSTEM (2JZ±GTE)

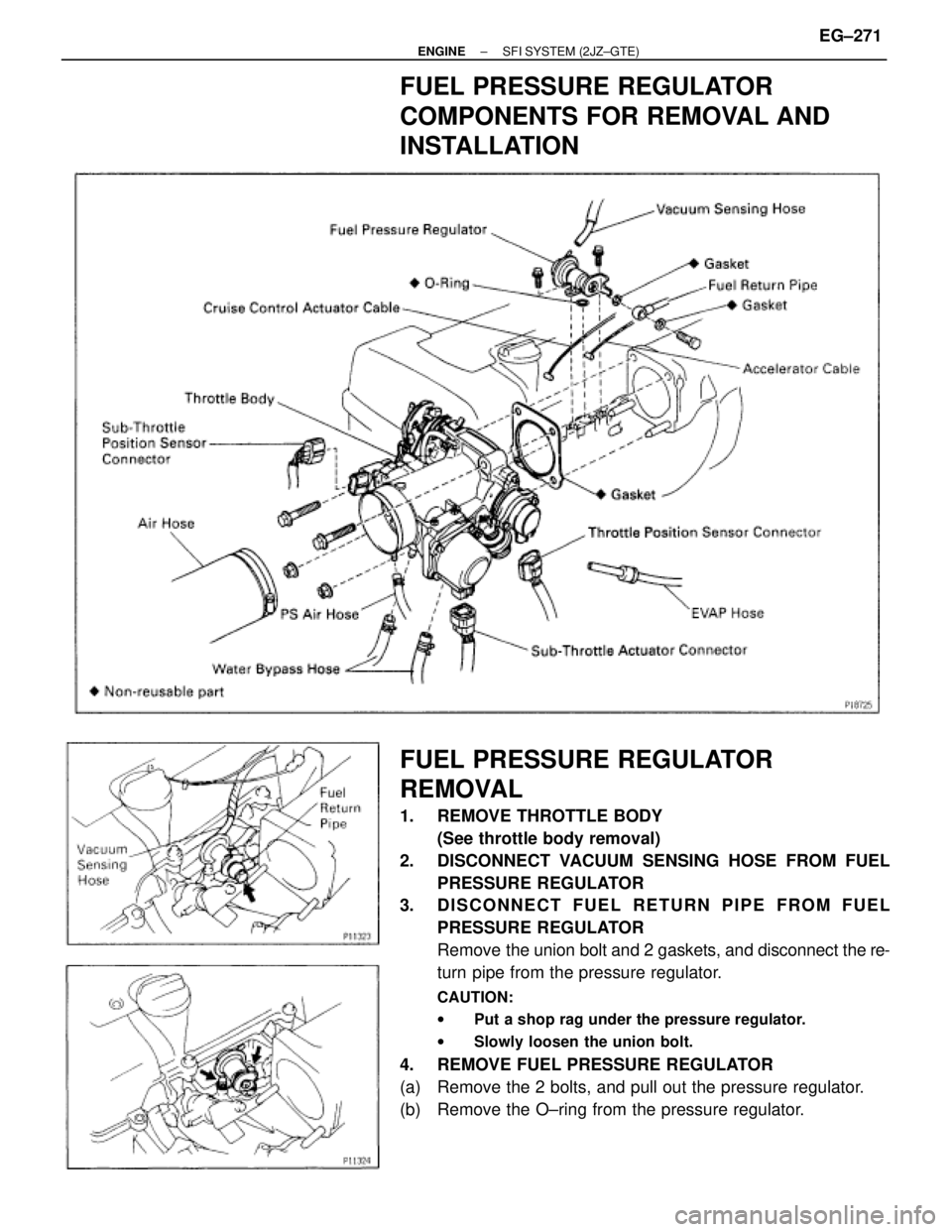

FUEL PRESSURE REGULATOR
COMPONENTS FOR REMOVAL AND
INSTALLATION
FUEL PRESSURE REGULATOR
REMOVAL
1. REMOVE THROTTLE BODY
(See throttle body removal)
2. DISCONNECT VACUUM SENSING HOSE FROM FUEL
PRESSURE REGULATOR
3. DISCONNECT FUEL RETURN PIPE FROM FUEL
PRESSURE REGULATOR
Remove the union bolt and 2 gaskets, and disconnect the re-
turn pipe from the pressure regulator.
CAUTION:
wPut a shop rag under the pressure regulator.
wSlowly loosen the union bolt.
4. REMOVE FUEL PRESSURE REGULATOR
(a) Remove the 2 bolts, and pull out the pressure regulator.
(b) Remove the O±ring from the pressure regulator.
± ENGINESFI SYSTEM (2JZ±GTE)EG±271

FUEL PRESSURE REGULATOR
INSTALLATION

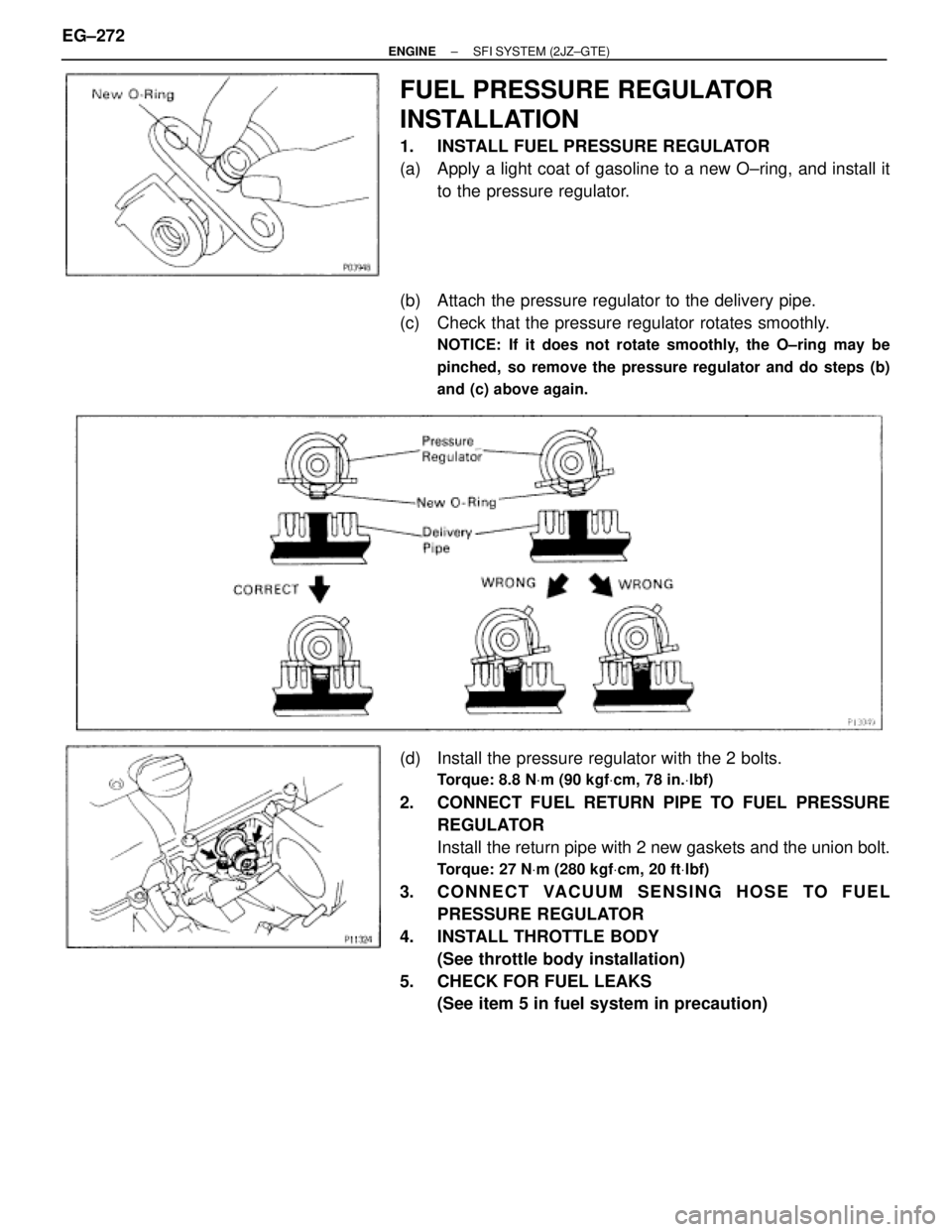

1. INSTALL FUEL PRESSURE REGULATOR
(a) Apply a light coat of gasoline to a new O±ring, and install it
to the pressure regulator.
(b) Attach the pressure regulator to the delivery pipe.
(c) Check that the pressure regulator rotates smoothly.
NOTICE: If it does not rotate smoothly, the O±ring may be
pinched, so remove the pressure regulator and do steps (b)
and (c) above again.
(d) Install the pressure regulator with the 2 bolts.
Torque: 8.8 NVm (90 kgfVcm, 78 in.Vlbf)
2. CONNECT FUEL RETURN PIPE TO FUEL PRESSURE
REGULATOR
Install the return pipe with 2 new gaskets and the union bolt.
Torque: 27 NVm (280 kgfVcm, 20 ftVlbf)
3. CONNECT VACUUM SENSING HOSE TO FUEL
PRESSURE REGULATOR
4. INSTALL THROTTLE BODY
(See throttle body installation)
5. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution) EG±272
± ENGINESFI SYSTEM (2JZ±GTE)

INJECTOR
ON±VEHICLE INSPECTION

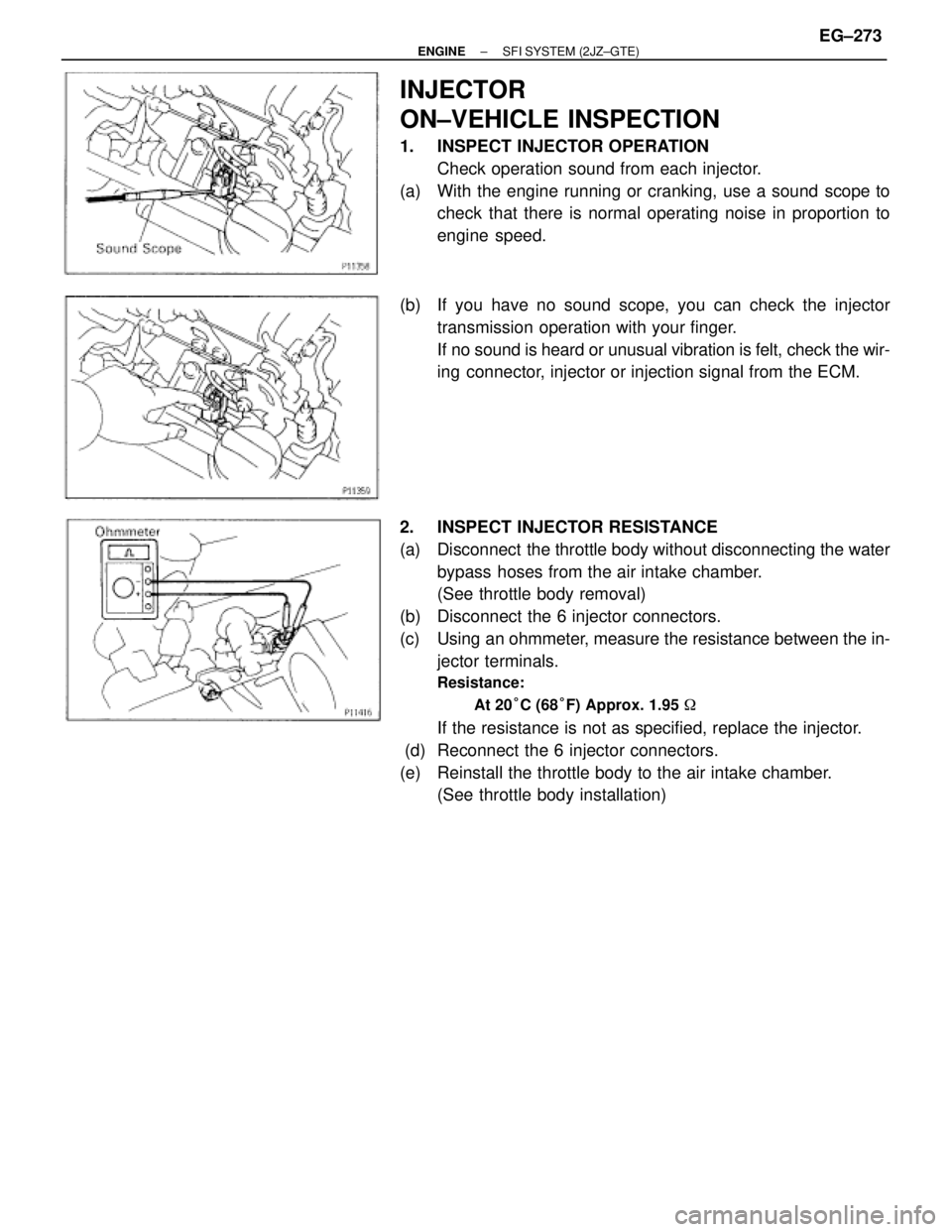

1. INSPECT INJECTOR OPERATION
Check operation sound from each injector.
(a) With the engine running or cranking, use a sound scope to
check that there is normal operating noise in proportion to
engine speed.
(b) If you have no sound scope, you can check the injector
transmission operation with your finger.
If no sound is heard or unusual vibration is felt, check the wir-
ing connector, injector or injection signal from the ECM.
2. INSPECT INJECTOR RESISTANCE
(a) Disconnect the throttle body without disconnecting the water
bypass hoses from the air intake chamber.
(See throttle body removal)
(b) Disconnect the 6 injector connectors.
(c) Using an ohmmeter, measure the resistance between the in-
jector terminals.
Resistance:
At 20°C (68°F) Approx. 1.95

If the resistance is not as specified, replace the injector.
(d) Reconnect the 6 injector connectors.
(e) Reinstall the throttle body to the air intake chamber.
(See throttle body installation)
± ENGINESFI SYSTEM (2JZ±GTE)EG±273

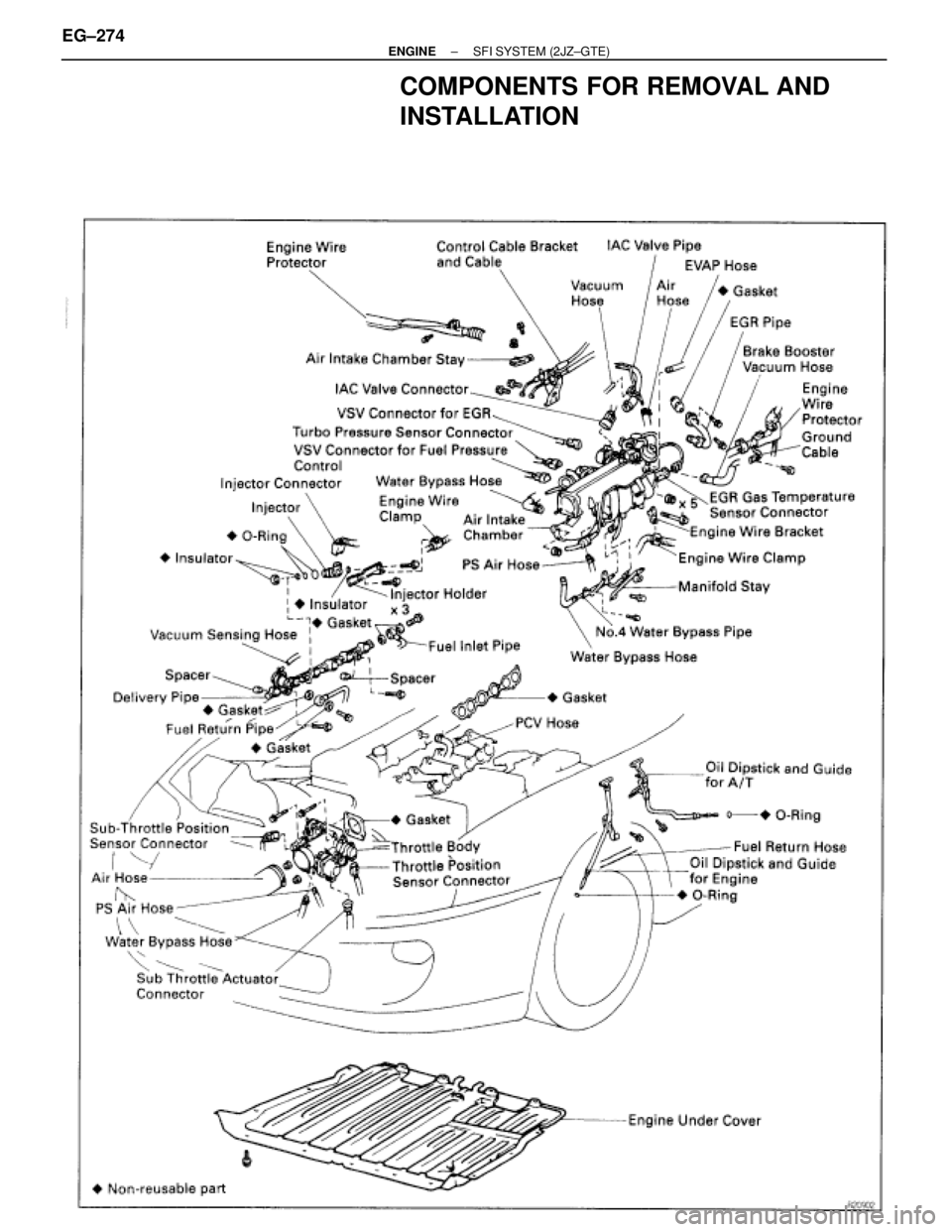

COMPONENTS FOR REMOVAL AND
INSTALLATION
EG±274± ENGINESFI SYSTEM (2JZ±GTE)

INJECTORS REMOVAL
Installation is in the reverse order of removal.
1. REMOVE ENGINE UNDER COVER
2. REMOVE THROTTLE BODY
(See throttle body removal)

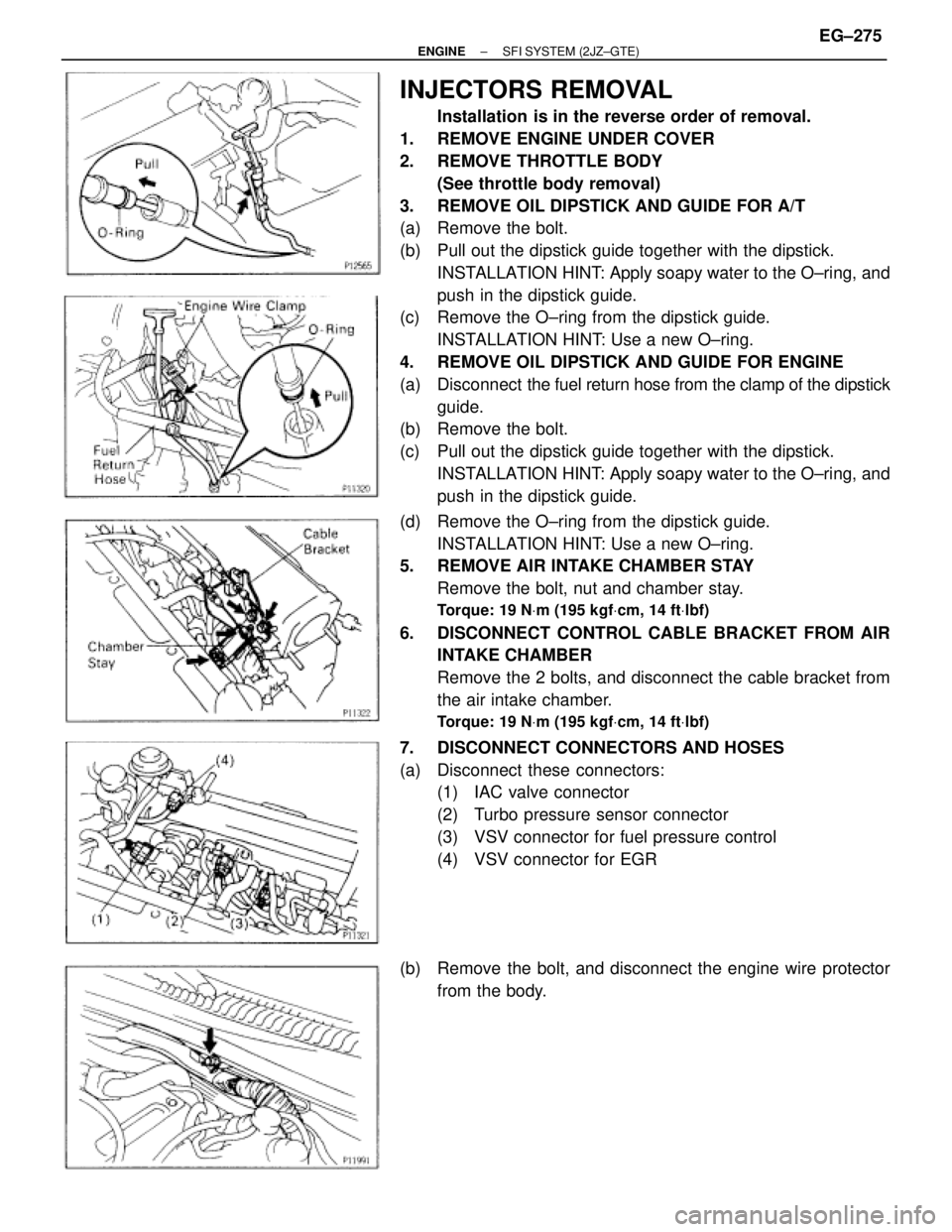

3. REMOVE OIL DIPSTICK AND GUIDE FOR A/T
(a) Remove the bolt.
(b) Pull out the dipstick guide together with the dipstick.
INSTALLATION HINT: Apply soapy water to the O±ring, and
push in the dipstick guide.
(c) Remove the O±ring from the dipstick guide.
INSTALLATION HINT: Use a new O±ring.
4. REMOVE OIL DIPSTICK AND GUIDE FOR ENGINE
(a) Disconnect the fuel return hose from the clamp of the dipstick
guide.
(b) Remove the bolt.
(c) Pull out the dipstick guide together with the dipstick.
INSTALLATION HINT: Apply soapy water to the O±ring, and
push in the dipstick guide.
(d) Remove the O±ring from the dipstick guide.
INSTALLATION HINT: Use a new O±ring.
5. REMOVE AIR INTAKE CHAMBER STAY
Remove the bolt, nut and chamber stay.
Torque: 19 NVm (195 kgfVcm, 14 ftVlbf)
6. DISCONNECT CONTROL CABLE BRACKET FROM AIR
INTAKE CHAMBER
Remove the 2 bolts, and disconnect the cable bracket from
the air intake chamber.
Torque: 19 NVm (195 kgfVcm, 14 ftVlbf)
7. DISCONNECT CONNECTORS AND HOSES
(a) Disconnect these connectors:
(1) IAC valve connector
(2) Turbo pressure sensor connector
(3) VSV connector for fuel pressure control
(4) VSV connector for EGR
(b) Remove the bolt, and disconnect the engine wire protector
from the body.
± ENGINESFI SYSTEM (2JZ±GTE)EG±275

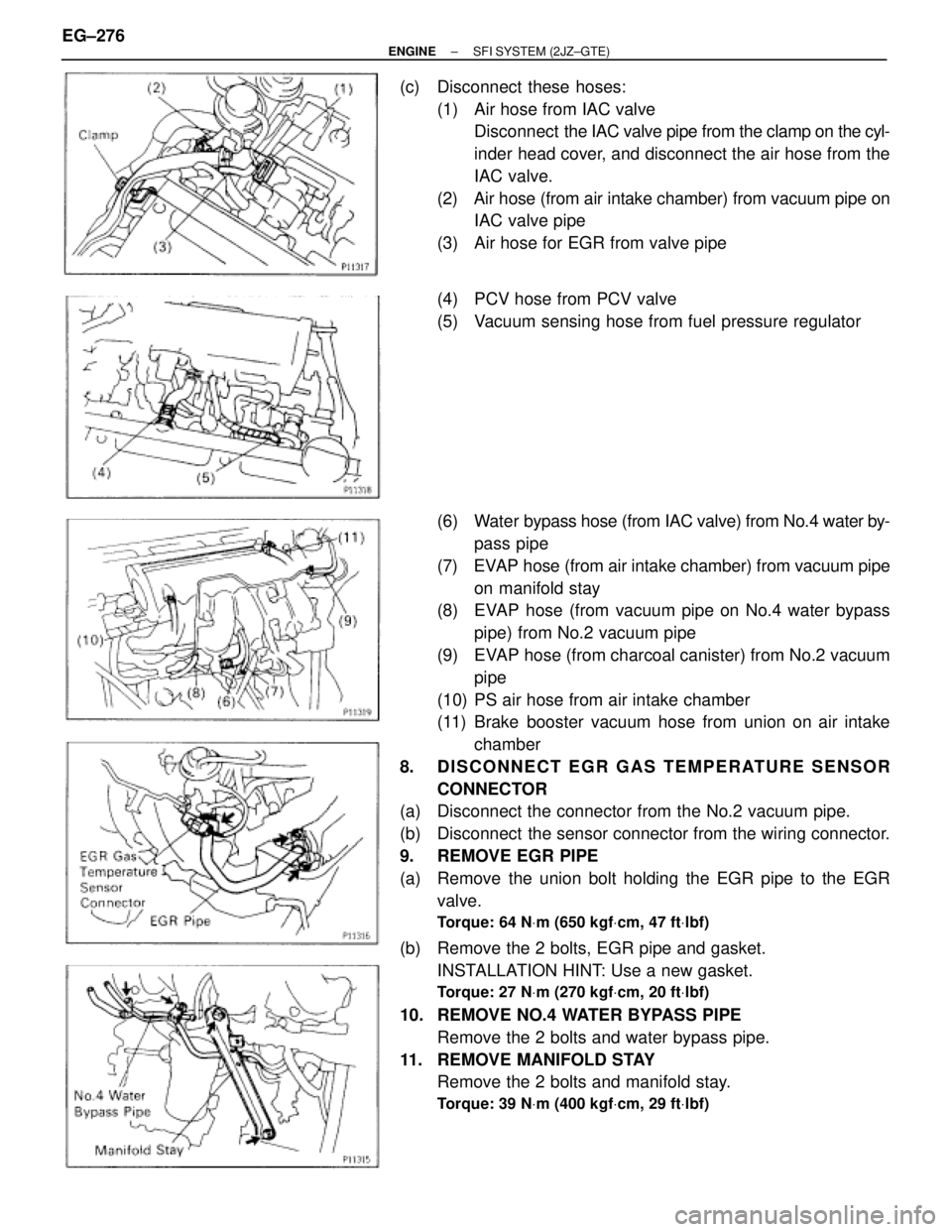

(c) Disconnect these hoses:
(1) Air hose from IAC valve
Disconnect the IAC valve pipe from the clamp on the cyl-
inder head cover, and disconnect the air hose from the
IAC valve.
(2) Air hose (from air intake chamber) from vacuum pipe on
IAC valve pipe
(3) Air hose for EGR from valve pipe
(4) PCV hose from PCV valve
(5) Vacuum sensing hose from fuel pressure regulator
(6) Water bypass hose (from IAC valve) from No.4 water by-
pass pipe
(7) EVAP hose (from air intake chamber) from vacuum pipe
on manifold stay
(8) EVAP hose (from vacuum pipe on No.4 water bypass
pipe) from No.2 vacuum pipe
(9) EVAP hose (from charcoal canister) from No.2 vacuum
pipe
(10) PS air hose from air intake chamber
(11) Brake booster vacuum hose from union on air intake
chamber
8. DISCONNECT EGR GAS TEMPERATURE SENSOR
CONNECTOR
(a) Disconnect the connector from the No.2 vacuum pipe.
(b) Disconnect the sensor connector from the wiring connector.
9. REMOVE EGR PIPE
(a) Remove the union bolt holding the EGR pipe to the EGR
valve.
Torque: 64 NVm (650 kgfVcm, 47 ftVlbf)
(b) Remove the 2 bolts, EGR pipe and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 27 NVm (270 kgfVcm, 20 ftVlbf)
10. REMOVE NO.4 WATER BYPASS PIPE
Remove the 2 bolts and water bypass pipe.
11. REMOVE MANIFOLD STAY
Remove the 2 bolts and manifold stay.
Torque: 39 NVm (400 kgfVcm, 29 ftVlbf)
