TOYOTA SUPRA 1995 Service Repair Manual

JOINT ANGLE INSPECTION AND
ADJUSTMENT
NOTICE: When doing operations which involve the re-
moval and installation of the propeller shaft, always
check the joint. Make adjustments if necessary.
1. STABILIZE PROPELLER SHAFT AND DIFFERENTIAL
(a) Turn the propeller shaft several times by hand to stabilize the
center support bearing and flexible couplings.
(b) Using a jack, raise and lower the differential to stabilize the
differential mounting cushion.
2. CHECK JOINT ANGLE OF NO.2 JOINT AND NO.3 JOINT
(a) Using SST, measure the installation angle of the intermediate
shaft and propeller shaft.
SST 09370±50010
HINT: The SST should be directly underneath the tube.
(b) Using SST, measure the installation angle of the differential.
SST 09370±50010
HINT: Measure the installation angle by placing the SST in
the position, as shown in the illustration.
± PROPELLER SHAFTPROPELLER SHAFTPR±17

(c) Calculate the No.2 joint angle.
No.2 joint angle:
A ± B = ±1° 09' + 36'
A: Intermediate shaft installation angle
B: Propeller shaft installation angle
(d) Calculate the No.3 joint angle.
No.3 joint angle:
B ± C = 44' + 36'
B: Propeller shaft installation angle
C: Differential installation angle
If the measured angle is not within the specification, adjust
it with the center support bearing adjusting washer, differen-
tial mount upper stopper and adjusting shim. PR±18
± PROPELLER SHAFTPROPELLER SHAFT







Thickness
mm (in.)
 Remarks

 Center supportAdjusting
2.0 (0.079)
4.0 (0.157)
Left and right washers should be the same
thickness.


Center su ort
bearing
Adjusting
washer
4.0 (0.157)
6.0 (0.236)
8.5 (0.335)
thickness.

2 washers should not be assembled together.

Some vehicles are not assembled with washers.

DifferentialAdjusting
1.0 (0.039)
1 6 (0 063)

Left and right washers should be the same thickness

This slim is installed on topof the mount upper stopper

DifferentialAdjusting1.6 (0.063)
2.0 (0.079)

This slim is installed on top of the mount upper stopper.
and is used for adjustment.
ADJUSTMENT CHART
HOW TO READ THIS CHART
Take measurements, then calculate the No.2 and No 3 joint
angle.
Mark the calculated values on the chart and read the coordi-
nates.
Replace the adjusting washer, shim and mount upper stop-
per in accordance with the coordinates read and adjust the
joint angles.
Example
Measurements (Installation angle):
Intermediate shaft 1° 50'
Propeller shaft 2° 14'
Differential 2° 15'
Joint angle:
NO.2 1° 50' ± 2° 14' = ±24'
NO.3 2° 14' ± 2° 15' = ±1'
Adjustment:
Center support bearing
Standard parts 4 mm ± 2 mm = 2 mm
Use adjusting washers which are 2 mm (0.079 in.)
thicker.
Differential
Use adjusting shims which are 1.6 mm (0.063 in.)
thicker.
± PROPELLER SHAFTPROPELLER SHAFTPR±19

HINT:
wMaintain the same thickness for the adjusting washers
and adjusting shims on both the left and right sides.
wIf a washer, stopper and shim of the exact thickness are
not available, use the parts which are nearest in
thickness.
NOTICE: Check the joint angle once again after making
the adjustment. PR±20
± PROPELLER SHAFTPROPELLER SHAFT

± PROPELLER SHAFTPROPELLER SHAFTPR±21

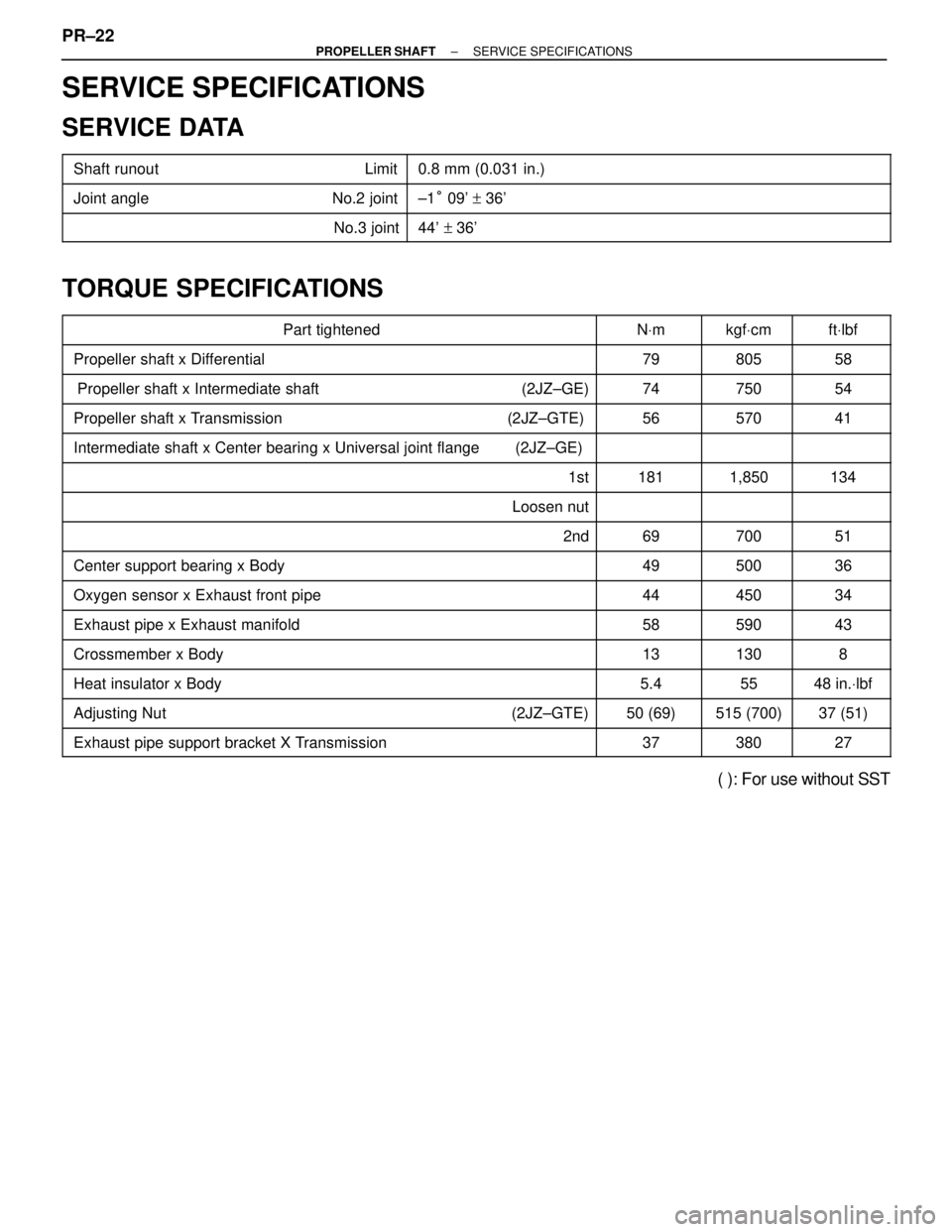

SERVICE SPECIFICATIONS
SERVICE DATA
 Shaft runout Limit 0.8 mm (0.031 in.)
 Joint angle No.2 joint ±1° 09' + 36'


No.3 joint

 44' +36'
TORQUE SPECIFICATIONS
 Part tightened NVm kgfVcm ftVlbf
 Propeller shaft x Differential 79 805 58
 Propeller shaft x Intermediate shaft (2JZ±GE) 74 750 54
 Propeller shaft x Transmission (2JZ±GTE)

 56

 570

 41
 Intermediate shaft x Center bearing x Universal joint flange (2JZ±GE)
 1st 181 1,850 134
 Loosen nut

 2nd

 69

 700

 51
 Center support bearing x Body 49 500 36
 Oxygen sensor x Exhaust front pipe 44 450 34
 Exhaust pipe x Exhaust manifold 58 590 43 Crossmember x Body 13 130 8
 Heat insulator x Body

 5.4

 55

 48 in.Vlbf
 Adjusting Nut (2JZ±GTE) 50 (69) 515 (700) 37 (51)
 Exhaust pipe support bracket X Transmission 37 380 27
( ): For use without SST PR±22
± PROPELLER SHAFTSERVICE SPECIFICATIONS

09205±76030Cylinder Head Setting Bolt
Tightening Adaptor
09268±41045Injection Measuring Tool Set
(09268±41070)No.4 Union
(09268±41090)No.7 Union
(90405±09015)No.1 Union
09268±45012 EFI Fuel Pressure Gauge
ECT sensor
09612±24014 Steering Gear Housing Overhaul
Tool Set
(09617±24011) Steering Rack Wrench
09631±22020 Power Steering Hose Nut
14 x 17 mm Wrench Set
09808±14010Fuel Sender Gauge Tool Assy
09816±30010 Oil Pressure Switch Socket
09842±30070 Wiring ªFº EFI InspectionInjector
Knock sensor
Fuel line flare nut
Fuel pressure pulsation damper
SFI SYSTEM (2JZ±GE)
PREPARATION
SST (SPECIAL SERVICE TOOLS)
± ENGINESFI SYSTEM (2JZ±GE)EG±187

09843±18020 Diagnostic Check Wire
09990±01000Engine Control Computer Check
Harness ªAº

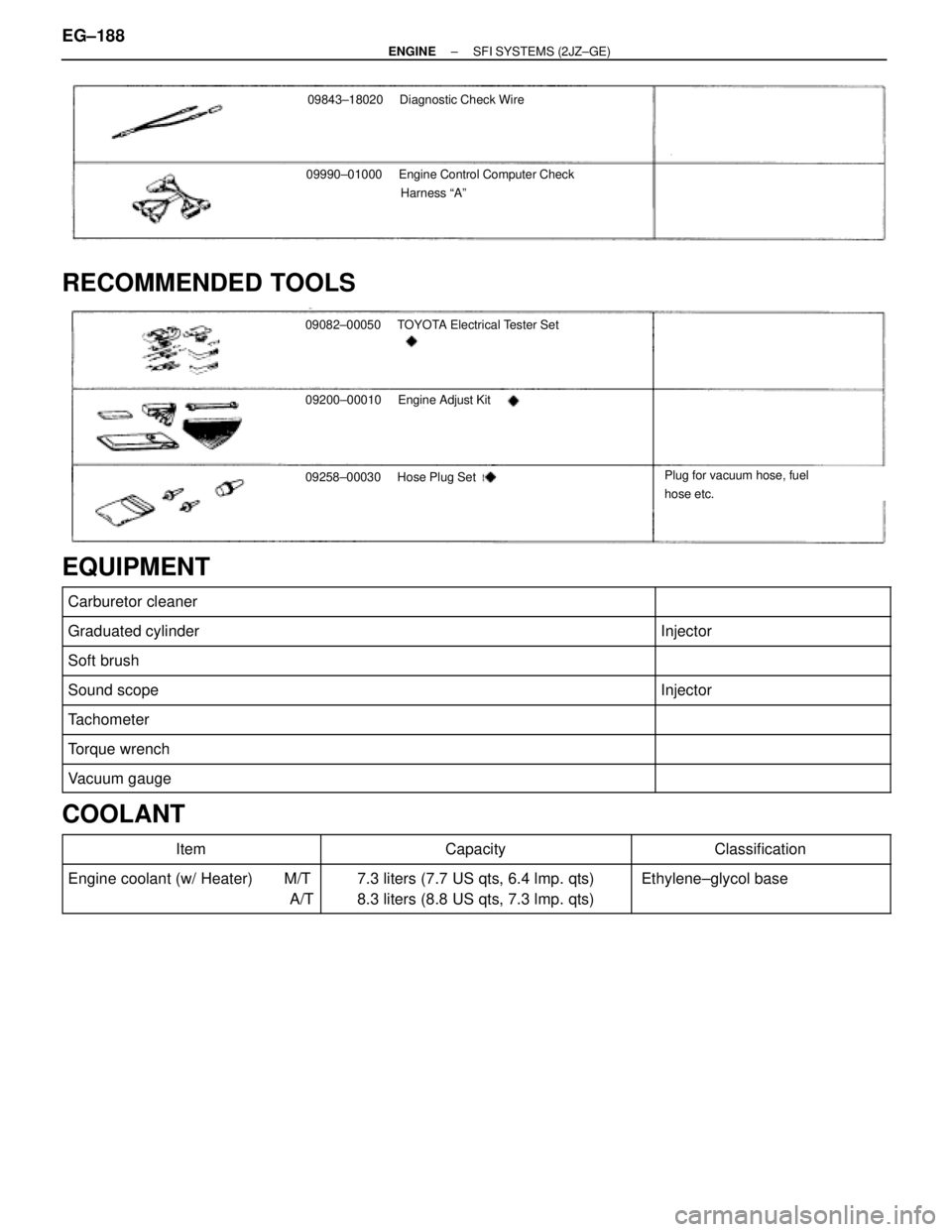

RECOMMENDED TOOLS
09082±00050 TOYOTA Electrical Tester Set
09200±00010Engine Adjust Kit
09258±00030 Hose Plug SetPlug for vacuum hose, fuel
hose etc.
EQUIPMENT
 Carburetor cleaner

 Graduated cylinder
 Injector
 Soft brush
 Sound scope Injector
 Tachometer
 Torque wrench

 Vacuum gauge


COOLANT
 Item

 Capacity

 Classification


Engine coolant (w/ Heater) M/T
A/T

7.3 liters (7.7 US qts, 6.4 lmp. qts)
8.3 liters (8.8 US qts, 7.3 lmp. qts)

Ethylene±glycol base
EG±188± ENGINESFI SYSTEMS (2JZ±GE)

PRECAUTION
