’00 Tacoma(U)
11 4
Reference

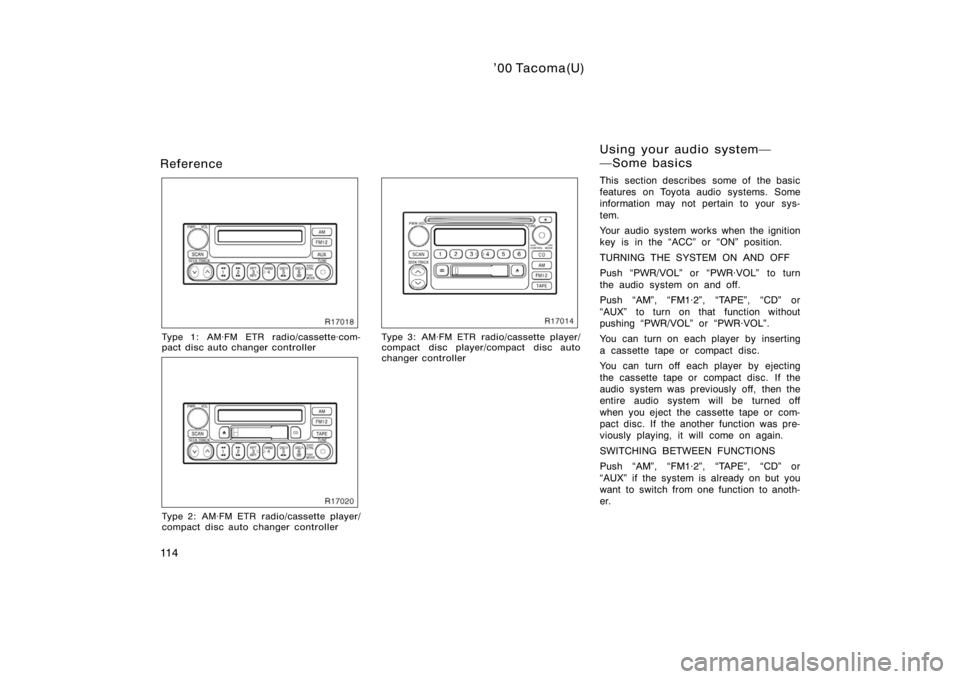

Type 1: AM·FM ETR radio/cassette·com-
pact disc auto changer controller
Type 2: AM·FM ETR radio/cassette player/
compact disc auto changer controller
Type 3: AM·FM ETR radio/cassette player/
compact disc player/compact disc auto
changer controller
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACC" or ON" position.
TURNING THE SYSTEM ON AND OFF
Push PWR/VOL" or PWR·VOL" to turn
the audio system on and off.
Push AM", FM1·2", TAPE", CD" or
AUX" to turn on that function without
pushing PWR/VOL" or PWR·VOL".
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AM", FM1·2", TAPE", CD" or
AUX" if the system is already on but you
want to switch from one function to anoth-
er.
Using your audio system
Some basics

’00 Tacoma(U)
11 5
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
To remove an antenna, carefully turn it
counterclockwise.
To lower the power antenna, turn off the
audio system by pushing PWR/VOL" or
PWR·VOL", or turn the ignition key to
LOCK".
On some models, the power antenna auto-
matically retracts when the radio mode is
switched off to turn on the cassette tape
player.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
On models with the compact disc auto
changer, next disc will be played from
track 1.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
The player is intended for use with 12 cm
(5 in.) discs only.

’00 Tacoma(U)
11 6
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
Controls and features

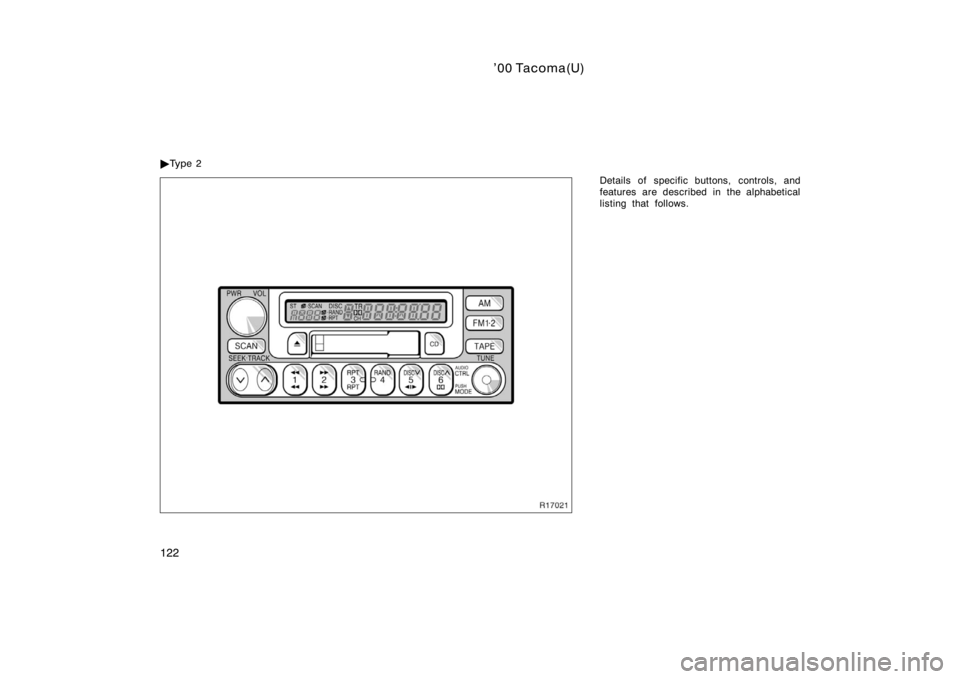

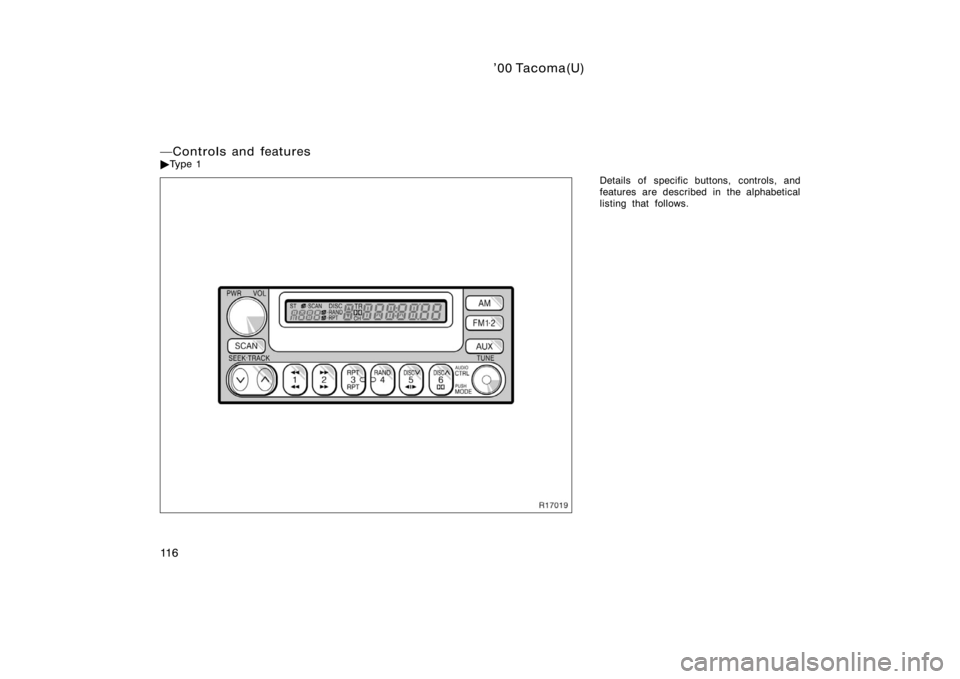

Ty p e 1

’00 Tacoma(U)
11 7
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNE" knob or
SEEK" button). Push and hold down the
button until you hear a beepthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AM", FM1" or FM2" when you
push AM" FM1·2").
(Program)
Push
" to select the other side of a
cassette tape. The display indicates which
side is currently selected (
" indicates
top side,
" indicates bottom side).
Auto−reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FF" will appear on
the display. Push the reverse button to
rewind a tape. REW" will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPE"; to stop the tape while it is re-
winding, push the reverse button or
TAPE".
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto−re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing. AM
Push AM" to turn on the radio and select
the AM band. AM" will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AM". Also, push
AM" to switch from cassette or compact
disc operation to radio operation.
CTRL / MODE (Audio control and mode
adjustment)
Manual tone adjustment function
This knob is used to adjust the tone
manually.
For low−pitch tone adjustment, push
CTRL / MODE" repeatedly until BAS"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
BAS −5" to BAS 5".
For high−pitch tone adjustment, push
CTRL / MODE" repeatedly until TRE"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
TRE −5" to TRE 5".

’00 Tacoma(U)
11 8
Sound balance adjustment function
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push CTRL /
MODE" repeatedly until FAd" appears on
the display. Then turn the knob to adjust
the front/rear balance.
The display will show the range from
FAd−F7" to FAd−R7".
For left/right adjustment, push CTRL /
MODE" repeatedly until BAL" appears on
the display. Then turn the knob to adjust
the left/right balance.
The display will show the range from
BAL−L7" to BAL−R7".
AUX (Auxiliary button)
This button is used to operate each player
when a cassette tape player, compact disc
player or compact disc auto changer is
equipped with this radio player.
With cassette tape player
Push AUX" to switch from radio to cas-
sette operation. If the audio system is off,
you can turn on the cassette player by
pushing AUX". In both cases, a cassette
must already be loaded in the player.With compact disc player or compact
disc auto changer
Push AUX" to switch from radio to com-
pact disc operation. If the audio system is
off, you can turn on the compact disc
player by pushing AUX". In both cases,
a disc must already be loaded in the
player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push AUX", the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAIT" appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1" appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
If Err 2" appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc. If Err 3" or Err 4" appears on the
display,
it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEn" appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
Compact disc auto changer only
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double−D
symbol. The double−D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.

’00 Tacoma(U)
11 9
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBY" and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM1·2
Push FM1·2" to turn on the radio and
select the FM band. FM1" or FM2" will
appear on the display. This system allows
you to set twelve FM stations, two for
each button.
If the audio system is off, you can turn
on the radio by pushing FM1·2". Also,
push FM1·2" to switch from cassette or
compact disc operation to radio operation.
PWR/VOL (Power/Volume)
Push PWR/VOL" to turn the audio system
on and off. Turn PWR/VOL" to adjust the
volume.
RAND (Random)
There are two random featuresyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order. To randomly play the tracks on the disc:
Quickly push and release RAND". RAND"
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push
RAND" again.
Compact disc auto changer only
To randomly play all the tracks in the
magazine:
Push and hold RAND" until you hear a
beep.
·RAND" will appear on the dis-
play and the player will perform all the
tracks on all the discs in the magazine in
random order. To turn off the random fea-
ture, push RAND" again.
RPT (Repeat)
Cassette Player
Push RPT" while the track is playing.
RPT" will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly. Compact Disc Player
There are two repeat featuresyou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release RPT" while the
track is playing. RPT" will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer only
Repeating a disc:
Push and hold RPT" until you hear a
beep.
·RPT" will appear on the dis-
play. The player will repeat all the tracks
on the disc you are listening to. When the
disc ends, the player will automatically go
back to the top track of the disc and
replay. This process will be continued until
you push the button again to turn off the
repeat feature.

’00 Tacoma(U)
120
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCAN" until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCAN" again.
To scan all the frequencies:
Quickly push and release SCAN". If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCAN" again.
Compact disc player
There are two scan featuresyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.Scanning the tracks on a disc:
Quickly push and release SCAN". SCAN"
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCAN" again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc auto changer only
Scanning the first track of all the discs in
the magazine:
Push SCAN" until you hear a beep.

·SCAN" will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCAN" again. If the player has
scanned all the di scs, it will stop scan-
ning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the  " or  " under the SEEK".
Do this again to find another station. Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
FF 1" or REW 1" will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until REW
3" appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.

’00 Tacoma(U)
121

After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. ST" appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly. TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

’00 Tacoma(U)
122
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.

Ty p e 2

’00 Tacoma(U)
123
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNE" knob or
SEEK" button). Push and hold down the
button until you hear a beepthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AM", FM1" or FM2" when you
push AM" FM1·2").
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCK", you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push
" to select the other side of a
cassette tape. The display indicates which
side is currently selected (
" indicates
top side,
" indicates bottom side).
Auto−reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FF" will appear on
the display. Push the reverse button to
rewind a tape. REW" will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPE"; to stop the tape while it is re-
winding, push the reverse button or
TAPE".
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto−re-
verse feature. Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AM" to turn on the radio and select
the AM band. AM" will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AM". Also, push
AM" to switch from cassette or compact
disc operation to radio operation.
CTRL / MODE (Audio control and mode
adjustment)
Manual tone adjustment function
This knob is used to adjust the tone
manually.
For low−pitch tone adjustment, push
CTRL / MODE" repeatedly until BAS"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
BAS −5" to BAS 5".
