TOYOTA TACOMA 2014 Owners Manual (in English)

301
3-2. Using the multimedia system
3
Interior and exterior features

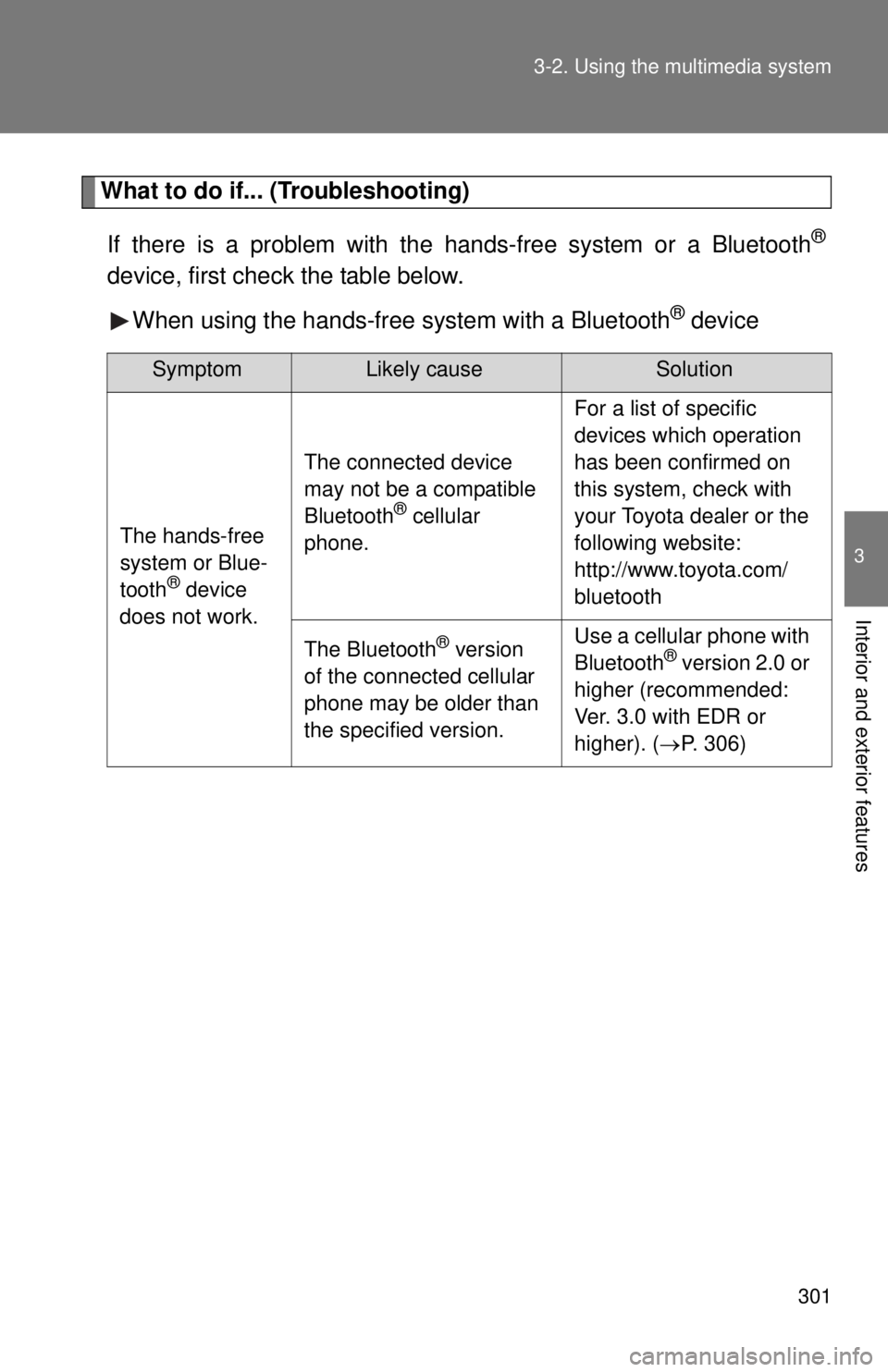

What to do if... (Troubleshooting)
If there is a problem with the hands-free system or a Bluetooth
®
device, first check the table below. When using the hands-free system with a Bluetooth
® device
SymptomLikely causeSolution
The hands-free
system or Blue-
tooth
® device
does not work.
The connected device
may not be a compatible
Bluetooth
® cellular
phone.
For a list of specific
devices which operation
has been confirmed on
this system, check with
your Toyota dealer or the
following website:
http://www.toyota.com/
bluetooth
The Bluetooth® version
of the connected cellular
phone may be older than
the specified version.Use a cellular phone with
Bluetooth® version 2.0 or
higher (recommended:
Ver. 3.0 with EDR or
higher). ( P. 306)

302 3-2. Using the multimedia system

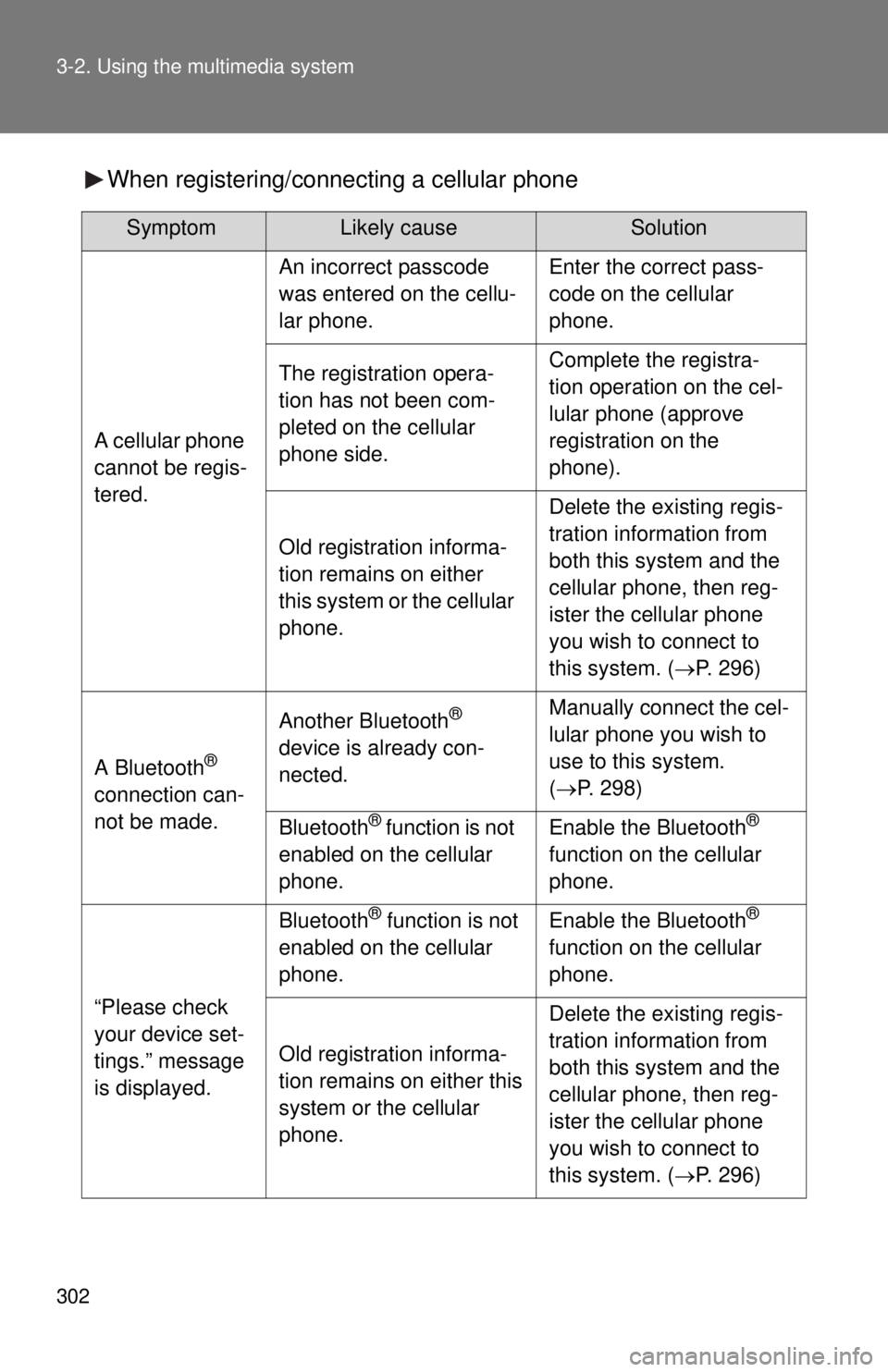

When registering/connecting a cellular phone
SymptomLikely causeSolution
A cellular phone
cannot be regis-
tered.
An incorrect passcode
was entered on the cellu-
lar phone.Enter the correct pass-
code on the cellular
phone.
The registration opera-
tion has not been com-
pleted on the cellular
phone side.Complete the registra-
tion operation on the cel-
lular phone (approve
registration on the
phone).
Old registration informa-
tion remains on either
this system or the cellular
phone.
Delete the existing regis-
tration information from
both this system and the
cellular phone, then reg-
ister the cellular phone
you wish to connect to
this system. (P. 296)
A Bluetooth®
connection can-
not be made.
Another Bluetooth®
device is already con-
nected.Manually connect the cel-
lular phone you wish to
use to this system.
( P. 298)
Bluetooth® function is not
enabled on the cellular
phone.Enable the Bluetooth®
function on the cellular
phone.
“Please check
your device set-
tings.” message
is displayed.
Bluetooth® function is not
enabled on the cellular
phone.Enable the Bluetooth®
function on the cellular
phone.
Old registration informa-
tion remains on either this
system or the cellular
phone.
Delete the existing regis-
tration information from
both this system and the
cellular phone, then reg-
ister the cellular phone
you wish to connect to
this system. ( P. 296)

303
3-2. Using the multimedia system
3
Interior and exterior features

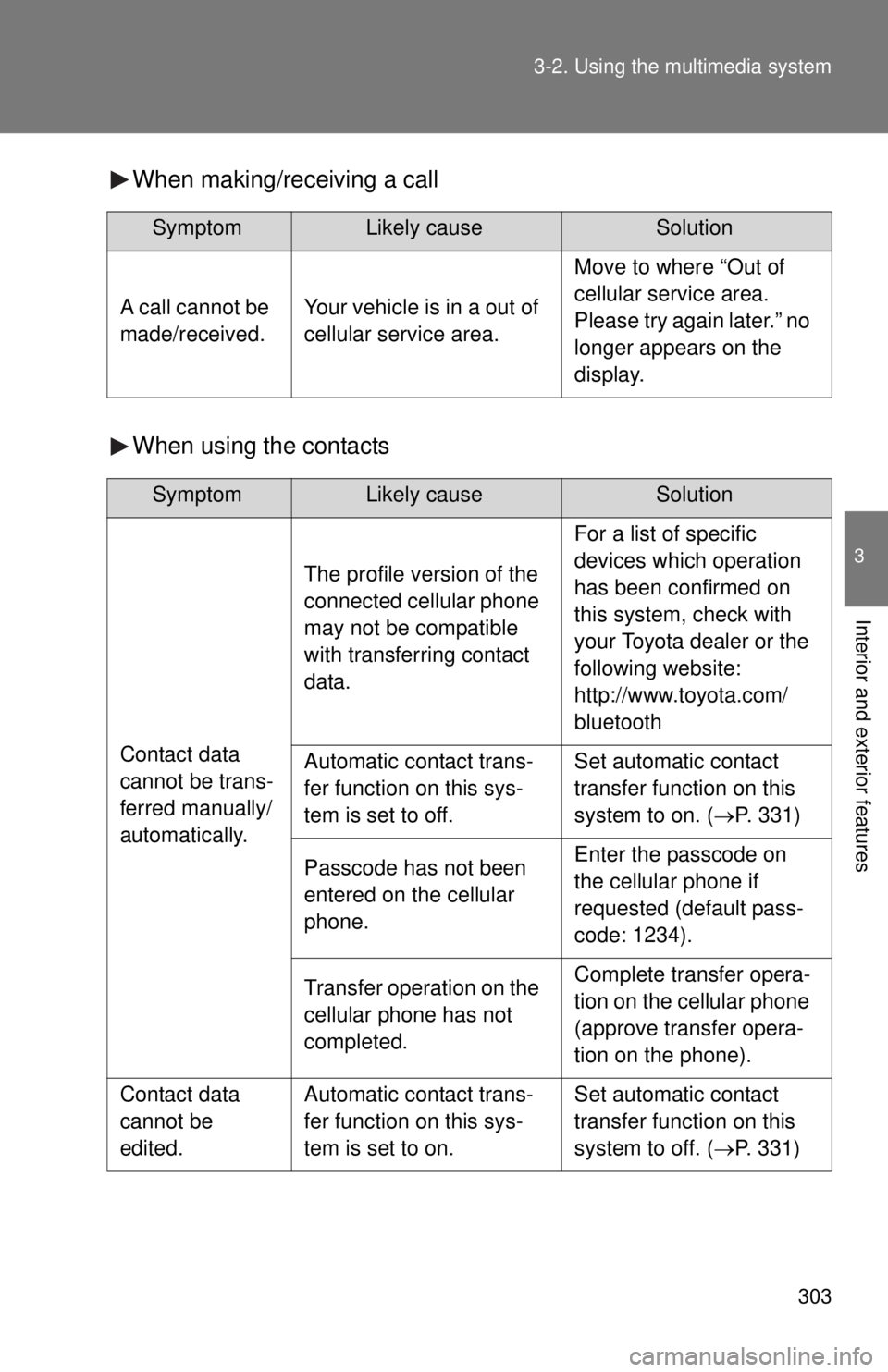

When making/receiving a call
When using the contacts
SymptomLikely causeSolution
A call cannot be
made/received.Your vehicle is in a out of
cellular service area.
Move to where “Out of
cellular service area.
Please try again later.” no
longer appears on the
display.
SymptomLikely causeSolution
Contact data
cannot be trans-
ferred manually/
automatically.
The profile version of the
connected cellular phone
may not be compatible
with transferring contact
data.
For a list of specific
devices which operation
has been confirmed on
this system, check with
your Toyota dealer or the
following website:
http://www.toyota.com/
bluetooth
Automatic contact trans-
fer function on this sys-
tem is set to off.Set automatic contact
transfer function on this
system to on. (
P. 331)
Passcode has not been
entered on the cellular
phone.Enter the passcode on
the cellular phone if
requested (default pass-
code: 1234).
Transfer operation on the
cellular phone has not
completed.Complete transfer opera-
tion on the cellular phone
(approve transfer opera-
tion on the phone).
Contact data
cannot be
edited.Automatic contact trans-
fer function on this sys-
tem is set to on.Set automatic contact
transfer function on this
system to off. (P. 331)

304 3-2. Using the multimedia system

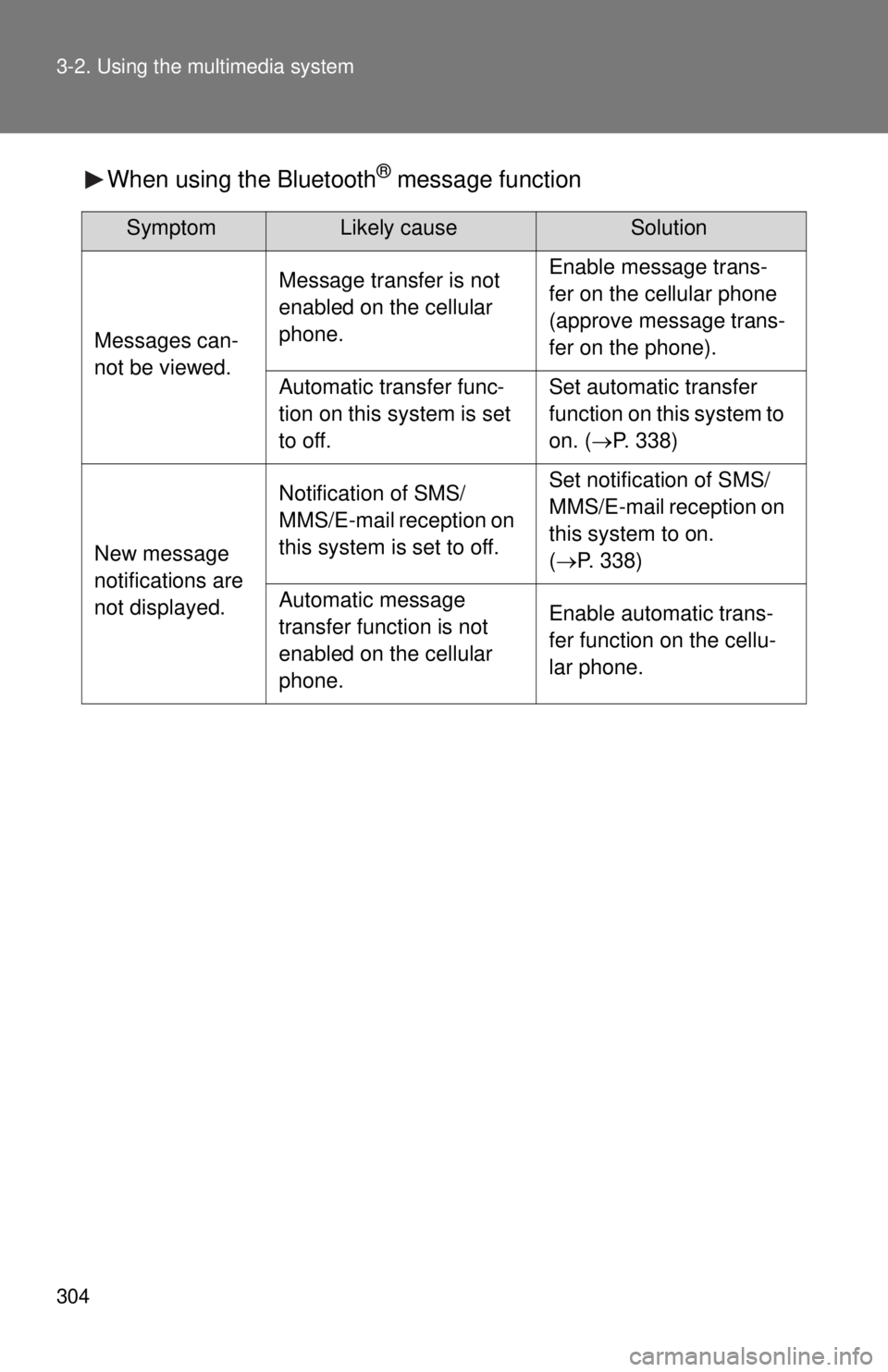

When using the Bluetooth® message function
SymptomLikely causeSolution
Messages can-
not be viewed.
Message transfer is not
enabled on the cellular
phone.Enable message trans-
fer on the cellular phone
(approve message trans-
fer on the phone).
Automatic transfer func-
tion on this system is set
to off.Set automatic transfer
function on this system to
on. (P. 338)
New message
notifications are
not displayed.
Notification of SMS/
MMS/E-mail reception on
this system is set to off.Set notification of SMS/
MMS/E-mail reception on
this system to on.
(P. 338)
Automatic message
transfer function is not
enabled on the cellular
phone.Enable automatic trans-
fer function on the cellu-
lar phone.

305
3-2. Using the multimedia system
3
Interior and exterior features

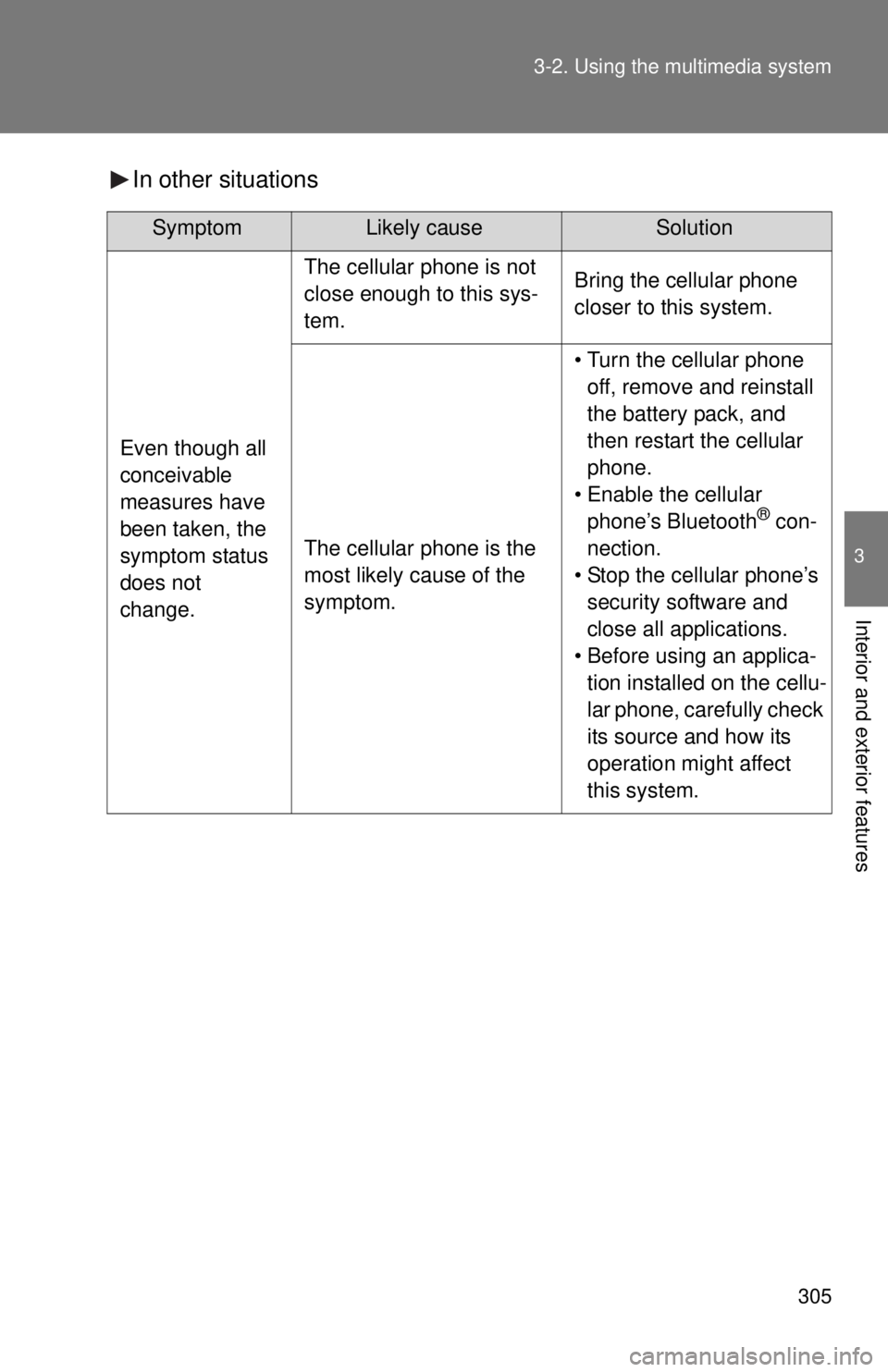

In other situations
SymptomLikely cause Solution
Even though all
conceivable
measures have
been taken, the
symptom status
does not
change.
The cellular phone is not
close enough to this sys-
tem.Bring the cellular phone
closer to this system.
The cellular phone is the
most likely cause of the
symptom.
• Turn the cellular phone
off, remove and reinstall
the battery pack, and
then restart the cellular
phone.
• Enable the cellular phone’s Bluetooth
® con-
nection.
• Stop the cellular phone’s security software and
close all applications.
• Before using an applica- tion installed on the cellu-
lar phone, carefully check
its source and how its
operation might affect
this system.

306 3-2. Using the multimedia system
Bluetooth®
■About Bluetooth®
■When using the Bluetooth® audio system
● In the following conditions, the system may not function.
• If the portable audio player is turned off
• If the portable audio player is not connected
• If the portable audio player’s battery is low
● There may be a delay if a cellular phone connection is made during
Bluetooth
® audio play.
● Depending on the type of portable audio player that is connected to the
system, operation may differ slightly and certain functions may not be
available.
■ When using the hands-free system
●The multimedia system is muted when making a call.
● If both parties speak at the same time, it may be difficult to hear.
● If the received call volume is overly loud, an echo may be heard.
If the Bluetooth
® phone is too close to the system, quality of the sound
may deteriorate and connection status may deteriorate.
● In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• If a window is open
• If the air conditioning is blowing directly on the microphone
• If there is interference from the network of the cellular phone
The Bluetooth® word mark and logos are
registered trademarks owned Bluetooth
SIG, Inc. and any use of such marks by
Panasonic Corporation is under license.
Other trademarks and trade names are
those of their respective owners.

307
3-2. Using the multimedia system
3
Interior and exterior features
■
Conditions under which th e system will not operate
● If using a cellular phone that does not support Bluetooth
®
●If the cellular phone is turned off
● If you are outside of cellular phone service coverage
● If the cellular phone is not connected
● If the cellular phone’s battery is low
● When outgoing calls are controlled, due to heavy traffic on telephone
lines, etc.
● When the cellular phone itself cannot be used
● When transferring contact data from the cellular phone
■ Bluetooth
® antenna
The antenna is built into the display.
If the portable audio player is behind the seat or in the glove box or console
box, or is touching or covered by metal objects, the connection status may
deteriorate.
If the cellular phone is behind the seat or in the console box, or touching or
covered by metal objects, the connection status may deteriorate.
■ Battery charge/signal status
●This display may not correspond exactly with the portable audio player or
cellular phone itself.
● This system does not have a charging function.
● The portable audio player or cellular phone battery will be depleted
quickly when the device is connected to Bluetooth
®.
■ When using the Bluetooth
® audio and hands-free system at the same
time
The following problems may occur.
● The Bluetooth
® audio connection may be interrupted.
● Noise may be heard during Bluetooth
® audio playback.

308 3-2. Using the multimedia system
■About the contact in this system
The following data is stored for every registered cellular phone. When
another phone is connecting, you cannot read the registered data.
●Contact data
● Call history
● Favorite
● Message
When removing a Bluetooth
® phone from the system, the above-mentioned
data is also deleted.
■ Compatible models
The Bluetooth
® audio system supports portable audio players with the fol-
lowing specifications
● Bluetooth
® specifications:
Ver. 2.0, or higher (Recommended: Ver. 3.0+EDR or higher)
● Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher
(Recommended: Ver. 1.2 or higher)
This is a profile to transmit stereo audio or high quality sound to the
multimedia system.
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Recommended: Ver. 1.4 or higher)
This is a profile to allow remote control the A/V equipment.
However, please note that some functions may be limited depending on the
type of portable audio player connected.
The hands-free system supports cellular phones with the following specifica-
tions.
• Bluetooth
® specification:
Ver. 2.0 or higher (Recommended: Ver. 3.0+EDR or higher)

309
3-2. Using the multimedia system
3
Interior and exterior features
●
Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.6
or higher)
This is a profile to allow hands-free phone calls using a cellular phone
or head set. It has outgoing and incoming call functions.
• OPP (Object Push Profile) Ver. 1. 1 or higher (Recommended: Ver. 1.2)
This is a profile to transfer contact data. When a Bluetooth
® compatible
cellular phone has both PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Recommended:
Ver. 1.1)
This is a profile to transfer contact data.
If the cellular phone does not support HFP, you cannot register it with the
hands-free system. OPP, PBAP services must be selected individually.
■ Certifications for the Bluetooth
®
For vehicles sold in U.S.A.
FCC ID: ACJ932YEAP01A446
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. For vehicles sold in Canada
IC: 216J-YEAP01A446
This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the
device.
This radio transmitter (identify the dev ice by certification number, or model
number if Category II) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna
types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.

310 3-2. Using the multimedia system

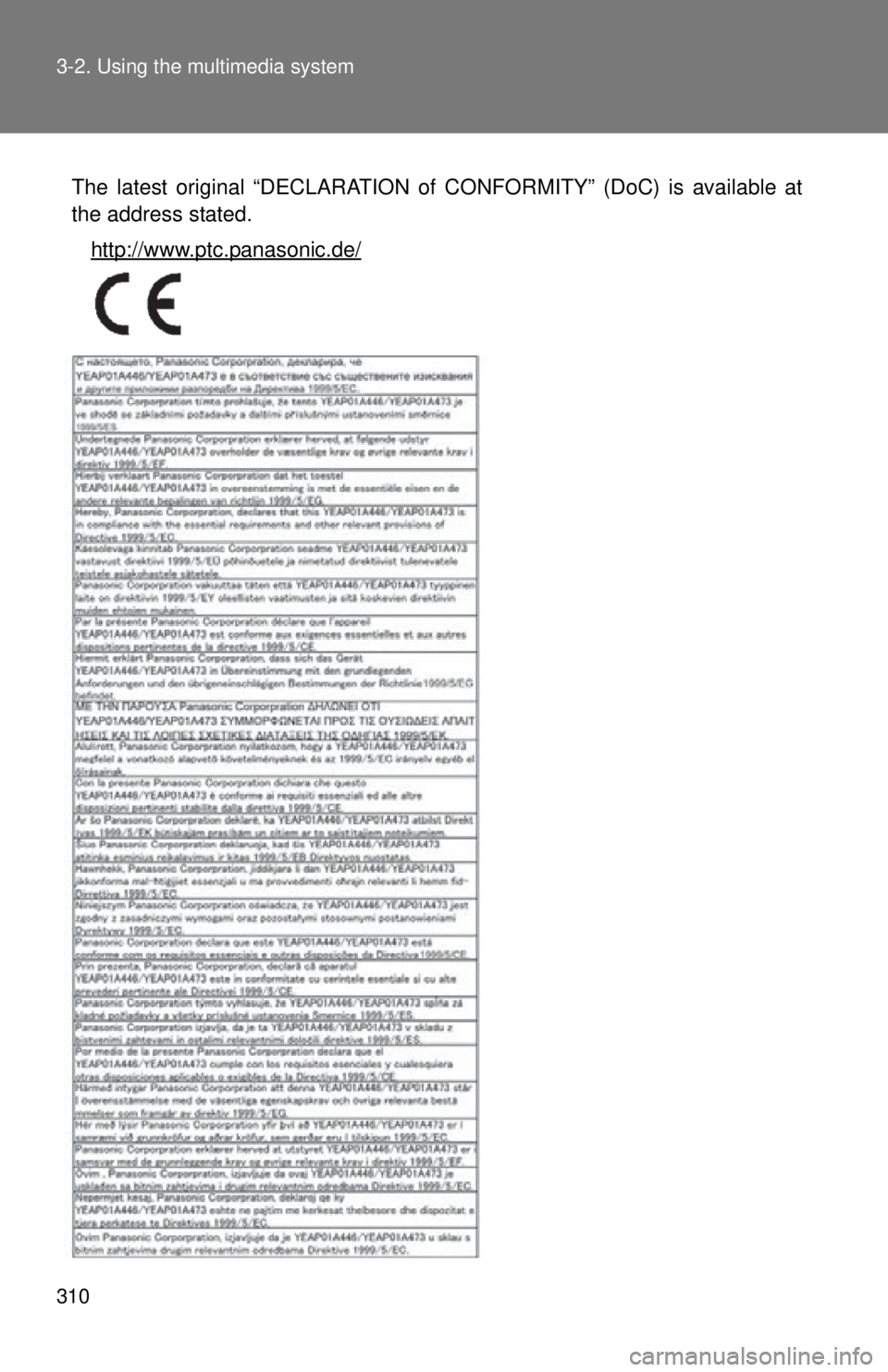

The latest original “DECLARATION of CONFORMITY” (DoC) is available at
the address stated.
http://www.ptc.panasonic.de/
