display TOYOTA tC 2009 Accessories, Audio & Navigation (in English)

11 4OTHER FUNCTIONS
SCION V398

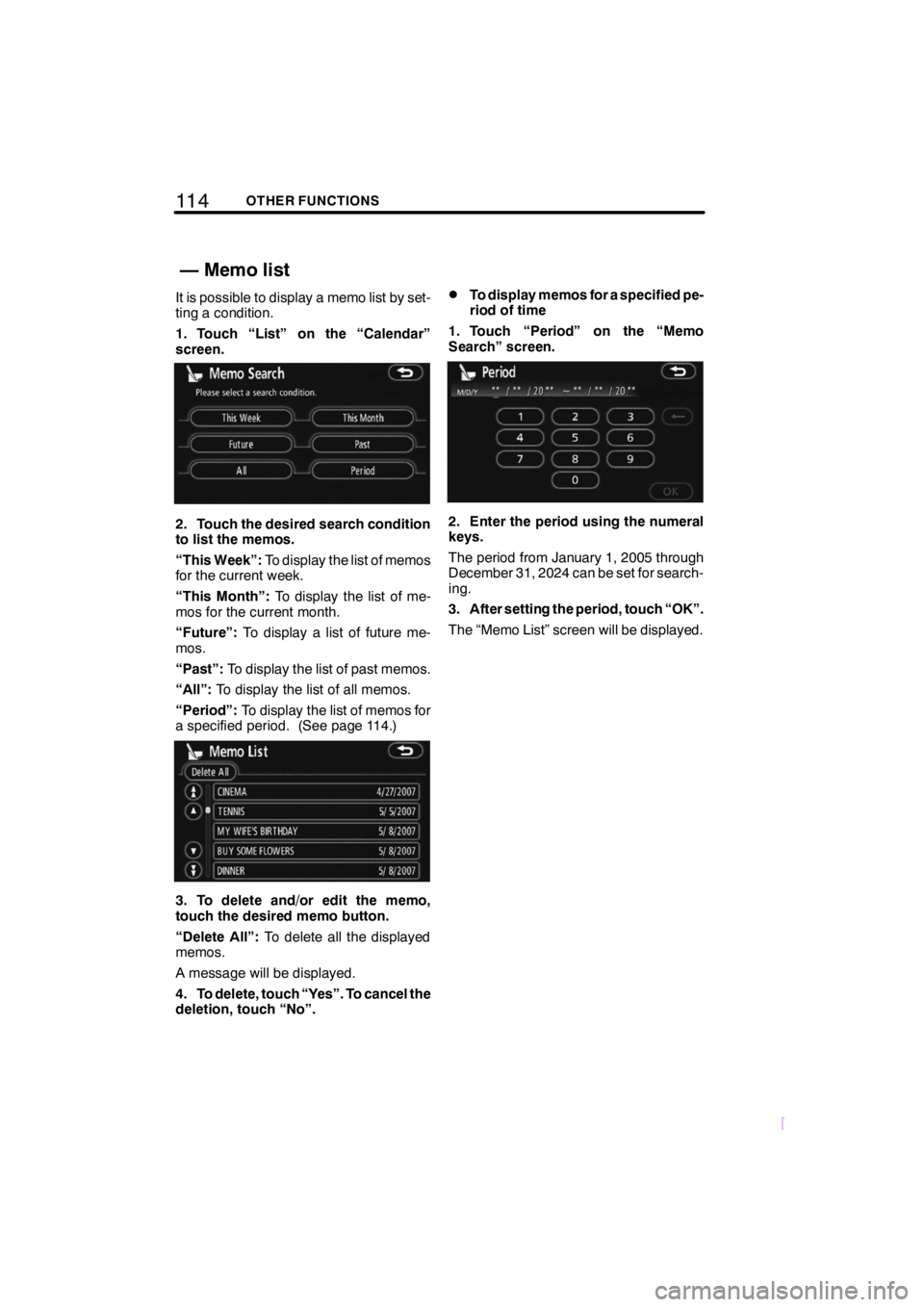

It is possible to display a memo list by set-
ting a condition.
1. Touch “List” on the “Calendar”
screen.
2. Touch the desired search condition
to list the memos.
“This Week”:To display the list of memos
for the current week.
“This Month”: To display the list of me-
mos for the current month.
“Future”: To display a list of future me-
mos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for
a specified period. (See page 114.)
3. To delete and/or edit the memo,
touch the desired memo button.
“Delete All”: To delete all the displayed
memos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
DTo display memos for a specified pe-
riod of time
1. Touch “Period” on the “Memo
Search” screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through
December 31, 2024 can be set for search-
ing.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
— Memo list

11 5OTHER FUNCTIONS
SCION V398
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen, push
the “DISP” button.
1. Touch the desired button to adjust
brightness and contrast.
“Brightness” “
(brightens)”:Bright-
ens the screen.
“Brightness” “
(darkens)”: Dark-
ens the screen.
“Contrast” “
(strengthens)”:
Strengthens the contrast of the screen.
“Contrast” “
(weakens)”: Weakens
the contrast of the screen.
2. After adjusting the screen, touch
“OK”.
The screen turns off when “Screen Off”is
touched. To turn the screen back on push
the “AUDIO” button.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds,
the previous screen will be displayed.
1. Touch the desired button to adjust
tone and color.
You can adjust the tone and the color while
the DVD video and DVD audio are being
played.
“Tone” “
(strengthens)”: Strength-
ens the tone of the screen.
“Tone” “
(weakens)”: Weakens the
tone of the screen.
“Color” “
(green)”: Strengthens the
green color of the screen.
“Color” “
(red)”: Strengthens the red
color of the screen.
2. After adjusting the screen, touch
“OK”.
The screen turns off when “Screen Off”is
touched. To turn the screen back on push
the “AUDIO” button.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds,
the previous screen will be displayed.
Screen adjustment

11 6OTHER FUNCTIONS
SCION V398

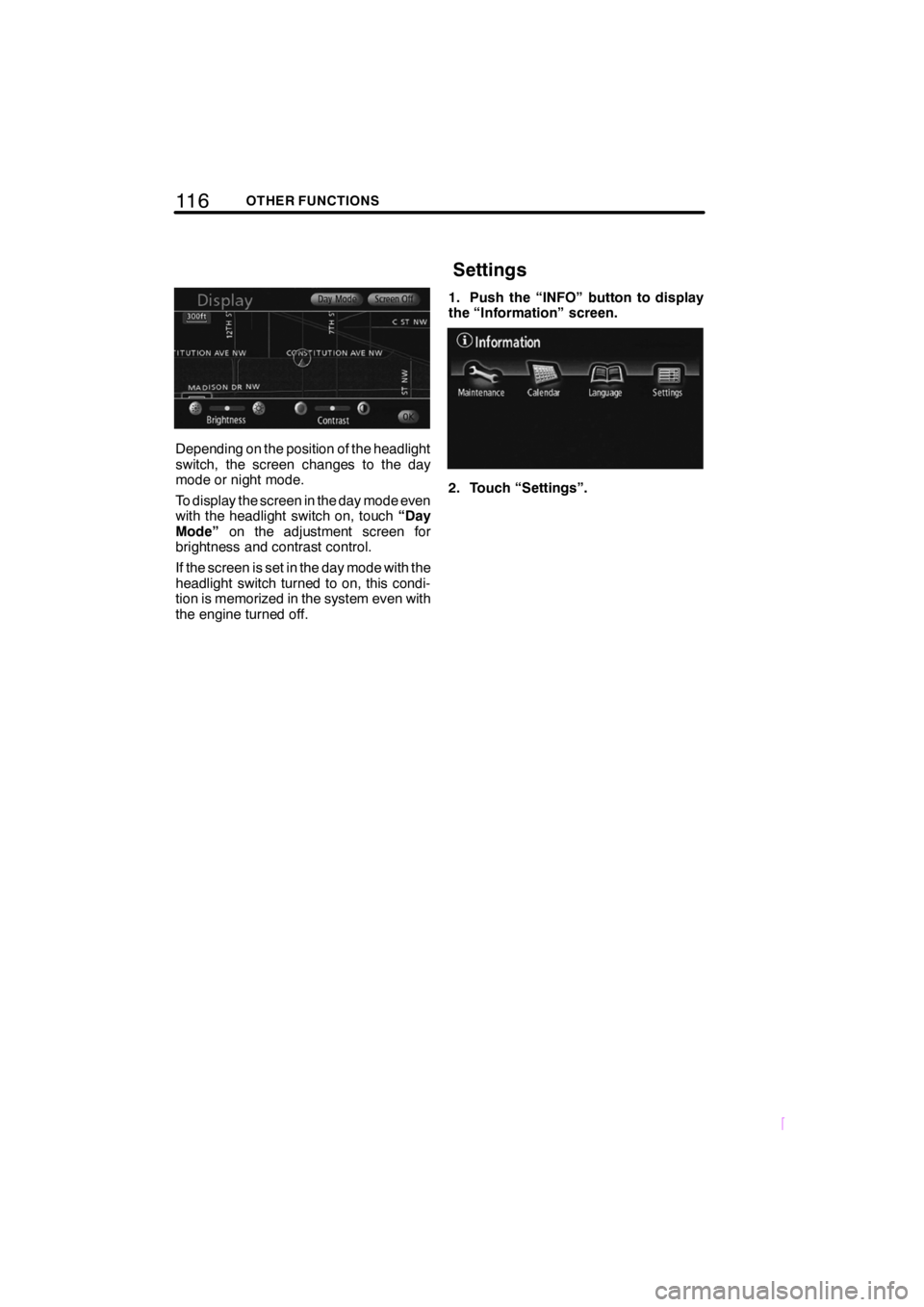

Depending on the position of the headlight
switch, the screen changes to the day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch“Day
Mode” on the adjustment screen for
brightness and contrast control.
If the screen is set in the day mode with the
headlight switch turned to on, this condi-
tion is memorized in the system even with
the engine turned off. 1. Push the “INFO” button to display
the “Information” screen.
2. Touch “Settings”.
Settings

11 9OTHER FUNCTIONS
SCION V398

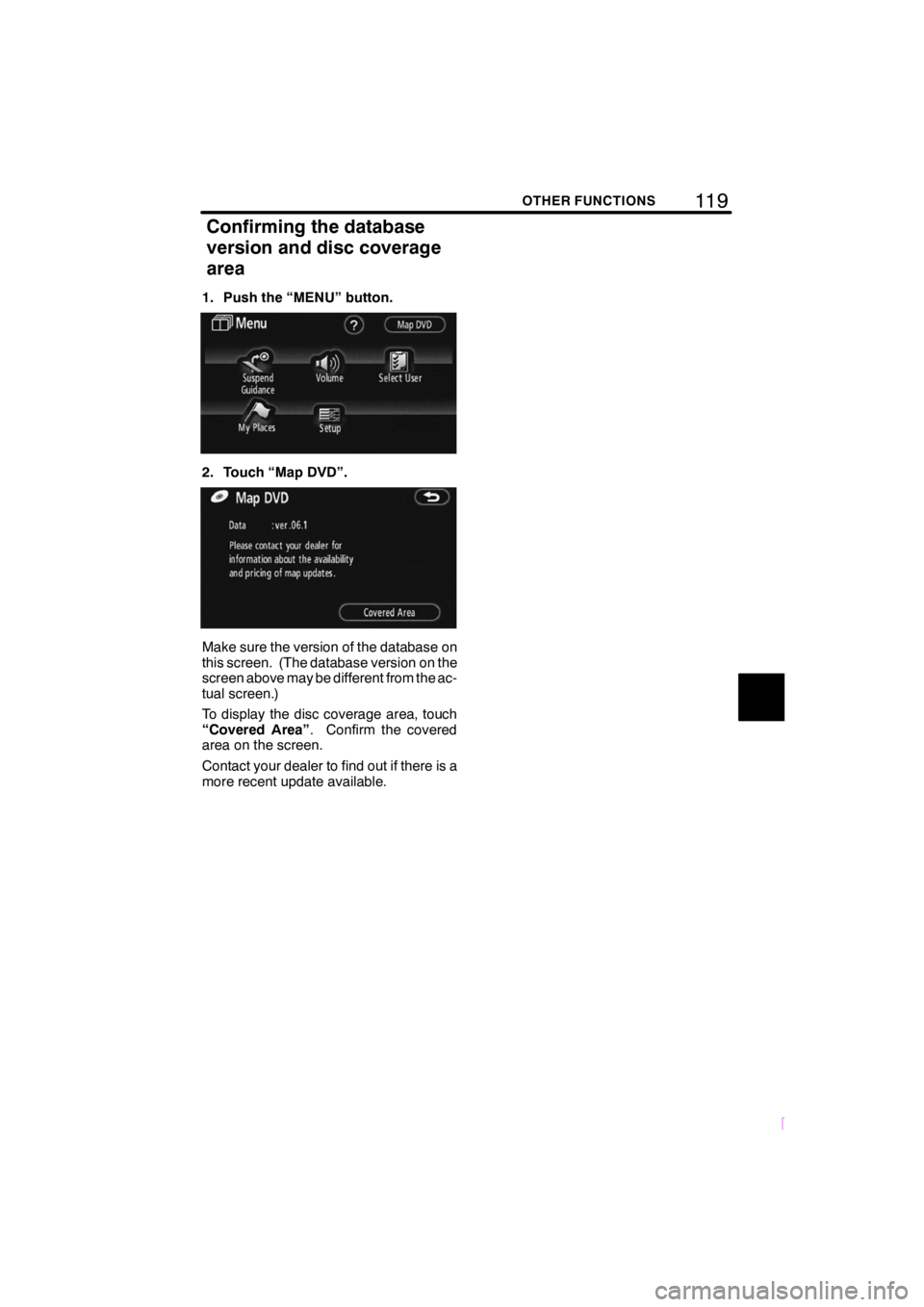

1. Push the “MENU” button.
2. Touch “Map DVD”.
Make sure the version of the database on
this screen. (The database version on the
screen above may be different from the ac-
tual screen.)
To display the disc coverage area, touch
“Covered Area”. Confirm the covered
area on the screen.
Contact your dealer to find out if there is a
more recent update available.
Confirming the database
version and disc coverage
area

122AUDIO/VIDEO SYSTEM
SCION V398

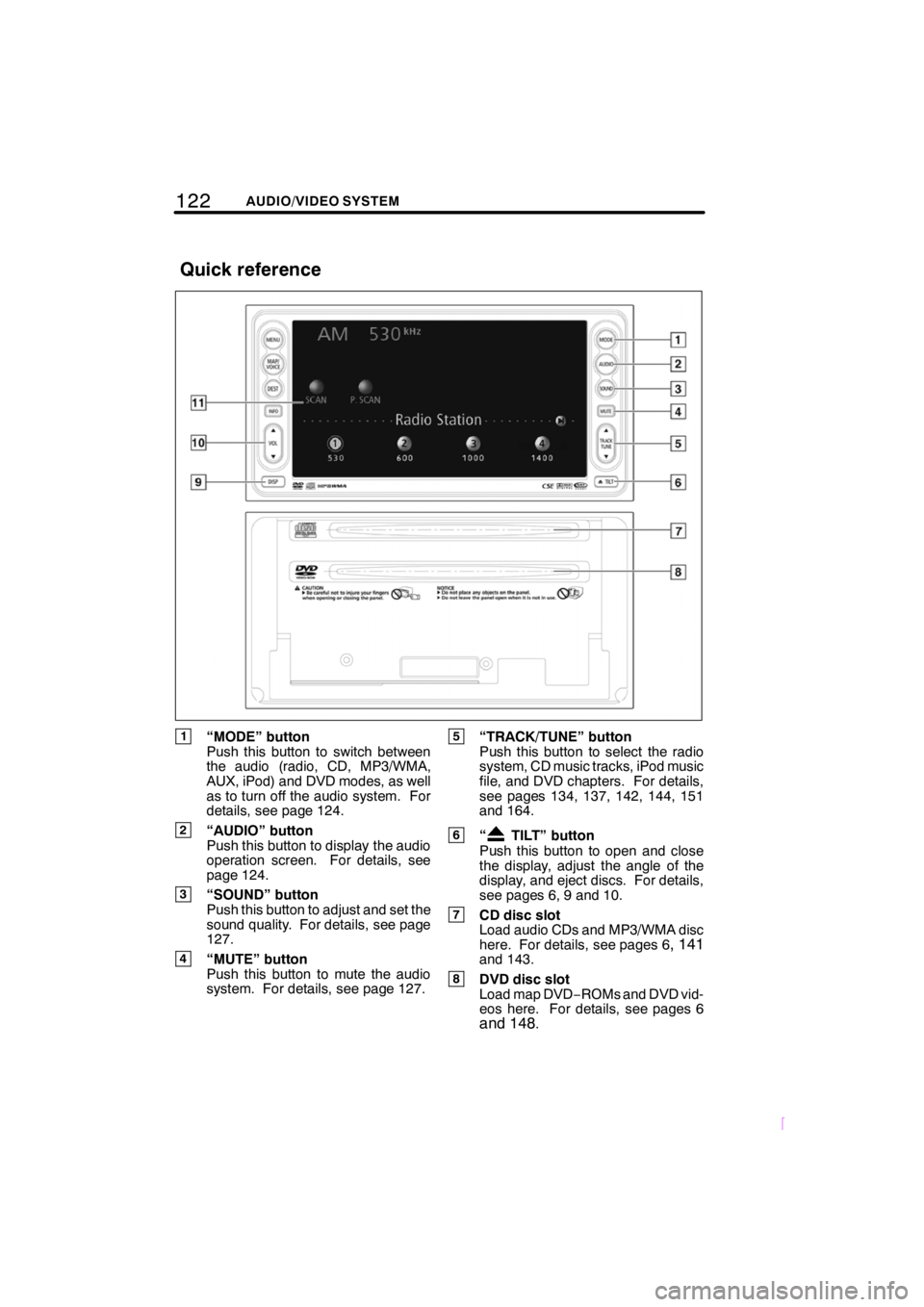

1“MODE” button
Push this button to switch between
the audio (radio, CD, MP3/WMA,
AUX, iPod) and DVD modes, as well
as to turn off the audio system. For
details, see page 124.
2“AUDIO” button
Push this button to display the audio
operation screen. For details, see
page 124.
3“SOUND” button
Push this button to adjust and set the
sound quality. For details, see page
127.
4“MUTE” button
Push this button to mute the audio
system. For details, see page 127.
5“TRACK/TUNE” button
Push this button to select the radio
system, CD music tracks, iPod music
file, and DVD chapters. For details,
see pages 134, 137, 142, 144, 151
and 164.
6“TILT” button
Push this button to open and close
the display, adjust the angle of the
display, and eject discs. For details,
see pages 6, 9 and 10.
7CD disc slot
Load audio CDs and MP3/WMA disc
here. For details, see pages 6
, 141and 143.
8DVD disc slot
Load map DVD −ROMs and DVD vid-
eos here. For details, see pages 6
and 148.
Quick reference

123
SCION V398
AUDIO/VIDEO SYSTEM
9“DISP” button
Push this button to display the “Dis-
play” screen. For details, see page
115.
10“VOL” button
Push this button to adjust the volume
of the audio system. For details, see
page 126.
11Function button display screen
Touch the buttons displayed on the
screen to control the radio, CD player,
DVD player or iPod. For details, see
page 124.This section describes some of the basic
features on SCION audio/video systems.
Your audio/video system works when the
engine switch is in “ACC” or “IG
−ON”
mode.
CAUTION
For vehicles sold in U.S.A. and
Canada:
DPart 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or
modifications to this equipment
will void the user’s authority to op-
erate this device.
DLaser products
DDo not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The laser
is carefully shielded so that its
rays remain inside the cabinet.
Therefore, never try to disas-
semble the player or alter any of
its parts since you may be ex-
posed to laser rays and danger-
ous voltages.
DThis product utilizes a laser. Use
of controls or adjustments or
performance of procedures oth-
er than those specified herein
may result in hazardous radi-
ation exposure.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio/video
system on longer than necessary
when the engine is not running.
Using your audio/video
system —
— Some basics

124AUDIO/VIDEO SYSTEM
SCION V398

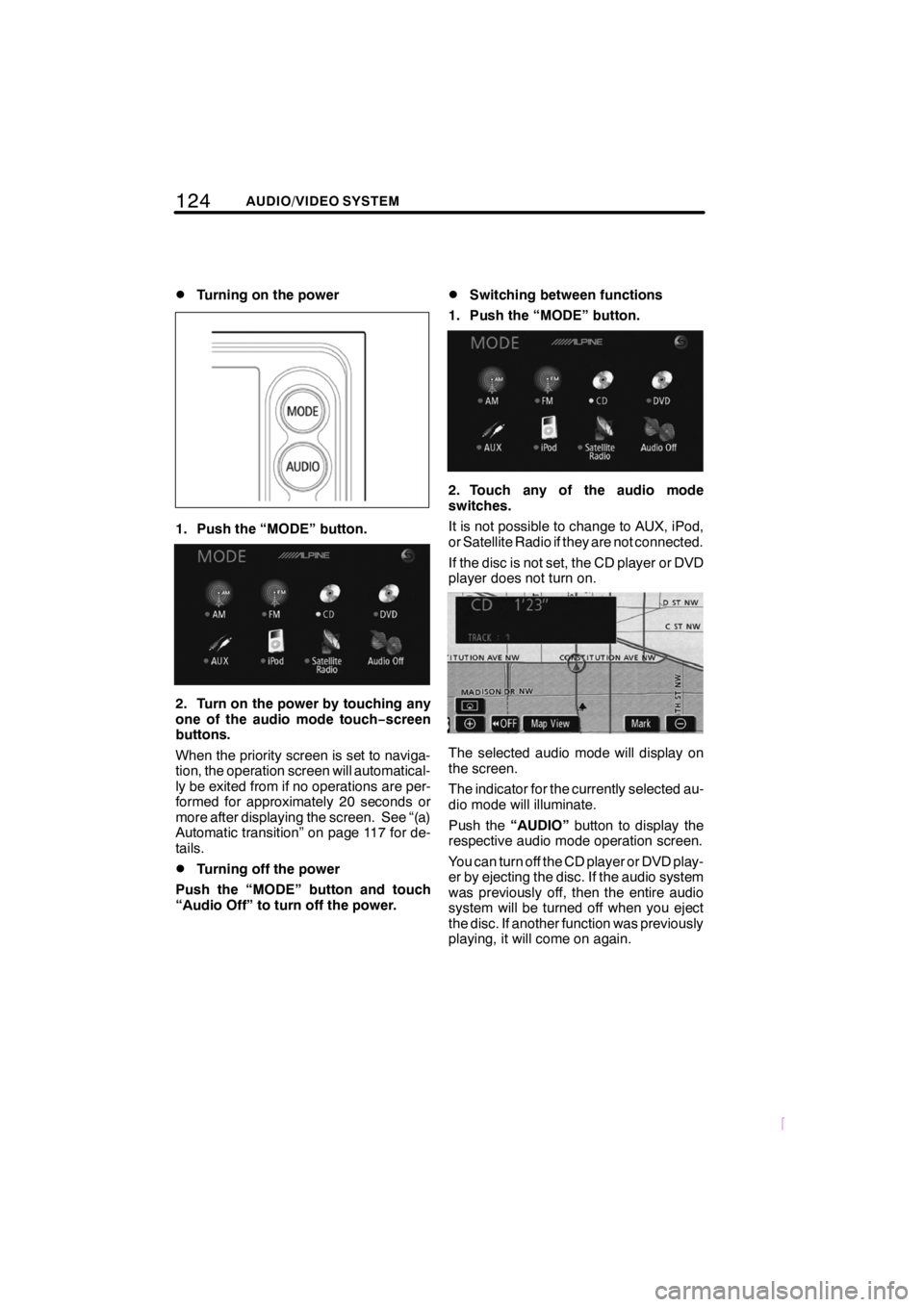

DTurning on the power
1. Push the “MODE” button.
2. Turn on the power by touching any
one of the audio mode touch−screen
buttons.
When the priority screen is set to naviga-
tion, the operation screen will automatical-
ly be exited from if no operations are per-
formed for approximately 20 seconds or
more after displaying the screen. See “(a)
Automatic transition” on page 117 for de-
tails.
DTurning off the power
Push the “MODE” button and touch
“Audio Off” to turn off the power.
DSwitching between functions
1. Push the “MODE” button.
2. Touch any of the audio mode
switches.
It is not possible to change to AUX, iPod,
or Satellite Radio if they are not connected.
If the disc is not set, the CD player or DVD
player does not turn on.
The selected audio mode will display on
the screen.
The indicator for the currently selected au-
dio mode will illuminate.
Push the “AUDIO” button to display the
respective audio mode operation screen.
You can turn off the CD player or DVD play-
er by ejecting the disc. If the audio system
was previously off, then the entire audio
system will be turned off when you eject
the disc. If another function was previously
playing, it will come on again.

126AUDIO/VIDEO SYSTEM
SCION V398
The buttons for radio, CD player, DVD
player, iPod and AUX operation are dis-
played on the function button display
screen when the audio control mode is se-
lected.
Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION
DIf the system does not respond to
a touch of a touch −screen button,
move your finger away from the
screen and then touch it again.
D You cannot operate dimmed
touch− screen buttons.
D Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
DMain volume adjustment
1. Adjust with the “VOL” button.
The volume changes one step each time
the “Y ” or “B ” button of “VOL”is
pushed. Furthermore, the volume will con-
tinue to change if the switch is pushed con-
tinuously.
INFORMATION
D Adjust to an appropriate volume
that ensures accident −free, safe
driving.
D The volume may alter when the au-
dio mode is changed. Adjust the
volume to suit the audio mode
used.
—Adjusting the volume and
the sound quality

127
SCION V398
AUDIO/VIDEO SYSTEM
DMuting the sound
If you wish to cancel all sound from the
audio system, push the “MUTE” but-
ton. Push the “MUTE” button again to
restore the sound.
DSound menu screen display
The sound quality inside the cabin will be
altered greatly by such factors as the type
of media or music used, and the vehicle
body type. This system allows you to set
the most appropriate sound quality to suit
these factors.
1. Push the “SOUND” button at the re-
spective audio screen or DVD screen to
display the “Sound” screen.

128AUDIO/VIDEO SYSTEM
SCION V398
2. Touch “Sound2” or “Sound1”.
Settings such as the following can be
made from the“Sound”screen.
“CSE”: Allows the compressed sound
range to be returned to its original sound,
and music to be played back with en-
hanced clarity. (See page 128.)
“BASS”: Allows low range sound qualities
(sound sharpness, build −up and fade −out)
that could not be set with the existing Tone
Control/EQ to be adjusted through CSE
settings. (See page 129.)
“DSP”: Allows the acoustic field (perfor-
mance venue) to be reproduced to match
the image conjured up by the music genre
or source. (See page 130.)
“FOCUS”: Allows the time taken for the
sound to reach the listener ’s ear from each
speaker to be adjusted. (See page 130.)
“AUTO VOL”: Detects the vehicle speed
and adjusts the volume accordingly. (See
page 131.)
“EQ”: Allows the previously set equalizer
curve to be adjusted and the preferred
equalizer curve to be created. (See page
131.)
“SSP”: The optimum acoustic environ-
ment can be created by setting vehicle in-
formation. (See page 132.)
“FAD BAL”: Allows the front, rear, left,
and right volume balance to be adjusted.
(See page 133.)
INFORMATION
D The sound quality can be set and
registered for each audio mode at
CSE and CSE·BASS.
D It is recommended that each sound
quality characteristic be set in the
following order to create the opti-
mum acoustic environment.
CSE
SSP
FAD BAL
FOCUS

AUTO VOL
DCSE (Clear Sound Effecter) settings
When recording from the original source to
other media, sound range inaudible to the
human ear are compressed. CSE returns
the compressed sound range as near as
possible to their original source, enabling
the listener to enjoy impressive high −quali-
ty sound inside the cabin. CSE also allows
the listener to enjoy real, high −clarity
sound in order to deliver clearer playback
of radio sound, etc.
SETTING CSE
1. Touch “CSE”.
The indicator will turn yellow.
Touch “CSE” again to cancel the settings.
Touch “OK”when settings are complete.
CHANGING THE CSE OFFSET
The CSE offset can be changed based on
the listener ’s preference.
1. Touch the CSE “Setting” switch to
display the “CSE Setting” screen.
2. Touch the preferred level switch.
Touch “OK”when settings are complete.
When “OFF” is touched, CSE is only can-
celled for the audio mode currently being
listened to.
Offset level 3 is not available for AM radio.
All audio mode CSE offset values can be
returned to their default values by touching
“Reset” .
