TOYOTA tC 2011 Accessories, Audio & Navigation (in English)

21
ALPINE MFTY802A 68-14470Z28-C (EN)

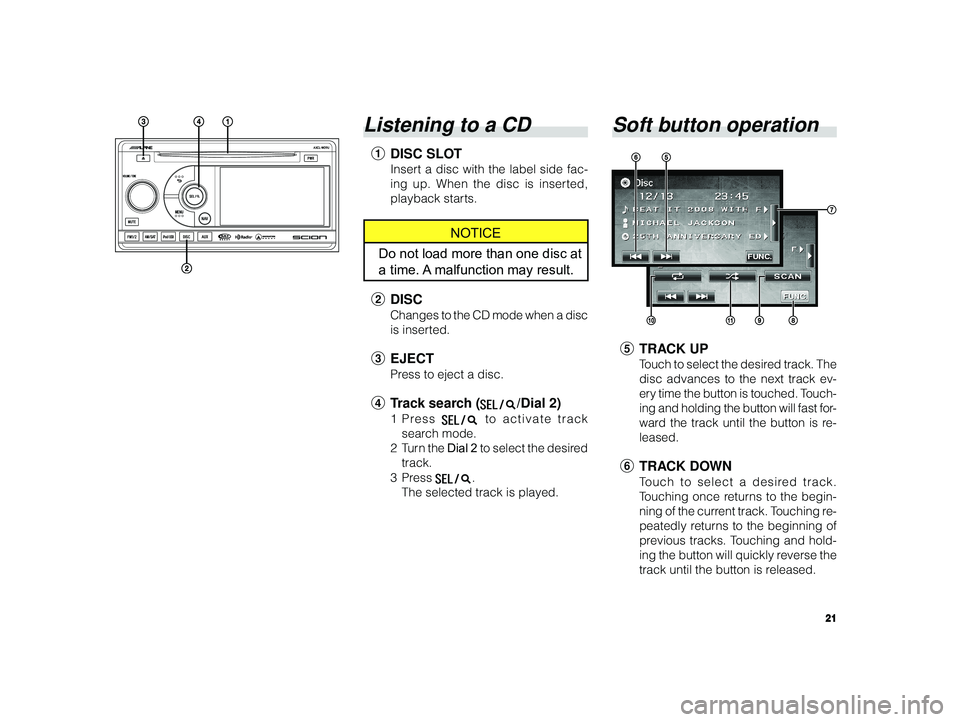

Listening to a CD
1 DISC SLOT
Insert a disc with the label side fac-
ing up. When the disc is inserted,
playback starts.
NOTICE
Do not load more than one disc at
a time. A malfunction may result.
2 DISC
Changes to the CD mode when a disc
is inserted.
3EJECT
Press to eject a disc.
4Track search (/Dial 2)
1Pr ess to activate track
search mode.
2Tur n the Dial 2 to select the desired
track.
3Pr ess
.
The selected track is played.
Soft button operation
5 TRACK UP
Touch to select the desired track. The
disc advances to the next track ev-
ery time the button is touched. Touch-
ing and holding the button will fast for-
ward the track until the button is re-
leased.
6 TRACK DOWN
Touch to select a desired track.
T ouching once returns to the begin-
ning of the current track. Touching re-
peatedly returns to the beginning of
previous tracks. Touching and hold-
ing the button will quickly reverse the
track until the button is released.

22
ALPINE MFTY802A 68-14470Z28-C (EN)
NOTICE
• “Error1” is displayed when a DISC
cannot be read.
• “Error3” is displayed when Mecha-
nism error occurs.
• “Error4” is displayed when abnor-
mal current is run to the circuit.
"
RANDOMTouch [], tracks are played back
in random sequence. To cancel ran-
dom play, touch the [
] button again.
7 Scrolling page (appears when
Tag information, etc., exceeds
the screen display.)
Touch [ ] to scroll to the next page in
order to display Tag information, etc.,
for 10 seconds.
8 Switching the Function Bar dis-
play
Touch [FUNC.] to change the function
guide.
9 SCAN
Touch [SCAN] . The first 10 seconds
of each track are played back in suc-
cession. To stop scanning, touch the
[ SCAN ] button.
T rack search mode
T rack name Return
Page down
Page up
(Touch the desired track to play it.)
NOTICE
When the track in a disc has fin-
ished scanning, the scan is can-
celed and normal playback starts
from the track where scanning
commenced.
! REPEAT
Touch [], the current track is played
back repeatedly. To cancel repeat
play, touch the [
] button again.

23
ALPINE MFTY802A 68-14470Z28-C (EN)

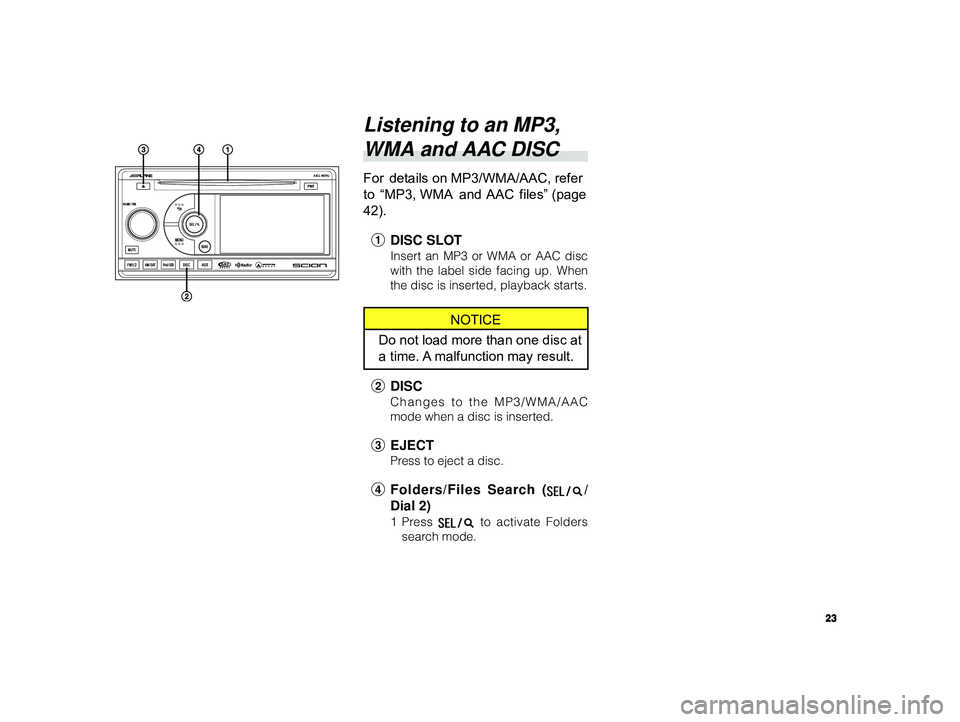

Listening to an MP3,
WMA and AAC DISC
For details on MP3/WMA/AAC, refer
to “MP3, WMA and AAC files” (page
42).
1 DISC SLOT
Insert an MP3 or WMA or AAC disc
with the label side facing up. When
the disc is inserted, playback starts.
NOTICE
Do not load more than one disc at
a time. A malfunction may result.
2 DISC
Changes to the MP3/WMA/AAC
mode when a disc is inserted.
3EJECT
Press to eject a disc.
4Folders/Files Search (/
Dial 2)
1Pr ess to activate Folders
search mode.

24
ALPINE MFTY802A 68-14470Z28-C (EN)

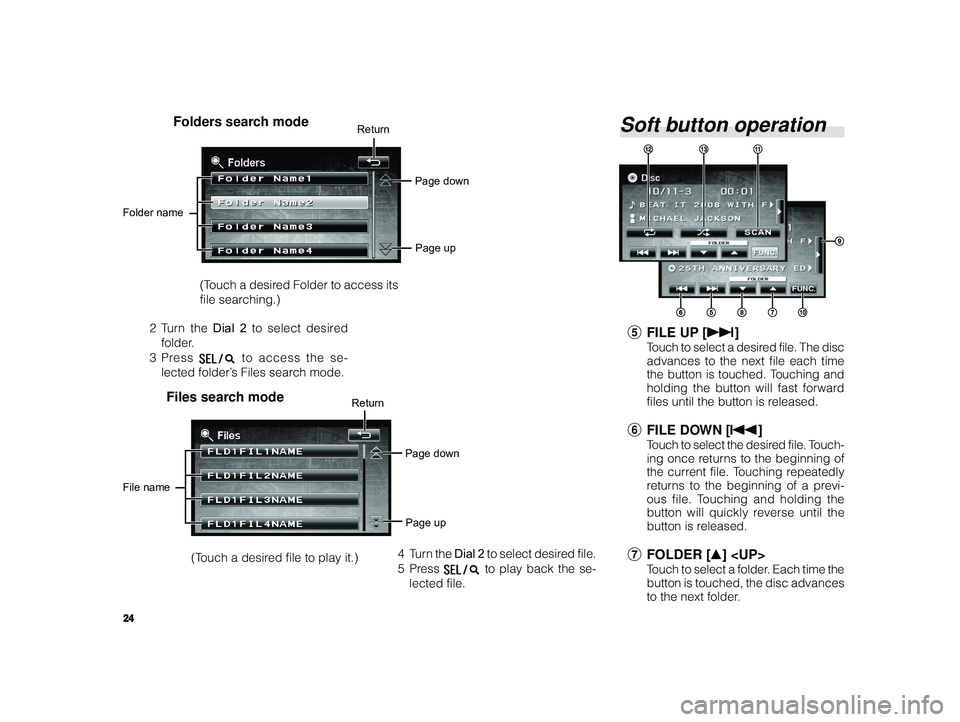

Soft button operation
5 FILE UP [ f]
Touch to select a desired file. The disc
advances to the next file each time
the button is touched. Touching and
holding the button will fast forward
files until the button is released.
6 FILE DOWN [ g]
Touch to select the desired file. Touch-
ing once returns to the beginning of
the current file. Touching repeatedly
r eturns to the beginning of a previ-
ous file. Touching and holding the
button will quickly reverse until the
button is released.
7 FOLDER [ 8]
Touch to select a folder. Each time the
button is touched, the disc advances
to the next folder.
2T
urn the Dial 2 to select desired
folder.
3Pr ess
to access the se-
lected folder’s Files search mode.
Files search modeReturn
Page down
Page up
File name
(Touch a desired file to play it.)
Return
Page down
Page up
Folder nameFolders search mode
(Touch a desired Folder to access its
file searching.)
4Turn the Dial 2 to select desired file.
5Pr ess
to play back the se-
lected file.

25
ALPINE MFTY802A 68-14470Z28-C (EN)

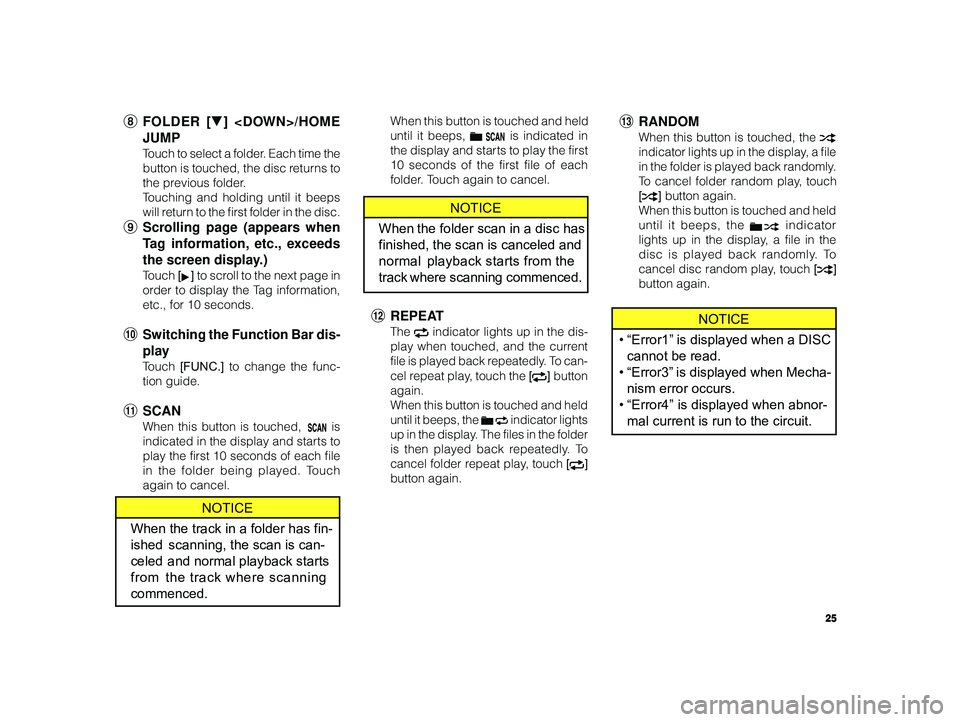

# REPEAT
The indicator lights up in the dis-
play when touched, and the current
file is played back repeatedly. To can-
cel repeat play, touch the [
] button
again.
When this button is touched and held
until it beeps, the
indicator lights
up in the display. The files in the folder
is then played back repeatedly. To
cancel folder repeat play, touch [
]
button again.
NOTICE
• “Error1” is displayed when a DISC
cannot be read.
• “Error3” is displayed when Mecha-
nism error occurs.
• “Error4” is displayed when abnor-
mal current is run to the circuit.
8 FOLDER [ 9] /HOME
JUMP
T ouch to select a folder. Each time the
button is touched, the disc returns to
the previous folder.
T ouching and holding until it beeps
will return to the first folder in the disc.
9 Scrolling page (appears when
Tag information, etc., exceeds
the screen display.)
Touch [] to scroll to the next page in
order to display the Tag information,
etc., for 10 seconds.
! Switching the Function Bar dis-
play
Touch [FUNC.] to change the func-
tion guide.
" SCAN
When this button is touched, is
indicated in the display and starts to
play the first 10 seconds of each file
in the folder being played. Touch
again to cancel.
NOTICE
When the track in a folder has fin-
ished scanning, the scan is can-
celed and normal playback starts
from the track where scanning
commenced.
When this button is touched and held
until it beeps,
is indicated in
the display and starts to play the first
10 seconds of the first file of each
folder. Touch again to cancel.
NOTICE
When the folder scan in a disc has
finished, the scan is canceled and
normal playback starts from the
track where scanning commenced.
$ RANDOM
When this button is touched, the
indicator lights up in the display, a file
in the folder is played back randomly.
To cancel folder random play, touch
[
] button again.
When this button is touched and held
until it beeps, the
indicator
lights up in the display, a file in the
disc is played back randomly. To
cancel disc random play, touch [
]
button again.

26
ALPINE MFTY802A 68-14470Z28-C (EN)
CAUTION
• We accept no responsibility for lost data on the iPod even if that data
is lost while using this unit.
• Do not allow direct sunlight to fall on the iPod when it is not being
used. Extended exposure to direct
sunlight can result in iPod malfunc-
tion due to the resulting high tem-
peratures.
• Do not leave the iPod in high tem- peratures or direct sunlight.
• Fix the iPod securely when using with this unit. Do not let the iPod
fall onto the floor, where it may be-
come jammed under the brake or
accelerator pedal. * Or place in
glove box.
For details, refer to your iPod
Owner’s Manual.Handling the iPod
(Optional)
About iPod settings
iPhone/iPod models usable with this unit
Confirmed devices regarding Made for
iPod. Correct function of earlier versions
cannot be guaranteed.
iPod touch (2nd generation): Ver.2.2 or later
iPod nano (4th generation): Ver.1.0.3 or later
iPod classic (120 GB only): Ver.1.1.2 or later
iPod touch (1st generation): Ver.2.2 or later
iPod nano (3rd generation): Ver.1.1.3 or later
iPod classic (80 GB, 160 GB only): Ver.1.1.2 or later
iPod nano (2nd generation): Ver.1.1.3 or later
iPod with video: Ver.1.3 or later
iPod nano (1st generation): Ver.1.3.1 or later
iPod mini: Ver.1.4.1 or later
Confirmed devices regarding Works with
iPhone. Correct function of earlier versions
cannot be guaranteed.
iPhone 3G: Ver.2.2 or later
iPhone: Ver.2.2 or later
Connecting the iPod
Connect the iPod to this unit.
Connect the iPod as indicated in the
figure below using the iPod Dock Con-
nector to USB 2.0 Cable (Included with
iPod).
Dock connector port
Dock connector iPod Dock Connector to
USB 2.0 CableTo
the vehicle’s
USB connector

27
ALPINE MFTY802A 68-14470Z28-C (EN)

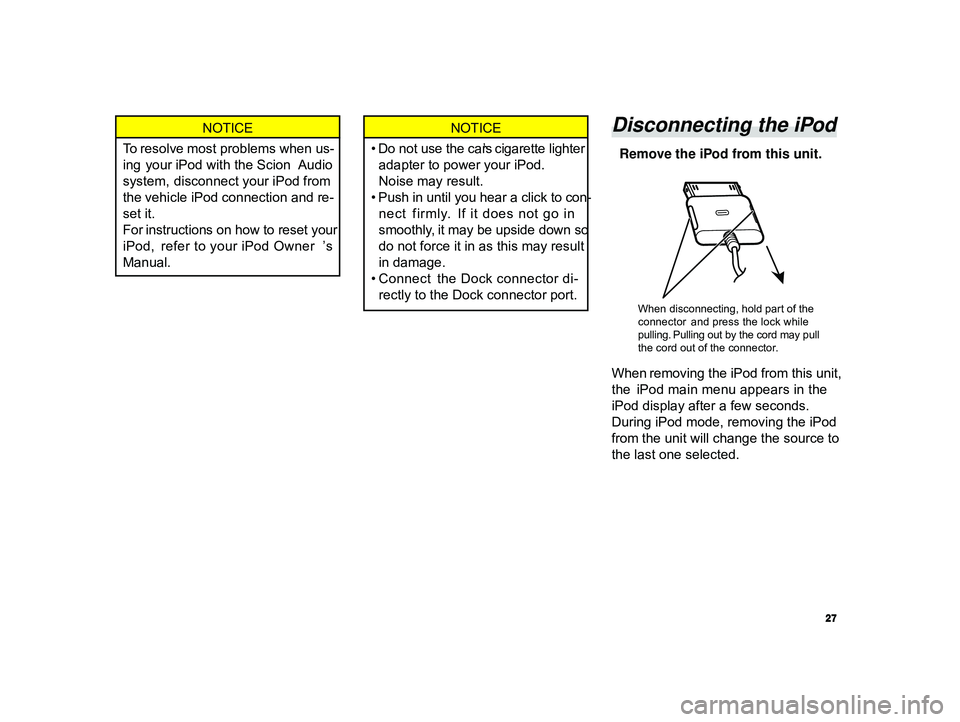

NOTICE
To resolve most problems when us-
ing your iPod with the Scion Audio
system, disconnect your iPod from
the vehicle iPod connection and re-
set it.
For instructions on how to reset your
iPod, refer to your iPod Owner ’s
Manual.NOTICE
• Do not use the car’s cigarette lighter adapter to power your iPod.Noise may result.
• Push in until you hear a click to con- nect firmly. If it does not go in
smoothly, it may be upside down so
do not force it in as this may result
in damage.
• Connect the Dock connector di-
rectly to the Dock connector port.Disconnecting the iPod
Remove the iPod from this unit.
When removing the iPod from this unit,
the iPod main menu appears in the
iPod display after a few seconds.
During iPod mode, removing the iPod
from the unit will change the source to
the last one selected.
When disconnecting, hold part of the
connector and press the lock while
pulling. Pulling out by the cord may pull
the cord out of the connector.

28
ALPINE MFTY802A 68-14470Z28-C (EN)

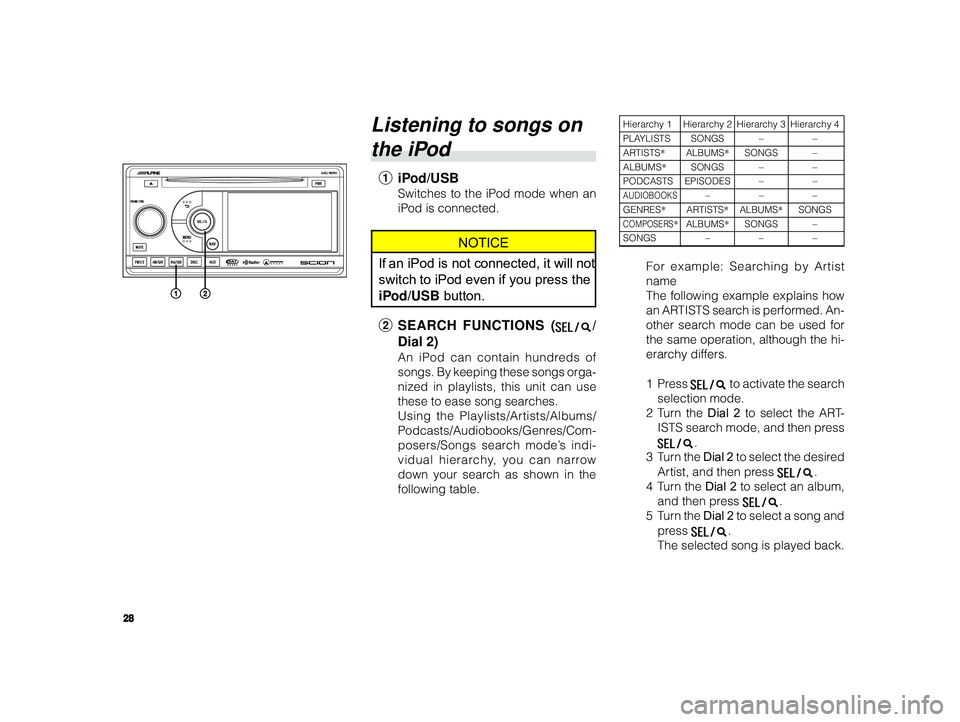

Listening to songs on
the iPod
1 iPod/USB
Switches to the iPod mode when an
iPod is connected.
NOTICE
If an iPod is not connected, it will not
switch to iPod even if you press the
iPod/USB button.
2 SEARCH FUNCTIONS (
/
Dial 2)
An iPod can contain hundreds of
songs. By keeping these songs orga-
nized in playlists, this unit can use
these to ease song searches.
Using the Playlists/Artists/Albums/
Podcasts/Audiobooks/Genres/Com-
posers/Songs search mode’s indi-
vidual hierarchy, you can narrow
down your search as shown in the
following table.
Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4
PLAYLISTS SONGS – –
ARTISTS*ALBUMS *SONGS –
ALBUMS *SONGS – –
PODCASTS EPISODES – –
AUDIOBOOKS–––
GENRES*ARTISTS *ALBUMS *SONGS
COMPOSERS*ALBUMS *SONGS –
SONGS –––
For example: Searching by Artist
name
The following example explains how
an ARTISTS search is performed. An-
other search mode can be used for
the same operation, although the hi-
erarchy differs.
1Press
to activate the search
selection mode.
2T urn the Dial 2 to select the ART-
ISTS search mode, and then press
.
3T urn the Dial 2 to select the desired
Artist, and then press
.
4T urn the Dial 2 to select an album,
and then press
.
5T urn the Dial 2 to select a song and
press
.
The selected song is played back.

29
ALPINE MFTY802A 68-14470Z28-C (EN)

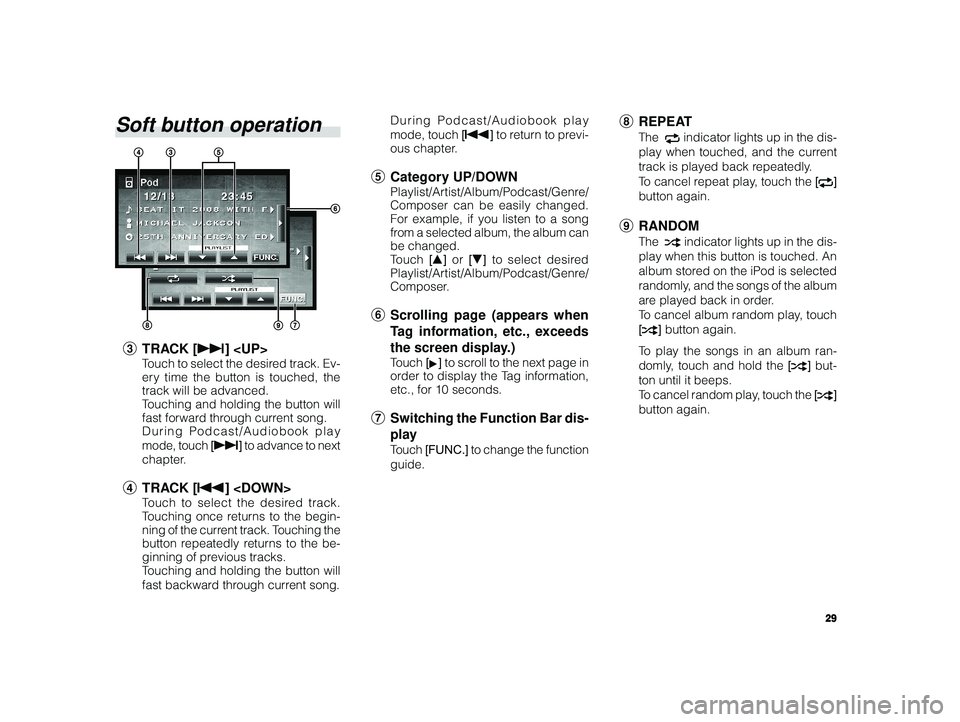

8 REPEAT
The indicator lights up in the dis-
play when touched, and the current
track is played back repeatedly.
To cancel repeat play, touch the [
]
button again.
9 RANDOM
The indicator lights up in the dis-
play when this button is touched. An
album stored on the iPod is selected
randomly, and the songs of the album
are played back in order.
To cancel album random play, touch
[
] button again.
To play the songs in an album ran-
domly, touch and hold the [
] but-
ton until it beeps.
To cancel random play, touch the [
]
button again.
During Podcast/Audiobook play
mode, touch
[g ] to return to previ-
ous chapter.
5 Category UP/DOWN
Playlist/Artist/Album/Podcast/Genre/
Composer can be easily changed.
For example, if you listen to a song
from a selected album, the album can
be changed.
Touch [8 ] or [9 ] to select desired
Playlist/Artist/Album/Podcast/Genre/
Composer.
6 Scrolling page (appears when
Tag information, etc., exceeds
the screen display.)
Touch [] to scroll to the next page in
order to display the Tag information,
etc., for 10 seconds.
7 Switching the Function Bar dis-
play
Touch [FUNC.] to change the function
guide.
Soft button operation
3 TRACK [ f]
Touch to select the desired track. Ev-
ery time the button is touched, the
track will be advanced.
T ouching and holding the button will
fast forward through current song.
During Podcast/Audiobook play
mode, touch [f ] to advance to next
chapter.
4 TRACK [ g]
Touch to select the desired track.
T ouching once returns to the begin-
ning of the current track. Touching the
button repeatedly returns to the be-
ginning of previous tracks.
T ouching and holding the button will
fast backward through current song.

30
ALPINE MFTY802A 68-14470Z28-C (EN)
NOTICE
“No Songs” will be displayed if
there is no song in iPod.

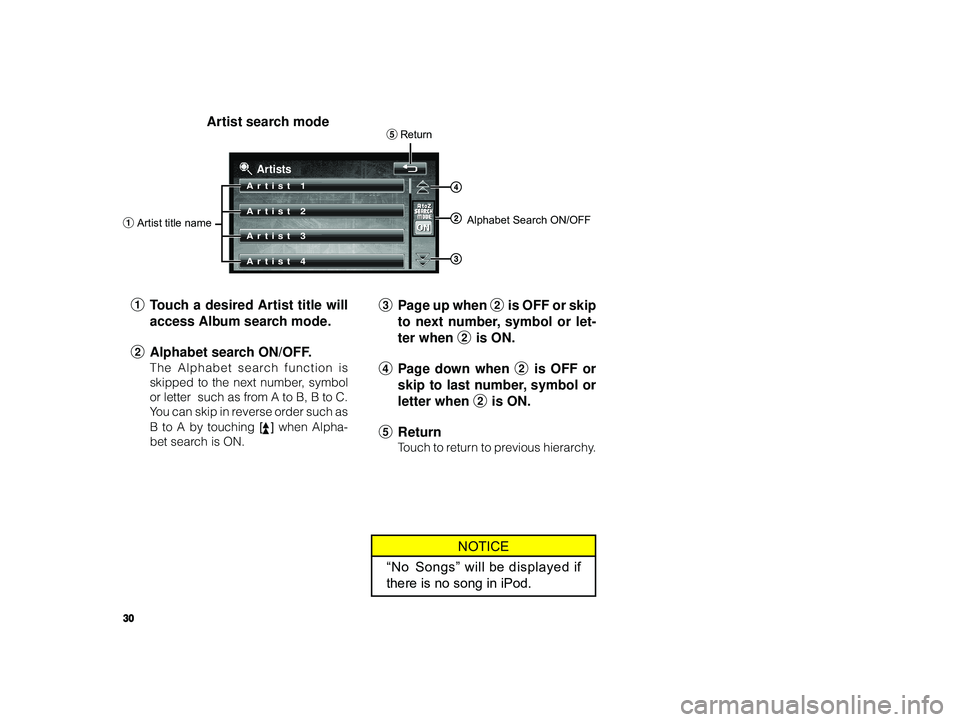

Artist search mode
Artists
Artist 1
Artist 2
Artist 3
Artist 4
1 Touch a desired Artist title will
access Album search mode.
2 Alphabet search ON/OFF.
The Alphabet search function is
skipped to the next number, symbol
or letter such as from A to B, B to C.
You can skip in reverse order such as
B to A by touching [
] when Alpha-
bet search is ON.
1 Artist title name Alphabet Search ON/OFF
5
Return
3 Page up when 2 is OFF or skip
to next number, symbol or let-
ter when 2 is ON.
4 Page down when 2 is OFF or
skip to last number, symbol or
letter when 2 is ON.
5 Return
Touch to return to previous hierarchy.
