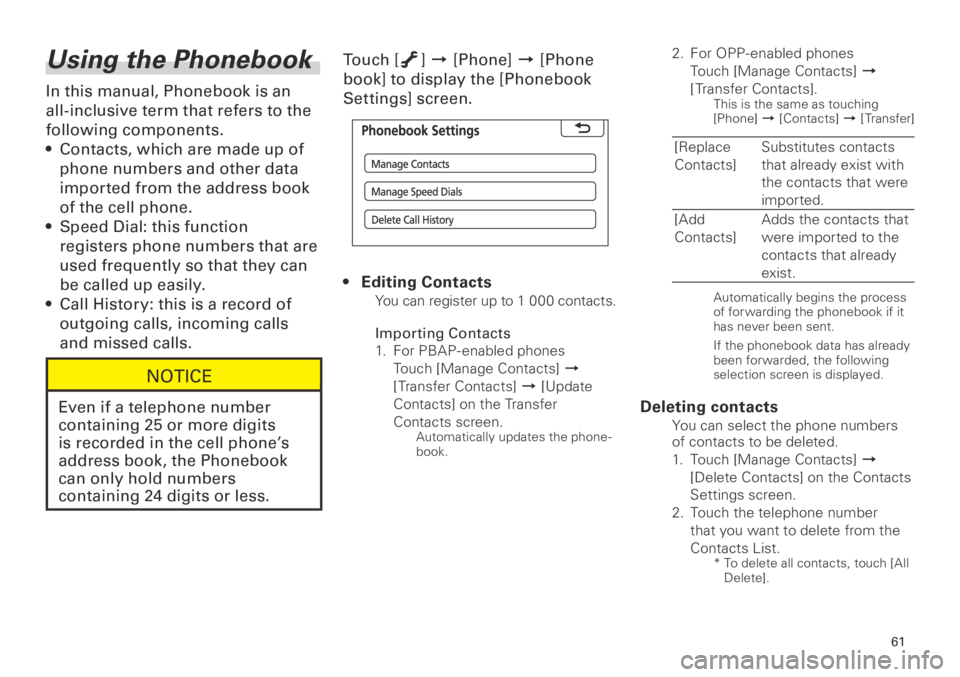

Page 61 of 76
61
Using the Phonebook
In this manual, Phonebook is an
all-inclusive term that refers to the
following components. Contacts, which are made up of
phone numbers and other data
imported from the address book
of the cell phone.
Speed Dial: this function
registers phone numbers that are
used frequently so that they can
be called up easily.
Call History: this is a record of
outgoing calls, incoming calls
and missed calls.
NOTICE
Even if a telephone number
containing 5 or more digits
is recorded in the cell phone’s
address book, the Phonebook
can only hold numbers
cont
aining digits or less.
•
•
•
Touch [
] d [Phone]
d [Phone
book] to display the [Phonebook
Settings] screen.
Editing Contacts
You can register up to 1 000 contacts.
Impor ting Contacts
1. Fo
r PBAP- enabled phones
Touch [Manage Contacts] d
[Transfer Contacts] d [Update
Contacts] on the Transfer
Contacts screen.
Automatically updates the phone -
book.
•
2. For OPP- enabled phones
Touch [Manage Contacts] d
[Transfer Contacts].
This is the same as touching
[Phone] d [Contacts] d [ Transfer]
[Replace
Contacts]Substitutes contacts
that already exist with
the contacts that were
imported.
[Add
Contacts] Adds the contacts that
were imported to the
contacts that already
exist.
Automatically begins the process
of forwarding the phonebook if it
has never been sent.
If the phonebook data has already
been forwarded, the following
selection screen is displayed.
Deleting contacts
You can select the phone numbers
of contacts to be deleted.
1.
To
uch [Manage Contacts] d
[Delete Contacts] on the Contacts
Settings screen.
2 . To
uch the telephone number
that you want to delete from the
Contacts List.
* To delete all contacts, touch [All
Delete].

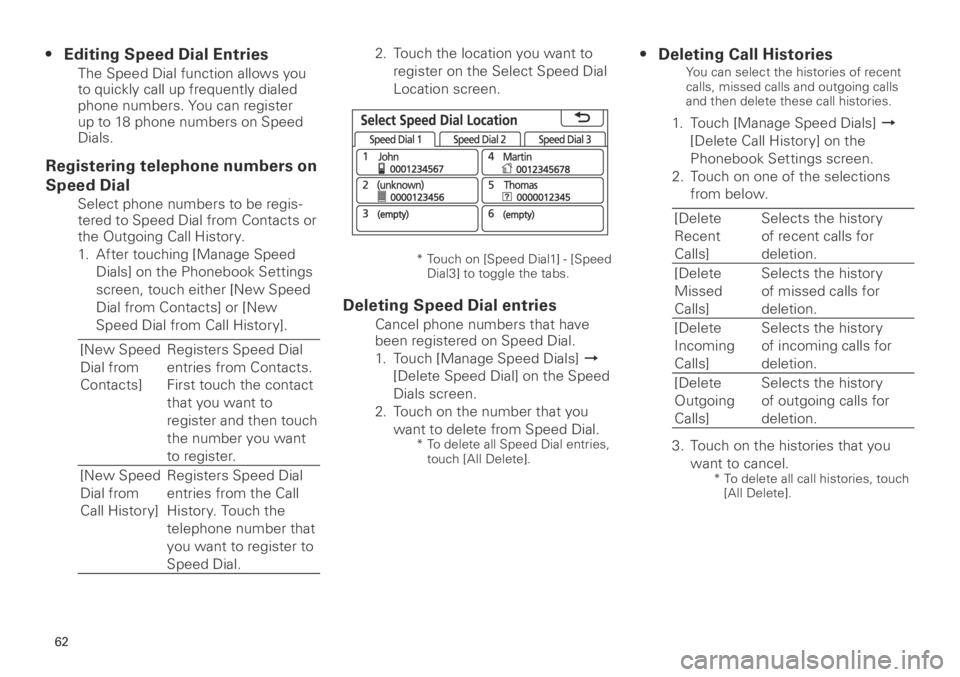

Page 62 of 76
6
2. Touch the location you want to
register on the Select Speed Dial
Location screen.
* Touch on [Speed Dial1] - [Speed
Dial3] to toggle the tabs.
Deleting Speed Dial entries
Cancel phone numbers that have
been registered on Speed Dial.
1. To
uch [Manage Speed Dials] d
[Delete Speed Dial] on the Speed
Dials screen.
2 . To
uch on the number that you
want to delete from Speed Dial.
* To delete all Speed Dial entries,
touch [All Delete].
Deleting Call Histories
You can select the histories of recent
calls, missed calls and outgoing calls
and then delete these call histories.
1. Touch [Manage Speed Dials] d
[Delete Call History] on the
Phonebook Settings screen.
2. To
uch on one of the selections
from below.
[Delete
Recent
Calls] Selects the history
of recent calls for
deletion.
[Delete
Missed
Calls] Selects the history
of missed calls for
deletion.
[Delete
Incoming
Calls] Selects the history
of incoming calls for
deletion.
[Delete
Outgoing
Calls] Selects the history
of outgoing calls for
deletion.
3 . To
uch on the histories that you
want to cancel.
* To delete all call histories, touch
[All Delete].
•
Editing Speed Dial Entries
The Speed Dial function allows you
to quickly call up frequently dialed
phone numbers. You can register
up to 18 phone numbers on Speed
Dials.
Registering telephone numbers on
Speed Dial
Select phone numbers to be regis-
tered to Speed Dial from Contacts or
the Outgoing Call History.
1. Af
ter touching [Manage Speed
Dials] on the Phonebook Settings
screen, touch either [New Speed
Dial from Contacts] or [New
Speed Dial from Call History].
[New Speed
Dial from
Contacts] Registers Speed Dial
entries from Contacts.
First touch the contact
that you want to
register and then touch
the number you want
to register.
[New Speed
Dial from
Call History] Registers Speed Dial
entries from the Call
History. Touch the
telephone number that
you want to register to
Speed Dial.
•
Page 63 of 76
63

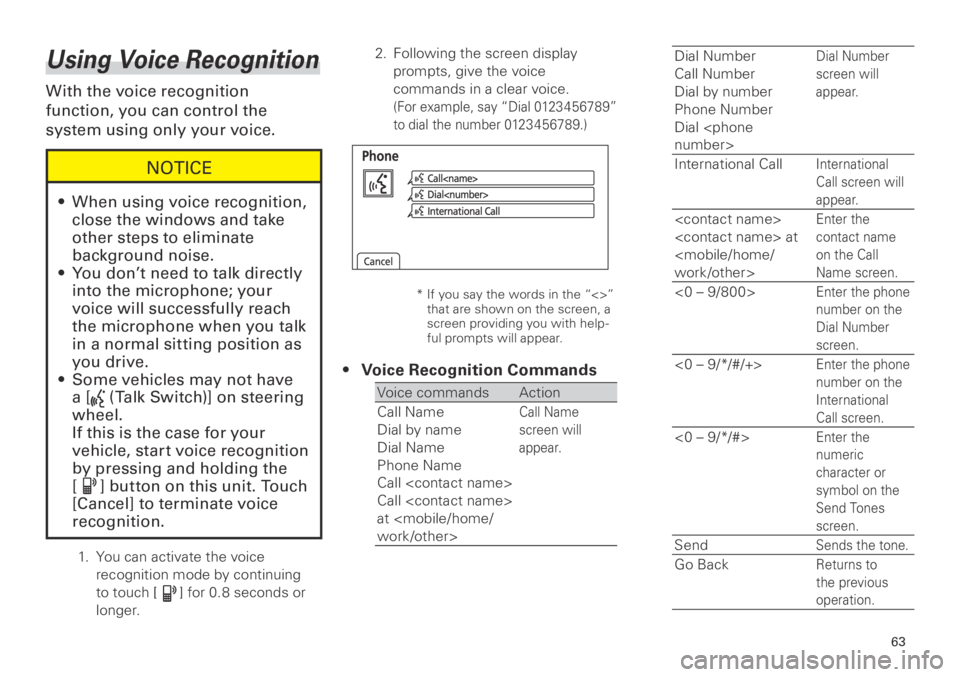

Using Voice Recognition
With the voice recognition
function, you can control the
system using only your voice.
NOTICE
When using voice recognition,
close the windows and take
other steps to eliminate
background noise.
You don’t need to talk directly
into the microphone; your
voice will successfully reach
the microphone when you talk
in a normal sitting position as
you drive.
Some vehicles may not have
a [
(Talk Switch)] on steering
wheel.
If this is the case for your
vehicle, start voice recognition
by pressing and holding the
[
] button on this unit. Touch
[Cancel] to terminate voice
recognition.
•
•
•
1.
You can activate the voice
recognition mode by continuing
to touch [
] for 0.8 seconds or
longer. 2.
Fo
llowing the screen display
prompts, give the voice
commands in a clear voice.
(For example, say “Dial 0123456789”
to dial the number 0123456789.)
* If you say the words in the “<>”
that are shown on the screen, a
screen providing you with help -
ful prompts will appear.
Voice Recognition Commands
Voice commands Action
Call Name
Dial by name
Dial Name
Phone Name
Call
Call
at
Call Name
screen will
appear.
•
Dial Number
Call Number
Dial by number
Phone Number
Dial
screen will
appear.
International CallInternational
Call screen will
appear.
contact name
on the Call
Name screen.
<0 – 9/800>Enter the phone
number on the
Dial Number
screen.
<0 – 9/*/#/+>Enter the phone
number on the
International
Call screen.
<0 – 9/*/#>Enter the
numeric
character or
symbol on the
Send Tones
screen.
SendSends the tone.
Go BackReturns to
the previous
operation.

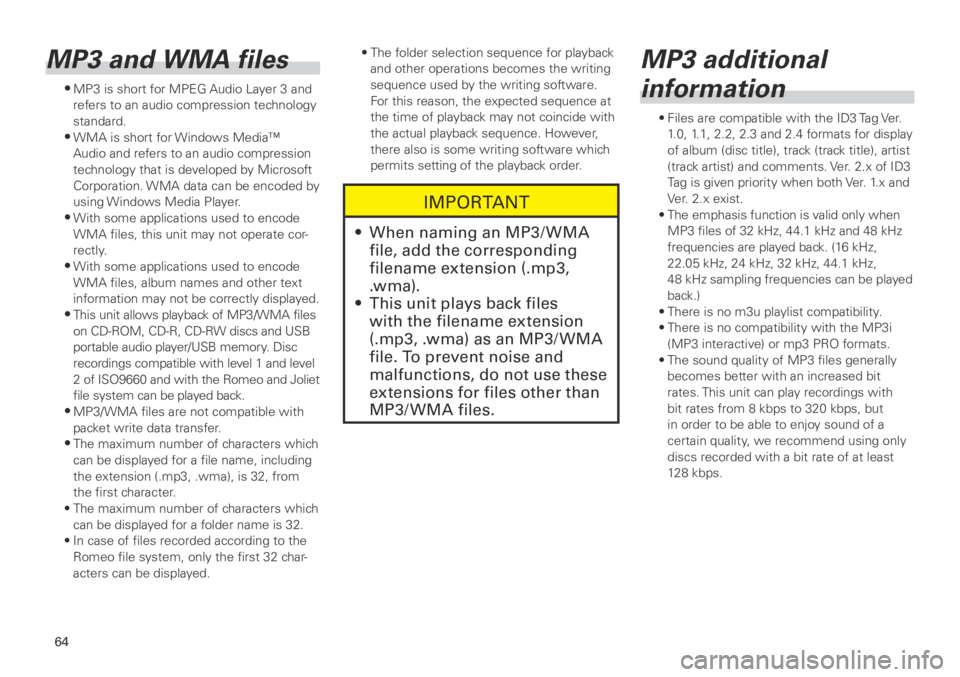

Page 64 of 76
6
• The folder selection sequence for playback
and other operations becomes the writing
sequence used by the writing software.
For this reason, the expected sequence at
the time of playback may not coincide with
the actual playback sequence. However,
there also is some writing software which
permits setting of the playback order.
IMPORTANT
When naming an MP3/ WMA
file, add the corresponding
filename extension (.mp3,
.wma).
This unit plays back files
with the filename extension
(.mp3, .wma) as an MP3/ WMA
file. To prevent noise and
malfunctions, do not use these
extensions for files other than
MP3/ WMA files.
•
•
MP3 additional
information
•
Files are compatible with the ID3 Tag Ver.
1.0, 1.1, 2.2, 2.3 and 2.4 formats for display
of album (disc title), track (track title), artist
(track artist) and comments. Ver. 2.x of ID3
Tag is given priority when both Ver. 1.x and
Ver. 2.x exist.
• The
emphasis function is valid only when
MP3 files of 32 kHz, 44.1 kHz and 48 kHz
frequencies are played back. (16 kHz,
22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz,
48 kHz sampling frequencies can be played
back.)
• There is no m3u playlist compatibilit
y.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes bet
ter with an increased bit
rates. This unit can play recordings with
bit rates from 8 kbps to 320 kbps, but
in order to be able to enjoy sound of a
cert
ain quality, we recommend using only
discs recorded with a bit rate of at least
128 kbps.
MP3 and WMA files
• MP3 is short for MPEG Audio Layer 3 and
refers to an audio compression technology
standard.
• WMA is short for Windows Media™
Audio and refers to an audio compression
technology that is developed by Microsoft
Corporation. WMA data can be encoded by
using Windows Media Player.
• With some applications used to encode
WMA files, this unit may not operate cor-
rectly.
• With some applications used to encode
WMA files, album names and other text
information may not be correctly displayed.
• This unit allows playback of MP3/WMA files
on CD-ROM, CD-R, CD-RW discs and USB
portable audio player/USB memory. Disc
recordings compatible with level 1 and level
2 of ISO9660 and with the Romeo and Joliet
file system can be played back.
• MP3/WMA files are not compatible with
packet write data transfer.
• The maximum number of characters which
can be displayed for a file name, including
the extension (.mp3, .wma), is 32, from
the first character.
• The maximum number of characters whic
h
can be displayed for a folder name is 32.
• In case of files recorded according to the
Romeo file system, only the first 32 c
har-
acters can be displayed.

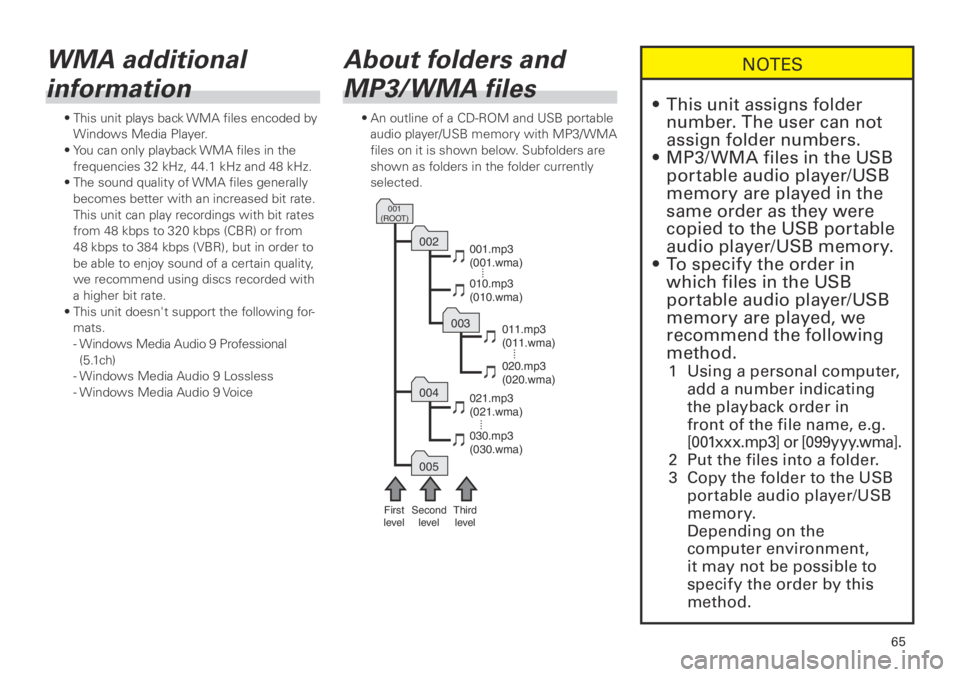

Page 65 of 76
65
WMA additional
information
• This unit plays back WMA files encoded by
Windows Media Player.
• You can only playbac
k WMA files in the
frequencies 32 kHz, 44.1 kHz and 48 kHz.
• The sound quality of
WMA files generally
becomes better with an increased bit rate.
This unit can play recordings with bit rates
from 48 kbps to 320 kbps (CBR) or from
48 kbps to 384 kbps (VBR), but in order to
be able to enjoy sound of a certain quality,
we recommend using discs recorded with
a higher bit rate.
• This unit doesn't support the follo
wing for-
mats.
- Wind
ows Media Audio 9 Professional
(5.1ch)
- Windows Media
Audio 9 Lossless
- Windows Media Audio 9 Voice
About folders and
MP3/WMA files
• An outline of a CD-ROM and USB portable
audio player/USB memory with MP3/WMA
files on it is shown below. Subfolders are
shown as folders in the folder currently
selected.
001.mp3
(001.wma)
010.mp3
(010.wma)
021.mp3
(021.wma)
030.mp3
(030.wma)
011.mp3
(011.wma)
020.mp3
(020.wma)
First
levelSecond levelThirdlevel
001
(ROOT)
002
004
005
003
NOTES
This unit assigns folder
number. The user can not
assign folder numbers.
MP3/ WMA files in the USB
portable audio player/USB
memory are played in the
same order as they were
copied to the USB portable
audio player/USB memory.
To specify the order in
which files in the USB
portable audio player/USB
memory are played, we
recommend the following
method.
1 Using a personal computer,
add a number indicating
the playback order in
front of the file name, e.g.
[001xxx.mp3] or [099yyy.wma].
Put the files into a folder.
3 Copy the folder to the USB
portable audio player/USB
memory.
Depending on the
computer environment,
it may not be possible to
specif y the order by this
method.
•
•
•

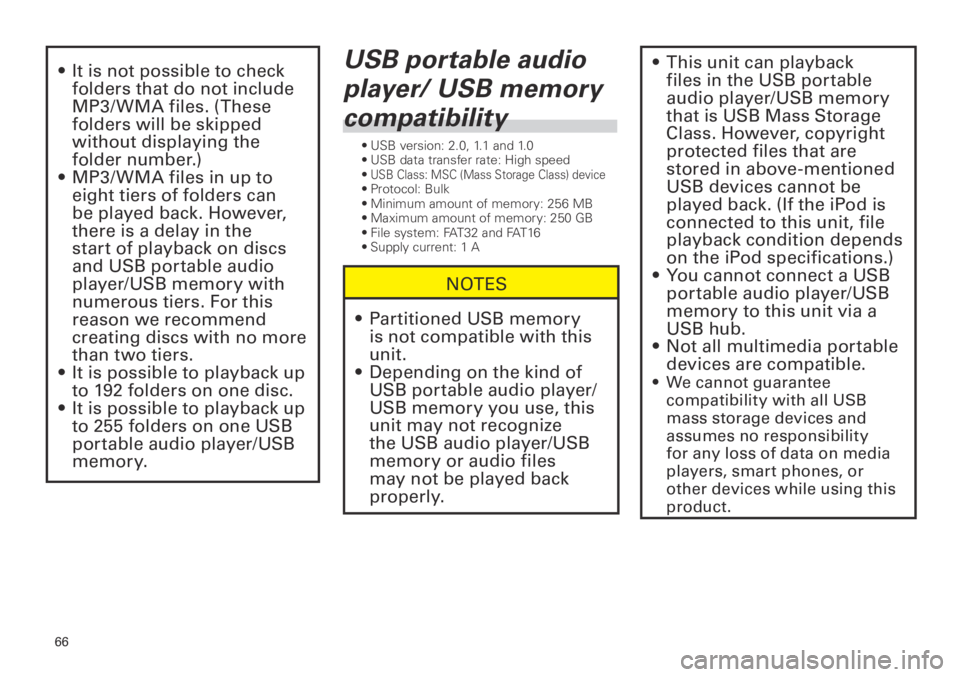

Page 66 of 76
66
USB portable audio
player/ USB memory
compatibility
• USB version: 2.0, 1.1 and 1.0
• USB data transfer rate: High speed
•
USB Class: MSC (Mass Storage Class) device• Protocol: Bulk
• Minimum amount of memory: 256 MB
• Maximum amount of memory: 250 GB
• File system: FAT32 and FAT16
• Supply current: 1 A
NOTES
Partitioned USB memory
is not compatible with this
unit.
Depending on the kind of
USB portable audio player/
USB memory you use, this
unit may not recognize
the USB audio player/USB
memory or audio files
may not be played back
properly.
•
•
This unit can playback
files in the USB portable
audio player/USB memory
that is USB Mass Storage
Class. However, copyright
protected files that are
stored in above-mentioned
USB devices cannot be
played back. (If the iPod is
connected to this unit, file
playback condition depends
on the iPod specifications.)
You cannot connect a USB
portable audio player/USB
memory to this unit via a
USB hub.
Not all multimedia portable
devices are compatible.
We cannot guarantee
compatibility with all USB
mass storage devices and
assumes no responsibility
for any loss of data on media
players, smart phones, or
other devices while using this
product.
•
•
•
•
It is not possible to check
folders that do not include
MP3/ WMA files. (These
folders will be skipped
without displaying the
folder number.)
MP3/ WMA files in up to
eight tiers of folders can
be played back. However,
there is a delay in the
start of playback on discs
and USB portable audio
player/USB memory with
numerous tiers. For this
reason we recommend
creating discs with no more
than two tiers.
It is possible to playback up
to 19
f
olders on one disc.
It is possible to playback up
to 55 f
olders on one USB
portable audio player/USB
memory.
•
•
•
•
Page 67 of 76
67

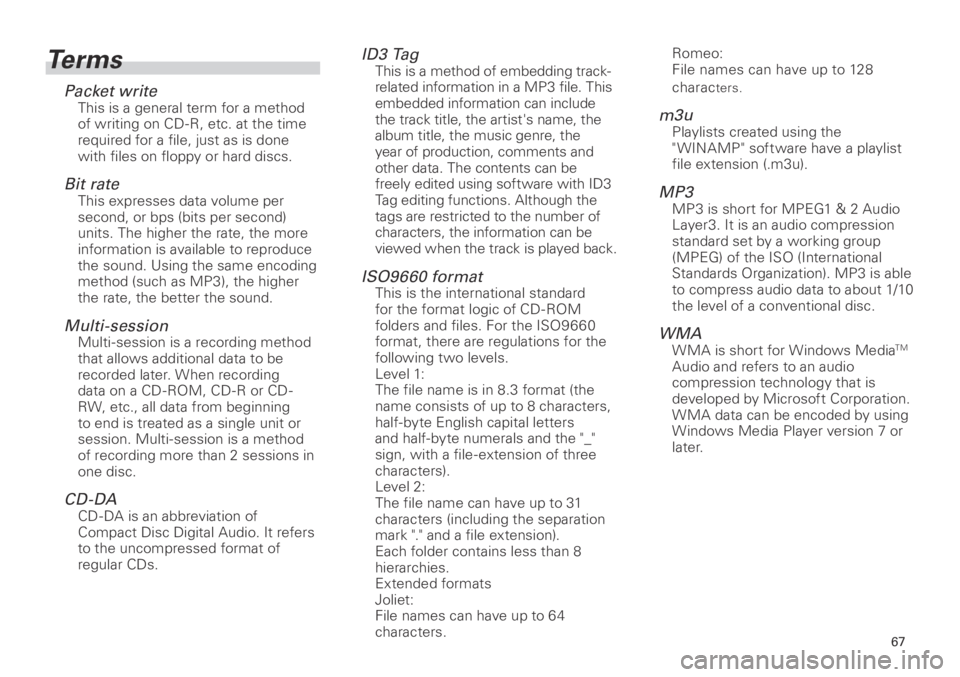

Terms
Packet writeThis is a general term for a method
of writing on CD -R, etc. at the time
required for a file, just as is done
with files on floppy or hard discs.
Bit rateThis expresses data volume per
second, or bps (bits per second)
units. The higher the rate, the more
information is available to reproduce
the sound. Using the same encoding
method (such as MP3), the higher
the rate, the better the sound.
Multi-sessionMulti-session is a recording method
that allows additional data to be
recorded later. When recording
data on a CD -ROM, CD -R or CD -
RW, etc., all data from beginning
to end is treated as a single unit or
session. Multi-session is a method
of recording more than 2 sessions in
one disc.
CD-DACD - DA is an abbreviation of
Compact Disc Digital Audio. It refers
to the uncompressed format of
regular CDs.
ID3 TagThis is a method of embedding track-
related information in a MP3 file. This
embedded information can include
the track title, the artist's name, the
album title, the music genre, the
year of production, comments and
other data. The contents can be
freely edited using software with ID3
Tag editing functions. Although the
tags are restricted to the number of
characters, the information can be
viewed when the track is played back.
ISO9660 formatThis is the international standard
for the format logic of CD -ROM
folders and files. For the ISO9660
format, there are regulations for the
following two levels.
Level 1:
The file name is in 8.3 format (the
name consists of up to 8 characters,
half-byte English capital letters
and half-byte numerals and the "_"
sign, with a file- extension of three
characters).
Level 2:
The file name can have up to 31
characters (including the separation
mark "." and a file extension).
Each folder contains less than 8
hierarchies.
Extended formats
Joliet:
File names can have up to 64
characters.Romeo:
File names can have up to 128
charac
ters.
m3uPlaylists created using the
" WINAMP " software have a playlist
file extension (.m3u).
MP3MP3 is short for MPEG1 & 2 Audio
Layer3. It is an audio compression
standard set by a working group
(MPEG) of the ISO (International
Standards Organization). MP3 is able
to compress audio data to about 1/10
the level of a conventional disc.
WMAWMA is short for Windows MediaTM
Audio and refers to an audio
compression technology that is
developed by Microsoft Corporation.
WMA data can be encoded by using
Windows Media Player version 7 or
later.
Page 68 of 76
68

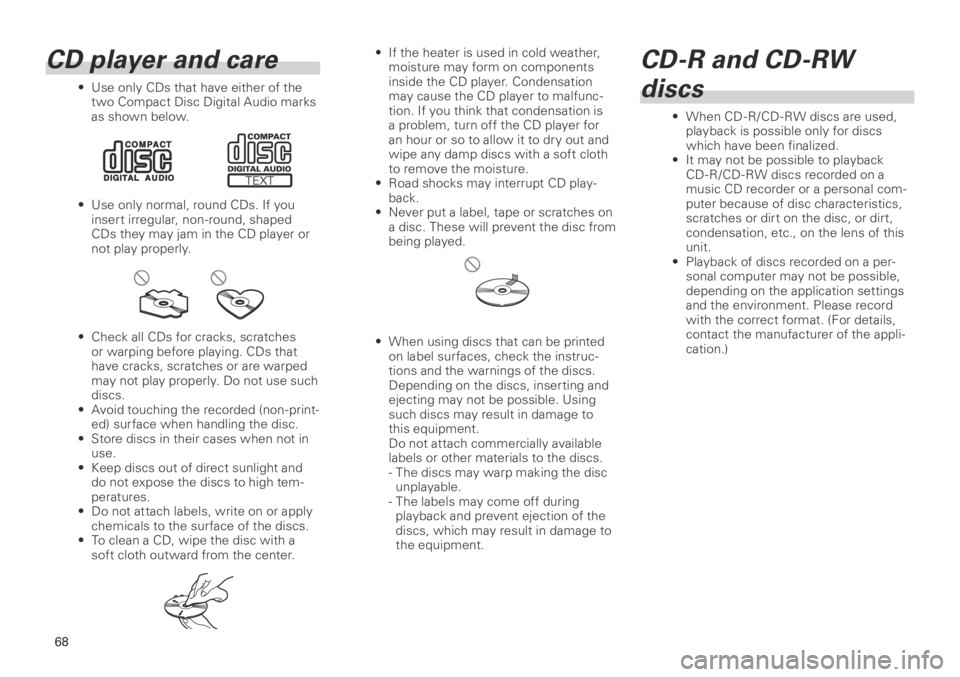

• If the heater is used in cold weather,
moisture may form on components
inside the CD player. Condensation
may cause the CD player to malfunc-
tion. If you think that condensation is
a problem, turn off the CD player for
an hour or so to allow it to dry out and
wipe any damp discs with a soft cloth
to remove the moisture.
• Roa
d shocks may interrupt CD play-
back.
• Nev
er put a label, tape or scratches on
a disc. These will prevent the disc from
being played.
• When using discs that can be printed
on label surfaces, check the instruc -
tions and the warnings of the discs.
Depe
nding on the discs, inserting and
ejecting may not be possible. Using
such discs may result in damage to
this equipment.
Do not a
ttach commercially available
labels or other materials to the discs.
- The d
iscs may warp making the disc
unplayable.
- The l
abels may come off during
playback and prevent ejection of the
discs, which may result in damage to
the equipment.
CD-R and CD-RW
discs
• When CD - R/CD - RW discs are used,
playback is possible only for discs
which have been finalized.
• It ma
y not be possible to playback
CD - R/CD - RW discs recorded on a
music CD recorder or a personal com-
puter because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc., on the lens of this
unit.
• Pla
yback of discs recorded on a per-
sonal computer may not be possible,
depending on the application settings
and the environment. Please record
with the correct format. (For details,
contact the manufacturer of the appli-
cation.)
CD player and care
• Use only CDs that have either of the
two Compact Disc Digital Audio marks
as shown below.
• Use o
nly normal, round CDs. If you
insert irregular, non-round, shaped
CDs they may jam in the CD player or
not play properly.
• Check all CDs for cracks, scratches
or warping before playing. CDs that
have cracks, scratches or are warped
may not play properly. Do not use such
discs.
• Avoi
d touching the recorded (non-print-
ed) surface when handling the disc.
• Sto
re discs in their cases when not in
use.
• Keep d
iscs out of direct sunlight and
do not expose the discs to high tem-
peratures.
• Do no
t attach labels, write on or apply
chemicals to the surface of the discs.
• To cl
ean a CD, wipe the disc with a
soft cloth outward from the center.
Page 69 of 76
69

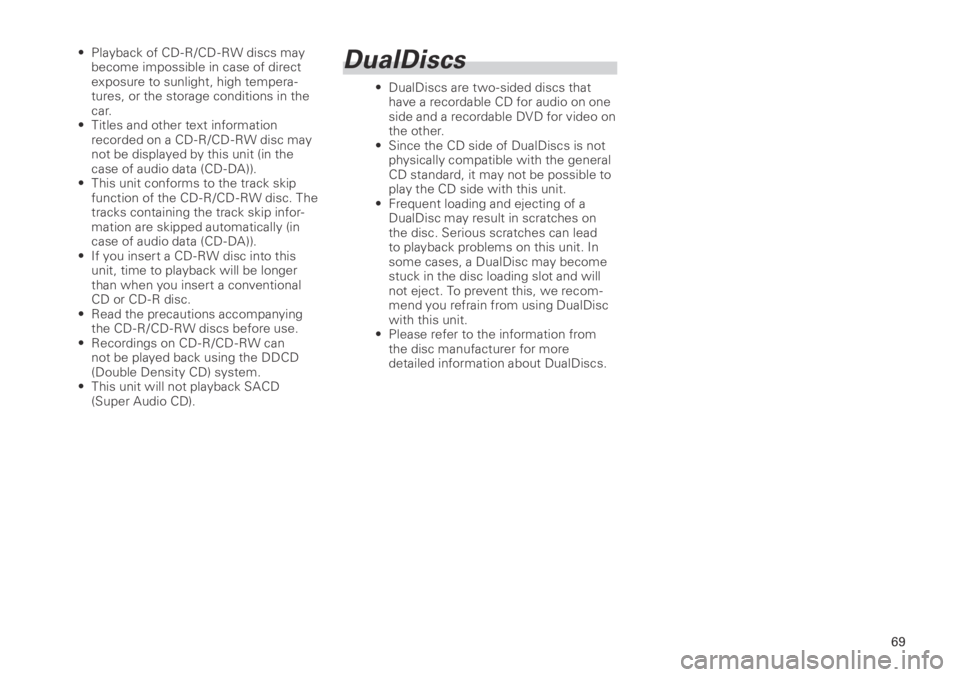

• Playback of CD - R/CD - RW discs may
become impossible in case of direct
exposure to sunlight, high tempera-
tures, or the storage conditions in the
car.
• Tit
les and other text information
recorded on a CD - R/CD - RW disc may
not be displayed by this unit (in the
case of audio data (CD - DA)).
• Thi
s unit conforms to the track skip
function of the CD - R/CD - RW disc. The
tracks containing the track skip infor-
mation are skipped automatically (in
case of audio data (CD - DA)).
• If yo
u insert a CD - RW disc into this
unit, time to playback will be longer
than when you insert a conventional
CD or CD - R disc.
• Rea
d the precautions accompanying
the CD - R/CD - RW discs before use.
• Rec
ordings on CD - R/CD - RW can
not be played back using the DDCD
(Double Density CD) system.
• Thi
s unit will not playback SACD
(Super Audio CD).
DualDiscs
• DualDiscs are two -sided discs that
have a recordable CD for audio on one
side and a recordable DVD for video on
the other.
• Sin
ce the CD side of DualDiscs is not
physically compatible with the general
CD standard, it may not be possible to
play the CD side with this unit.
• Fre
quent loading and ejecting of a
DualDisc may result in scratches on
the disc. Serious scratches can lead
to playback problems on this unit. In
some cases, a DualDisc may become
stuck in the disc loading slot and will
not eject. To prevent this, we recom-
mend you refrain from using DualDisc
with this unit.
• Ple
ase refer to the information from
the disc manufacturer for more
detailed information about DualDiscs.
Page 70 of 76
70

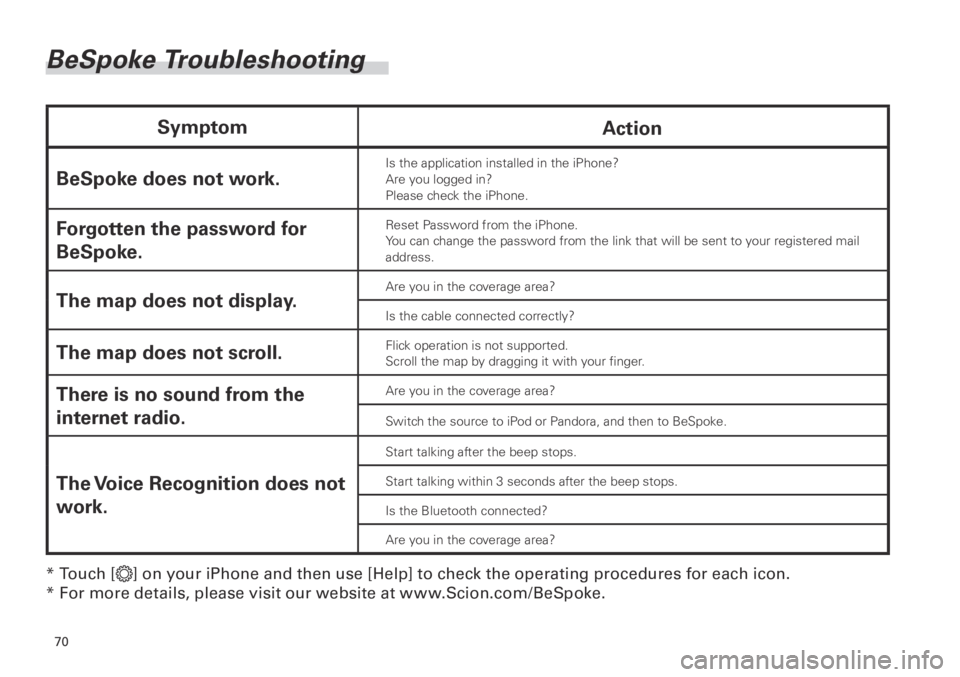

BeSpoke Troubleshooting
SymptomAction
BeSpoke does not work.
Is the application installed in the iPhone?
Are you logged in?
Please check the iPhone.
Forgotten the password for
BeSpoke.Reset Password from the iPhone.
You can change the password from the link that will be sent to your registered mail
address.
The map does not display.
Are you in the coverage area?
Is the cable connected correctly?
The map does not scroll.Flick operation is not supported.
Scroll the map by dragging it with your finger.
There is no sound from the
internet radio.Are you in the coverage area?
Switch the source to iPod or Pandora, and then to BeSpoke.
The Voice Recognition does not
work.
Start talking after the beep stops.
Start talking within 3 seconds after the beep stops.
Is the Bluetooth connected?
Are you in the coverage area?
* Touch [] on your iPhone and then use [Help] to check the operating procedures for each icon.
* For more details, please visit our website at w w w.Scion.com/BeSpoke.
