TOYOTA TERCEL 1985  Repair Manual REAR AXLE AND SUSPENSION - Rear Wheel Alignment(FwD)RA.3
REAR WHEEL ALIGNMENT (FWD}

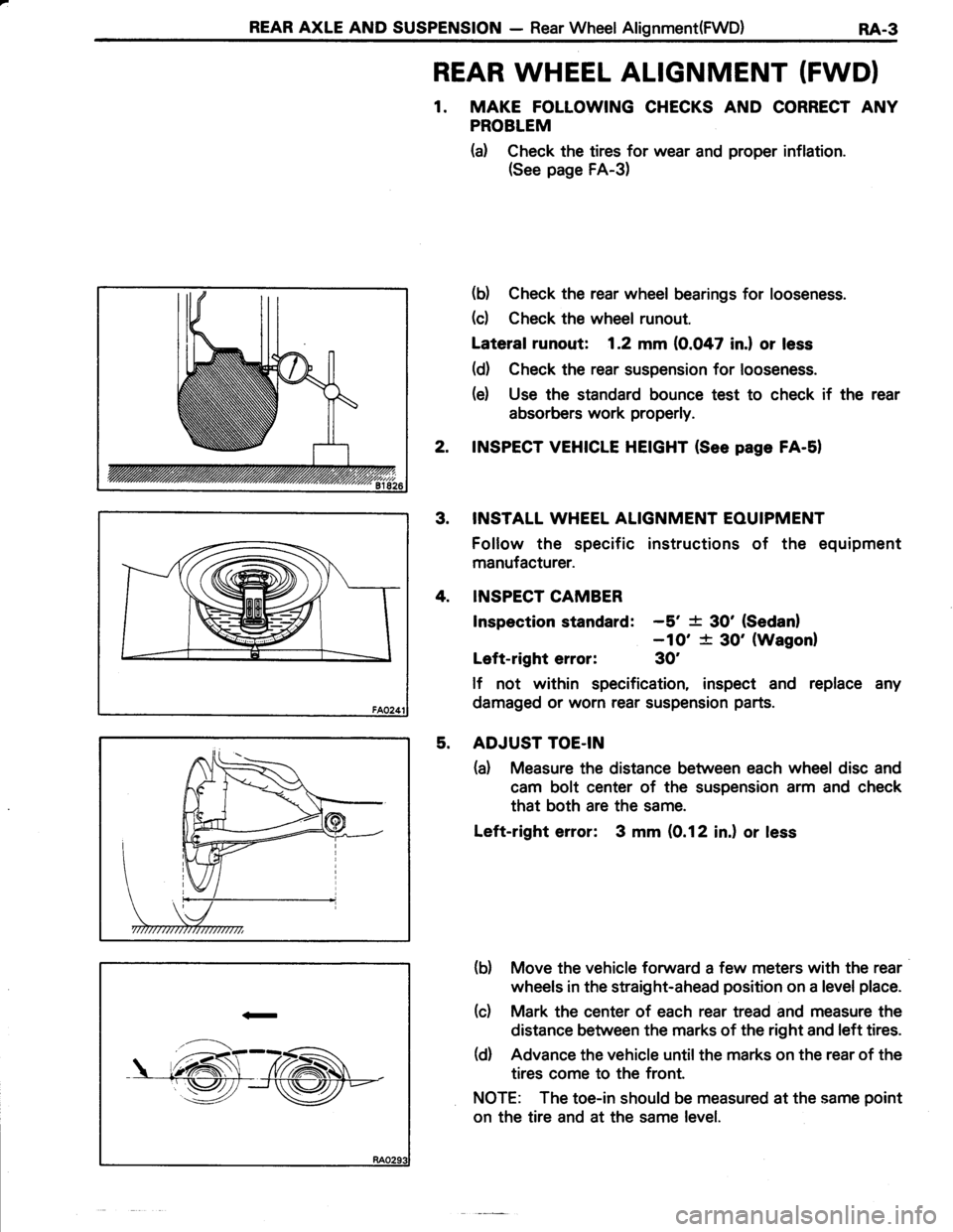

1. MAKE FOLLOWING CHECKS AND CORRECT ANY
PROBLEM
(d Check the tires for wear and proper inflation.
(See page FA-3)
(

Page 512 of 885

TOYOTA TERCEL 1985  Repair Manual 4
RA.4REAR AXLE AND SUSPENSION - Rear Wheel Alignment (FWD)
-A-
tFront
B-A=Toe-in
B

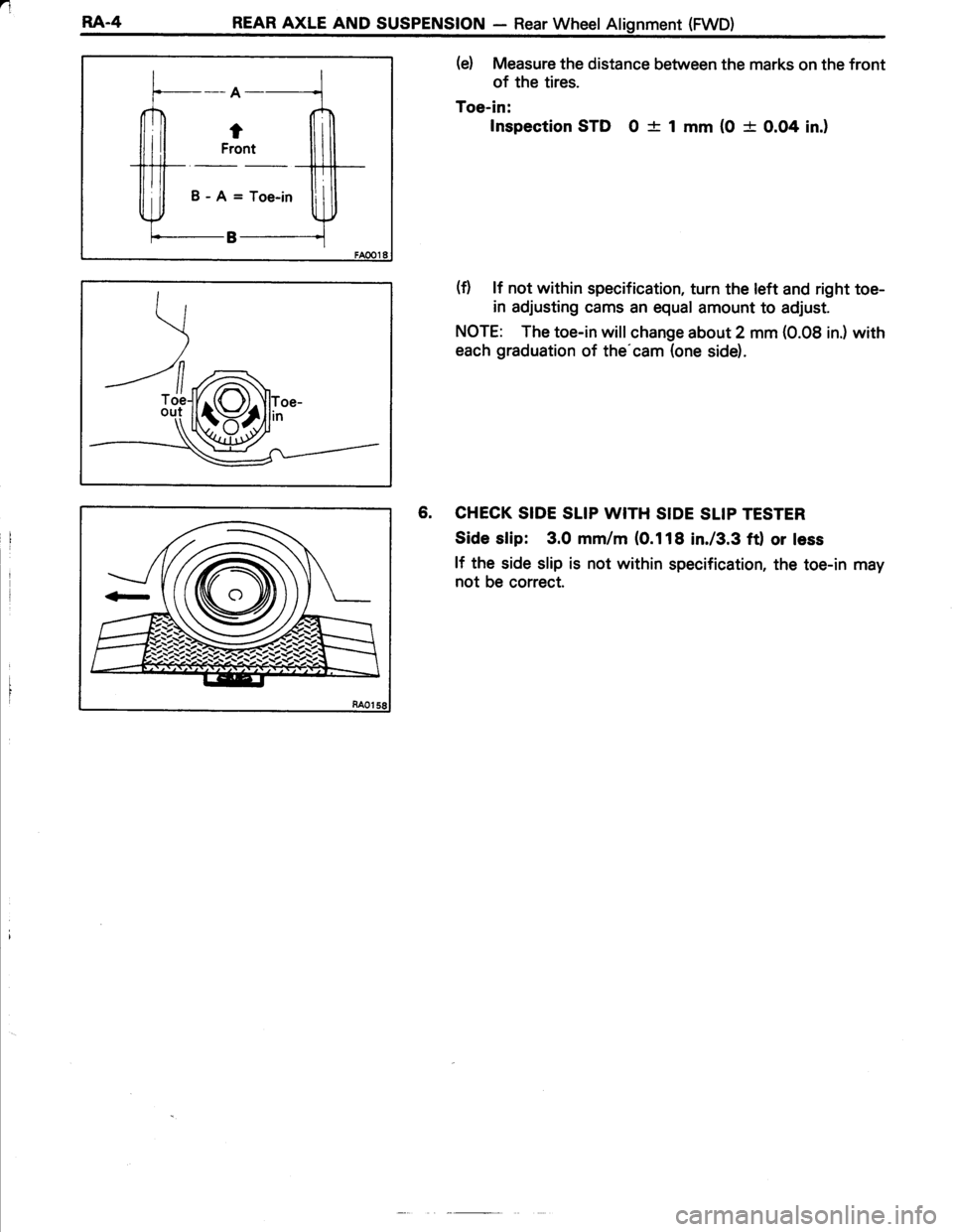

(e) Measure the distance between the marks on the front
of the tires.
Toe-in:
Inspection STD 0 + 1 mm (0 + O.O4 in.)

Page 513 of 885

TOYOTA TERCEL 1985  Repair Manual REAR AXLE AND SUSPENSION - Rear Axle Hub and Carrier (FWD) RA-s
REAR AXLE HUB AND CARRIER (FWDI
Sedan
COMPONENTS
REMOVAL OF REAR AXLE HUB AND CARRIER
1. JACK UP VEHICLE
Jack up the vehicle and support

Page 514 of 885

TOYOTA TERCEL 1985  Repair Manual -
RA-6 REAR AXLE AND SUSPENSION - Rear Axle Hub and Carrier (FWD)

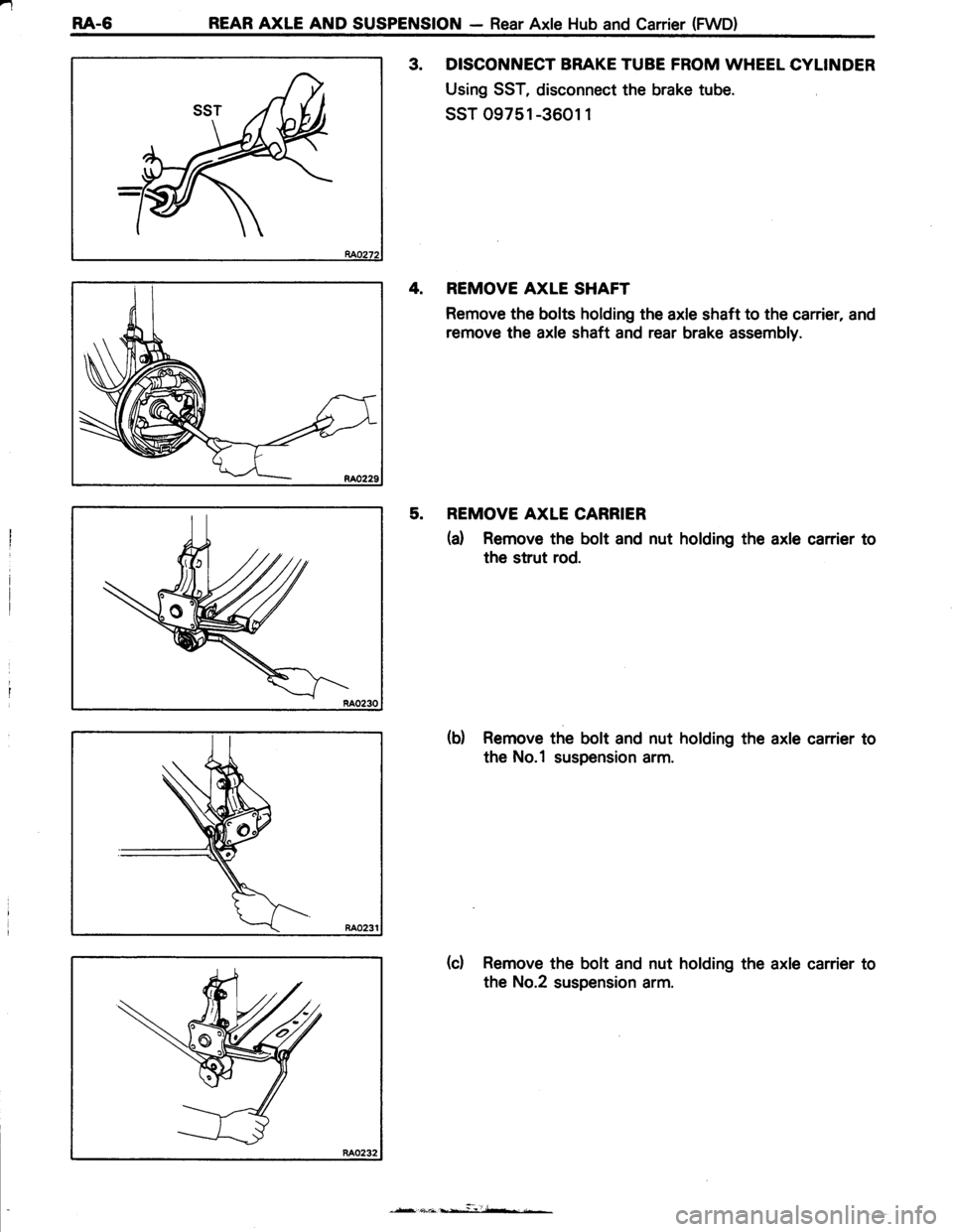

3. DISCONNECT BRAKE TUBE FROM WHEEL CYLINDER
Using SST, disconnect the brake tube.
ssT 09751 -3601 1
4. REMOVE AXLE SHAFT
Remove the b

Page 515 of 885

TOYOTA TERCEL 1985  Repair Manual REAR AXLE AND SUSPENSION - Rear Axle Hub and Carrier (FWD) RA-7
RAO233

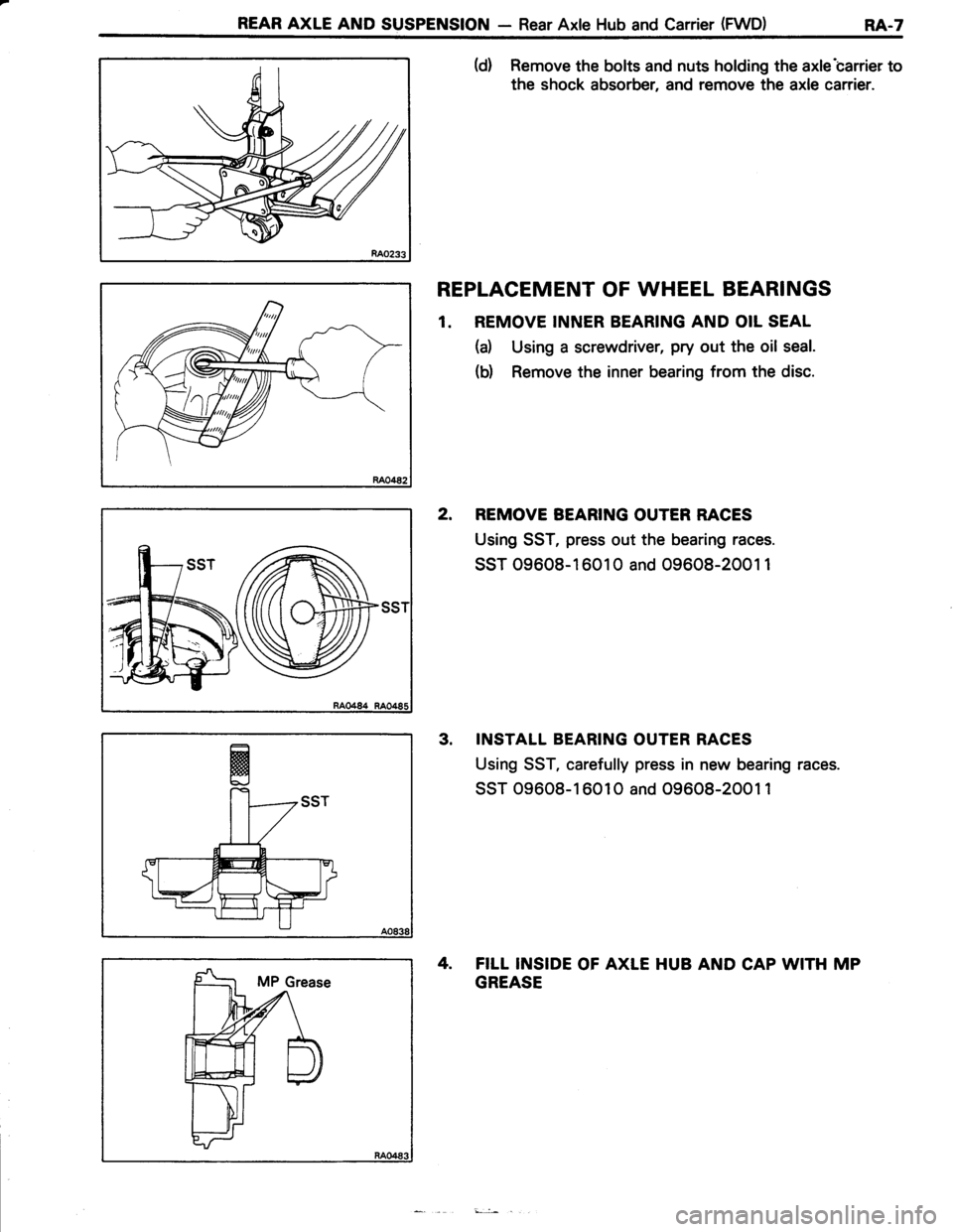

(d) Remove the bolts and nuts holding the axlecarrier to
the shock absorber, and remove the axle carrier.
REPLACEMENT OF WHEEL B

Page 516 of 885

TOYOTA TERCEL 1985  Repair Manual -
RA-8REAR AXLE AND SUSPENSION - Rear Axte Hub and Carrier (FWD)

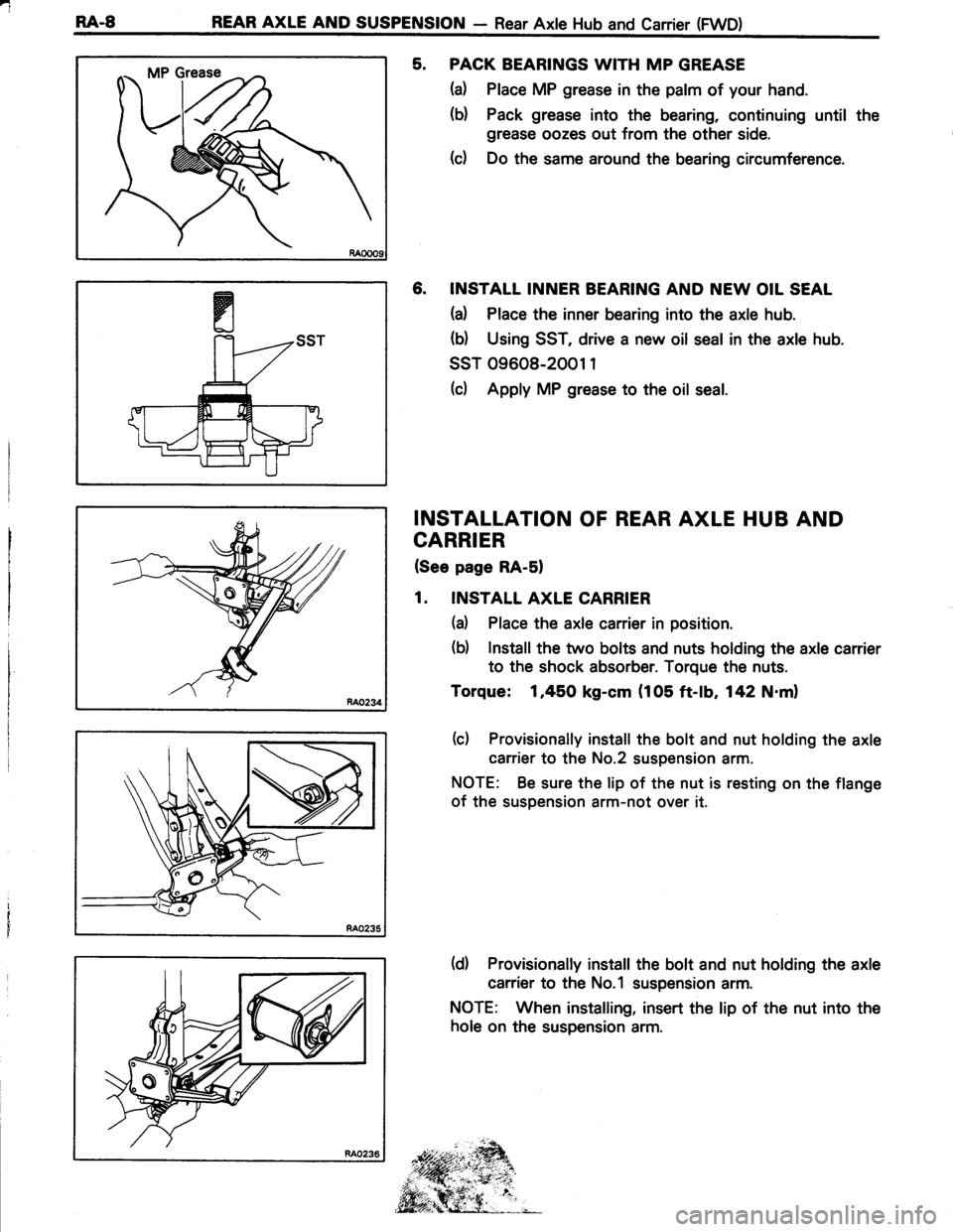

5. PACK BEARINGS WITH MP GREASE
(a) Place MP grease in the palm of your hand.
(b) Pack grease into the bearing, continuing until the
gr

Page 517 of 885

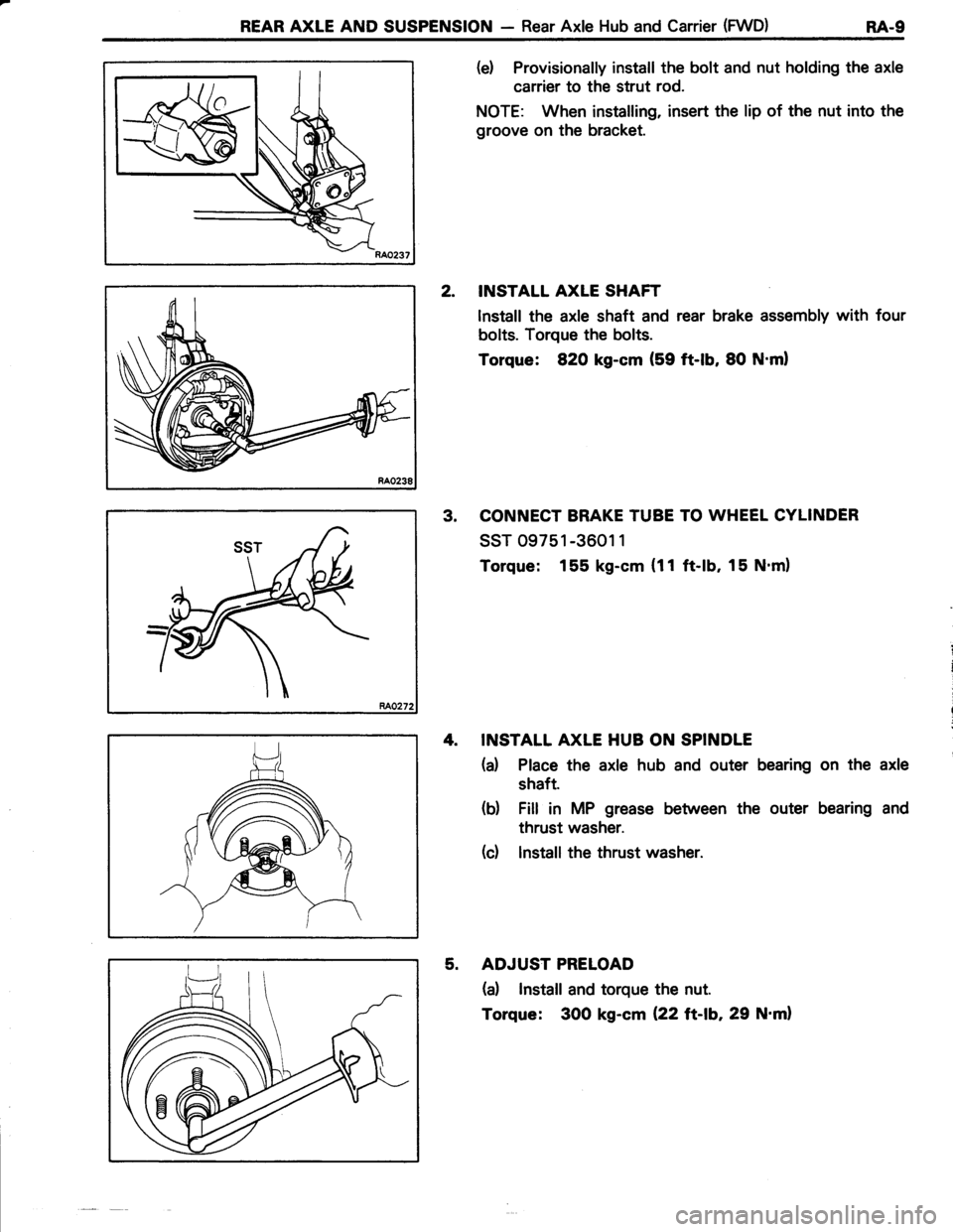

TOYOTA TERCEL 1985  Repair Manual REAR AXLE AND SUSPENSION - Rear Axle Hub and Carrier (FWD) RA-g
RA0238
(e) Provisionally install the bolt and nut holding the axle
carrier to the strut rod.
NOTE: When installing, insert the lip of th

Page 518 of 885

TOYOTA TERCEL 1985  Repair Manual r.1
E4-10 REAR AXLE AND SUSPENSION - Rear Axle Hub and Canier (FWD)

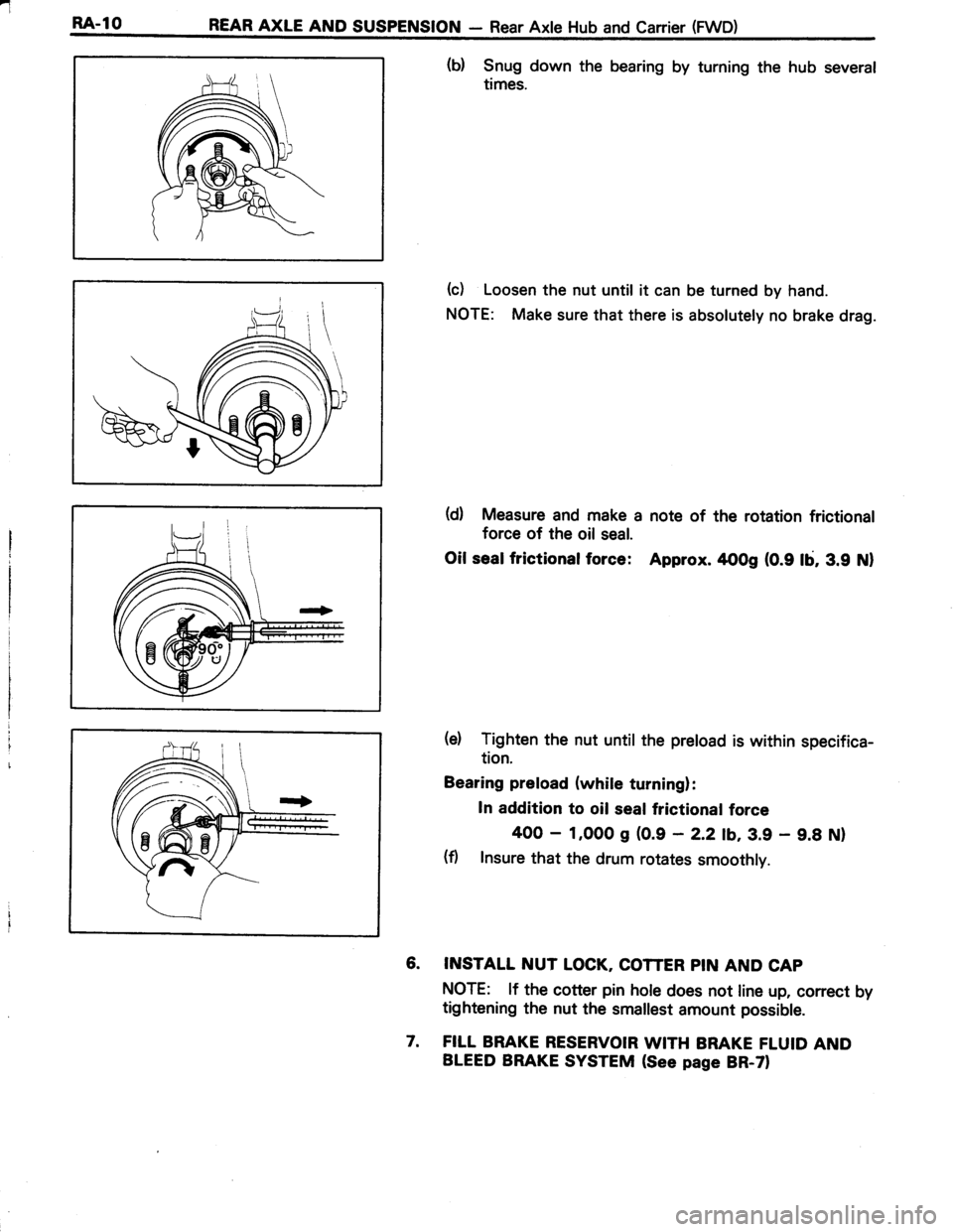

(b) Snug down the bearing by turning the hub several
times.
(c) Loosen the nut until it can be turned by hand.
NOTE: Make sure that

Page 519 of 885

TOYOTA TERCEL 1985  Repair Manual REAR AXLE AND SUSPENSION - Rear Axle Hub and Carrier (FWD) RA-l1

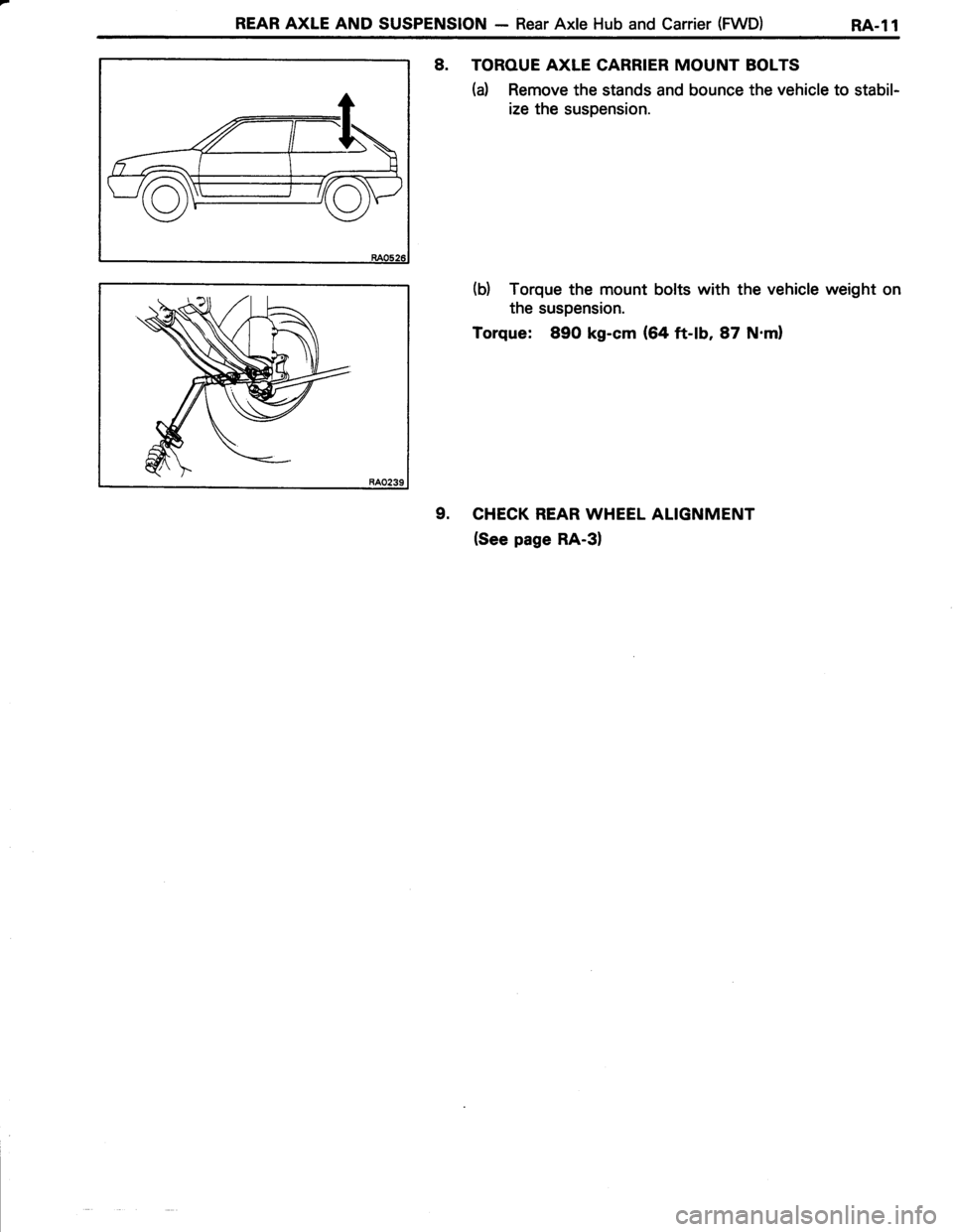

8. TOROUE AXLE CARRIER MOUNT BOLTS
(a) Remove the stands and bounce the vehicle to stabil-
ize the suspension.
(b) Torque the mount bol

Page 520 of 885

TOYOTA TERCEL 1985  Repair Manual r.1
RA-12 REAR AXLE AND.SUSPENSION - Rear Axle Hub and Carrier (FWD)

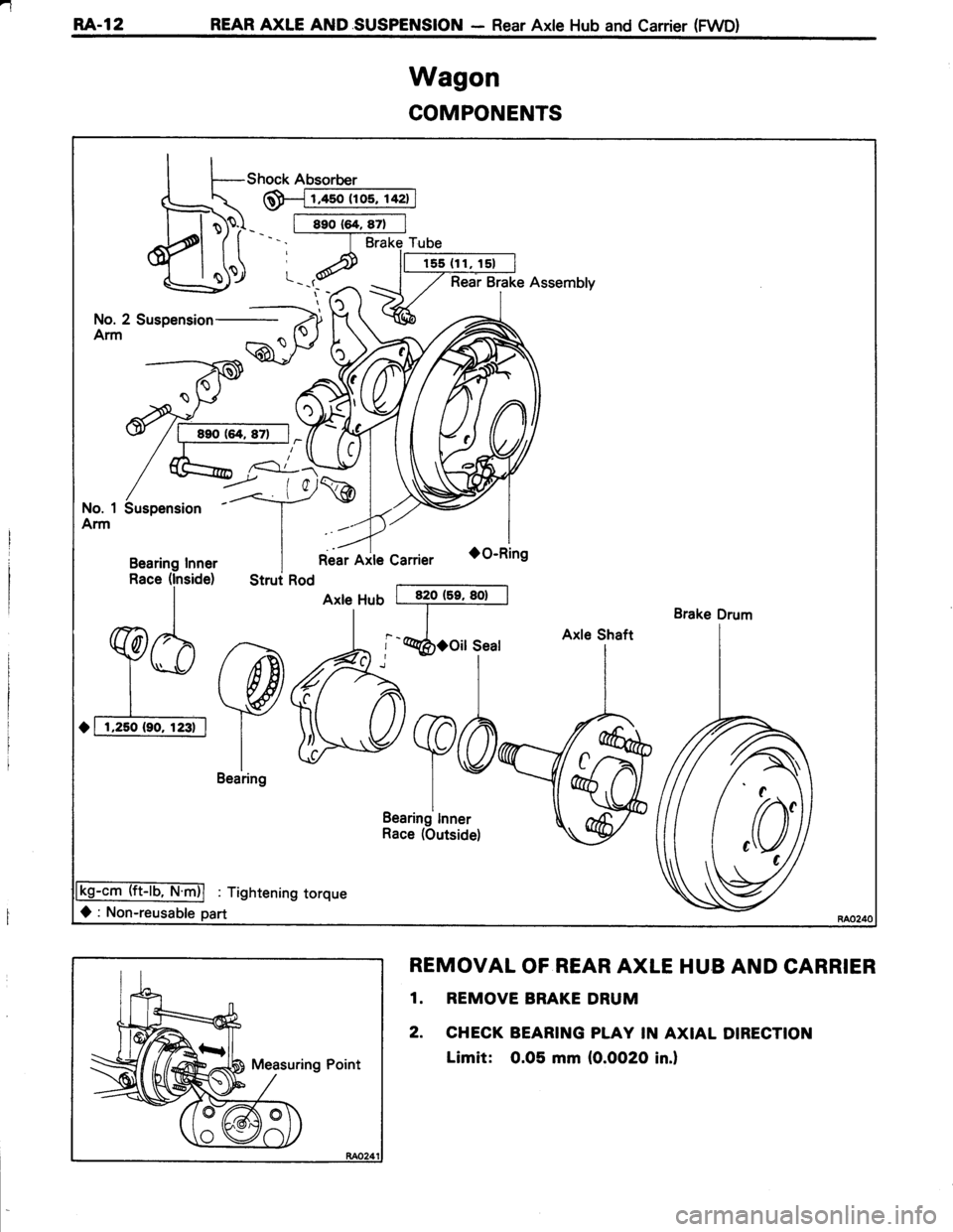

Wagon
COMPONENTS
Rear Brake Assembly
er+\/ ->--: | 0l/ --<_:+,--/No. 1 Suspension IArm II
Bearing Inner IRace (lnside) Strut Rod
Re
