TOYOTA TUNDRA 2015 2.G Navigation Manual

21

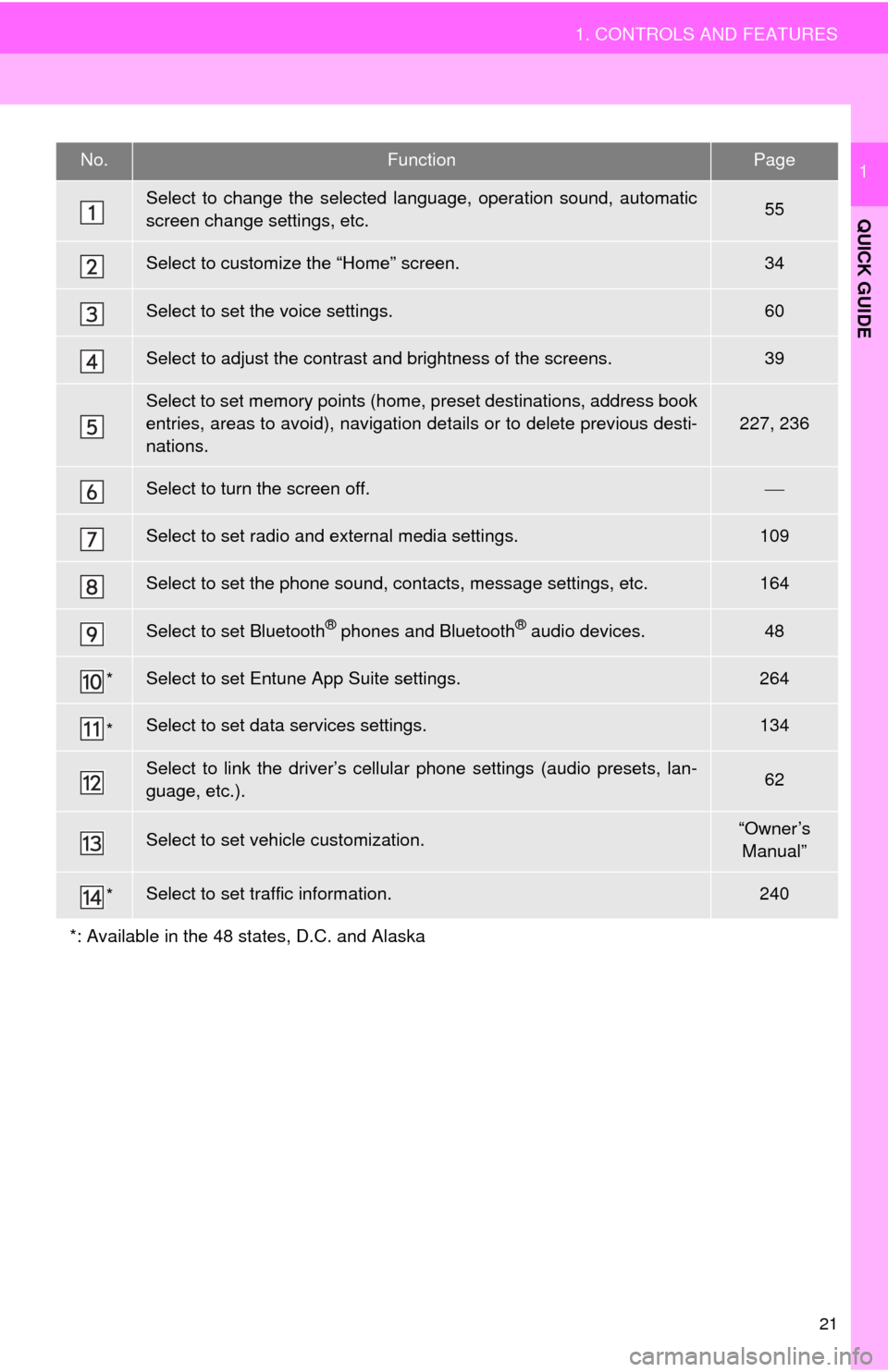

1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.55
Select to customize the “Home” screen.34
Select to set the voice settings.60
Select to adjust the contrast and brightness of the screens.39
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
227, 236
Select to turn the screen off.
Select to set radio and external media settings.109
Select to set the phone sound, contacts, message settings, etc.164
Select to set Bluetooth® phones and Bluetooth® audio devices.48
*Select to set Entune App Suite settings.264
*Select to set data services settings.134
Select to link the driver’s cellular phone settings (audio presets, lan-
guage, etc.).62
Select to set vehicle customization.“Owner’s
Manual”
*Select to set traffic information.240
*: Available in the 48 states, D.C. and Alaska

22
2. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
There are different kinds of meth-
od

s to search for your home.
( P.200)
*:Entune Premium Audio only
1
2
3
4
5
6
2. NAVIGATION OPERATION

23
2. NAVIGATION OPERATION
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way 
P.228
 Editing
the name, location, phone num -
ber and icon 
P.228
 Settin
g home as the destination 
P.203
7
8

24
2. NAVIGATION OPERATION
2. REGISTERING PRESET DESTINATIONS *
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”. Select one of the preset destina-
tion buttons.
Select “Yes”.
Th

ere are different kinds of meth-
ods to search for a destination.
( P.200)
Select “Enter ”.
Select “OK”.
Registration of preset destinations is
complete.
 Registering preset destinations in a dif -
ferent way 
P.229
 Edi
ting the name, location, phone num -
ber and icon 
P.230
 Setting
preset destinations as the desti -
nation 
P.203
*:Entune Premium Audio only
1
2
3
4
5
6
7
8

25
2. NAVIGATION OPERATION
QUICK GUIDE
1
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
There are different kinds of meth-
o

ds to search for a destination.
(P.200) Select “Go”.
Select “OK”.
Selectin
g routes other than the one recom-
mended ( P.213)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*:Entune Premium Audio only
1
2
3
4
5
6

26
2. NAVIGATION OPERATION
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.Select “OK”.
Se
lecting routes other than the one recom-
mended ( P.213)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*:Entune Premium Audio only
1
2
3
4
5

27
QUICK GUIDE
1

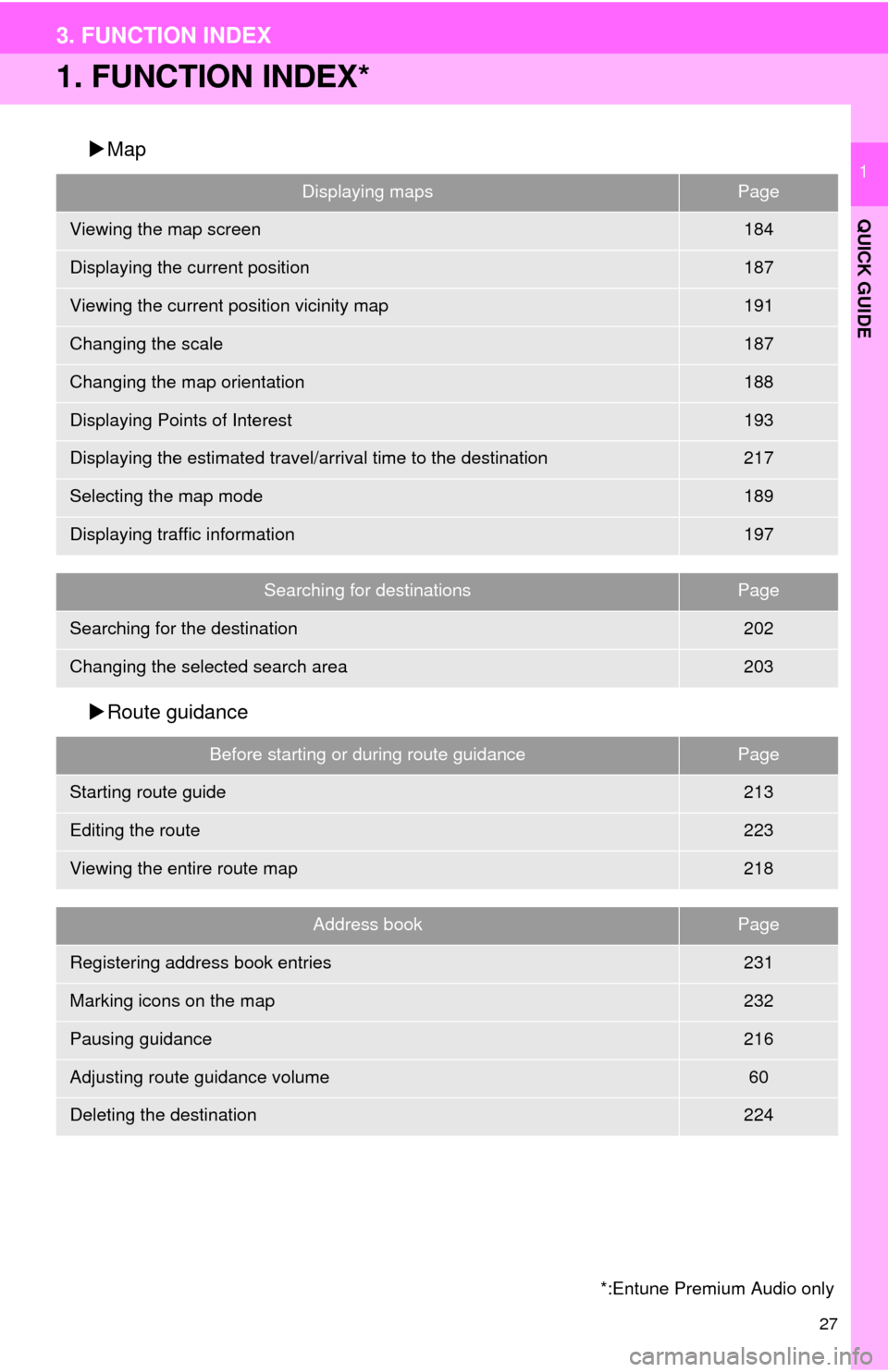

3. FUNCTION INDEX
1. FUNCTION INDEX*
Map
 R
oute guidance
Displaying mapsPage
Viewing the map screen184
Displaying the current position187
Viewing the current position vicinity map191
Changing the scale187
Changing the map orientation188
Displaying Points of Interest193
Displaying the estimated travel/arrival time to the destination217
Selecting the map mode189
Displaying traffic information197
Searching for destinationsPage
Searching for the destination202
Changing the selected search area203
Before starting or during route guidancePage
Starting route guide213
Editing the route223
Viewing the entire route map218
Address bookPage
Registering address book entries231
Marking icons on the map232
Pausing guidance216
Adjusting route guidance volume60
Deleting the destination224
*:Entune Premium Audio only

28
3. FUNCTION INDEX

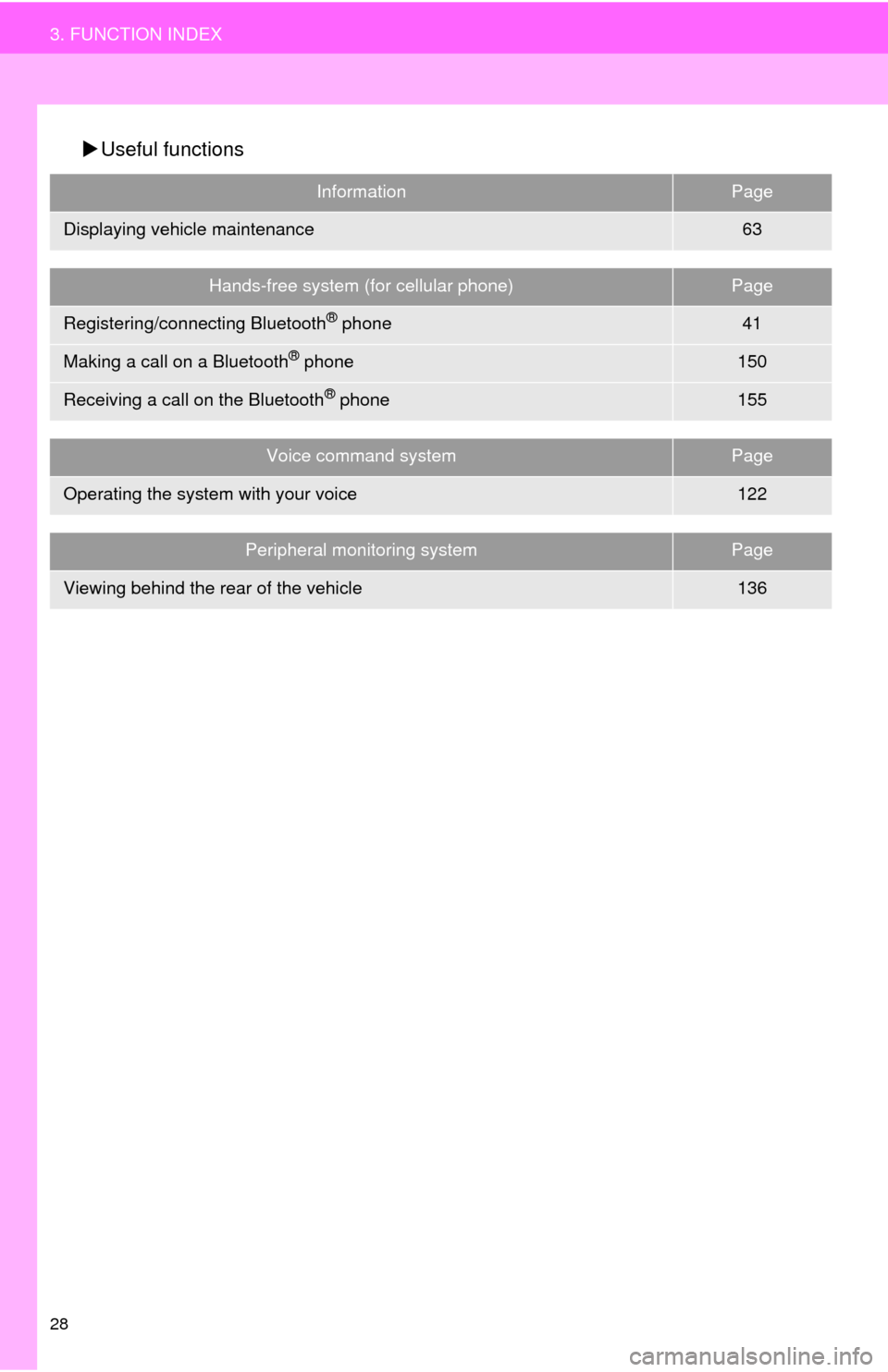

Useful functions
InformationPage
Displaying vehicle maintenance63
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone41
Making a call on a Bluetooth® phone150
Receiving a call on the Bluetooth® phone155
Voice command systemPage
Operating the system with your voice122
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle136

2
29
1
2
3
4
5
6
7
8
9

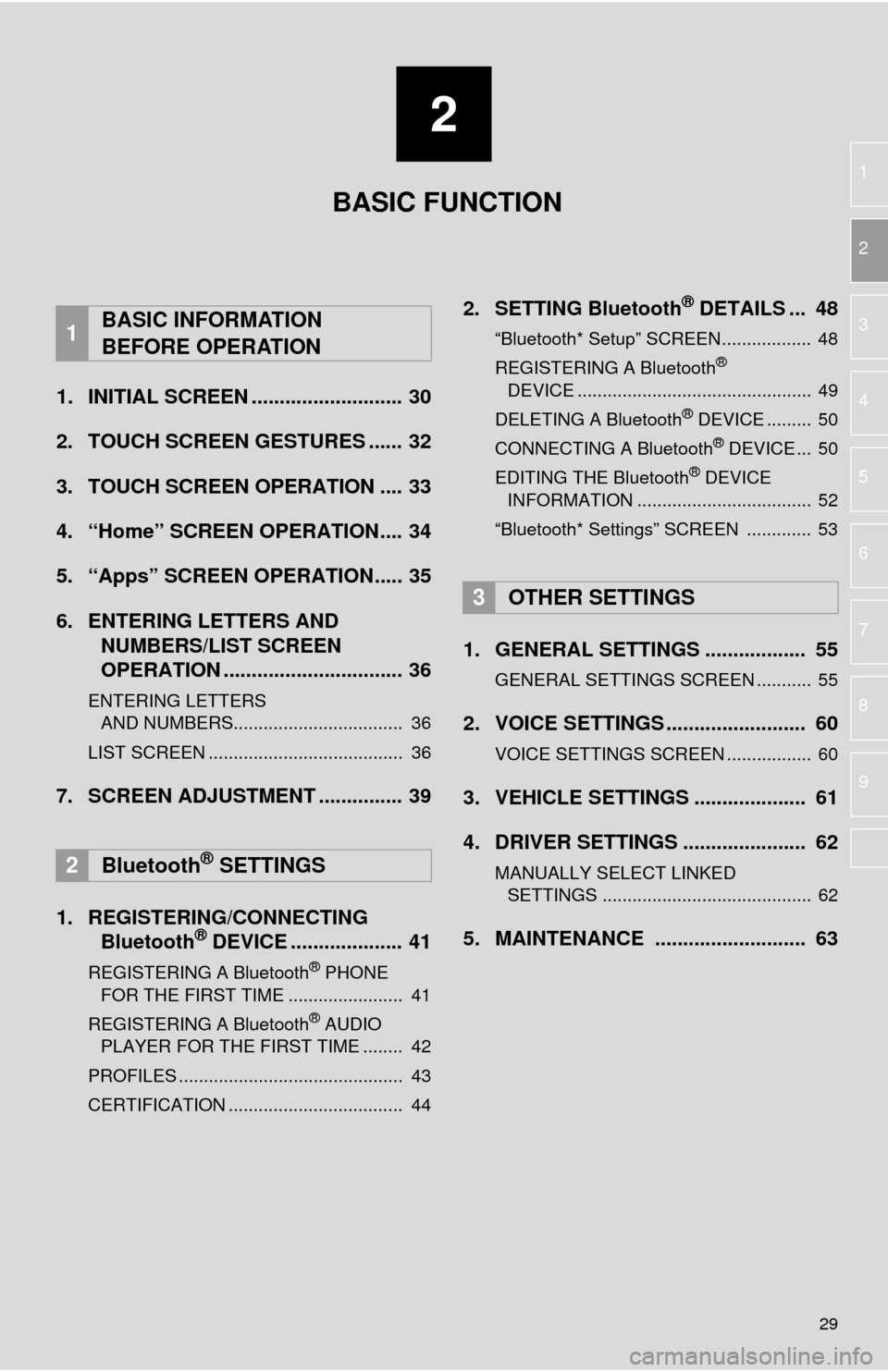

1. INITIAL SCREEN ........................... 30
2. TOUCH SCREEN GESTURES ...... 32
3. TOUCH SCREEN OPERATION .... 33
4. “Home” SCREEN OPERATION.... 34
5. “Apps” SCREEN OPERATION..... 35
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ................................ 36
ENTERING LETTERS 
AND NUMBERS.................................. 36
LIST SCREEN ....................................... 36
7. SCREEN ADJUSTMENT ............... 39
1. REGISTERING/CONNECTING Bluetooth® DEVICE .................... 41
REGISTERING A Bluetooth® PHONE 
FOR THE FIRST TIME ....................... 41
REGISTERING A Bluetooth
® AUDIO 
PLAYER FOR THE FIRST TIME ........ 42
PROFILES ............................................. 43
CERTIFICATION ................................... 44
2. SETTING Bluetooth® DETAILS ... 48
“Bluetooth* Setup” SCREEN.................. 48
REGISTERING A Bluetooth® 
DEVICE ............................................... 49
DELETING A Bluetooth
® DEVICE ......... 50
CONNECTING A Bluetooth® DEVICE ... 50
EDITING THE Bluetooth® DEVICE 
INFORMATION ................................... 52
“Bluetooth* Settings” SCREEN ............. 53
1. GENERAL SETTINGS .................. 55
GENERAL SETTINGS SCREEN ........... 55
2. VOICE SETTINGS ......................... 60
VOICE SETTINGS SCREEN ................. 60
3. VEHICLE SETTINGS .................... 61
4. DRIVER SETTINGS ...................... 62
MANUALLY SELECT LINKED 
SETTINGS .......................................... 62
5. MAINTENANCE ........................... 63
1BASIC INFORMATION 
BEFORE OPERATION
2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION

30
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed and the system will begin
operating.
After a few seconds, the “Caution” screen
will be displayed.
 Af
ter about 5 seconds, the “Caution”
screen automatically switches to the next
screen. (Select “Continue” or press the
“HOME” button to display the “Home”
screen.)
 Images shown on the initial screen can
be changed to suit individual prefer-
ences. ( P.58)
CAUTION
● When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE INFORMATION
(ENTUNE PREMIUM AUDIO)
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
 The screen goes off if the screen is not
operated for several seconds.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
P. 6 3
 If is selected, the registered
phone number can be called.
