Page 601 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6019-1. Specifications
9
Vehicle specifications

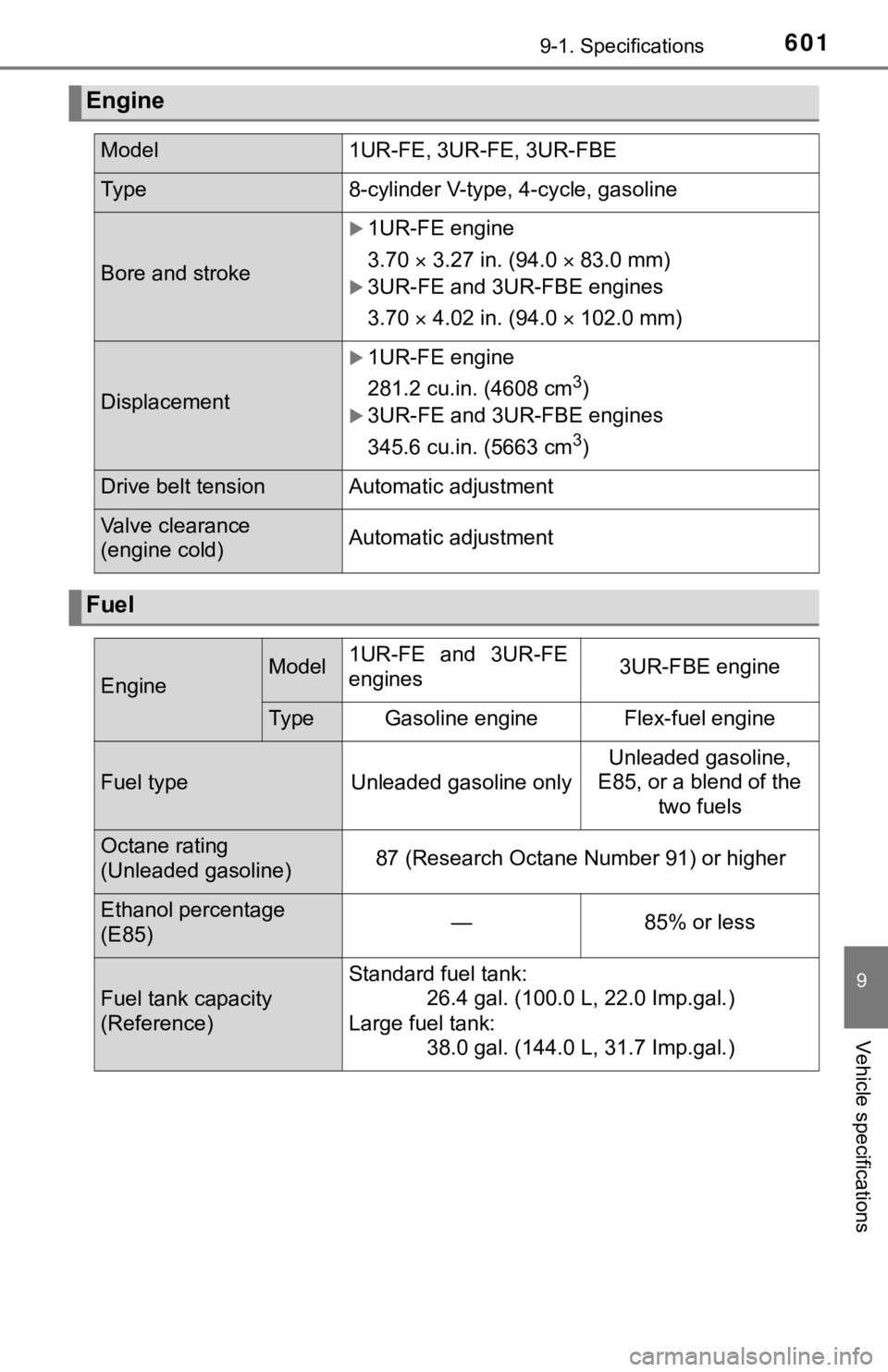

Engine
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70  3.27 in. (94.0   83.0 mm)

Page 602 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6029-1. Specifications
*: The engine oil  capacity is a reference  quantity to be  used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level

Page 603 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6039-1. Specifications
9
Vehicle specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which  allows cold
startability. Oils

Page 604 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6049-1. Specifications
Cooling system
Capacity
1UR-FE
engine
Vehicles without towing package
11.4 qt. (10.8 L, 9.5 Imp.qt.)
Vehicles with towing package
12.6 qt. (11.9 L, 10.5 Imp.qt.)
3UR-FE,
3

Page 605 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6059-1. Specifications
9
Vehicle specifications
*: Your Toyota  vehicle  is  filled  with  “Toyota  Genuine  Differential  Gear  Oil”  at
the factory. Use Toyota approved “Toyota Genuine Differe

Page 606 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6069-1. Specifications
*: The fluid capacity is the quantity of reference. If replacement is necessary, contact your Toyota dealer.
Automatic transmission
Fluid
capac-
ity
*
1UR-FE engine
2WD mode

Page 607 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6079-1. Specifications
9
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking  brake  pedal  travel  when  dep

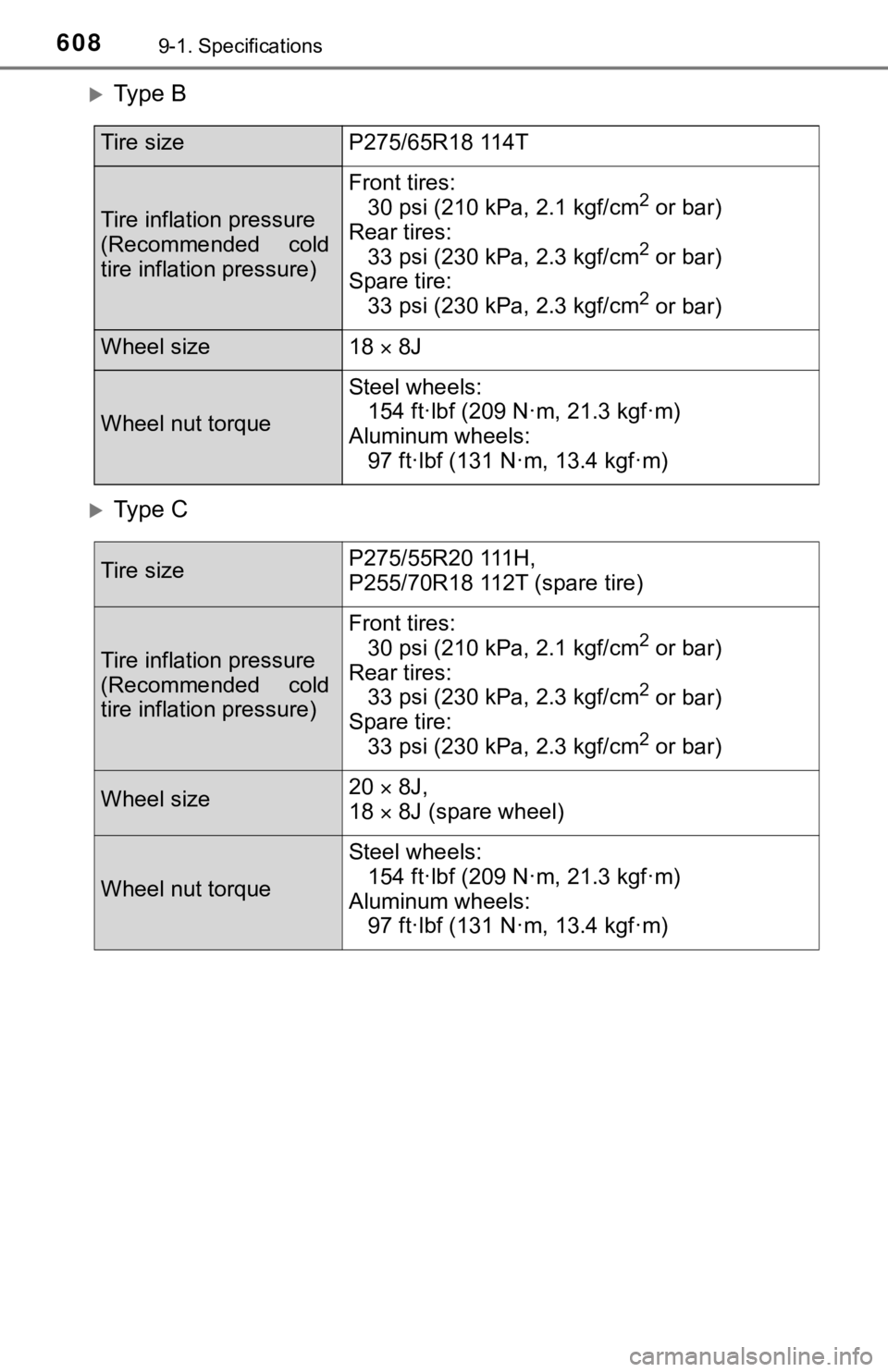

Page 608 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6089-1. Specifications
Ty p e   B
Ty p e   C
Tire sizeP275/65R18 114T
Tire inflation pressure
(Recommended  cold
tire inflation pressure)
Front tires:30 psi (210 kPa, 2.1 kgf/cm2 or bar)
Rear ti

Page 609 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6099-1. Specifications
9
Vehicle specifications
*1: If equipped
*2: Vehicles with bulb type headlights
*3: Vehicles with LED type headlights
A: HB2 halogen bulbs
B: H16 halogen bulbs
C: Wedge base bul

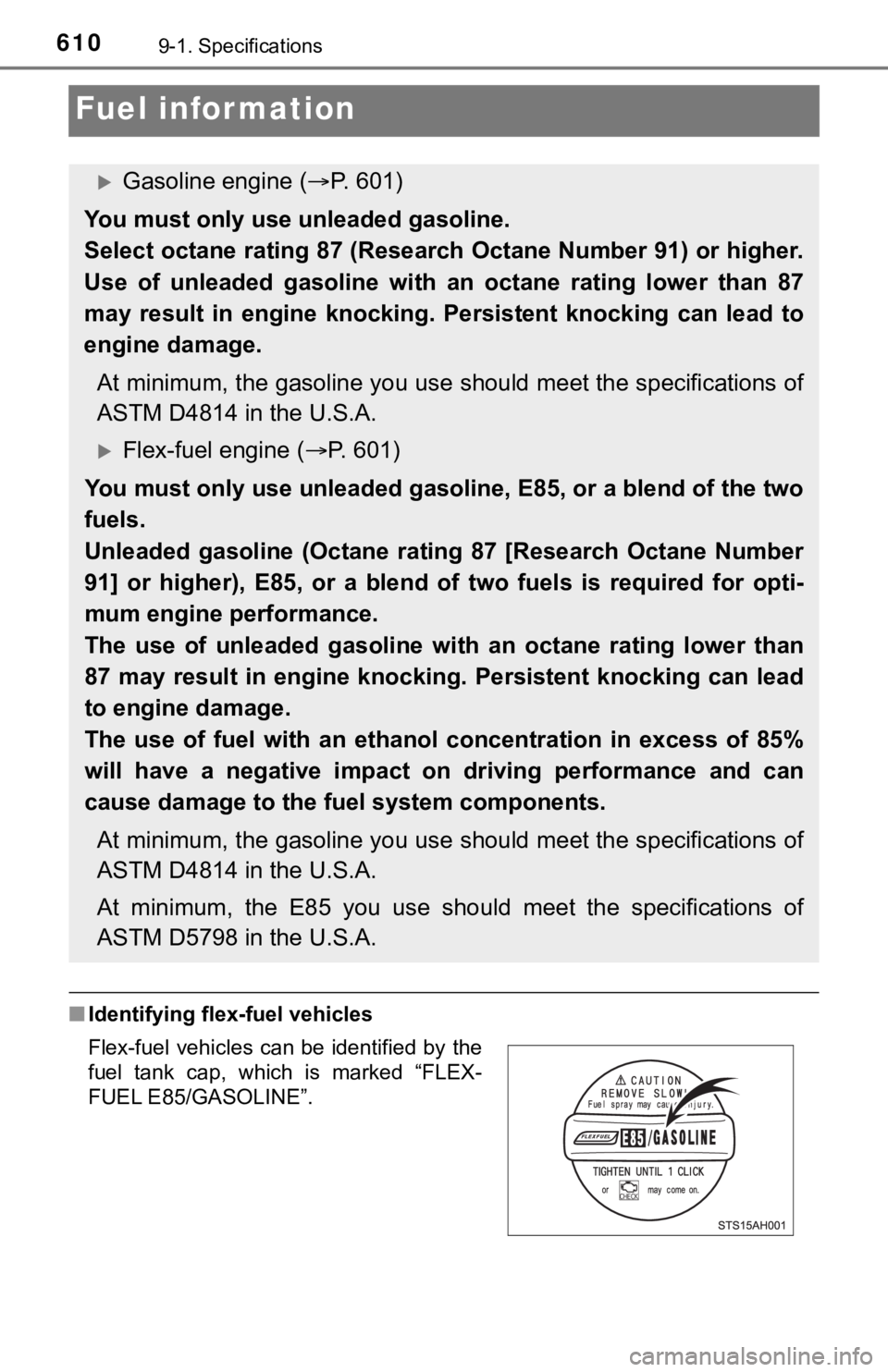

Page 610 of 672

TOYOTA TUNDRA 2018  Owners Manual (in English) 6109-1. Specifications
Fuel information
■Identifying flex-fuel vehicles
Gasoline engine ( P. 601)
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or hi
