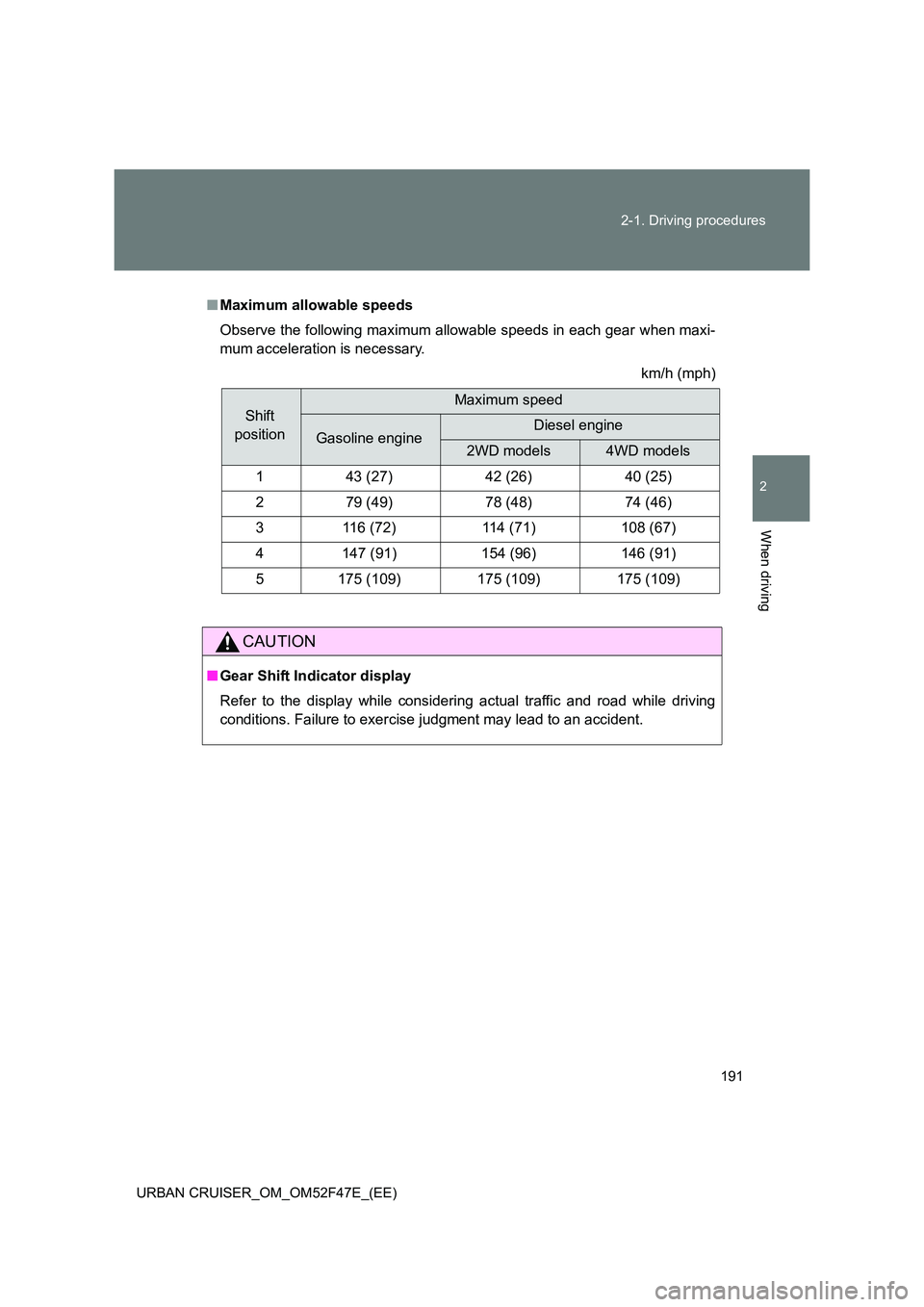

Page 191 of 544
191
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
CAUTION
■Gear Shift Indicator display
Refer to the display while considering actual traffic and road while driving
conditions. Failure to exercise judgment may lead to an accident.
Shift
position
Maximum speed
Gasoline engineDiesel engine
2WD models4WD models
143 (27)42 (26)40 (25)
279 (49)78 (48)74 (46)
3116 (72)114 (71)108 (67)
4147 (91)154 (96)146 (91)
5175 (109)175 (109)175 (109)
Page 192 of 544
192
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

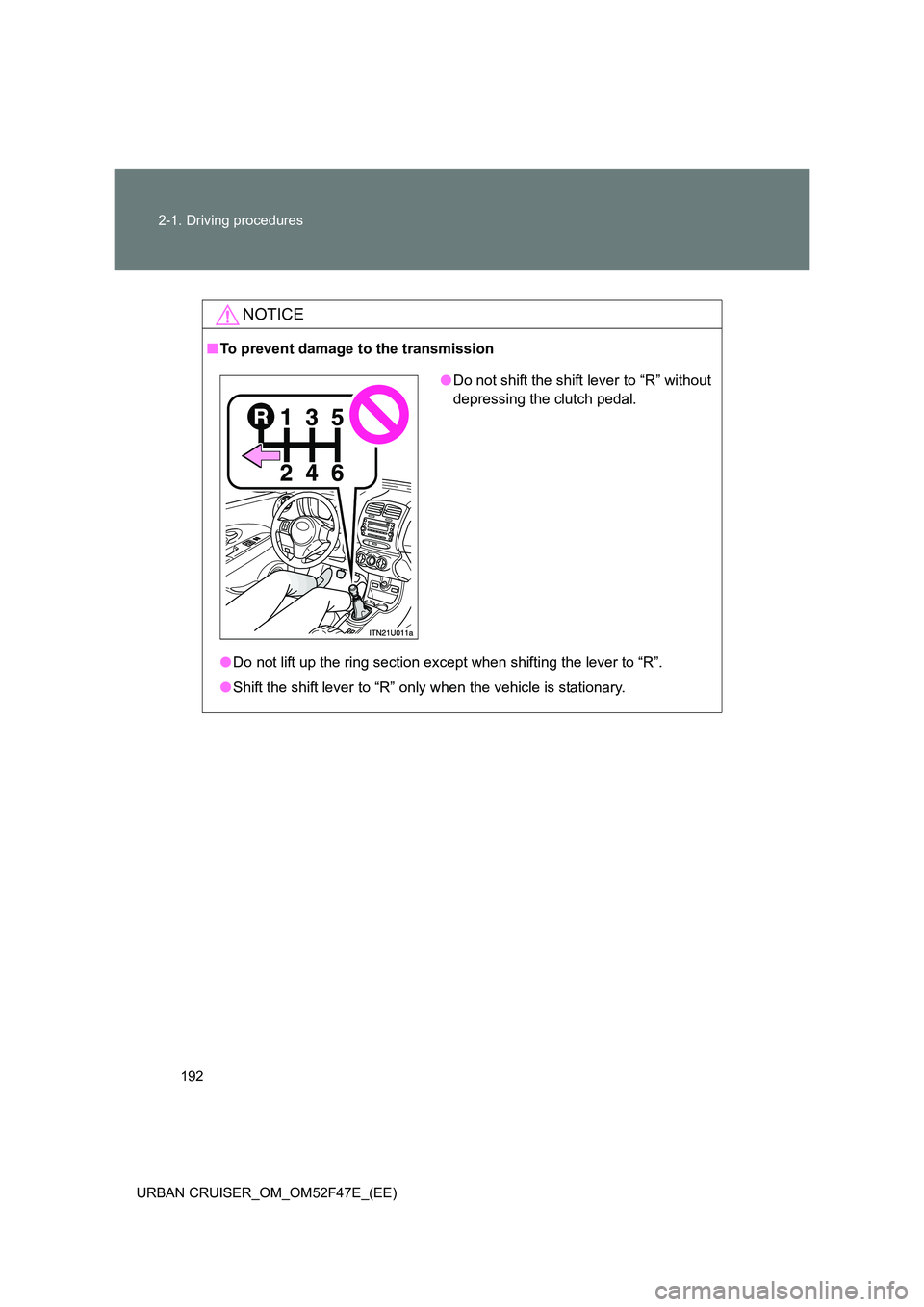

NOTICE
■ To prevent damage to the transmission
●Do not lift up the ring section except when shifting the lever to “R”.
● Shift the shift lever to “R” only when the vehicle is stationary.
●Do not shift the shift lever to “R” without
depressing the clutch pedal.
Page 193 of 544
193
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

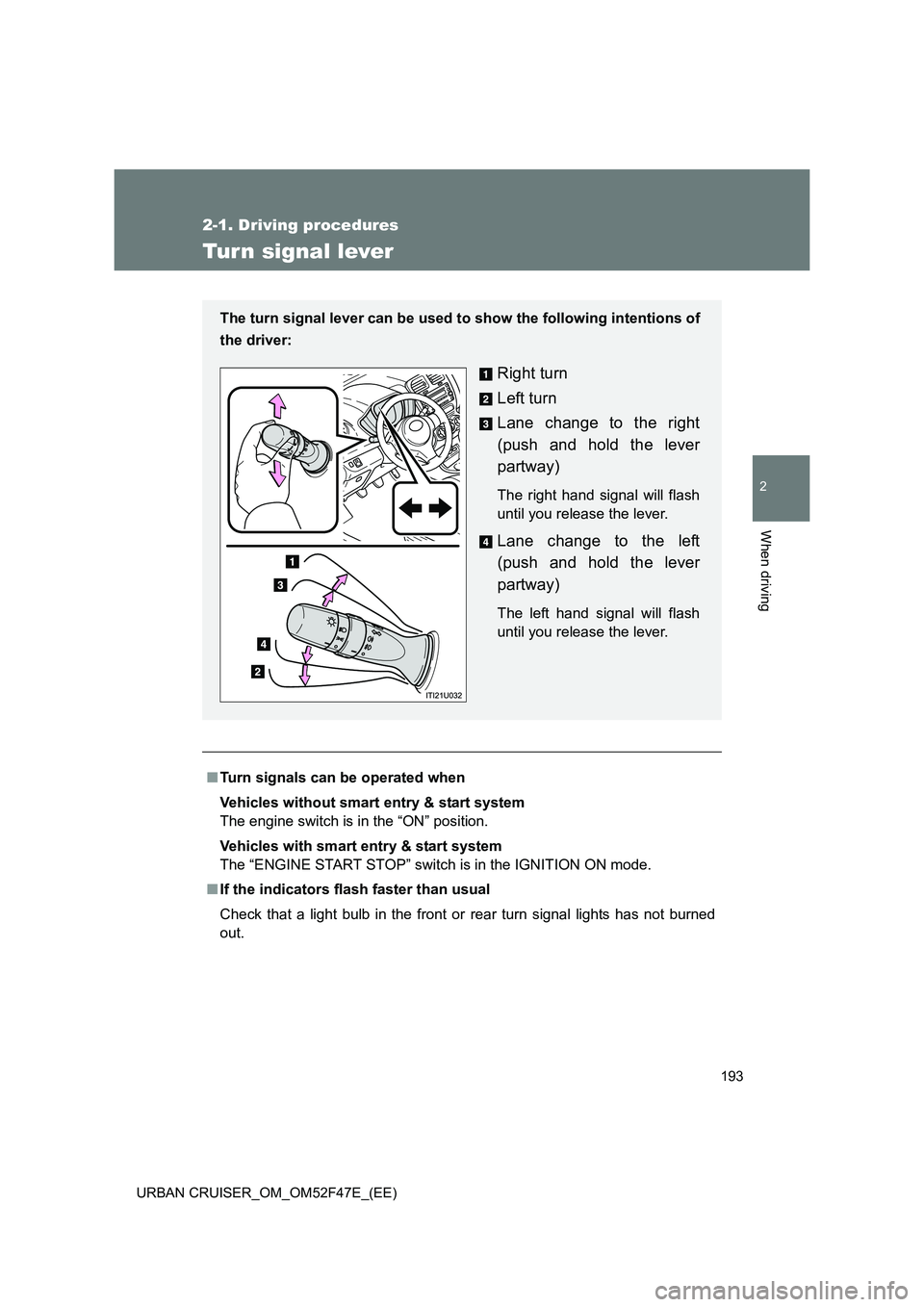

Tur n signal lever
■Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out. The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.
Page 194 of 544
194
2-1. Driving procedures
URBAN CRUISER_OM_OM52F47E_(EE)

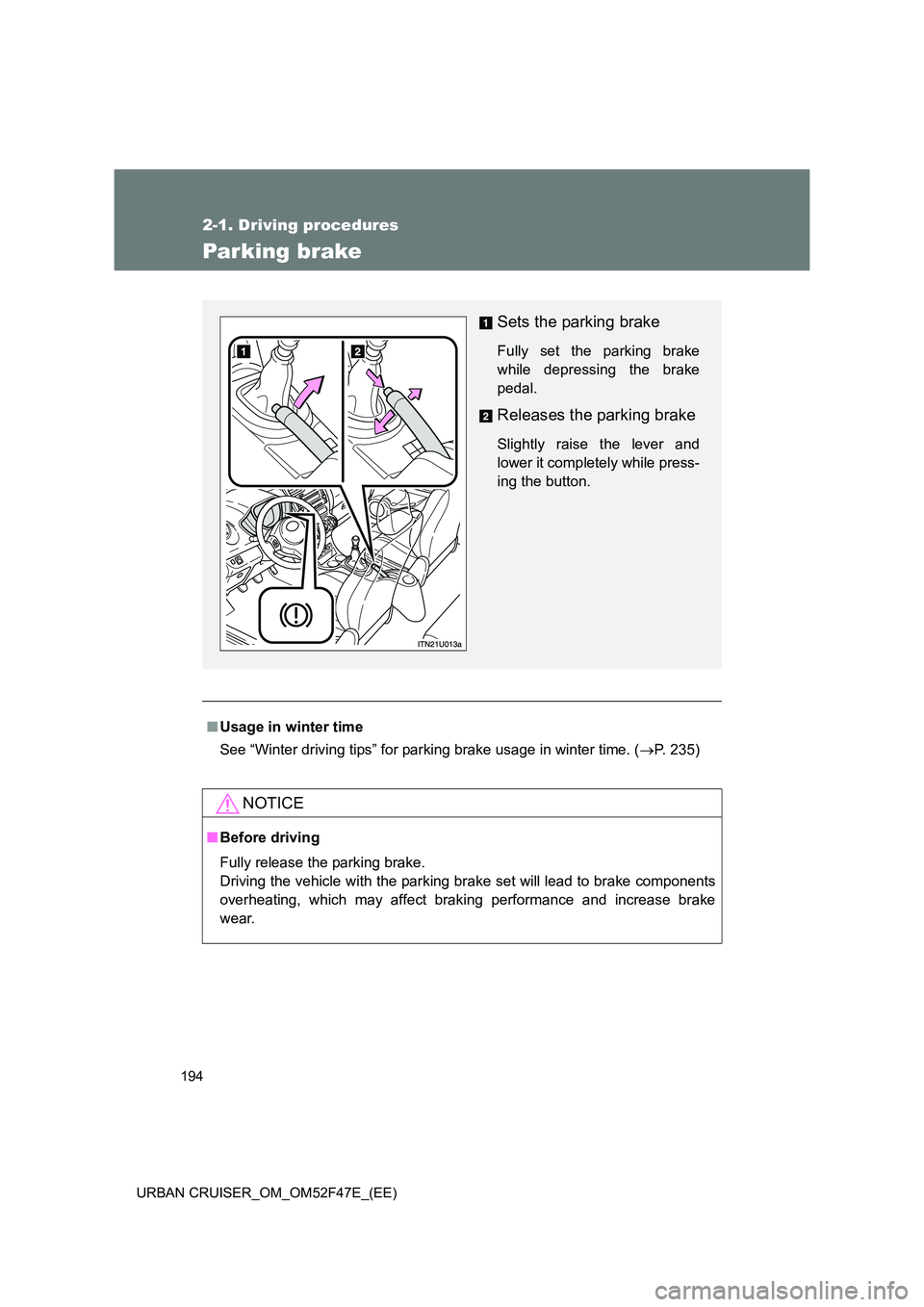

Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( →P. 235)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.
Page 195 of 544
195
2-1. Driving procedures
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

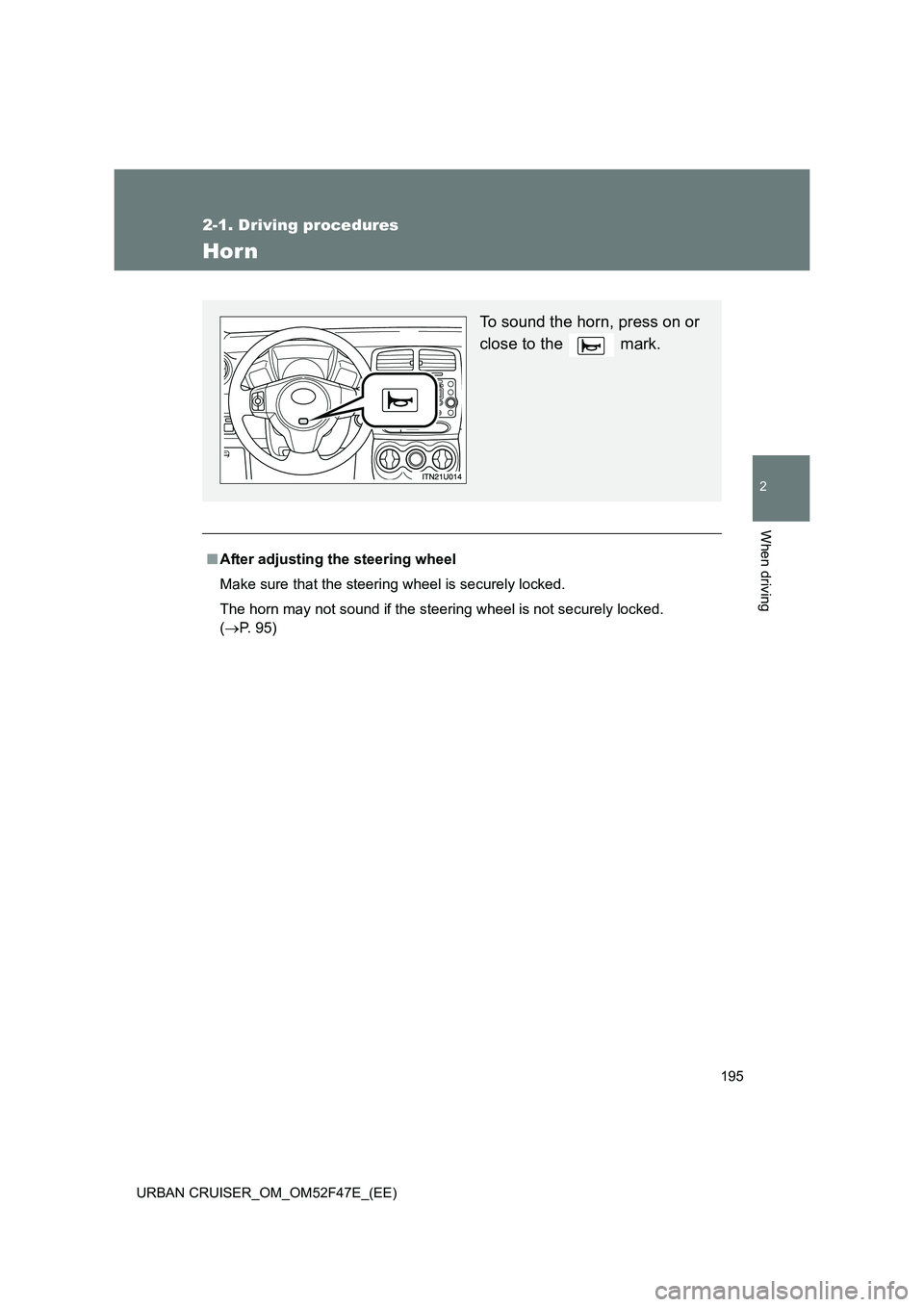

Horn
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(→ P. 9 5 )
To sound the horn, press on or
close to the mark.
Page 196 of 544
196
URBAN CRUISER_OM_OM52F47E_(EE)
2-2. Instrument cluster

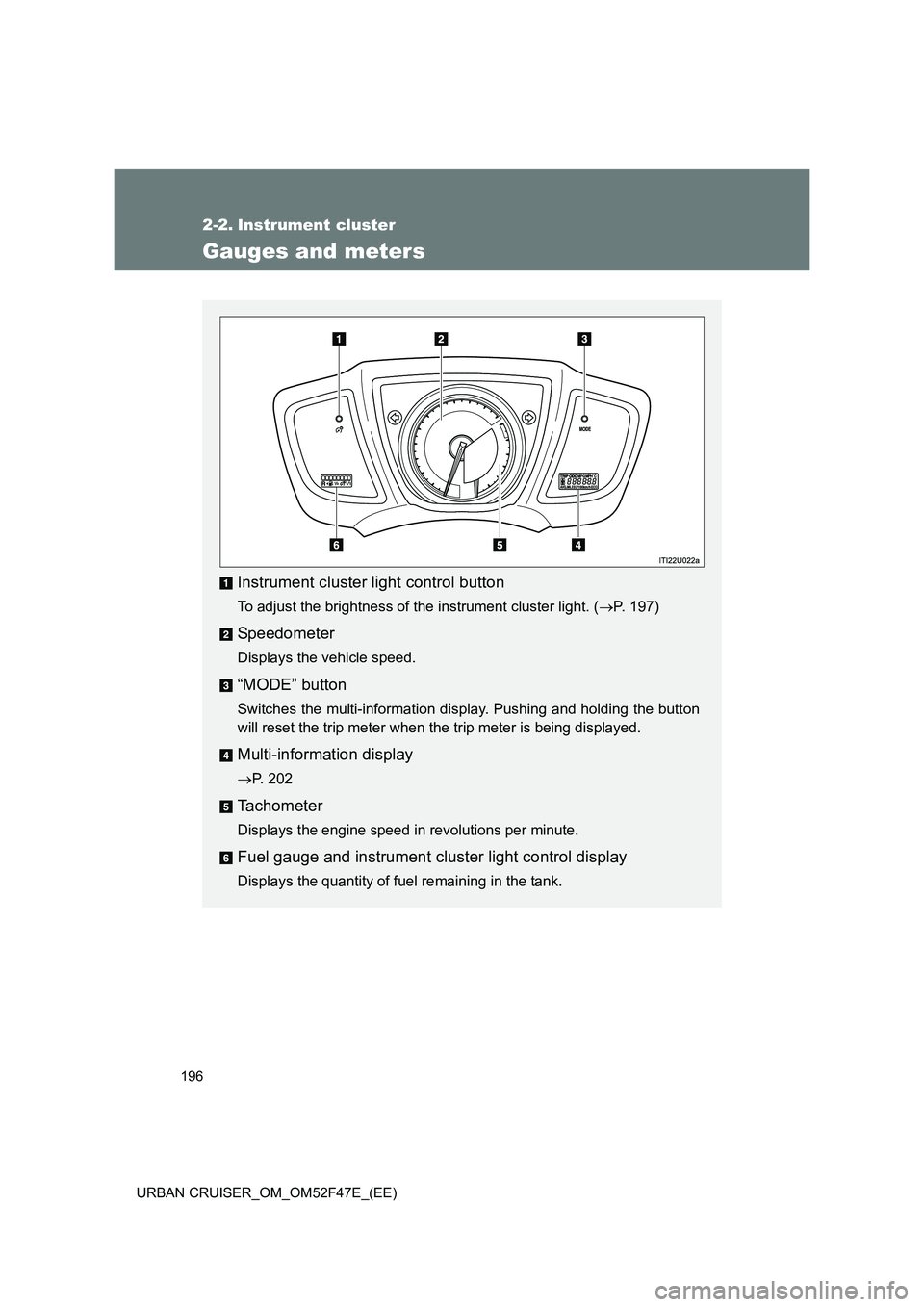

Gauges and meters
Instrument cluster light control button
To adjust the brightness of the instrument cluster light. ( →P. 197)
Speedometer
Displays the vehicle speed.
“MODE” button
Switches the multi-information display. Pushing and holding the button
will reset the trip meter when the trip meter is being displayed.
Multi-information display
→P. 202
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge and instrument cluster light control display
Displays the quantity of fuel remaining in the tank.
Page 197 of 544
197
2-2. Instrument cluster
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

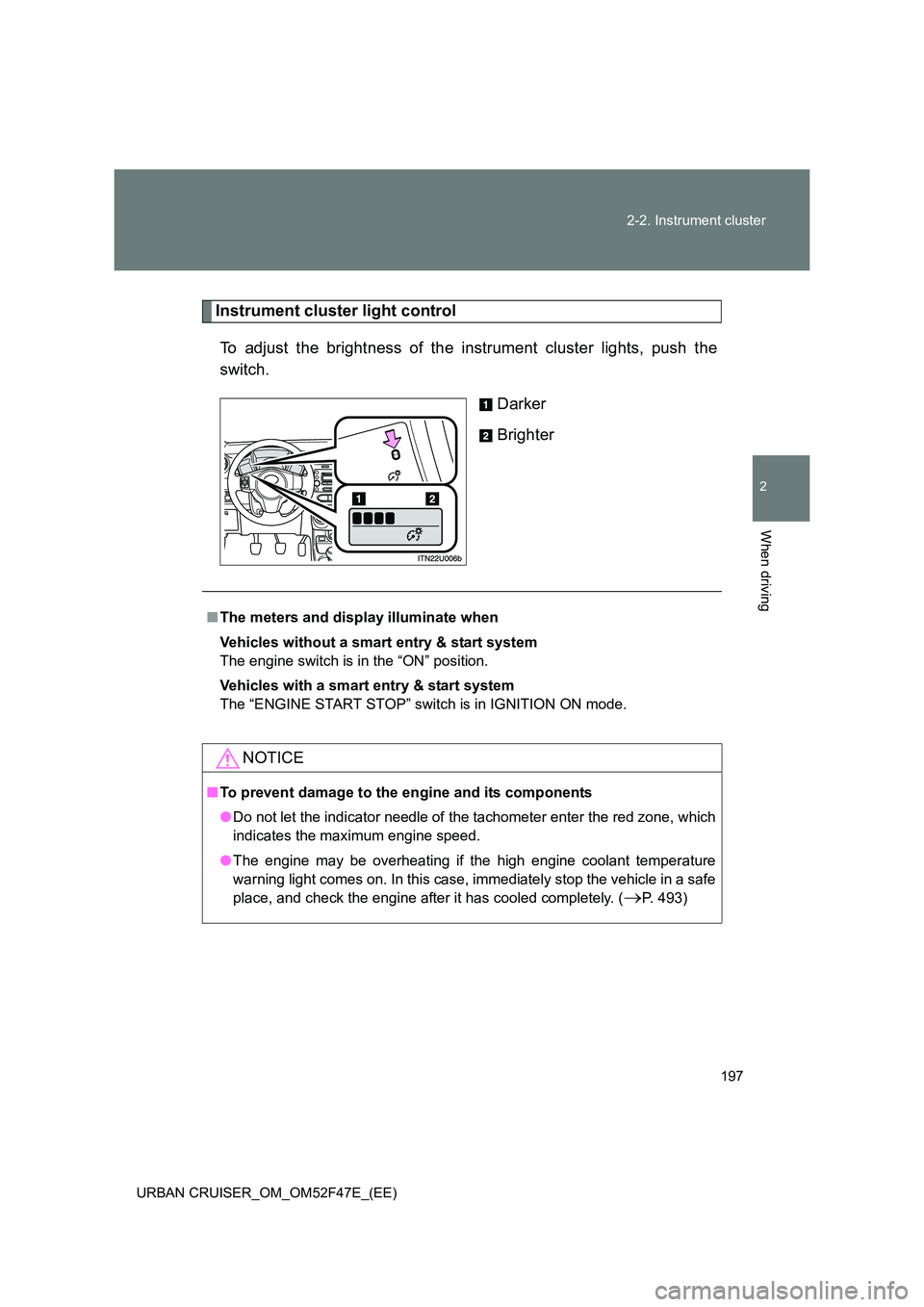

Instrument cluster light control
To adjust the brightness of the instrument cluster lights, push the
switch. Darker
Brighter
■The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
→P. 493)
Page 198 of 544
198
2-2. Instrument cluster
URBAN CRUISER_OM_OM52F47E_(EE)

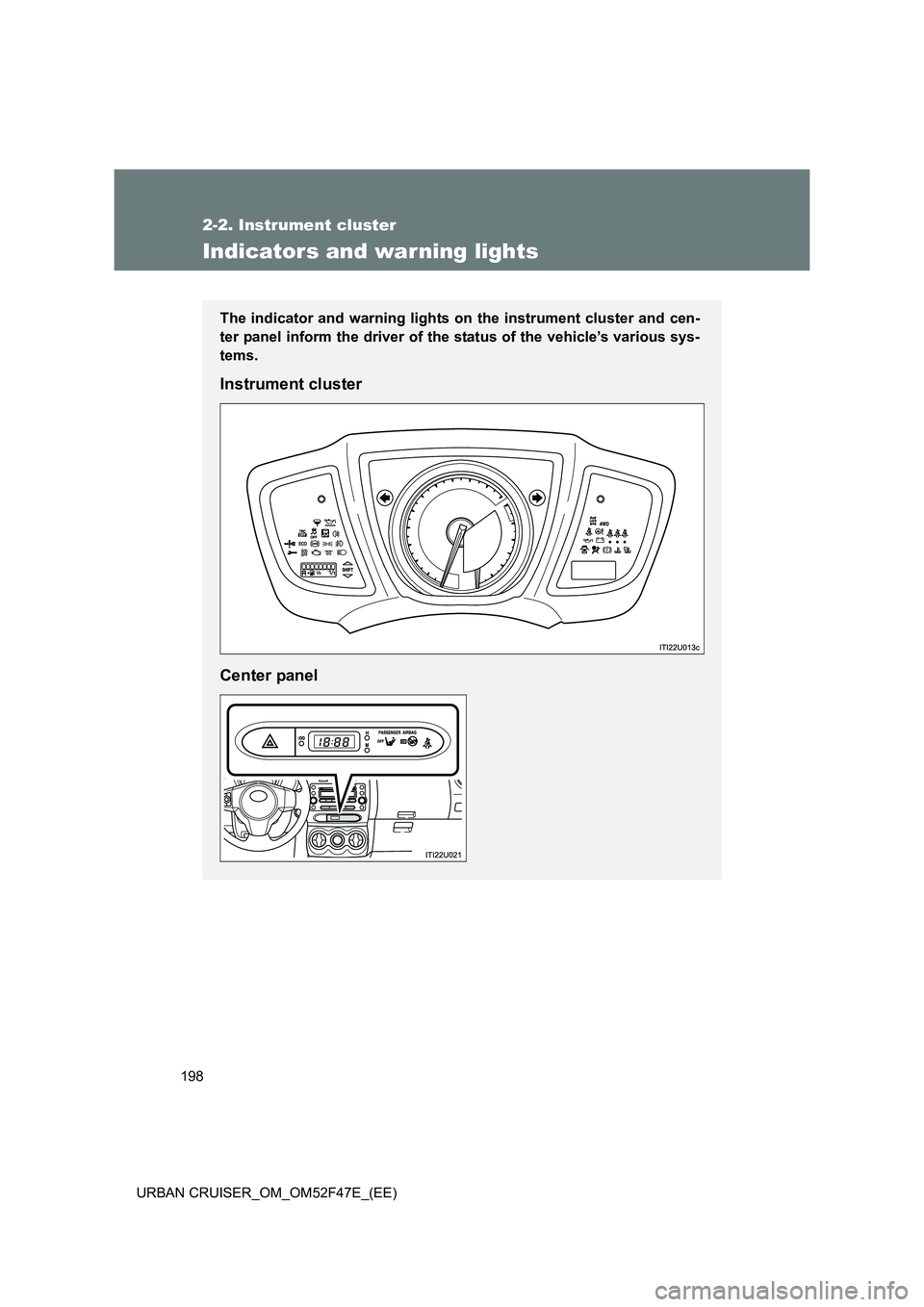

Indicators and war ning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel
Page 199 of 544
199
2-2. Instrument cluster
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

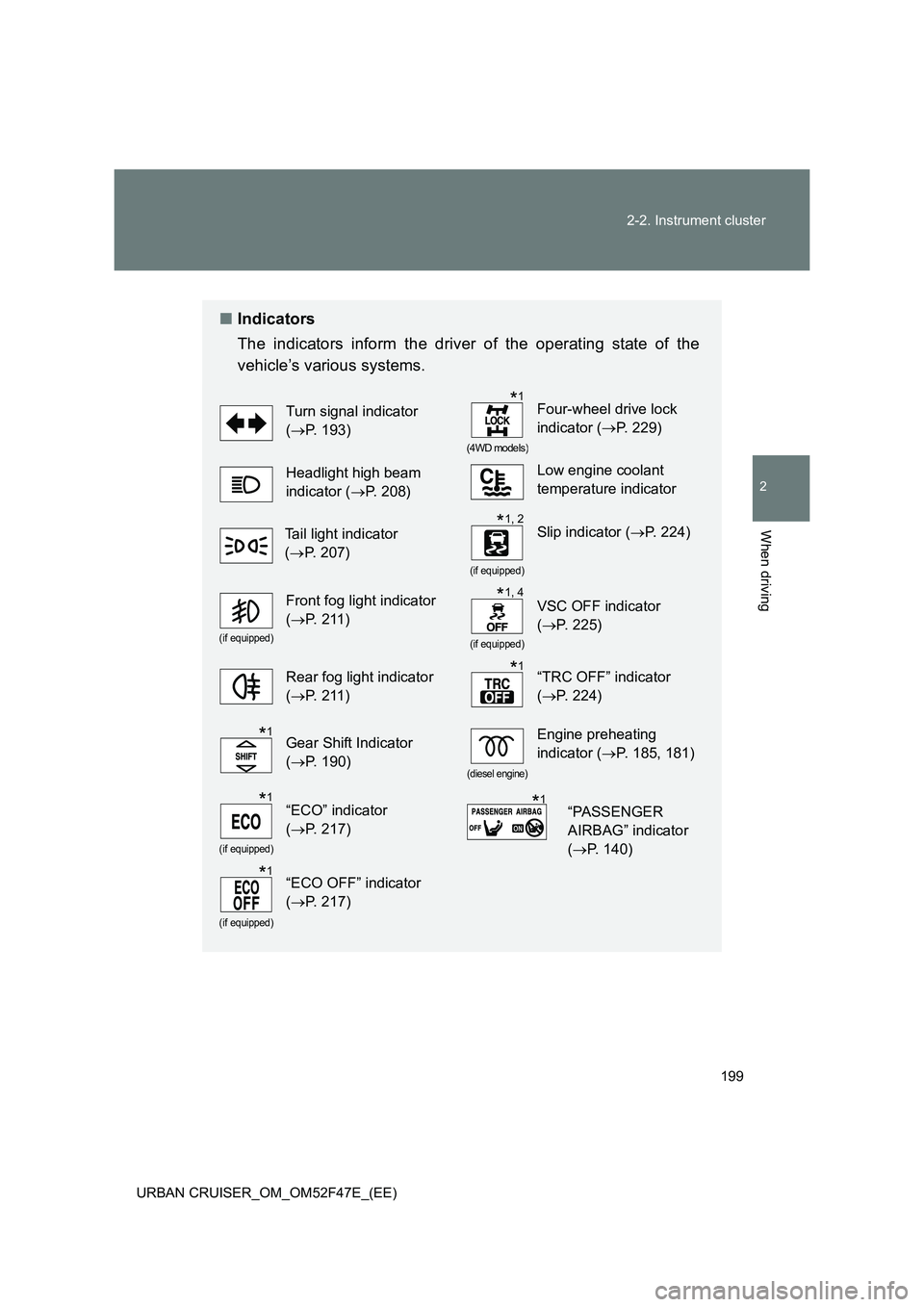

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(→ P. 193)
(4WD models)
Four-wheel drive lock
indicator ( →
P. 229)
Headlight high beam
indicator ( →P. 208)Low engine coolant
temperature indicator
Tail light indicator
(→ P. 207)
(if equipped)
Slip indicator ( →P. 224)
(if equipped)
Front fog light indicator
(→ P. 2 1 1 )
(if equipped)
VSC OFF indicator
(→ P. 225)
Rear fog light indicator
(→ P. 2 1 1 )“TRC OFF” indicator
(→ P. 224)
Gear Shift Indicator
(→ P. 190)
(diesel engine)
Engine preheating
indicator ( →P. 185, 181)
(if equipped)
“ECO” indicator
(→ P. 217)“PASSENGER
AIRBAG” indicator
(→ P. 140)
(if equipped)
“ECO OFF” indicator
(→ P. 217)
*1
*1, 2
*1, 4
*1
*1
*1*1
*1
Page 200 of 544

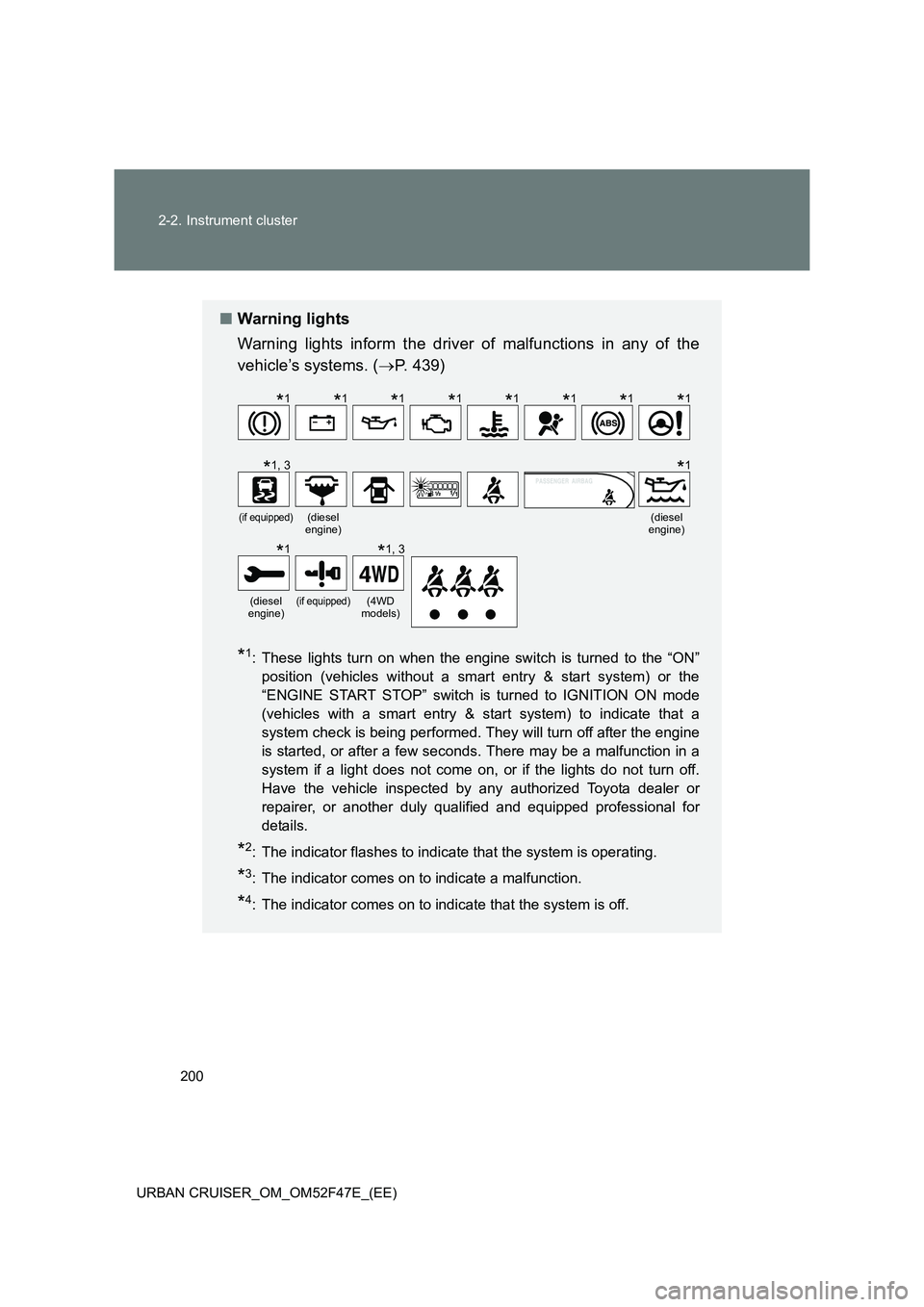

200
2-2. Instrument cluster
URBAN CRUISER_OM_OM52F47E_(EE)
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( →P. 439)
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a
system check is being performed. They will turn off after the engine
is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or if the lights do not turn off.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
details.
*2: The indicator flashes to indicate that the system is operating.
*3: The indicator comes on to indicate a malfunction.
*4: The indicator comes on to indicate that the system is off.
(if equipped)(diesel
engine)(diesel
engine)
(diesel
engine)(if equipped)(4WD
models)
*1*1*1*1*1*1*1*1
*1, 3*1
*1*1, 3
