Page 211 of 544

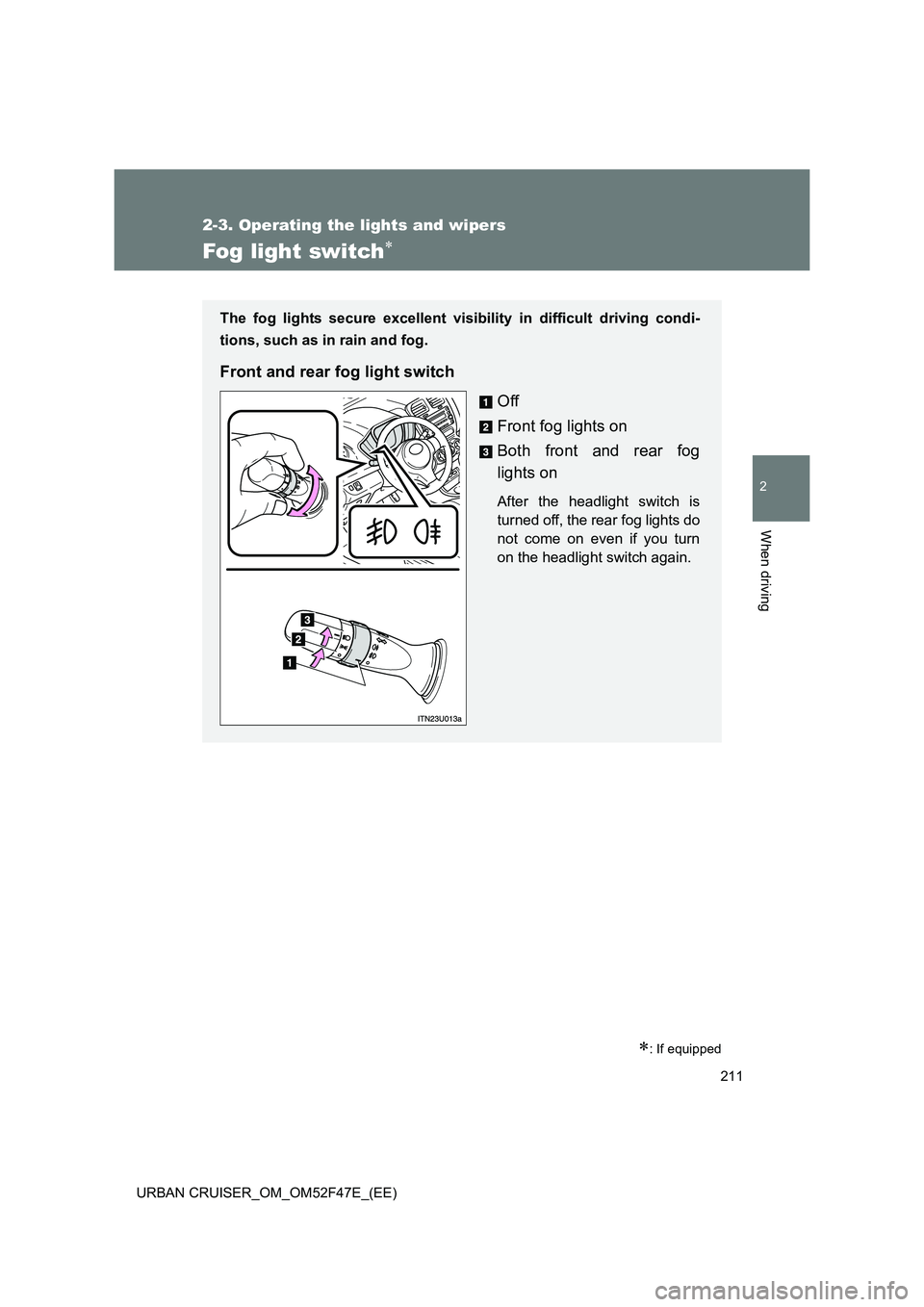

211
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Fog light switch∗
∗: If equipped
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Front and rear fog light switchOff
Front fog lights on
Both front and rear fog
lights on
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.
Page 212 of 544

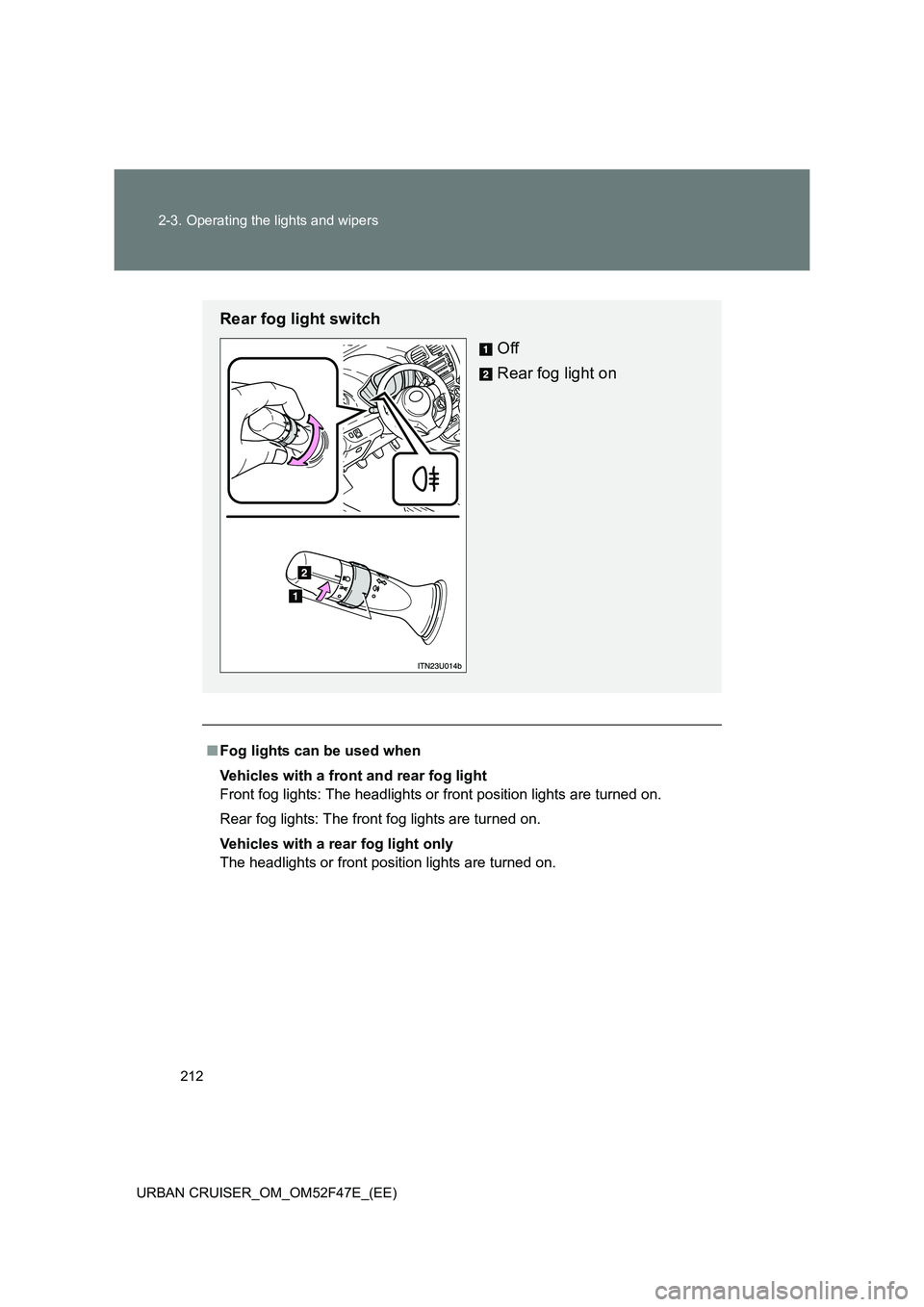

212
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)
■ Fog lights can be used when
Vehicles with a front and rear fog light
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Vehicles with a rear fog light only
The headlights or front position lights are turned on.
Rear fog light switch
Off
Rear fog light on
Page 213 of 544

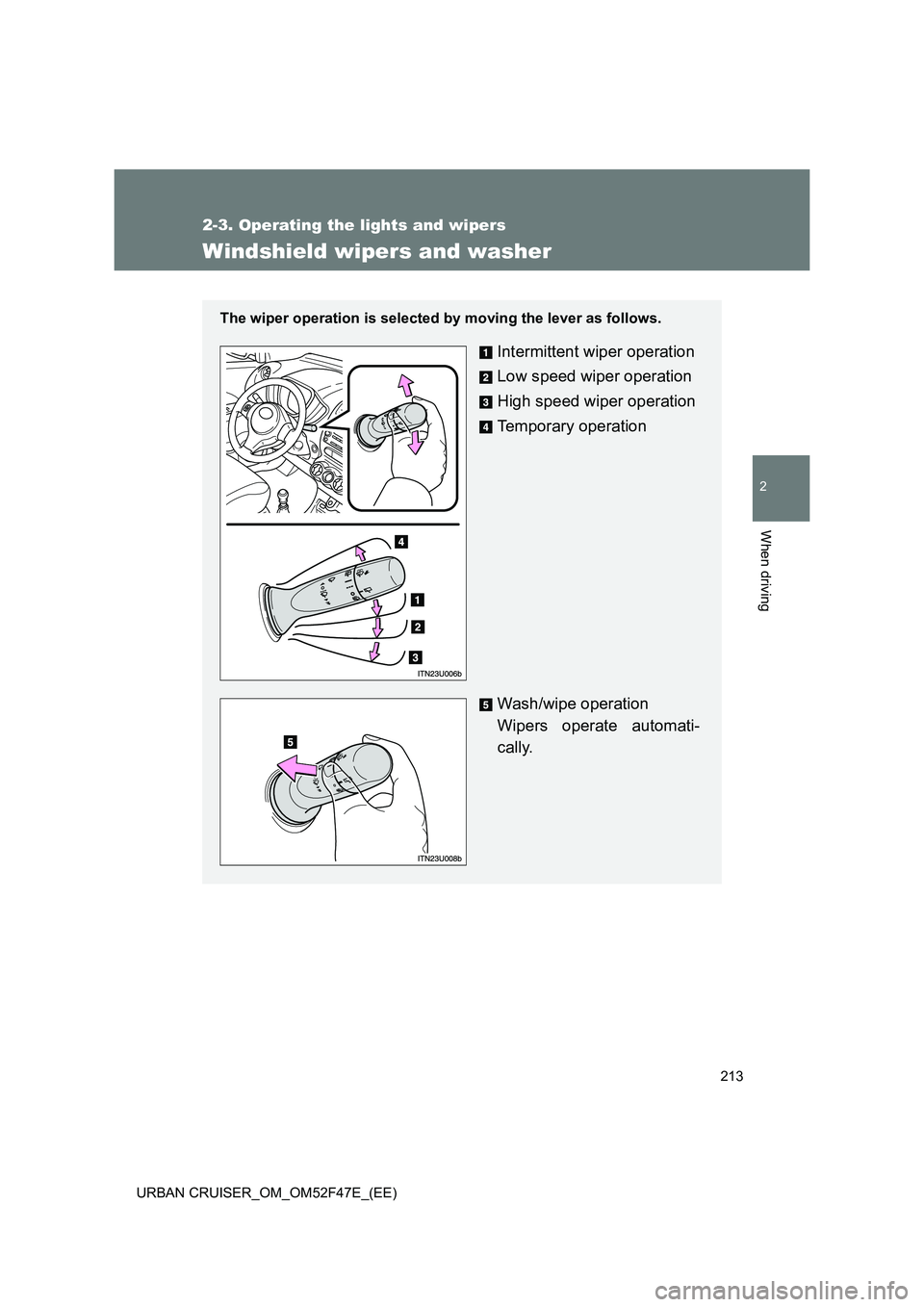

213
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation
Wipers operate automati-
cally.

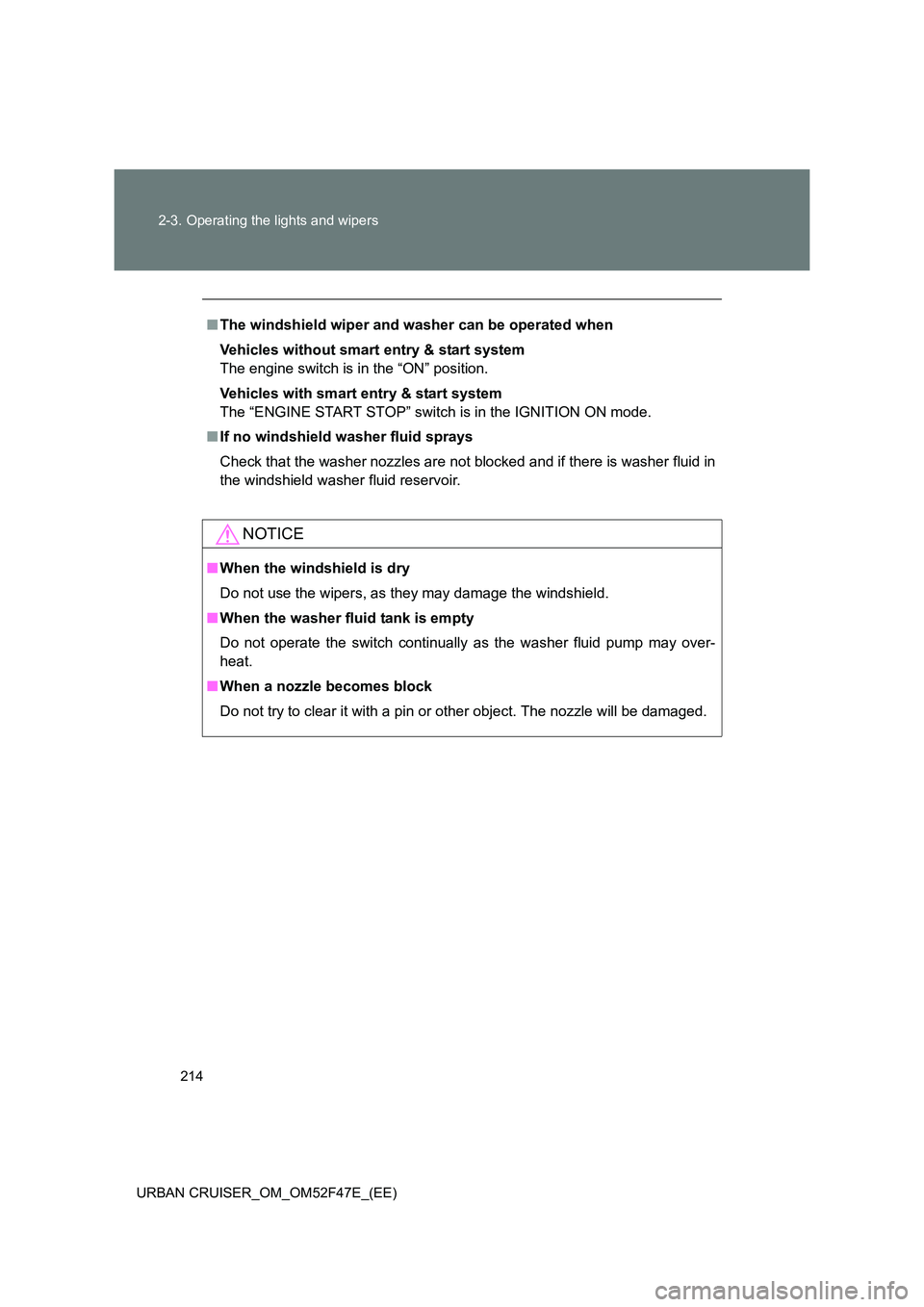

Page 214 of 544

214
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)
■ The windshield wiper and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 215 of 544

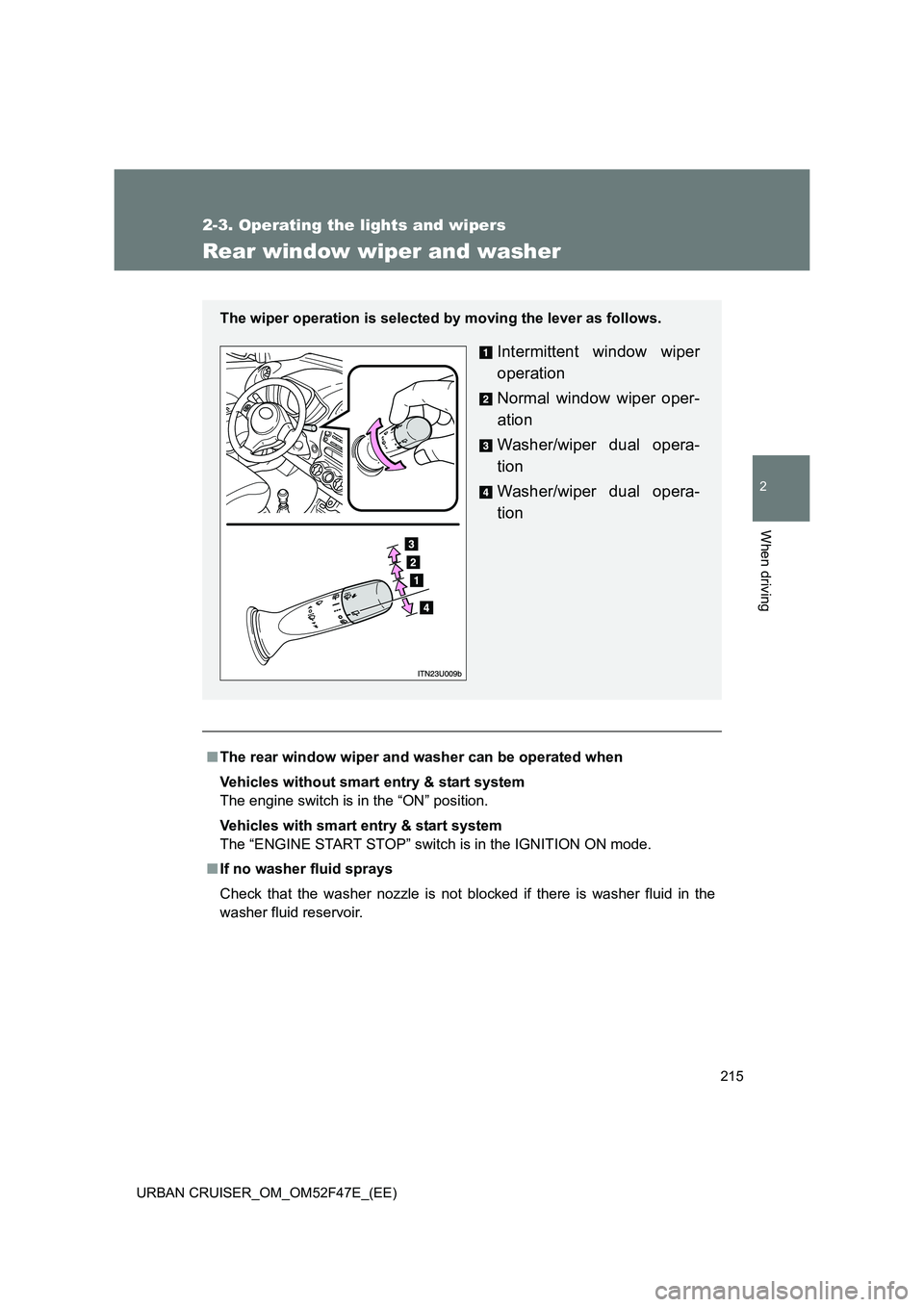

215
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Rear window wiper and washer
■The rear window wiper and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir. The wiper operation is selected by moving the lever as follows.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
Page 216 of 544

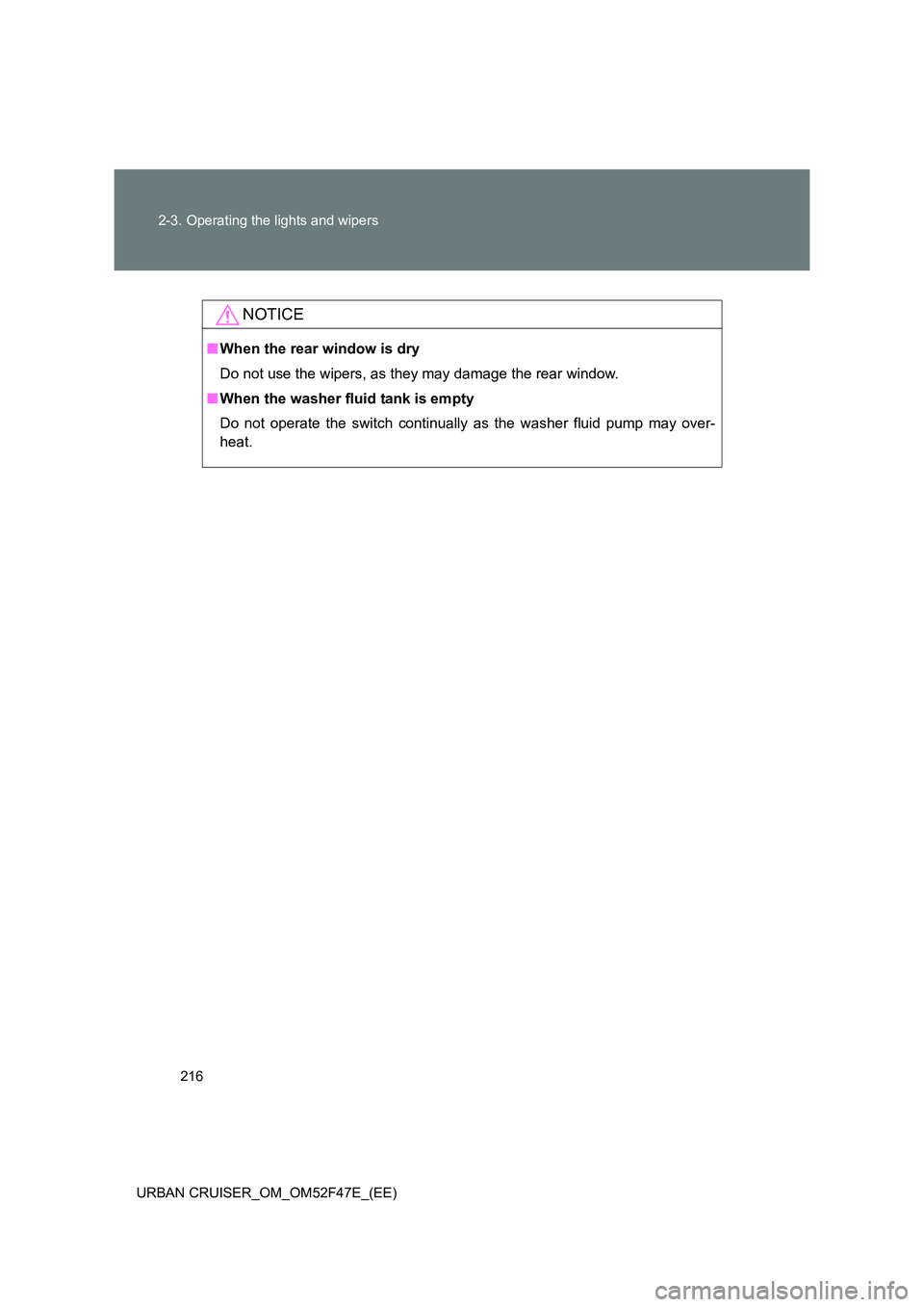

216
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
Page 217 of 544

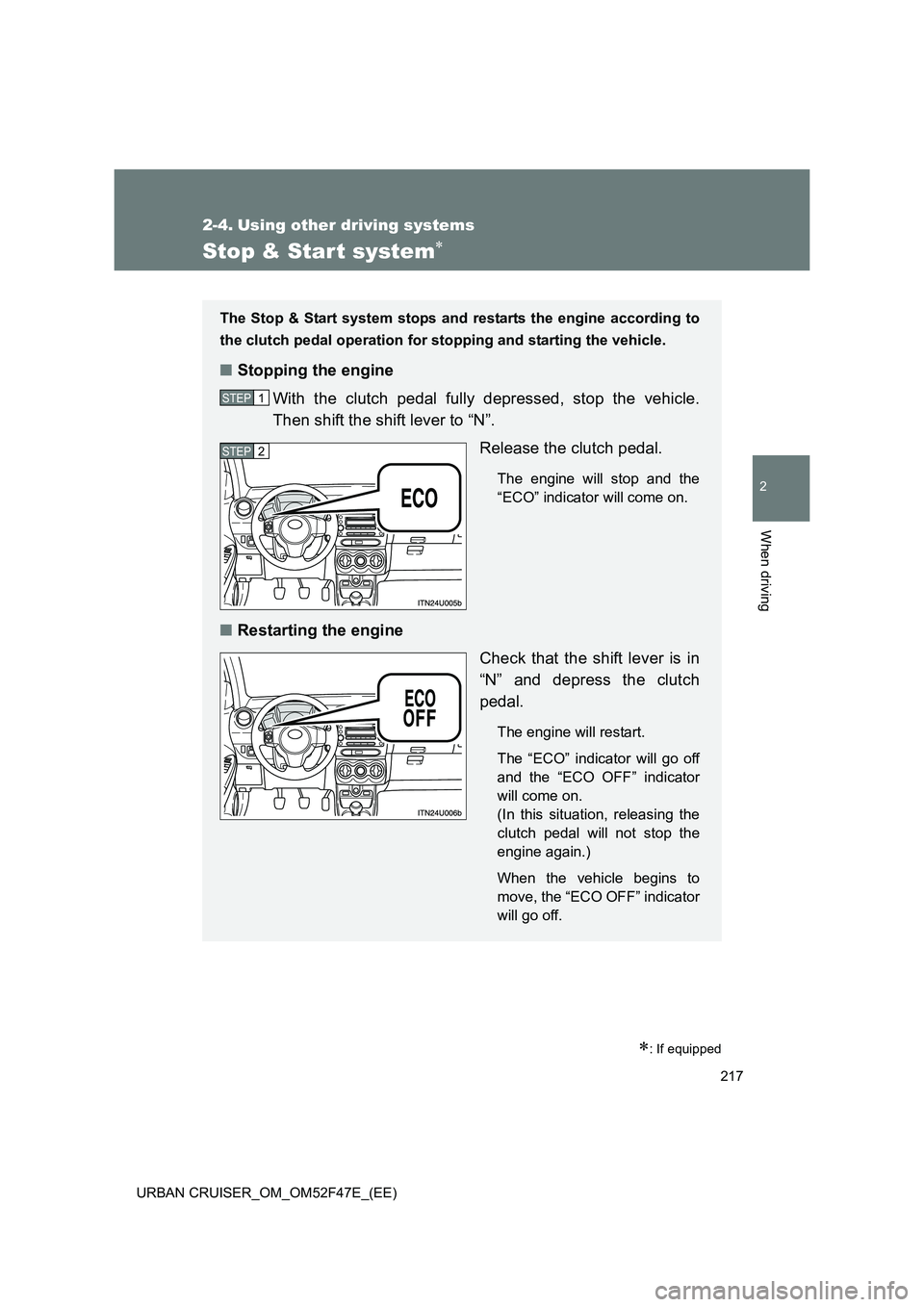

217
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
2-4. Using other driving systems
Stop & Star t system∗
∗: If equipped
The Stop & Start system stops and restarts the engine according to
the clutch pedal operation for stopping and starting the vehicle.
■Stopping the engine
With the clutch pedal fully depressed, stop the vehicle.
Then shift the shift lever to “N”. Release the clutch pedal.
The engine will stop and the
“ECO” indicator will come on.
■Restarting the engine
Check that the shift lever is in
“N” and depress the clutch
pedal.
The engine will restart.
The “ECO” indicator will go off
and the “ECO OFF” indicator
will come on.
(In this situation, releasing the
clutch pedal will not stop the
engine again.)
When the vehicle begins to
move, the “ECO OFF” indicator
will go off.
STEP1
STEP2

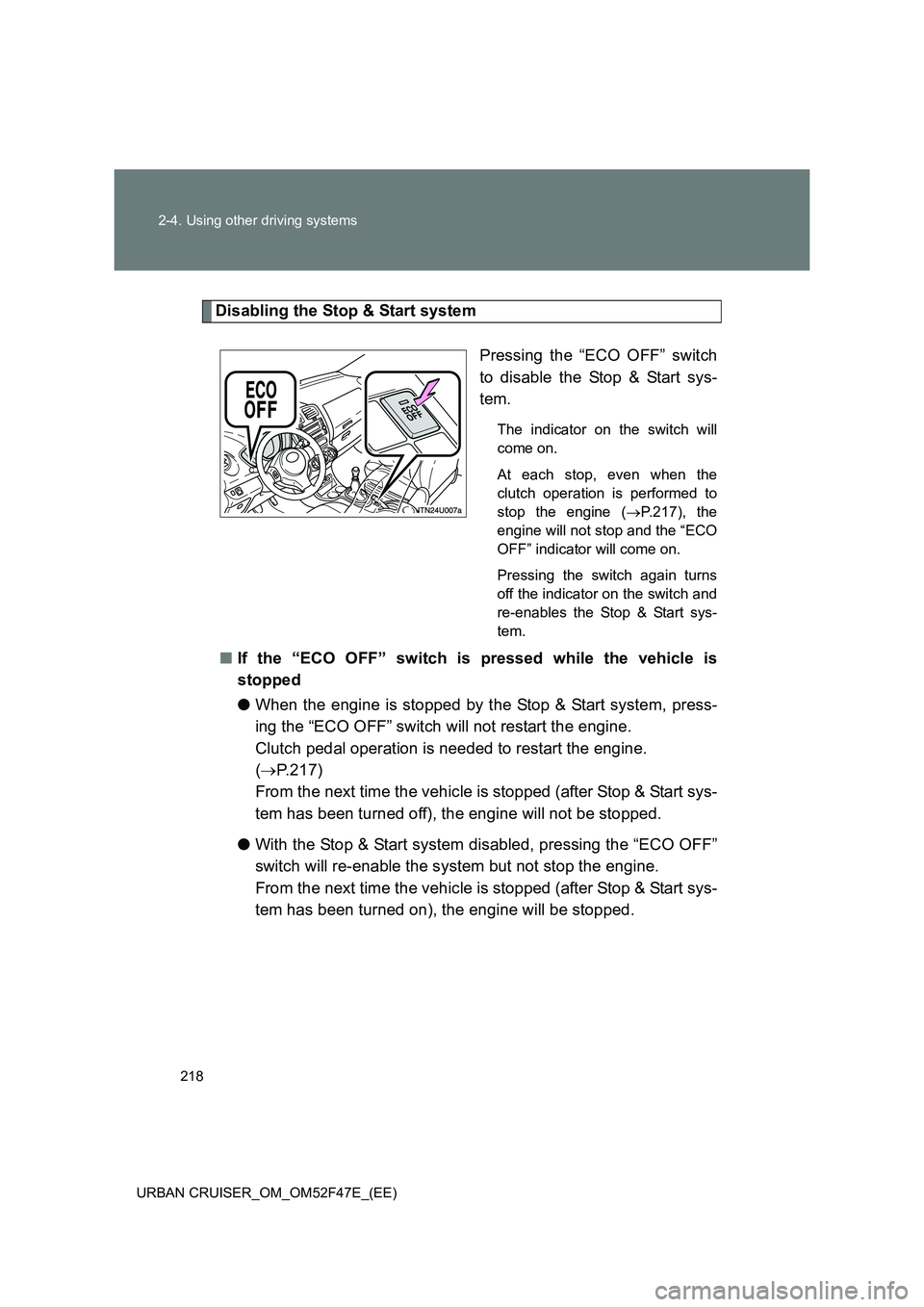

Page 218 of 544

218
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)
Disabling the Stop & Start system Pressing the “ECO OFF” switch
to disable the Stop & Start sys-
tem.
The indicator on the switch will
come on.
At each stop, even when the
clutch operation is performed to
stop the engine (→P.217), the
engine will not stop and the “ECO
OFF” indicator will come on.
Pressing the switch again turns
off the indicator on the switch and
re-enables the Stop & Start sys-
tem.
■ If the “ECO OFF” switch is pressed while the vehicle is
stopped
● When the engine is stopped by the Stop & Start system, press-
ing the “ECO OFF” switch will not restart the engine.
Clutch pedal operation is needed to restart the engine.
(→ P.217)
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
● With the Stop & Start system disabled, pressing the “ECO OFF”
switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
Page 219 of 544

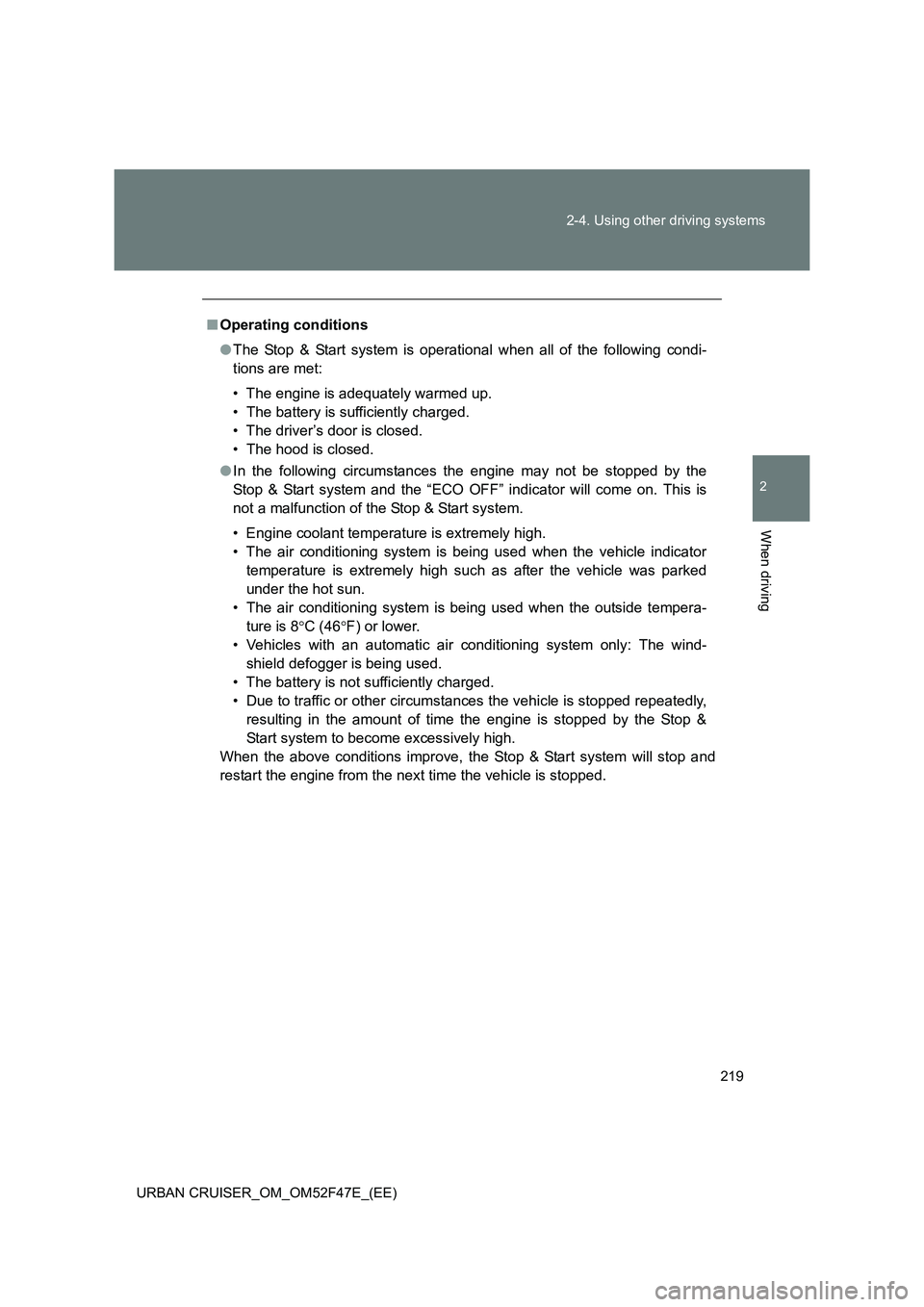

219
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Operating conditions
●The Stop & Start system is operational when all of the following condi-
tions are met:
• The engine is adequately warmed up.
• The battery is sufficiently charged.
• The driver’s door is closed.
• The hood is closed.
● In the following circumstances the engine may not be stopped by the
Stop & Start system and the “ECO OFF” indicator will come on. This is
not a malfunction of the Stop & Start system.
• Engine coolant temperature is extremely high.
• The air conditioning system is being used when the vehicle indicator
temperature is extremely high such as after the vehicle was parked
under the hot sun.
• The air conditioning system is being used when the outside tempera- ture is 8 °C (46 °F) or lower.
• Vehicles with an automatic air conditioning system only: The wind- shield defogger is being used.
• The battery is not sufficiently charged.
• Due to traffic or other circumstances the vehicle is stopped repeatedly, resulting in the amount of time the engine is stopped by the Stop &
Start system to become excessively high.
When the above conditions improve, the Stop & Start system will stop and
restart the engine from the next time the vehicle is stopped.
Page 220 of 544

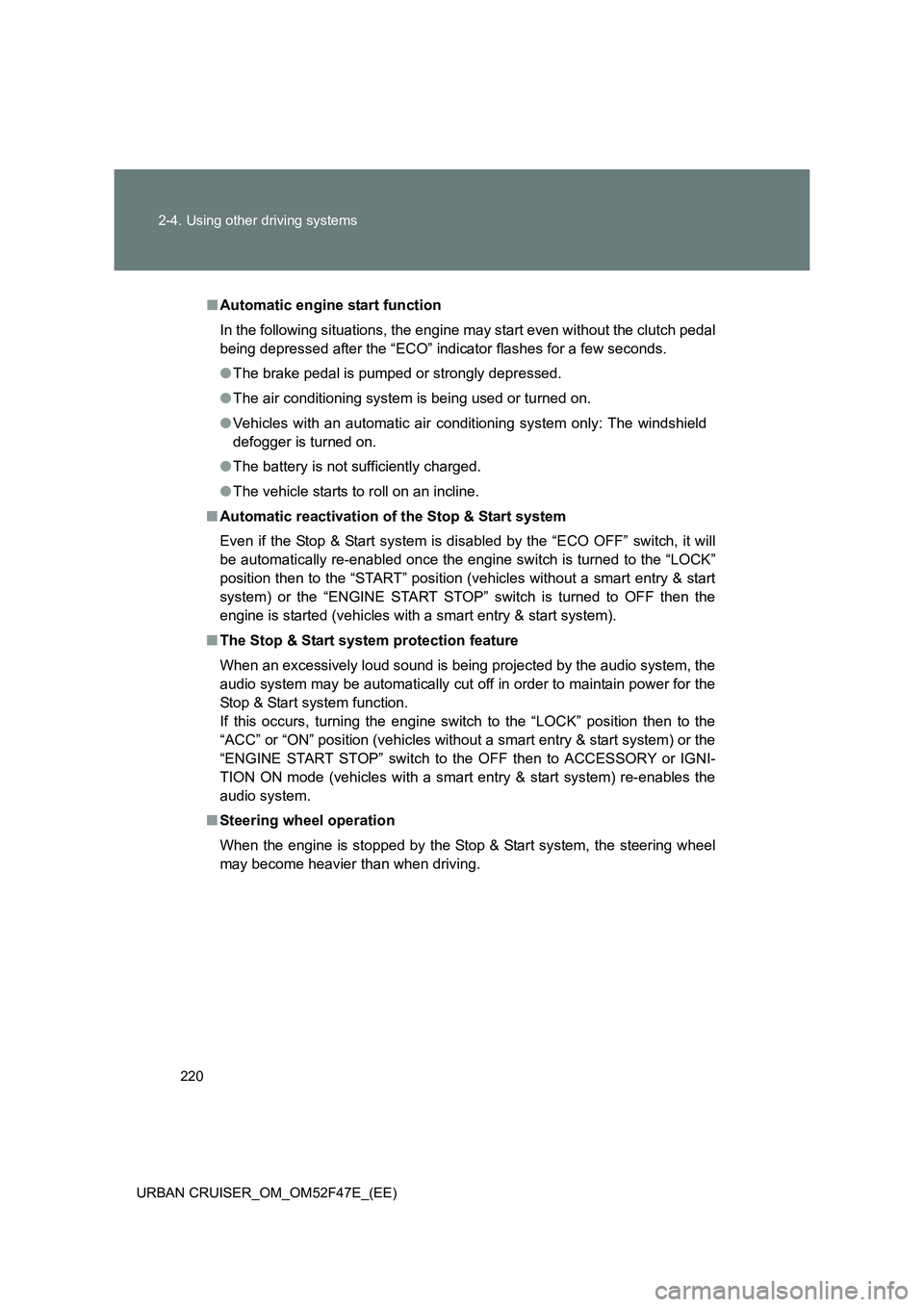

220
2-4. Using other driving systems
URBAN CRUISER_OM_OM52F47E_(EE)
■ Automatic engine start function
In the following situations, the engine may start even without the clutch pedal
being depressed after the “ECO” indicator flashes for a few seconds.
●The brake pedal is pumped or strongly depressed.
● The air conditioning system is being used or turned on.
● Vehicles with an automatic air c onditioning system only: The windshield
defogger is turned on.
● The battery is not sufficiently charged.
● The vehicle starts to roll on an incline.
■ Automatic reactivation of the Stop & Start system
Even if the Stop & Start system is disabled by the “ECO OFF” switch, it will
be automatically re-enabled once the engine switch is turned to the “LOCK”
position then to the “START” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to OFF then the
engine is started (vehicles with a smart entry & start system).
■ The Stop & Start system protection feature
When an excessively loud sound is being projected by the audio system, the
audio system may be automatically cut off in order to maintain power for the
Stop & Start system function.
If this occurs, turning the engine switch to the “LOCK” position then to the
“ACC” or “ON” position (vehi cles without a smart entry & start system) or the
“ENGINE START STOP” switch to the OFF then to ACCESSORY or IGNI-
TION ON mode (vehicles with a smart entry & start system) re-enables the
audio system.
■ Steering wheel operation
When the engine is stopped by the Stop & Start system, the steering wheel
may become heavier than when driving.
