11
VENZA_U (OM73004U)

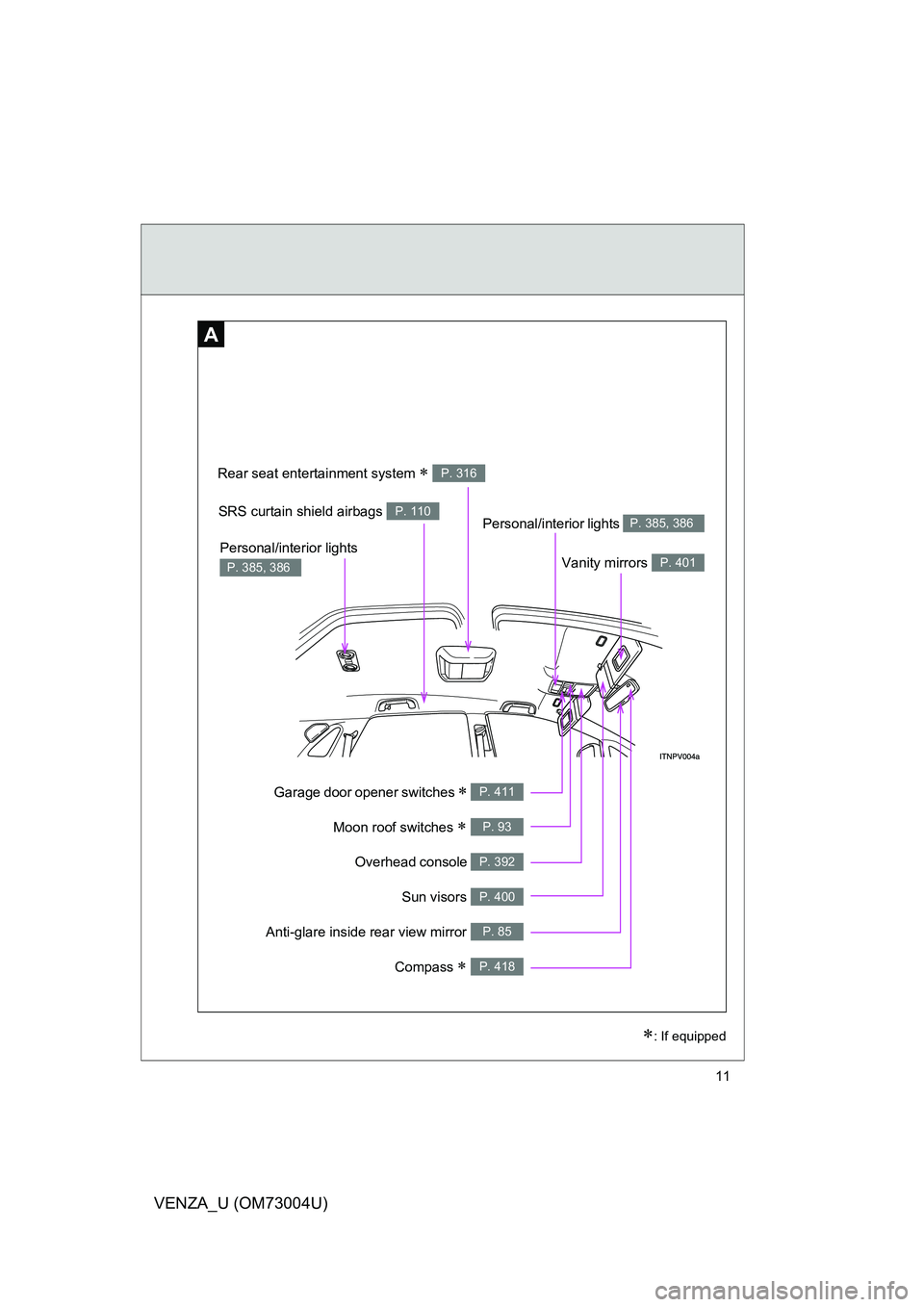

Overhead console P. 392
Garage door opener switches  P. 411
Anti-glare inside rear view mirror P. 85
Moon roof switches  P. 93
Vanity mirrors P. 401
SRS curtain shield airbags P. 110
Sun visors P. 400
A
Personal/interior lights P. 385, 386
Personal/interior lights
P. 385, 386
Rear seat entertainment system  P. 316
: If equipped
Compass  P. 418

12
VENZA_U (OM73004U)

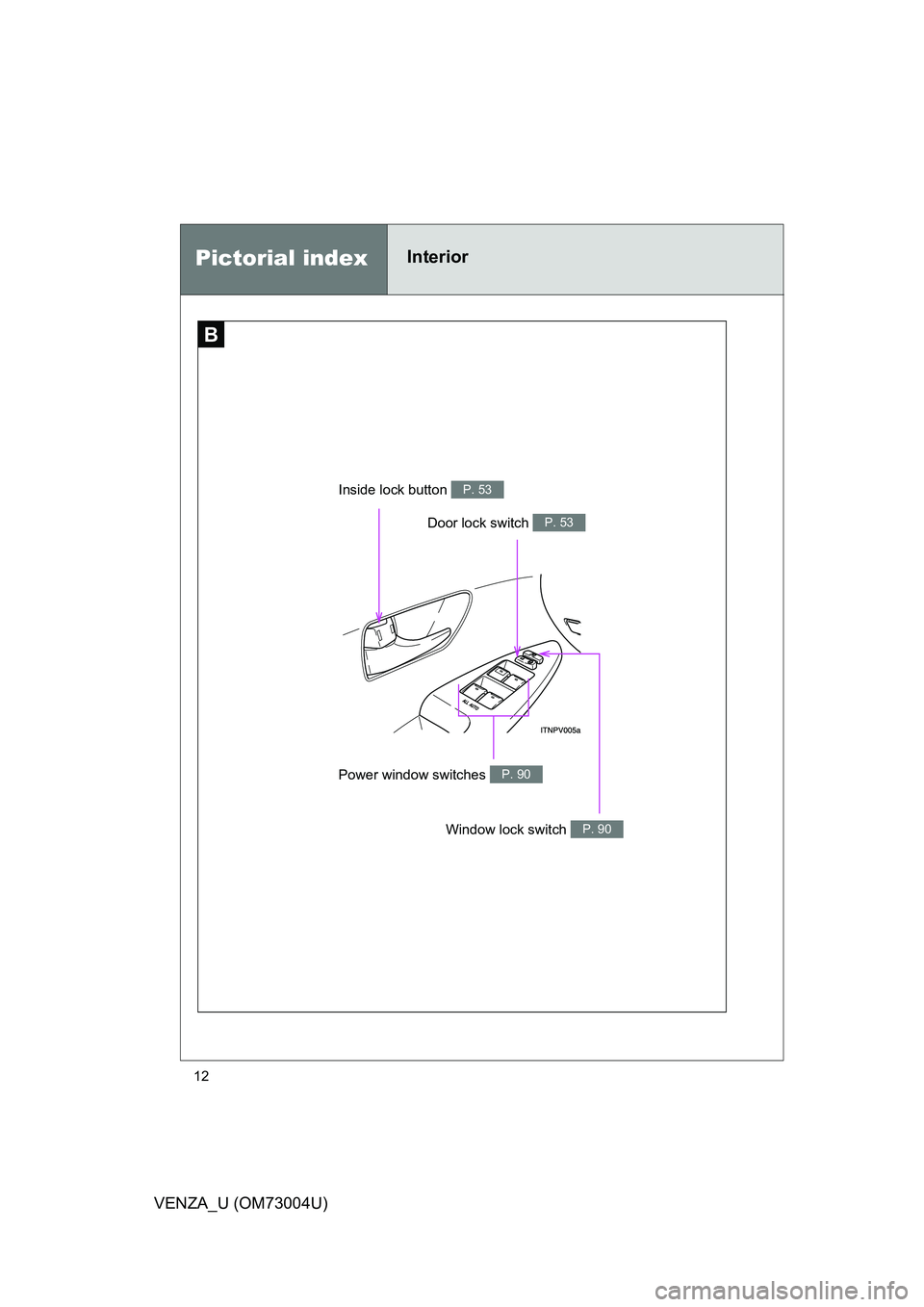

B
Door lock switch P. 53
Window lock switch P. 90
Power window switches P. 90
Pictorial indexInterior
Inside lock button P. 53

13
VENZA_U (OM73004U)

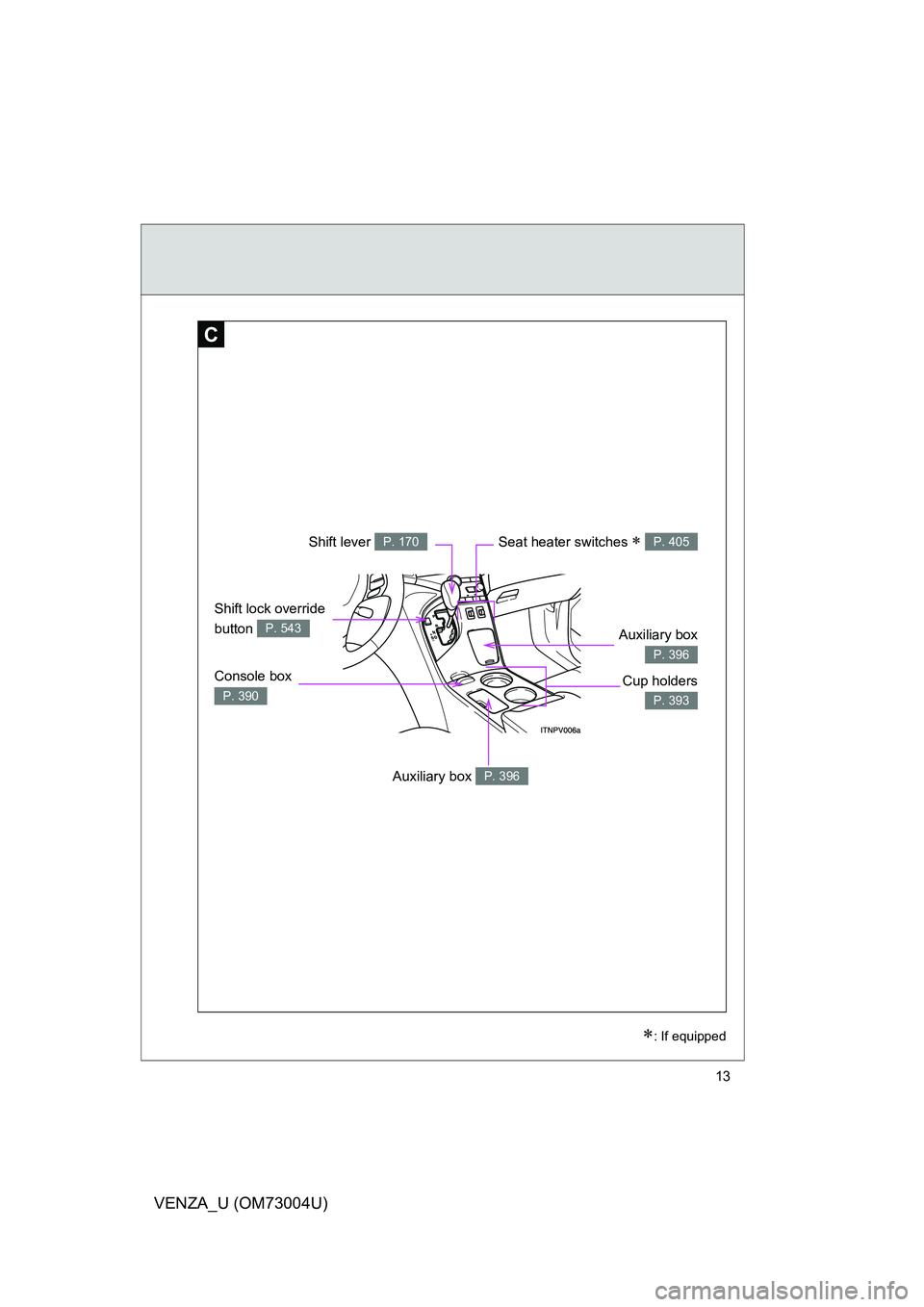

Shift lock override
button
P. 543
Seat heater switches  P. 405
C
Shift lever P. 170
: If equipped
Auxiliary box P. 396
Console box
P. 390Cup holders
P. 393
Auxiliary box
P. 396

14
VENZA_U (OM73004U)

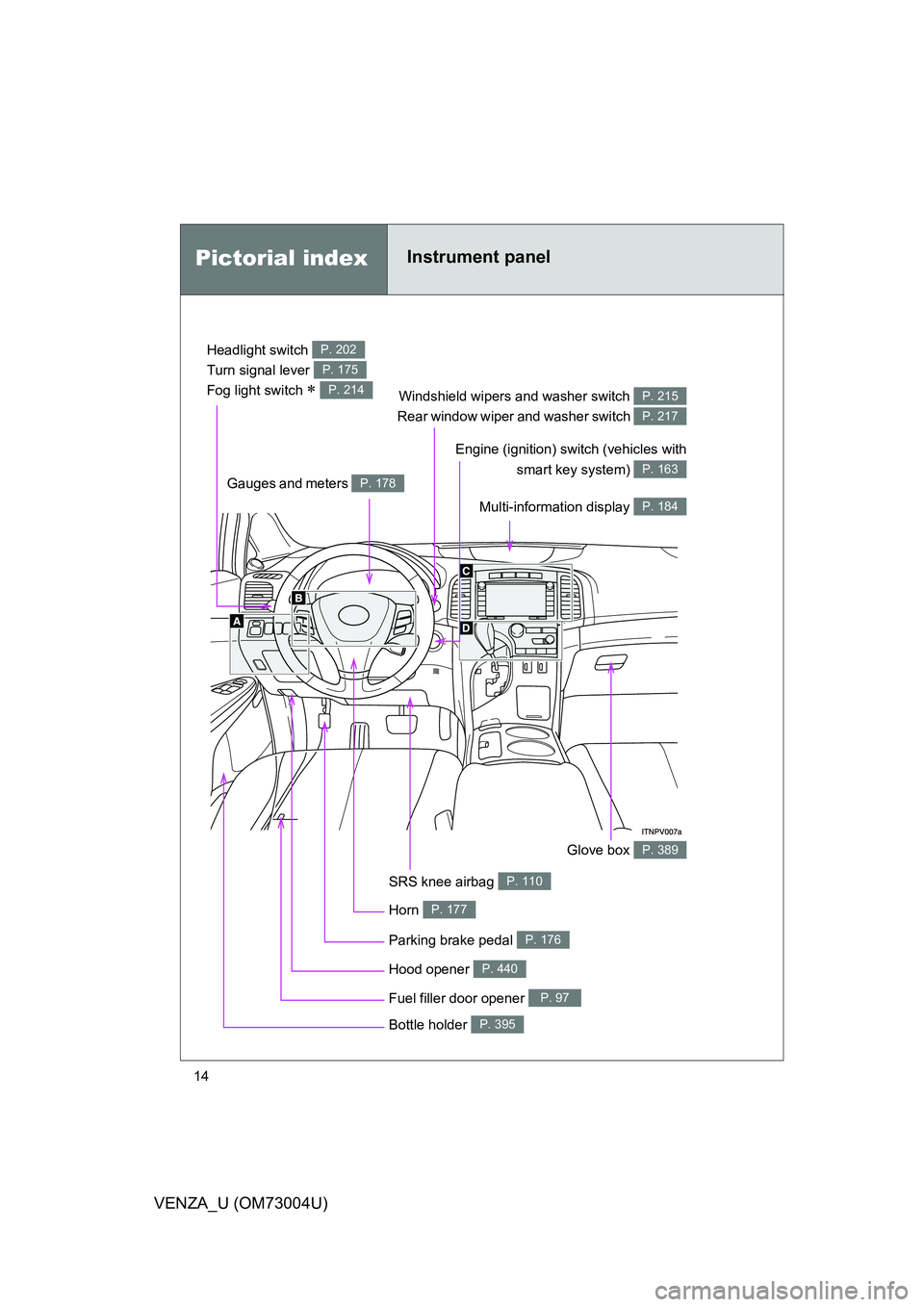

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch

P. 202
P. 175
P. 214Windshield wipers and washer switch
Rear window wiper and washer switch P. 215
P. 217
Gauges and meters P. 178
Glove box P. 389
Fuel filler door opener P. 97
Hood opener P. 440
SRS knee airbag P. 110
Multi-information display P. 184
Bottle holder P. 395
Parking brake pedal P. 176
Horn P. 177
Engine (ignition) switch (vehicles with smart key system)
P. 163

15
VENZA_U (OM73004U)
: If equipped
*: Refer to “Navigation System Owner’s Manual”.

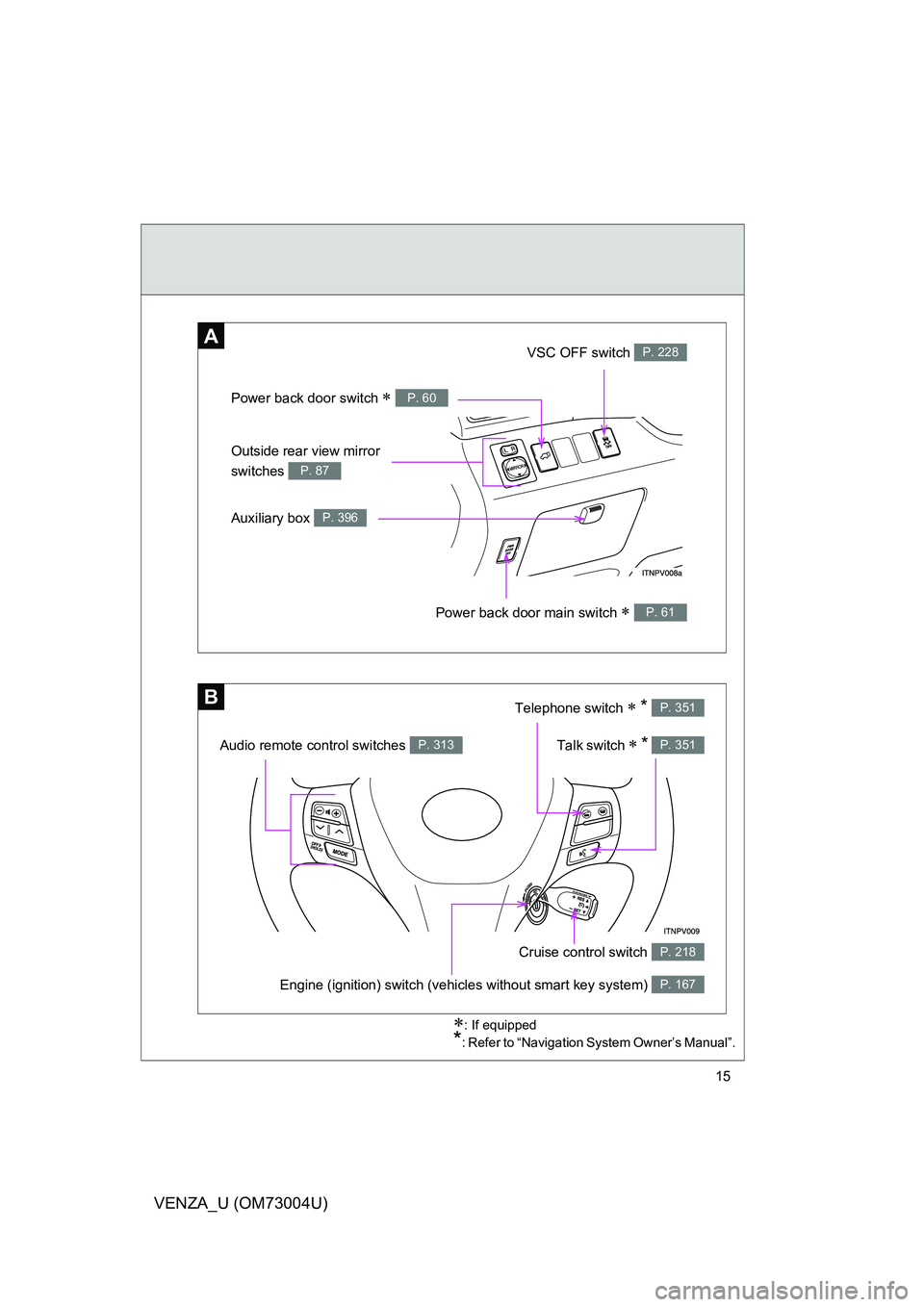

A
B
Power back door switch  P. 60
VSC OFF switch P. 228
Outside rear view mirror
switches
P. 87
Auxiliary box P. 396
Power back door main switch  P. 61
Telephone switch  * P. 351
Talk switch  * P. 351Audio remote control switches P. 313
Engine (ignition) switch (vehicles without smart key system) P. 167
Cruise control switch P. 218

16
VENZA_U (OM73004U)
Pictorial indexInstrument panel
C
With navigation system
Without navi gation system
Multi-information display switches
P. 184, 198
Emergency flasher
switch
P. 504
Audio/
navigation
system
*
Audio
system
P. 283
Emergency flasher
switch
P. 504
Multi-information display switches
P. 184, 198

17
VENZA_U (OM73004U)

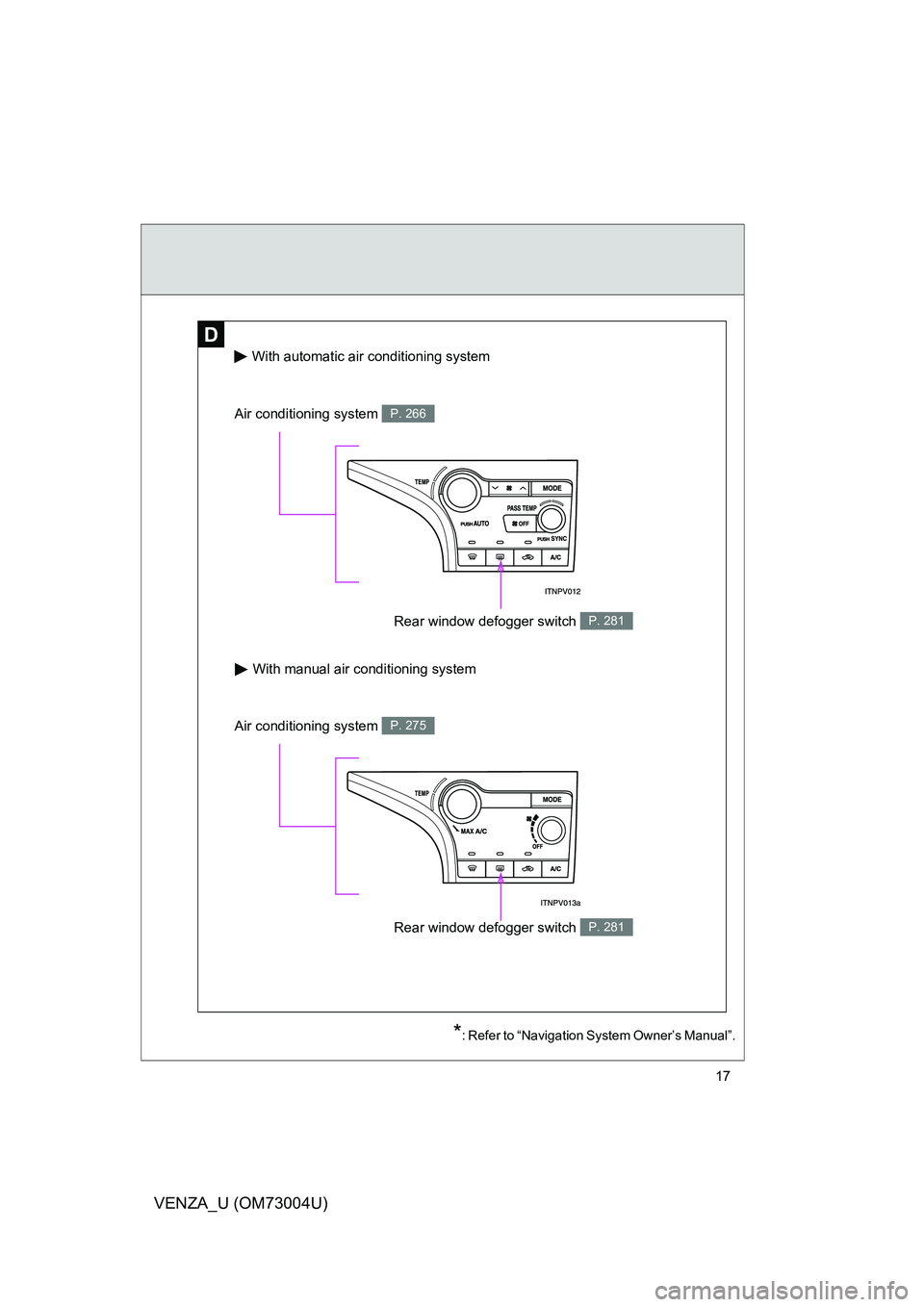

D
With automatic air conditioning system
With manual air conditioning system
Air conditioning system P. 275
Rear window defogger switch P. 281
Rear window defogger switch P. 281
Air conditioning system P. 266
*: Refer to “Navigation System Owner’s Manual”.

18
VENZA_U (OM73004U)

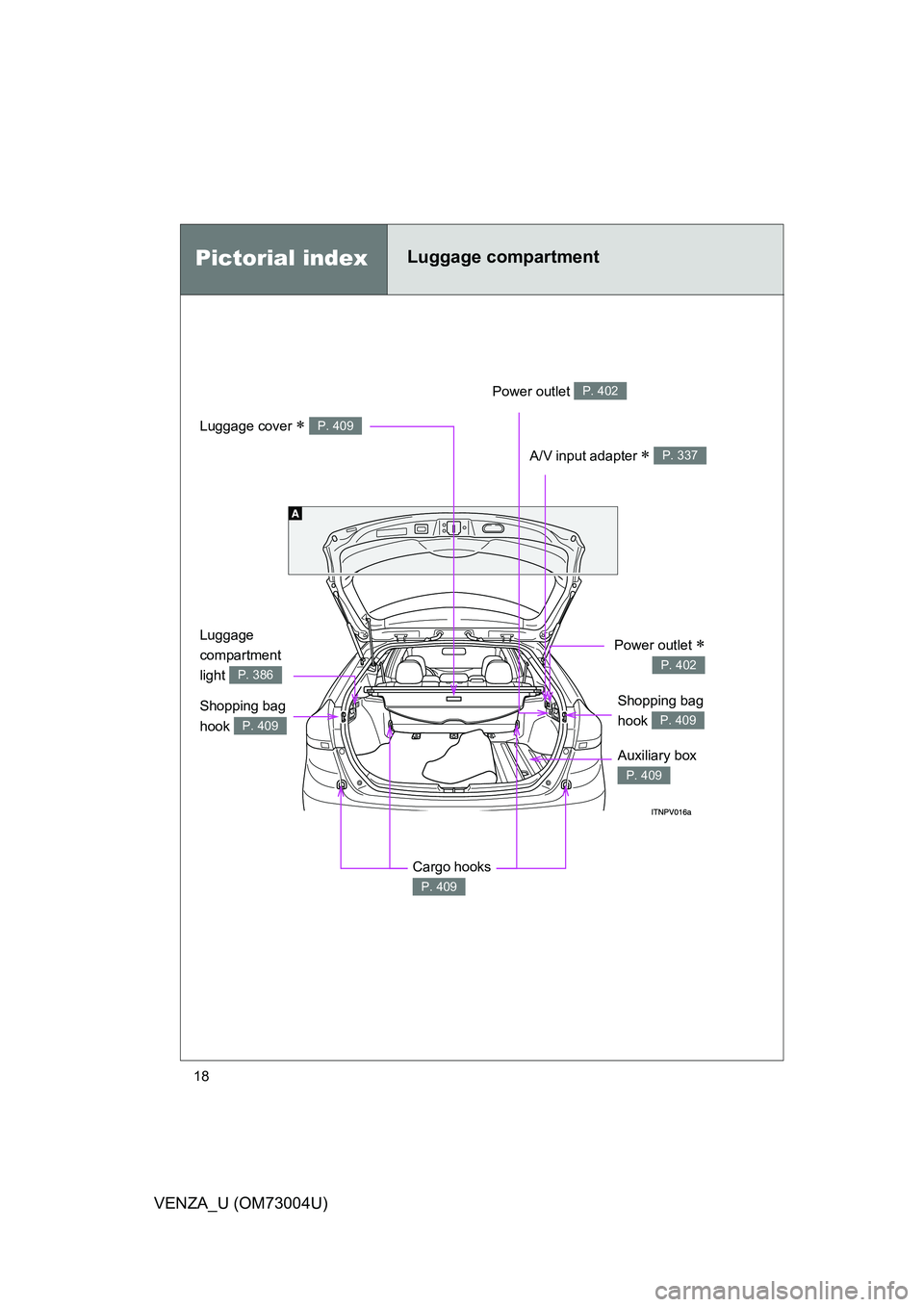

Pictorial indexLuggage compartment
Power outlet P. 402
Luggage cover  P. 409
A/V input adapter  P. 337
Shopping bag
hook
P. 409
Auxiliary box
P. 409
Shopping bag
hook
P. 409
Power outlet 
P. 402
Cargo hooks
P. 409
Luggage
compartment
light
P. 386

19
VENZA_U (OM73004U)

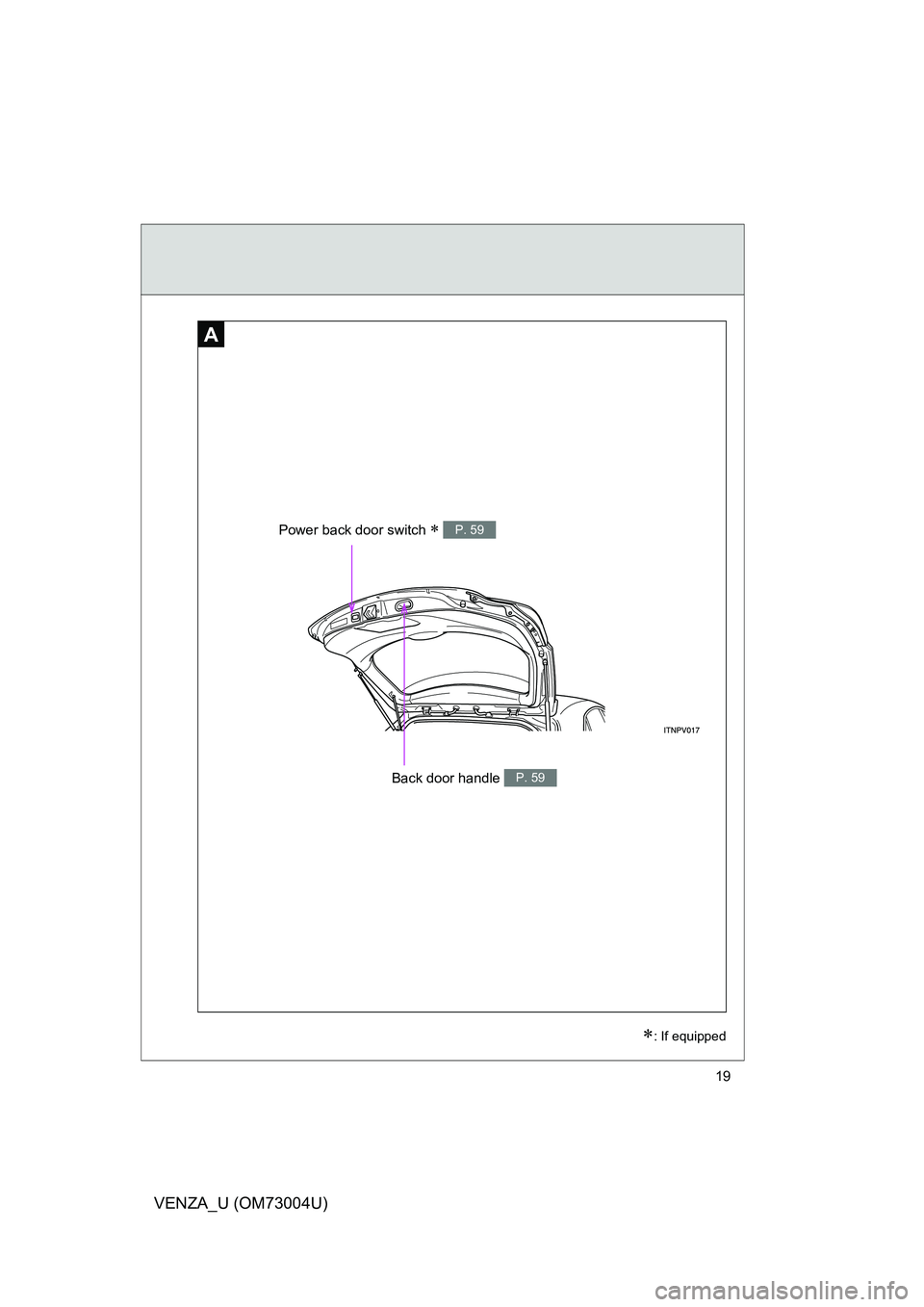

A
: If equipped
Power back door switch  P. 59
Back door handle P. 59

20
VENZA_U (OM73004U)

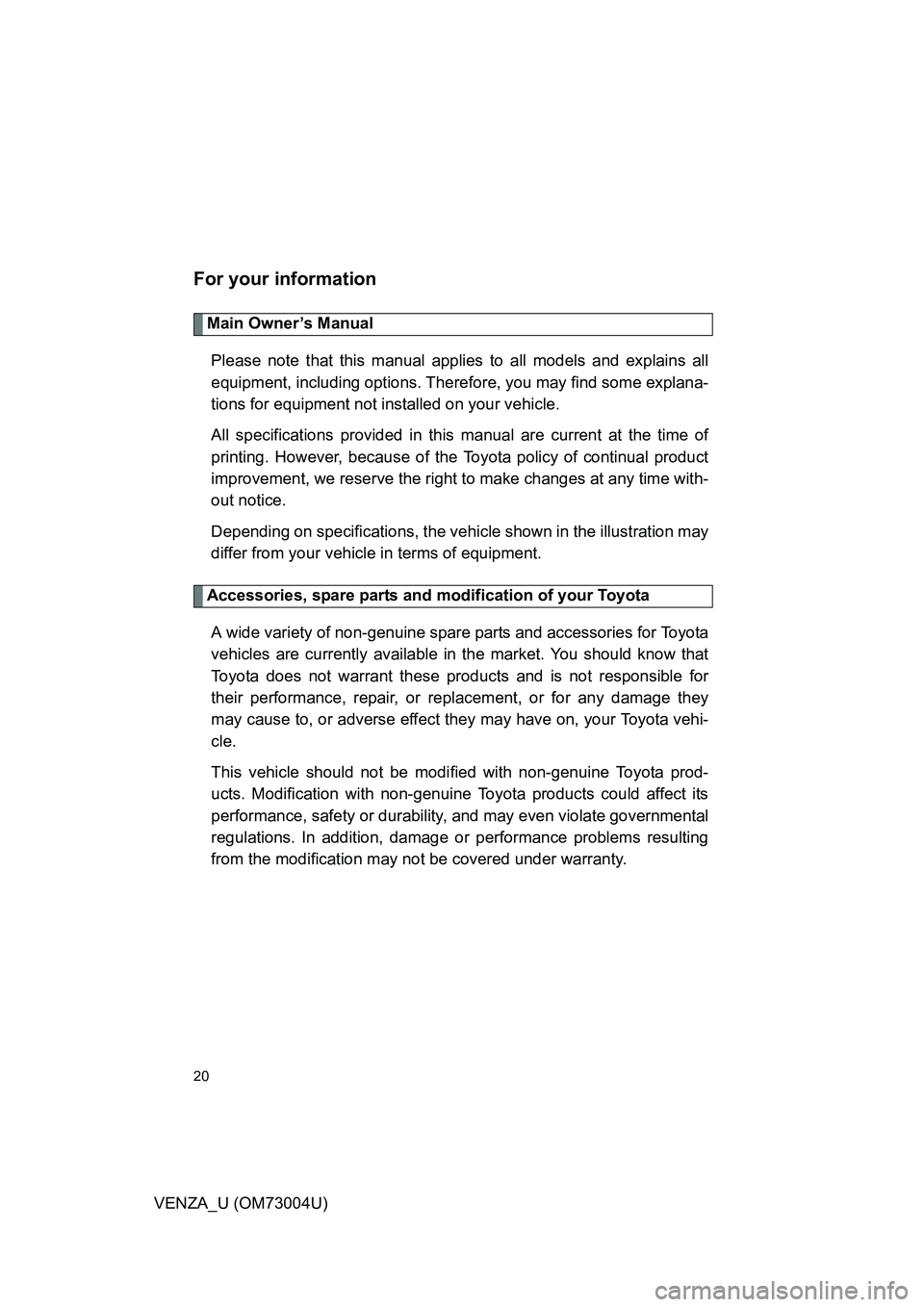

For your information
Main Owner’s ManualPlease note that this manual applies to all models and explains all
equipment, including options. Therefore, you may find some explana-
tions for equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of
printing. However, because of the Toyota policy of continual product
improvement, we reserve the right to make changes at any time with-
out notice.
Depending on specificati ons, the vehicle shown in the illustration may
differ from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that
Toyota does not warrant these prod ucts and is not responsible for
their performance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on, your Toyota vehi-
cle.
This vehicle should not be modi fied with non-genuine Toyota prod-
ucts. Modification with non-genuine Toyota products could affect its
performance, safety or durability , and may even violate governmental
regulations. In addition, damage or performance problems resulting
from the modification may not be covered under warranty.
