TOYOTA VENZA 2009 Owners Manual (in English)

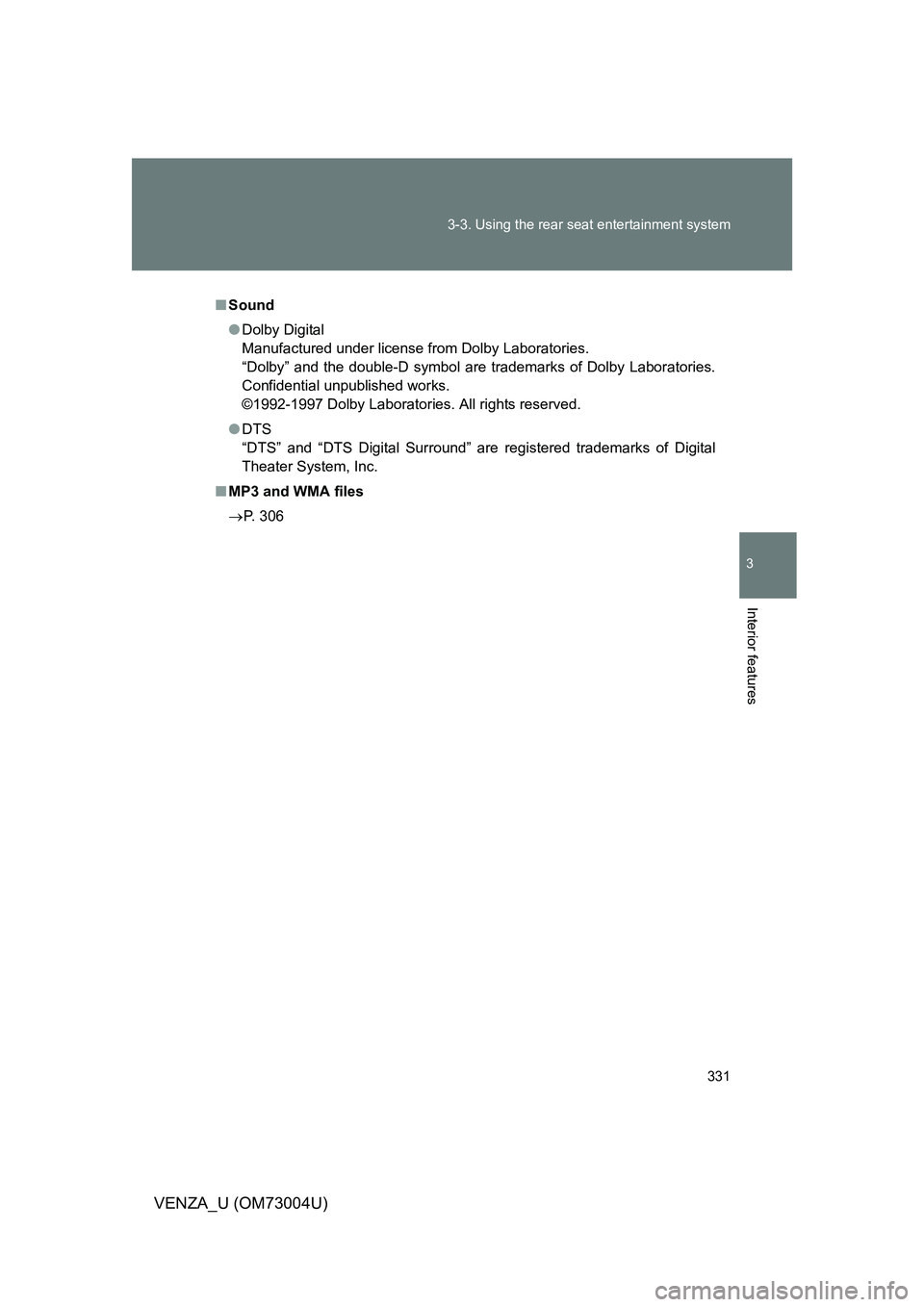

331
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
■
Sound
● Dolby Digital
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works.
©1992-1997 Dolby Laboratories. All rights reserved.
● DTS
“DTS” and “DTS Digita l Surround” are registered trademarks of Digital
Theater System, Inc.
■ MP3 and WMA files
 P. 306

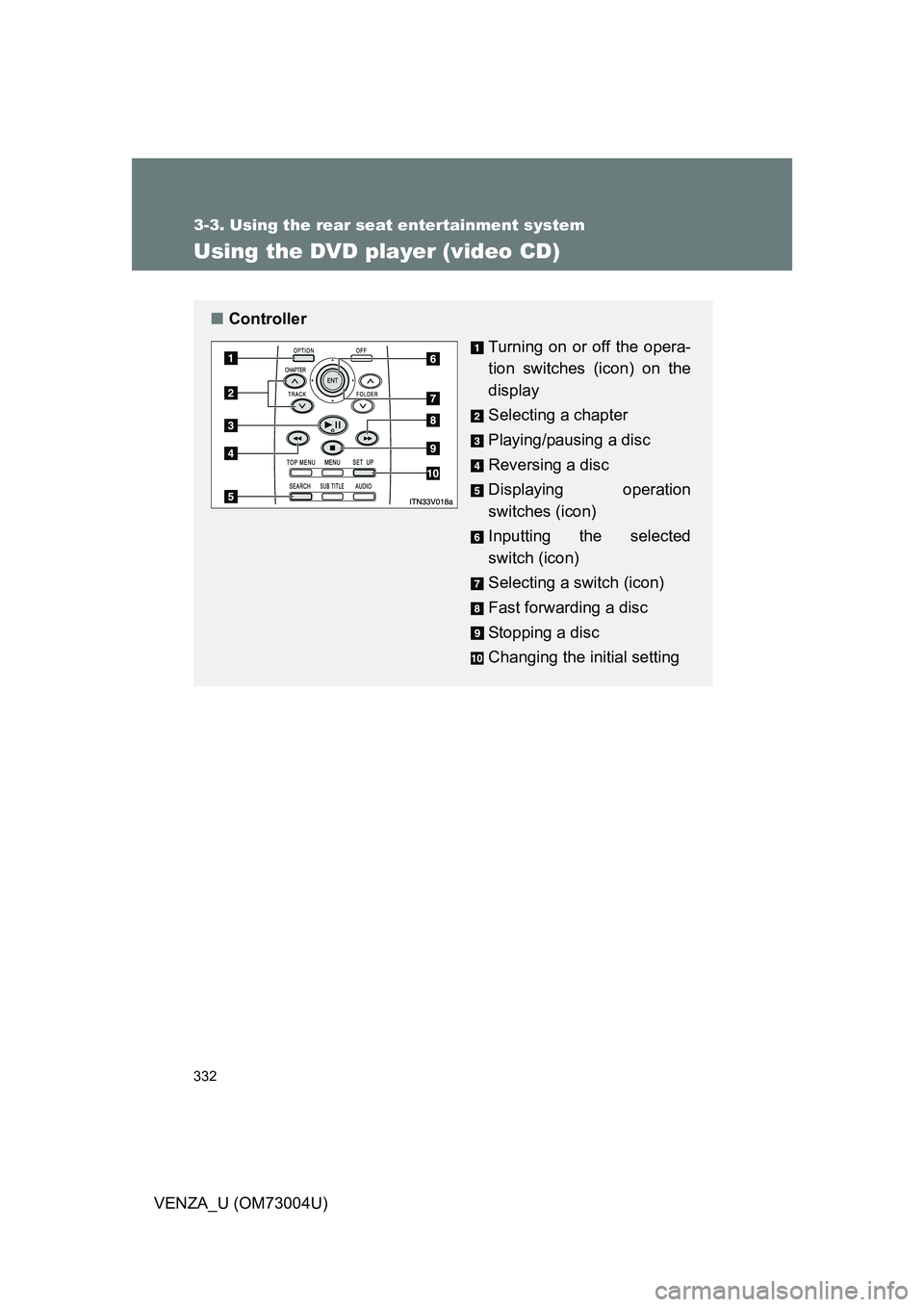

332
3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
Using the DVD player (video CD)
■Controller
Turning on or off the opera-
tion switches (icon) on the
display
Selecting a chapter
Playing/pausing a disc
Reversing a disc
Displaying operation
switches (icon)
Inputting the selected
switch (icon)
Selecting a switch (icon)
Fast forwarding a disc
Stopping a disc
Changing the initial setting

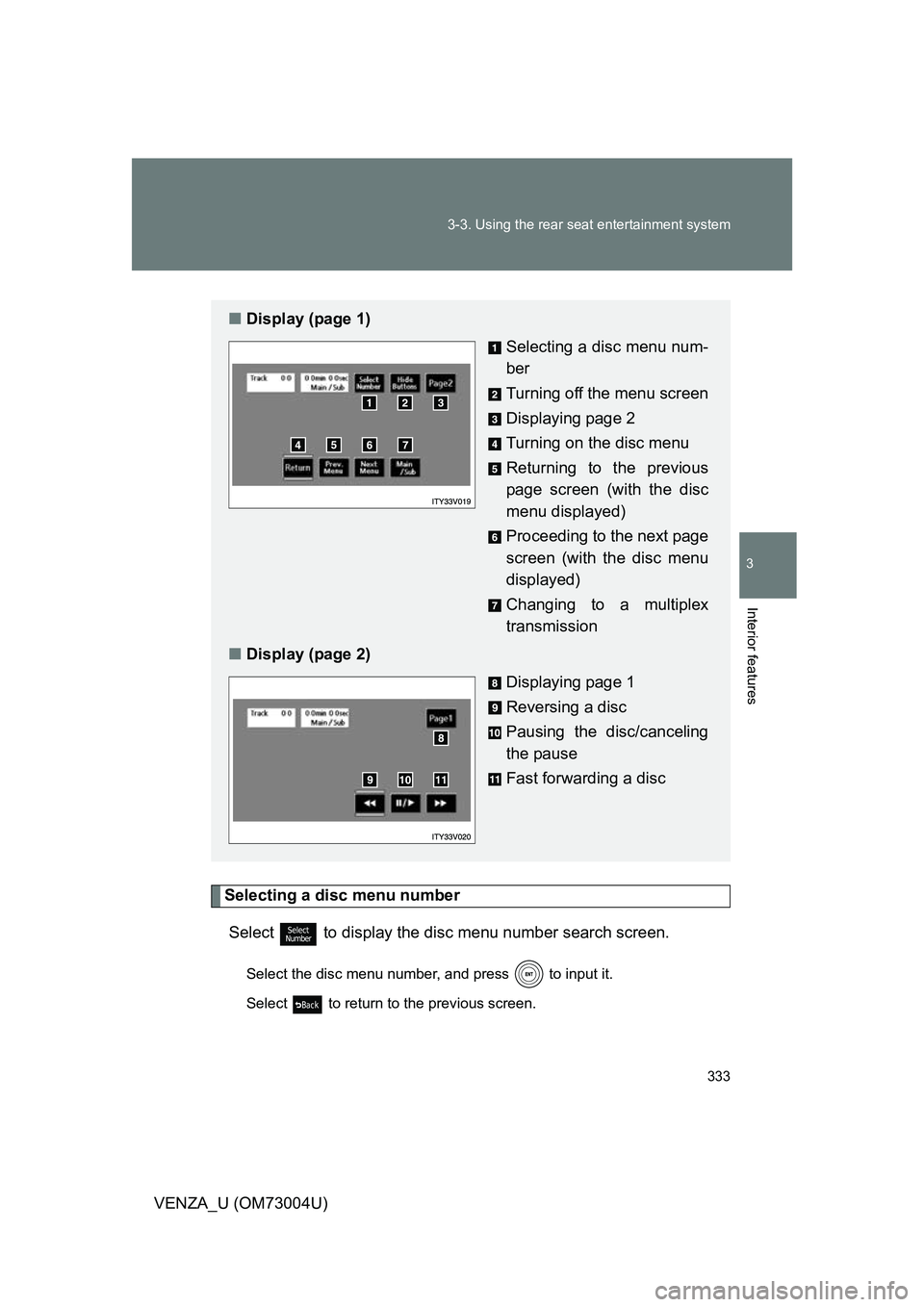

333
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
Selecting a disc menu number
Select to display the disc menu number search screen.
Select the disc menu number, and press to input it.
Select to return to the previous screen.
■ Display (page 1)
Selecting a disc menu num-
ber
Turning off the menu screen
Displaying page 2
Turning on the disc menu
Returning to the previous
page screen (with the disc
menu displayed)
Proceeding to the next page
screen (with the disc menu
displayed)
Changing to a multiplex
transmission
■ Display (page 2)
Displaying page 1
Reversing a disc
Pausing the disc/canceling
the pause
Fast forwarding a disc

334
3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)

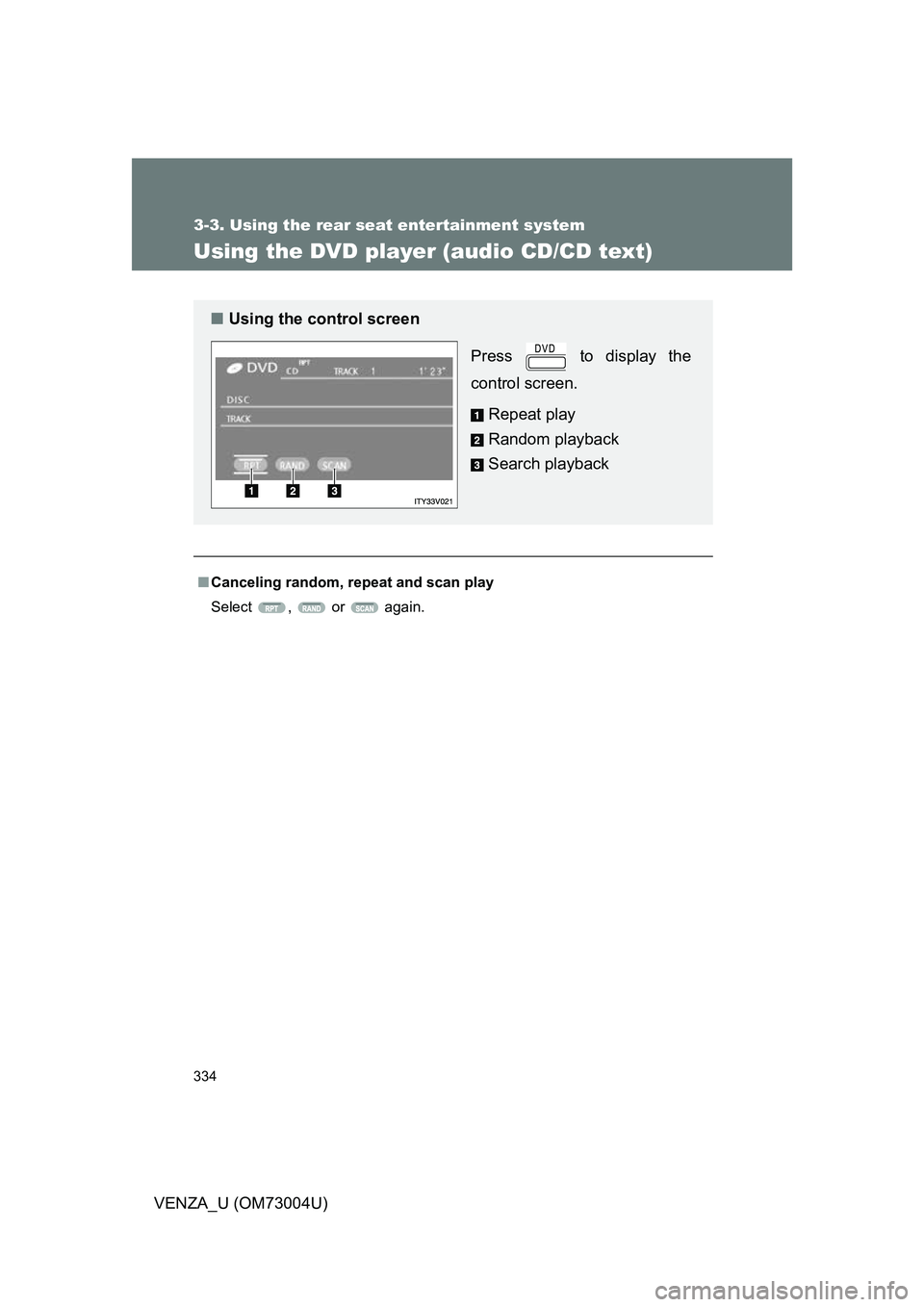

Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
■ Using the control screen
Press to display the
control screen.Repeat play
Random playback
Search playback

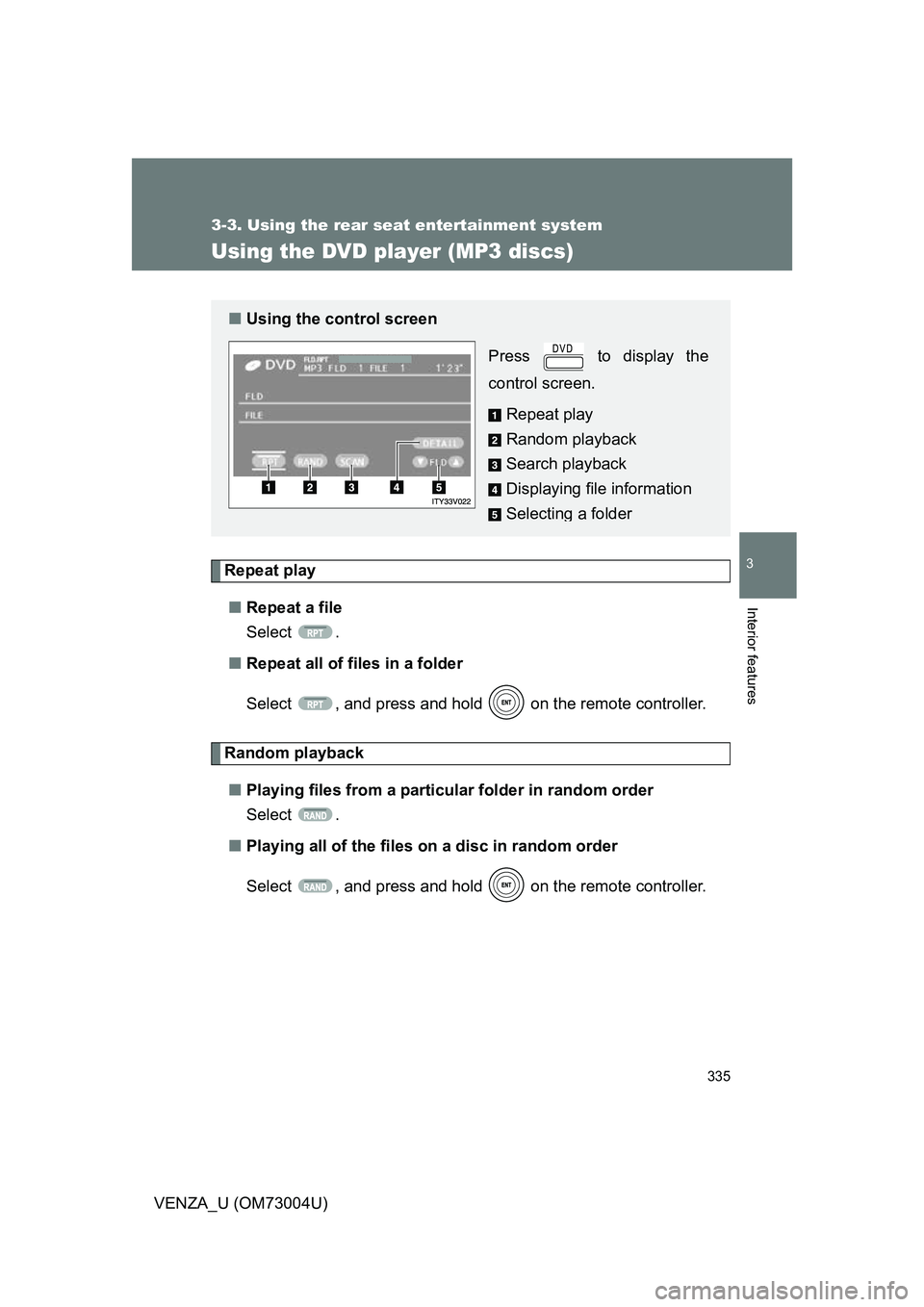

335
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
Using the DVD player (MP3 discs)
Repeat play■ Repeat a file
Select .
■ Repeat all of files in a folder
Select , and press and hold on the remote controller.
Random playback
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold on the remote controller.
■Using the control screen
Press to display the
control screen.Repeat play
Random playback
Search playback
Displaying file information
Selecting a folder

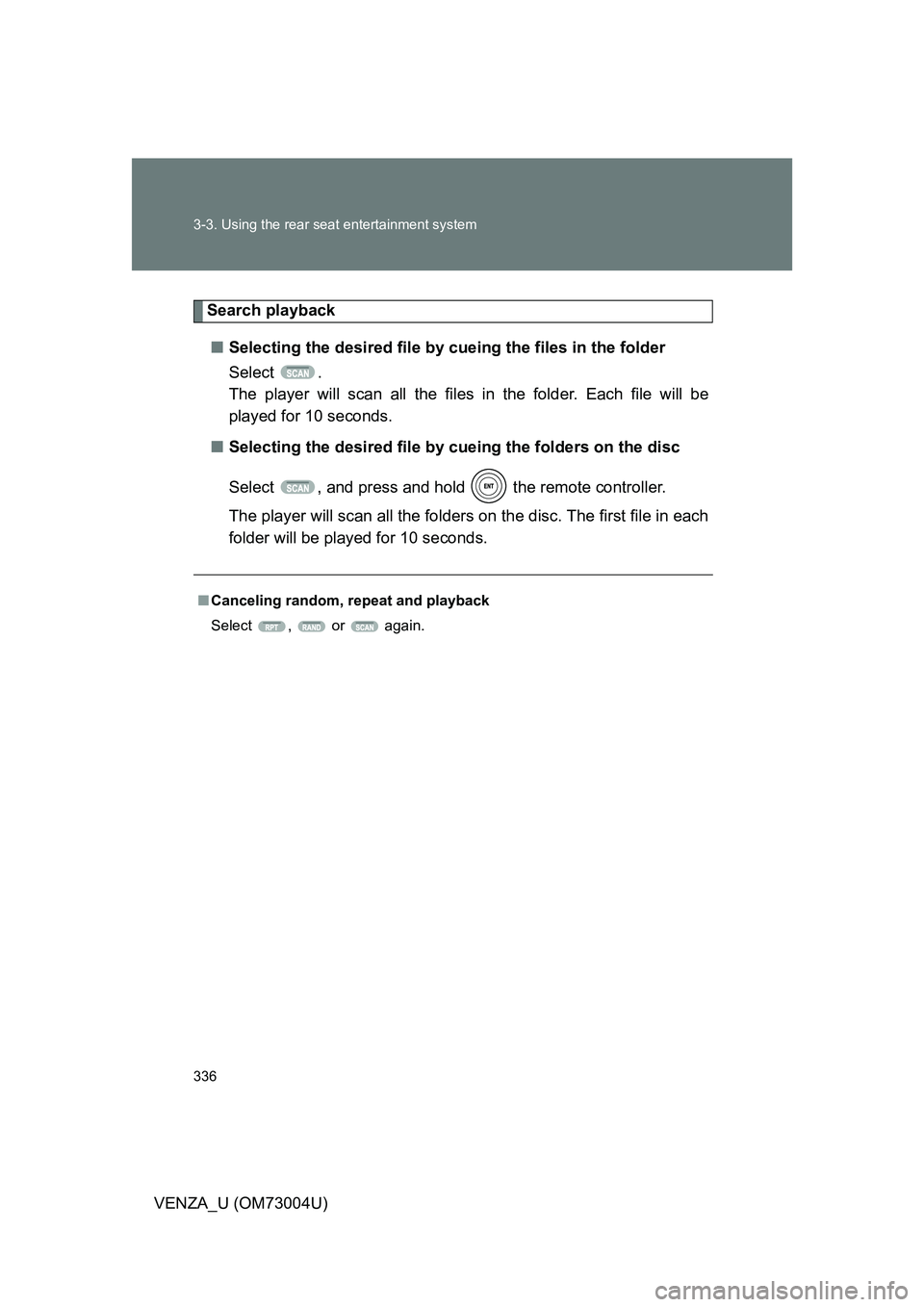

336 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
Search playback■ Selecting the desired file by cueing the files in the folder
Select .
The player will scan all the files in the folder. Each file will be
played for 10 seconds.
■ Selecting the desired file by cueing the folders on the disc
Select , and press and hold the remote controller.
The player will scan all the folders on the disc. The first file in each
folder will be played for 10 seconds.
■ Canceling random, repeat and playback
Select , or again.

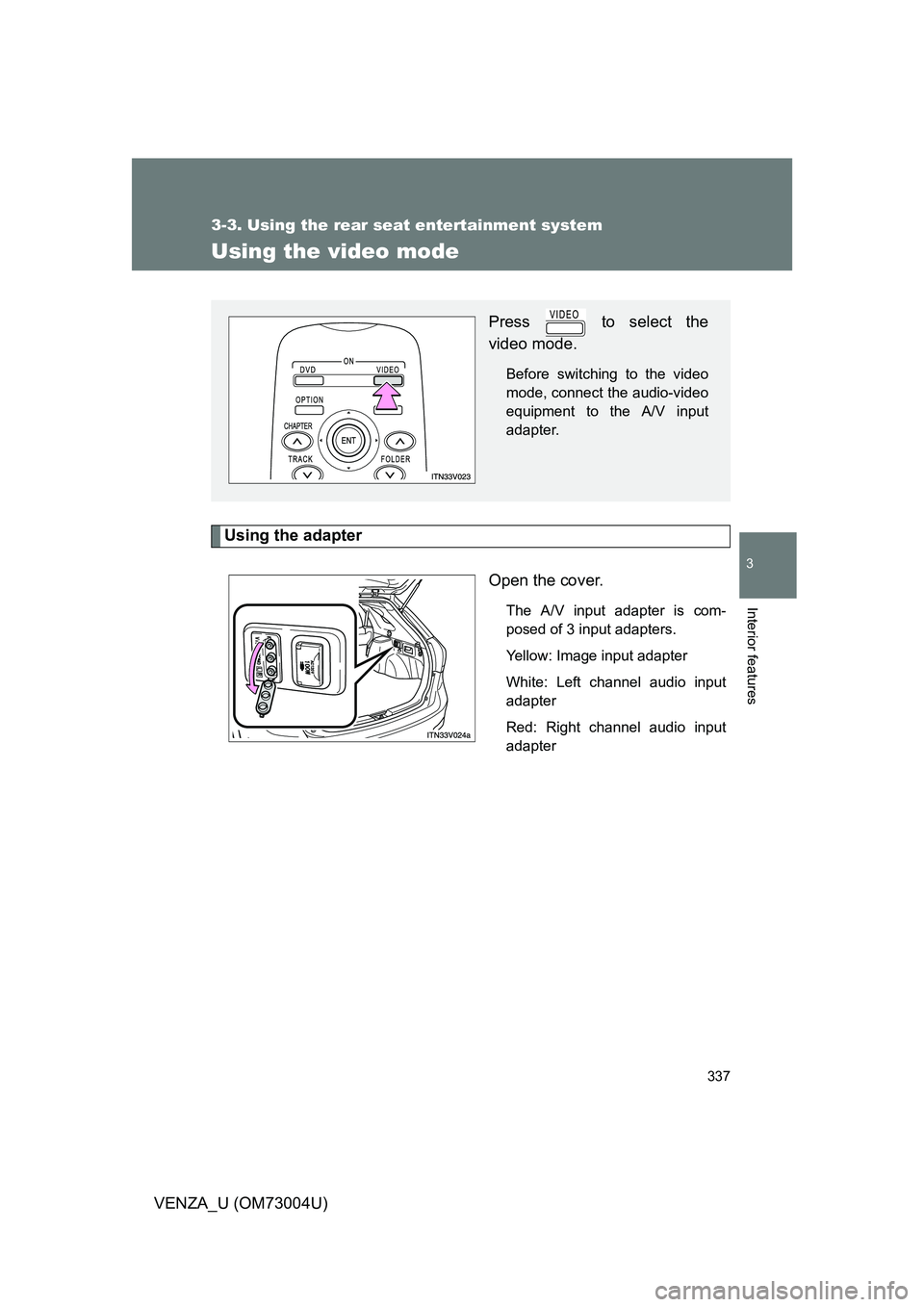

337
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
Using the video mode
Using the adapterOpen the cover.
The A/V input adapter is com-
posed of 3 input adapters.
Yellow: Image input adapter
White: Left channel audio input
adapter
Red: Right channel audio input
adapter
Press to select the
video mode.
Before switching to the video
mode, connect the audio-video
equipment to the A/V input
adapter.

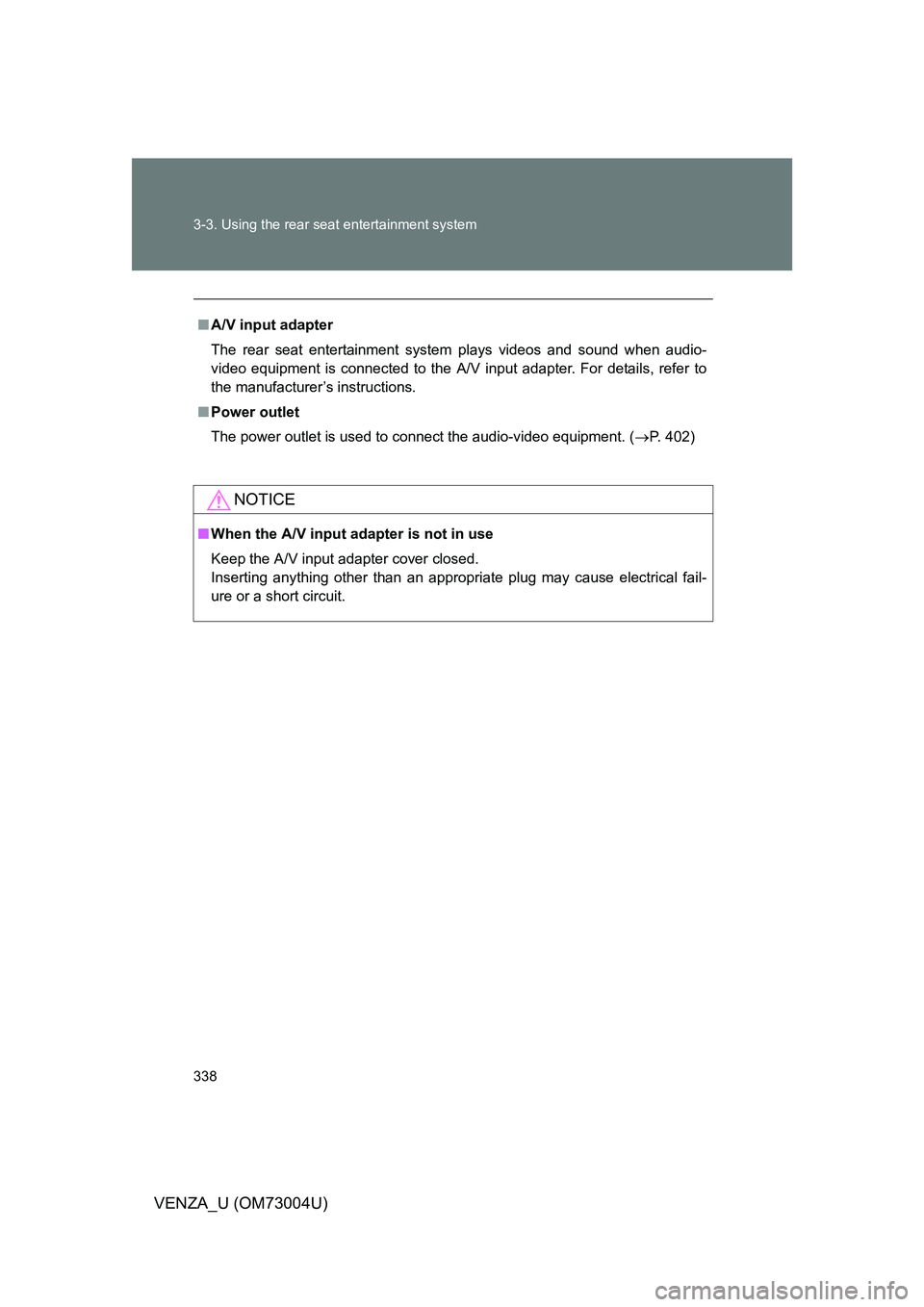

338 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
■A/V input adapter
The rear seat entertainment system plays videos and sound when audio-
video equipment is connected to the A/V input adapter. For details, refer to
the manufacturer’s instructions.
■ Power outlet
The power outlet is used to connect the audio-video equipment. ( P. 402)
NOTICE
■When the A/V input adapter is not in use
Keep the A/V input adapter cover closed.
Inserting anything other than an appropriate plug may cause electrical fail-
ure or a short circuit.

339
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)

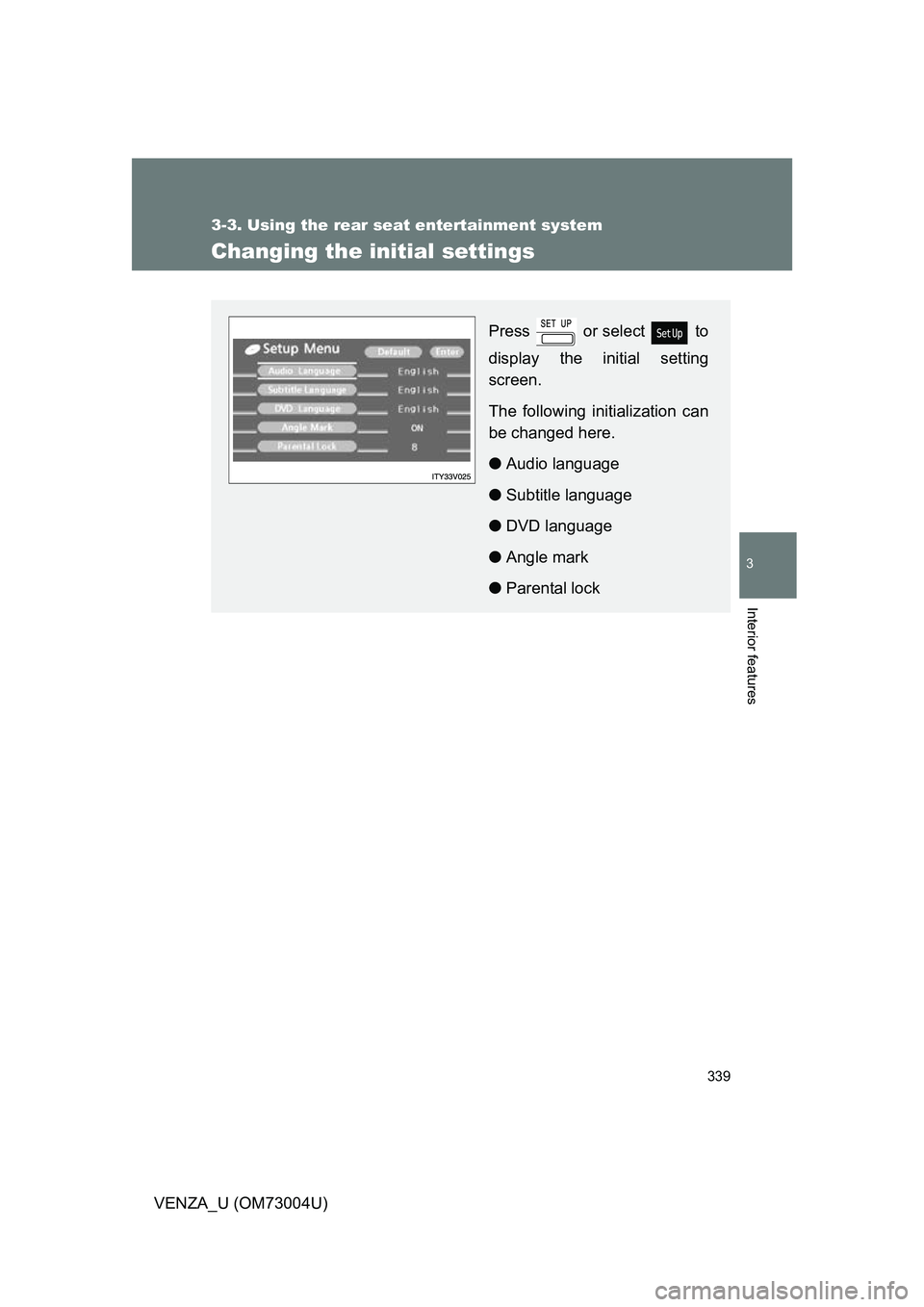

Changing the initial settings
Press or select to
display the initial setting
screen.
The following initialization can
be changed here.
● Audio language
● Subtitle language
● DVD language
● Angle mark
● Parental lock

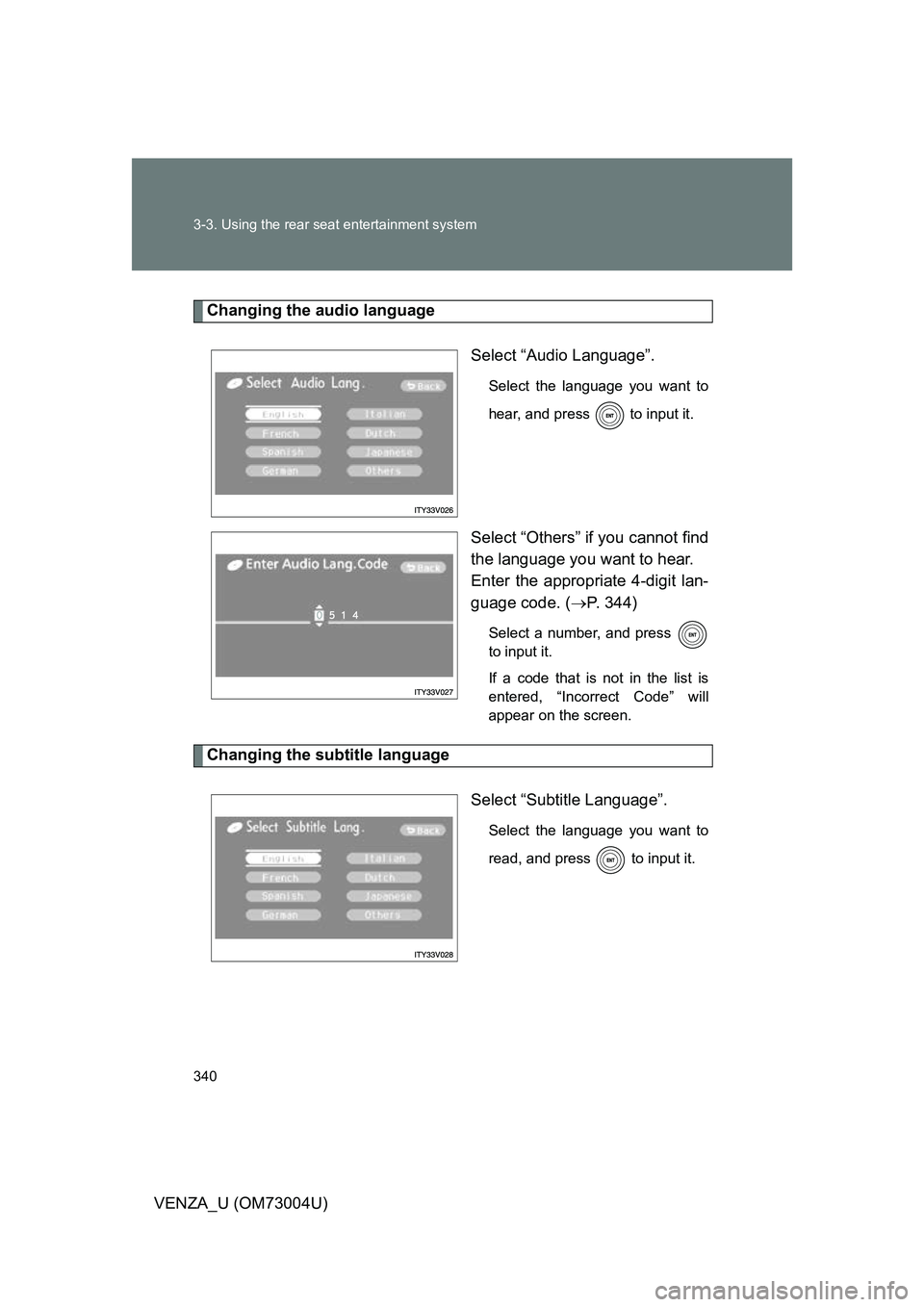

340 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
Changing the audio languageSelect “Audio Language”.
Select the language you want to
hear, and press to input it.
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit lan-
guage code. (P. 344)
Select a number, and press
to input it.
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.
Changing the subtitle language
Select “Subtitle Language”.
Select the language you want to
read, and press
to input it.
