TOYOTA VENZA 2009 Owners Manual (in English)

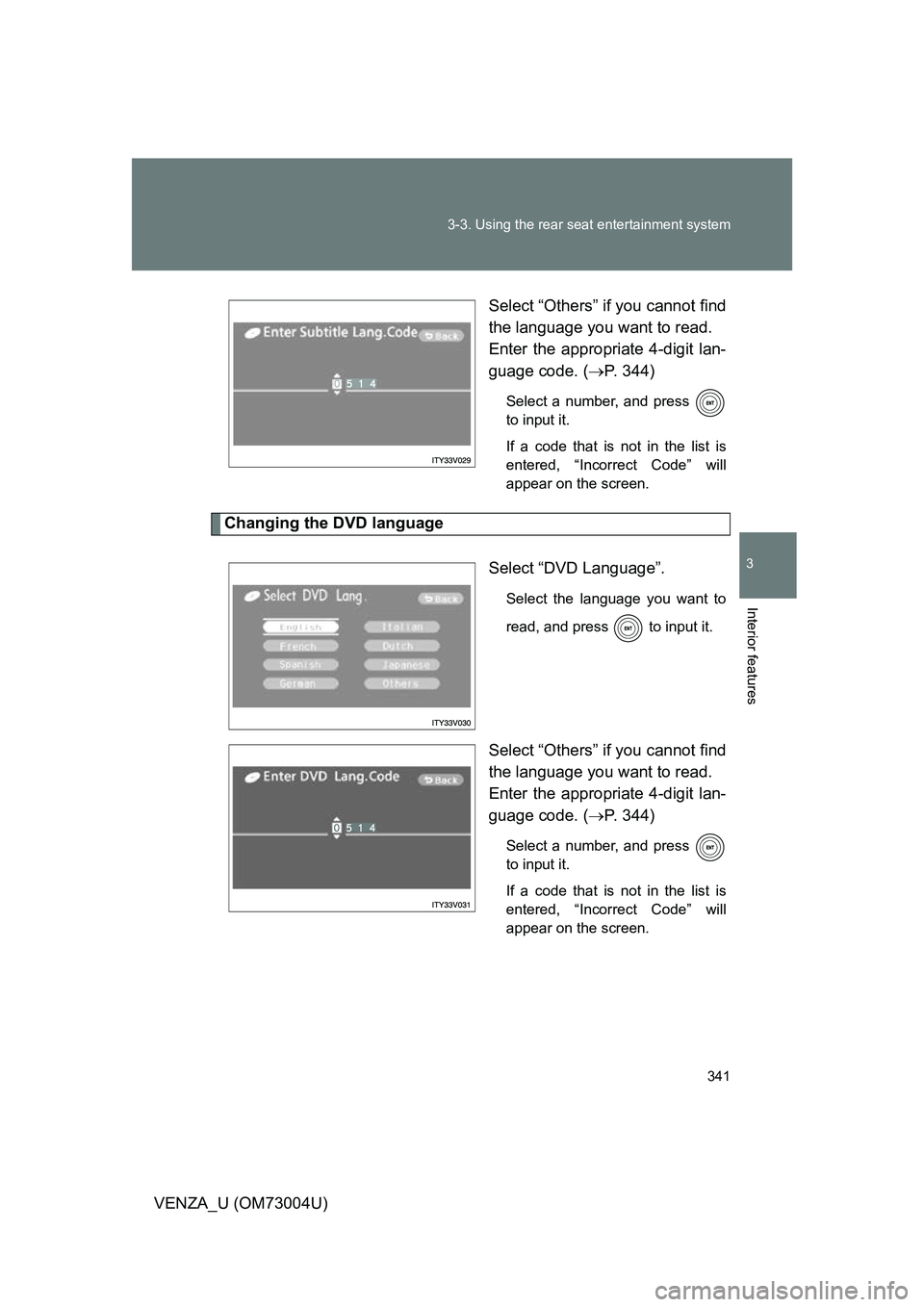

341
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
Select “Others” if you cannot find
the language you want to read.
Enter the appropriate 4-digit lan-
guage code. (
P. 344)
Select a number, and press
to input it.
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.
Changing the DVD language
Select “DVD Language”.
Select the language you want to
read, and press
to input it.
Select “Others” if you cannot find
the language you want to read.
Enter the appropriate 4-digit lan-
guage code. (P. 344)
Select a number, and press
to input it.
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.

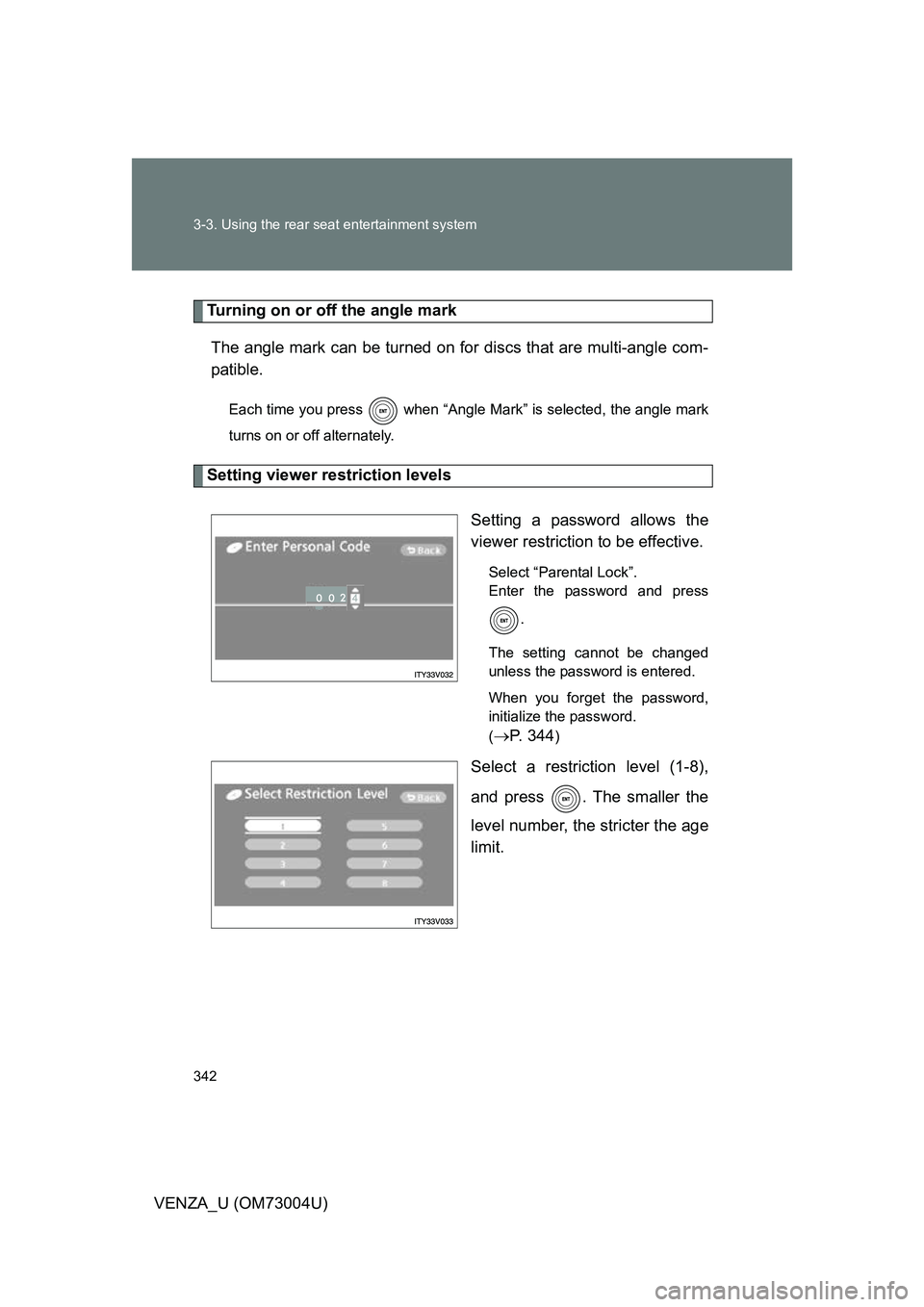

342 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
Turning on or off the angle markThe angle mark can be turned on for discs that are multi-angle com-
patible.
Each time you press when “Angle Mark” is selected, the angle mark
turns on or off alternately.
Setting viewer restriction levels
Setting a password allows the
viewer restriction to be effective.
Select “Parental Lock”.
Enter the password and press.
The setting cannot be changed
unless the password is entered.
When you forget the password,
initialize the password.
(
 P. 3 4 4)
Select a restriction level (1-8),
and press . The smaller the
level number, the stricter the age
limit.

343
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)

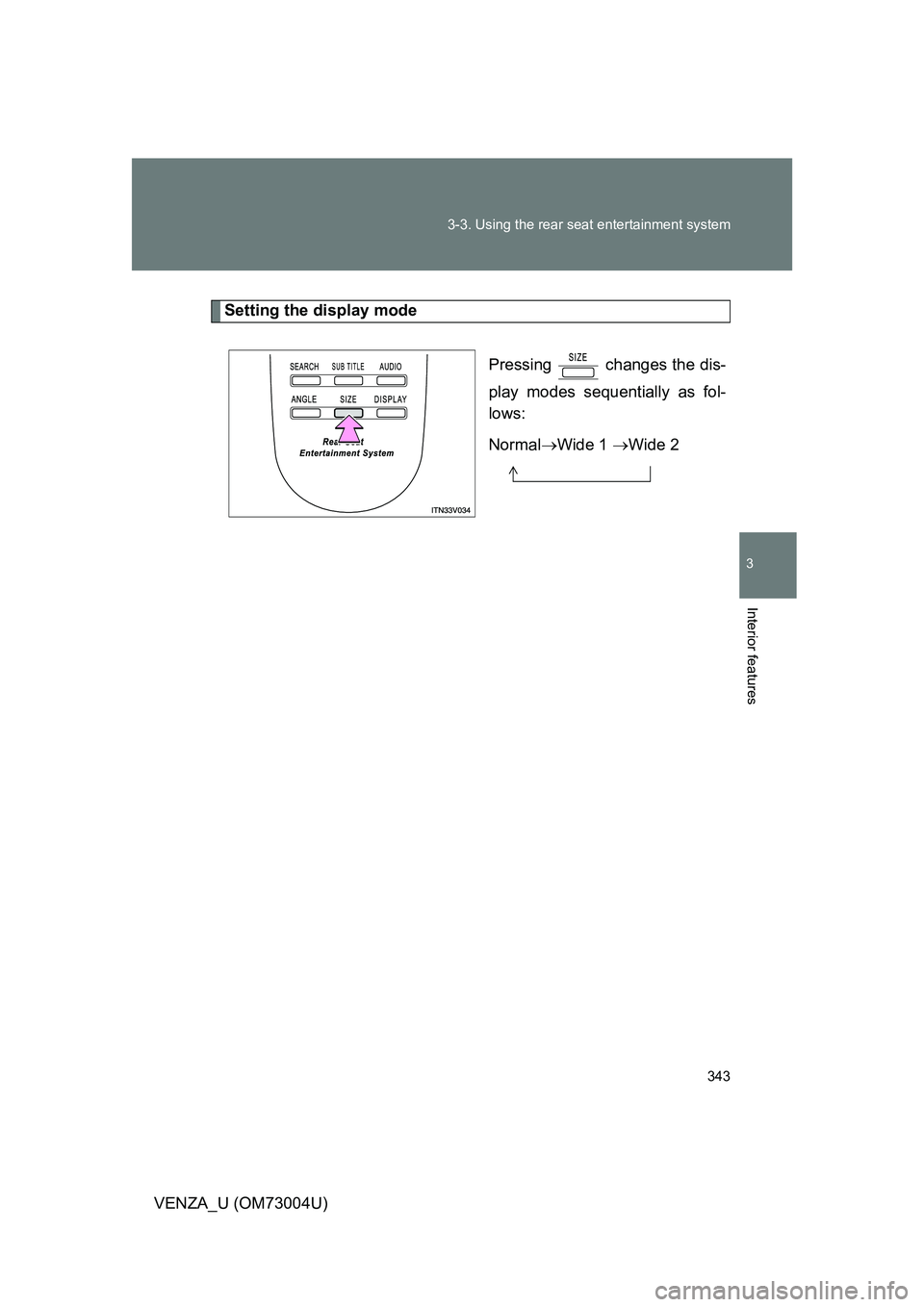

Setting the display mode
Pressing changes the dis-
play modes sequentially as fol-
lows:
NormalWide 1 Wide 2

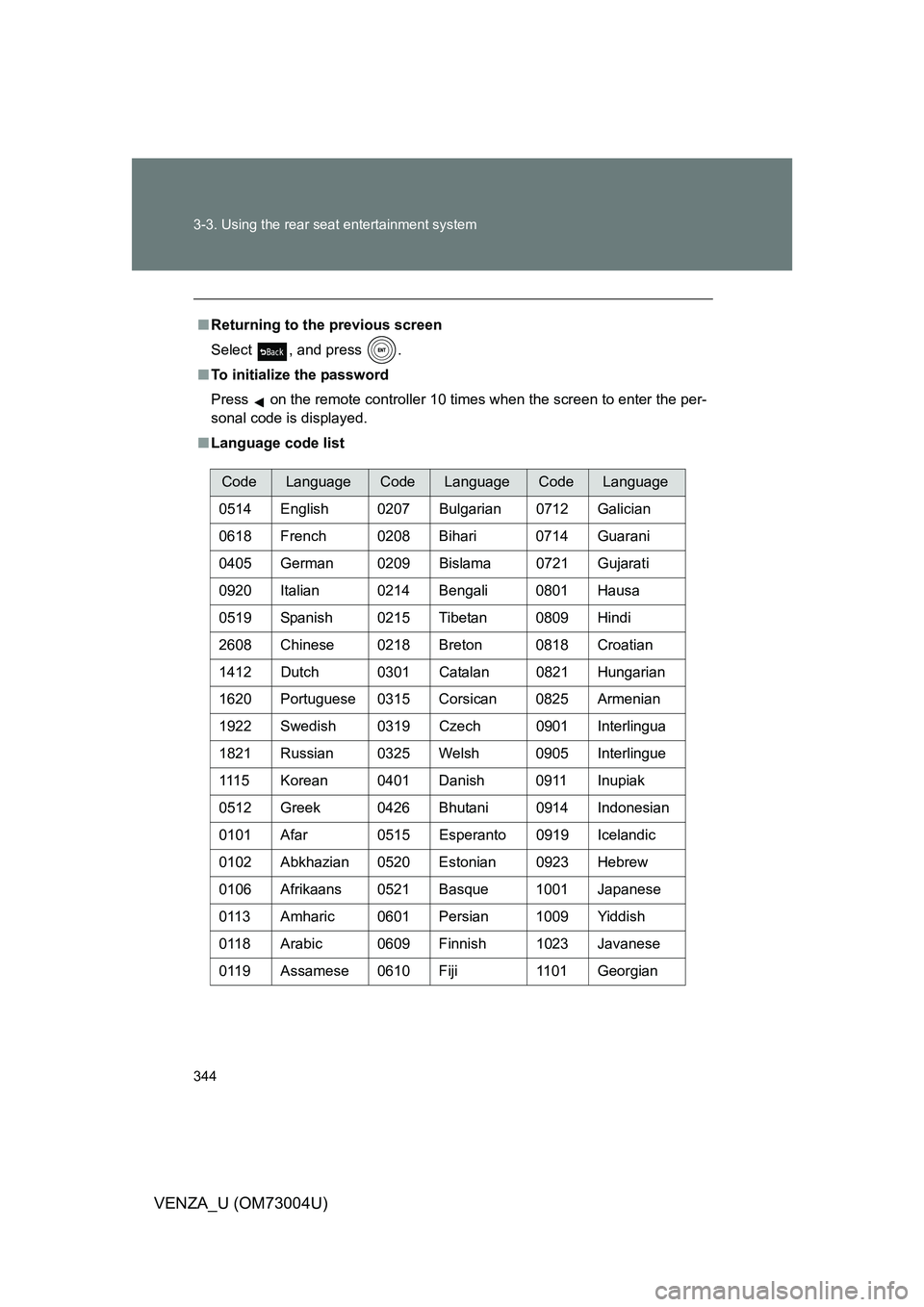

344 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
■Returning to the previous screen
Select , and press .
■ To initialize the password
Press
on the remote controller 10 times when the screen to enter the per-
sonal code is displayed.
■ Language code list
CodeLanguageCodeLanguageCodeLanguage
0514 English 0207 Bulgarian 0712 Galician
0618 French 0208 Bihari 0714 Guarani
0405 German 0209 Bislama 0721 Gujarati
0920 Italian 0214 Bengali 0801 Hausa
0519 Spanish 0215 Tibetan 0809 Hindi
2608 Chinese 0218 Breton 0818 Croatian
1412 Dutch 0301 Catalan 0821 Hungarian
1620 Portuguese 0315 Corsican 0825 Armenian
1922 Swedish 0319 Czech 0901 Interlingua
1821 Russian 0325 Welsh 0905 Interlingue
1115 Korean 0401 Danish 0911 Inupiak
0512 Greek 0426 Bhutani 0914 Indonesian
0101 Afar 0515 Esperanto 0919 Icelandic
0102 Abkhazian 0520 Estonian 0923 Hebrew
0106 Afrikaans 0521 Basque 1001 Japanese
0113 Amharic 0601 Persian 1009 Yiddish
0118 Arabic 0609 Finnish 1023 Javanese
0119 Assamese 0610 Fiji 1101 Georgian

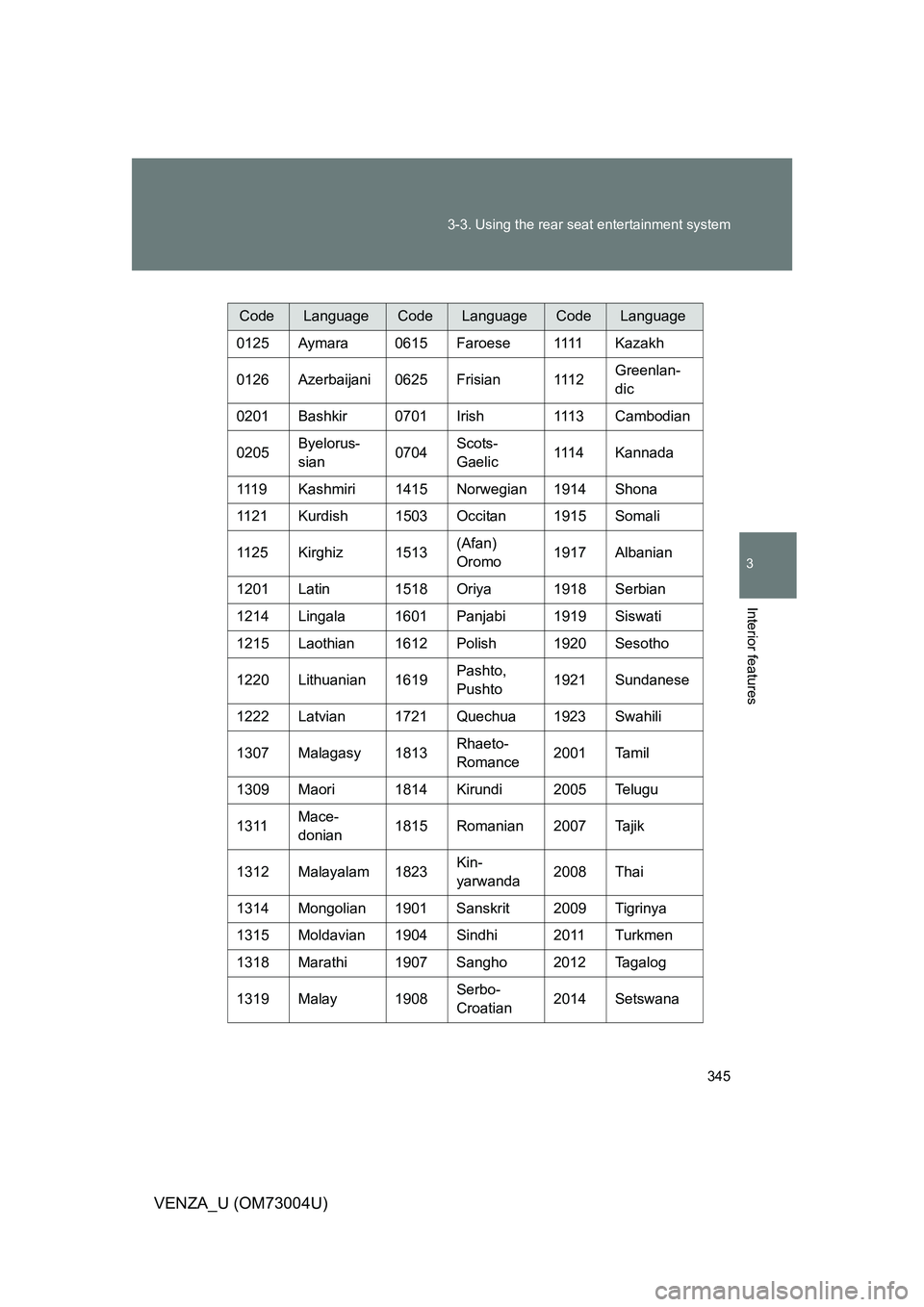

345
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
CodeLanguageCodeLanguageCodeLanguage
0125 Aymara 0615 Faroese 1111 Kazakh
0126 Azerbaijani 0625 Frisian 1112 Greenlan-
dic
0201 Bashkir 0701 Irish 1113 Cambodian
0205 Byelorus-
sian 0704Scots-
Gaelic 1114 Kannada
1119 Kashmiri 1415 Norwegian 1914 Shona
1121 Kurdish 1503 Occitan 1915 Somali
1125 Kirghiz 1513 (Afan)
Oromo1917 Albanian
1201 Latin 1518 Oriya 1918 Serbian
1214 Lingala 1601 Panjabi 1919 Siswati
1215 Laothian 1612 Polish 1920 Sesotho
1220 Lithuanian 1619 Pashto,
Pushto1921 Sundanese
1222 Latvian 1721 Quechua 1923 Swahili
1307 Malagasy 1813 Rhaeto-
Romance2001 Tamil
1309 Maori 1814 Kirundi 2005 Telugu
1311 Mace-
donian 1815 Romanian 2007 Tajik
1312 Malayalam 1823 Kin-
yarwanda2008 Thai
1314 Mongolian 1901 Sanskrit 2009 Tigrinya
1315 Moldavian 1904 Sindhi 2011 Turkmen
1318 Marathi 1907 Sangho 2012 Tagalog
1319 Malay 1908 Serbo-
Croatian2014 Setswana

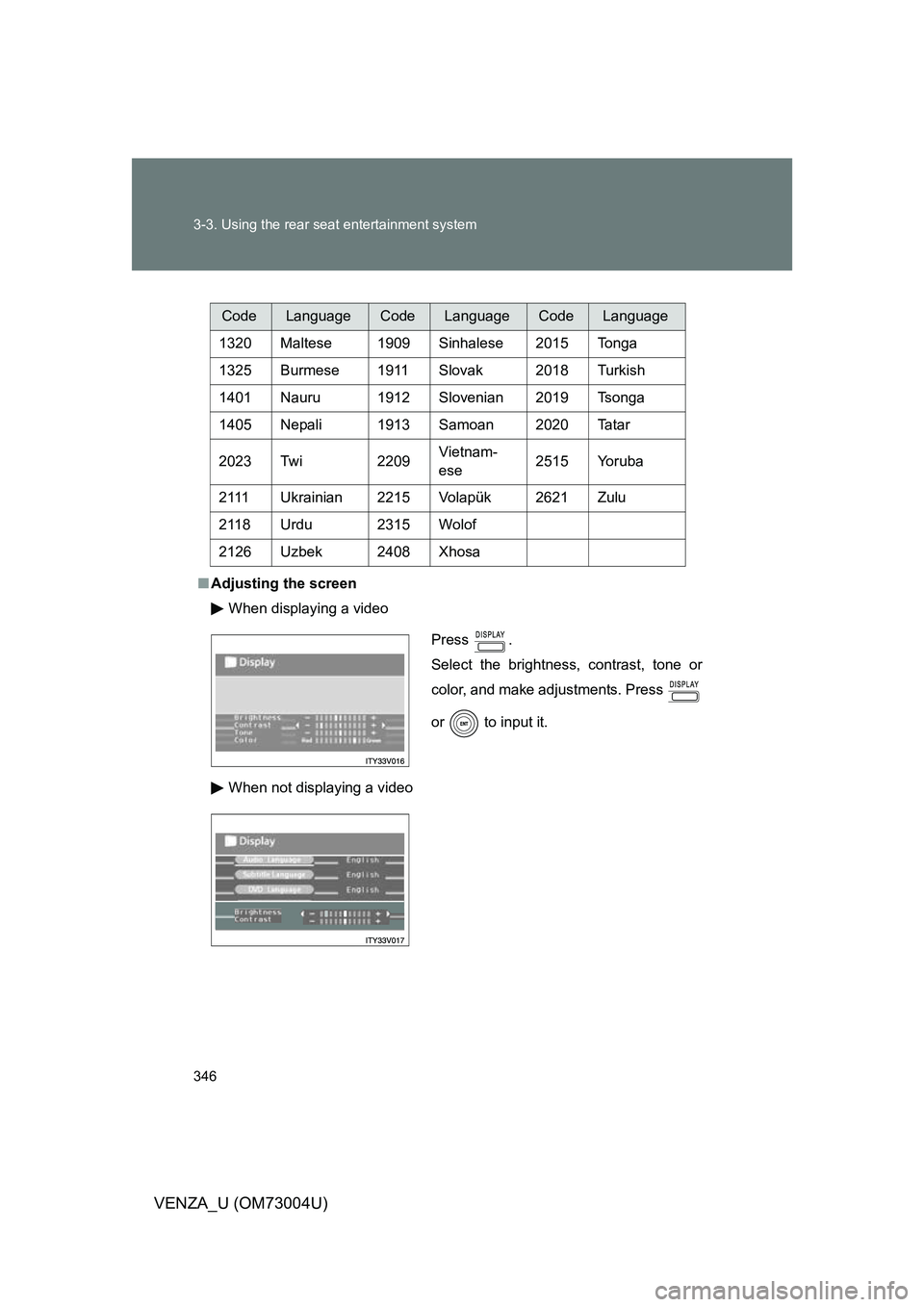

346 3-3. Using the rear seat entertainment system
VENZA_U (OM73004U)
■Adjusting the screen
When displaying a video
When not displaying a video
CodeLanguageCodeLanguageCodeLanguage
1320 Maltese 1909 Sinhalese 2015 Tonga
1325 Burmese 1911 Slovak 2018 Turkish
1401 Nauru 1912 Slovenian 2019 Tsonga
1405 Nepali 1913 Samoan 2020 Tatar
2023 Twi 2209 Vietnam-
ese2515 Yoruba
2111 Ukrainian 2215 Volapük 2621 Zulu
2118 Urdu 2315 Wolof
2126 Uzbek 2408 Xhosa
Press .
Select the brightness, contrast, tone or
color, and make adjustments. Press
or to input it.

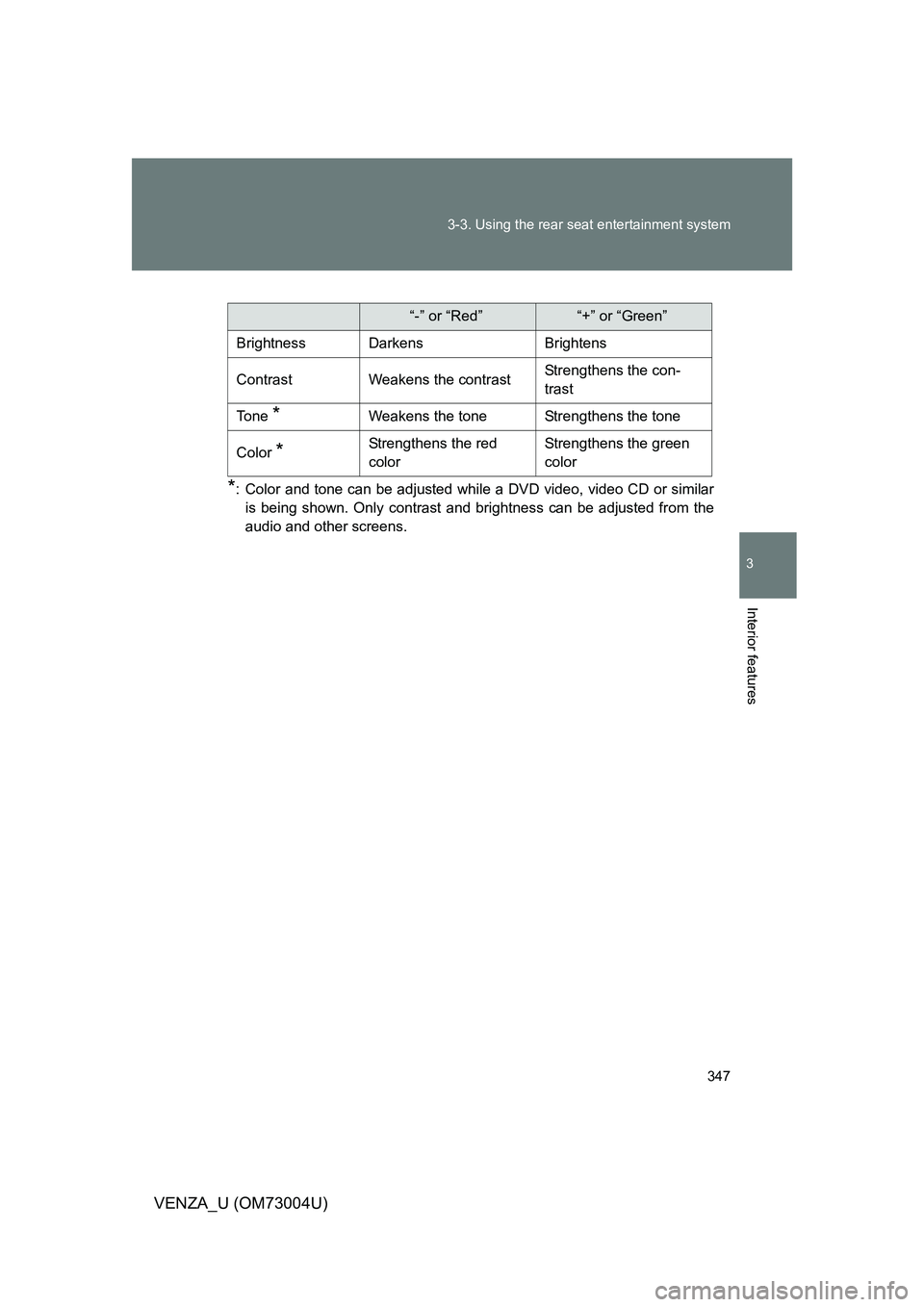

347
3-3. Using the rear seat entertainment system
3
Interior features
VENZA_U (OM73004U)
*: Color and tone can be adjusted while a DVD video, video CD or similar
is being shown. Only contrast and brightness can be adjusted from the
audio and other screens.
“-” or “Red”“+” or “Green”
Brightness Darkens Brightens
Contrast Weakens the contrast Strengthens the con-
trast
Tone
*Weakens the tone Strengthens the tone
Color
*Strengthens the red
color Strengthens the green
color

348
VENZA_U (OM73004U)

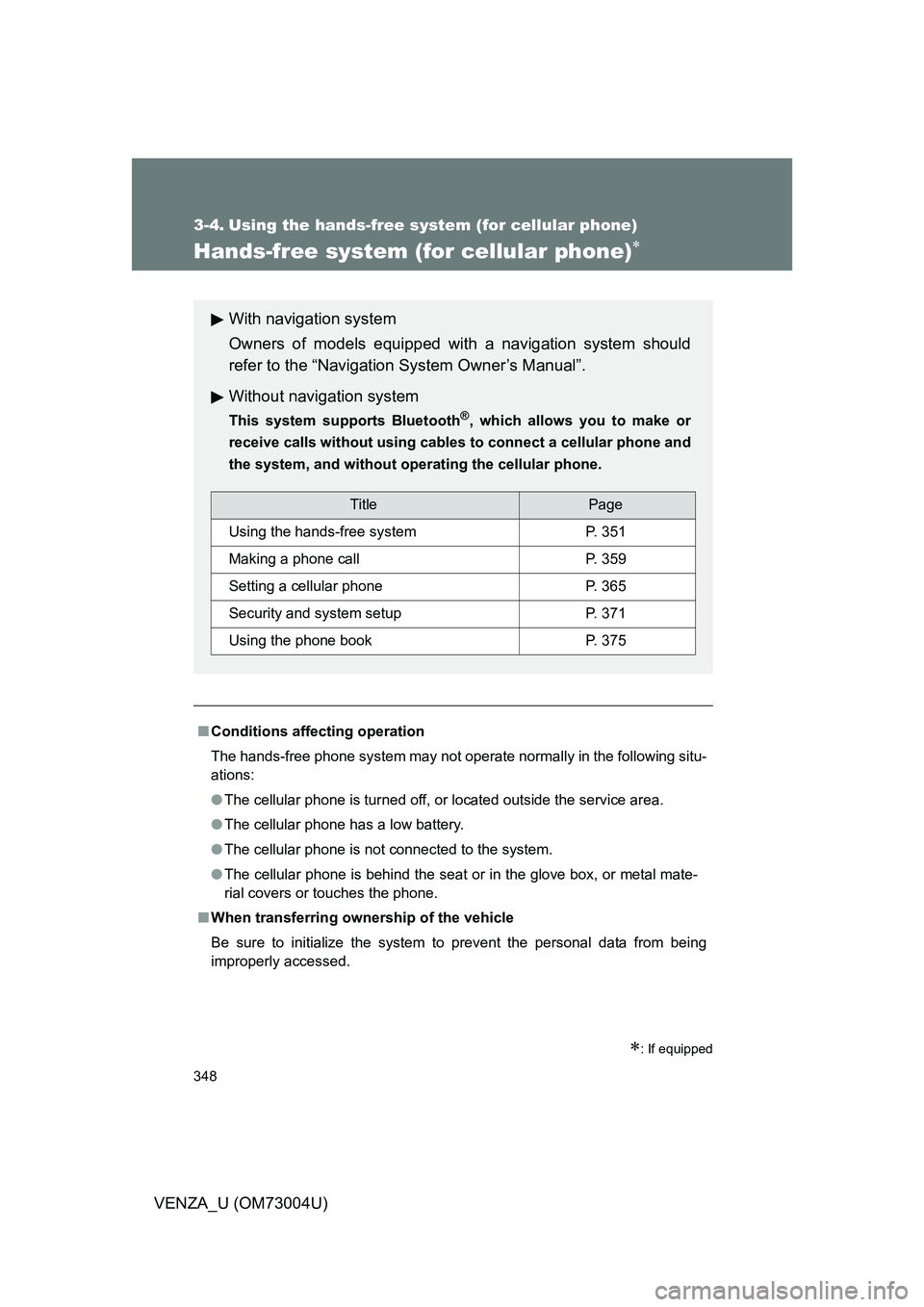

3-4. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)
: If equipped
■Conditions affecting operation
The hands-free phone system may not operate normally in the following situ-
ations:
● The cellular phone is turned off, or located outside the service area.
● The cellular phone has a low battery.
● The cellular phone is not connected to the system.
● The cellular phone is behind the seat or in the glove box, or metal mate-
rial covers or touches the phone.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
TitlePage
Using the hands-free systemP. 351
Making a phone callP. 359
Setting a cellular phoneP. 365
Security and system setupP. 371
Using the phone bookP. 375

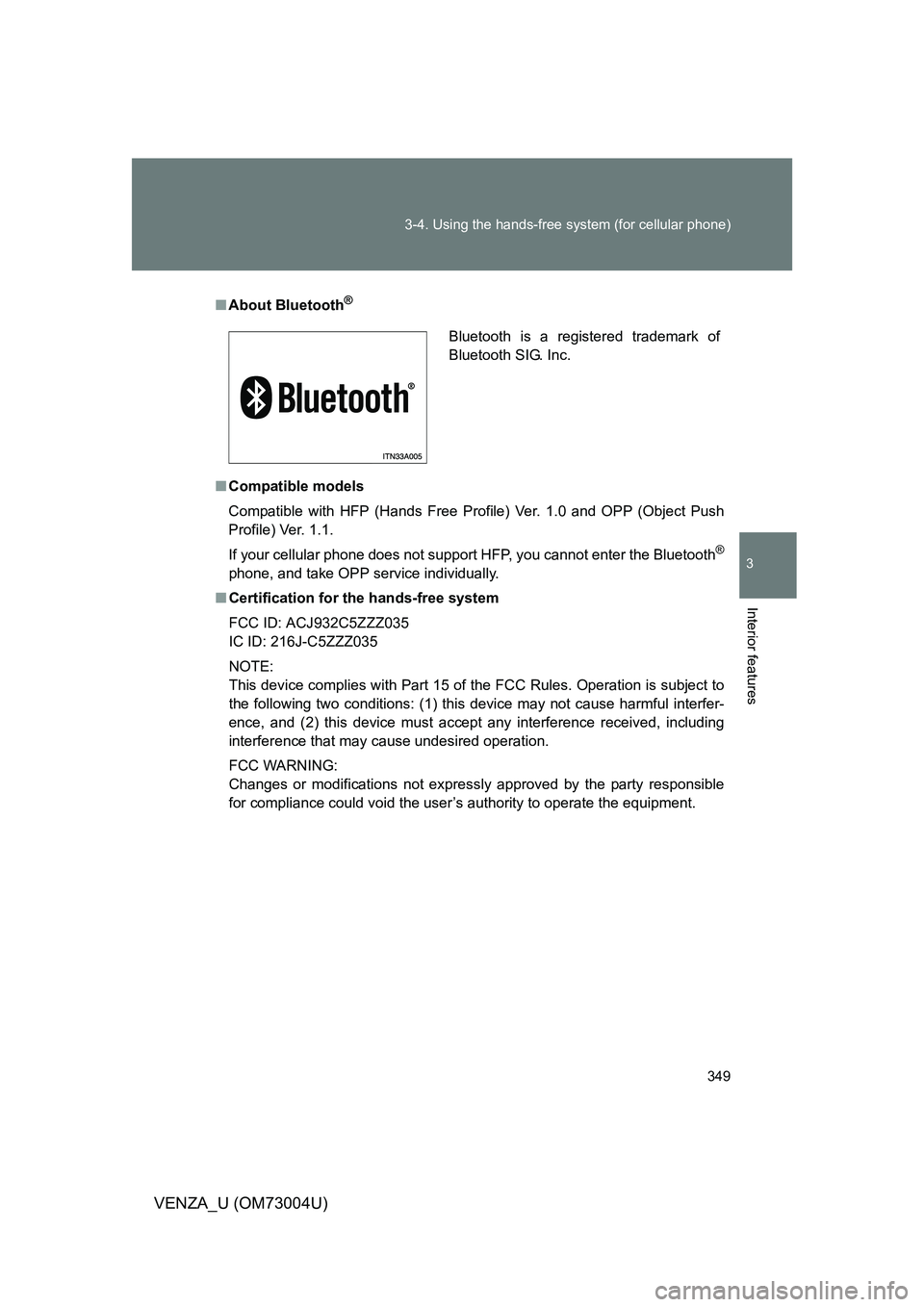

349
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73004U)
■About Bluetooth®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually.
■ Certification for the hands-free system
FCC ID: ACJ932C5ZZZ035
IC ID: 216J-C5ZZZ035
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

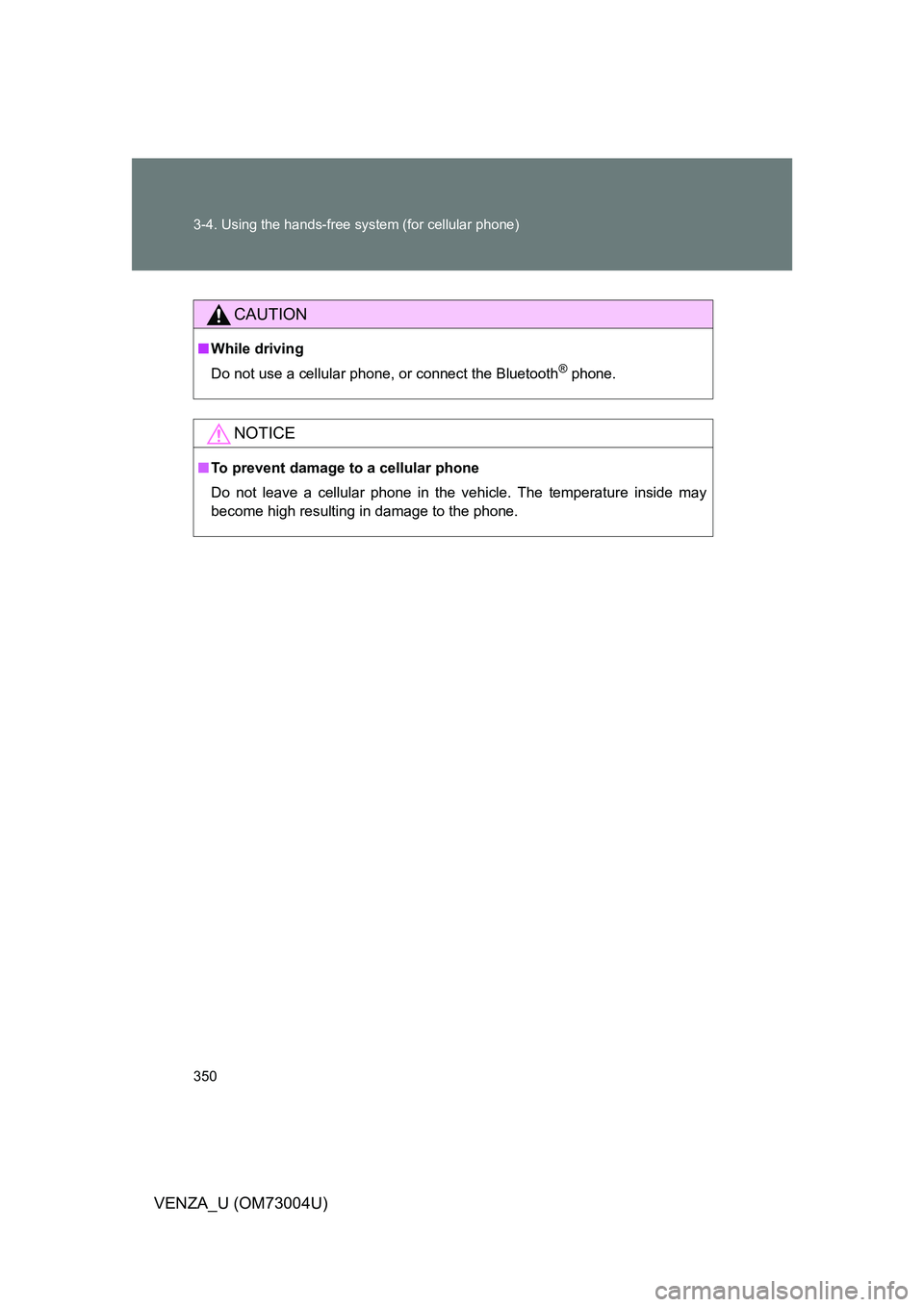

350 3-4. Using the hands-free system (for cellular phone)
VENZA_U (OM73004U)
CAUTION
■While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.
