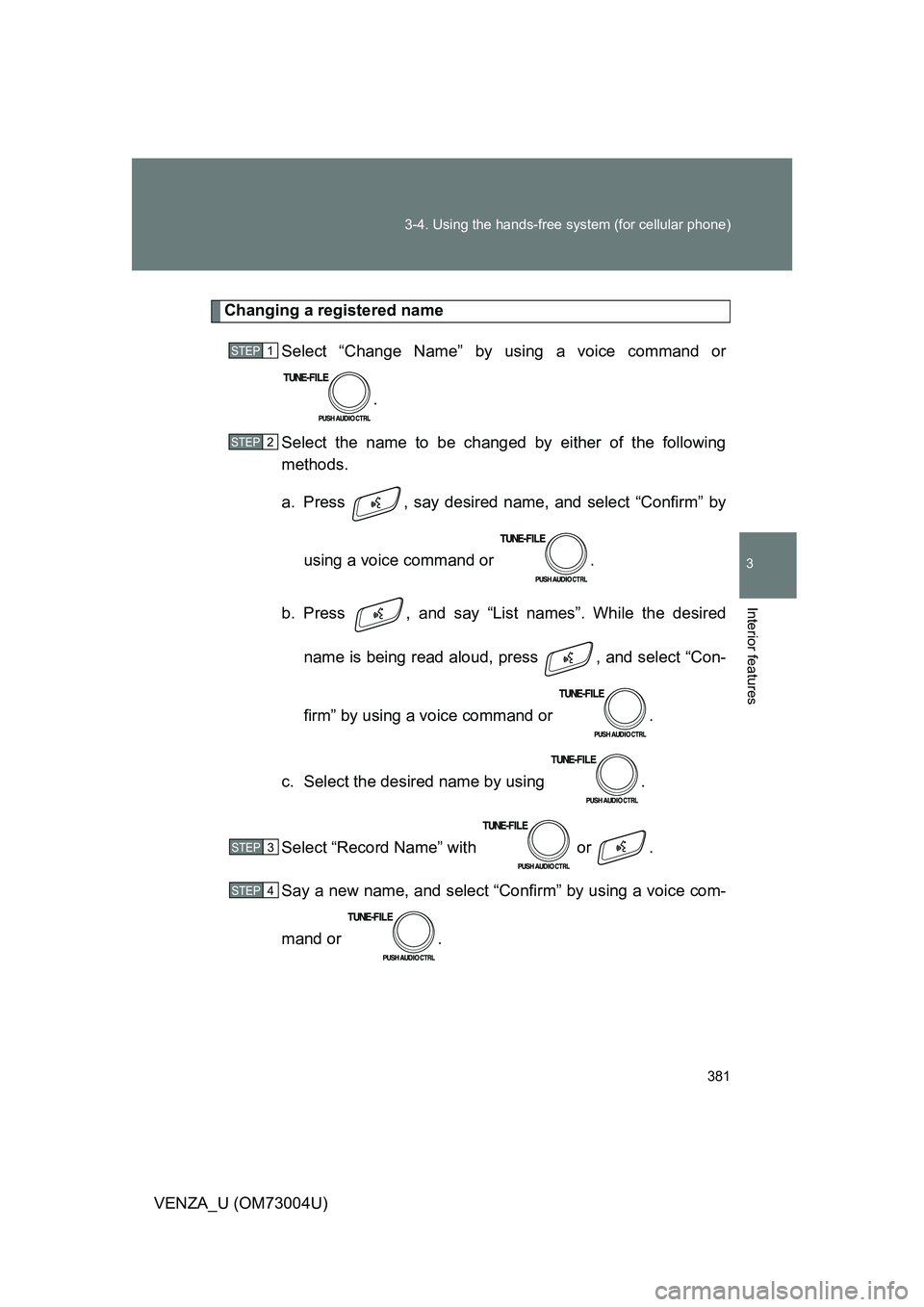

Page 381 of 620
381
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73004U)
Changing a registered name
Select “Change Name” by using a voice command or
.
Select the name to be changed by either of the following
methods.
a. Press , say desired name, and select “Confirm” by
using a voice command or .
b. Press , and say “List names”. While the desired
name is being read aloud, press , and select “Con-
firm” by using a voice command or .
c. Select the desired name by using .
Select “Record Name” with or .
Say a new name, and select “Con firm” by using a voice com-
mand or .
STEP1
STEP2
STEP3
STEP4

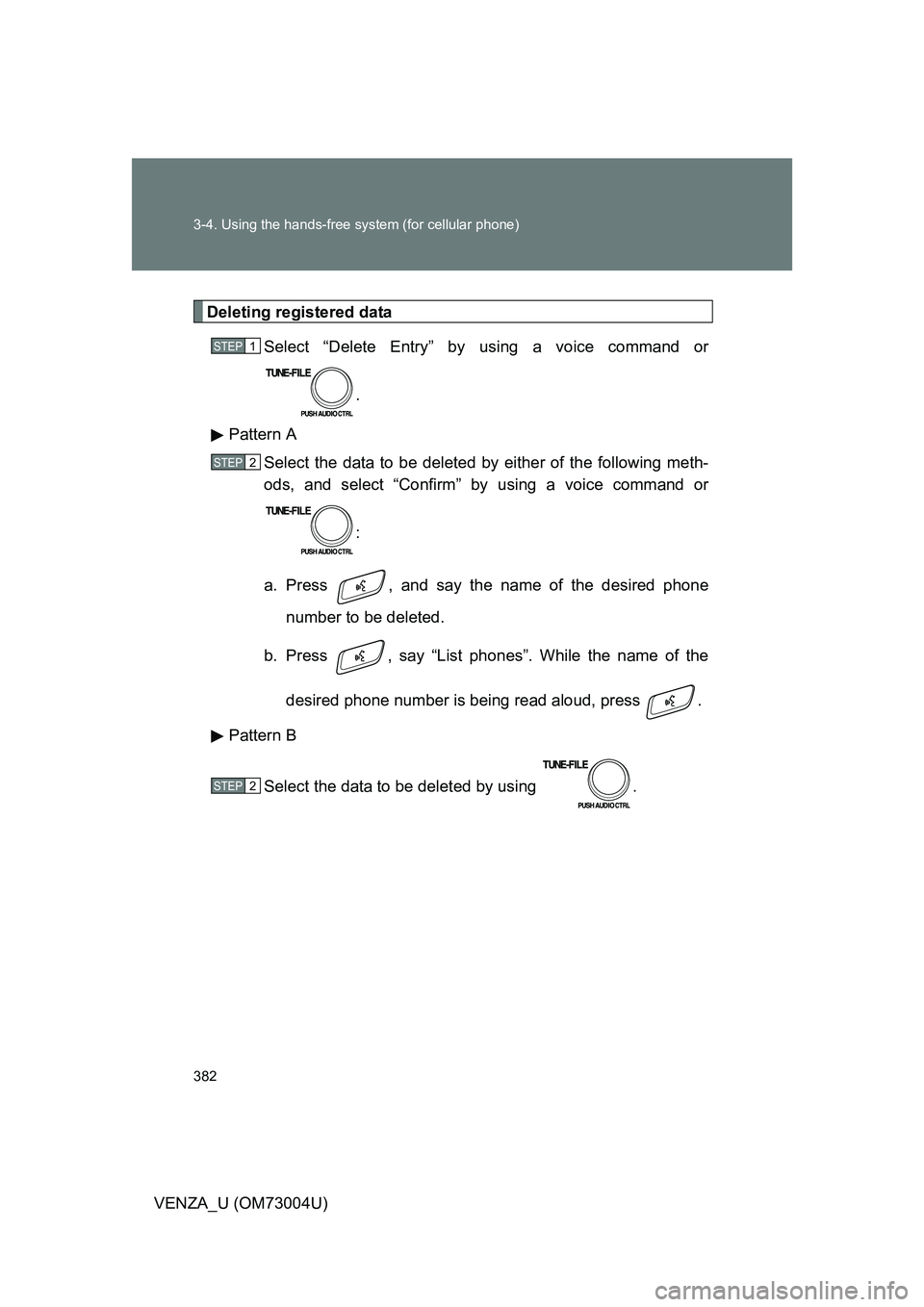

Page 382 of 620
382 3-4. Using the hands-free system (for cellular phone)
VENZA_U (OM73004U)
Deleting registered dataSelect “Delete Entry” by using a voice command or
.
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” by using a voice command or
:
a. Press , and say the name of the desired phone number to be deleted.
b. Press , say “List phones”. While the name of the
desired phone number is being read aloud, press .
Pattern B
Select the data to be deleted by using .
STEP1
STEP2
STEP2

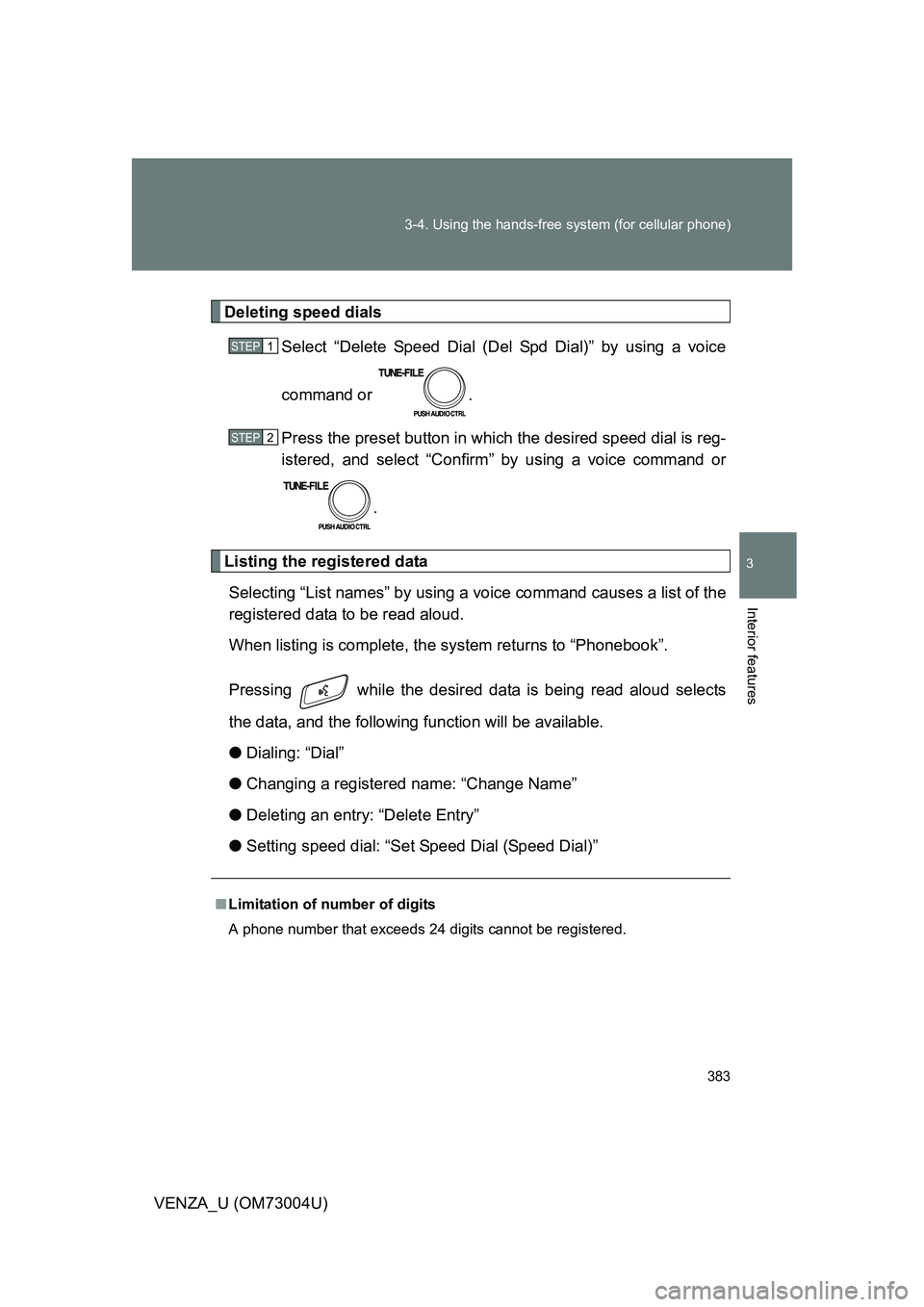

Page 383 of 620
383
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73004U)
Deleting speed dials
Select “Delete Speed Dial (Del Spd Dial)” by using a voice
command or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.
Listing the registered dataSelecting “List names” by using a vo ice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing while the desired data is being read aloud selects
the data, and the following function will be available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

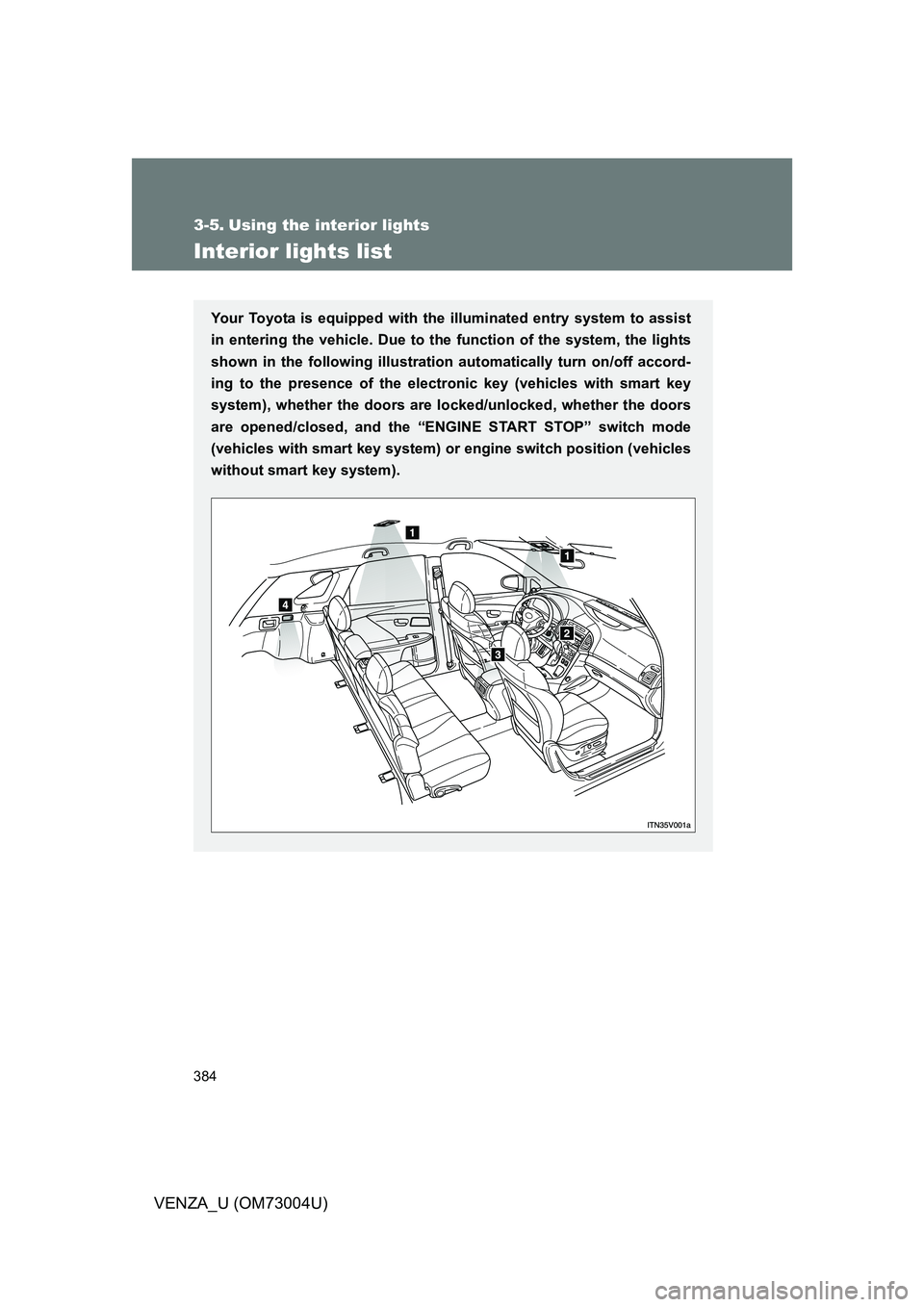

Page 384 of 620
384
VENZA_U (OM73004U)
3-5. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Due to th e function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electro nic key (vehicles with smart key
system), whether the doors are lo cked/unlocked, whether the doors
are opened/closed, and the “EN GINE START STOP” switch mode
(vehicles with smart key system) or engine switch position (vehicles
without smart key system).

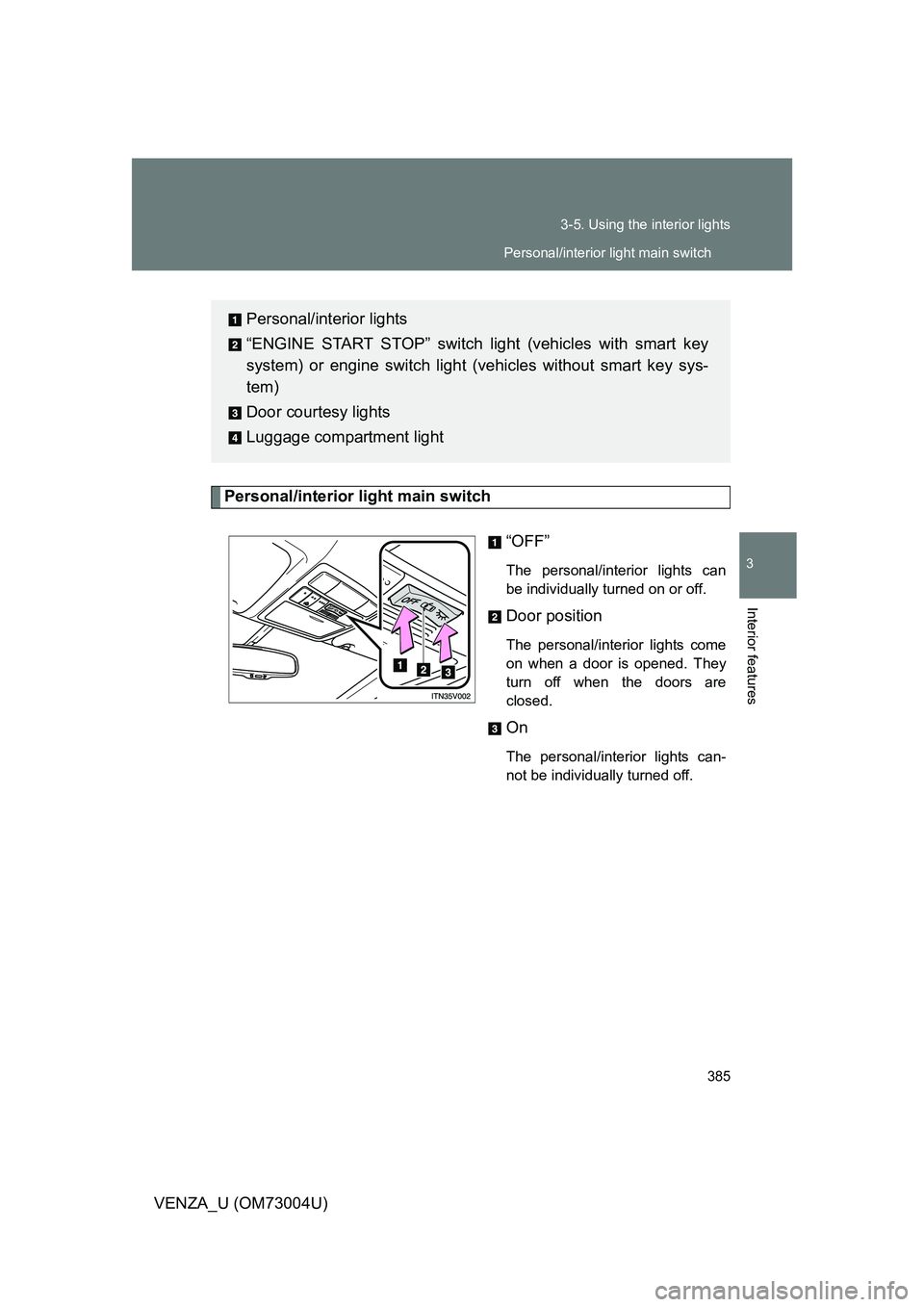

Page 385 of 620
385
3-5. Using the interior lights
3
Interior features
VENZA_U (OM73004U)
Personal/interior light main switch
“OFF”
The personal/interior lights can
be individually turned on or off.
Door position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior lights
“ENGINE START STOP” switch light (vehicles with smart key
system) or engine switch light (vehicles without smart key sys-
tem)
Door courtesy lights
Luggage compartment light
Personal/interior light main switch

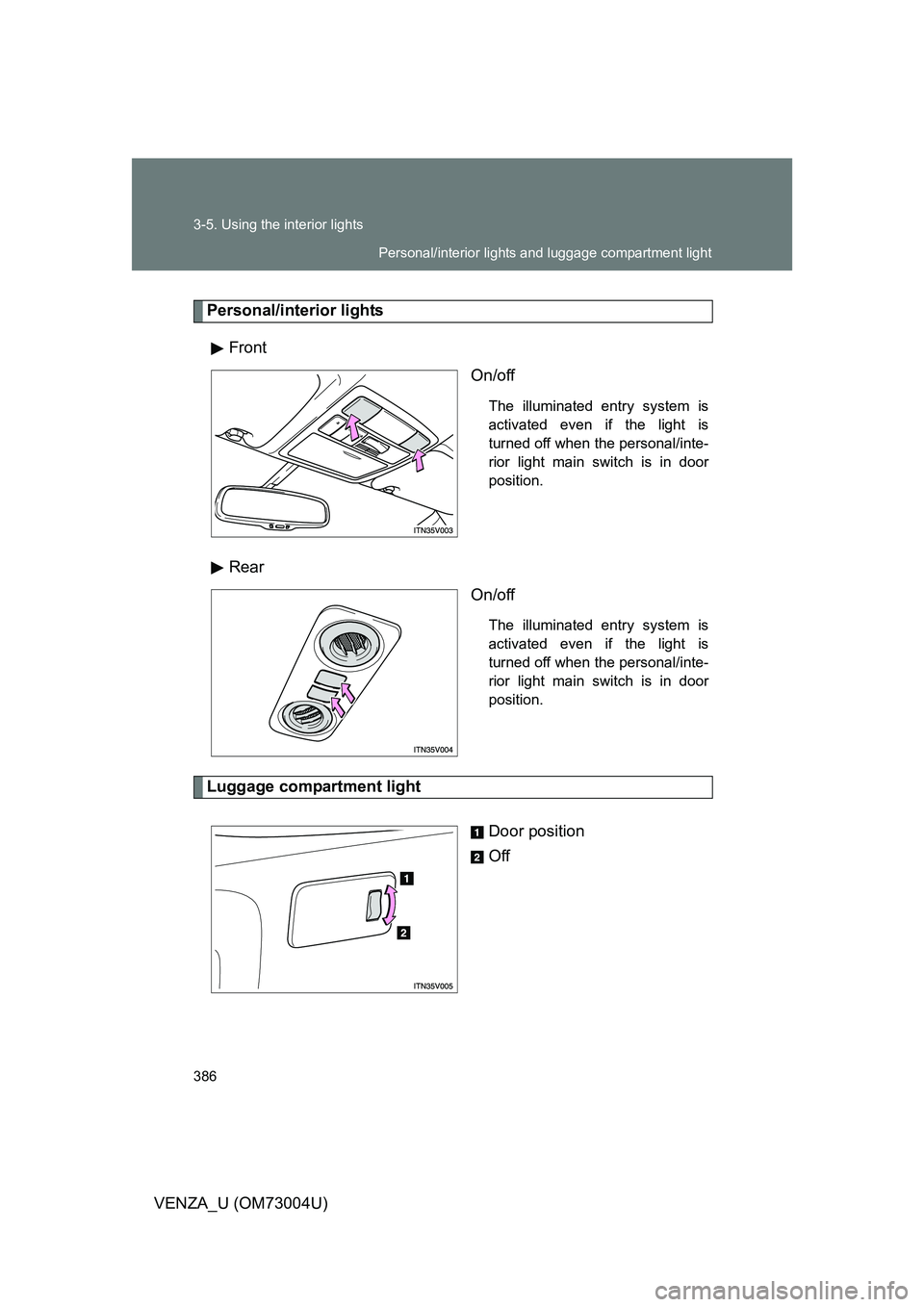

Page 386 of 620
386 3-5. Using the interior lights
VENZA_U (OM73004U)
Personal/interior lightsFront On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
RearOn/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
Luggage compartment light
Door position
Off
Personal/interior lights and luggage compartment light
Page 387 of 620
387
3-5. Using the interior lights
3
Interior features
VENZA_U (OM73004U)
■
Adjusting the rear person al/interior lights angle
■ To prevent the battery from being discharged
Vehicles with smart key system
If the personal/interior lights and “ENGINE START STOP” switch light
remain on when the door is not fully closed and the personal/interior li\
ght
main switch is in door position, the lights will go off automatically after 20
minutes.
Vehicles without smart key system
If the personal/interior lights and engine switch light remain on when the
door is not fully closed and the personal/interior light main switch is in
door position, the lights will go off automatically after 20 minutes.
■ Customization that can be configured at Toyota dealer or by the TFT
type multi-information display
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 590)
Push the edge of the light lens.

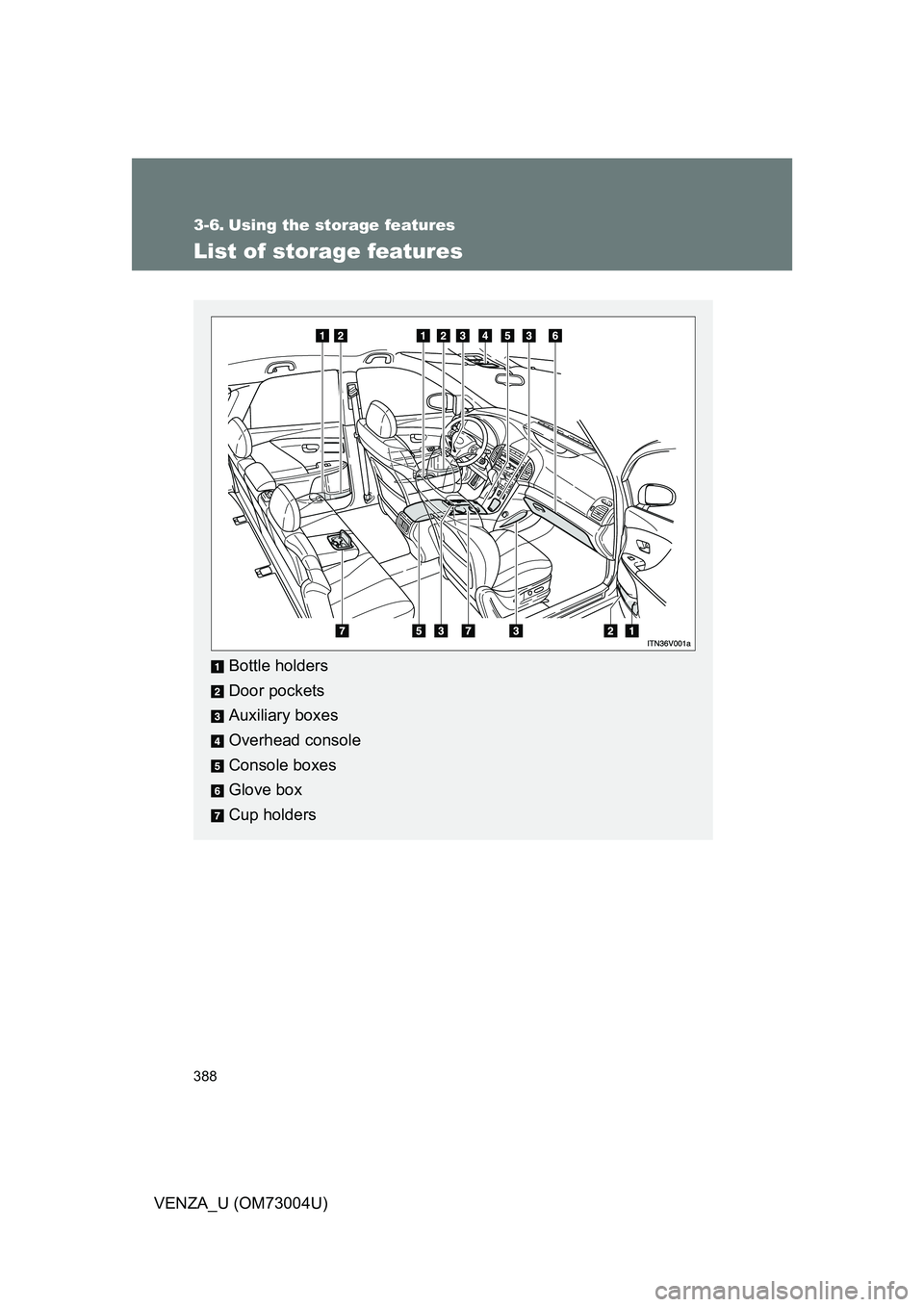

Page 388 of 620
388
VENZA_U (OM73004U)
3-6. Using the storage features
List of storage features
Bottle holders
Door pockets
Auxiliary boxes
Overhead console
Console boxes
Glove box
Cup holders

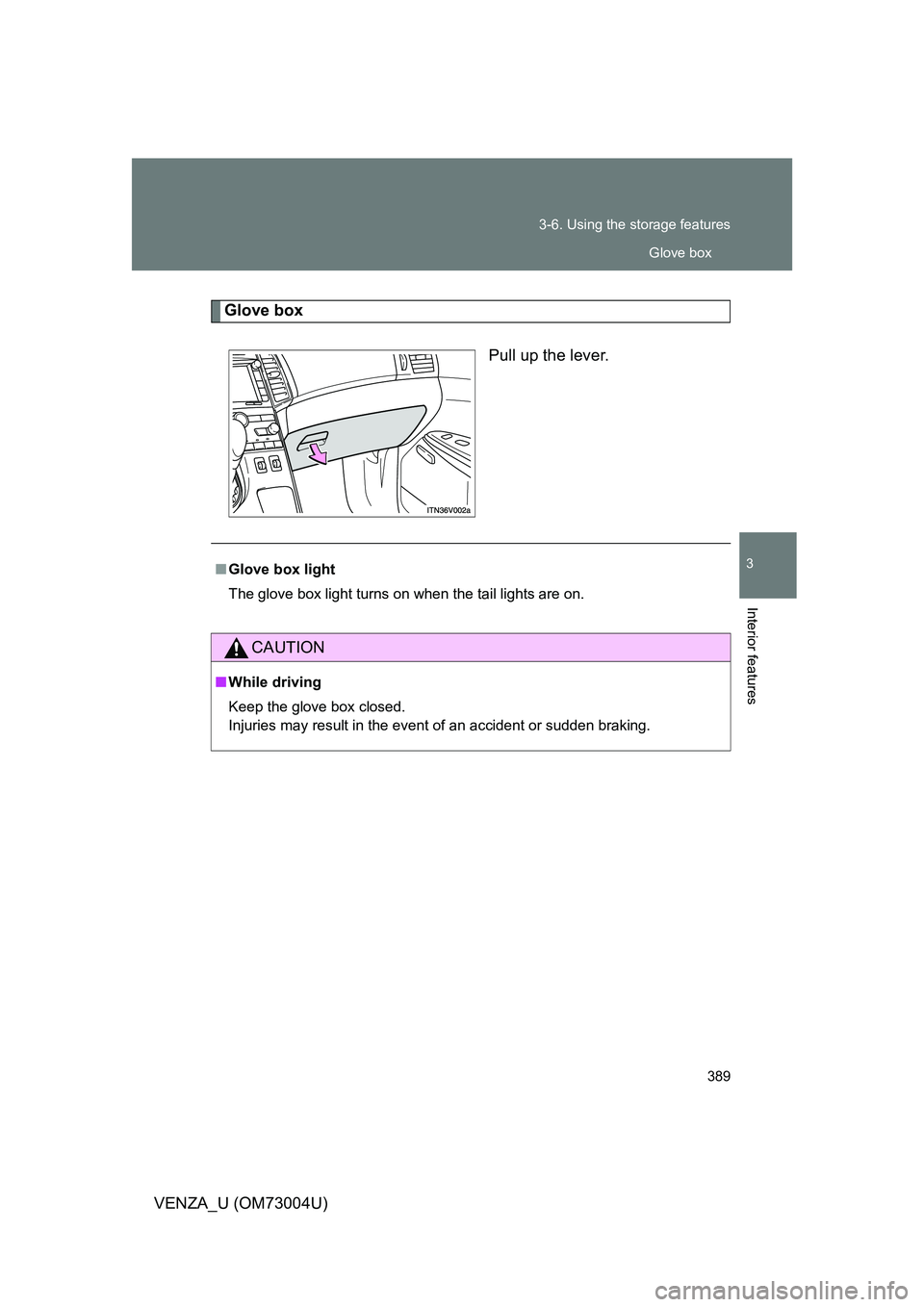

Page 389 of 620
389
3-6. Using the
storage features
3
Interior features
VENZA_U (OM73004U)
Glove box
Pull up the lever.
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

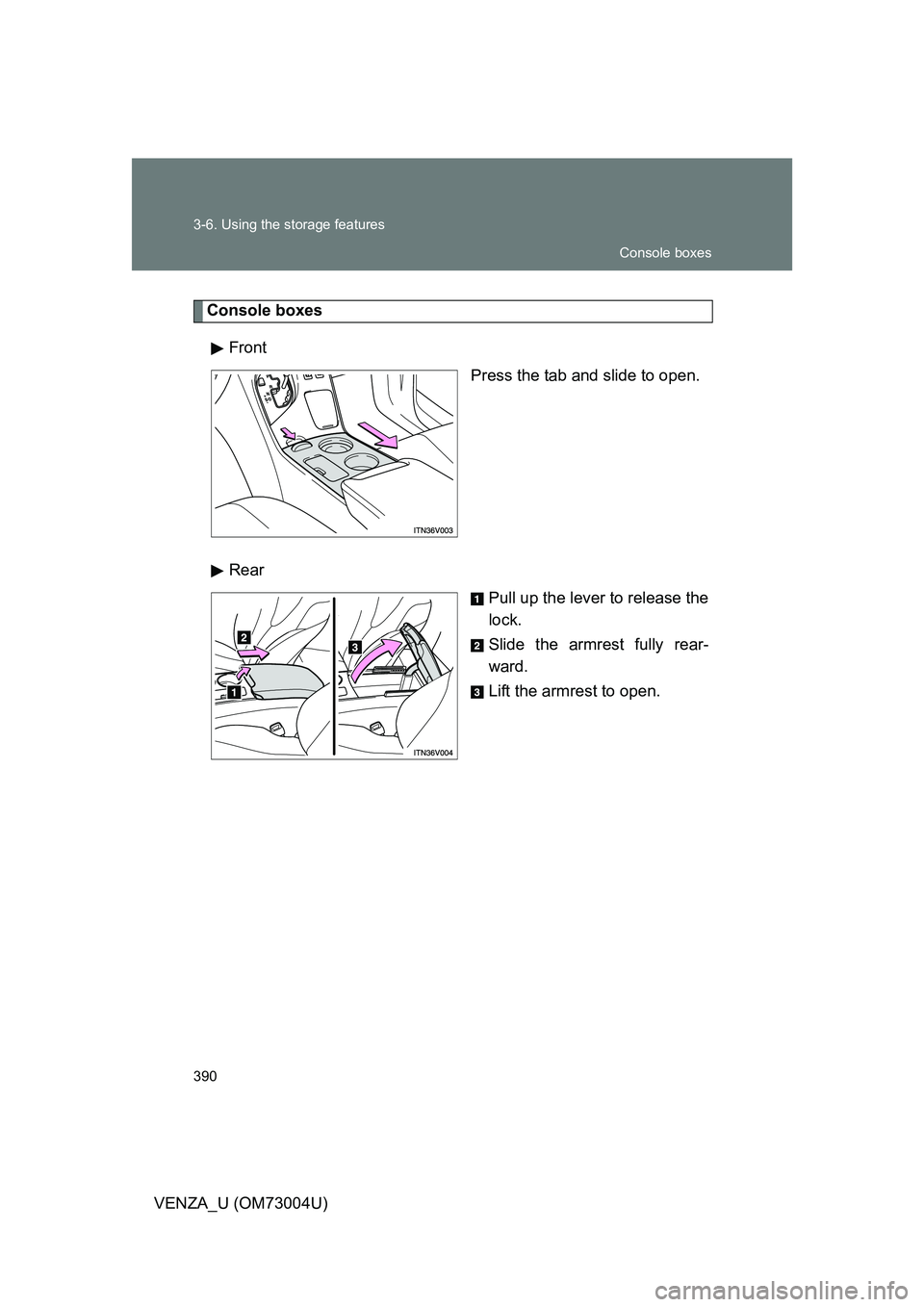

Page 390 of 620
390 3-6. Using the storage features
VENZA_U (OM73004U)
Console boxesFront Press the tab and slide to open.
Rear Pull up the lever to release the
lock.
Slide the armrest fully rear-
ward.
Lift the armrest to open.
Console boxes
