TOYOTA VENZA 2010 Owners Manual (in English)

291
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
Loading a CDs
■ Loading a single CD
Type A and B
Insert a CD.
Type C
Press .
When the indicator on the slot turns from amber to green,
insert a CD.
■ Loading multiple CDs (type C only)
Press and hold until you hear a beep.
Insert a CD when the indicator on the slot turns from amber to
green.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If your do not insert a disc
within 15 seconds, loading will be canceled automatically.
STEP1
STEP2
STEP1
STEP2
STEP3

292 3-2. Using the audio system
VENZA_U (OM73007U)
Ejecting CDs■ Ejecting a CD
Type A and B
Press or and remove the CD.
Type C
To select the CD to be ejec ted, press that corresponds
to “” or “”.
The selected CD number is shown on the display.
Press and remove the CD.
■ Ejecting all CDs (type C only)
Press and hold until you hear a beep, then remove the
CDs.
Selecting a CD (with a CD changer)
■ To select a CD to play
Press that corresponds to “ ” or “ ”.
■ To scan loaded CDs
Press and hold until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
To cancel, press again.
Press once again when the desired CD is reached.
STEP1
STEP2
STEP1
STEP2

293
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
Selecting a track
Press “ ” to move up or “ ” to move down using or
until the desired track number appears on the display.
Fast-forwarding and rewinding tracks Type A: Press and hold (rewind) or (fast forward).
Type B and C: Press and hold “ ” or “ ” on .
Scanning a CD
Press or .
The first 10 seconds of each track will be played.
To cancel, press again.
Press or once again when the desired track
is reached.
Playing and pausing tracks (type B and C)
Press .
STEP1
STEP2

294 3-2. Using the audio system
VENZA_U (OM73007U)
Random playback■ Current CD
Press (RAND) or that corresponds to “RDM”.
Songs are played in random order.
To cancel, press the button again.
■All CDs (with a CD changer)
Press that corresponds to “RDM” twice.
Tracks on all loaded CDs are played in random order.
To cancel, press the button again.
Repeating a track or a disc
■ Repeating a track
Press (RPT) or that corresponds to “RPT”.
To cancel, press the button again.
■Repeating a disc (with a CD changer)
Press that corresponds to “RPT” twice.
To cancel, press the button again.

295
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
Switching the display
Press or .
Type A: Each time is pressed, the display changes in the order of
Track no./Elapsed time CD title  Track name.
Type B and C: Each time is pressed, the display changes in the
order of Track title  Track name/Artist name  Track name/Elapsed
time.
■ Display (type A only)
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6
seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

296 3-2. Using the audio system
VENZA_U (OM73007U)
■Error messages
“ERROR” or “READ ERROR”: This indica tes a trouble either in the CD or
inside the player. The CD may be dirty, dam-
aged or inserted up-side down.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tem- perature inside the player. Wait for a while
and then press
or . Contact
your Toyota dealer if the CD still cannot be
played back.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

297
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
NOTICE
■
CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the player and/or the CD insert/eject function.
●CDs that have a diameter that is not 4.7
in. (12 cm).
● Low-quality and deformed CDs.
● CDs with a transparent or translucent
recording area.
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
the label peeled off.

298 3-2. Using the audio system
VENZA_U (OM73007U)
NOTICE
■Player precautions
Failure to follow the precautions below may result in damage to the CDs or
the player itself.
● Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the player.
●Do not insert more than one CD at a
time.

299
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
Playing back MP3 and WMA discs
Ty p e A
CD eject
Power Volume
Repeat play
Random playback
CD slot
Reverse
Fast-forward
Display text
message
PlaybackSelecting a file
Search
playback
Folder selection
File
selection

300 3-2. Using the audio system
VENZA_U (OM73007U)
Loading and ejecting MP3 and WMA discs P. 2 8 9
Selecting a CD (with a CD changer)
 P. 2 8 9

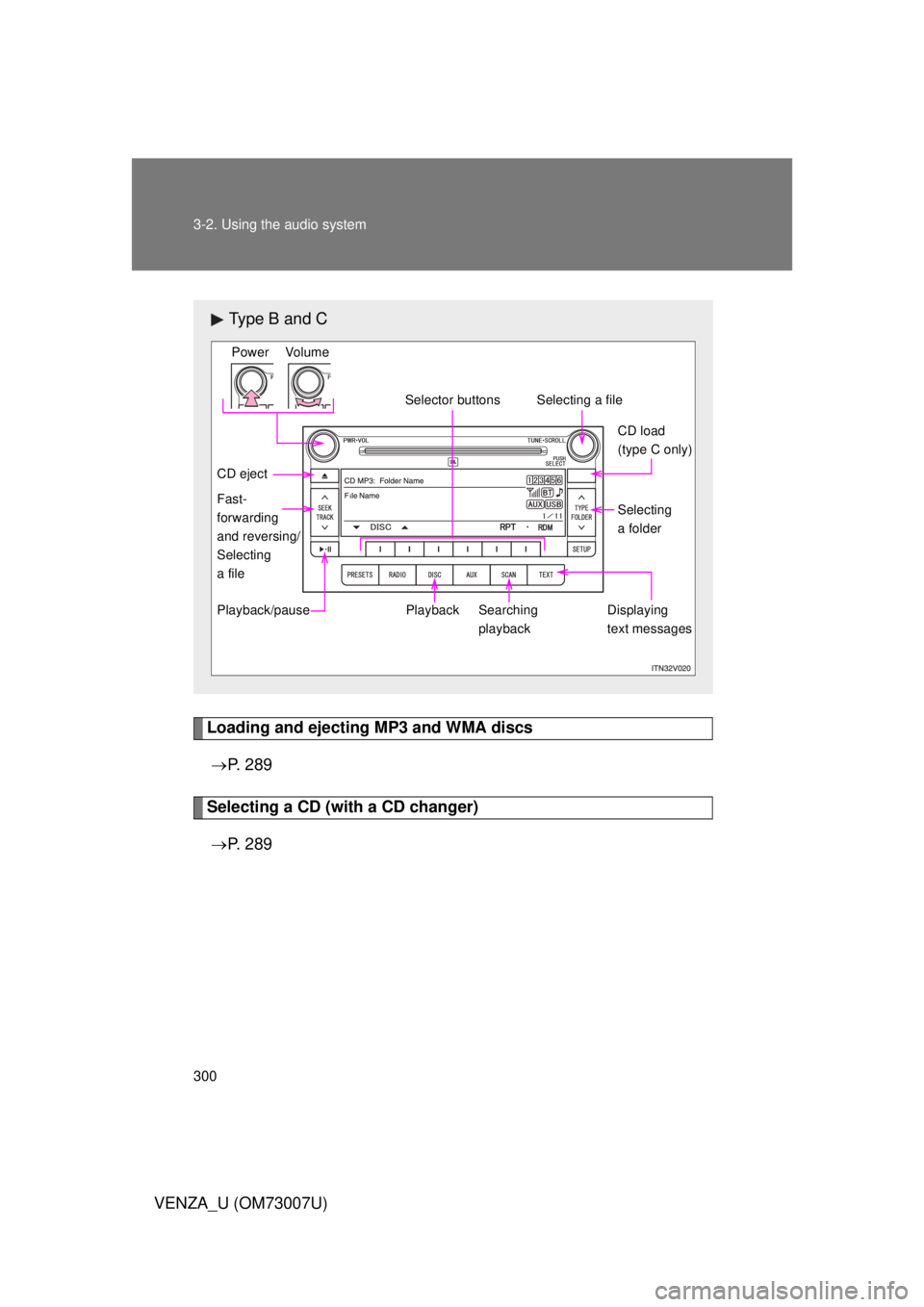

Type B and C
Power Volume
Playback
CD eject
Playback/pause Searching
playbackDisplaying
text messagesSelecting
a folder CD load
(type C only)
Selecting a file
Selector buttons
Fast-
forwarding
and reversing/
Selecting
a file
