281
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)

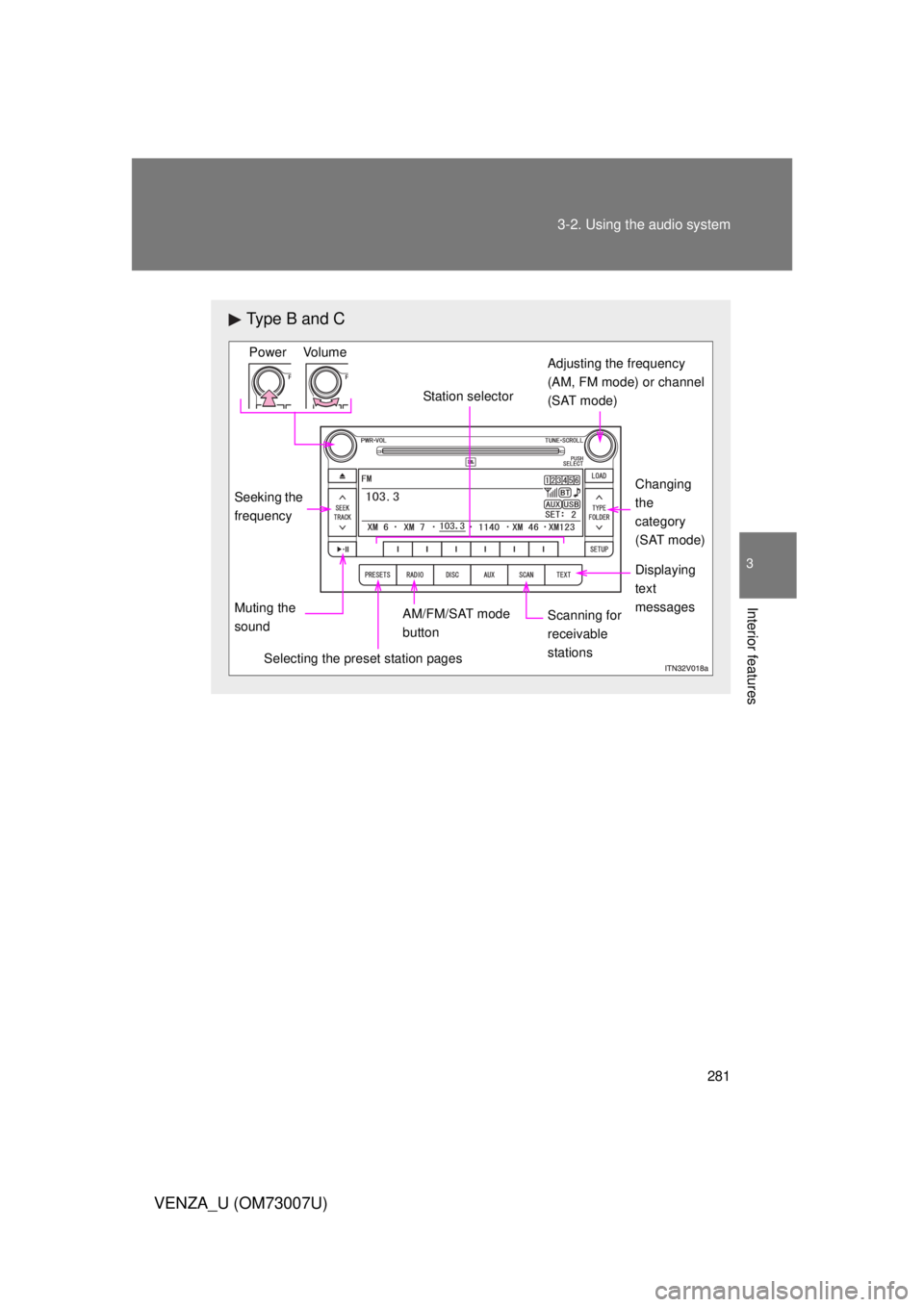

Type B and C
Selecting the preset station pages
Displaying
text
messages
AM/FM/SAT mode
button
Changing
the
category
(SAT mode)
Station selector
Power VolumeAdjusting the frequency
(AM, FM mode) or channel
(SAT mode)
Scanning for
receivable
stationsMuting the
sound Seeking the
frequency

282 3-2. Using the audio system
VENZA_U (OM73007U)
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or
or pressing “ ” or “ ” on or
.
Press and hold the button (from to or one of ) the station is to be set to, and you hear a beep.
Type B and C: Each preset page may contain AM, FM, or XM radio
station presets. Pressing will change between AM, FM, and XM
modes but will not change the preset page display. Press to
change the presets page. There are a total of 6 pages.
The number of preset pages can be customized from 1 to 6.
(P. 328)
STEP1
STEP2

283
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
Scanning radio stations (excluding XM® Satellite Radio)
■ Scanning the preset radio stations
Press and hold or until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press or
once again.
■ Scanning all radio stations within range
Press or .
All the stations with reception will be played for a few seconds
each.
When the desired station is reached, press or
once again.
■ Displaying radio text messages (for type B and C, FM mode
only)
When a new radio text message is received, “MSG” is shown on
the display. To display the message, press .
If the text continues past the end of the display, “ ” is displayed. Press
and hold until you hear a beep.
Text messages are not displayed while driving.
STEP1
STEP2
STEP1
STEP2

284 3-2. Using the audio system
VENZA_U (OM73007U)
XM® Satellite Radio (if equipped)
■ Receiving XM
® Satellite Radio
Press .
The display changes as follows each time the button is pressed.
“AM”  “FM”  “SAT”
Turn to select a desired channel from all the cate-
gories or press “ ” or “ ” on to select a desired chan-
nel in the current category.
■ Presetting XM
® Satellite Radio channels
Select the desired channel. Press an d hold the button (from one of
) until you hear a beep.
Each time is pressed, station pages are changed. There are a total
of 6 pages.
■ Changing the channel category
Press “ ” or “ ” on .
STEP1
STEP2

285
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
■
Scanning XM
® Satellite Radio channels
● Scanning channels in the current category
Press .
When the desired channel is reached, press the buttonagain.
● Scanning preset channels
Press and hold until you hear a beep.
When the desired channel is reached, press the buttonagain.
■ Displaying text information
Press or .
Type A: Each time is pressed, the display changes in the order of
Channel name  Title (song/program title)  Name (artist name/feature)
 Channel number.
Type B and C: Each time is pressed, the display changes in the
order of Title (song/program title)  Name (artist name/feature)/Title
(song/program title).
■ When the battery is disconnected
All preset stations are erased. (type A only)
■ Radio antenna type
● Detachable antenna
To remove a detachable antenna, carefully turn it counterclockwise.
● Wire antenna
The radio antenna is mounted inside the rear window.
STEP1
STEP2
STEP1
STEP2

286 3-2. Using the audio system
VENZA_U (OM73007U)
■Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted inside the rear window. To maintain clear
radio reception, do not attach metallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
■ Receiving XM
® Satellite Radio
An XM
® Satellite Radio is a tuner designed exclusively to receive broadcasts
provided under a separate subscription. Availability is limited to the 48 con-
tiguous states and some Canadian provinces.
● XM
® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A–
Visit on the web at www.xmradio.com
or call 1-800-967-2346.
Canada–
Visit on the web at www.xmradio.ca
or call 1-877-438-9677.
● Radio ID
You will need the radio ID when activating XM
® service or reporting a
problem. Select “CH000” using or , and the
receiver’s 8-character ID number will appear.
● Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accom-
panying Text Information of XM
® Satellite Radio.

287
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
■
If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the dis-
play. Refer to the table below to identify the problem, and take the suggested
corrective action.
CHECK
ANTENNA
The XM® antenna is not connected. Check
whether the XM® antenna cable is attached
securely.
There is a short-circuit in the antenna or the sur-
rounding antenna cable. See a Toyota certified
dealer.
CH
UNAUTHORIZED You have not subscribed to XM
® Satellite Radio.
The radio is being updated with the latest encryp-
tion code. Contact XM
® Satellite Radio for sub-
scription information. When a contract is canceled,
you can choose “CH000” and all free-to-air chan-
nels.
The premium channel you selected is not autho-
rized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it
does not change automatically, select another
channel. If you want to listen to the premium chan-
nel, contact XM
® Satellite Radio.
NO SIGNAL The XM
® signal is too weak at the current location.
Wait until your vehicle reaches a location with a
stronger signal.
LOADING The unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any
programming. Select another channel.

288 3-2. Using the audio system
VENZA_U (OM73007U)
Contact the XM® Listener Care Center at 1-800-967-2346 (U.S.A.) or 1-877-
438-9677 (Canada).
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.
-----There is no song/program title or artist name/fea-
ture associated with the channel at that time. No
action needed.
CH
UNAVAILABLE
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.

289
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)

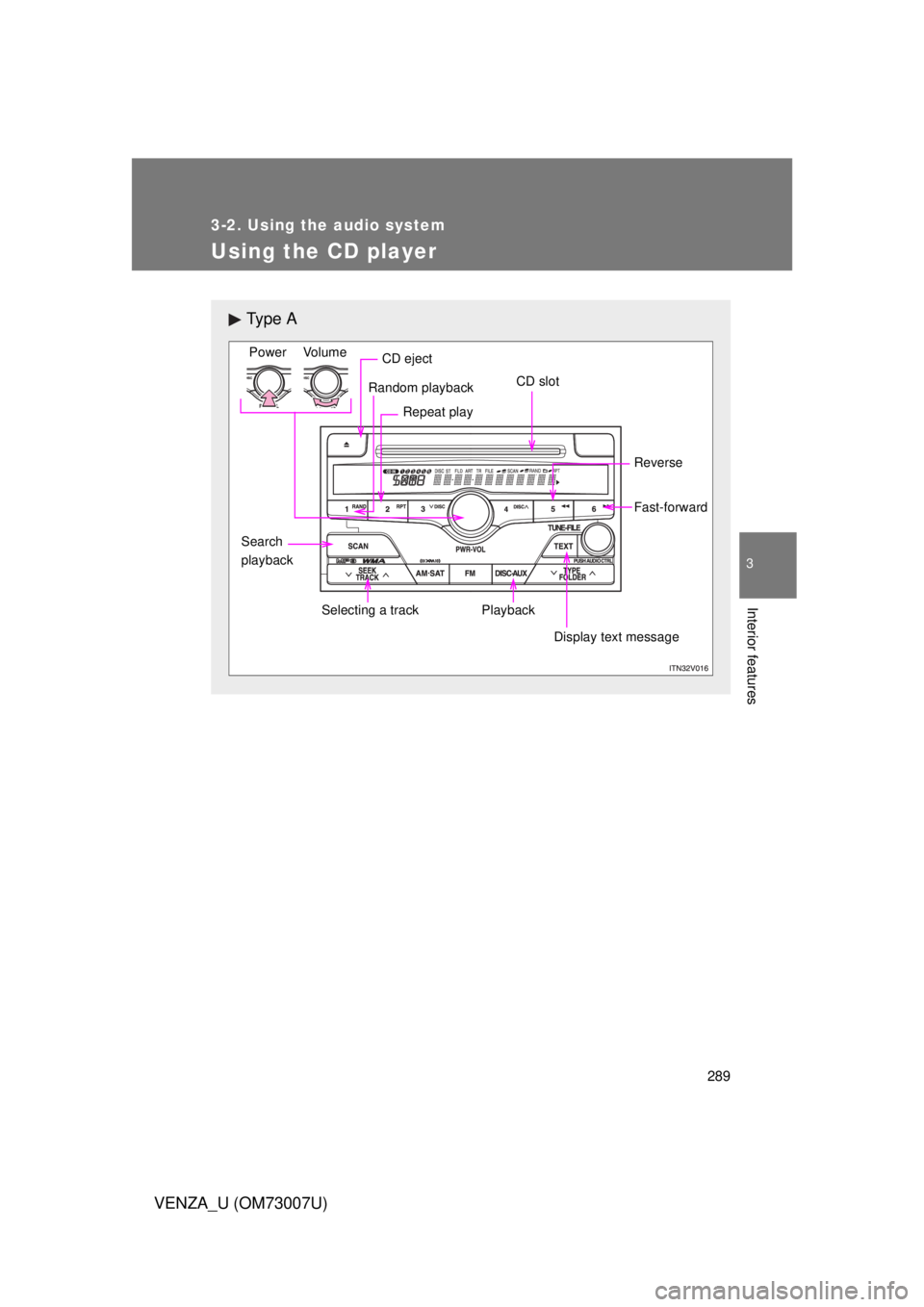

Using the CD player
Ty p e A
CD ejectPower Volume
Repeat play
Random playback
CD slot
Reverse
Fast-forward
Display text message
PlaybackSelecting a track
Search
playback

290 3-2. Using the audio system
VENZA_U (OM73007U)

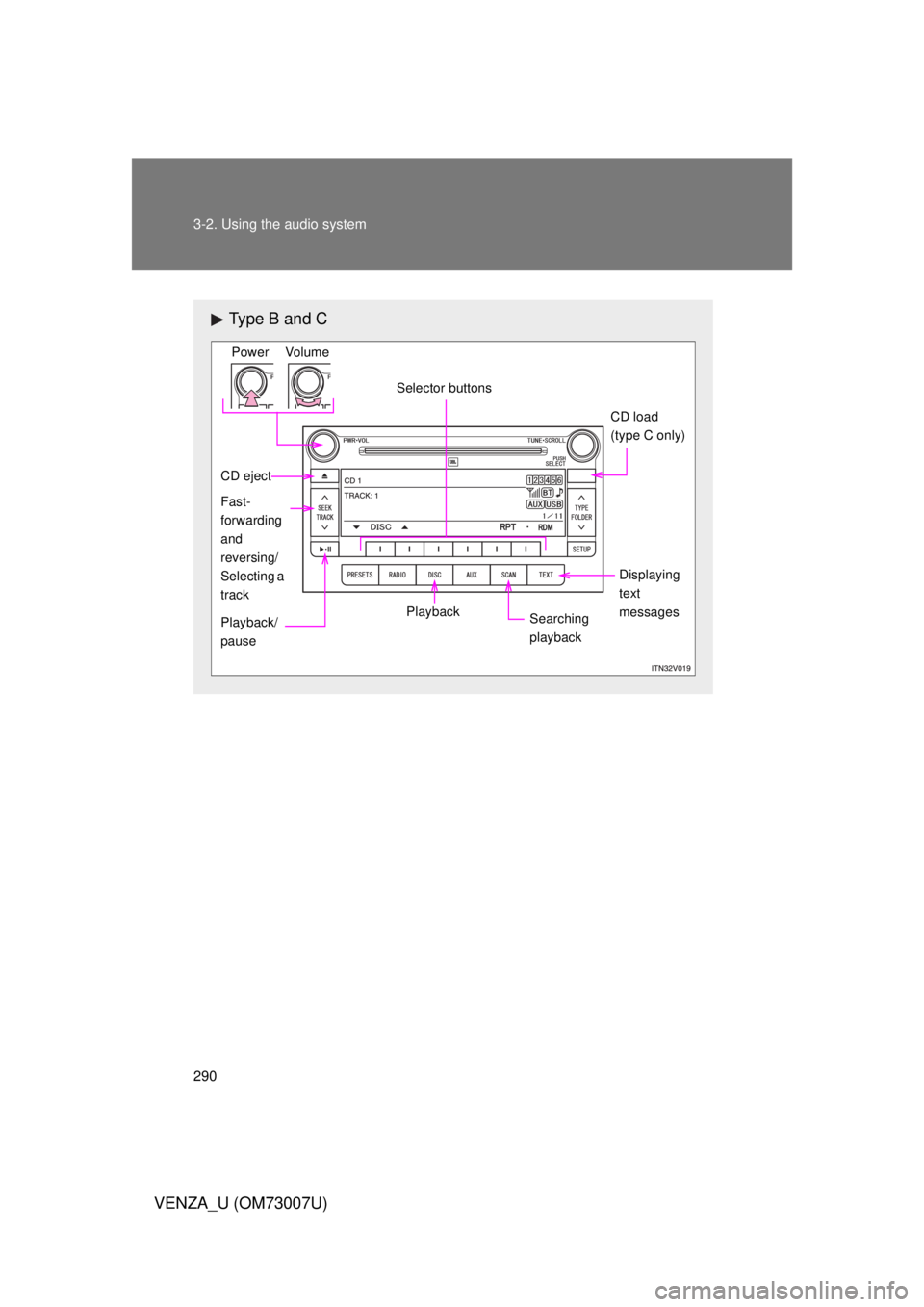

Type B and C
Power VolumeSelector buttons CD load
(type C only)
Displaying
text
messages
Searching
playback
PlaybackPlayback/
pause Fast-
forwarding
and
reversing/
Selecting a
track
CD eject
