Page 271 of 664

271
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73007U)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
If the ambient temperature drops, the mode will automatically
change from recirculated air mode to outside air mode after a few
minutes. This automatic change control mode can be cancelled by
pushing and holding the button for longer than 2 seconds. The auto-
matic change control mode will be reactivated if the “ENGINE
START STOP” switch is turned off (vehicles with smart key system)
or the engine switch is turned to the “LOCK” position (vehicles with-
out smart key system).
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Pressing again will revert
to the previous air outlet mode.
Page 272 of 664
272 3-1. Using the air conditioning system and defogger
VENZA_U (OM73007U)
Adjusting the position and openi ng and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.
Front side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Page 273 of 664

273
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73007U)
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temperature r eaches approximately 32°F (0°C)
The air conditioning system may not operate even when is pressed.
■ Air conditioning odors
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
Page 274 of 664
274
3-1. Using the air conditioning system and defogger
VENZA_U (OM73007U)

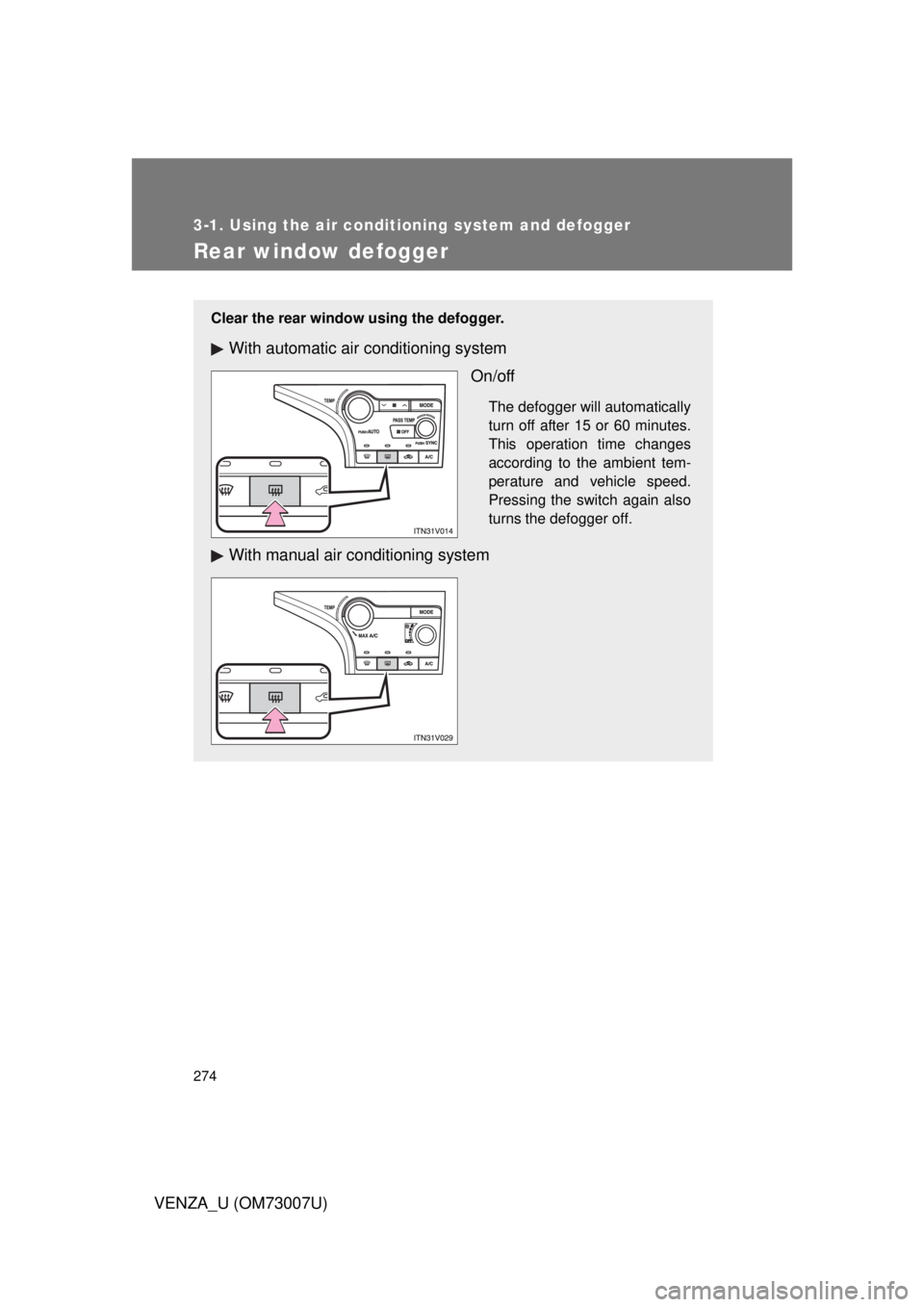

Rear window defogger
Clear the rear window using the defogger.
With automatic air conditioning systemOn/off
The defogger will automatically
turn off after 15 or 60 minutes.
This operation time changes
according to the ambient tem-
perature and vehicle speed.
Pressing the switch again also
turns the defogger off.
With manual air conditioning system
Page 275 of 664

275
3-1. Using the air conditioning system
and defogger
3
Interior features
VENZA_U (OM73007U)
■The rear window defogger can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Outside rear view mirror defoggers and windshield wiper de-icer (if
equipped)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers and the windshield wiper de-icer on.
The outside rear view mirror is used to remove raindrops, dew and frost from
the outside rear view mirrors.
The windshield wiper de-icer is used to prevent ice from building up on the
windshield and wiper blades.
CAUTION
■ Outside rear view mirror defoggers and windshield wiper de-icer (if
equipped)
Do not touch the rear view mirror surfaces, the glass at the lower part of the
windshield or to the side of the front pillars, as they can become very hot and
burn you.
NOTICE
■ To prevent battery discharge
Turn the defoggers off when the engine is not running.
Page 276 of 664
276
VENZA_U (OM73007U)
3-2. Using the audio system

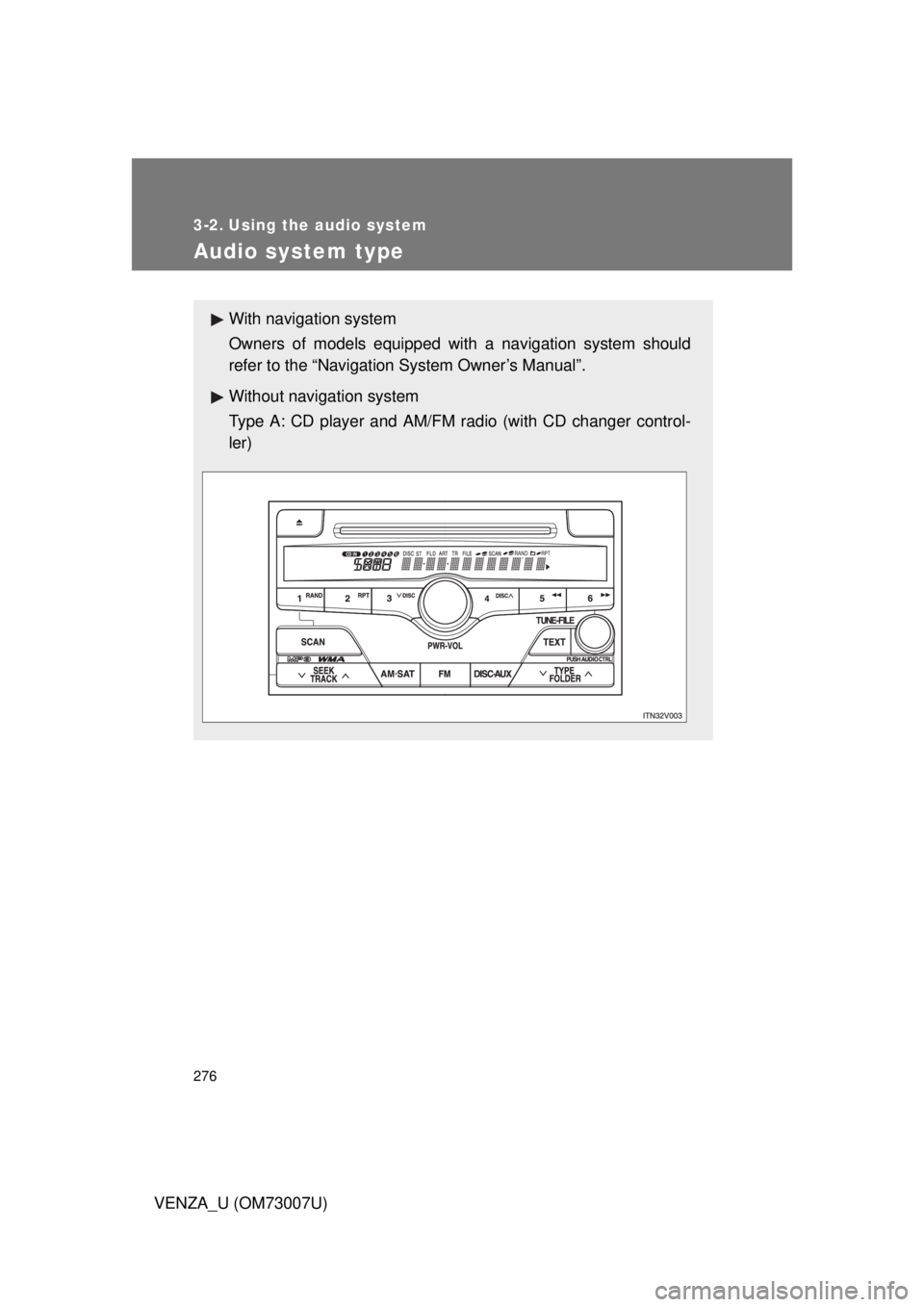

Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Type A: CD player and AM/FM radio (with CD changer control-
ler)
Page 277 of 664
277
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)

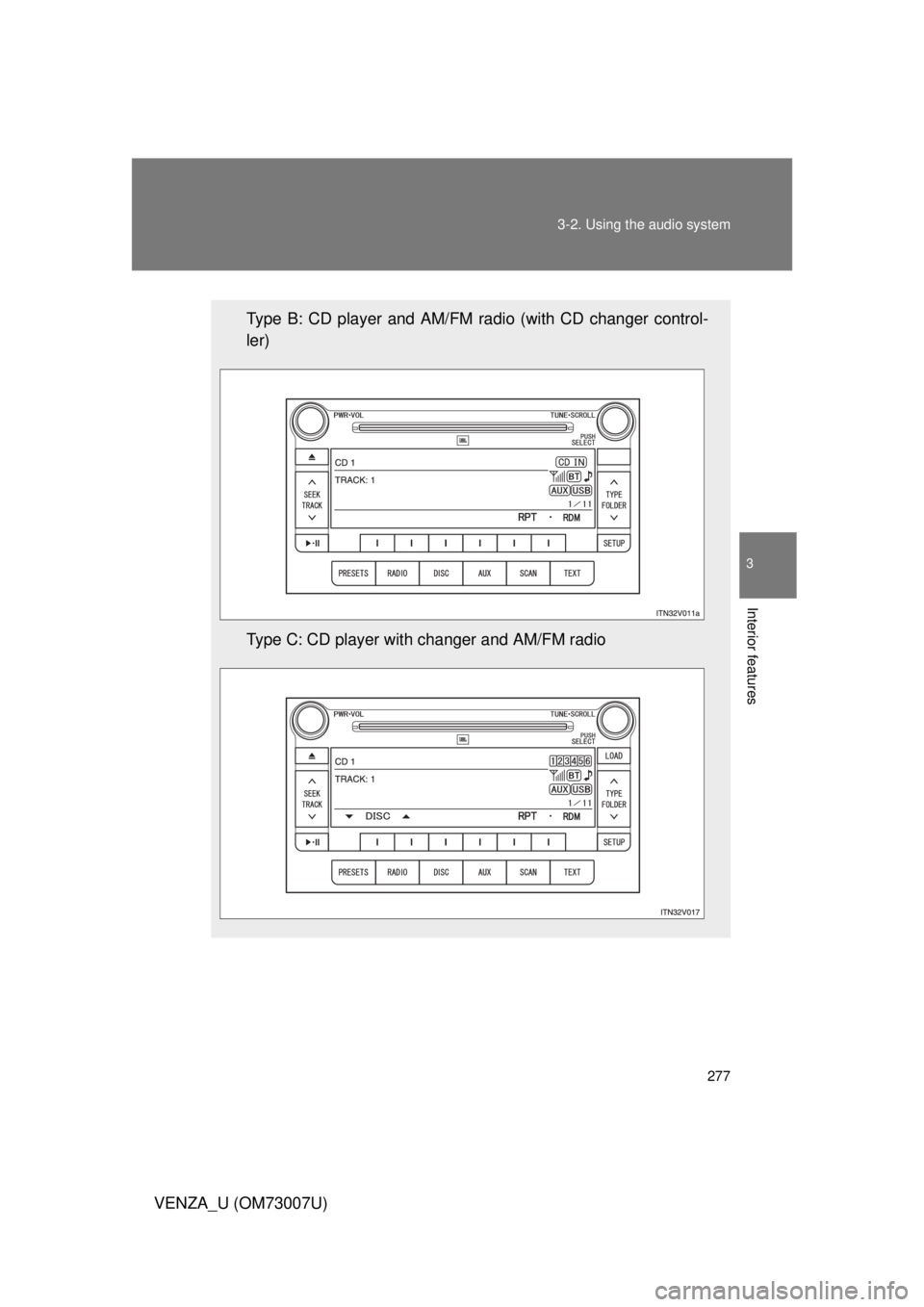

Type B: CD player and AM/FM radio (with CD changer control-
ler)
Type C: CD player with changer and AM/FM radio
Page 278 of 664
278 3-2. Using the audio system
VENZA_U (OM73007U)
Language settings (type B and C)The language used for all voice guidance, voice recognition and mes-
sages may be changed. Press .
Press that corresponds to “MORE”.
Press that corresponds to “LANG”.
Press that corresponds to the desired language.
For vehicles sold in the U.S.A.
“ENG” (English) or “ESP” (Spanish)
For vehicles sold in the Canada
“ENG” (English) or “FRAN” (French)
■ Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.
TitlePage
Using the radioP. 280
Using the CD playerP. 289
Playing back MP3 and WMA discs P. 299
Operating an iPodP. 309
Operating a USB memoryP. 316
Optimal use of the audio systemP. 324
Using the AUX adapter P. 329
Using the steering switchesP. 330
STEP1
STEP2
STEP3
STEP4
Page 279 of 664

279
3-2. Using the audio system
3
Interior features
VENZA_U (OM73007U)
CAUTION
■
For vehicles sold in the U.S.A.
● Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
Page 280 of 664
280
3-2. Using the audio system
VENZA_U (OM73007U)

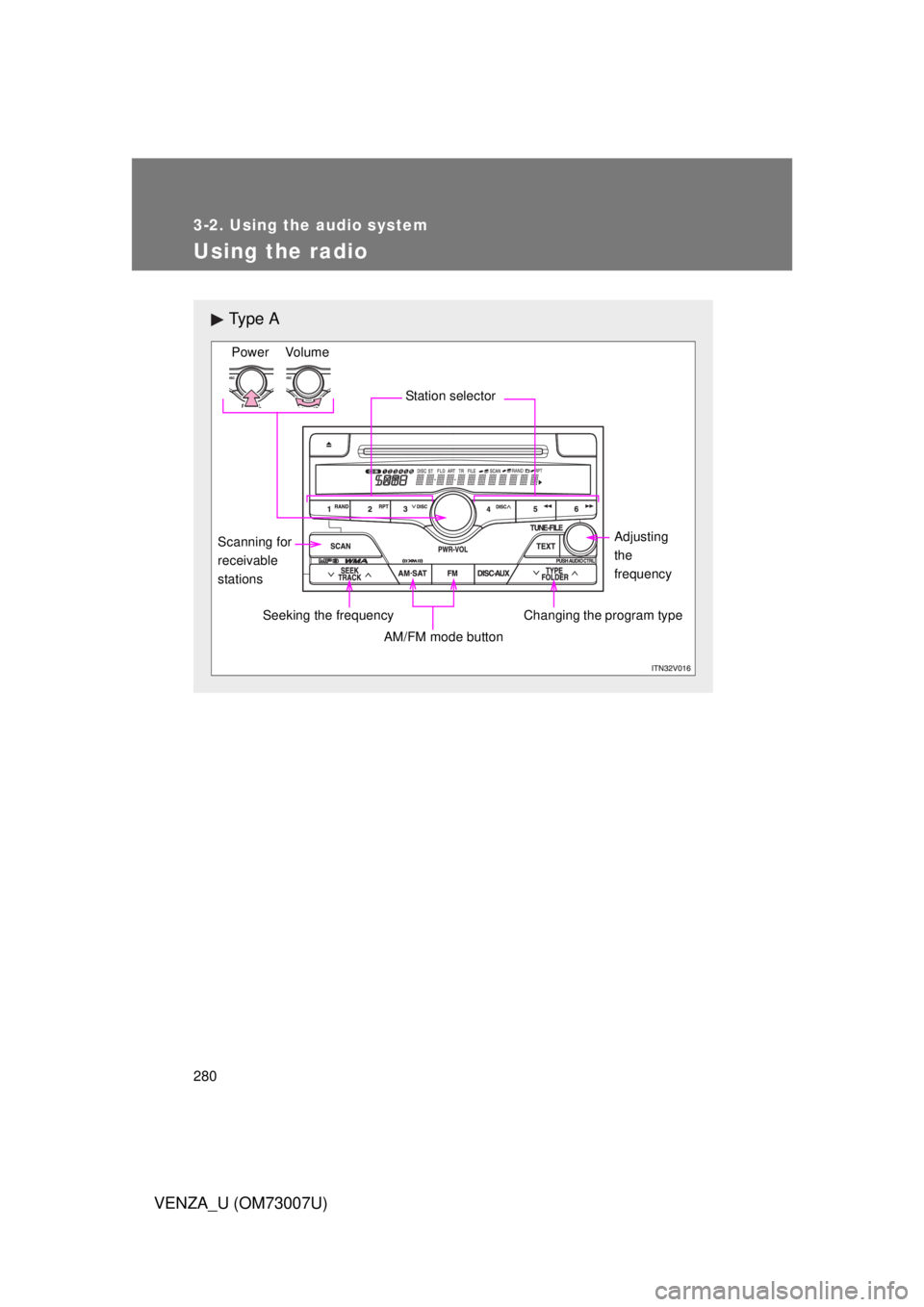

Using the radio
Ty p e A
Seeking the frequencyChanging the program type
AM/FM mode button
Adjusting
the
frequency
Station selector
Power Volume
Scanning for
receivable
stations
