After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 532)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

532
4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 615)
■ Turn the power back door main switch off. (vehicles with
power back door)
P. 5 6

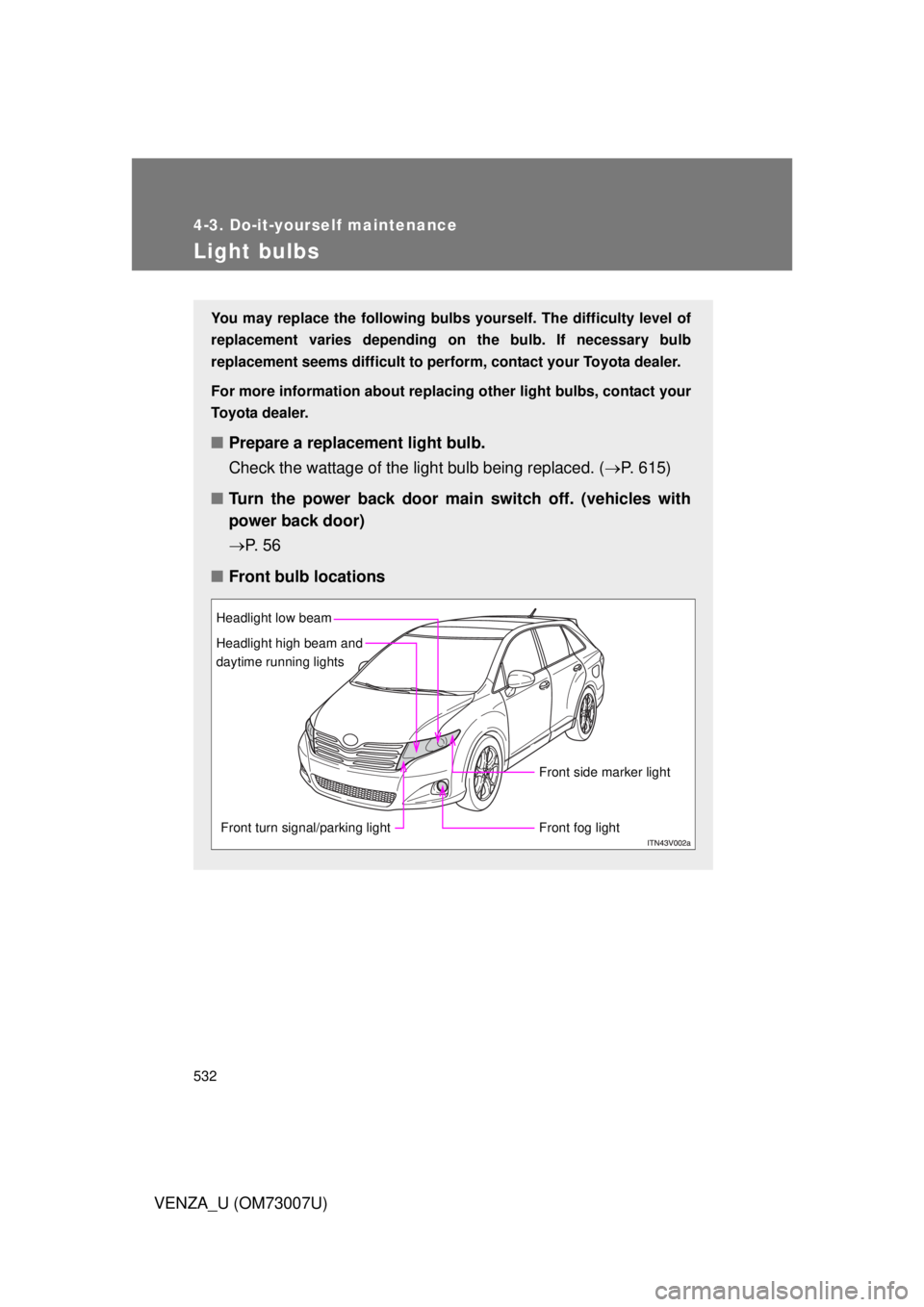

■ Front bulb locations
Headlight low beam
Headlight high beam and
daytime running lights
Front turn signal/parking light Front fog light
Front side marker light

533
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
Replacing light bulbs
■ Headlight low beams (halogen bulb)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Stop/tail and rear side
marker lights
Back-up light Tail light
License plate light
Rear turn signal light
STEP1

534 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)Unplug the connector while
pushing the lock release.

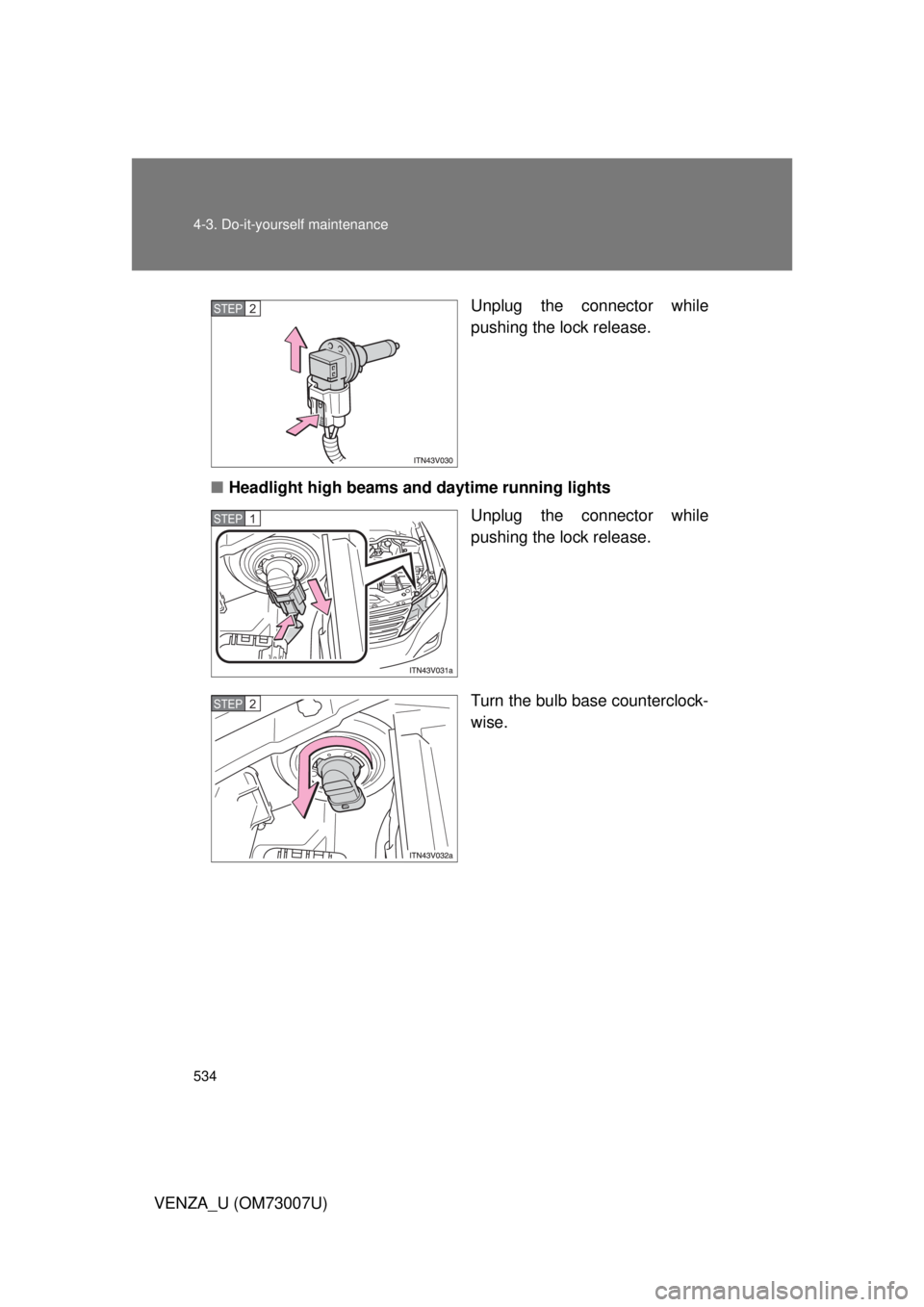

■ Headlight high beams and daytime running lights
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP2
STEP1
STEP2

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
■

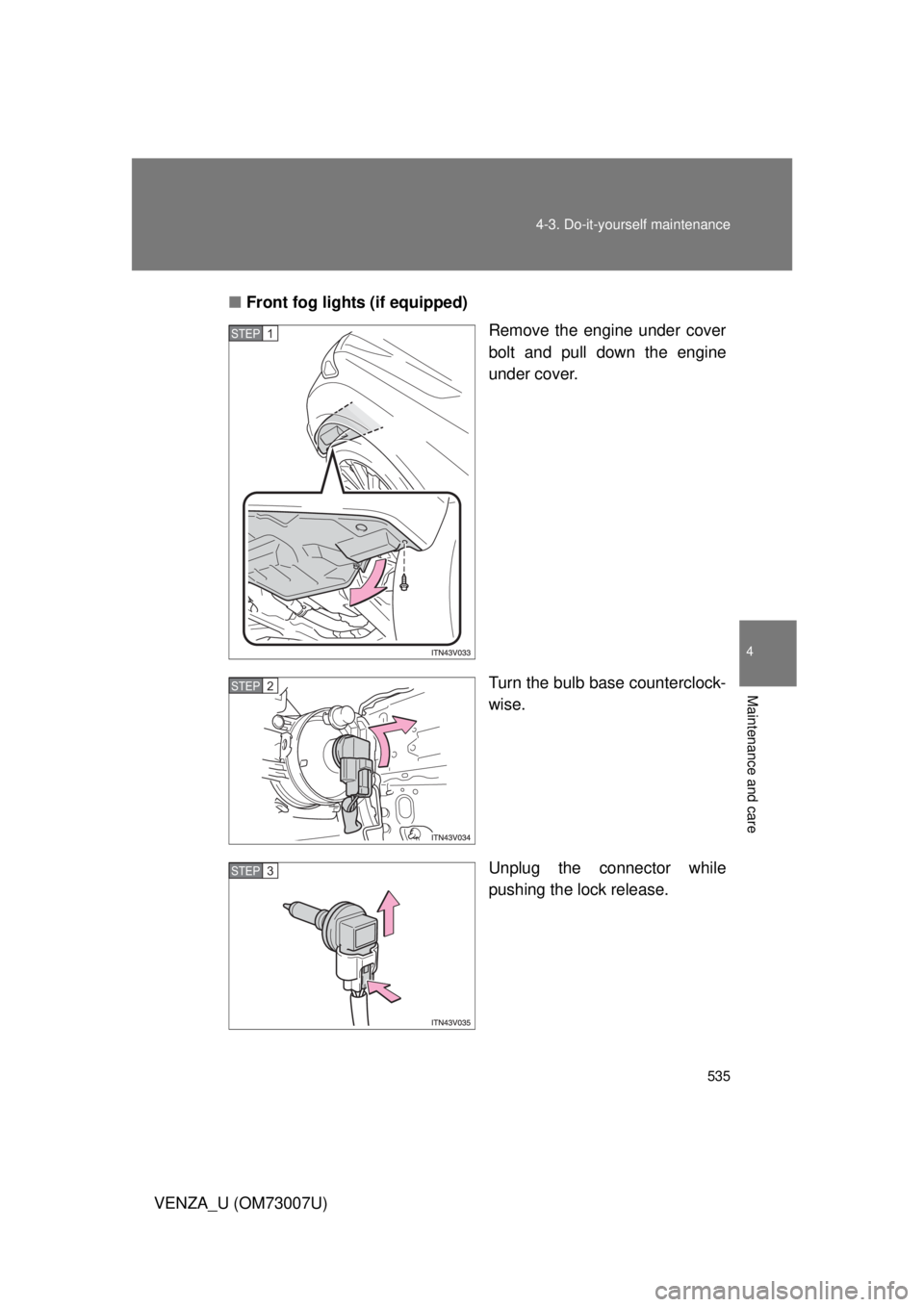

Front fog lights (if equipped)
Remove the engine under cover
bolt and pull down the engine
under cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
STEP1
STEP2
STEP3

536 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)■

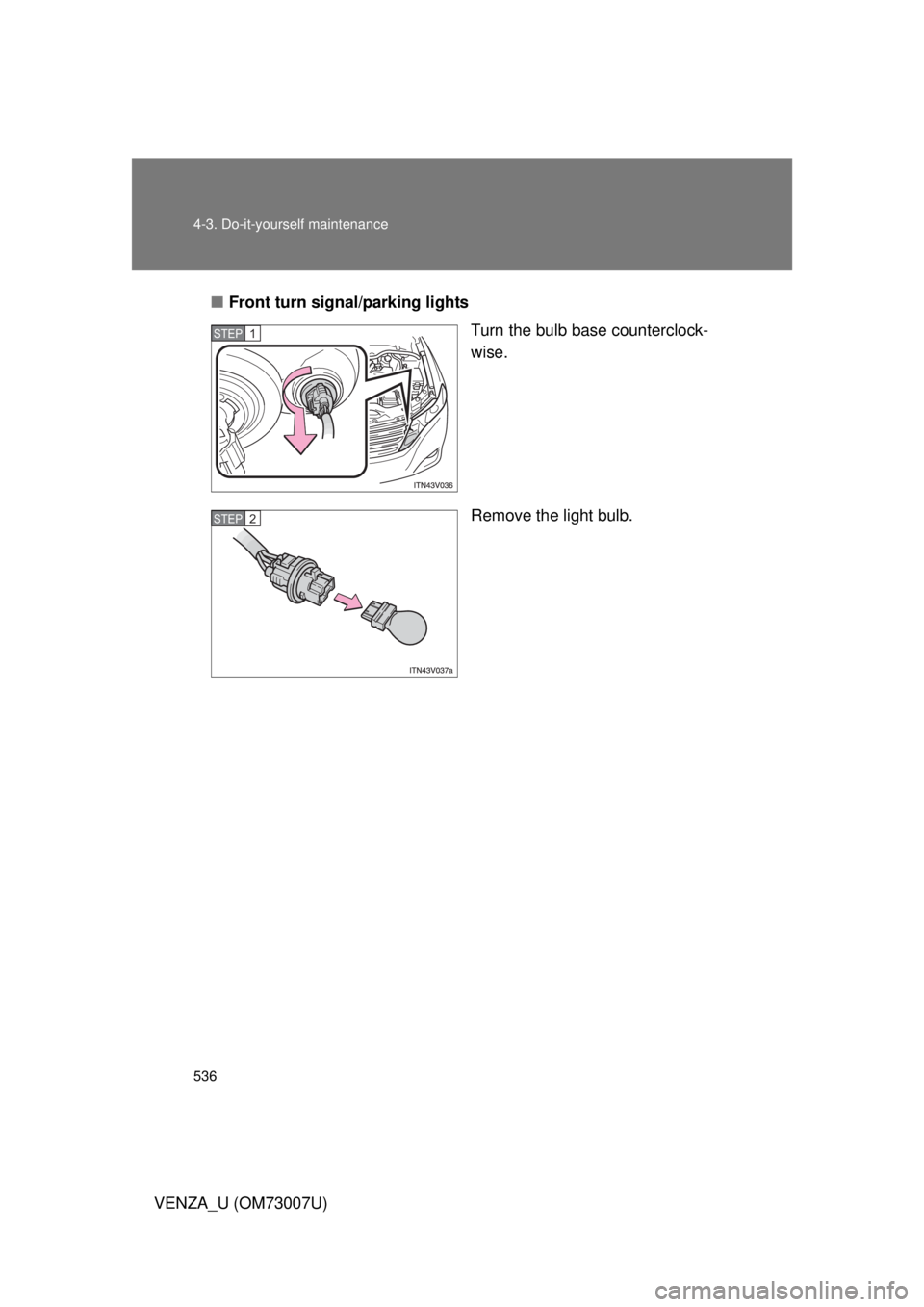

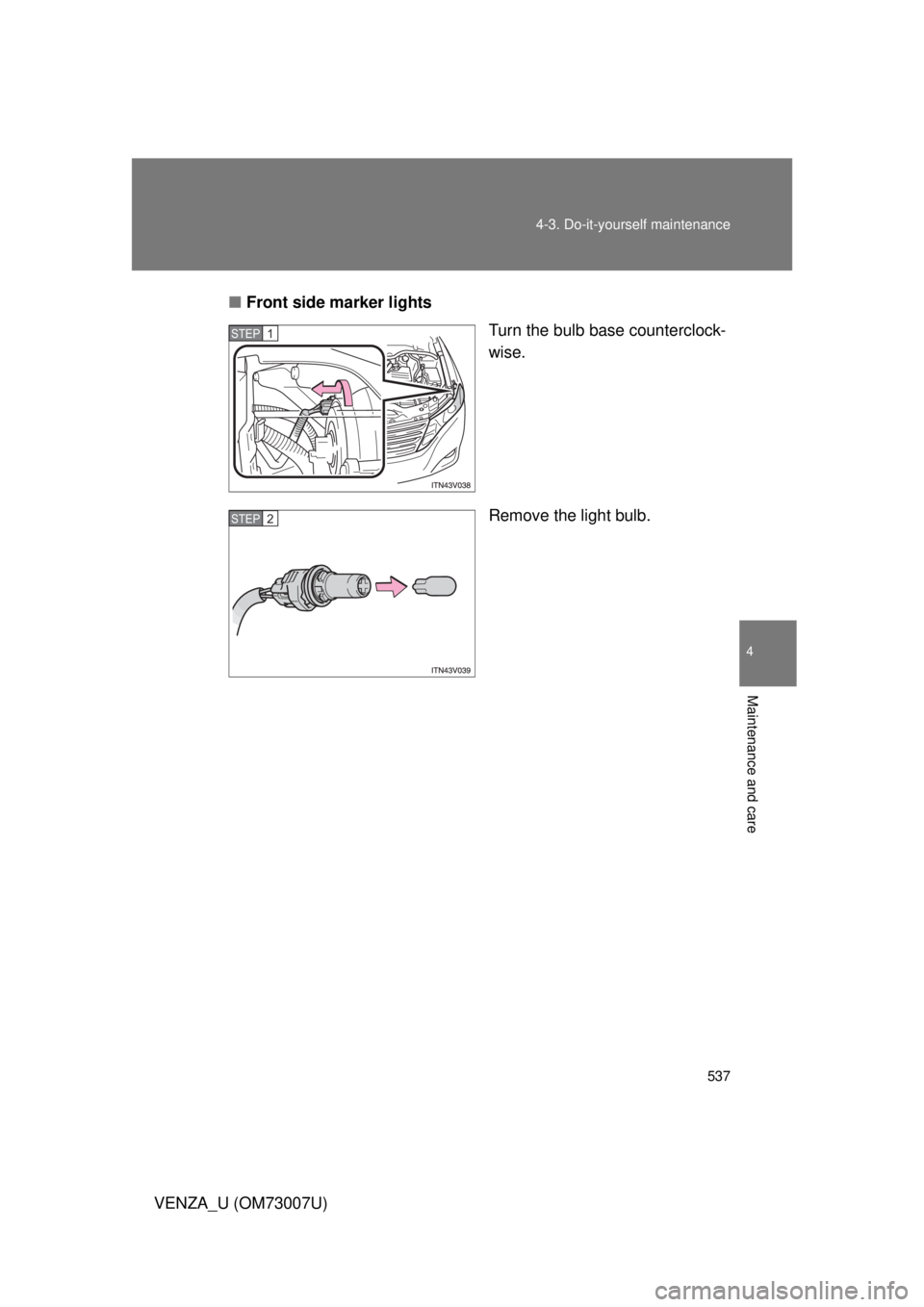

Front turn signal/parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

537
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
■
Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

538 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)■

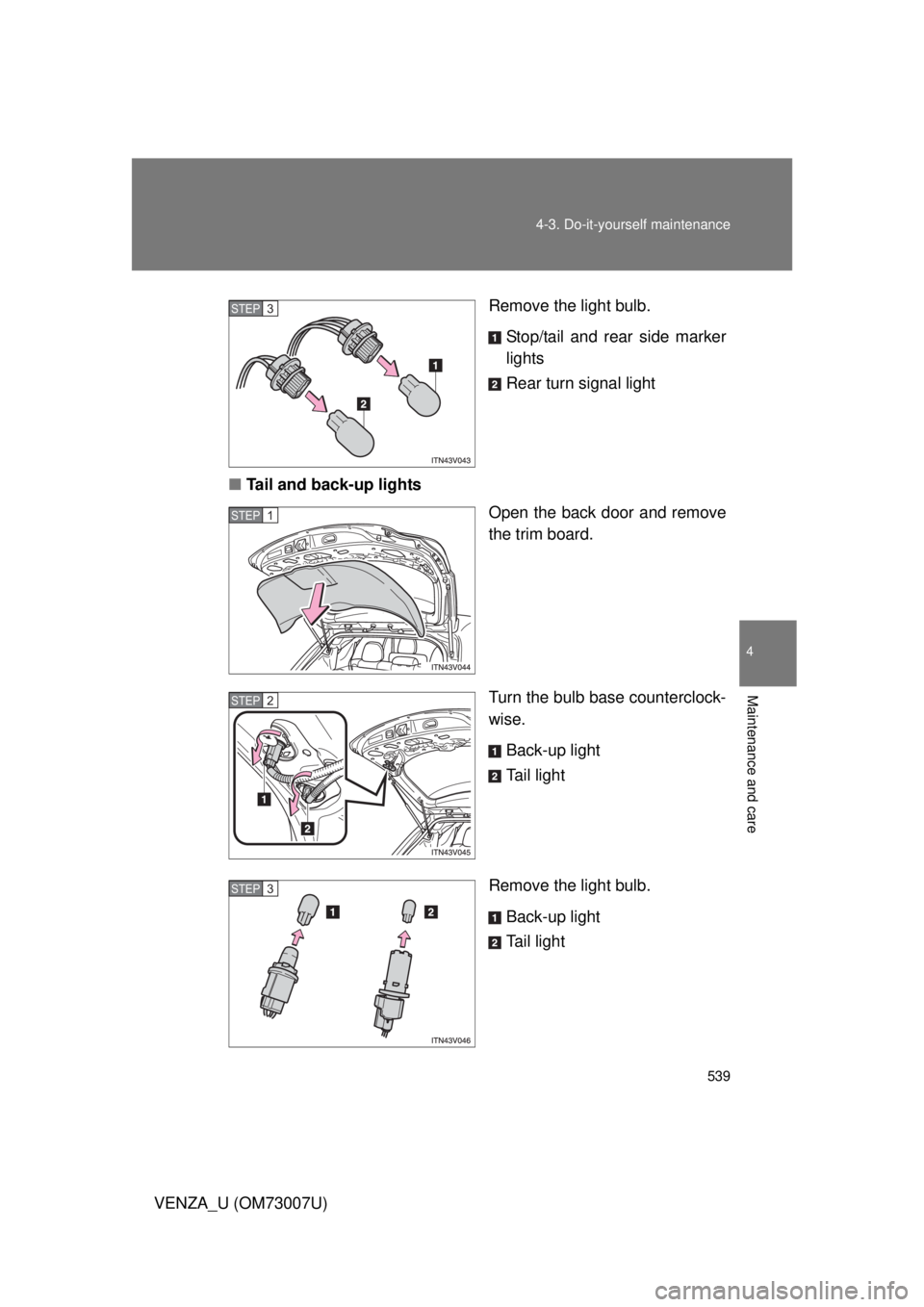

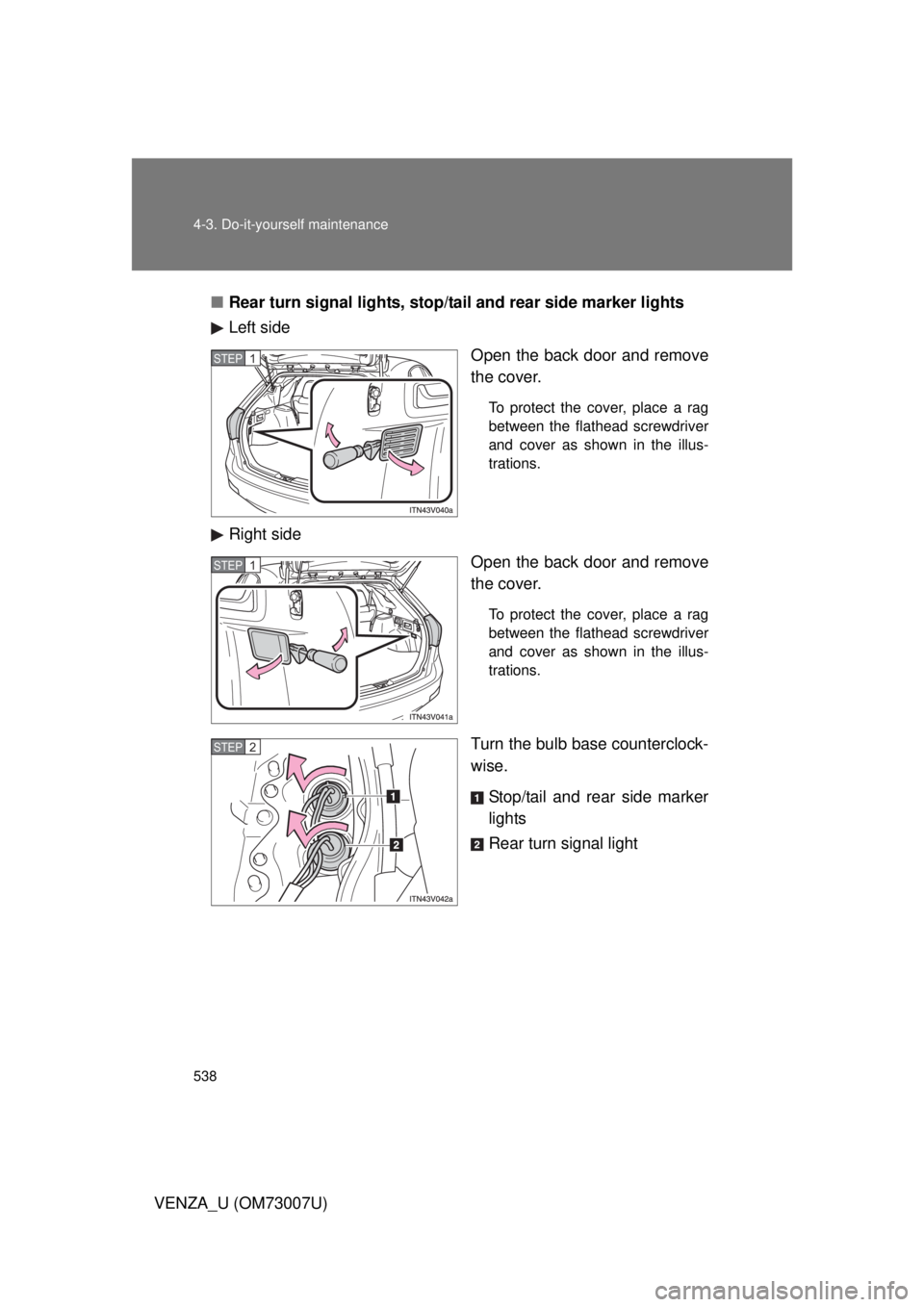

Rear turn signal lights, stop/ta il and rear side marker lights
Left side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right sideOpen the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal light
STEP1
STEP1
STEP2

539
4-3. Do-it-yourself maintenance
4
Maintenance and care
VENZA_U (OM73007U)
Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light
■ Tail and back-up lights
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Back-up light
Tail light
Remove the light bulb. Back-up light
Tail light
STEP3
STEP1
STEP2
STEP3

540 4-3. Do-it-yourself maintenance
VENZA_U (OM73007U)■
License plate light
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
