TOYOTA VENZA 2011 Owners Manual (in English)

441
3-7. Using the
storage features
3
Interior features
VENZA_U (OM73012U)
Bottle holders
For front seats
For rear seats
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

442 3-7. Using the storage features
VENZA_U (OM73012U)
Auxiliary boxesType A (driver’s side instrument panel) Push down the knob.
Type B (front console) Lift the lid.
Type C (front console) Lift the lid.
Auxiliary boxes

443
3-7. Using the
storage features
3
Interior features
VENZA_U (OM73012U)Type D (front passenger’s side instrument panel)
■
Coin holder (type A)
Nickels, quarters and dimes can be
stored separately.
Auxiliary boxes

444 3-7. Using the storage features
VENZA_U (OM73012U)
■Cable pass-through (type B and C)
Type B
Type C
CAUTION
■While driving (type A, B and C)
Keep the auxiliary boxes closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
The auxiliary boxes of the front console
are provided with a hole that allows
cables to be passed from the power outlet
and AUX port.
For type B, push in the push bar before
routing the cables. Otherwise the connec-
tor end may get stuck.
Auxiliary boxes

445
3
Interior features
VENZA_U (OM73012U)
3-8. Other interior features

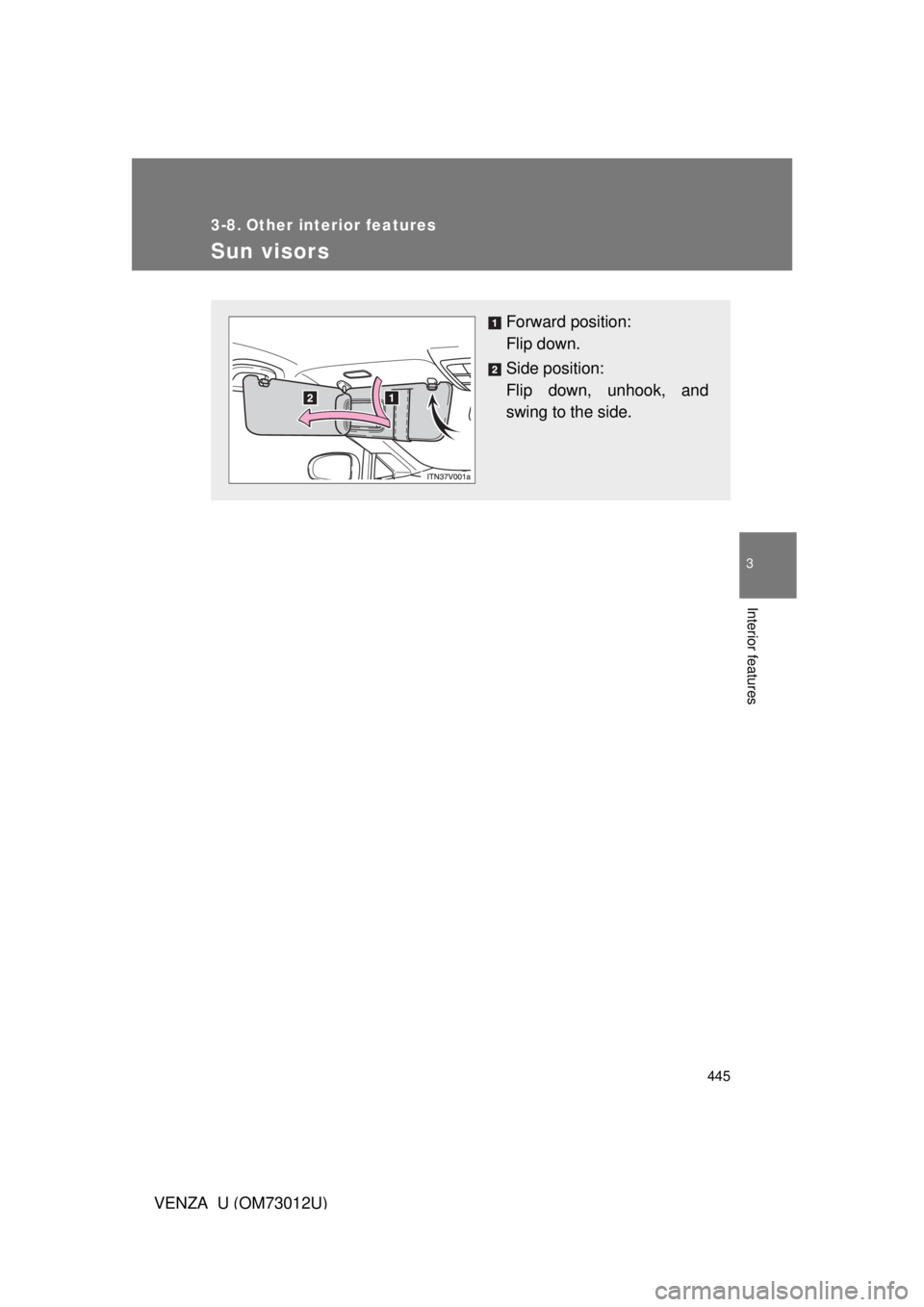

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

446
3-8. Other interior features
VENZA_U (OM73012U)

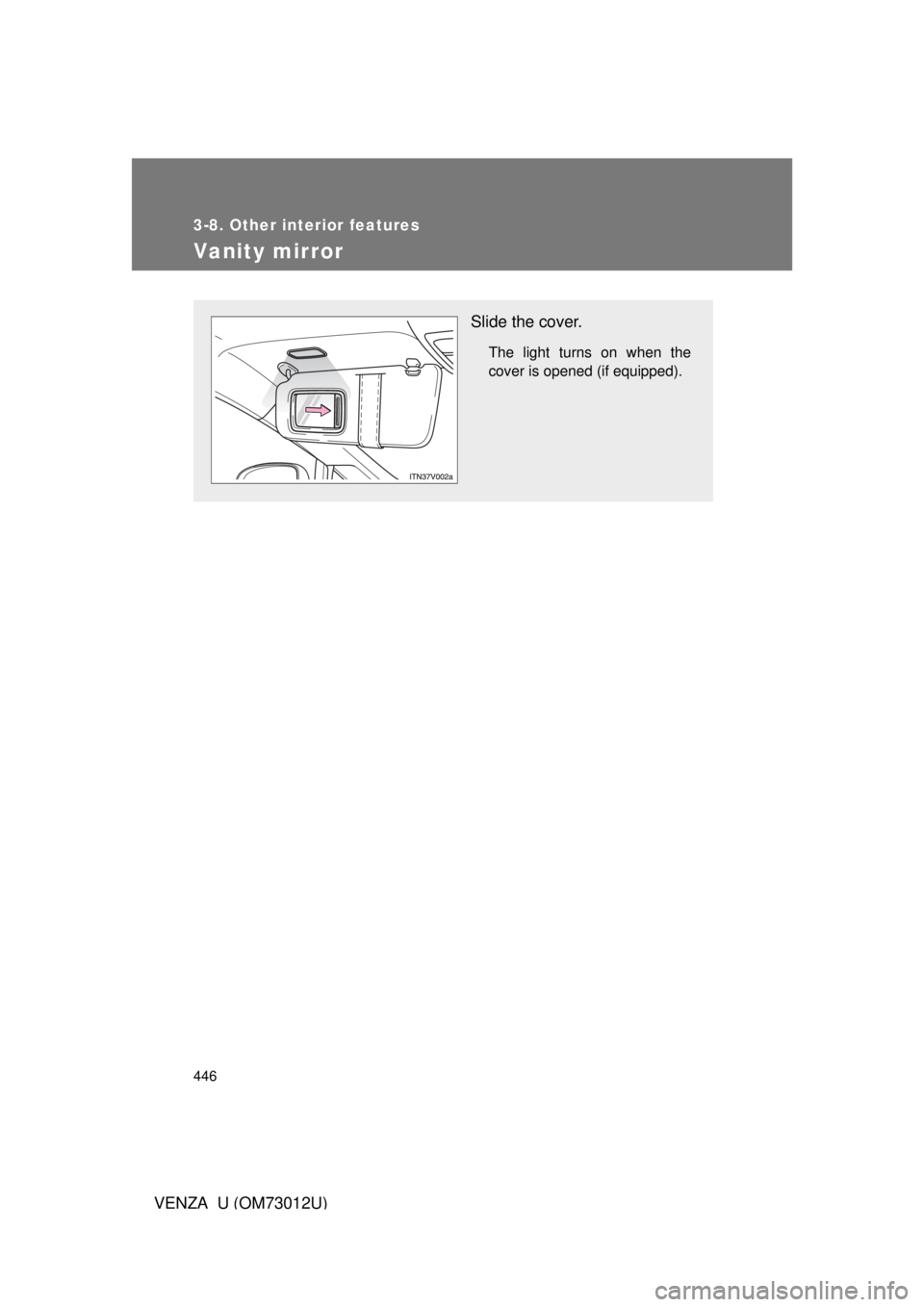

Vanity mirror
Slide the cover.
The light turns on when the
cover is opened (if equipped).

447
3-8. Other interior features
3
Interior features
VENZA_U (OM73012U)

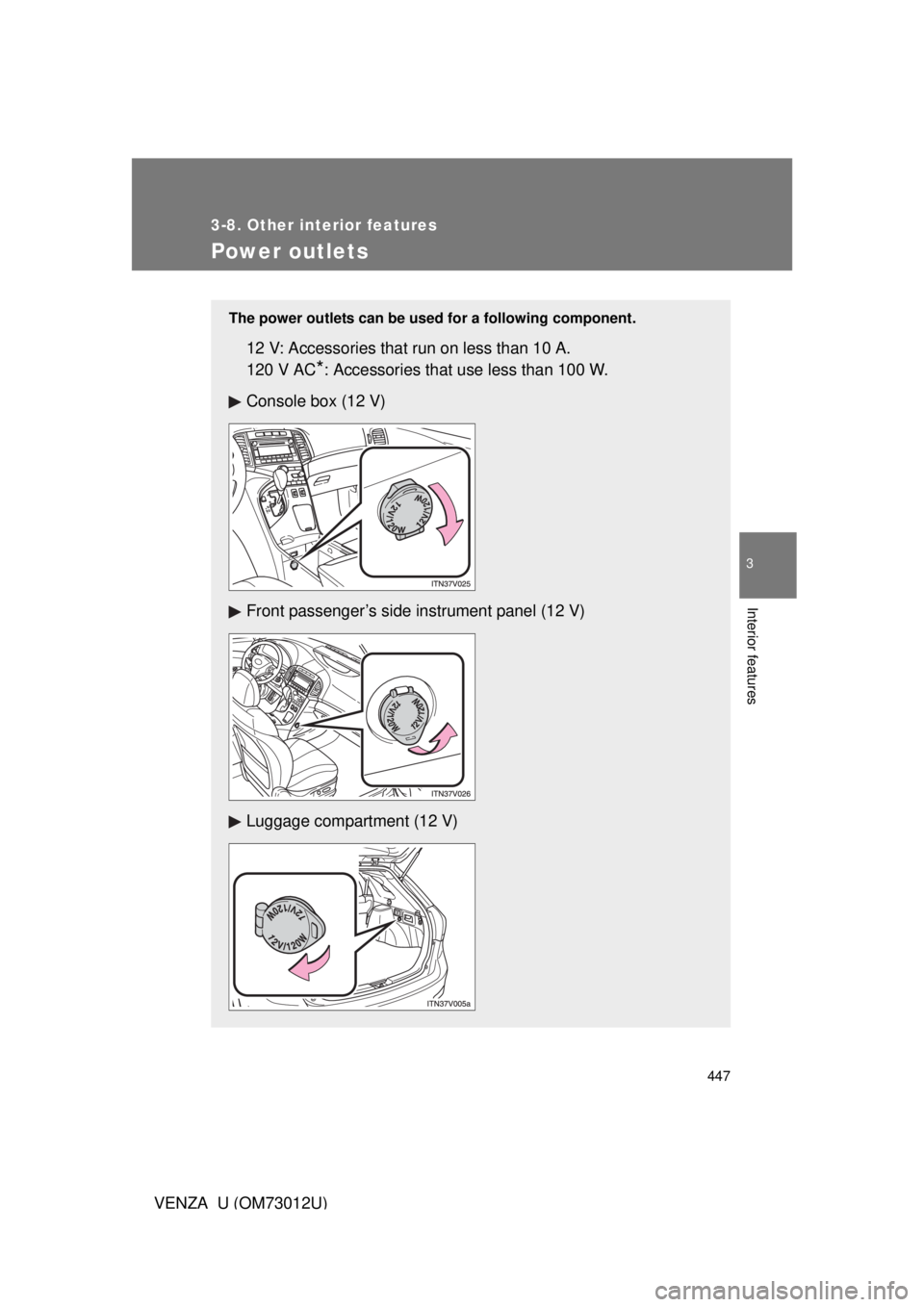

Power outlets
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A.
120 V AC
*: Accessories that use less than 100 W.
Console box (12 V)
Front passenger’s side instrument panel (12 V)
Luggage compartment (12 V)

448 3-8. Other interior features
VENZA_U (OM73012U)
■The power outlets can be used when
Vehicles with smart key system
12 V: The “ENGINE START STOP” switch is in ACCESSORY or IGNI- TION ON mode.
120 V: The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
12 V: The engine switch is in the “ACC” or “ON” position.
120 V: The engine switch is in the “ON” position.
■ Radio noise (120 V AC)
The use of certain electrical appliances may cause radio noise interference.
Luggage compartment (120 V AC)*
*
: Vehicles with rear seat entertainment system

449
3-8. Other interior features
3
Interior features
VENZA_U (OM73012U)
NOTICE
■
To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V: Do not use an accessory that uses more than 12 V/10 A.
120 V: Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under 100 W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

450
3-8. Other interior features
VENZA_U (OM73012U)
Seat heaters
: If equipped
■The seat heaters can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the dial
upward, the warmer the seat
becomes.
