TOYOTA VENZA 2011 Owners Manual (in English)

421
3-5. Using the hands-free system (for cellular phone)
3
Interior features
VENZA_U (OM73012U)

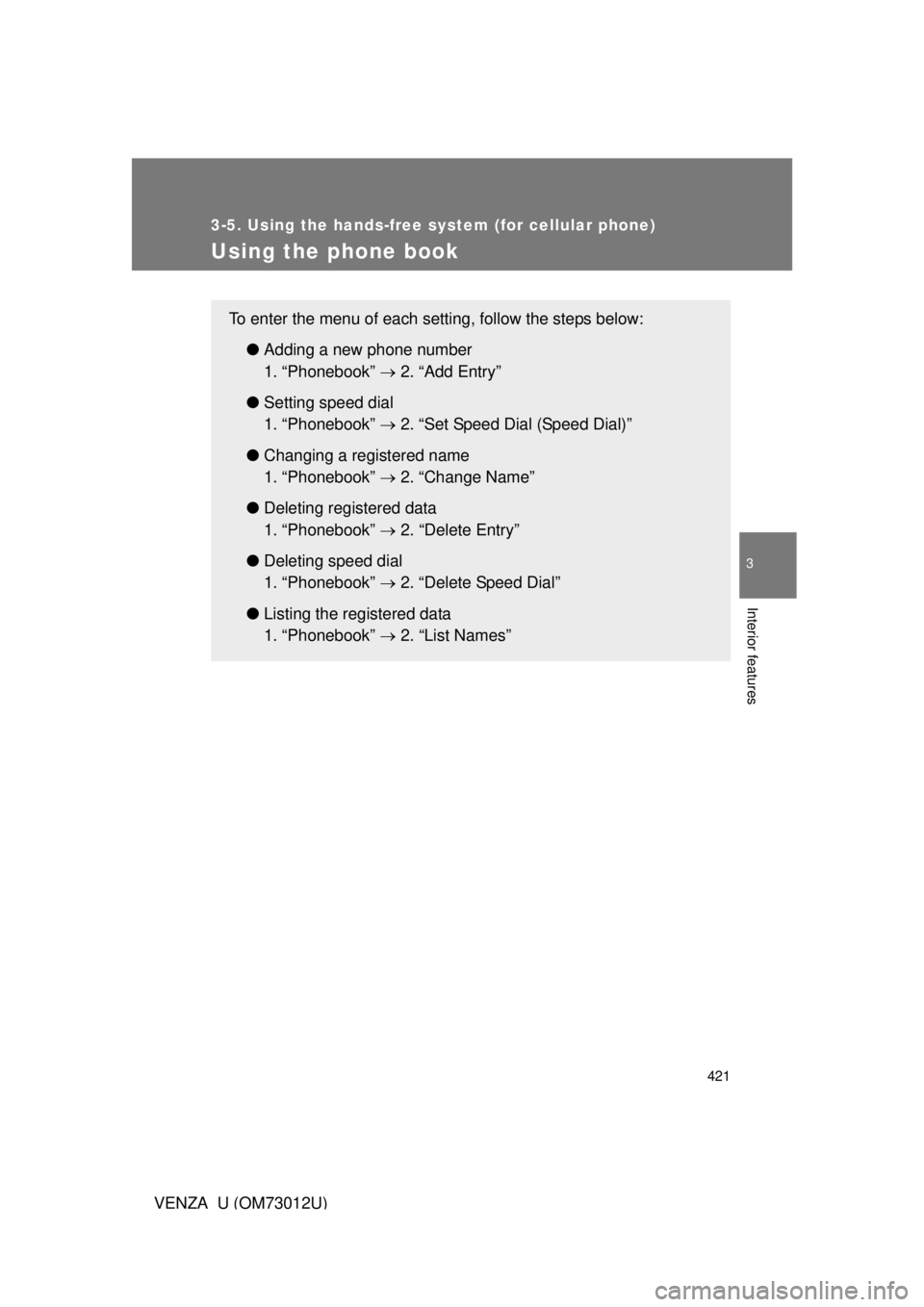

Using the phone book
To enter the menu of each setting, follow the steps below:●Adding a new phone number
1. “Phonebook”  2. “Add Entry”
● Setting speed dial
1. “Phonebook”  2. “Set Speed Dial (Speed Dial)”
● Changing a registered name
1. “Phonebook”  2. “Change Name”
● Deleting registered data
1. “Phonebook”  2. “Delete Entry”
● Deleting speed dial
1. “Phonebook”  2. “Delete Speed Dial”
● Listing the registered data
1. “Phonebook”  2. “List Names”

422 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73012U)
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number by using a voice command
● Transferring data from the cellular phone
● Inputting a phone number by using
● Selecting a phone number from outgoing or incoming call history
■ Adding procedure
Select “Add Entry” by using a voice command or .
Use one of the following methods to input a telephone num-
ber:
Inputting a telephone number by using a voice command
STEP2-1 Select “By Voice” by using a voice command or
.
STEP2-2 Press the talk switch, say the desired number, and select “Confirm” by using a voice command.
STEP1
STEP2

423
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73012U)Transferring data from the cellular phone
STEP2-1 Select “By Phone” and then “Confirm” by using a
voice command or .
STEP2-2 Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone
for the details of transferring data.
STEP2-3 Select the data to be registered by either of the fol- lowing methods:
a. Say “Previous” or “Next” until the desired data isdisplayed, and select “Confirm” by using a voice
command.
b. Select the desired data by using .
Inputting a phone number by using STEP2-1 Select “Manual Input” by using .
STEP2-2 Input a phone number by using , and press again.
Input the phone number 1 digit at a time.

424 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73012U)Selecting a phone number from outgoing or incoming call history
STEP2-1 Select “Call History” by using a voice command or
.
STEP2-2 Select “Outgoing” or “Incoming” by using a voice
command or .
STEP2-3 Select the data to be registered by either of the fol- lowing methods:
a. Say “Previous” or “Go back” until the desireddata is displayed, and select “Confirm” by using
a voice command.
b. Select the desired data by using .

425
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73012U)Select the name to be registered by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press the talk switch and say the desired name.
b. Select “Record Name” by using , and say the desired name.
Select “Confirm” by using a voice command or .
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as speed dial.
Setting speed dials Select “Set Speed Dial (Speed Dial)” by using a voice com-
mand or .
STEP3
STEP4
STEP3
STEP1

426 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73012U)Select the data to be registered as a speed dial by either of
the following methods:
a. Press the talk switch, sa
y desired number, and select
“Confirm” by using a voice command or .
b. Press the talk switch, a nd say “List names”. While the
desired name is being read aloud, press the talk switch,
and select “Confirm” by using a voice command or
.
c. Select the desired data by using .
Select the desired preset butt on, and register the data into
speed dial by either of the following methods:
a. Press the desired preset button, and select “Confirm” by
using a voice command or .
b. Press and hold the desired preset button.
STEP2
STEP3

427
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73012U)
Changing a registered name
Select “Change Name” by using a voice command or .
Select the name to be changed by either of the following
methods.
a. Press the talk switch, say desired name, and select “Con-
firm” by using a voice command or .
b. Press the talk switch, a nd say “List names”. While the
desired name is being read aloud, press the talk switch,
and select “Confirm” by using a voice command or
.
c. Select the desired name by using .
Select “Record Name” with or the talk switch.
Say a new name, and select “Con firm” by using a voice com-
mand or .
STEP1
STEP2
STEP3
STEP4

428 3-5. Using the hands-free system (for cellular phone)
VENZA_U (OM73012U)
Deleting registered dataSelect “Delete Entry” by using a voice command or
.
Select the data to be deleted by either of the following meth-
ods, and select “Confirm” by using a voice command or
:
a. Press the talk switch, and say the name of the desired phone number to be deleted.
b. Press the talk switch, say “List phones”. While the name of
the desired phone number is being read aloud, press the
talk switch.
STEP1
STEP2

429
3-5. Using the hands-free
system (for cellular phone)
3
Interior features
VENZA_U (OM73012U)
Deleting speed dials
Select “Delete Speed Dial” by using a voice command or
.
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.
Listing the registered dataSelecting “List names” by using a vo ice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the talk switch while the desired data is being read aloud
selects the data, and the followi ng function will be available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

430
VENZA_U (OM73012U)
3-6. Using the interior lights

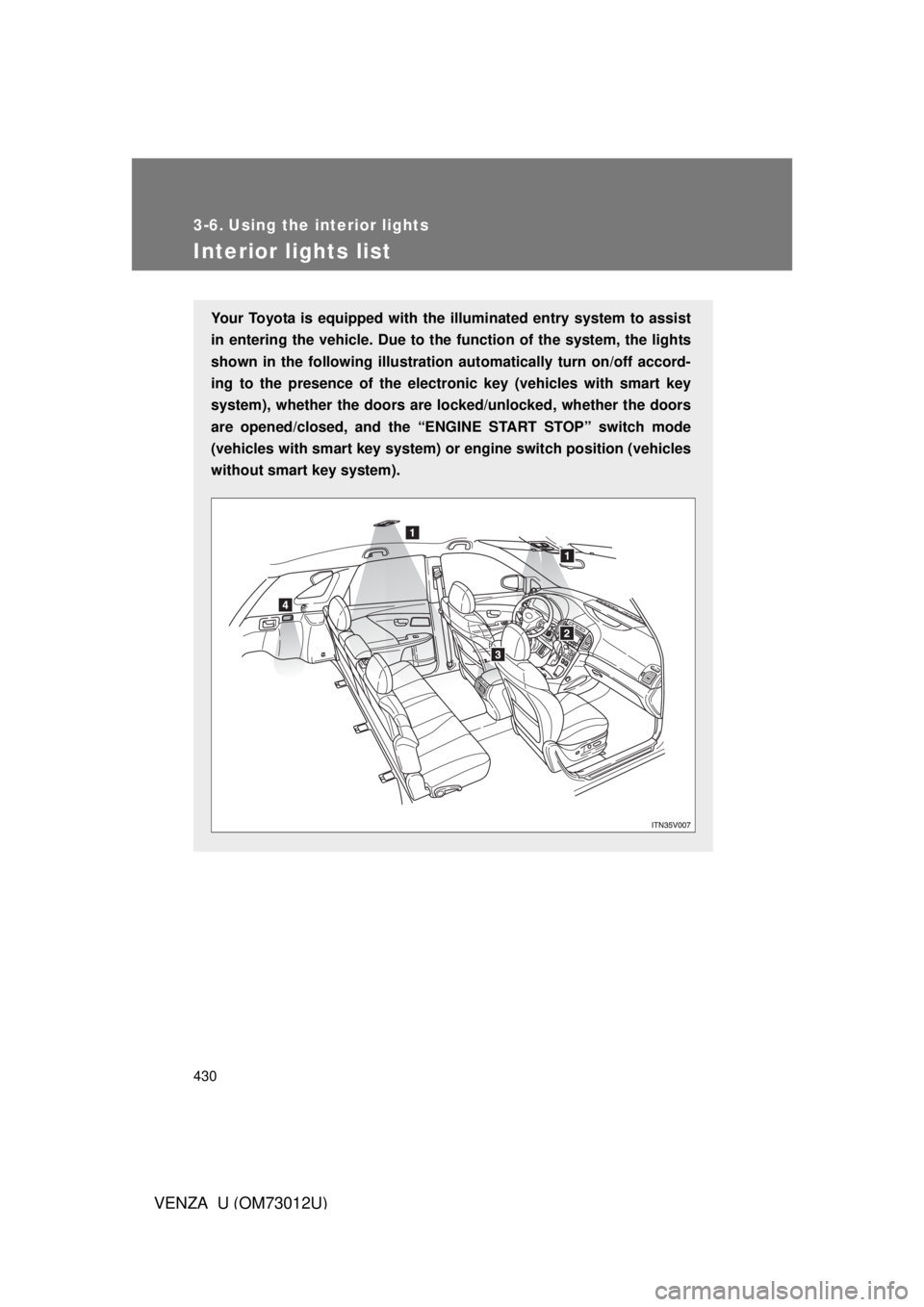

Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Due to th e function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electro nic key (vehicles with smart key
system), whether the doors are lo cked/unlocked, whether the doors
are opened/closed, and the “EN GINE START STOP” switch mode
(vehicles with smart key system) or engine switch position (vehicles
without smart key system).
