TOYOTA VENZA 2016 Owners Manual

5
When trouble arises
5915-2. Steps to take in an emergency

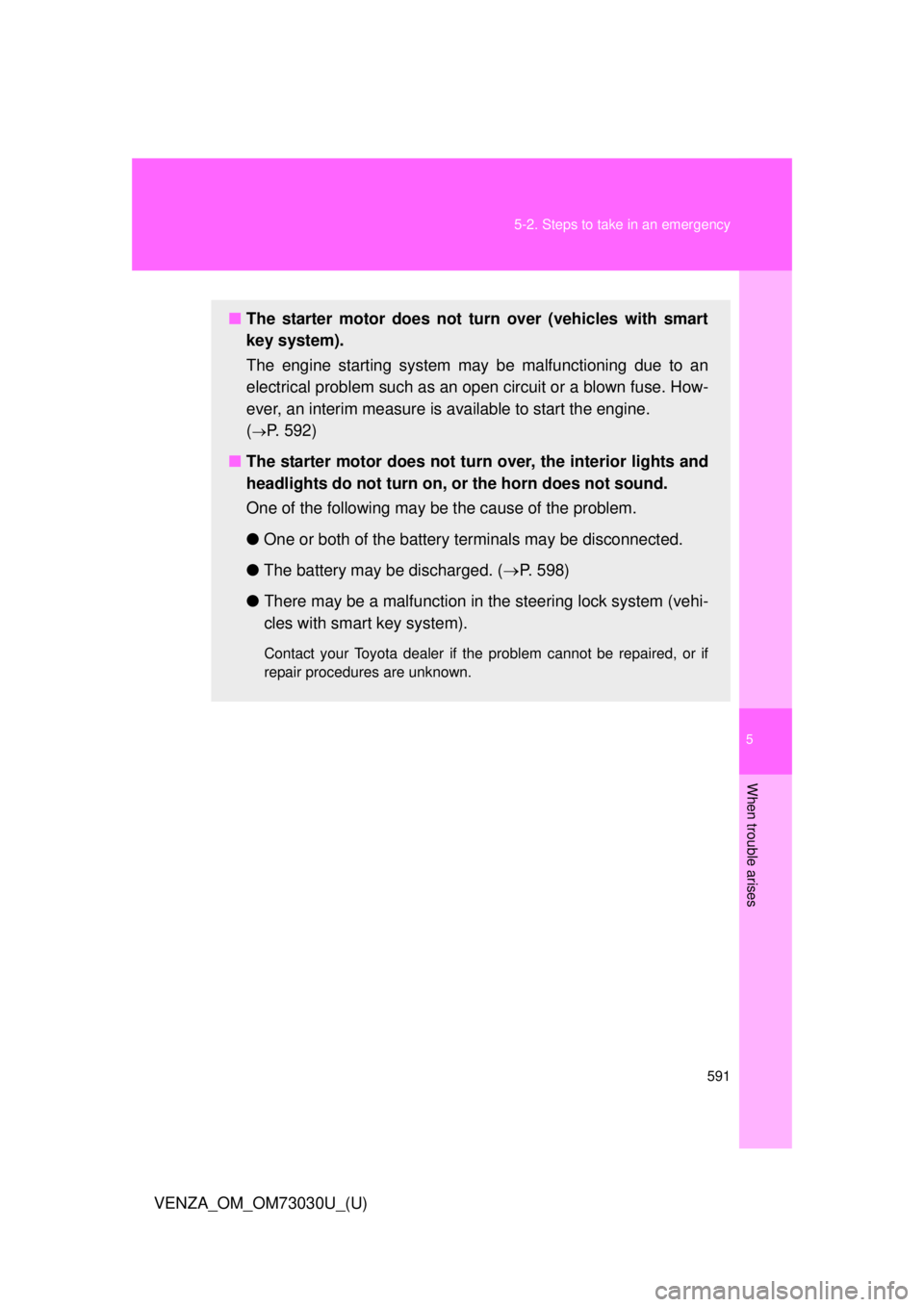

VENZA_OM_OM73030U_(U) ■ The starter motor does not turn over (vehicles with smart
key system).
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
( 
P. 592)
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (  P. 598)
● There may be a malfunction in the steering lock system (vehi-
cles with smart key system). Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5925-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Emergency start function (vehicles with smart key system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Shift the shift lever to “P”.
Set the “ENGINE START ST OP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal firmly.
Even if the engine can be start ed using the above st eps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer. STEP 1
STEP 2
STEP 3
STEP 4

5
When trouble arises
5935-2. Steps to take in an emergency

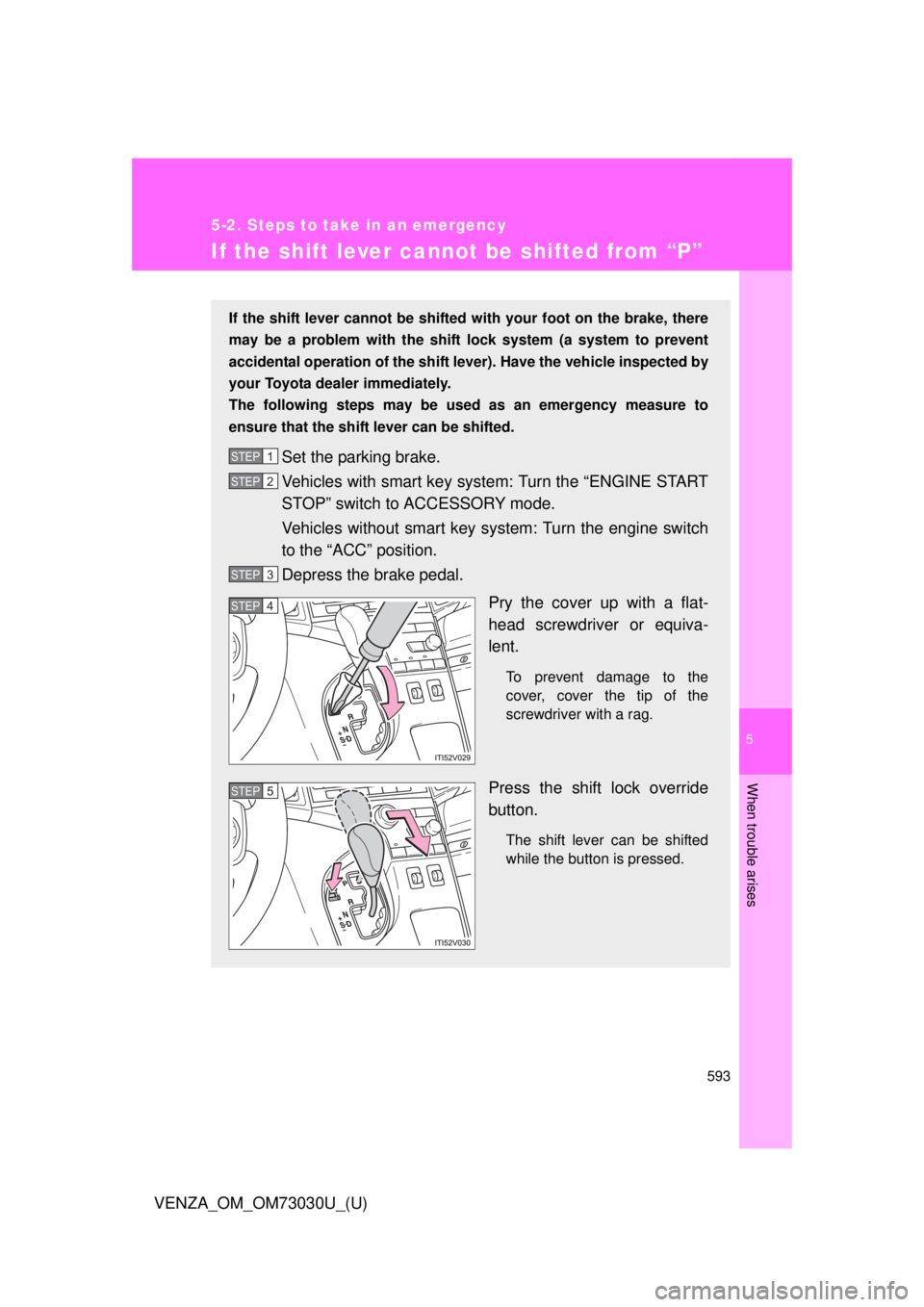

VENZA_OM_OM73030U_(U) If the shift lever cannot be shifted from “P” If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to ACCESSORY mode.
Vehicles without smart key system: Turn the engine switch
to the “ACC” position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent. To prevent damage to the
cover, cover the tip of the
screwdriver with a rag.
Press the shift lock override
button. The shift lever can be shifted
while the button is pressed.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5945-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U)If you lose your keys New genuine keys can be made by your Toyota dealer. Bring the
other key and the key number stamped on the key number plate.

5
When trouble arises
5955-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) If the electronic key does no t operate properly (vehicles with smar t key system)Locking and unlocking the door s and key linked functions
Using the mechanical key
(  P. 29) in order to perform
the following operations.
Locks all doors
Unlocks all doors Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.If communication between the electronic key and vehicle is inter-
rupted (  P. 30) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors can be opened or the
engine can be started by following the procedure below.

5965-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Starting the engine
Shift the shift lever to “P” and apply the brakes.
Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch. An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
Press the “ENGINE START STOP” switch within 10 seconds
after the buzzer sounds, keepin g the brake pedal depressed.
In the event that the “ENGINE START STOP” switch cannot be oper-
ated, contact your Toyota dealer. STEP 1
STEP 2
STEP 3

5
When trouble arises
5975-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) ■ Stopping the engine
Shift the shift lever to “P” and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
■ Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(  P. 523)
■ Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (  P. 112)
■ Changing “ENGINE START STOP” switch mode
Release the brake pedal and press the “ENGINE START STOP” switch in
above.
The engine does not start and modes will be changed each time the switch
is pressed. (  P. 174) STEP 3

5985-2. Steps to take in an emergency

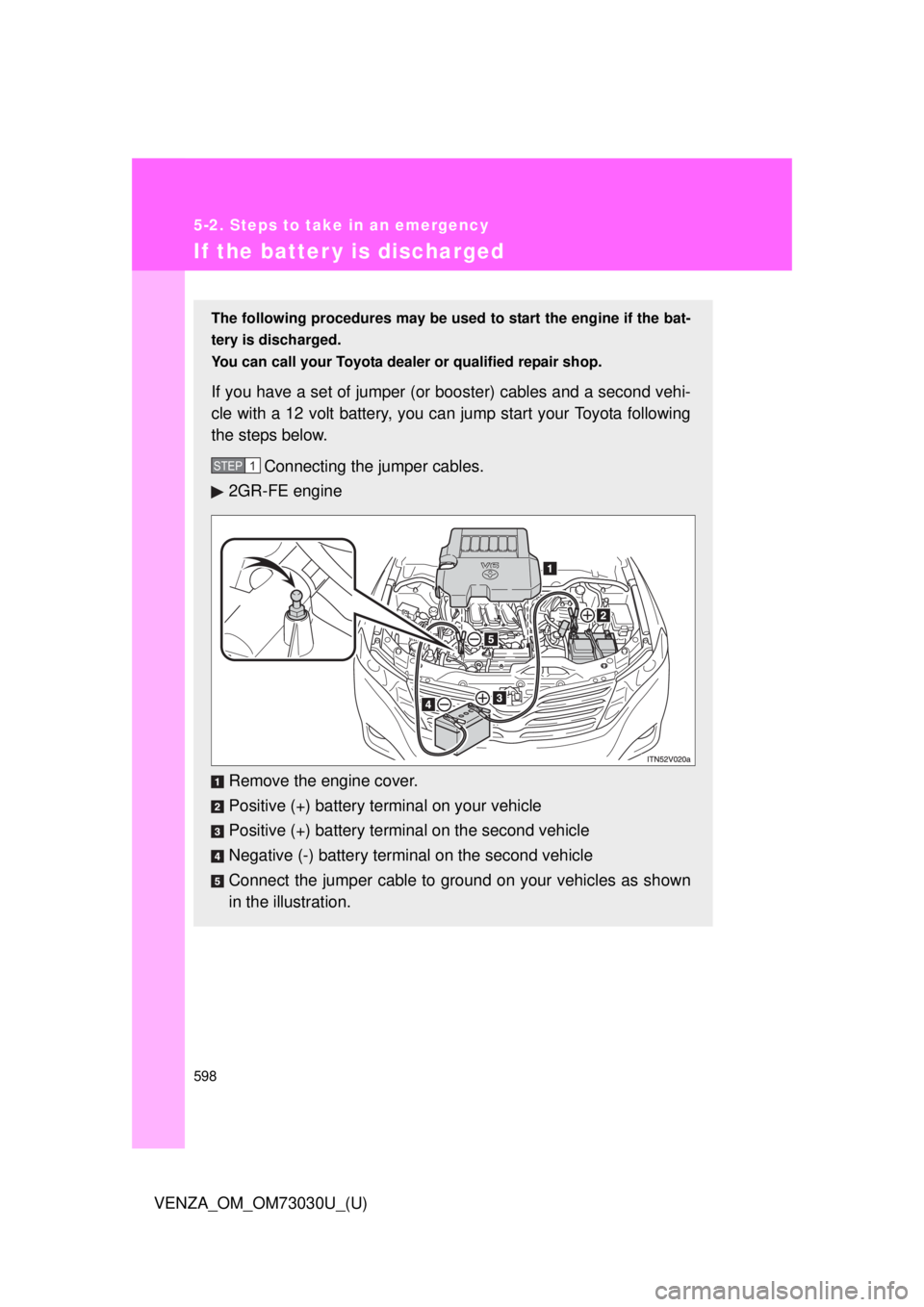

VENZA_OM_OM73030U_(U)If the batter y is discharged The following procedures may be used to start the engine if the bat-
tery is discharged.
You can call your Toyota dealer or qualified repair shop.
If you have a set of jumper (or boo ster) cables and a second vehi-
cle with a 12 volt battery, you can jump start your Toyota following
the steps below.
Connecting the jumper cables.
2GR-FE engine
Remove the engine cover.
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to gro und on your vehicles as shown
in the illustration. STEP 1

5
When trouble arises
5995-2. Steps to take in an emergency

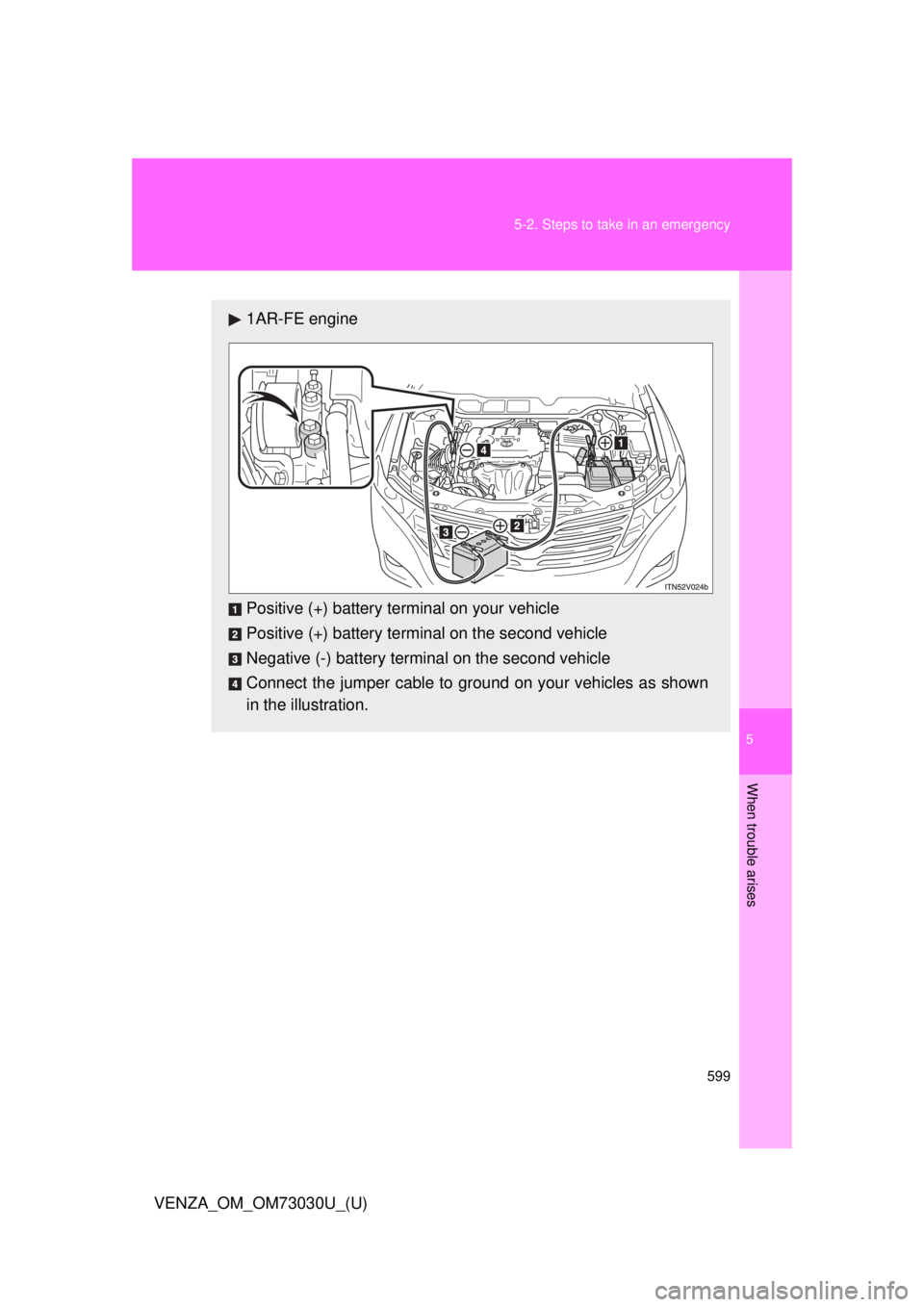

VENZA_OM_OM73030U_(U) 1AR-FE engine
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to gro und on your vehicles as shown
in the illustration.

6005-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) ■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ Avoiding a discharged battery
● Turn off the headlights and the audio system while the engine is turned
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
■ When the battery is removed or discharged
● The power back door must be initialized. (  P. 60)
● Make sure that the key is not inside the vehicle when recharging or
replacing the battery. The key may be locked in the vehicle if the alarm is
activated. (  P. 114)Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with smart key system: Open and close any of the
doors with the “ENGINE START STOP” switch off.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON mode
(vehicles with smart key system) or turn the engine switch
to the “ON” position (vehicles without smart key system),
then start your vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible. STEP 2
STEP 3
STEP 4
STEP 5
