TOYOTA VENZA 2016 Owners Manual

6216-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) Brakes
* 1
: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running.
* 2
: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,
30.6 kgf).
Steering Pedal clearance
* 1
1.1 in. (28 mm) Min.
Pedal free play 0.04
 0.12 in. (1.0
 3.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake adjustment
* 2
4
 6 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Free play Less than 1.2 in. (30 mm)

6226-1. Specifications

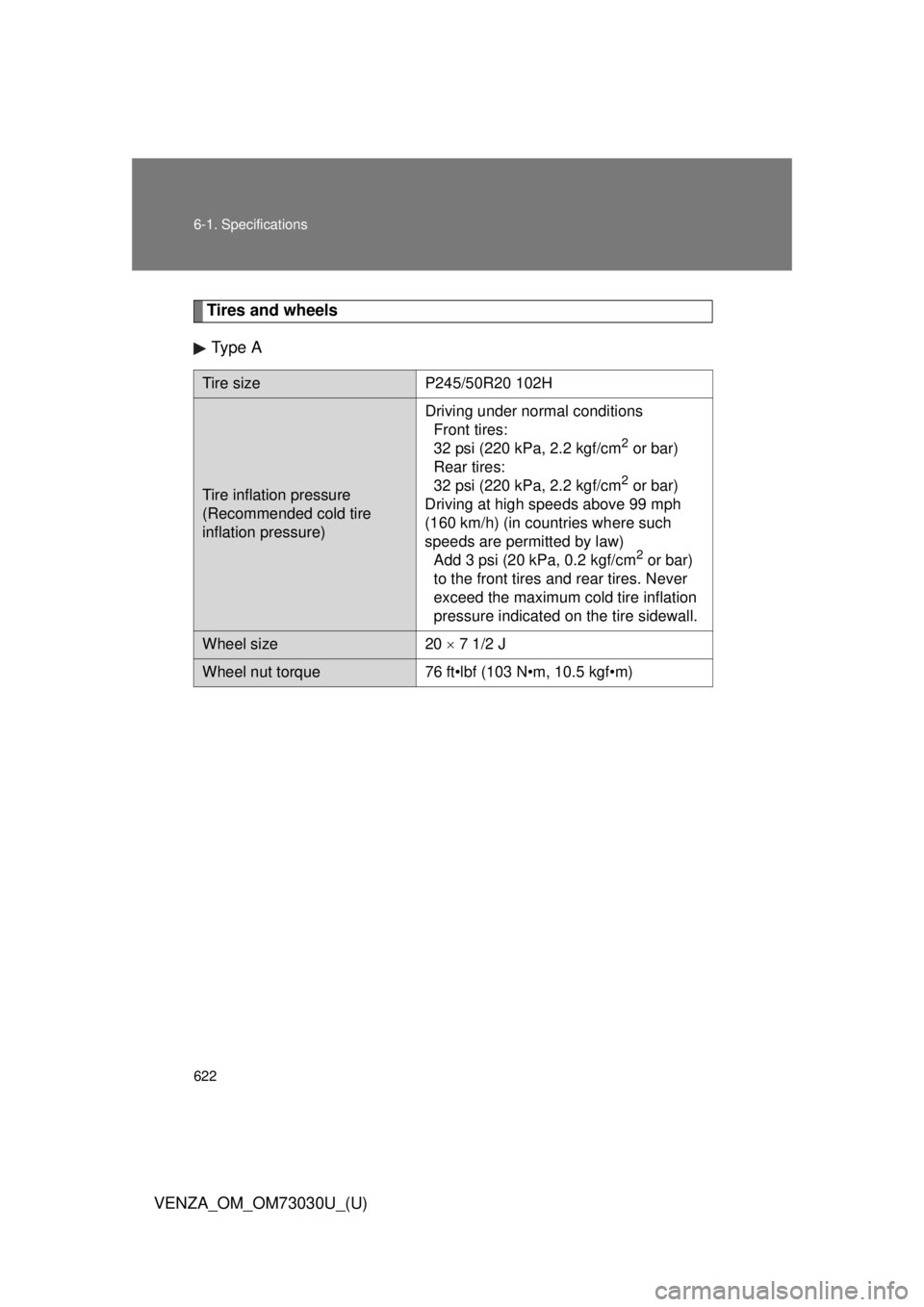

VENZA_OM_OM73030U_(U) Tires and wheels
Type A Tire size P245/50R20 102H
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm 2
or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm 2
or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm 2
or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size 20  7 1/2 J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

6236-1. Specifications
6
Vehicle specifications

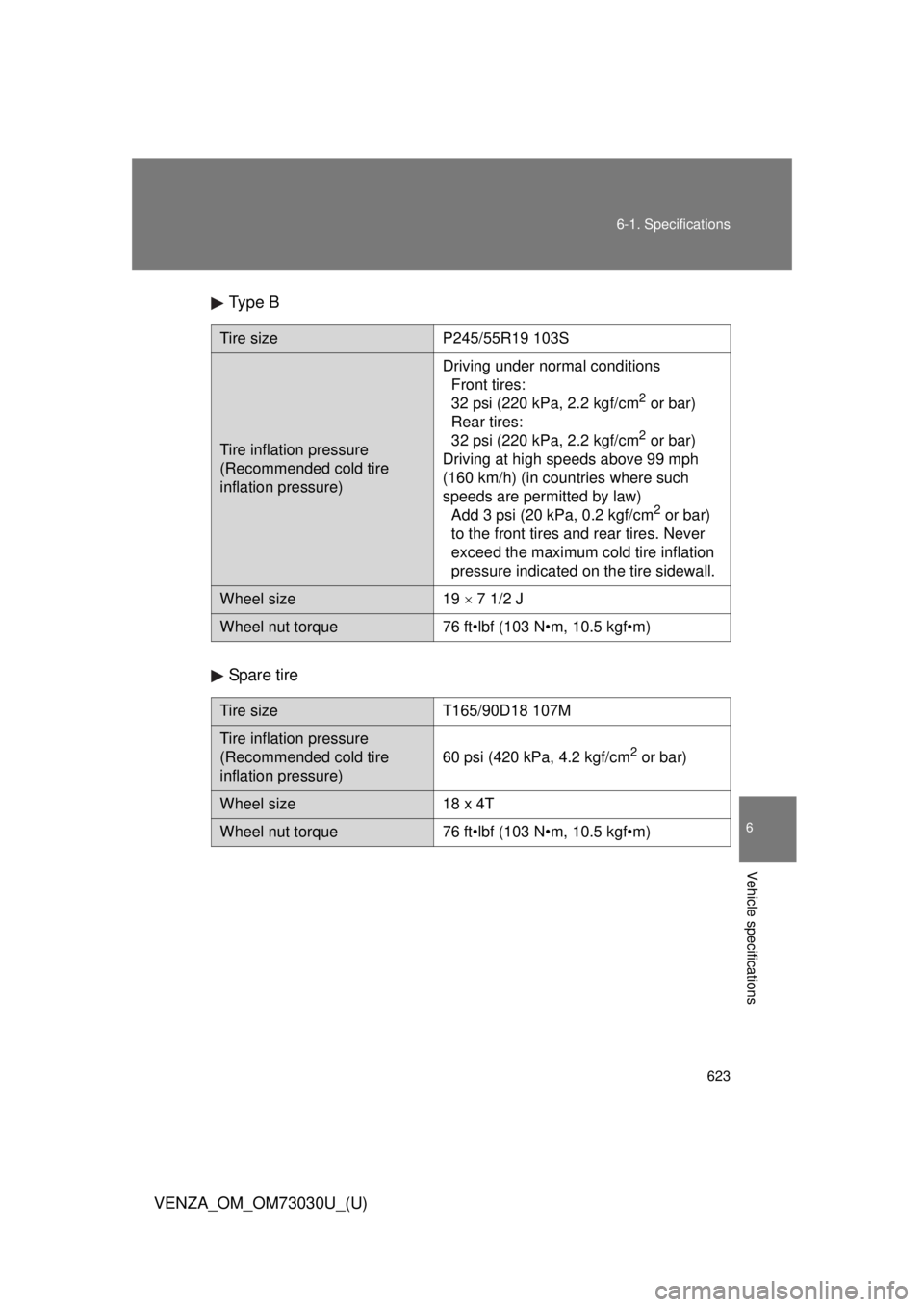

VENZA_OM_OM73030U_(U) Type B
Spare tire Tire size P245/55R19 103S
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front tires:
32 psi (220 kPa, 2.2 kgf/cm 2
or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm 2
or bar)
Driving at high speeds above 99 mph
(160 km/h) (in countries where such
speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm 2
or bar)
to the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size 19  7 1/2 J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size T165/90D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Wheel size 18 x 4T
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

6246-1. Specifications

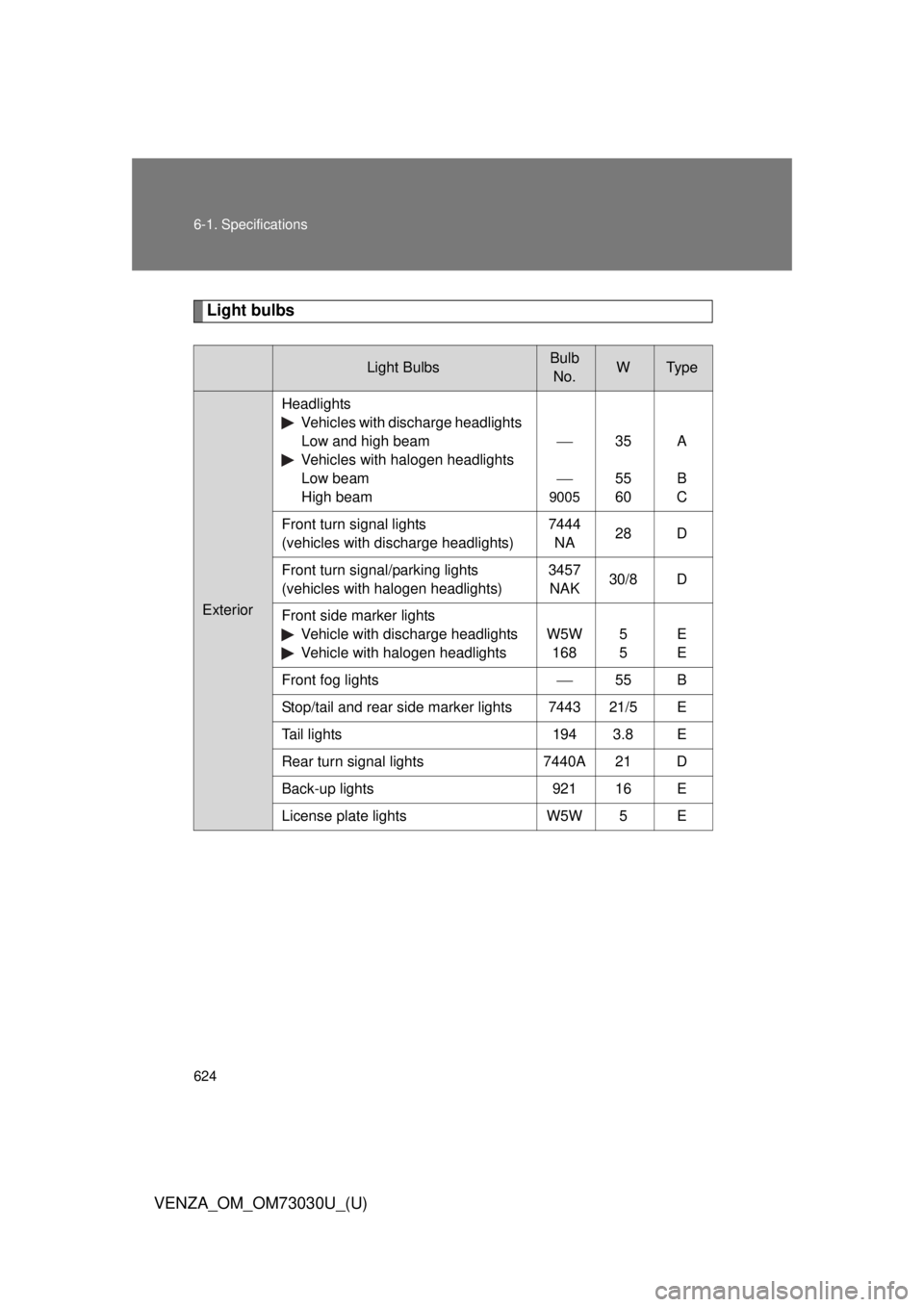

VENZA_OM_OM73030U_(U) Light bulbs Light Bulbs Bulb
No. W Ty p e
Exterior Headlights
Vehicles with discharge headlights
Low and high beam
Vehicles with halogen headlights
Low beam
High beam 
 9005 35
55
60 A
B
C
Front turn signal lights
(vehicles with discharge headlights) 7444
NA 28 D
Front turn signal/parking lights
(vehicles with halogen headlights) 3457
NAK 30/8 D
Front side marker lights
Vehicle with discharge headlights
Vehicle with halogen headlights W5W
168 5
5 E
E
Front fog lights  55 B
Stop/tail and rear side marker lights 7443 21/5 E
Tail lights 194 3.8 E
Rear turn signal lights 7440A 21 D
Back-up lights 921 16 E
License plate lights W5W 5 E

6256-1. Specifications
6
Vehicle specifications

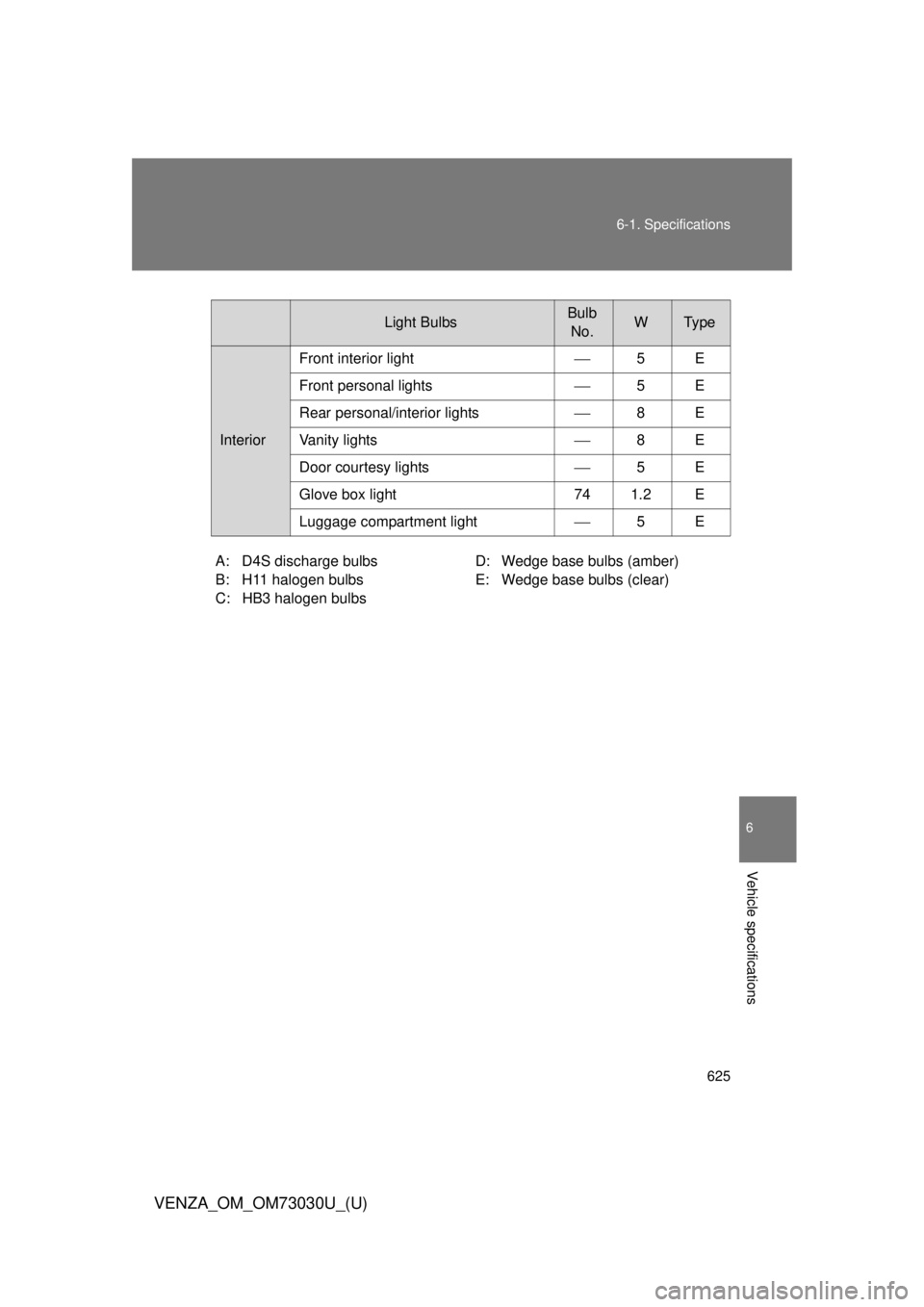

VENZA_OM_OM73030U_(U) Light Bulbs Bulb
No. W Ty p e
Interior Front interior light  5 E
Front personal lights  5 E
Rear personal/interior lights  8 E
Vanity lights  8 E
Door courtesy lights  5 E
Glove box light 74 1.2 E
Luggage compartment light  5 E
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)

6266-1. Specifications

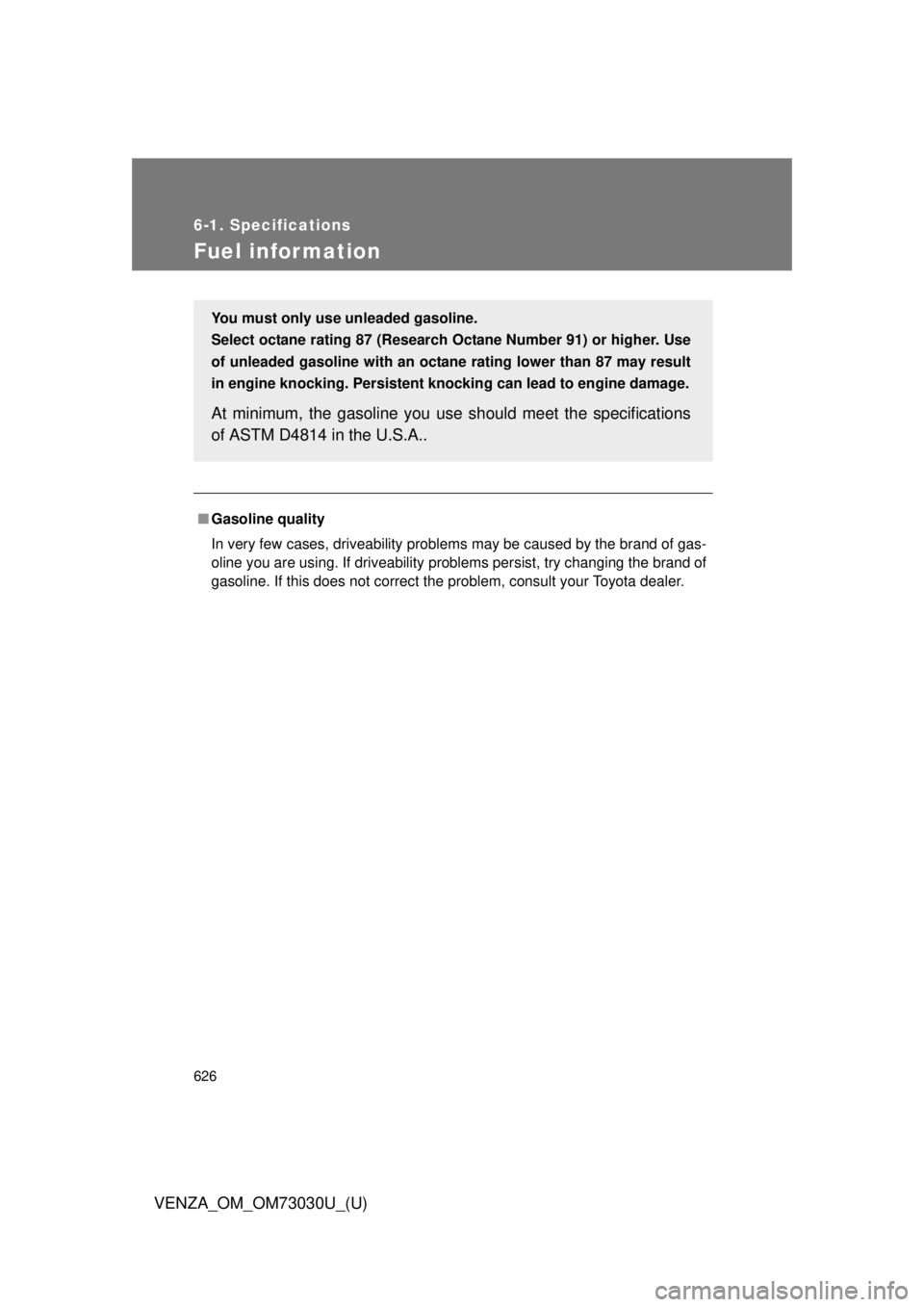

VENZA_OM_OM73030U_(U)Fuel infor mation ■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you us e should meet th e specifications
of ASTM D4814 in the U.S.A..

6276-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) ■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., Europe and Japan have devel-
oped a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typi-
cally acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

6286-1. Specifications
VENZA_OM_OM73030U_(U) ■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern. ● Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

6296-1. Specifications
6
Vehicle specifications
VENZA_OM_OM73030U_(U) NOTICE■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

6306-1. Specifications

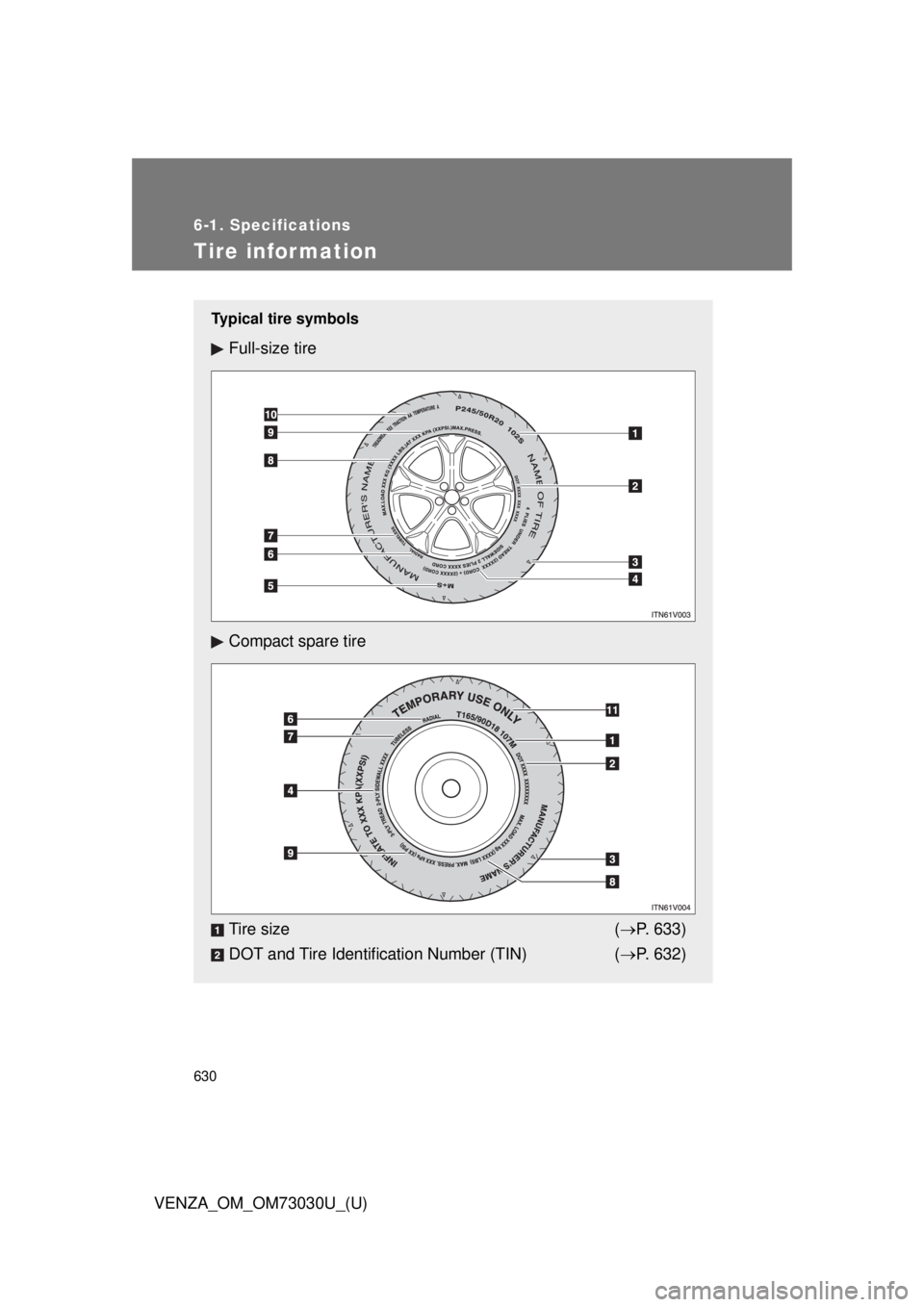

VENZA_OM_OM73030U_(U)Tire infor mation Typical tire symbols
Full-size tire
Compact spare tire
Tire size (  P. 633)
DOT and Tire Identification Number (TIN) (  P. 632)
