TOYOTA VENZA HYBRID 2021 Owners Manual (in English)

5018-2. Customization
8
Vehicle specifications
■When customizing using the
navigation/multimedia system
or multi-information display
Stop the vehicle i n a safe place,
apply the parking brake, and shift
the shift lever to P. Also, to prevent
12-volt battery di scharge, leave the
hybrid system operating while cus-
tomizing the features.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Settings that can be changed using the navigation system or mul -
timedia system
Settings that can be changed using the multi-information displa y
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – =Not available
■Predictive efficient drive* (  P.71)
*: If equipped
WARNING
■During customization
As the hybrid system needs to be
operating during customization,
ensure that the vehicle is parked
in a place with adequate ventila-
tion. In a closed area such as a
garage, exhaust gases including
harmful carbon monoxide (CO)
may collect and enter the vehicle.
This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent 12-vo lt battery dis-
charge, ensure that the hybrid
system is operat ing while custom-
izing features.
Customizable Features
Function*1Default settingCustomized
setting
Predictive efficient driveOnOffO––
A
B
C
ABC

5028-2. Customization
■Gauges, meters and multi-information display (P.87, 91, 94,
105)
Function*1Default settingCustomized setting
Language“English”
(English)
“Français can- adien”
(Canadian French)
–O–“Español mexi- cano”
(Mexican Spanish)
Units*2miles (MPG US)
km (km/L)
–O–km (L/100 km)
miles mi/gal imp
EV indicatorOnOff–O–
Digital Speed*3OnOff–O–
Gadget Content*3No Display
Distance
–O–Total Time
Average Speed
Fuel Economy Type*3TotalTrip–O–Tank
ECO Accelerator Guidance*4OnOff–O–
“Fuel Economy”*4“Total Aver- age”“Trip Average”
–O–“Tank Aver- age”
Audio system linked dis-
play
*4OnOff–O–
Energy monitor*4OnOff–O–
AWD system display*4OnOff–O–
Drive information type*4TripTotal–O–
ABC

5038-2. Customization
8
Vehicle specifications*1: For details about each function: P.100, 111
*2: The default setting varies according to country.
*3: Vehicles with 7-inch display only
*4: Vehicles with 4.2-inch display only

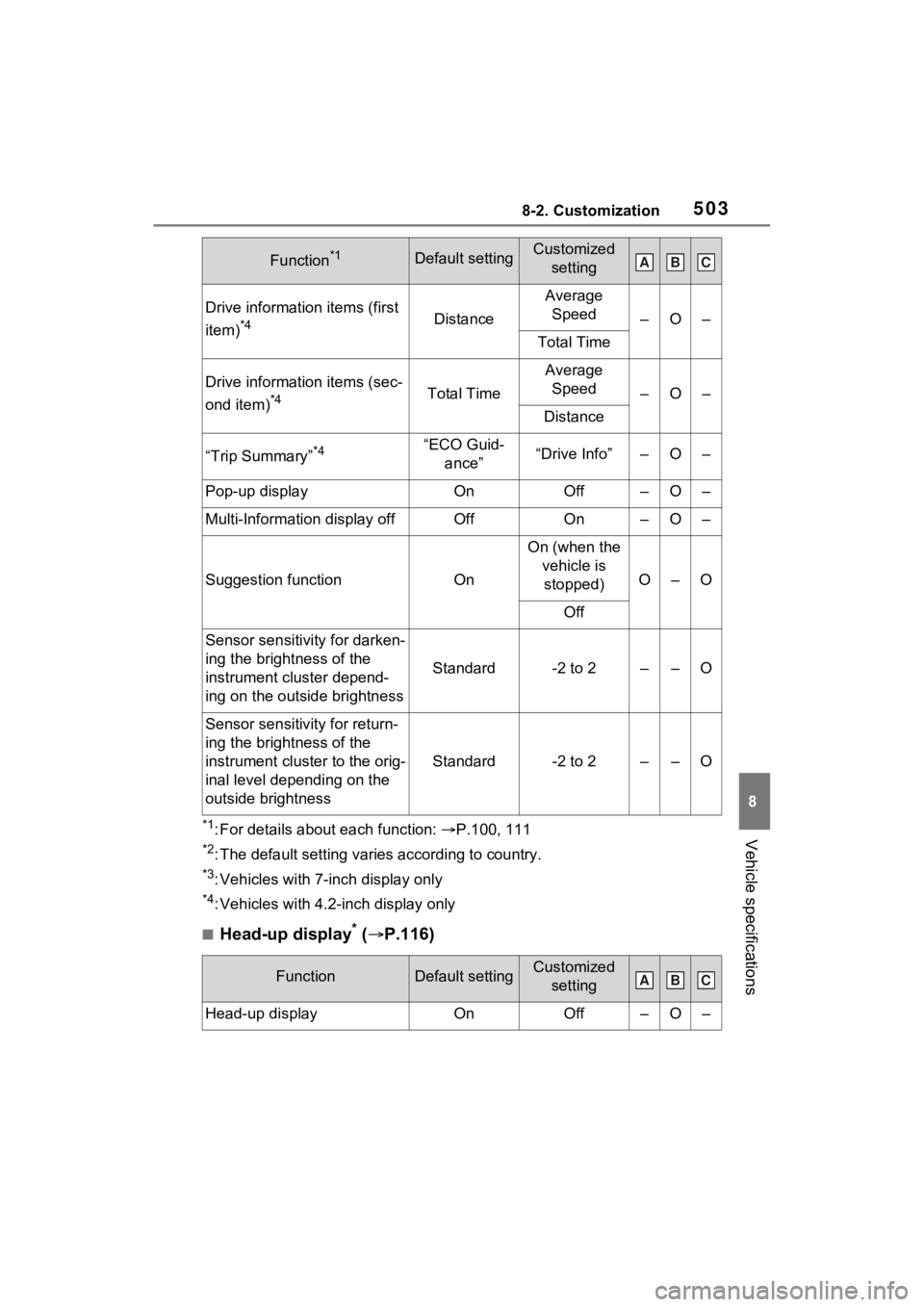

■Head-up display* ( P.116)
Drive informatio n items (first
item)
*4Distance
Average Speed
–O–
Total Time
Drive information items (sec-
ond item)
*4Total Time
Average Speed
–O–
Distance
“Trip Summary”*4“ECO Guid- ance”“Drive Info”–O–
Pop-up displayOnOff–O–
Multi-Information display offOffOn–O–
Suggestion functionOn
On (when the vehicle is stopped)
O–O
Off
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depend-
ing on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for return-
ing the brightness of the
instrument cluster to the orig-
inal level depending on the
outside brightness
Standard-2 to 2––O
FunctionDefault settingCustomized setting
Head-up displayOnOff–O–
Function*1Default settingCustomized settingABC
ABC

5048-2. Customization
*: If equipped
■Door lock (P.131, 467)

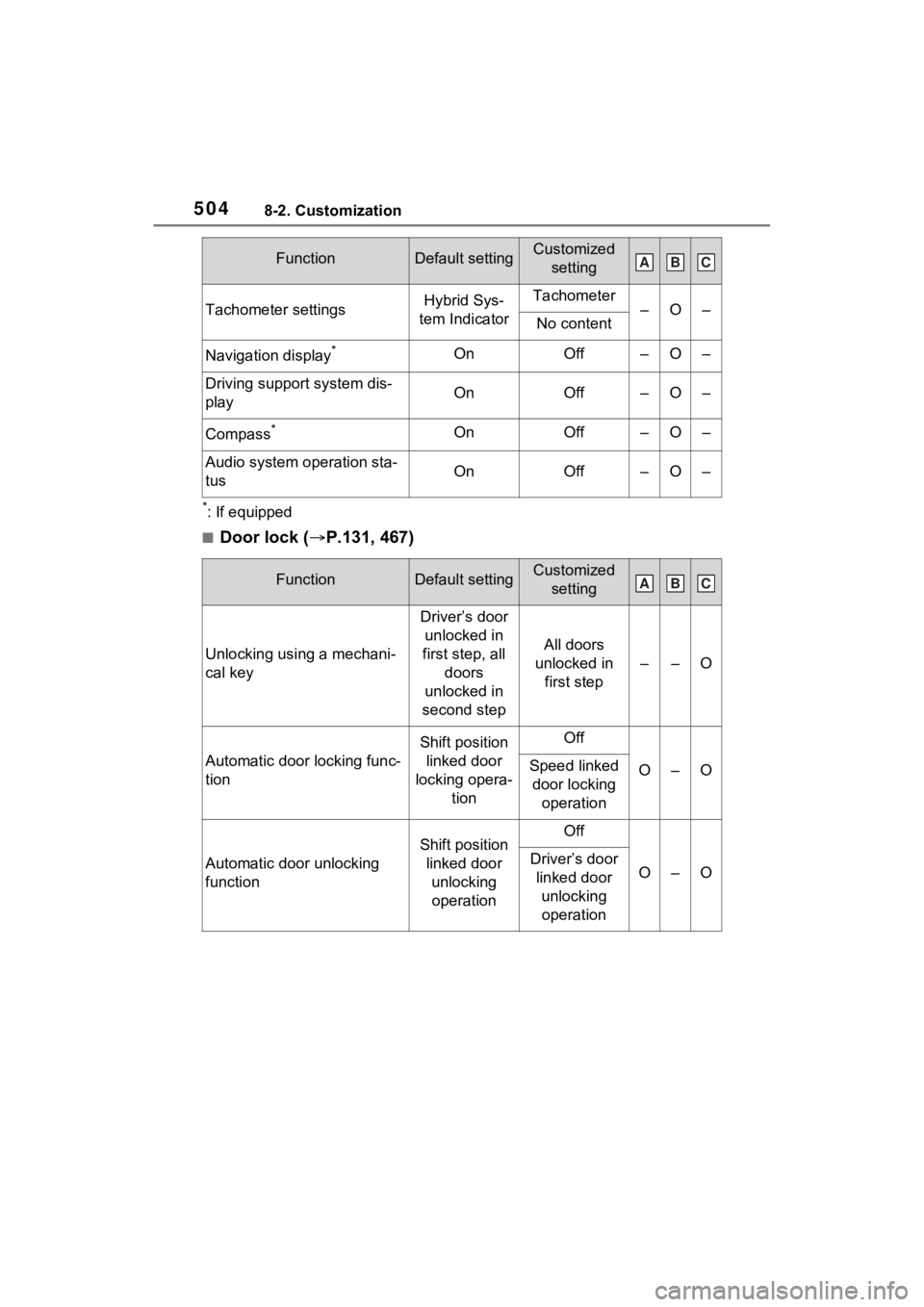

Tachometer settingsHybrid Sys-
tem IndicatorTachometer–O–No content
Navigation display*OnOff–O–
Driving support system dis-
playOnOff–O–
Compass*OnOff–O–
Audio system operation sta-
tusOnOff–O–
FunctionDefault settingCustomized setting
Unlocking using a mechani-
cal key
Driver’s door unlocked in
first step, all doors
unlocked in
second step
All doors
unlocked in first step
––O
Automatic door locking func-
tion
Shift position linked door
locking opera- tionOff
O–OSpeed linked door locking operation
Automatic door unlocking
function
Shift position linked door unlocking operationOff
O–ODriver’s door linked door unlocking operation
FunctionDefault settingCustomized settingABC
ABC

5058-2. Customization
8
Vehicle specifications

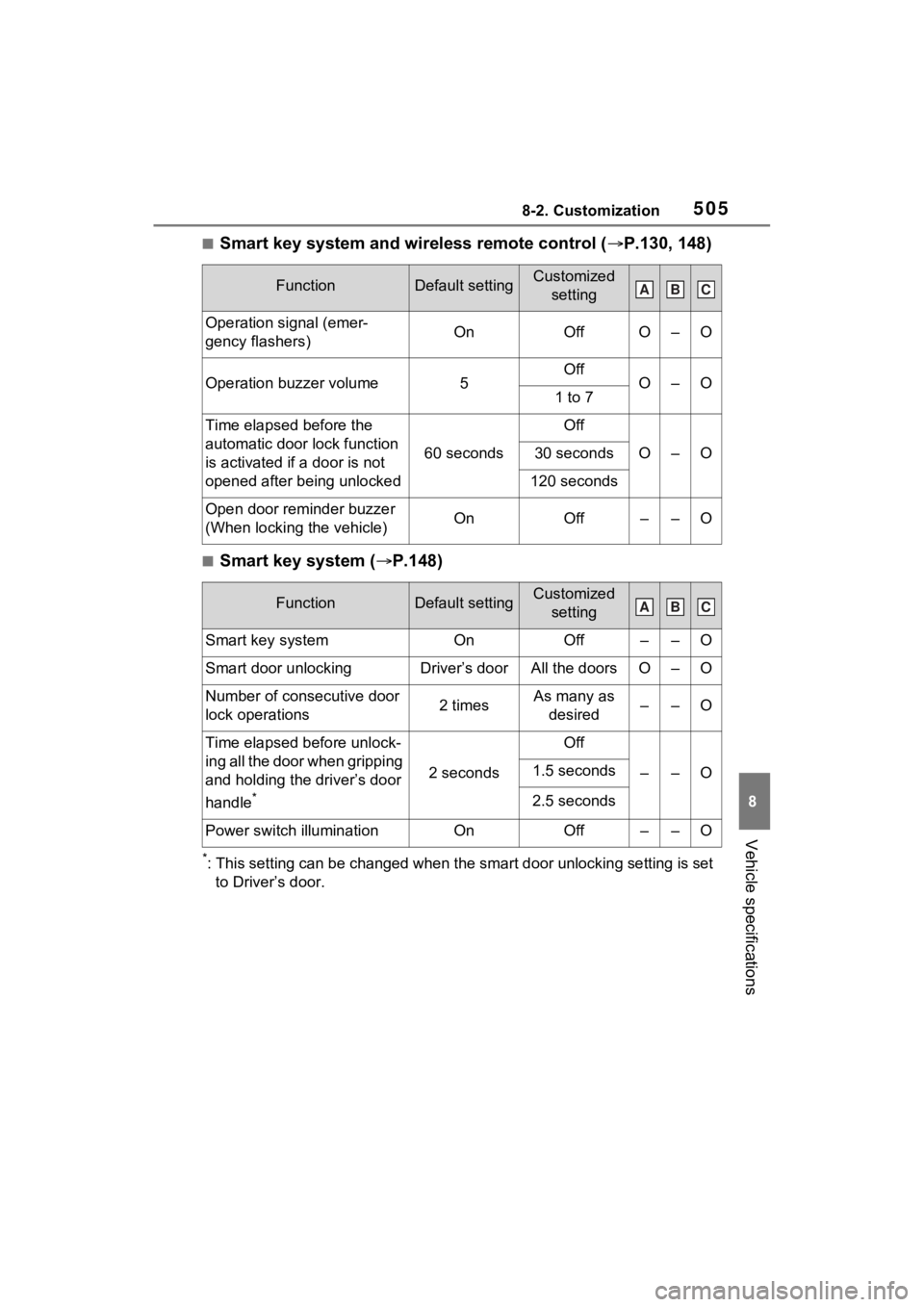

■Smart key system and wireless remote control (P.130, 148)
■Smart key system ( P.148)
*: This setting can be changed when the smart door unlocking sett ing is set
to Driver’s door.
FunctionDefault settingCustomized setting
Operation signal (emer-
gency flashers)OnOffO–O
Operation buzzer volume5OffO–O1 to 7
Time elapsed before the
automatic door lock function
is activated if a door is not
opened after being unlocked
60 seconds
Off
O–O30 seconds
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff––O
FunctionDefault settingCustomized setting
Smart key systemOnOff––O
Smart door unlockingDriver’s doorAll the doorsO–O
Number of consecutive door
lock operations2 timesAs many as desired––O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
*
2 seconds
Off
––O1.5 seconds
2.5 seconds
Power switch illuminationOnOff––O
ABC
ABC

5068-2. Customization

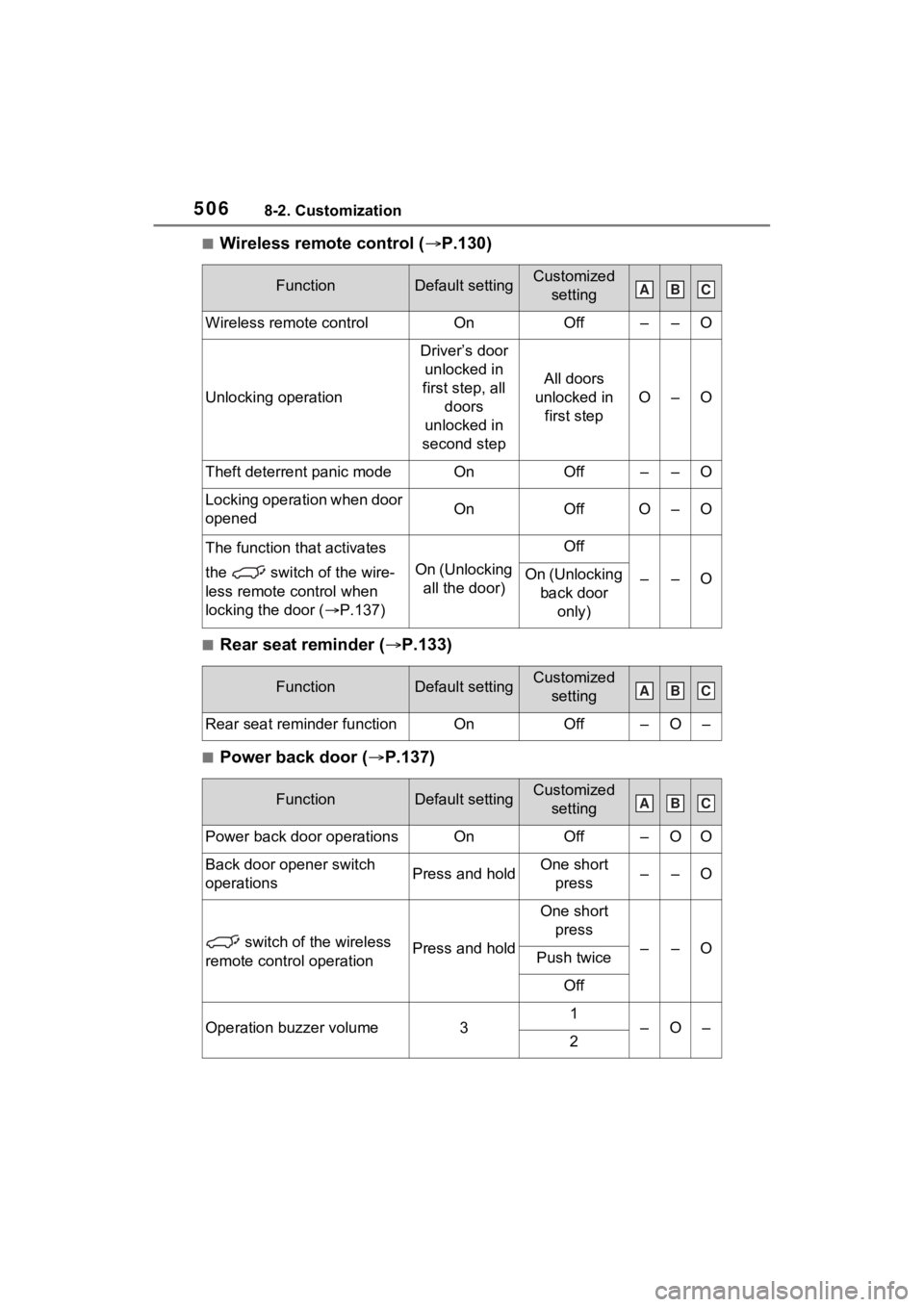

■Wireless remote control (P.130)
■Rear seat reminder (P.133)
■Power back door ( P.137)
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff––O
Unlocking operation
Driver’s door unlocked in
first step, all doors
unlocked in
second step
All doors
unlocked in first step
O–O
Theft deterrent panic modeOnOff––O
Locking operation when door
openedOnOffO–O
The function that activates
the switch of the wire-
less remote control when
locking the door ( P.137)
On (Unlocking
all the door)
Off
––OOn (Unlocking back door only)
FunctionDefault settingCustomized setting
Rear seat reminder functionOnOff–O–
FunctionDefault settingCustomized setting
Power back door operationsOnOff–OO
Back door opener switch
operationsPress and holdOne short press––O
switch of the wireless
remote control operationPress and hold
One short press
––OPush twice
Off
Operation buzzer volume31–O–2
ABC
ABC
ABC

5078-2. Customization
8
Vehicle specifications

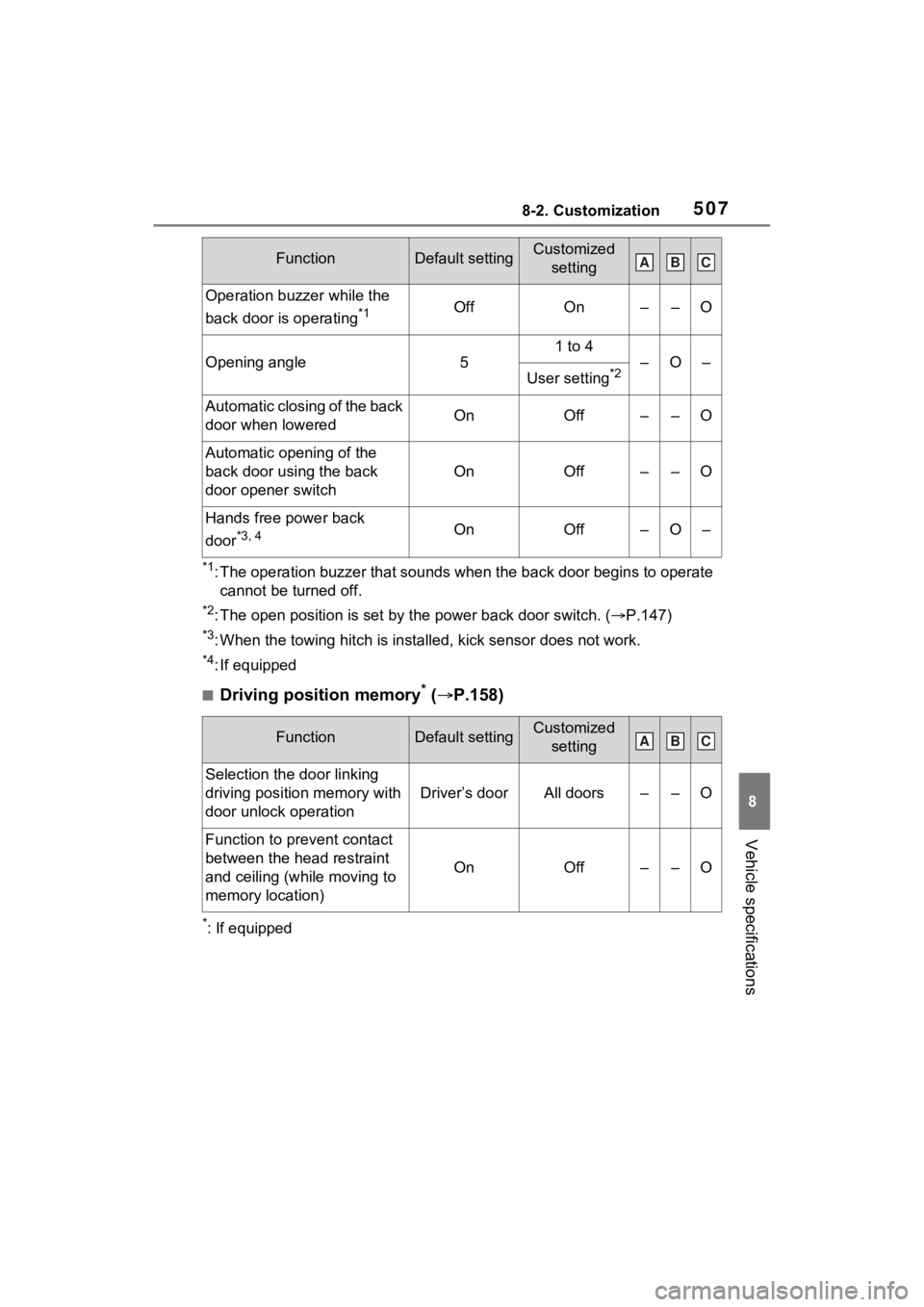

*1: The operation buzzer that sounds when the back door begins to operate
cannot be turned off.
*2: The open position is set by the power back door switch. ( P.147)
*3: When the towing hitch is installed, kick sensor does not work.
*4: If equipped
■Driving position memory* ( P.158)
*: If equipped
Operation buzzer while the
back door is operating
*1OffOn––O
Opening angle5
1 to 4
–O–
User setting*2
Automatic closing of the back
door when loweredOnOff––O
Automatic opening of the
back door using the back
door opener switch
OnOff––O
Hands free power back
door
*3, 4OnOff–O–
FunctionDefault settingCustomized
setting
Selection the door linking
driving position memory with
door unlock operation
Driver’s doorAll doors––O
Function to prevent contact
between the head restraint
and ceiling (while moving to
memory location)
OnOff––O
FunctionDefault settingCustomized settingABC
ABC

5088-2. Customization

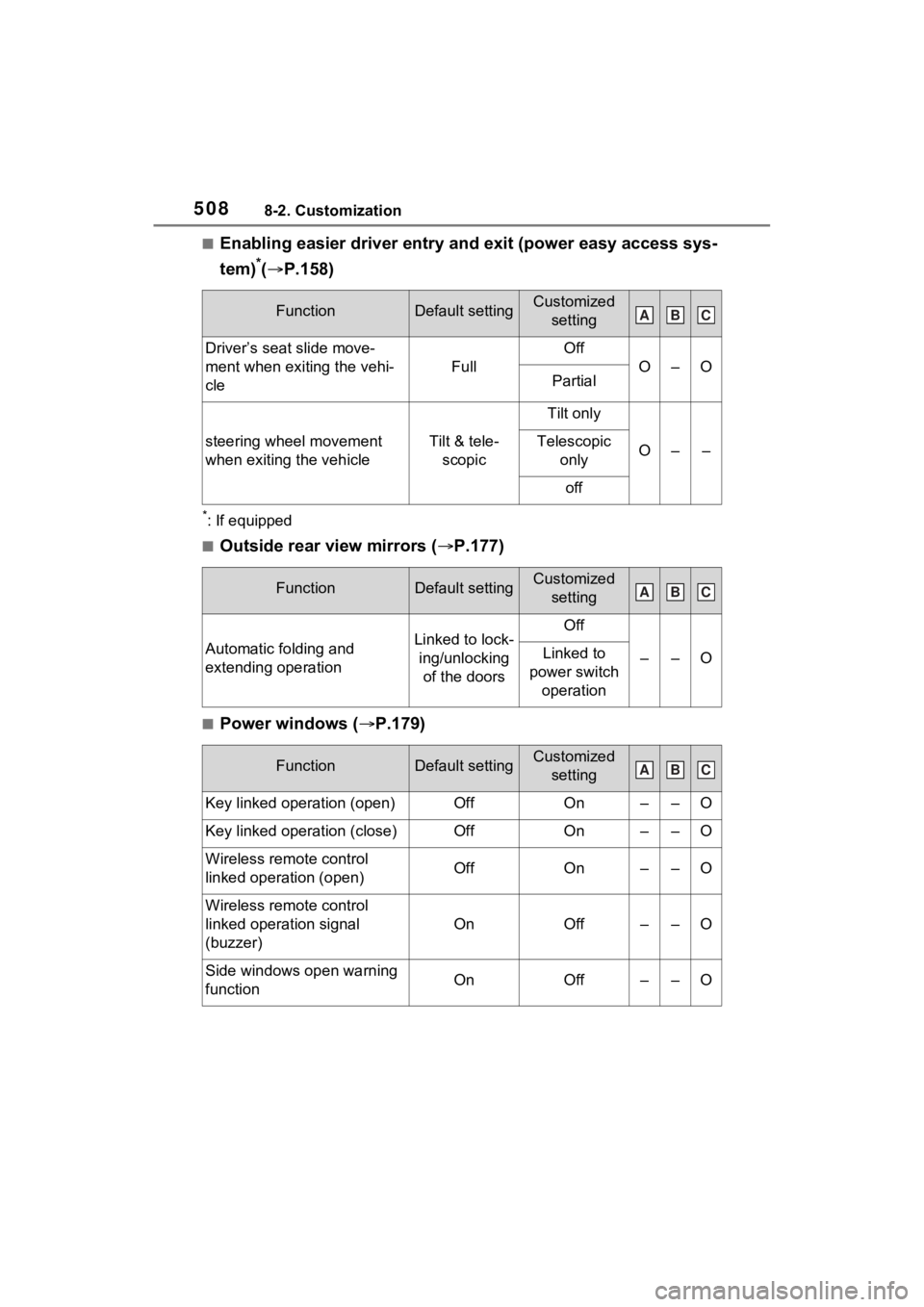

■Enabling easier driver entry and exit (power easy access sys-
tem)
*(P.158)
*: If equipped
■Outside rear view mirrors ( P.177)
■Power windows (P.179)
FunctionDefault settingCustomized
setting
Driver’s seat slide move-
ment when exiting the vehi-
cle
Full
Off
O–OPartial
steering wheel movement
when exiting the vehicleTilt & tele-scopic
Tilt only
O––Telescopic only
off
FunctionDefault settingCustomized setting
Automatic folding and
extending operationLinked to lock-ing/unlocking of the doorsOff
––OLinked to
power switch operation
FunctionDefault settingCustomized setting
Key linked operation (open)OffOn––O
Key linked operation (close)OffOn––O
Wireless remote control
linked operation (open)OffOn––O
Wireless remote control
linked operation signal
(buzzer)
OnOff––O
Side windows open warning
functionOnOff––O
ABC
ABC
ABC

5098-2. Customization
8
Vehicle specifications

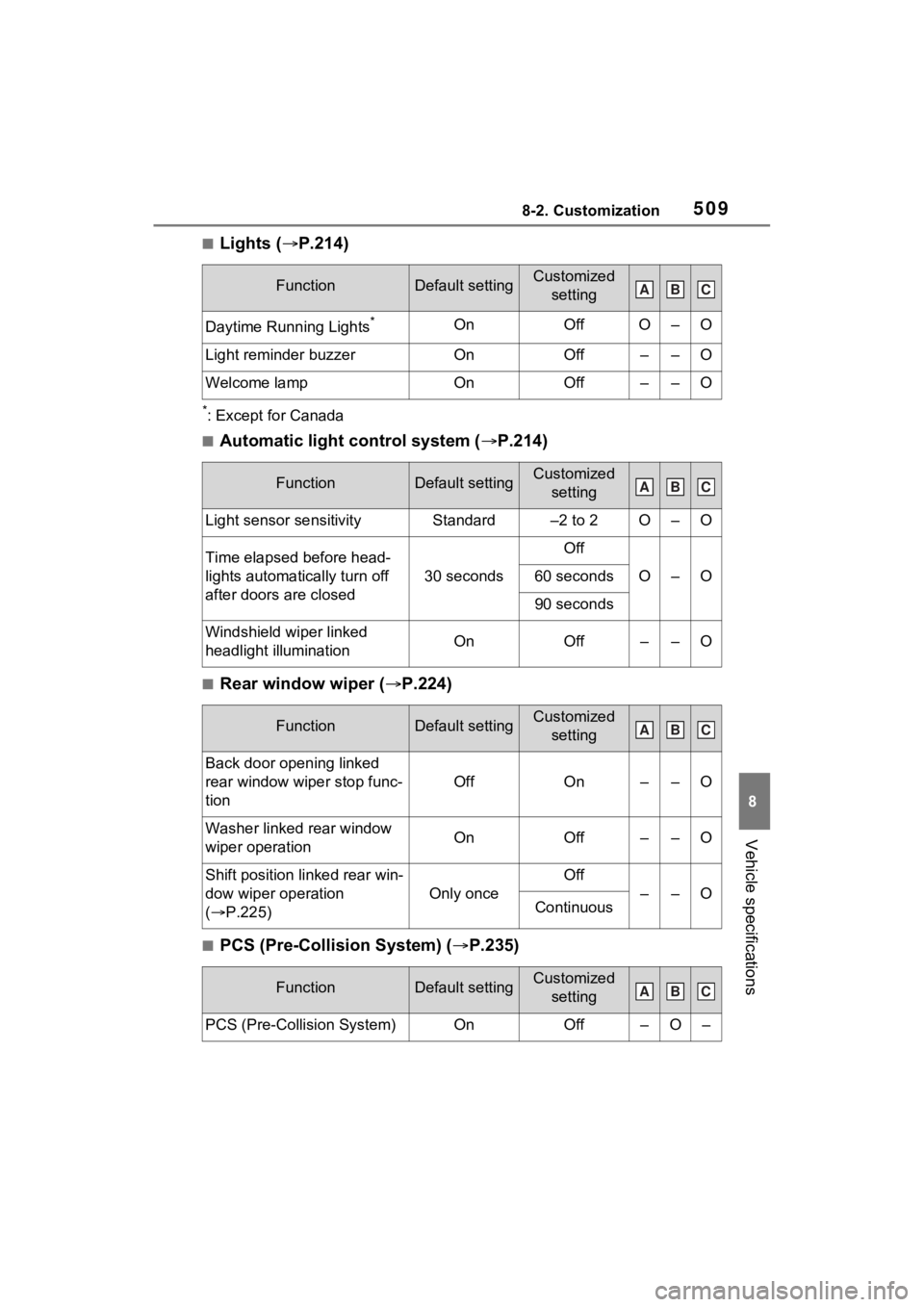

■Lights (P.214)
*: Except for Canada
■Automatic light control system ( P.214)
■Rear window wiper ( P.224)
■PCS (Pre-Collision System) ( P.235)
FunctionDefault settingCustomized
setting
Daytime Running Lights*OnOffO–O
Light reminder buzzerOnOff––O
Welcome lampOnOff––O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard–2 to 2O–O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O–O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff––O
FunctionDefault settingCustomized setting
Back door opening linked
rear window wiper stop func-
tion
OffOn––O
Washer linked rear window
wiper operationOnOff––O
Shift position linked rear win-
dow wiper operation
(  P.225)
Only once
Off
––OContinuous
FunctionDefault settingCustomized
setting
PCS (Pre-Collision System)OnOff–O–
ABC
ABC
ABC
ABC

5108-2. Customization

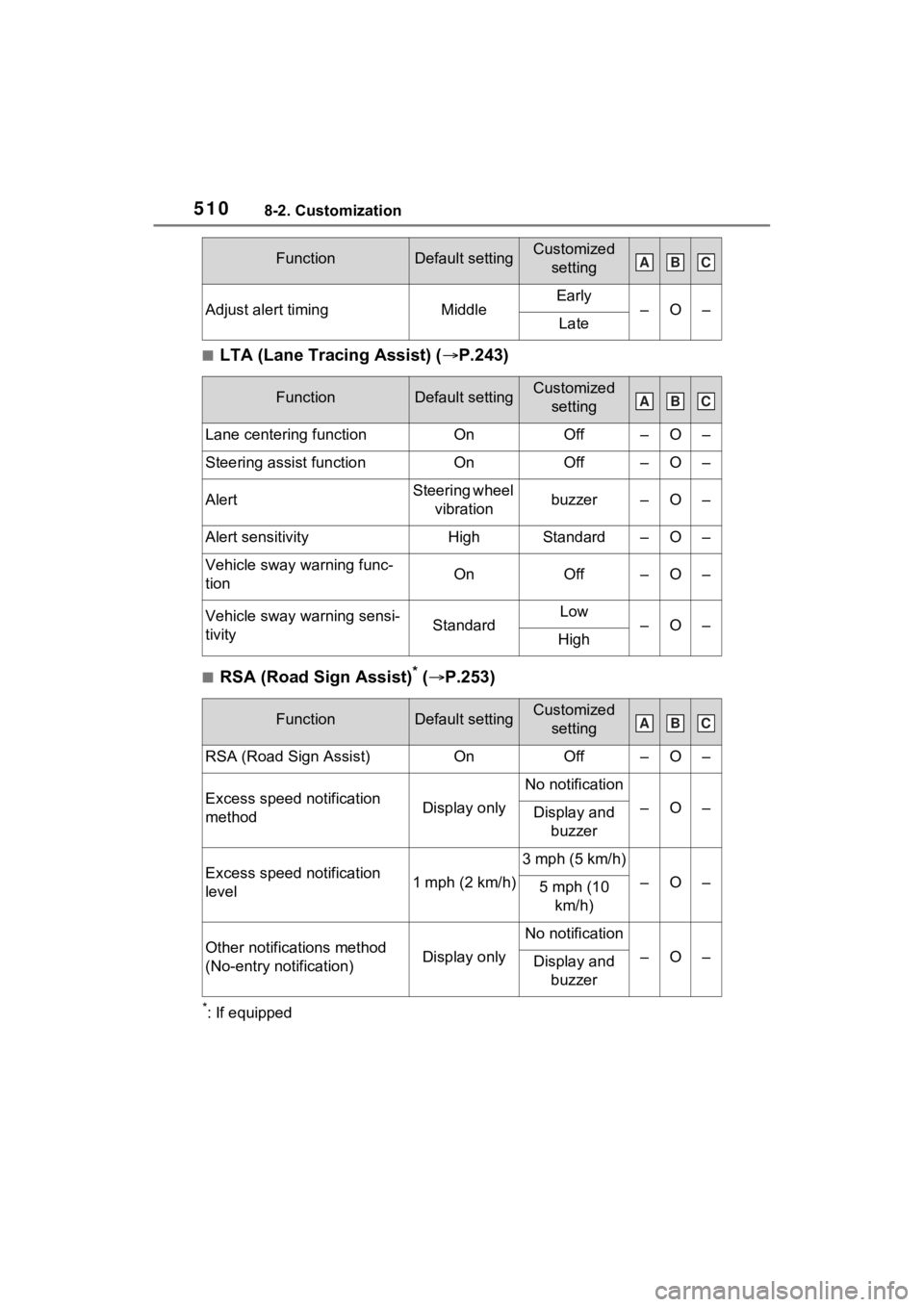

■LTA (Lane Tracing Assist) (P.243)
■RSA (Road Sign Assist)* ( P.253)
*: If equipped
Adjust alert timingMiddleEarly–O–Late
FunctionDefault settingCustomized
setting
Lane centering functionOnOff–O–
Steering assist functionOnOff–O–
AlertSteering wheel vibrationbuzzer–O–
Alert sensitivityHighStandard–O–
Vehicle sway warning func-
tionOnOff–O–
Vehicle sway warning sensi-
tivityStandardLow–O–High
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff–O–
Excess speed notification
methodDisplay only
No notification
–O–Display and buzzer
Excess speed notification
level1 mph (2 km/h)
3 mph (5 km/h)
–O–5 mph (10 km/h)
Other notifications method
(No-entry notification)Display only
No notification
–O–Display and buzzer
FunctionDefault settingCustomized settingABC
ABC
ABC
