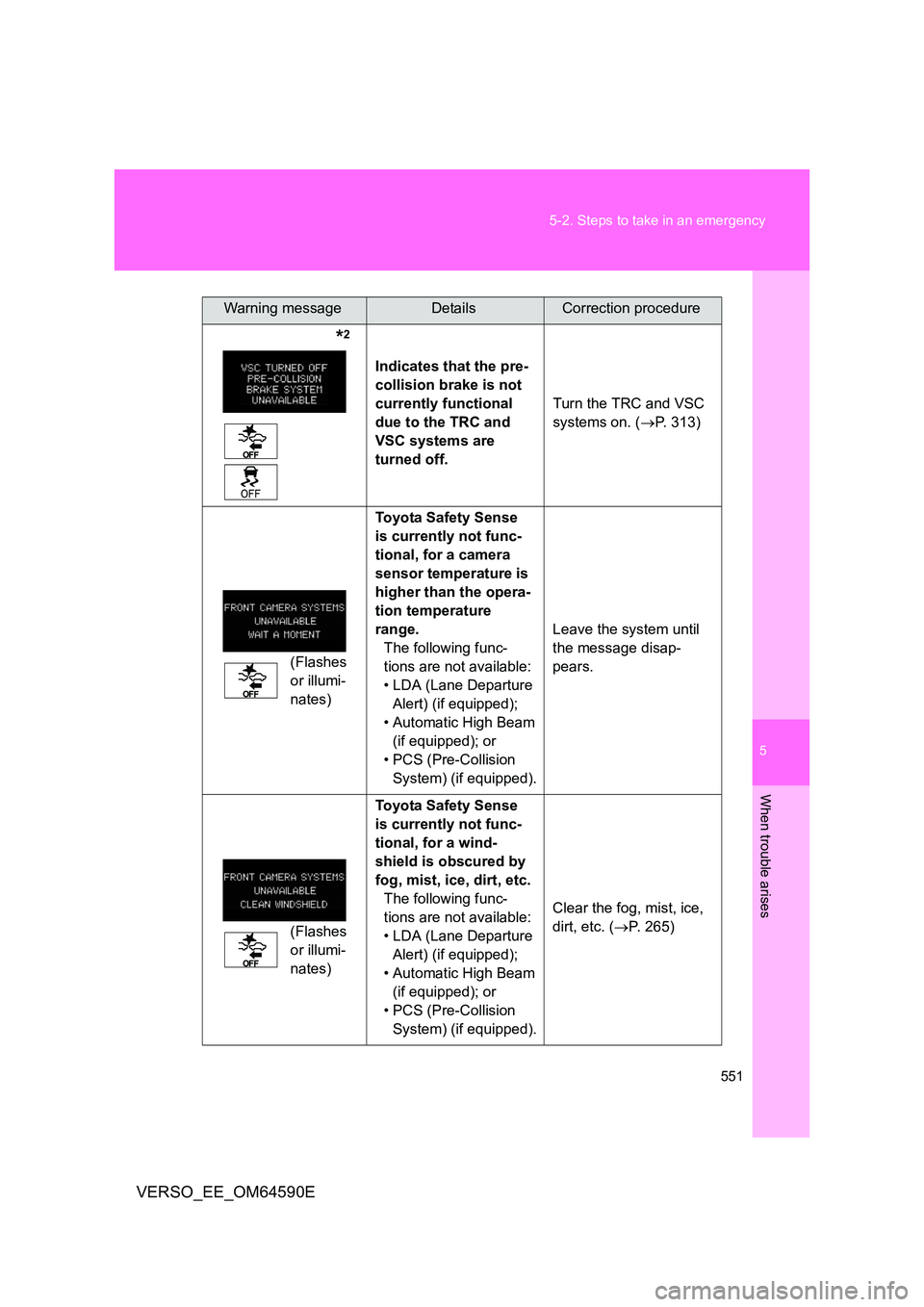

5
551
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
*2

Indicates that the pre-
collision brake is not
currently functional
due to the TRC and
VSC systems are
turned off.
Turn the TRC and VSC
systems on. ( P. 313)
(Flashes
or illumi-
nates)
Toyota Safety Sense
is currently not func-
tional, for a camera
sensor temperature is
higher than the opera-
tion temperature
range.
The following func-
tions are not available:
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped); or
• PCS (Pre-Collision
System) (if equipped).
Leave the system until
the message disap-
pears.
(Flashes
or illumi-
nates)
Toyota Safety Sense
is currently not func-
tional, for a wind-
shield is obscured by
fog, mist, ice, dirt, etc.
The following func-
tions are not available:
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped); or
• PCS (Pre-Collision
System) (if equipped).
Clear the fog, mist, ice,
dirt, etc. ( P. 265)
Warning messageDetailsCorrection procedure

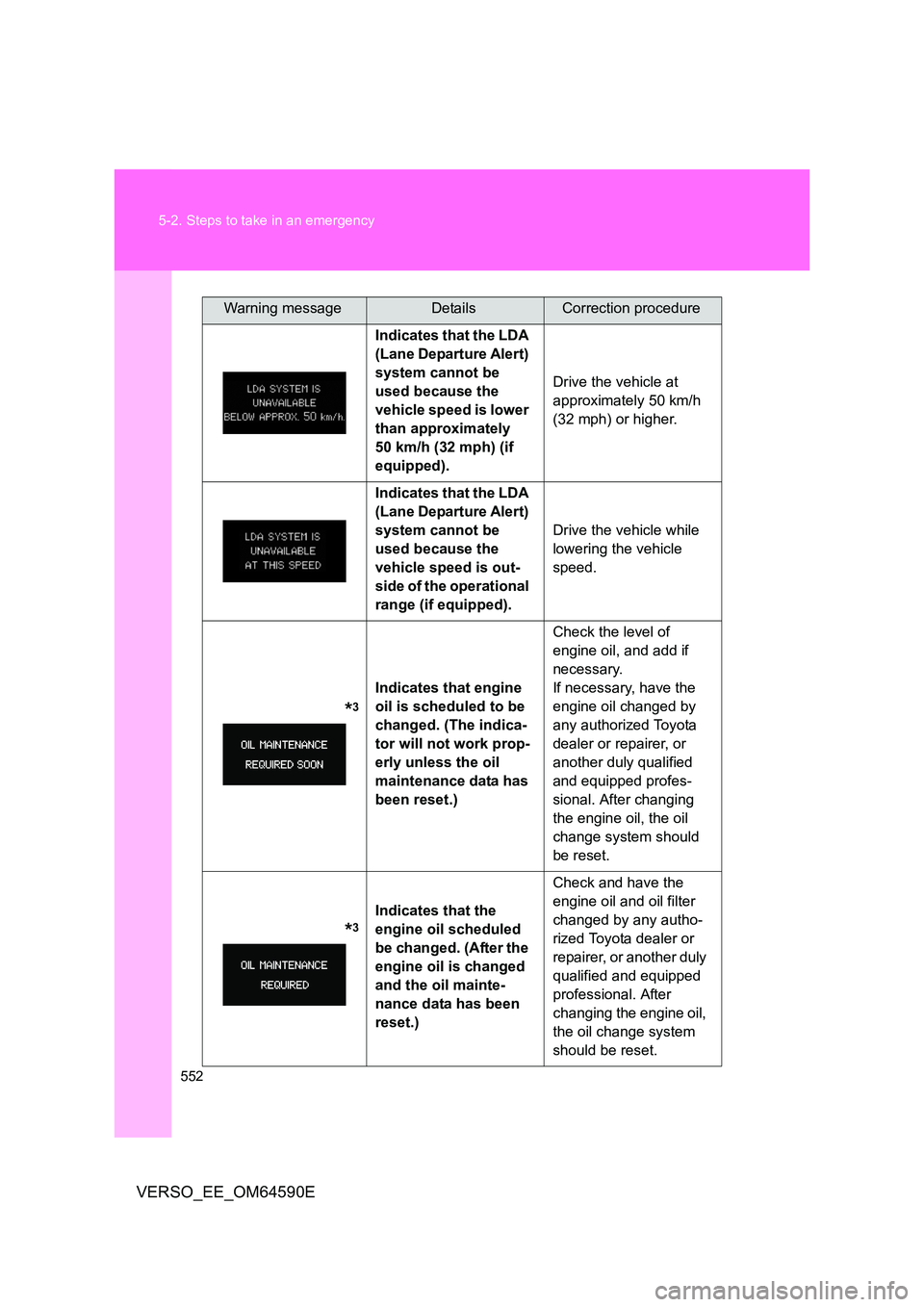

552
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is lower
than approximately
50 km/h (32 mph) (if
equipped).
Drive the vehicle at
approximately 50 km/h
(32 mph) or higher.
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is out-
side of the operational
range (if equipped).
Drive the vehicle while
lowering the vehicle
speed.
*3
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)
Check the level of
engine oil, and add if
necessary.
If necessary, have the
engine oil changed by
any authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
*3
Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)
Check and have the
engine oil and oil filter
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
Warning messageDetailsCorrection procedure

5

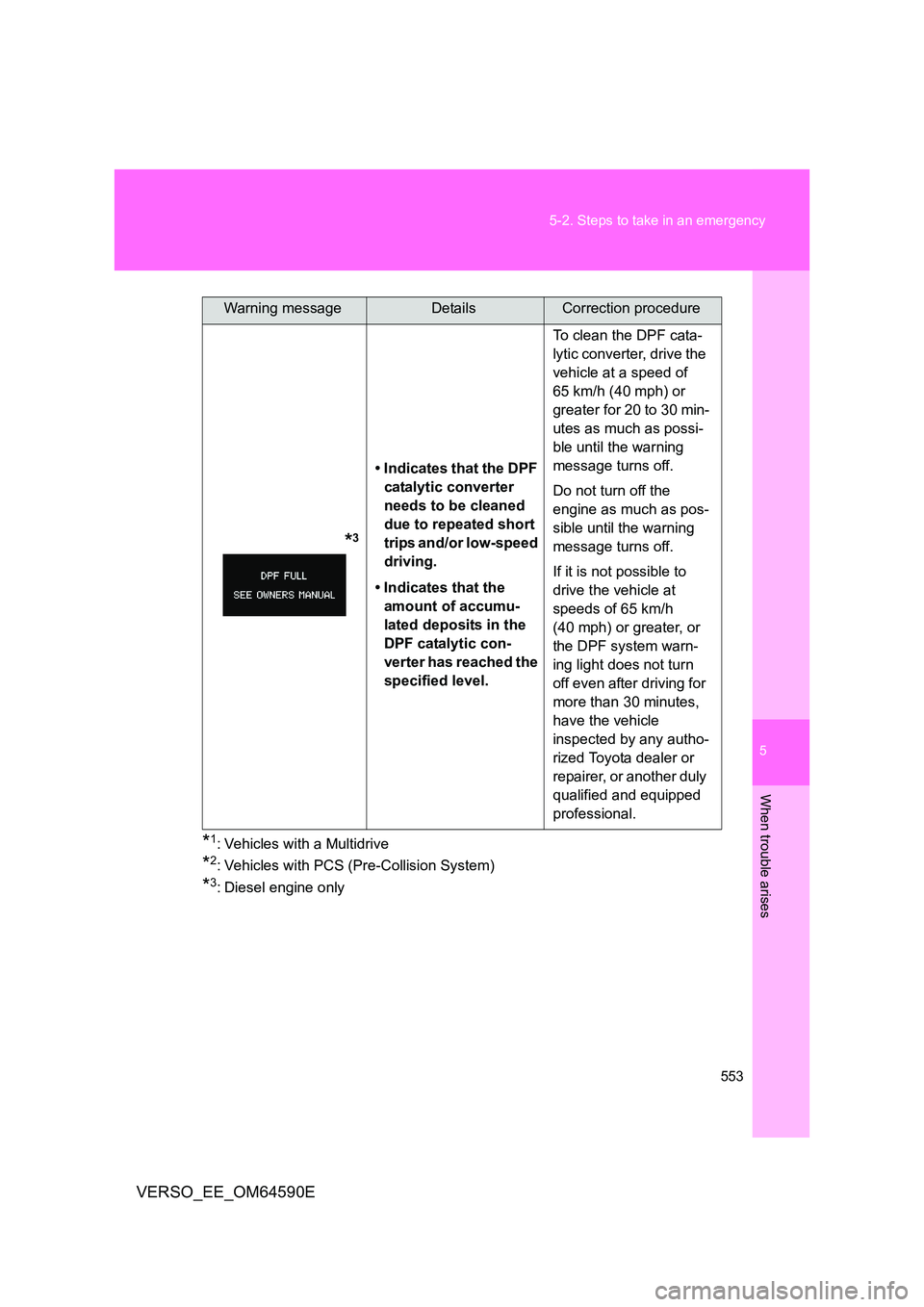

553
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
*1: Vehicles with a Multidrive
*2: Vehicles with PCS (Pre-Collision System)
*3: Diesel engine only
*3
• Indicates that the DPF
catalytic converter
needs to be cleaned
due to repeated short
trips and/or low-speed
driving.
• Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean the DPF cata-
lytic converter, drive the
vehicle at a speed of
65 km/h (40 mph) or
greater for 20 to 30 min-
utes as much as possi-
ble until the warning
message turns off.
Do not turn off the
engine as much as pos-
sible until the warning
message turns off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h
(40 mph) or greater, or
the DPF system warn-
ing light does not turn
off even after driving for
more than 30 minutes,
have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
Warning messageDetailsCorrection procedure

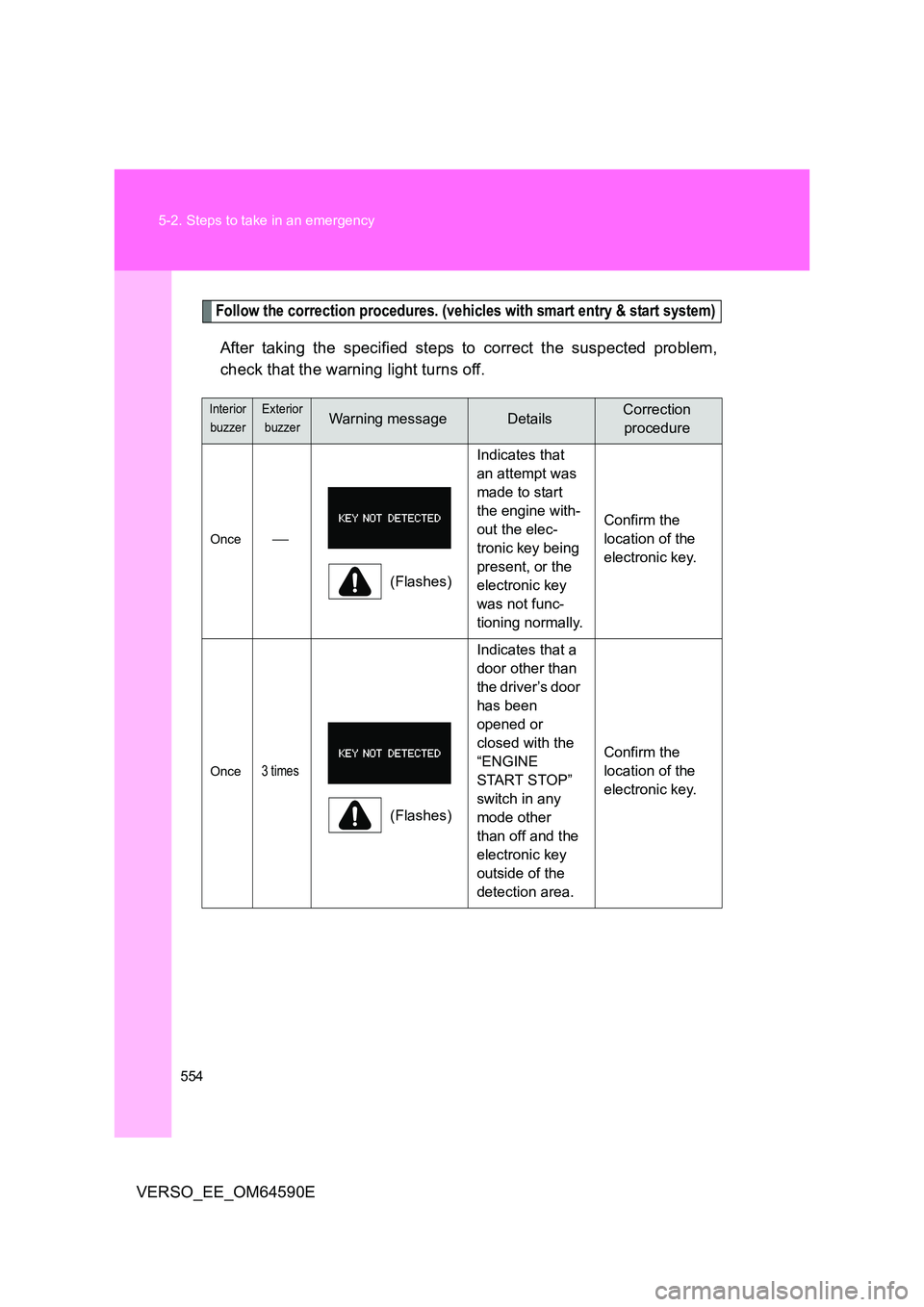

554
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)
Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.
Confirm the
location of the
electronic key.
Once3 times
(Flashes)
Indicates that a
door other than
the driver’s door
has been
opened or
closed with the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key.

5

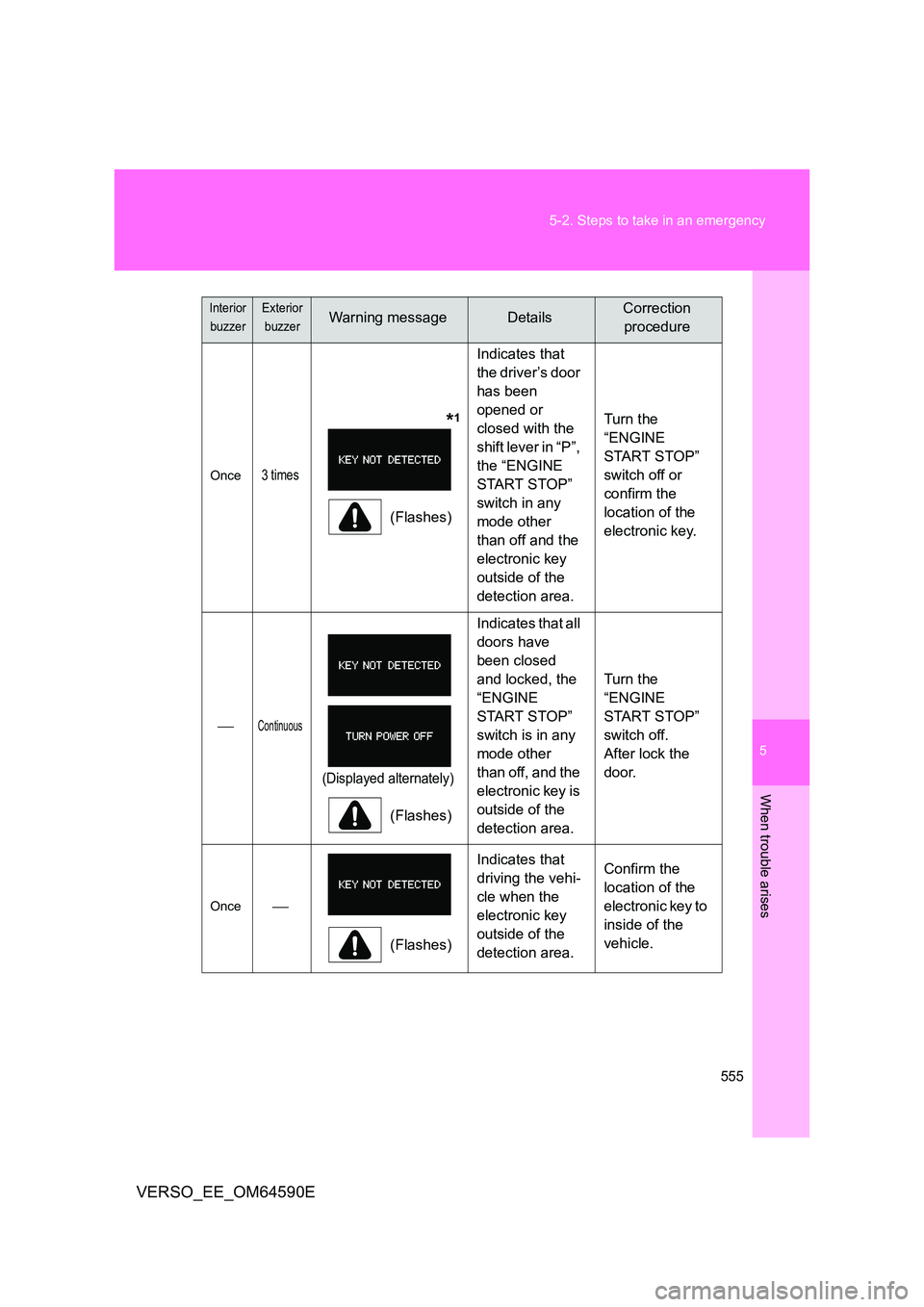

555
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Once3 times
*1
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift lever in “P”,
the “ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off or
confirm the
location of the
electronic key.
Continuous
(Displayed alternately)
(Flashes)
Indicates that all
doors have
been closed
and locked, the
“ENGINE
START STOP”
switch is in any
mode other
than off, and the
electronic key is
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off.
After lock the
door.
Once
(Flashes)
Indicates that
driving the vehi-
cle when the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key to
inside of the
vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

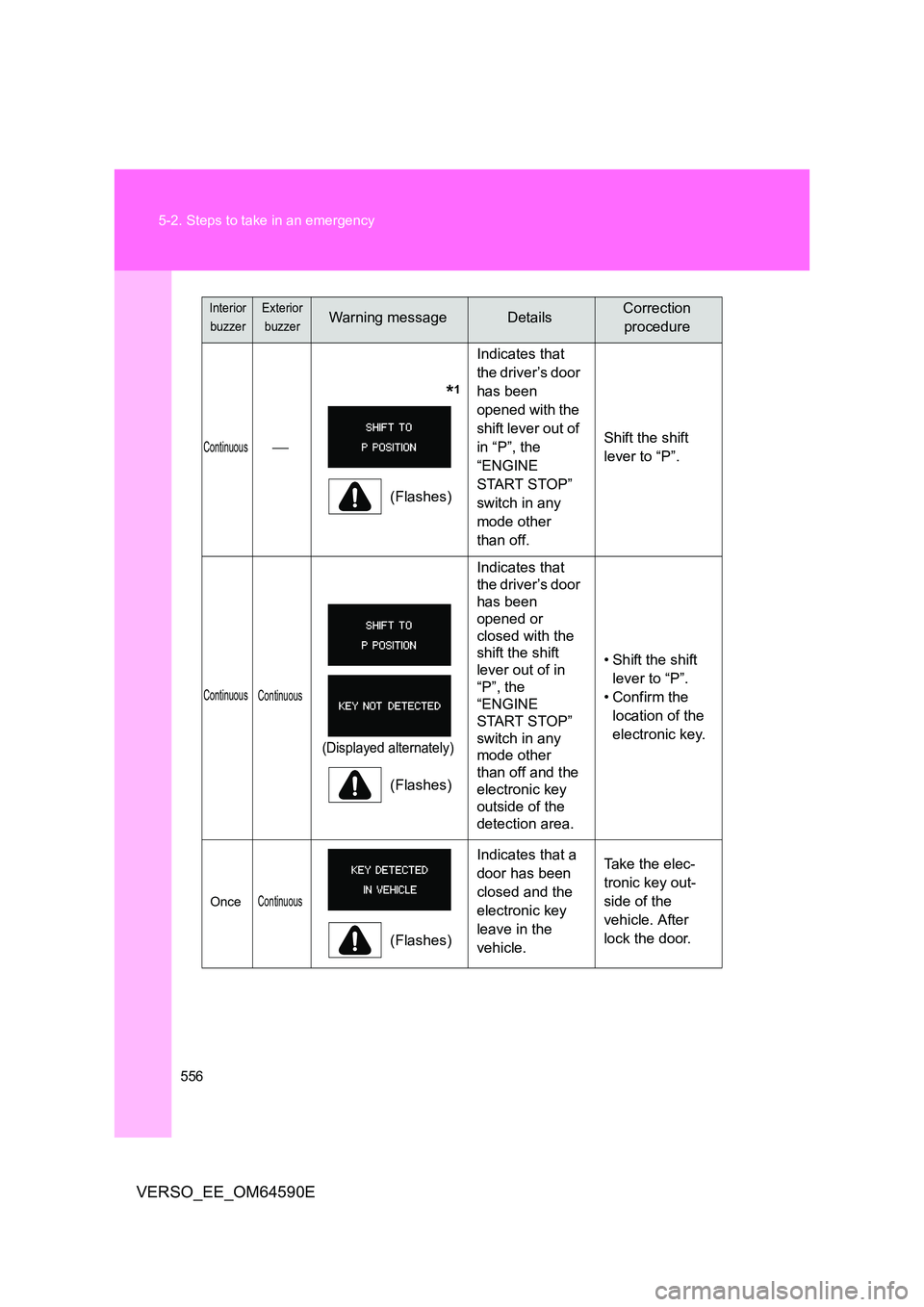

556
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Continuous
*1
(Flashes)
Indicates that
the driver’s door
has been
opened with the
shift lever out of
in “P”, the
“ENGINE
START STOP”
switch in any
mode other
than off.
Shift the shift
lever to “P”.
Continuous Continuous
(Displayed alternately)
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift the shift
lever out of in
“P”, the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
• Shift the shift
lever to “P”.
• Confirm the
location of the
electronic key.
OnceContinuous
(Flashes)
Indicates that a
door has been
closed and the
electronic key
leave in the
vehicle.
Take the elec-
tronic key out-
side of the
vehicle. After
lock the door.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

5

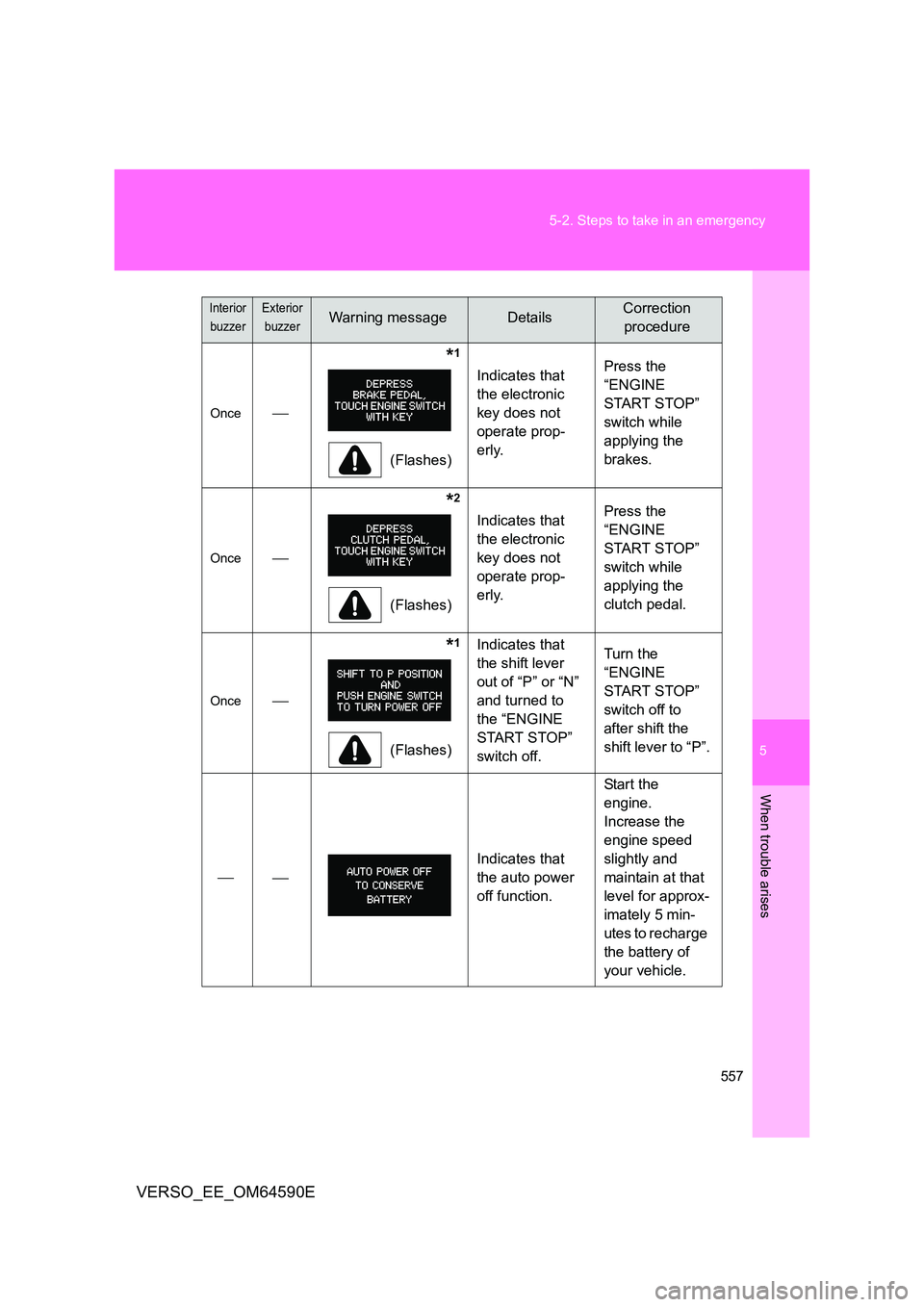

557
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Once
*1
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
*1
(Flashes)
Indicates that
the shift lever
out of “P” or “N”
and turned to
the “ENGINE
START STOP”
switch off.
Turn the
“ENGINE
START STOP”
switch off to
after shift the
shift lever to “P”.
 
Indicates that
the auto power
off function.
Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

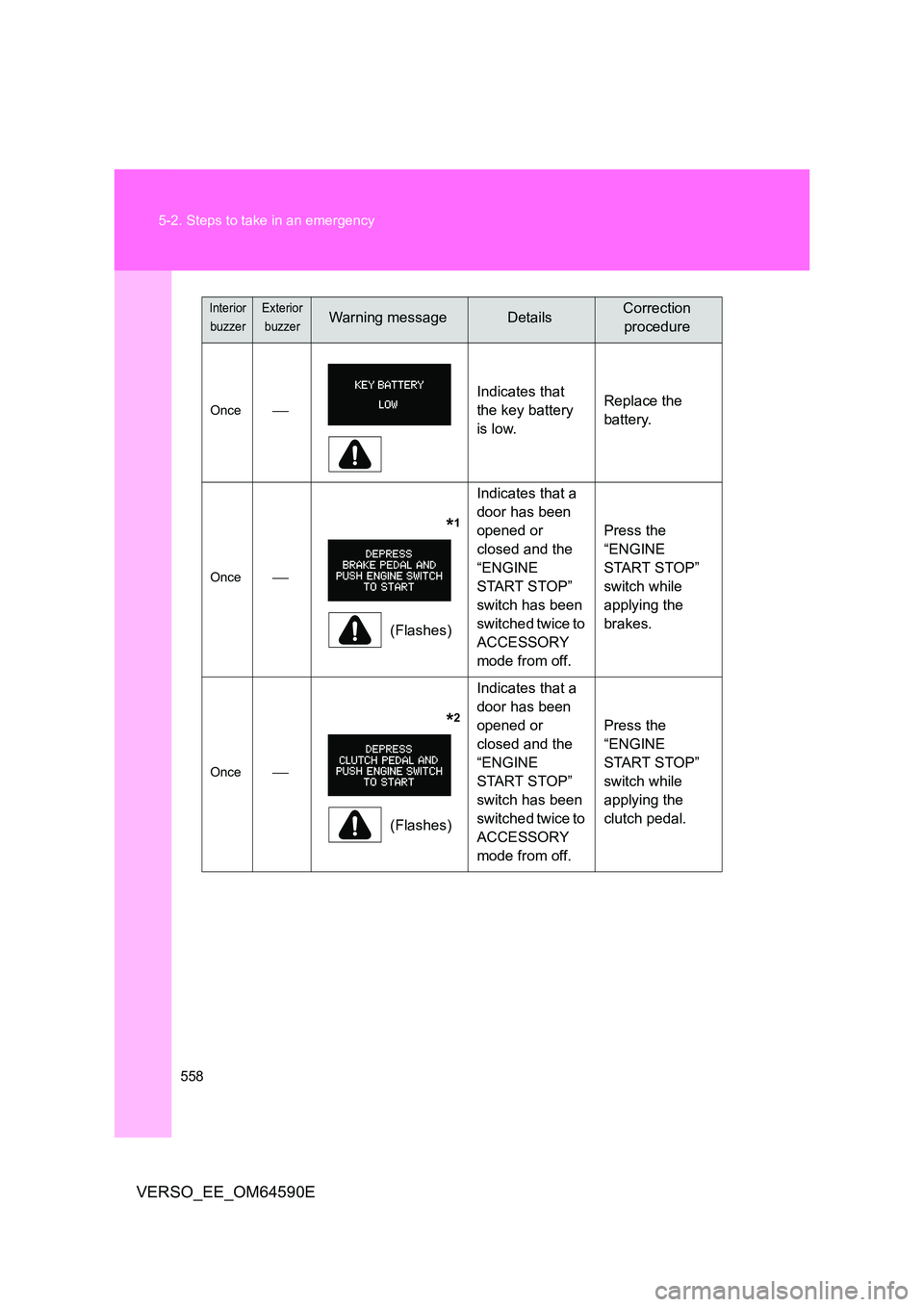

558
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Once
Indicates that
the key battery
is low.
Replace the
battery.
Once
*1
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

5

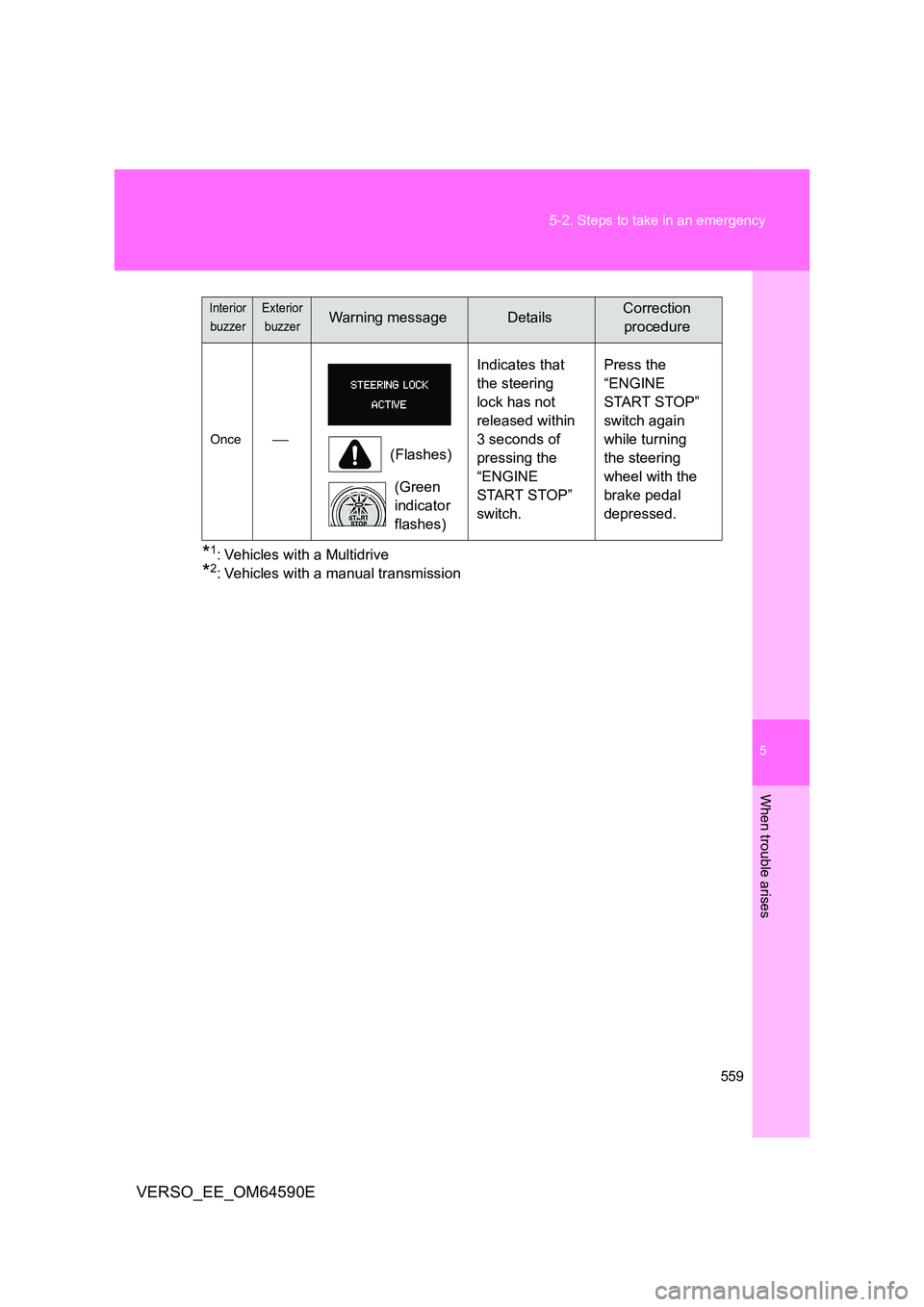

559
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
*1: Vehicles with a Multidrive
*2: Vehicles with a manual transmission
Once (Flashes)
(Green
indicator
flashes)
Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.
Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

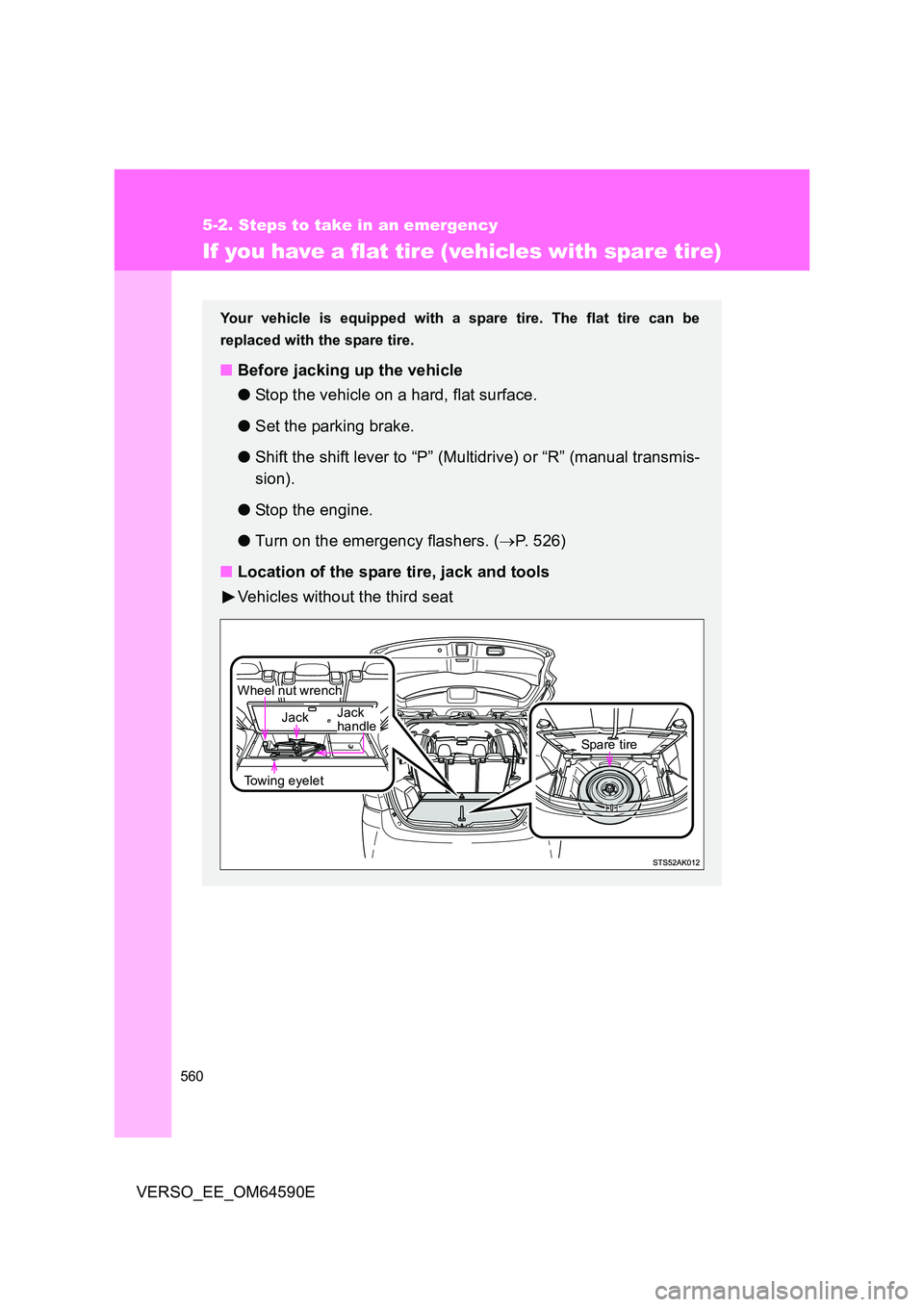

560
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
If you have a flat tire (vehicles with spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■ Before jacking up the vehicle
● Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P” (Multidrive) or “R” (manual transmis-
sion).
● Stop the engine.
● Turn on the emergency flashers. (P. 526)
■ Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack handleJack
Wheel nut wrench
Towing eyelet
