TOYOTA VERSO 2016 Owners Manual

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

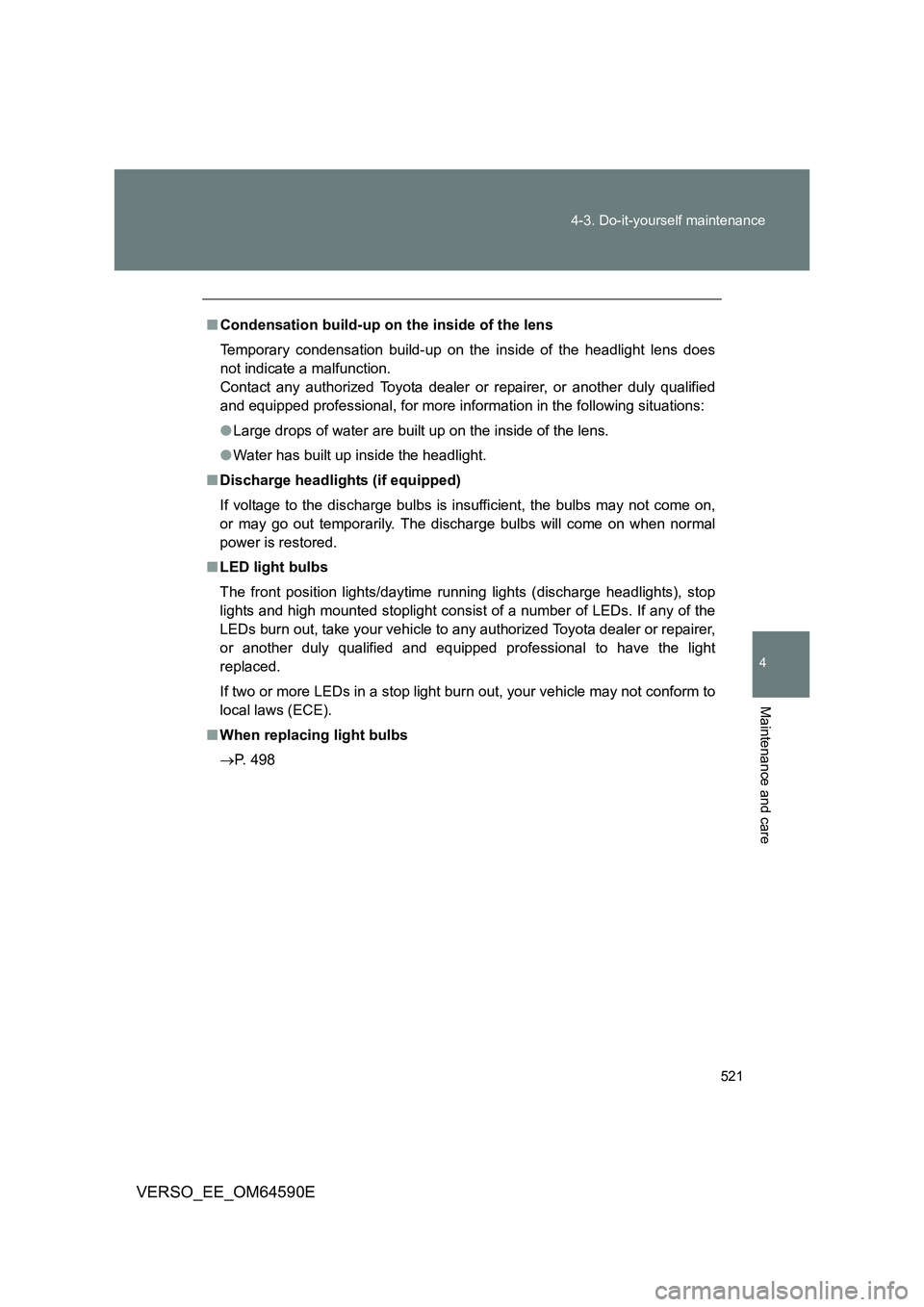

■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The disc harge bulbs will come on when normal
power is restored.
■ LED light bulbs
The front position lights/daytime running lights (discharge headlights), stop
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional to have the light
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ When replacing light bulbs
 P. 498

522
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

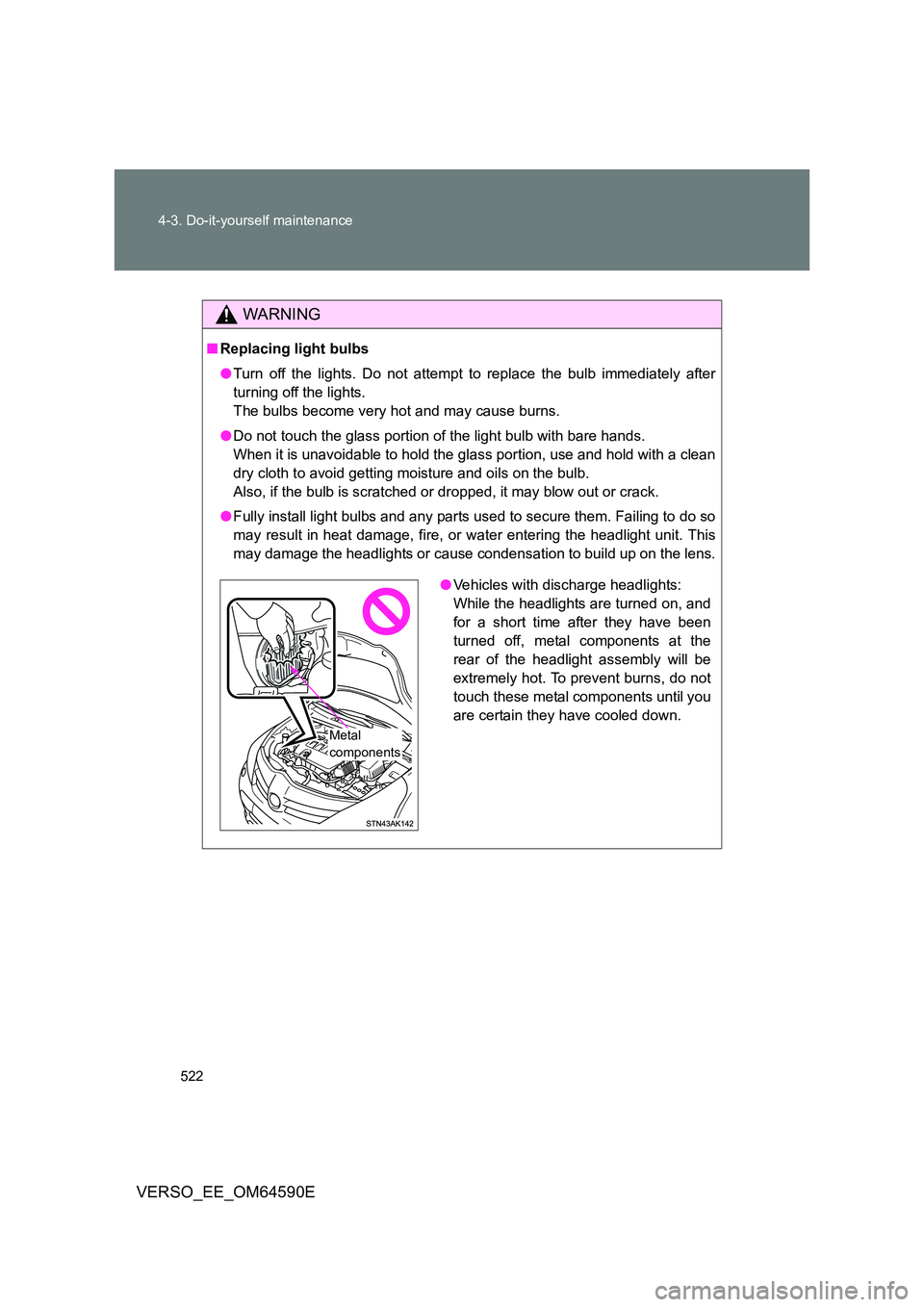

WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the gl ass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
components

523
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

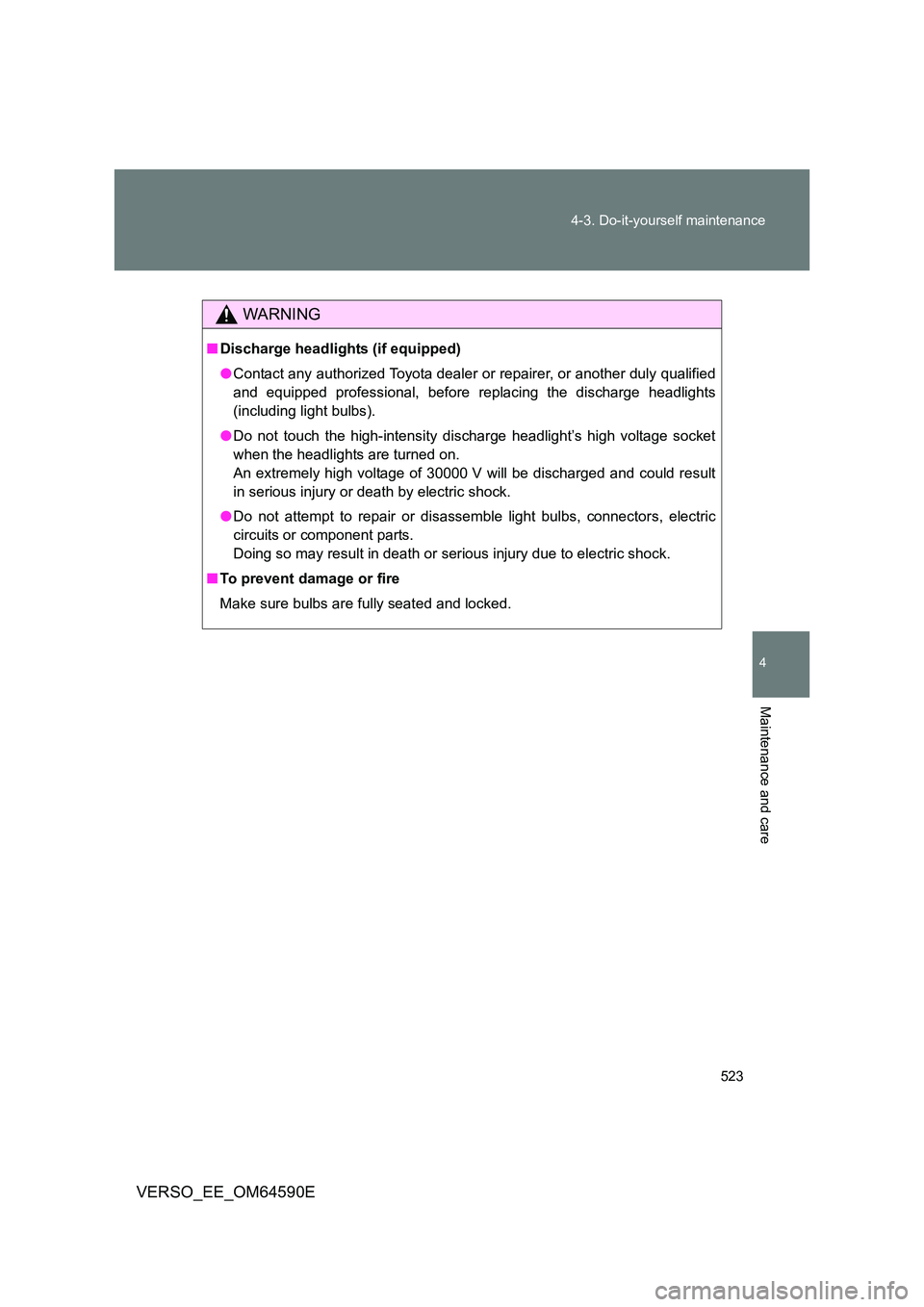

WARNING
■ Discharge headlights (if equipped)
● Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

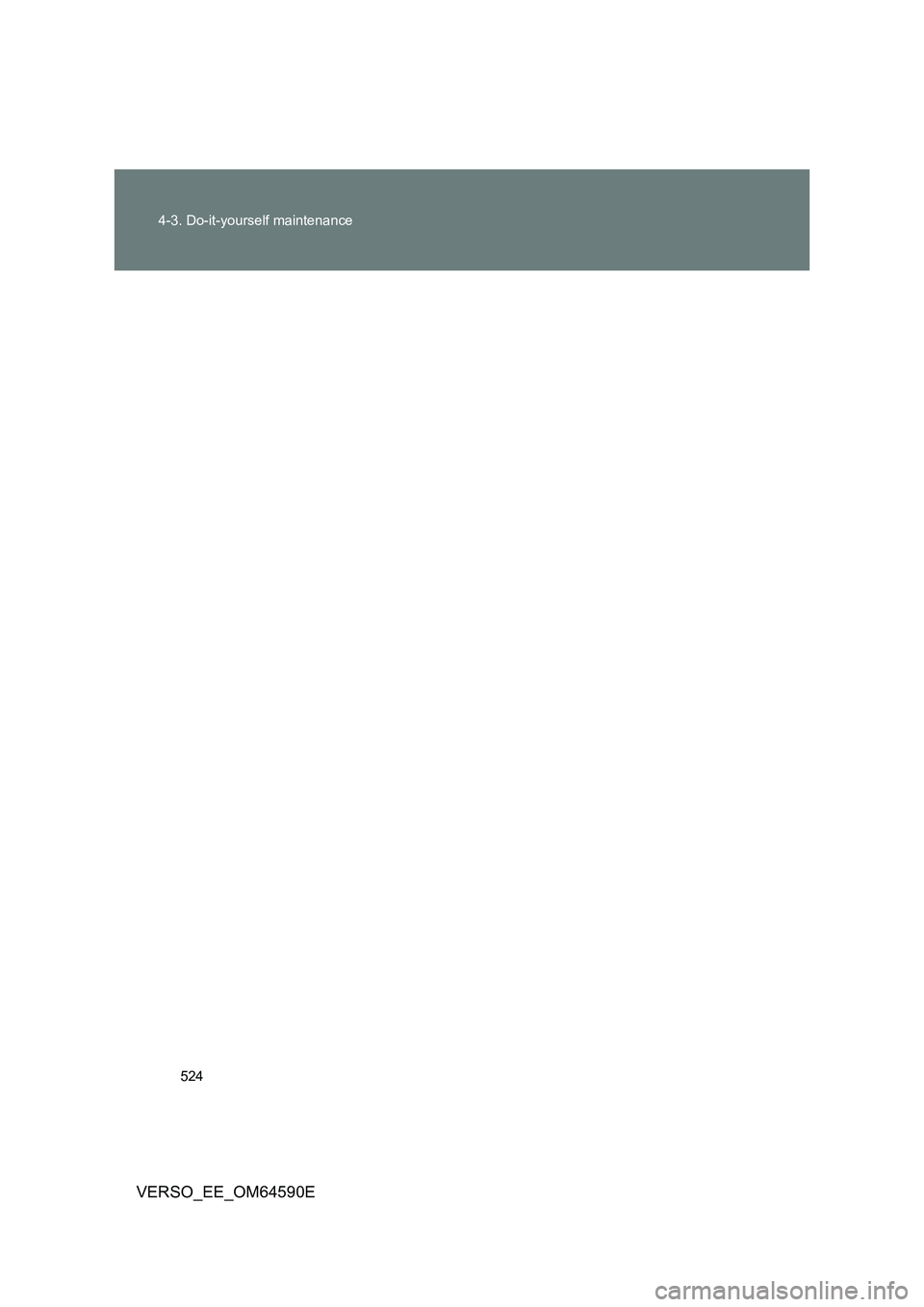

524
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

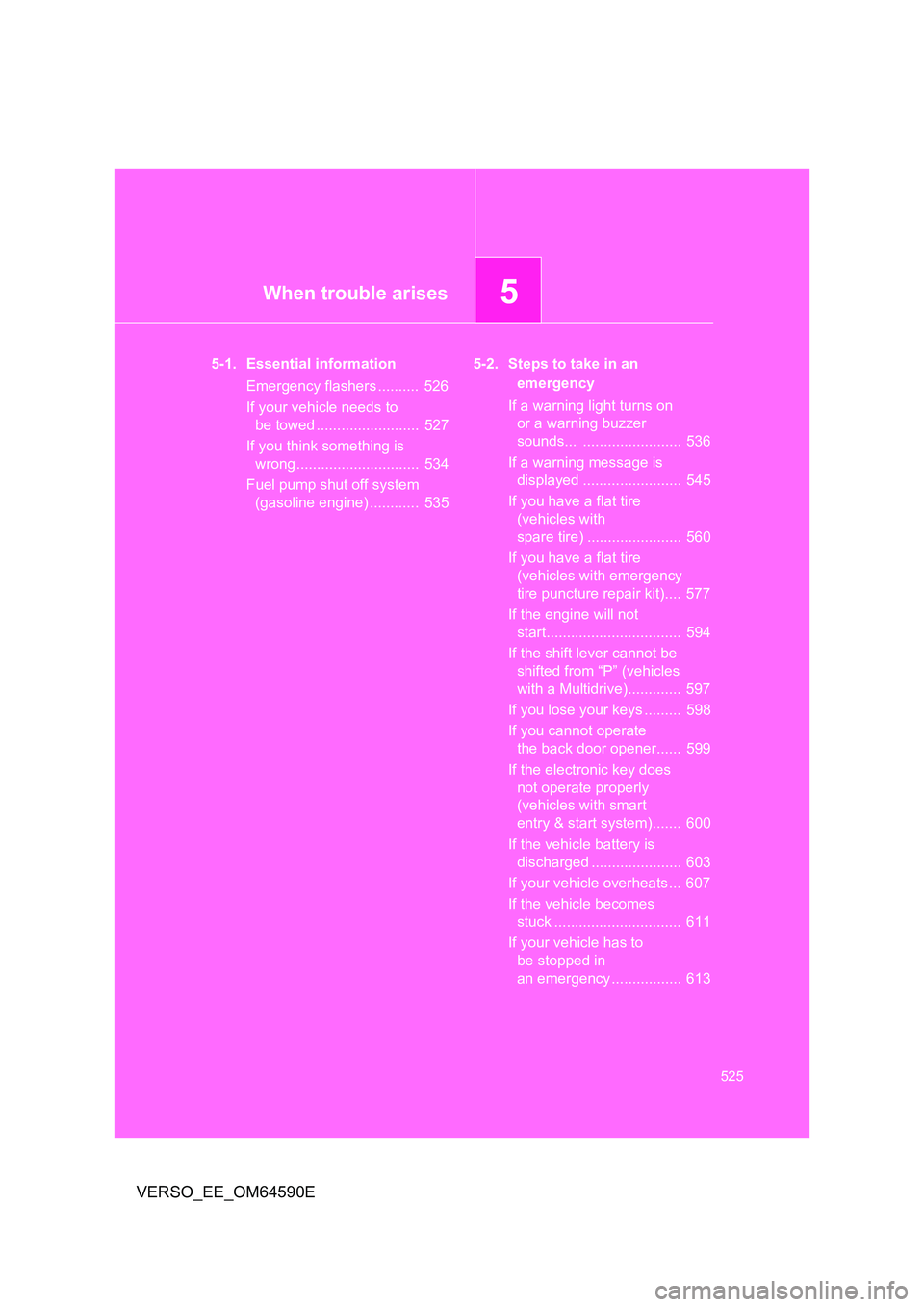

5When trouble arises
525
VERSO_EE_OM64590E
5-1. Essential information
Emergency flashers .......... 526
If your vehicle needs to
be towed ......................... 527
If you think something is
wrong .............................. 534
Fuel pump shut off system
(gasoline engine) ............ 535
5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ........................ 536
If a warning message is
displayed ........................ 545
If you have a flat tire
(vehicles with
spare tire) ....................... 560
If you have a flat tire
(vehicles with emergency
tire puncture repair kit).... 577
If the engine will not
start................................. 594
If the shift lever cannot be
shifted from “P” (vehicles
with a Multidrive)............. 597
If you lose your keys ......... 598
If you cannot operate
the back door opener...... 599
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)....... 600
If the vehicle battery is
discharged ...................... 603
If your vehicle overheats ... 607
If the vehicle becomes
stuck ............................... 611
If your vehicle has to
be stopped in
an emergency ................. 613

526
VERSO_EE_OM64590E
5-1. Essential information

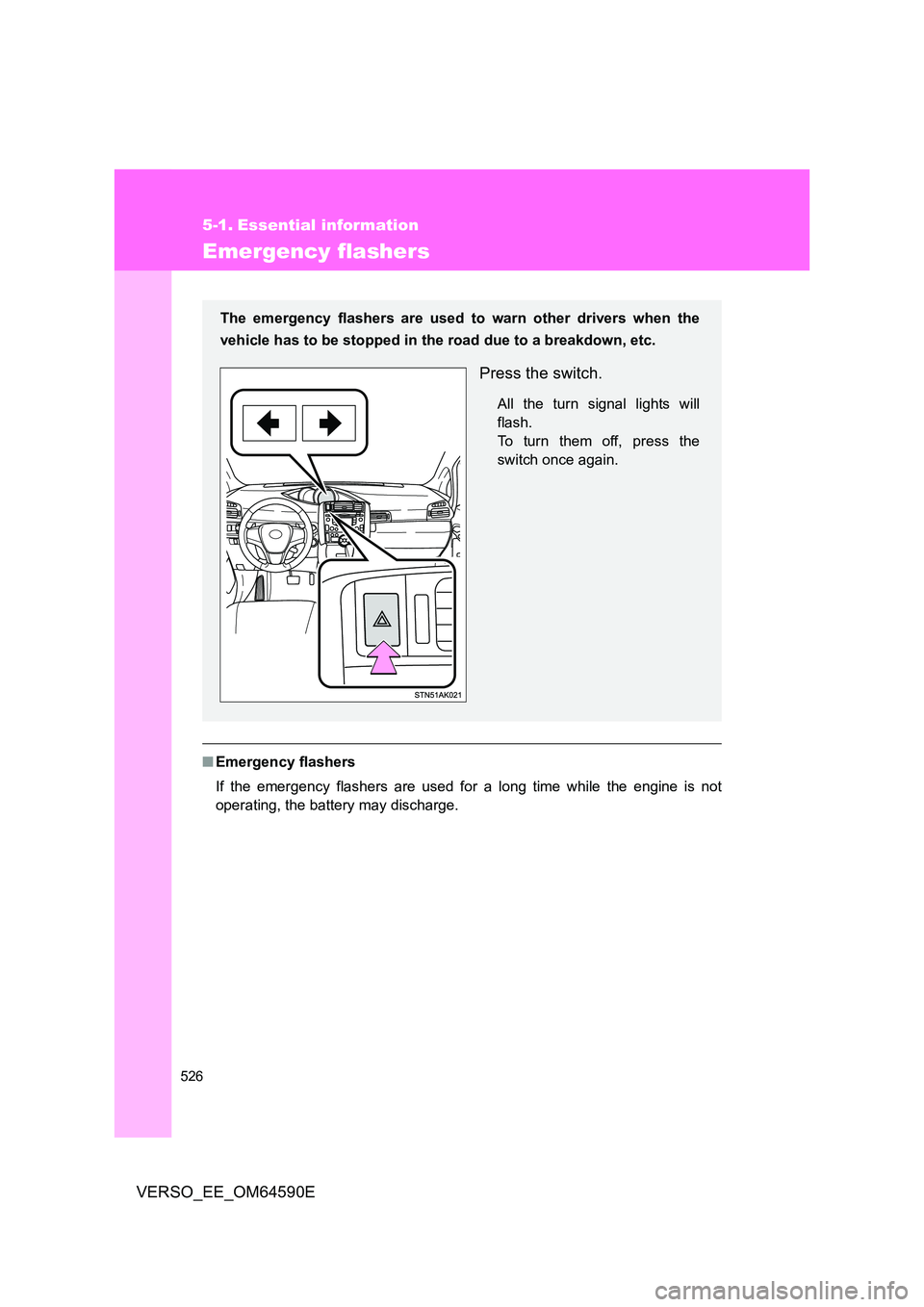

Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.

5
527
5-1. Essential information
When trouble arises
VERSO_EE_OM64590E

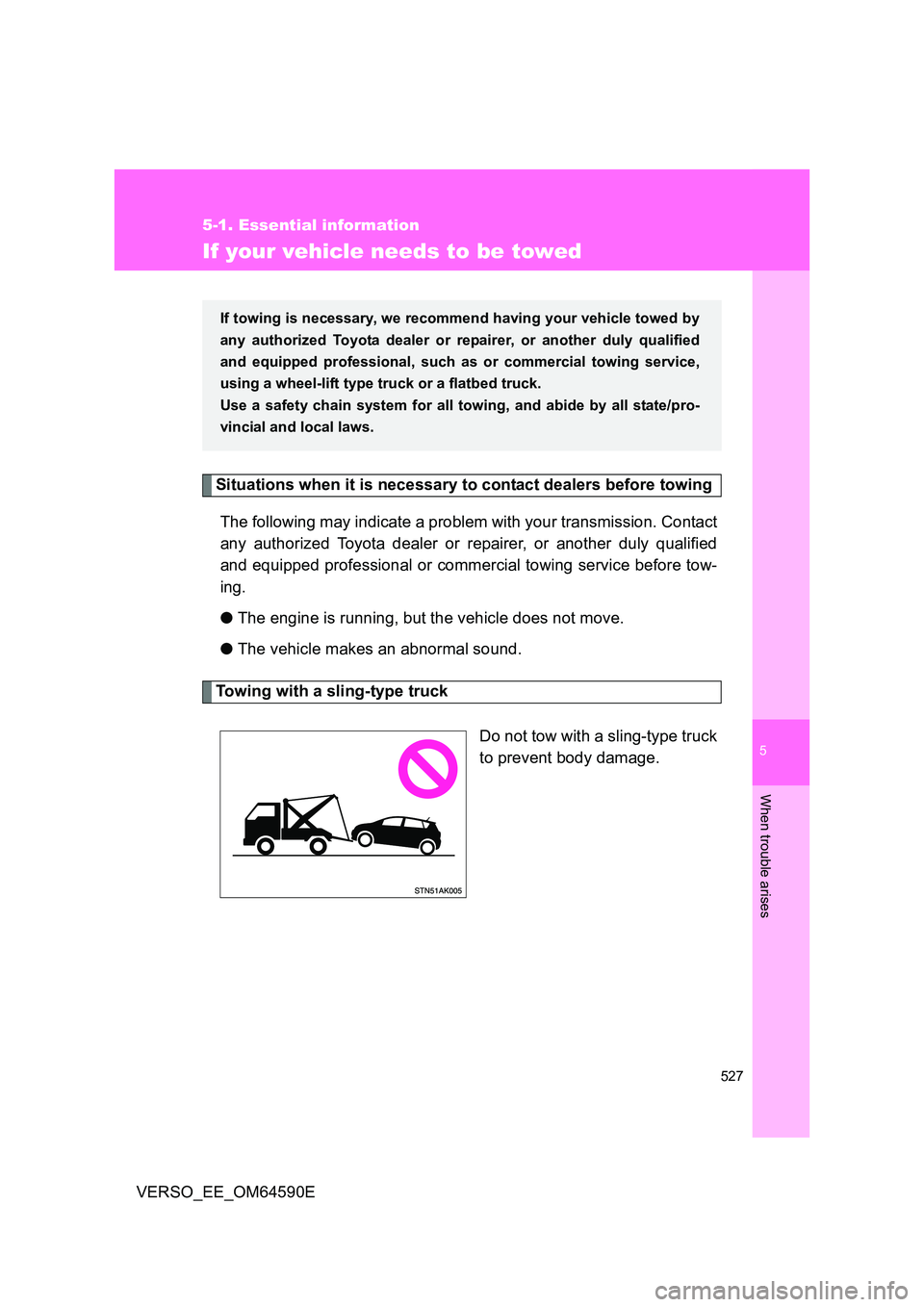

If your vehicle needs to be towed
Situations when it is necessary to contact dealers before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional or commercial towing service before tow-
ing.
● The engine is running, but the vehicle does not move.
● The vehicle makes an abnormal sound.
Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as or commercial towing service,
using a wheel-lift type truck or a flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

528
5-1. Essential information
VERSO_EE_OM64590E

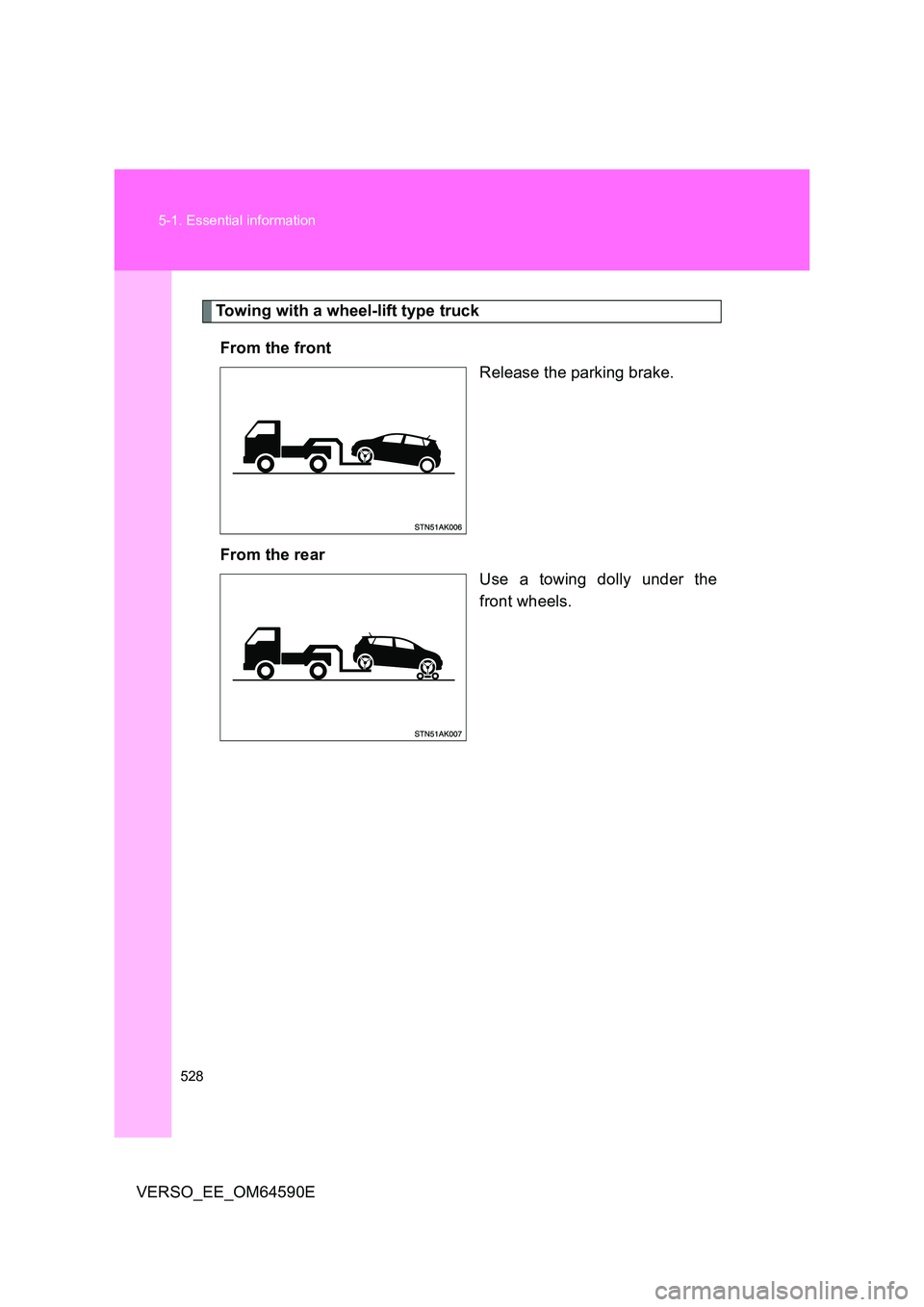

Towing with a wheel-lift type truck
From the front
Release the parking brake.
From the rear
Use a towing dolly under the
front wheels.

5
529
5-1. Essential information
When trouble arises
VERSO_EE_OM64590E

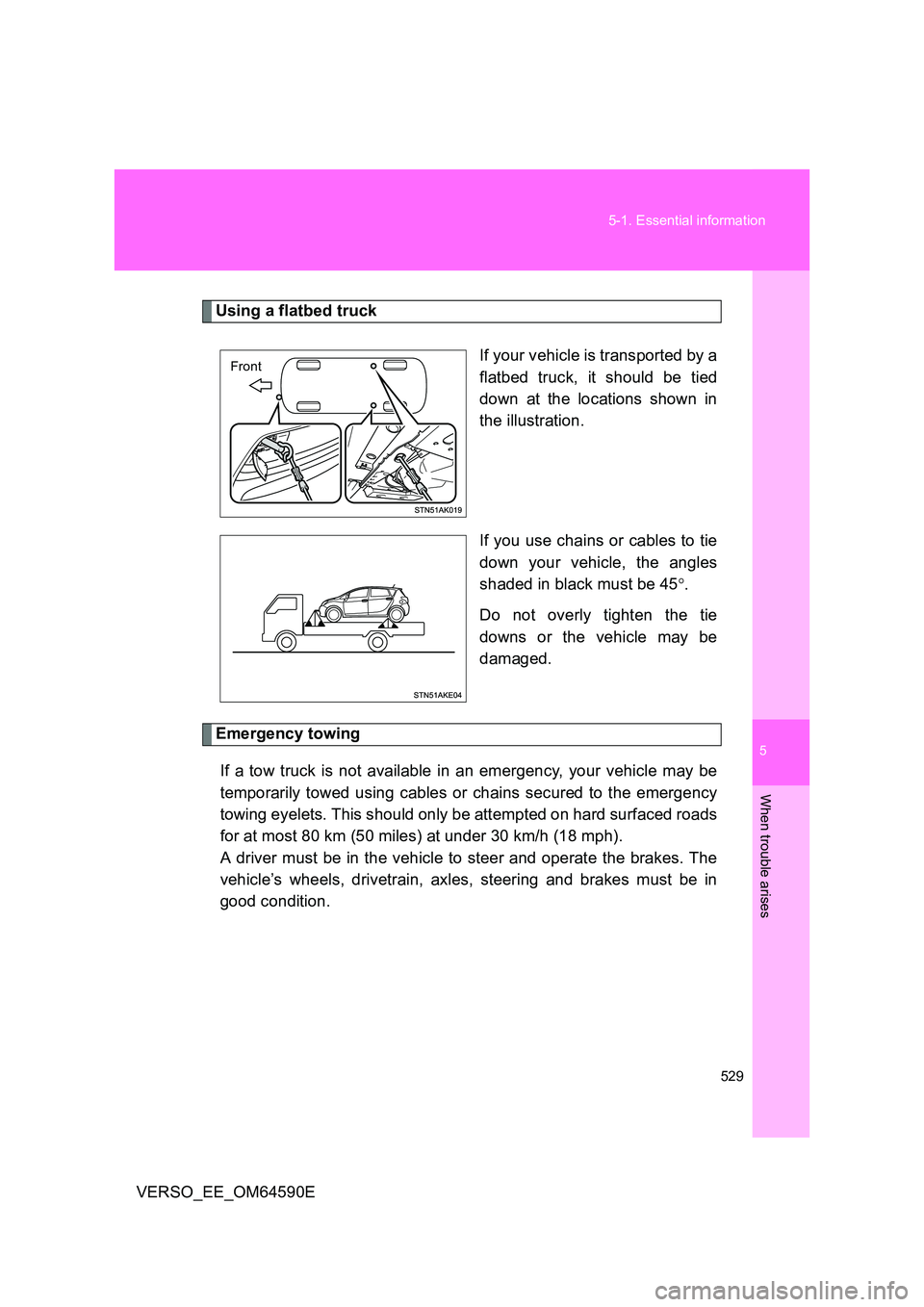

Using a flatbed truck
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for at most 80 km (50 miles) at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drivetrain, axles, steering and brakes must be in
good condition.
Front

530
5-1. Essential information
VERSO_EE_OM64590E

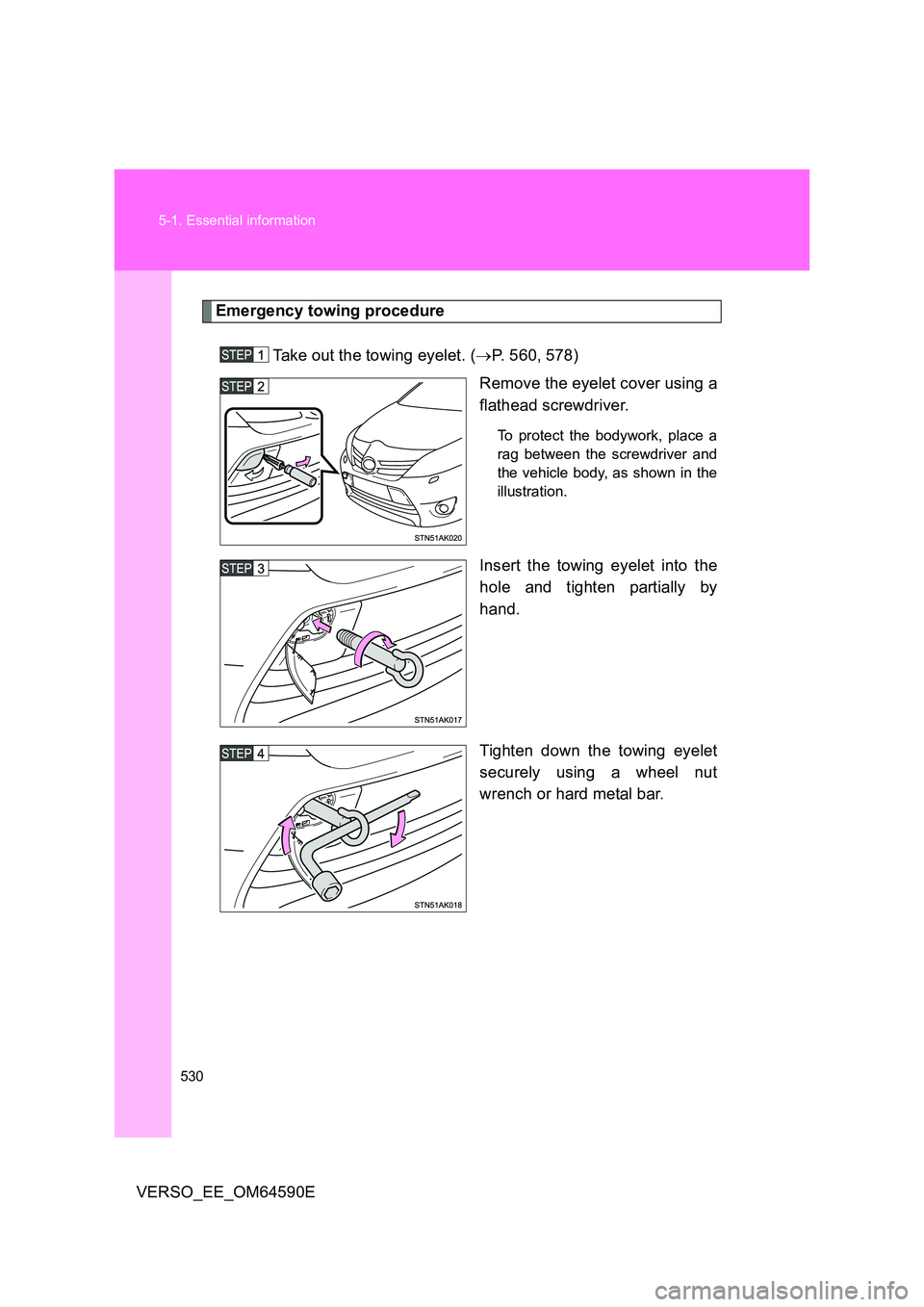

Emergency towing procedure
Take out the towing eyelet. ( P. 560, 578)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
