flat tire TOYOTA VERSO 2016 Owners Manual

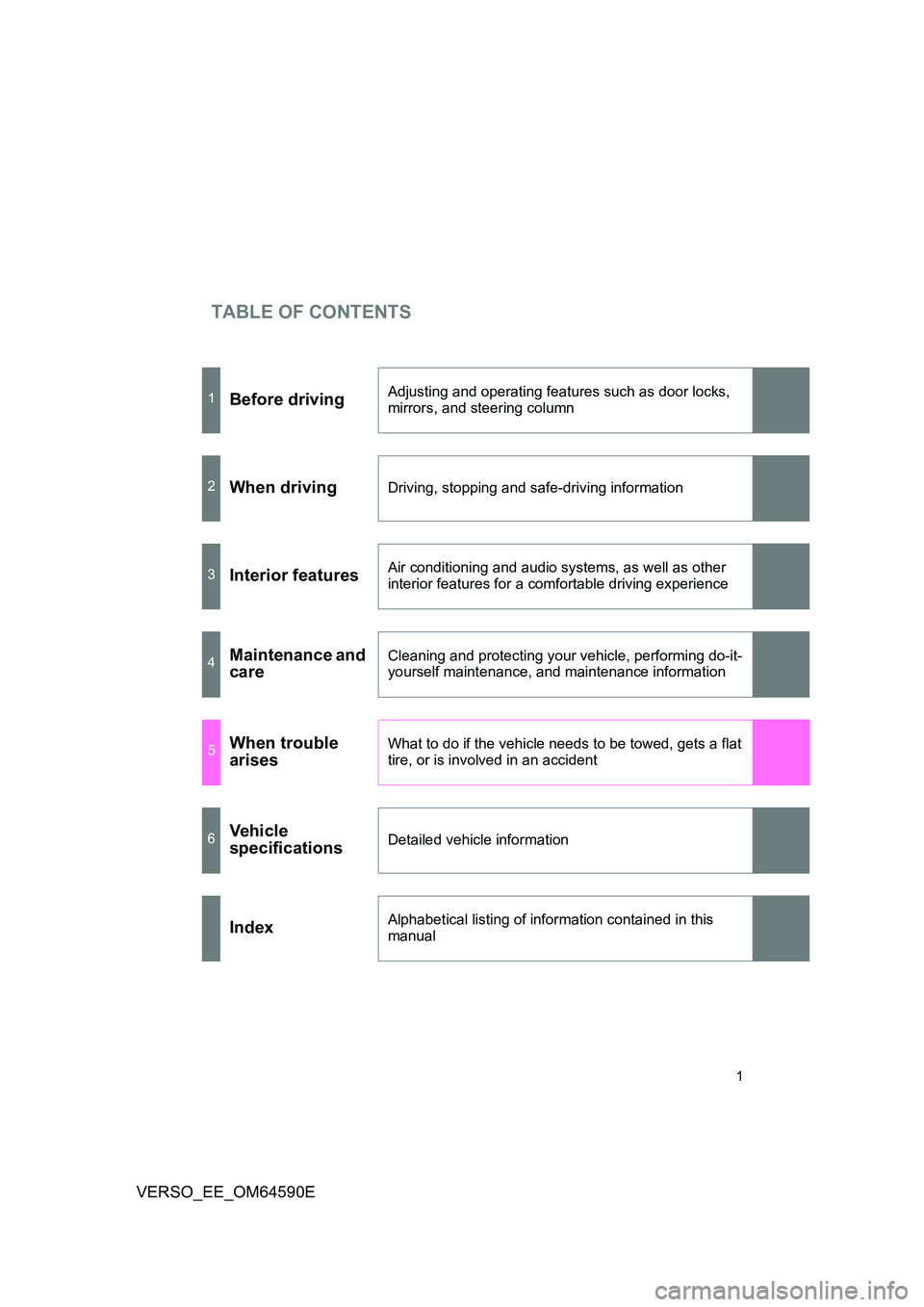

TABLE OF CONTENTS
1
VERSO_EE_OM64590E
1Before drivingAdjusting and operating features such as door locks,
mirrors, and steering column
2When drivingDriving, stopping and safe-driving information
3Interior featuresAir conditioning and audio systems, as well as other
interior features for a comfortable driving experience
4Maintenance and
care
Cleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information
5When trouble
arises
What to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident
6Vehicle
specificationsDetailed vehicle information
IndexAlphabetical listing of information contained in this
manual

TABLE OF CONTENTSIndex
4
VERSO_EE_OM64590E

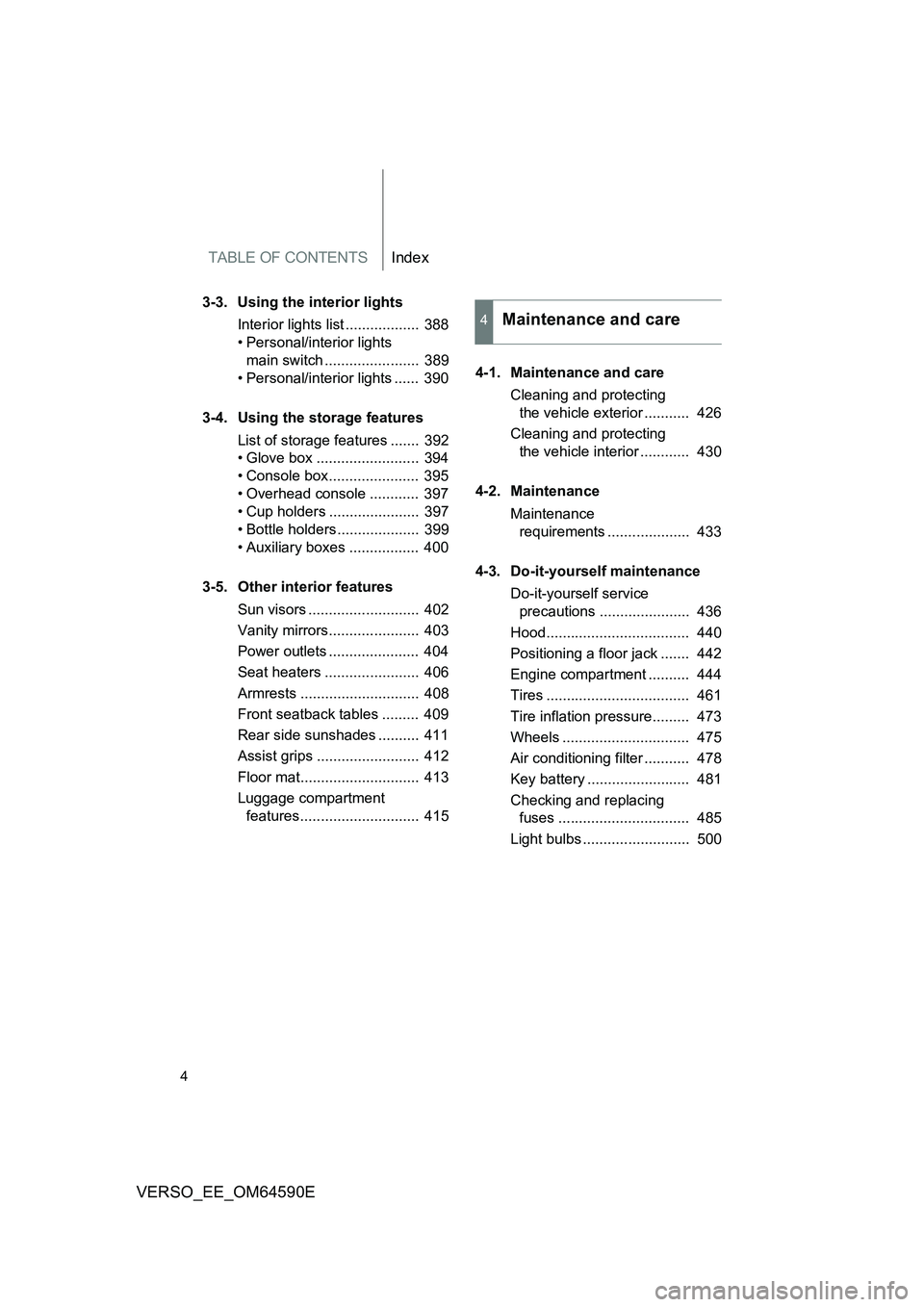

3-3. Using the interior lights
Interior lights list .................. 388
• Personal/interior lights
main switch ....................... 389
• Personal/interior lights ...... 390
3-4. Using the storage features
List of storage features ....... 392
• Glove box ......................... 394
• Console box...................... 395
• Overhead console ............ 397
• Cup holders ...................... 397
• Bottle holders.................... 399
• Auxiliary boxes ................. 400
3-5. Other interior features
Sun visors ........................... 402
Vanity mirrors...................... 403
Power outlets ...................... 404
Seat heaters ....................... 406
Armrests ............................. 408
Front seatback tables ......... 409
Rear side sunshades .......... 411
Assist grips ......................... 412
Floor mat............................. 413
Luggage compartment
features............................. 415
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 426
Cleaning and protecting
the vehicle interior ............ 430
4-2. Maintenance
Maintenance
requirements .................... 433
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 436
Hood................................... 440
Positioning a floor jack ....... 442
Engine compartment .......... 444
Tires ................................... 461
Tire inflation pressure......... 473
Wheels ............................... 475
Air conditioning filter ........... 478
Key battery ......................... 481
Checking and replacing
fuses ................................ 485
Light bulbs .......................... 500
4Maintenance and care

1
2
3
4
5
6

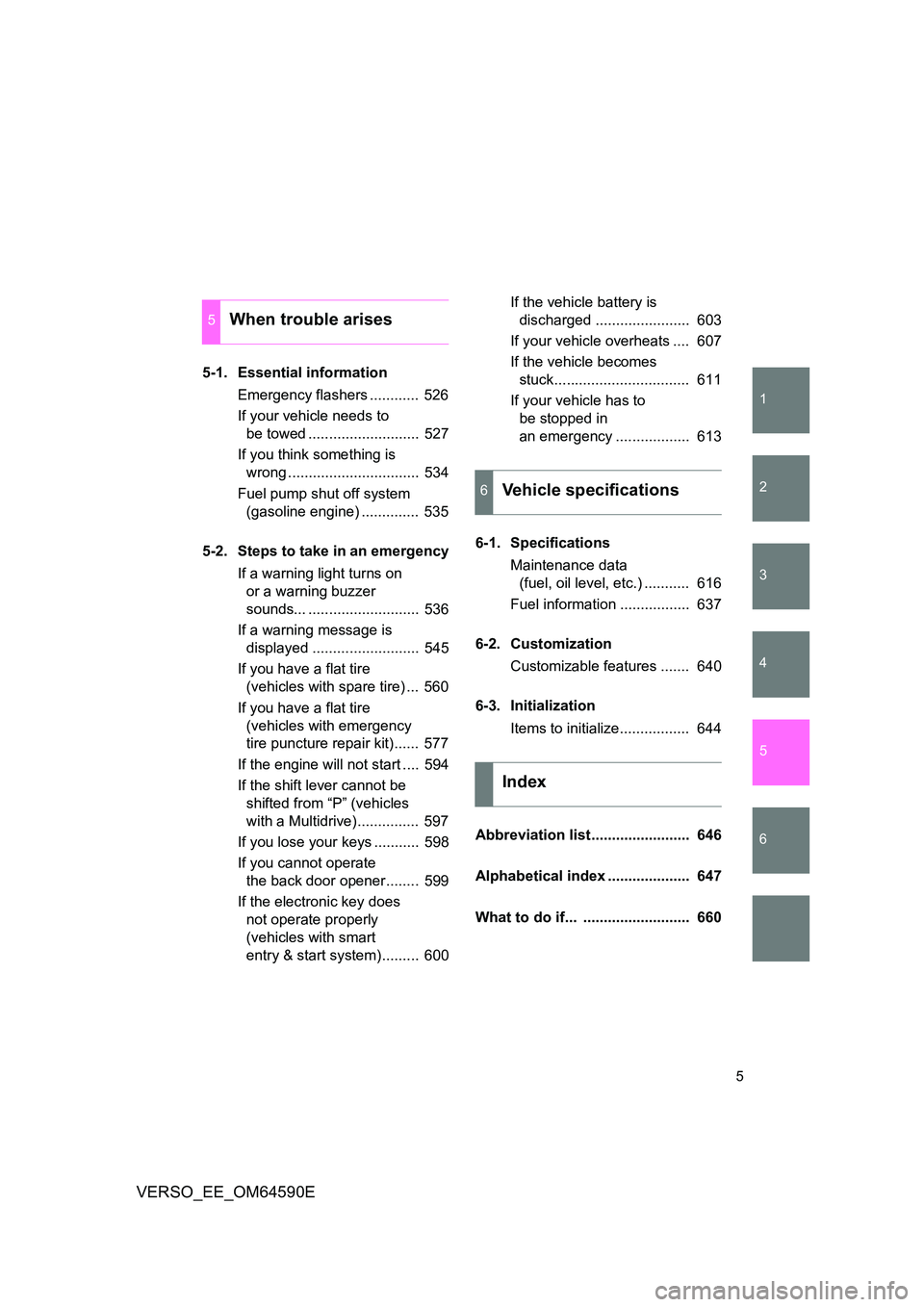

5
VERSO_EE_OM64590E
5-1. Essential information
Emergency flashers ............ 526
If your vehicle needs to
be towed ........................... 527
If you think something is
wrong ................................ 534
Fuel pump shut off system
(gasoline engine) .............. 535
5-2. Steps to take in an emergency
If a warning light turns on
or a warning buzzer
sounds... ........................... 536
If a warning message is
displayed .......................... 545
If you have a flat tire
(vehicles with spare tire) ... 560
If you have a flat tire
(vehicles with emergency
tire puncture repair kit)...... 577
If the engine will not start .... 594
If the shift lever cannot be
shifted from “P” (vehicles
with a Multidrive)............... 597
If you lose your keys ........... 598
If you cannot operate
the back door opener........ 599
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)......... 600
If the vehicle battery is
discharged ....................... 603
If your vehicle overheats .... 607
If the vehicle becomes
stuck................................. 611
If your vehicle has to
be stopped in
an emergency .................. 613
6-1. Specifications
Maintenance data
(fuel, oil level, etc.) ........... 616
Fuel information ................. 637
6-2. Customization
Customizable features ....... 640
6-3. Initialization
Items to initialize................. 644
Abbreviation list........................ 646
Alphabetical index .................... 647
What to do if... .......................... 660
5When trouble arises
6Vehicle specifications
Index

7
VERSO_EE_OM64590E

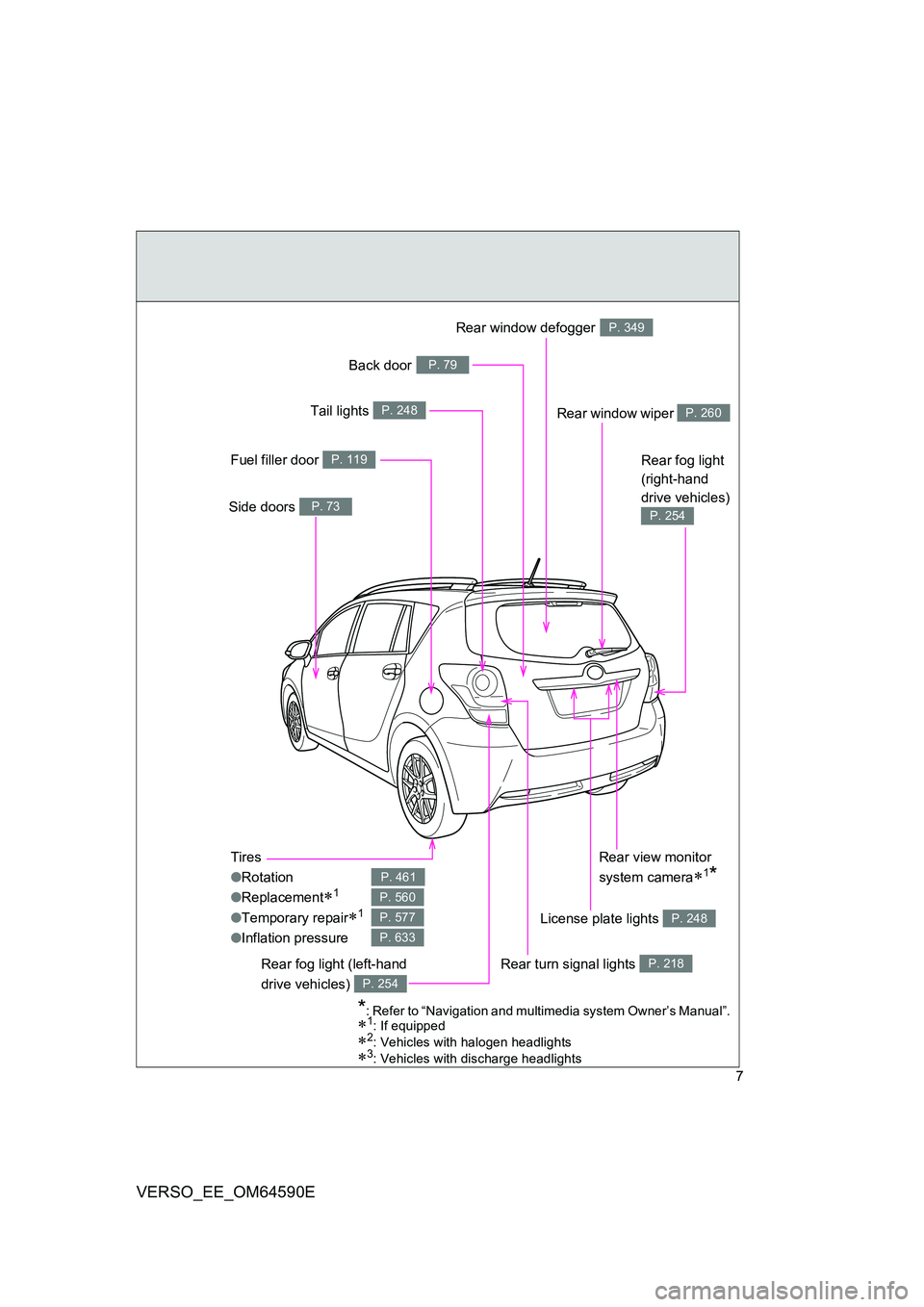

Tires
● Rotation
● Replacement1
●Temporary repair1
●Inflation pressure
P. 461
P. 560
P. 577
P. 633
Rear window wiper P. 260
Side doors P. 73
Fuel filler door P. 119
Rear fog light (left-hand
drive vehicles) P. 254
Rear fog light
(right-hand
drive vehicles)
P. 254
Rear window defoggerP. 349
License plate lights P. 248
Tail lights P. 248
Rear turn signal lights P. 218
Back doorP. 79
Rear view monitor
system camera1*
*: Refer to “Navigation and multimedia system Owner’s Manual”.1: If equipped
2: Vehicles with halogen headlights
3: Vehicles with discharge headlights

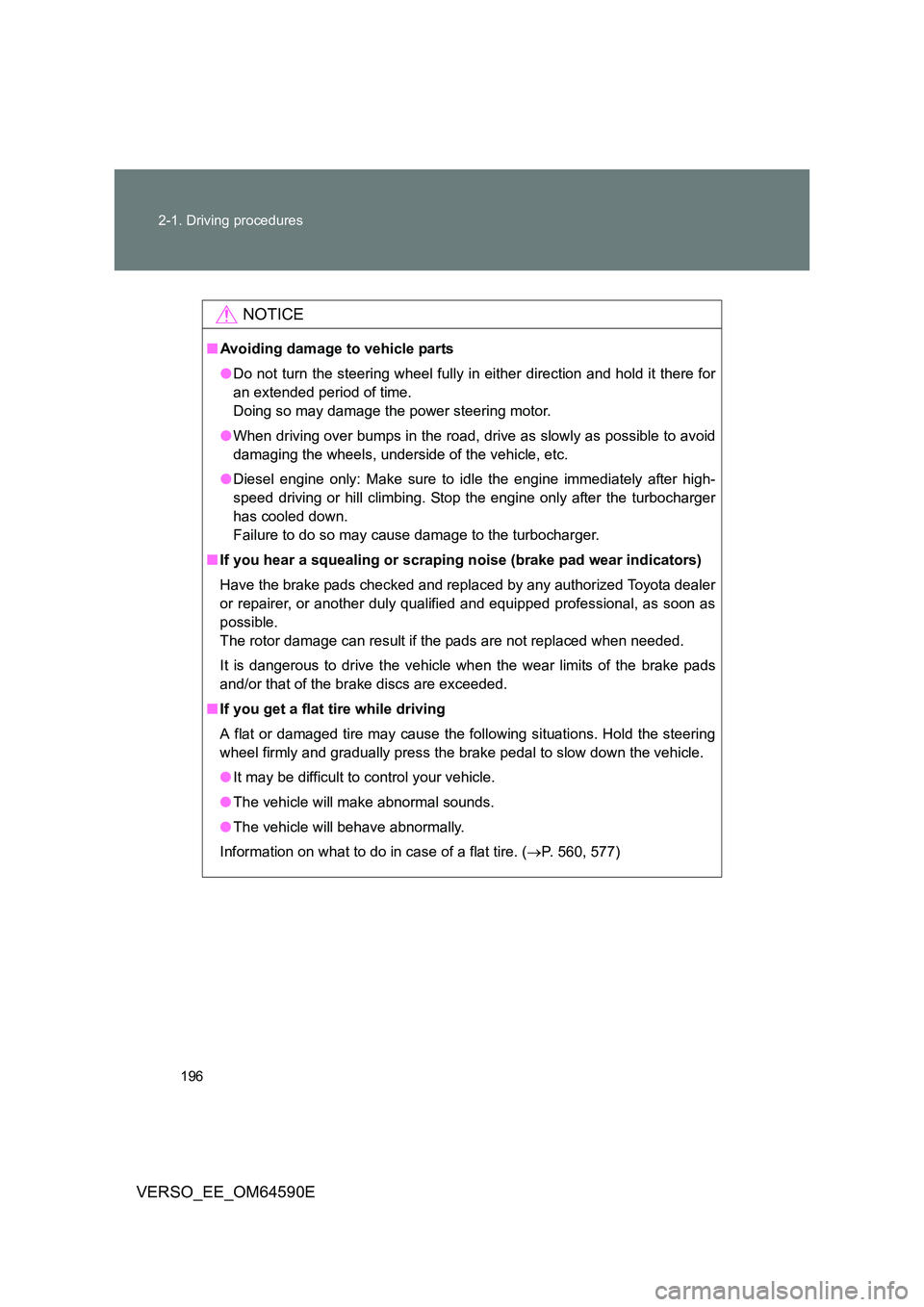

196
2-1. Driving procedures
VERSO_EE_OM64590E
NOTICE
■ Avoiding damage to vehicle parts
● Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
● Diesel engine only: Make sure to idle the engine immediately after high-
speed driving or hill climbing. Stop the engine only after the turbocharger
has cooled down.
Failure to do so may cause damage to the turbocharger.
■ If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional, as soon as
possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle w hen the wear limits of the brake pads
and/or that of the brake discs are exceeded.
■ If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds.
● The vehicle will behave abnormally.
Information on what to do in case of a flat tire. ( P. 560, 577)

281
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64590E

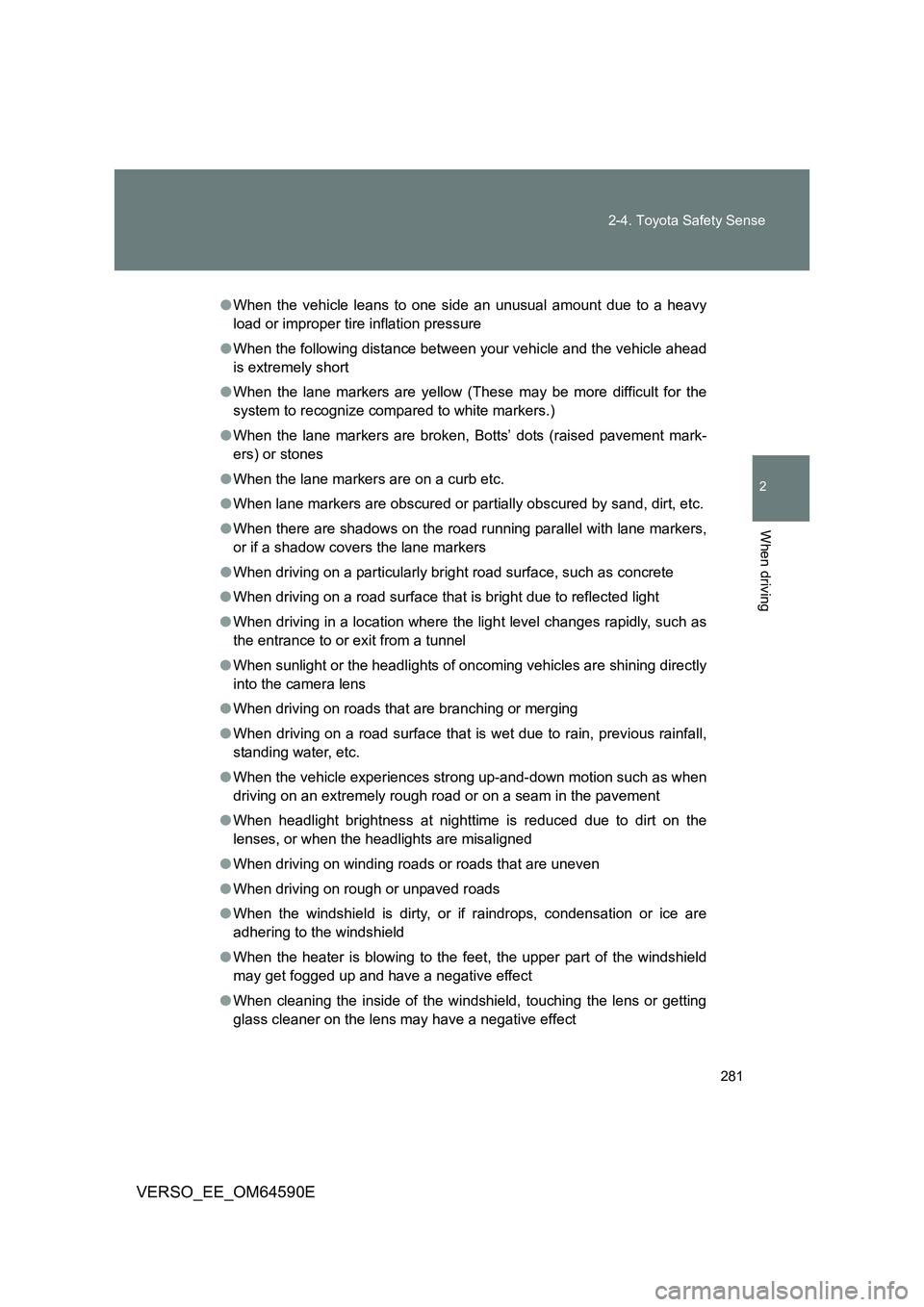

● When the vehicle leans to one side an unusual amount due to a heavy
load or improper tire inflation pressure
● When the following distance between your vehicle and the vehicle ahead
is extremely short
● When the lane markers are yellow (These may be more difficult for the
system to recognize compared to white markers.)
● When the lane markers are broken, Botts’ dots (raised pavement mark-
ers) or stones
● When the lane markers are on a curb etc.
● When lane markers are obscured or partially obscured by sand, dirt, etc.
● When there are shadows on the road running parallel with lane markers,
or if a shadow covers the lane markers
● When driving on a particularly bright road surface, such as concrete
● When driving on a road surface that is bright due to reflected light
● When driving in a location where the light level changes rapidly, such as
the entrance to or exit from a tunnel
● When sunlight or the headlights of oncoming vehicles are shining directly
into the camera lens
● When driving on roads that are branching or merging
● When driving on a road surface that is wet due to rain, previous rainfall,
standing water, etc.
● When the vehicle experiences strong up-and-down motion such as when
driving on an extremely rough road or on a seam in the pavement
● When headlight brightness at nighttime is reduced due to dirt on the
lenses, or when the headlights are misaligned
● When driving on winding roads or roads that are uneven
● When driving on rough or unpaved roads
● When the windshield is dirty, or if raindrops, condensation or ice are
adhering to the windshield
● When the heater is blowing to the feet, the upper part of the windshield
may get fogged up and have a negative effect
● When cleaning the inside of the windshield, touching the lens or getting
glass cleaner on the lens may have a negative effect

287
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64590E

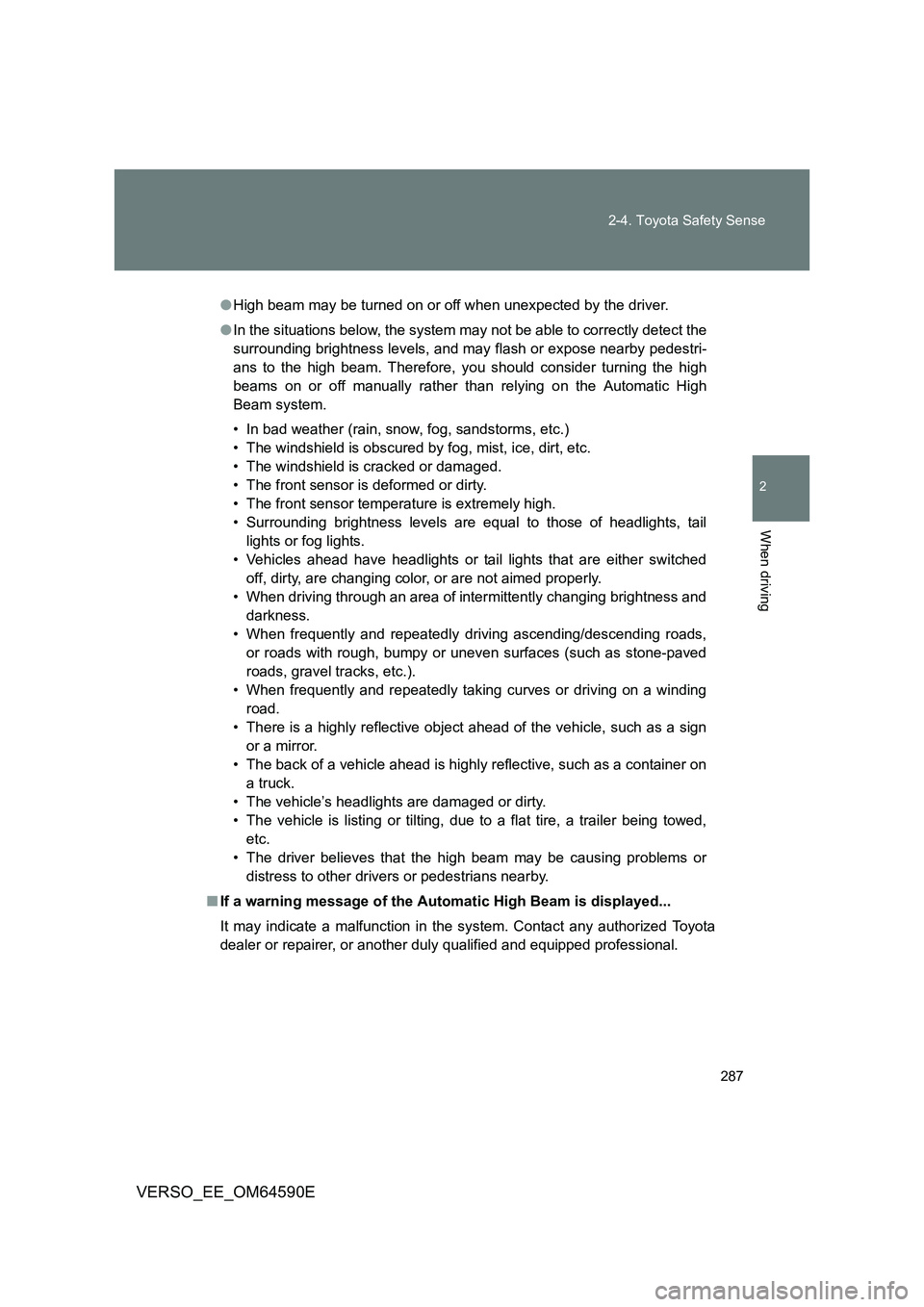

● High beam may be turned on or off when unexpected by the driver.
● In the situations below, the system may not be able to correctly detect the
surrounding brightness levels, and may flash or expose nearby pedestri-
ans to the high beam. Therefore, you should consider turning the high
beams on or off manually rather than relying on the Automatic High
Beam system.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The front sensor is deformed or dirty.
• The front sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail
lights or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched
off, dirty, are changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads,
or roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks, etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign
or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on
a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed,
etc.
• The driver believes that the high beam may be causing problems or
distress to other drivers or pedestrians nearby.
■ If a warning message of the Automatic High Beam is displayed...
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

316
2-5. Using other driving systems
VERSO_EE_OM64590E

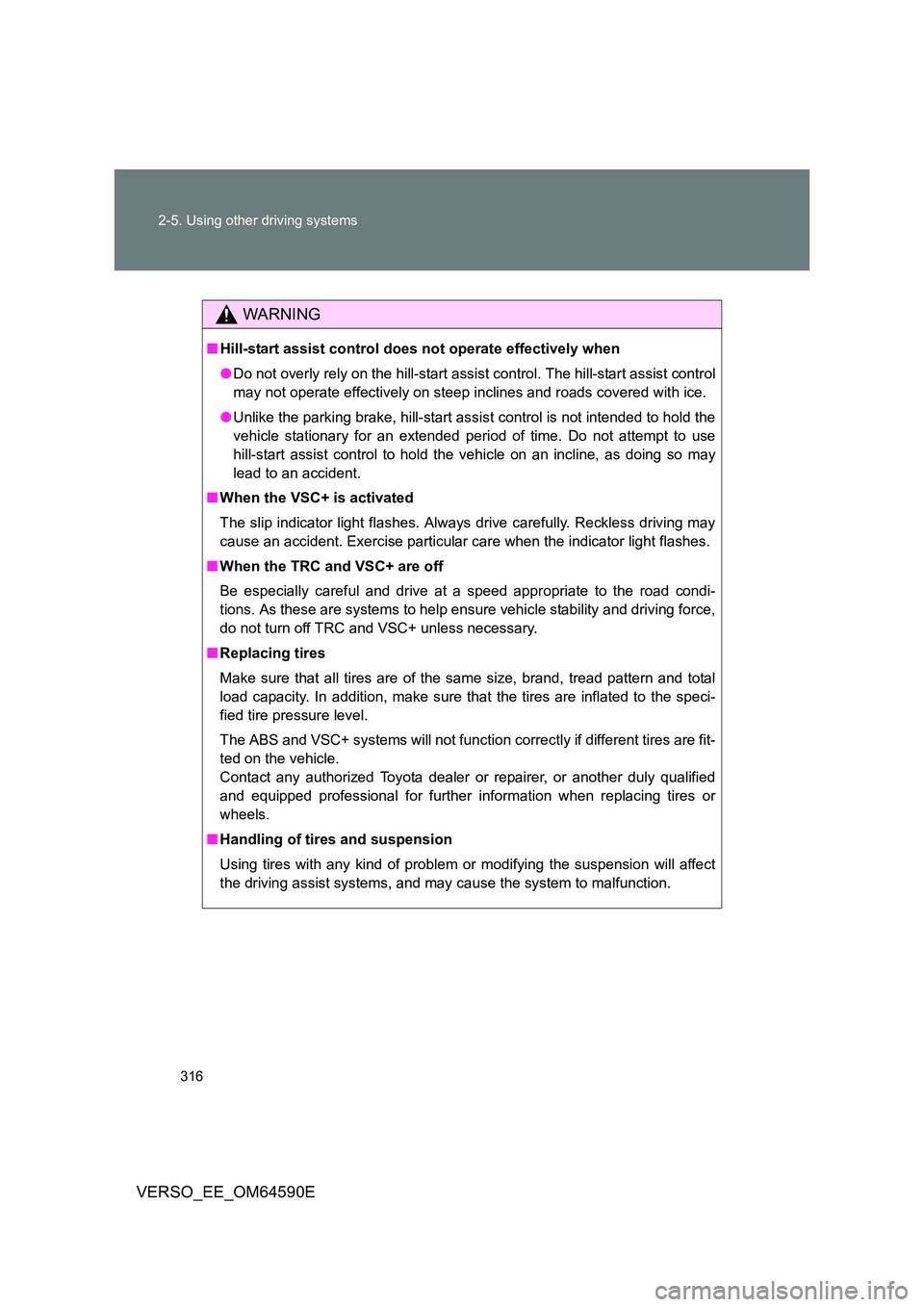

WARNING
■ Hill-start assist control does not operate effectively when
● Do not overly rely on the hill-start assist control. The hill-start assist control
may not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
■ When the VSC+ is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
■ When the TRC and VSC+ are off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are systems to help ensure vehicle stability and driving force,
do not turn off TRC and VSC+ unless necessary.
■ Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total
load capacity. In addition, make sure that the tires are inflated to the speci-
fied tire pressure level.
The ABS and VSC+ systems will not function correctly if different tires are fit-
ted on the vehicle.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for further information when replacing tires or
wheels.
■ Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.

322
2-6. Driving information
VERSO_EE_OM64590E
Regulations on the use of tire chains
● Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before install-
ing chains.
● Install the chains on the front tires.
● Retighten the chains after driving 0.5  1.0 km (1/4  1/2 mile).
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install the chains on the
rear tires.
● Install tire chains on front tires as tightly as possible. Retighten chains
after driving 0.5  1.0 km (1/4  1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
● If wheel ornaments are used, they will be scratched by the chain band,
so remove the ornaments before putting on the chains.
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified for your vehicle.
● Maintain the recommended level of tire inflation pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Snow tires should be installed on all wheels.

327
2-6. Driving information
2
When driving
VERSO_EE_OM64590E
● Gross combination vehicle mass
The sum of the total vehicle weight and the weight of the trailer
being towed.
*: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Installation positions* for the towing hitch/bracket and hitch ball
461 mm (18.1 in.)
461 mm (18.1 in.)
WARNING
■ Vehicle category M1 models*: When the gross vehicle mass or maxi-
mum permissible axle capacity is exceeded
Failing to observe this precaution may lead to an accident causing death or
serious injury.
● Add an additional 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended
tire inflation pressure value. ( P. 633)
● Do not exceed the established speed limit for towing a trailer in built-up
areas or 100 km/h (62 mph), whichever is lower.
