TOYOTA xB 2013 Owners Manual (in English)

191
3-4. Using the
storage features
3
Interior features
Scion_xB_OM_OM12G46U_(U)
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident,
sudden braking or sudden swerving, causing injury. If possible, cover hot
drinks to prevent burns.
■ When not in use (rear cup holders only)
Keep the cup holders closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open cup holders or the items stored inside.
NOTICE
■To prevent damage to the rear cup holders
Be careful not to subject the cup holders to an impact.
Failure to do so may unfix the cup holders. Reattach them if they are
unfixed.
Cup holders

192 3-4. Using the storage features
Scion_xB_OM_OM12G46U_(U)
Auxiliary boxTy p e A
Ty p e B
Ty p e C
Auxiliary box

193
3-4. Using the
storage features
3
Interior features
Scion_xB_OM_OM12G46U_(U)
Bottle holders
■When using the holder as a bottle holder
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
NOTICE
■Items that should not be stowed in the bottle holders
Do not place open bottles in the bottle holders, or glasses and paper cups
containing liquid. The contents may spill and glasses may break.
Bottle holders

194
Scion_xB_OM_OM12G46U_(U)
3-5. Other interior features

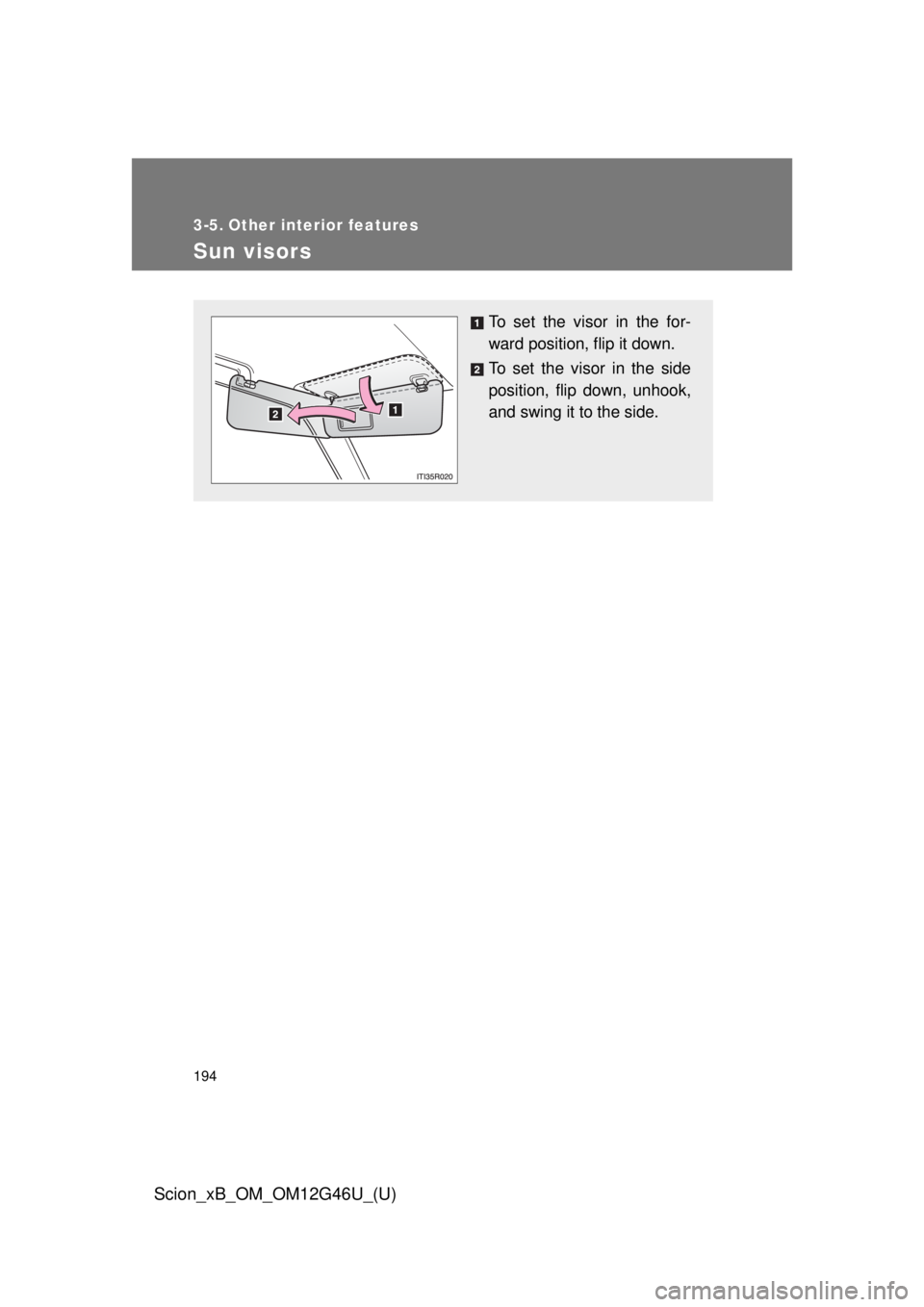

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.

195
3-5. Other interior features
3
Interior features
Scion_xB_OM_OM12G46U_(U)

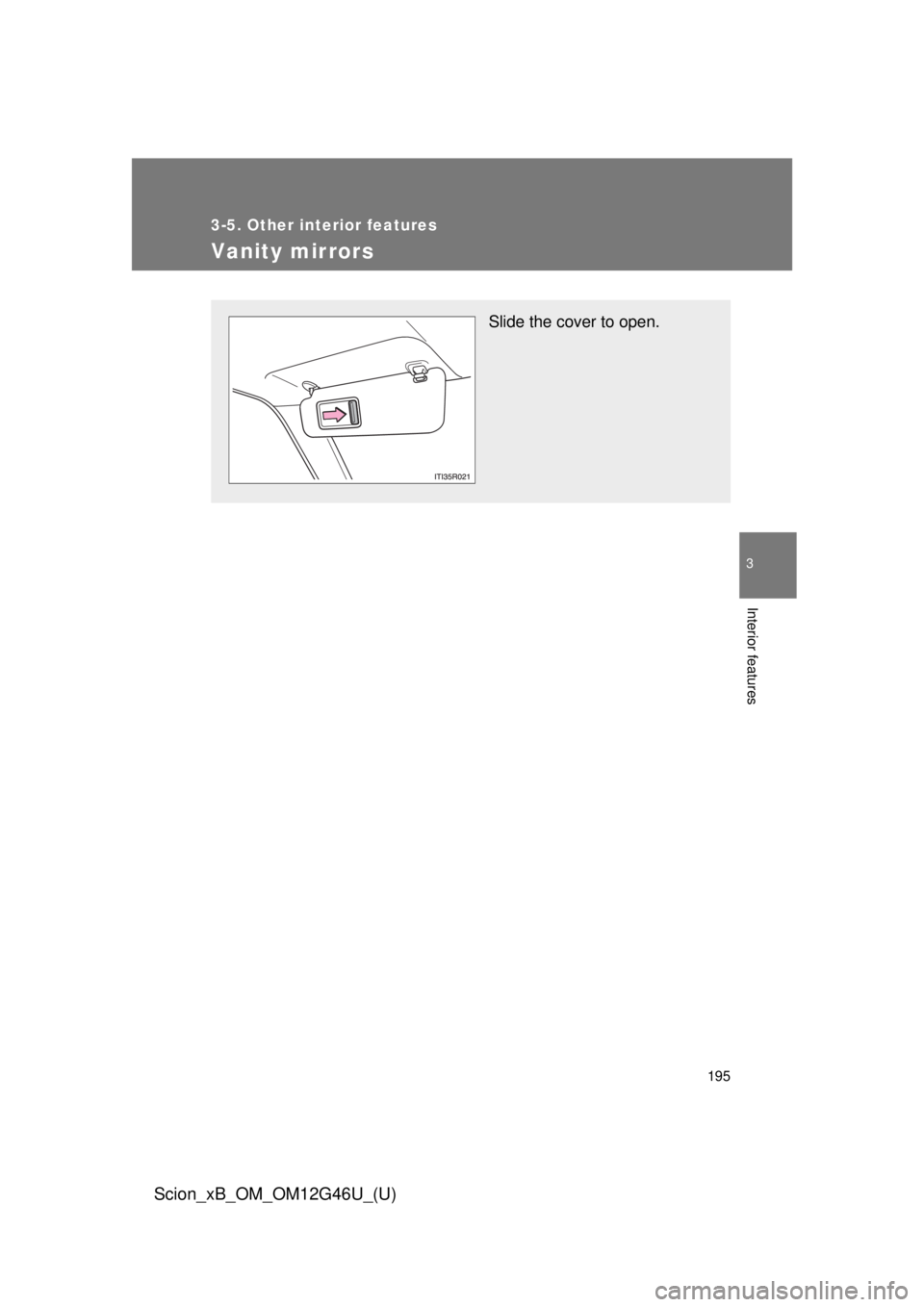

Vanity mirrors
Slide the cover to open.

196
3-5. Other interior features
Scion_xB_OM_OM12G46U_(U)

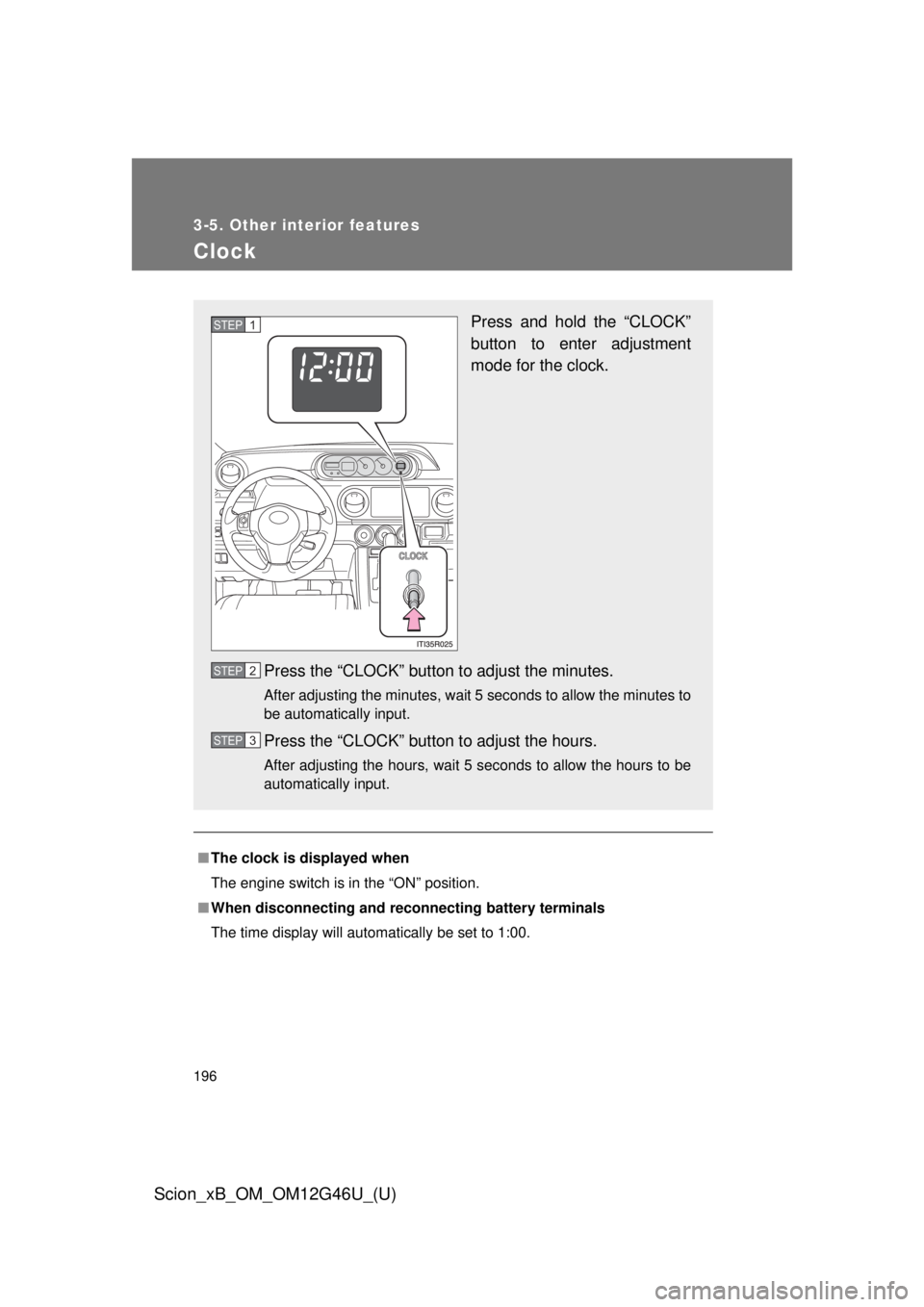

Clock
■The clock is displayed when
The engine switch is in the “ON” position.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Press and hold the “CLOCK”
button to enter adjustment
mode for the clock.
Press the “CLOCK” button to adjust the minutes.
After adjusting the minutes, wait 5 seconds to allow the minutes to
be automatically input.
Press the “CLOCK” button to adjust the hours.
After adjusting the hours, wait 5 seconds to allow the hours to be
automatically input.
STEP 1
STEP 2
STEP 3

197
3-5. Other interior features
3
Interior features
Scion_xB_OM_OM12G46U_(U)
Outside temperature display
■The outside temperatur e is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 16 mph
[25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When “- -” is displayed
The system may be malfunctioning. Take your vehicle to your Scion dealer.
The temperature display shows temperatures within the ranges of
-40 °F (-40 °C) and 122 °F (50 °C).

198
3-5. Other interior features
Scion_xB_OM_OM12G46U_(U)
Power outlet
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.

199
3-5. Other interior features
3
Interior features
Scion_xB_OM_OM12G46U_(U)
Coat hooks
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
The coat hooks are provided
with the rear assist grips.

200
3-5. Other interior features
Scion_xB_OM_OM12G46U_(U)
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the cei ling can be used to support your
body while sitting on the seat.
