TOYOTA xB 2013 Owners Manual (in English)

5
When trouble arises
311
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)

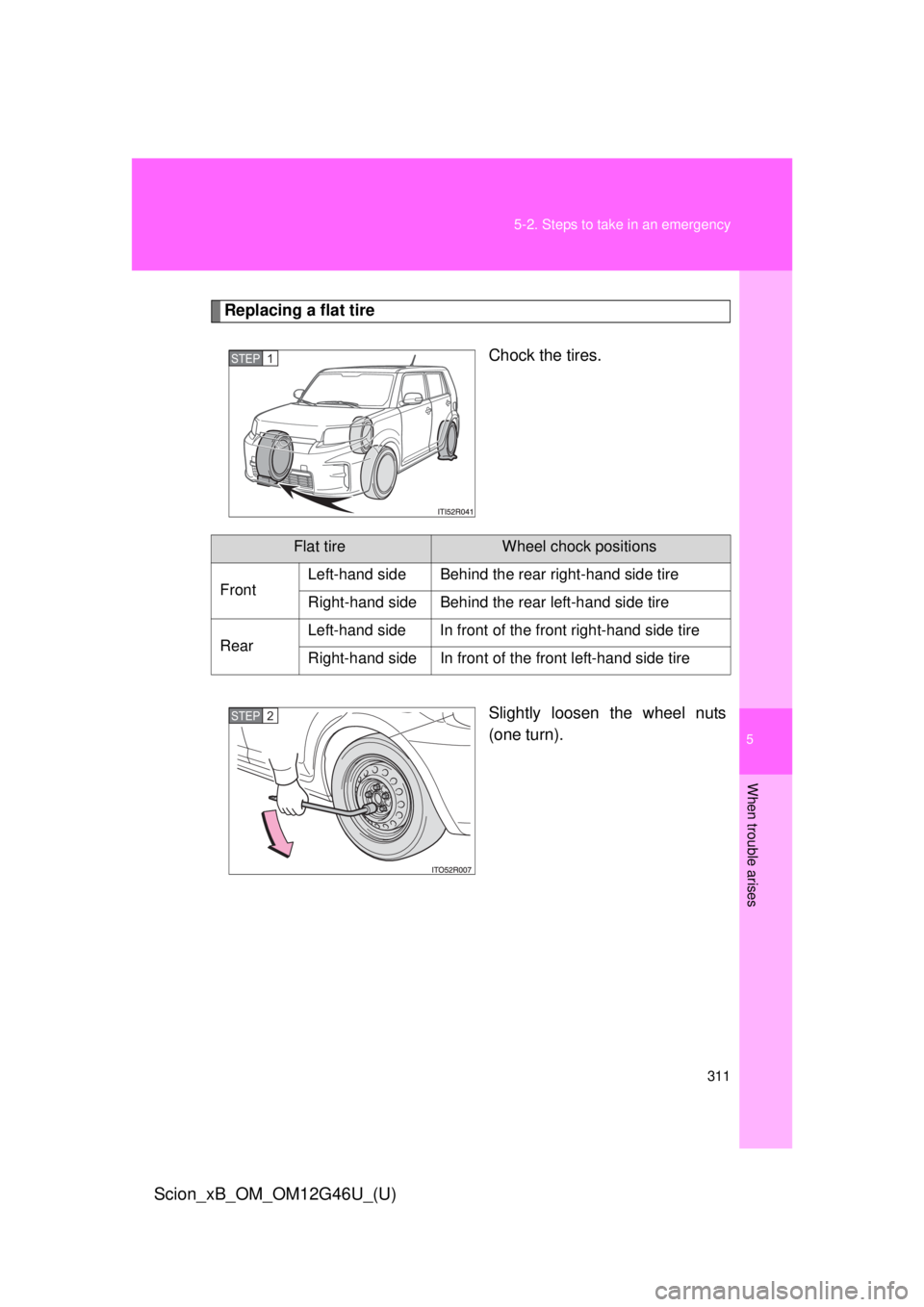

Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of
the front left-hand side tire
STEP 2

312 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)

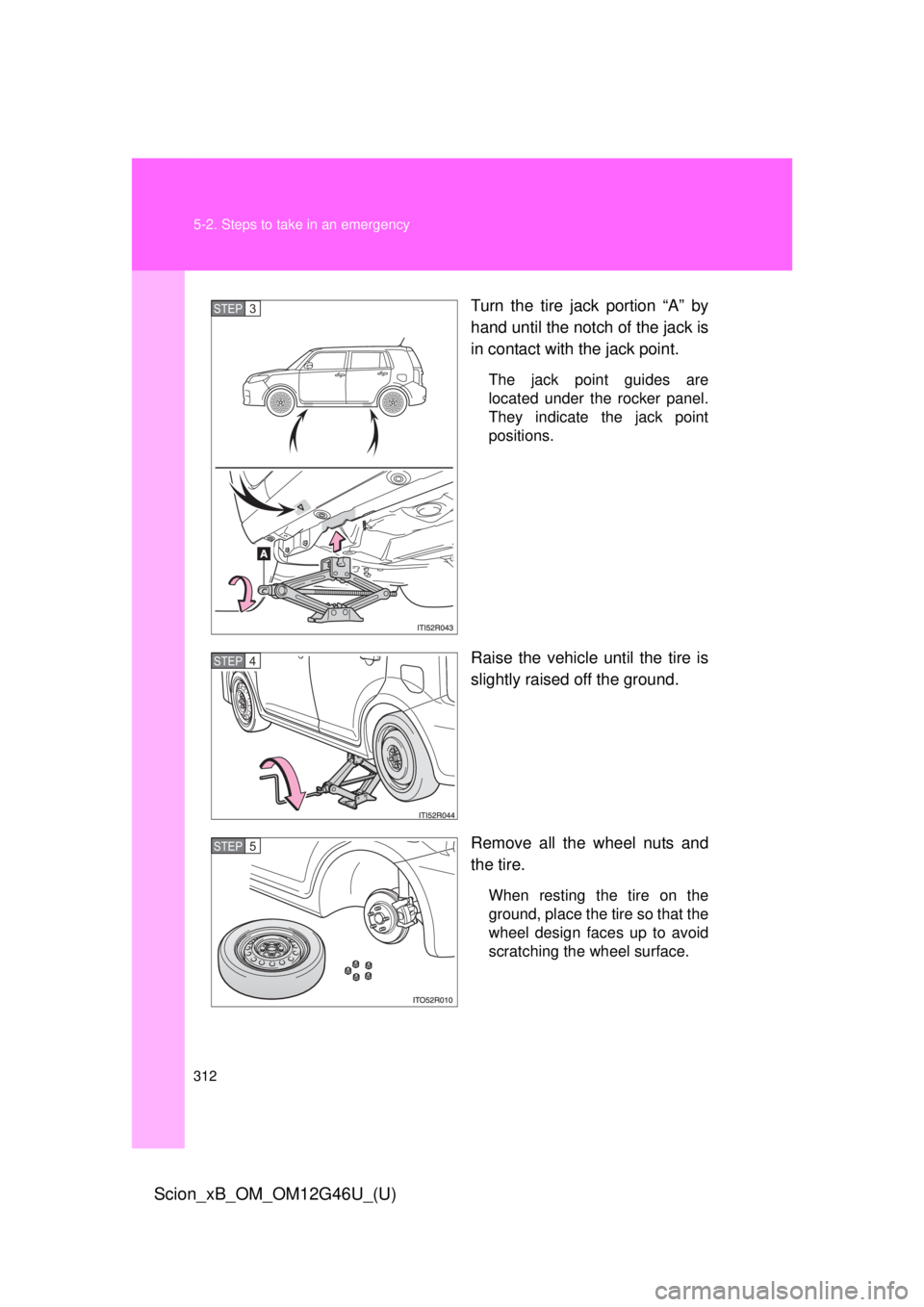

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are
located under the rocker panel.
They indicate the jack point
positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 3
STEP 4
STEP 5

5
When trouble arises
313
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)

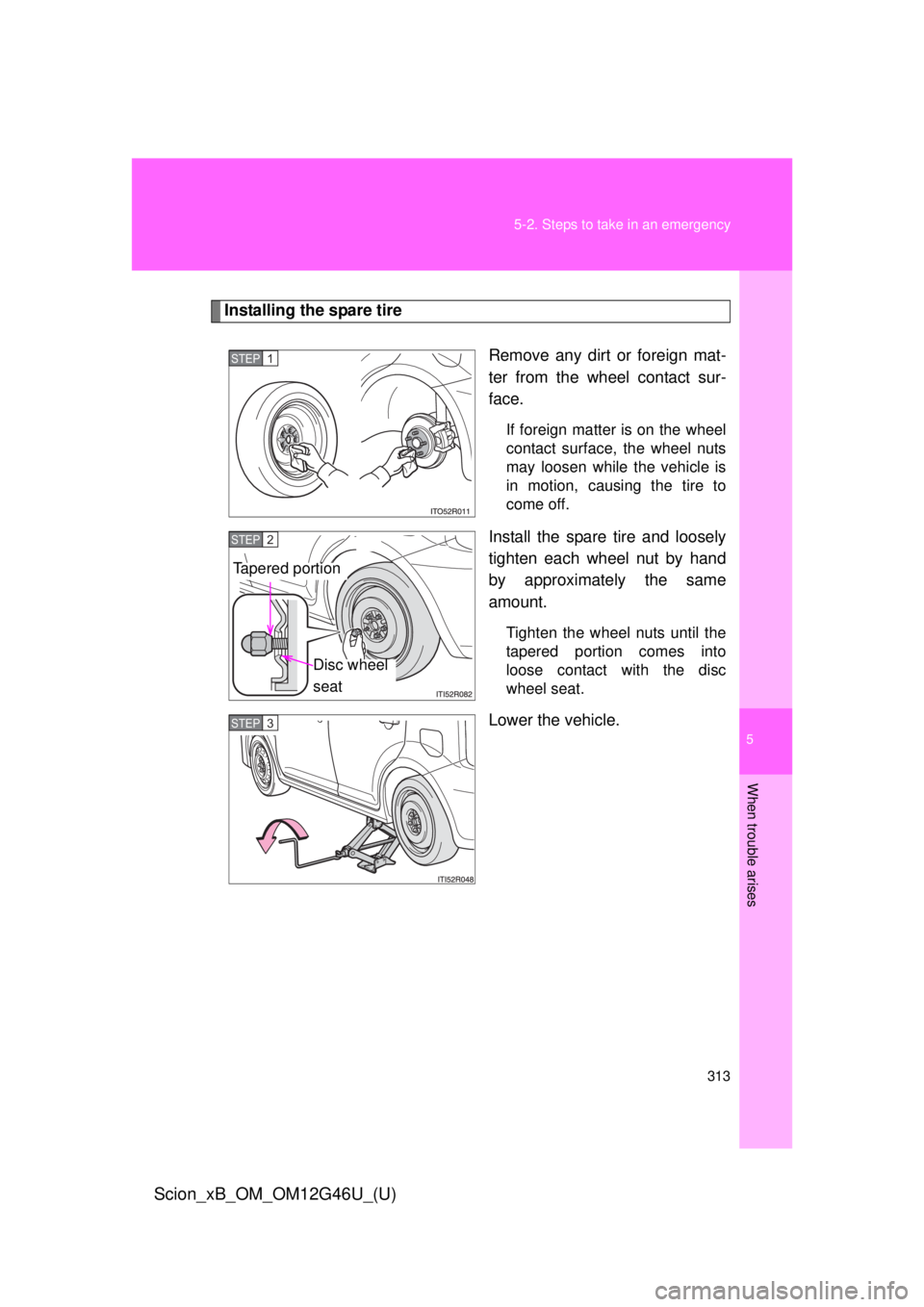

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
STEP 3

314 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5

5
When trouble arises
315
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
Stowing the flat tire
Put the flat tire on the center of
the luggage mat with the outer
side of the wheel facing up. Hook
one end of the belt (dark gray
portion) which is not forked to
either front cargo hook.
Pass the belts from between the
wheel spokes through the cen-
ter hole of the wheel.
Hook another end of the belt
(ivory portion) coming through
the center hole to the other front
cargo hook, and the other end
(dark gray portion) to the rear
cargo hook located diagonally to
the secondly used front hook.
STEP 1
STEP 2
STEP 3

316 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)

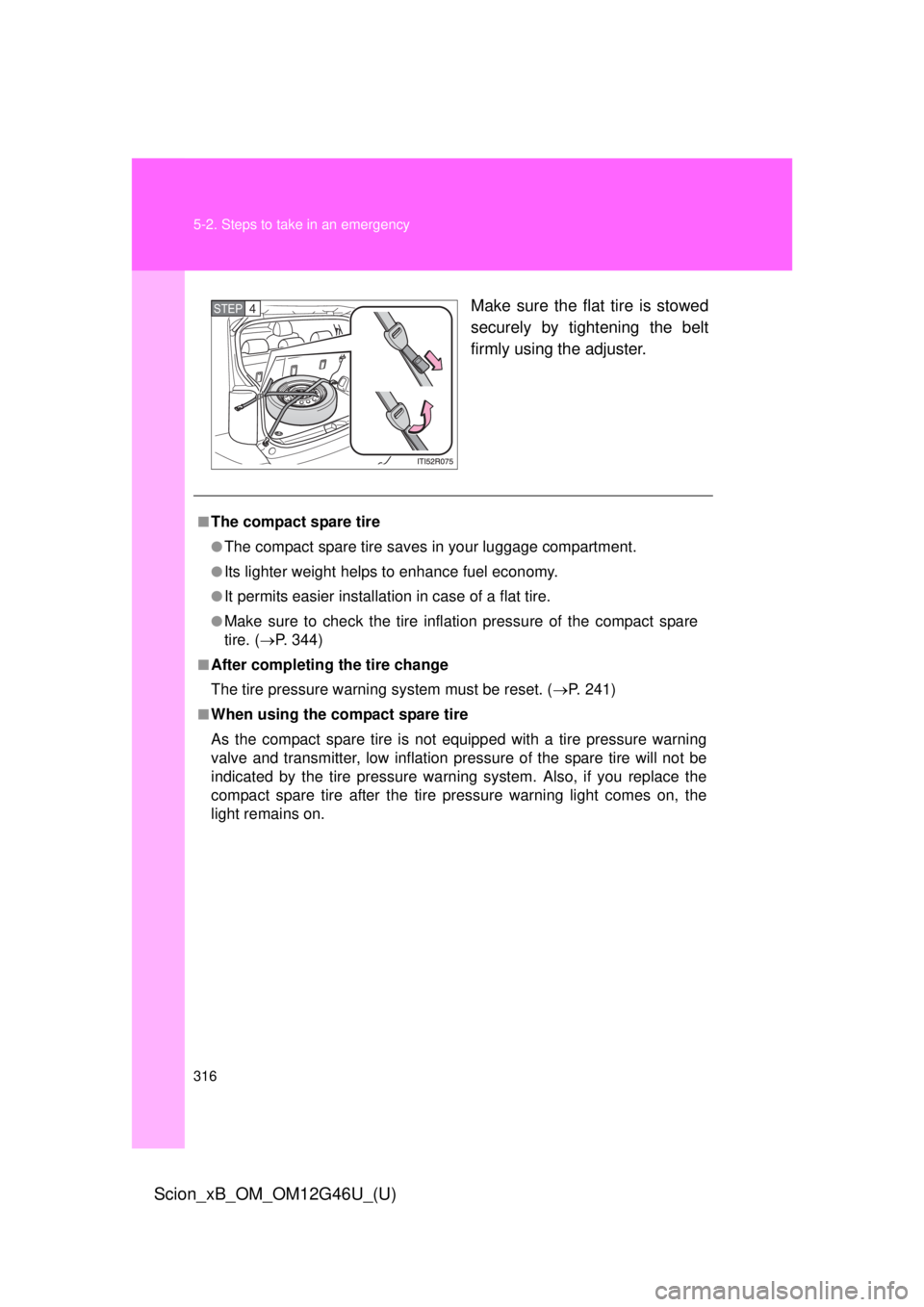

Make sure the flat tire is stowed
securely by tightening the belt
firmly using the adjuster.STEP 4
■The compact spare tire
●The compact spare tire saves in your luggage compartment.
●Its lighter weight helps to enhance fuel economy.
●It permits easier installation in case of a flat tire.
●Make sure to check the tire inflation pressu re of the compact spare
tire. ( P. 344)
■After completing the tire change
The tire pressure warnin g system must be reset. ( P. 241)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.

5
When trouble arises
317
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.
STEP 1
STEP 2
STEP 3

318 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

5
When trouble arises
319
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
CAUTION
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury:
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot.
Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N
•m, 10.5 kgf•m) as soon as possible after changing wheels.
●When installing a tire, only use whee l nuts that have been specifically
designed for that wheel.
●If there are any cracks or deformatio ns in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by your Scion
dealer.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, result ing in death or serious injury.
■When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward.
( P. 253)
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
■When stowing the flat tire
●Make sure the rear seats are in their original position.
●When carrying the flat tire, secure it using a tire tie-down belts. Other-
wise, the flat tire may fly out in case of the sudden braking or an acci-
dent, resulting in death or serious injury.

320 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G46U_(U)
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid se alants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 241)
