271
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G46U_(U)
■
After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 272)
● If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Scion
dealer, as soon as possible.

272
4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G46U_(U)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 345)
■ Front bulb locations
Parking light
Daytime running lights
(if equipped) and head- light high beam
Headlight low beam Front side
marker light
Front turn signal light

273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G46U_(U)
■

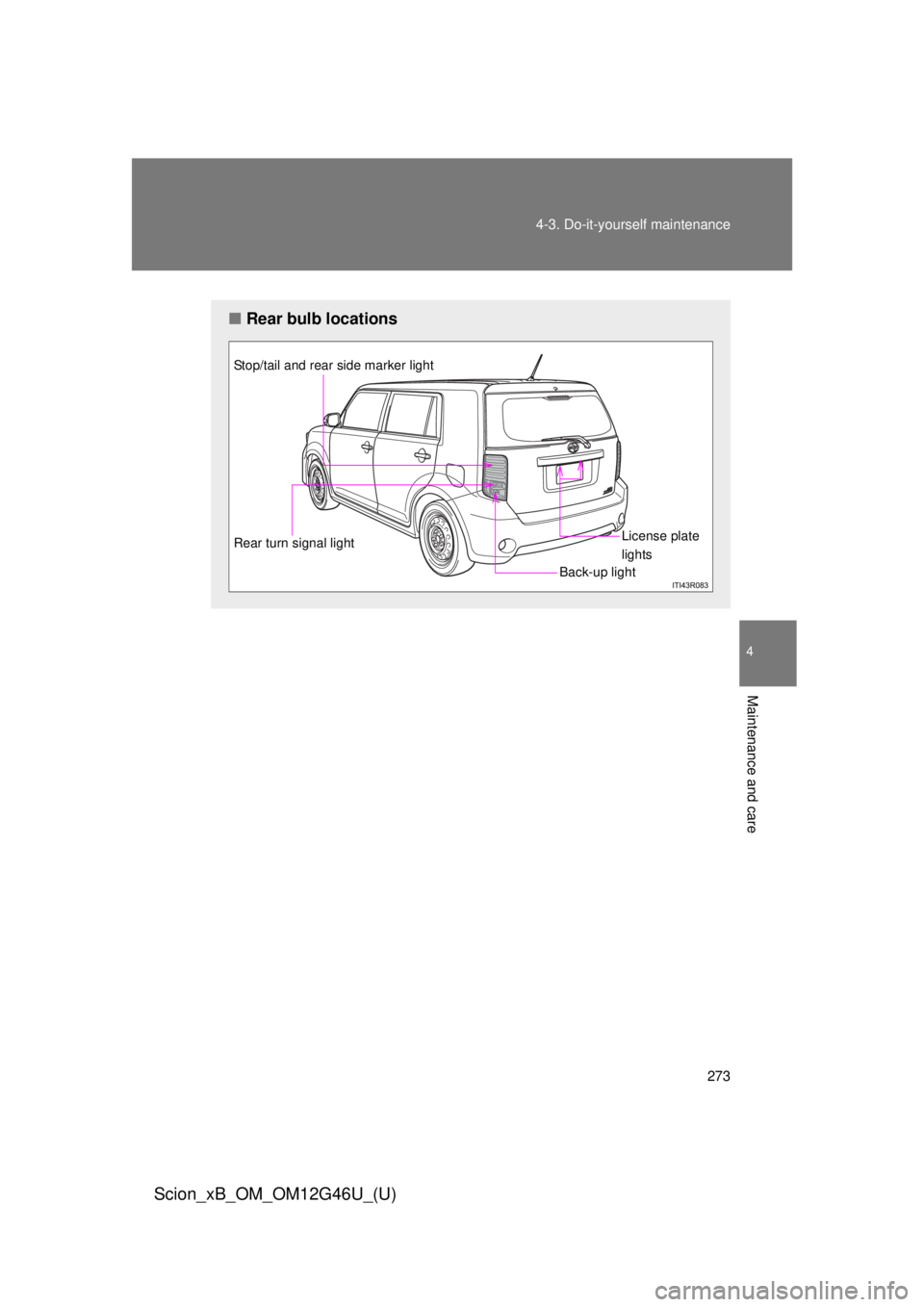

Rear bulb locations
Stop/tail and rear side marker light
License plate
lights
Rear turn signal light
Back-up light

274 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G46U_(U)

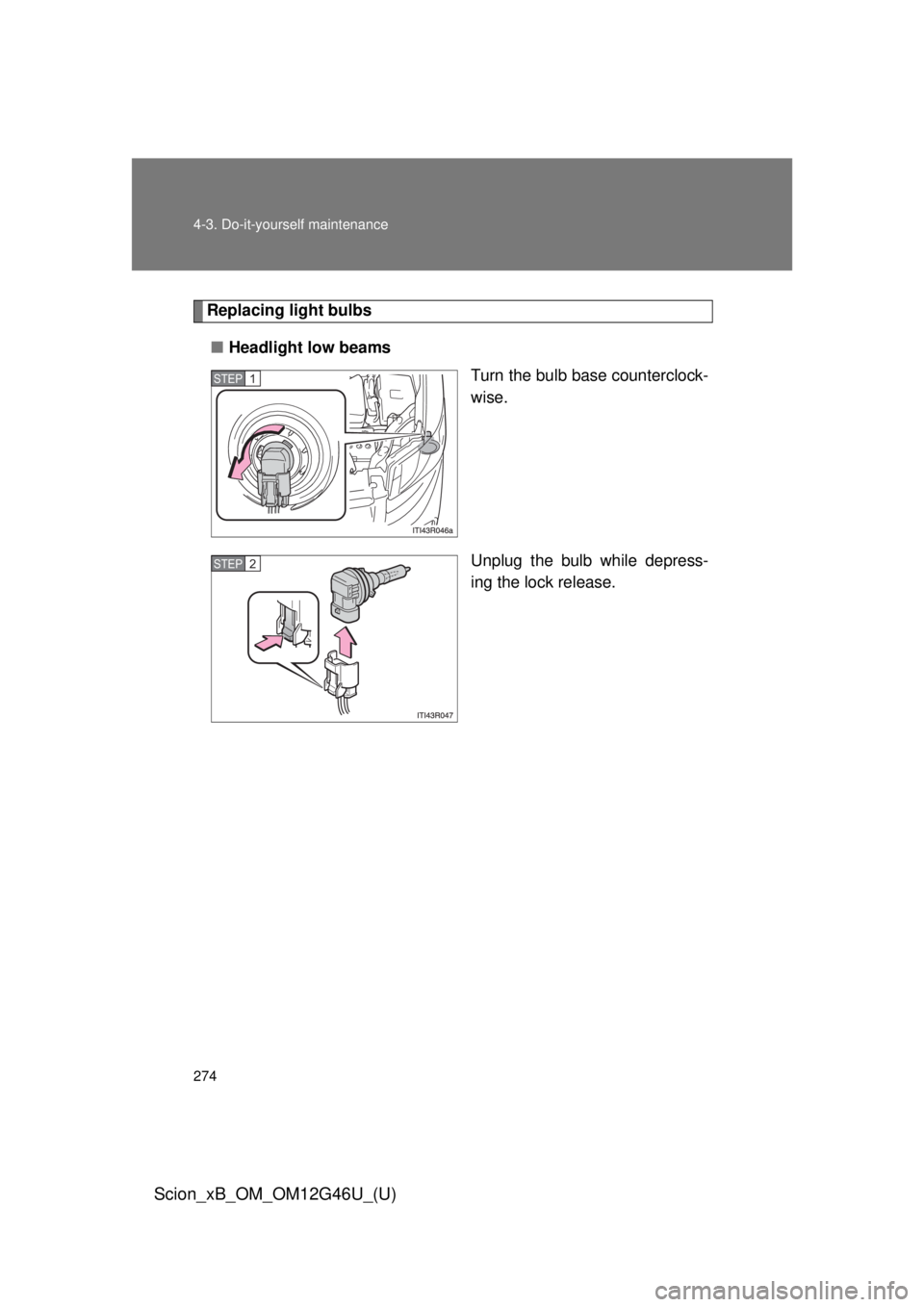

Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G46U_(U)
■
Daytime running lights (if e quipped) and headlight high
beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

276 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G46U_(U)

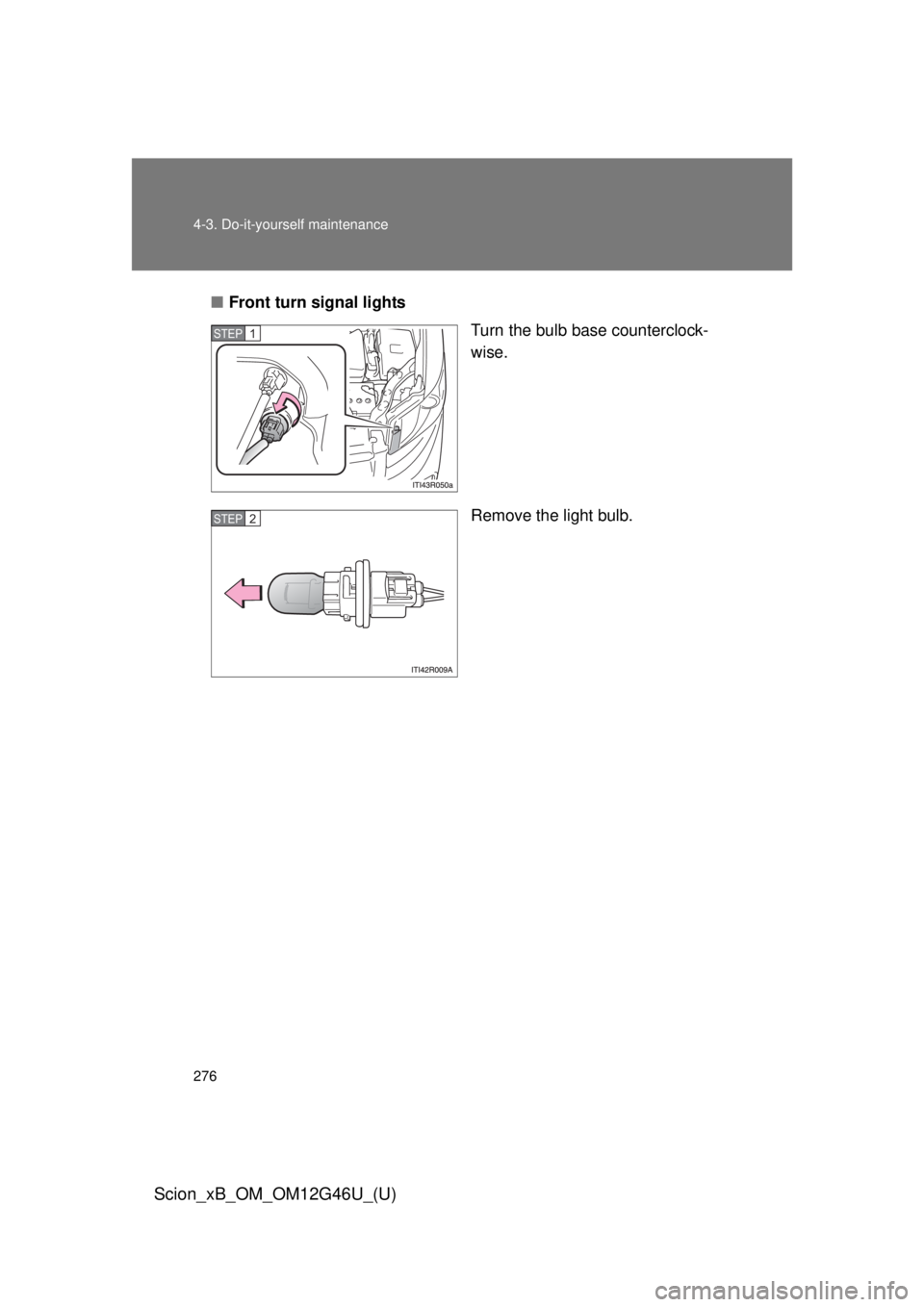

■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G46U_(U)
■

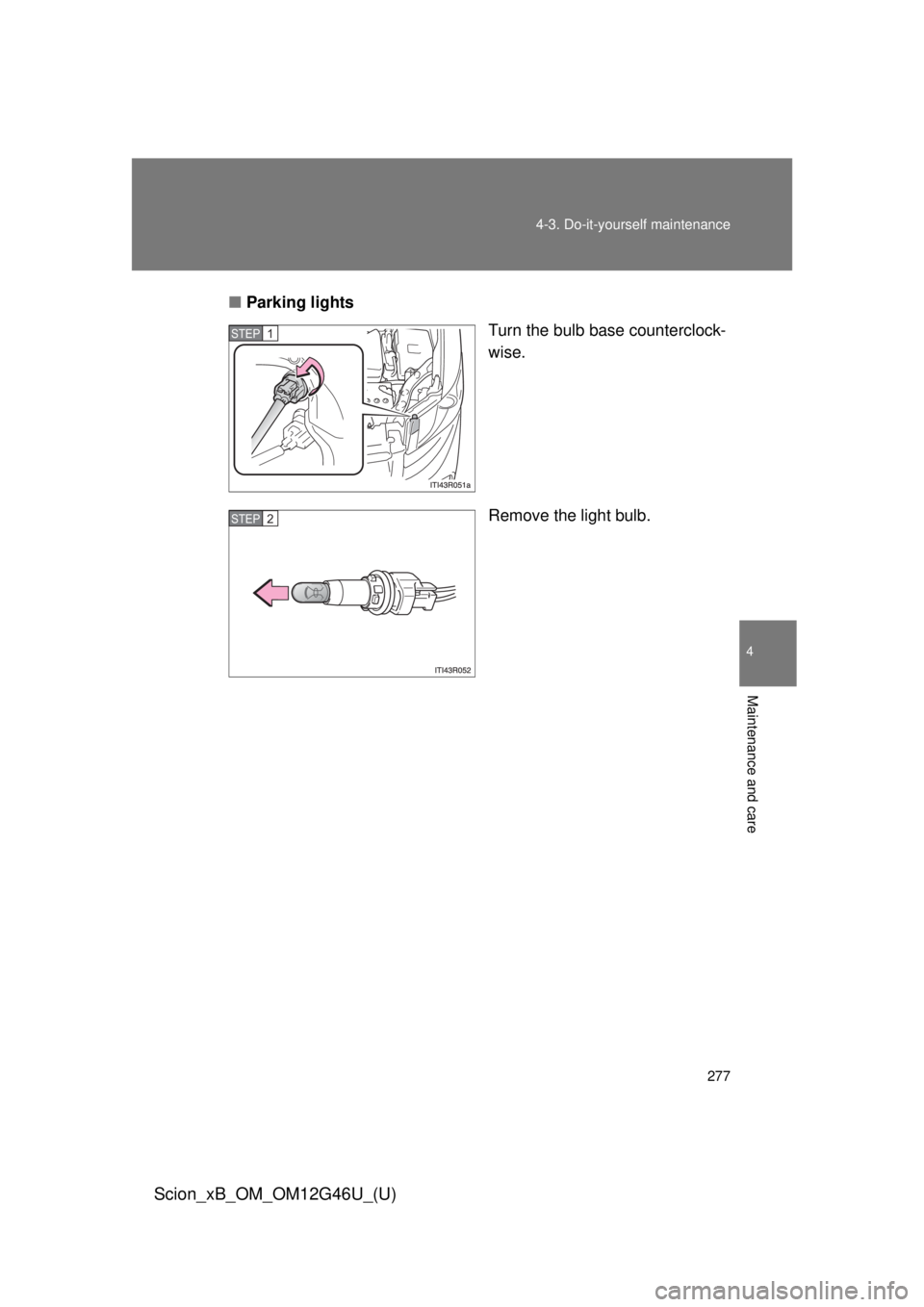

Parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

278 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G46U_(U)

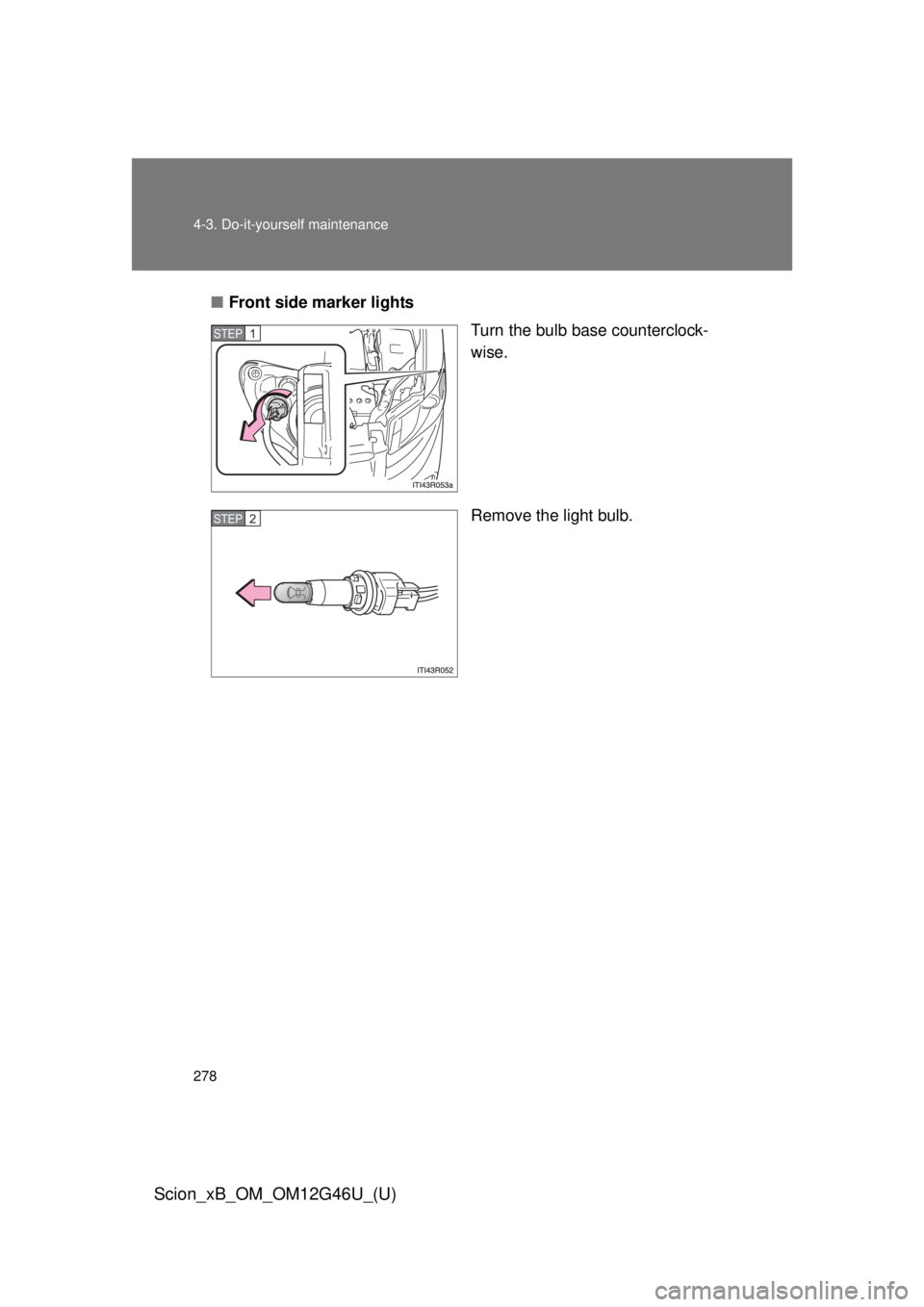

■Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G46U_(U)
■

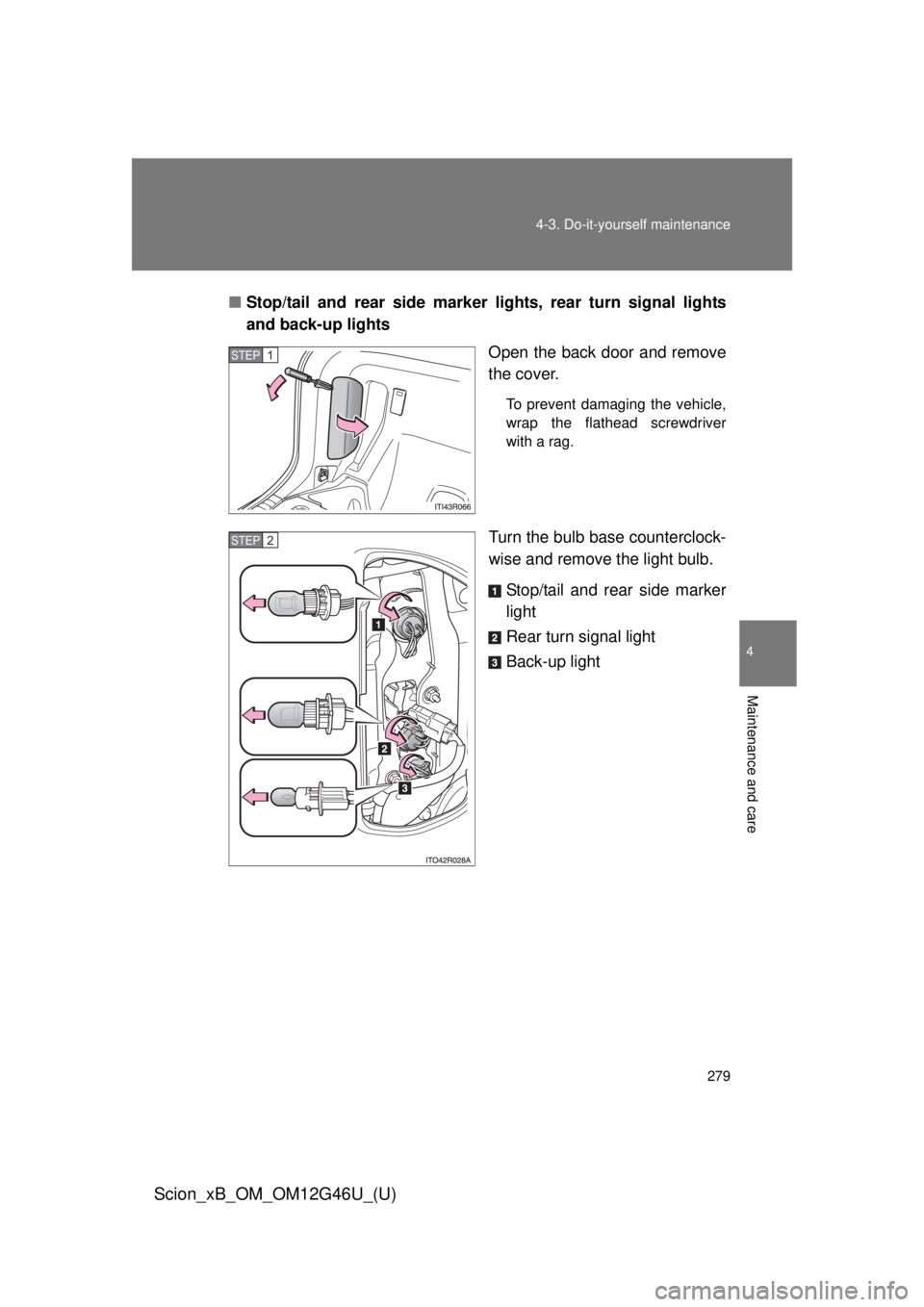

Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2

280 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G46U_(U)

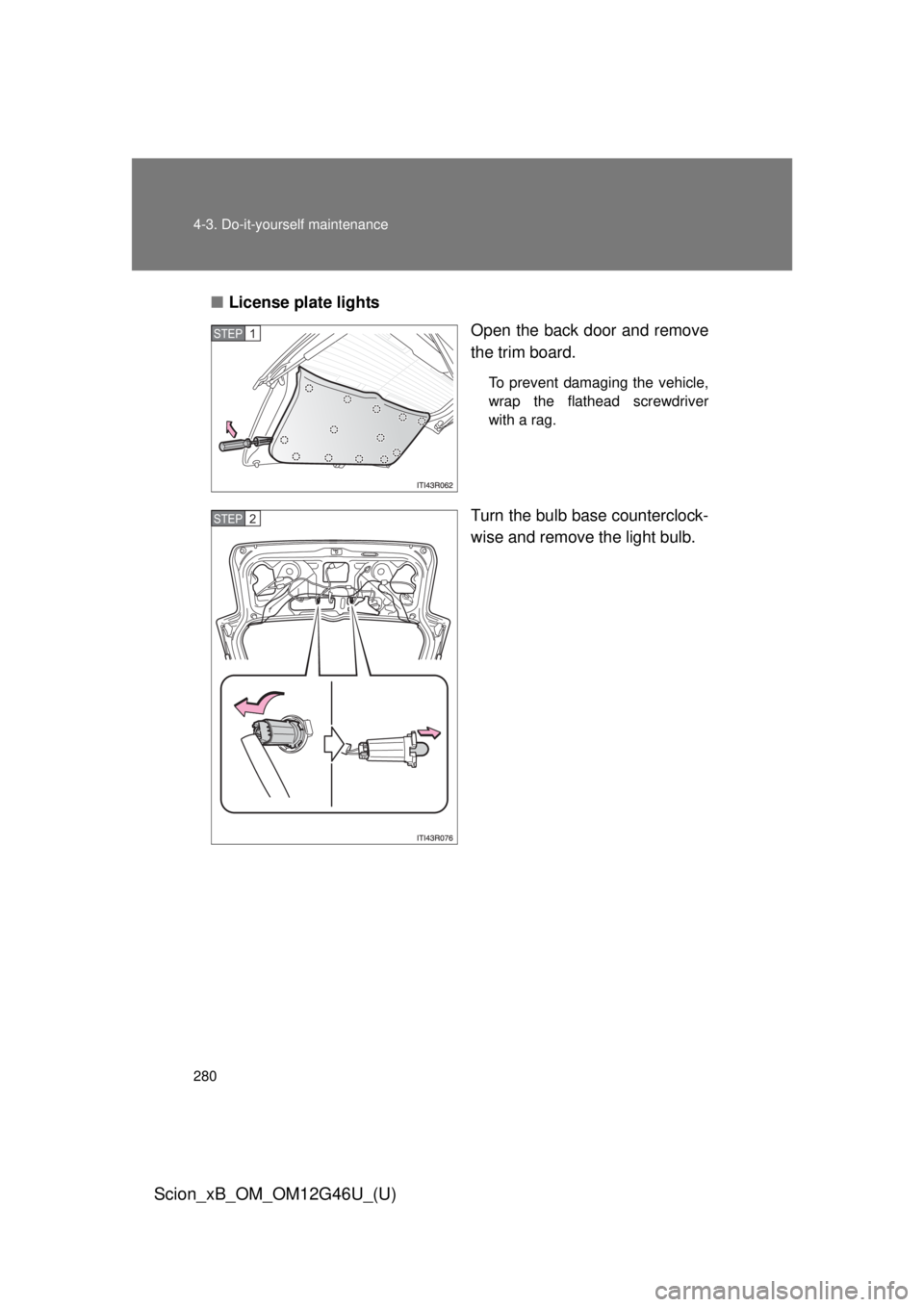

■License plate lights
Open the back door and remove
the trim board.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
STEP 1
STEP 2
