TOYOTA xB 2013 Owners Manual (in English)

361
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12G46U_(U)
*: Table 1
 Occupant loading and distri bution for vehicle normal load
for various designated seating capacities
Tire related termMeaning
Tread rib A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI) The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture The fixture used to hold the wheel and tire
assembly securely
during testing
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehi- cle
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second
seat
11 through 15 5 2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 7 2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

362
Scion_xB_OM_OM12G46U_(U)
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol (
P. 27) Wireless remote control On Off
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Operation signal
(Buzzer) On Off
Open door reminder
buzzer (When locking
the vehicle) On Off
Panic function On Off
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by your Scion
dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Scion dealer.

363
6-2. Customization
6
Vehicle specifications
Scion_xB_OM_OM12G46U_(U)
Door lock
(
P. 3 1 )
Unlocking using a key
Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Speed-detecting auto-
matic door lock function Off On
Opening driver’s door
unlocks all doors Off On
Shifting gears to P
unlocks all doors. (vehi-
cles with an automatic
transmission) On Off
Shifting gears to posi-
tion other than P locks
all doors. (vehicles with
an automatic transmis-
sion) On Off
ItemFunctionDefault settingCustomized
setting

364 6-2. Customization
Scion_xB_OM_OM12G46U_(U)
Illumination
(
P. 184)Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
to the “LOCK” position On Off
ItemFunctionDefault settingCustomized
setting

365
6
Vehicle specifications
Scion_xB_OM_OM12G46U_(U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Maintenance data
(U.S.A. only) After the maintenance is performed. P. 213
Tire pressure warning
system When changing the tire size. P. 241
The following items must be init
ialized for normal system operation
in cases such as after maintenance is performed on the vehicle.

366 6-3. Initialization
Scion_xB_OM_OM12G46U_(U)

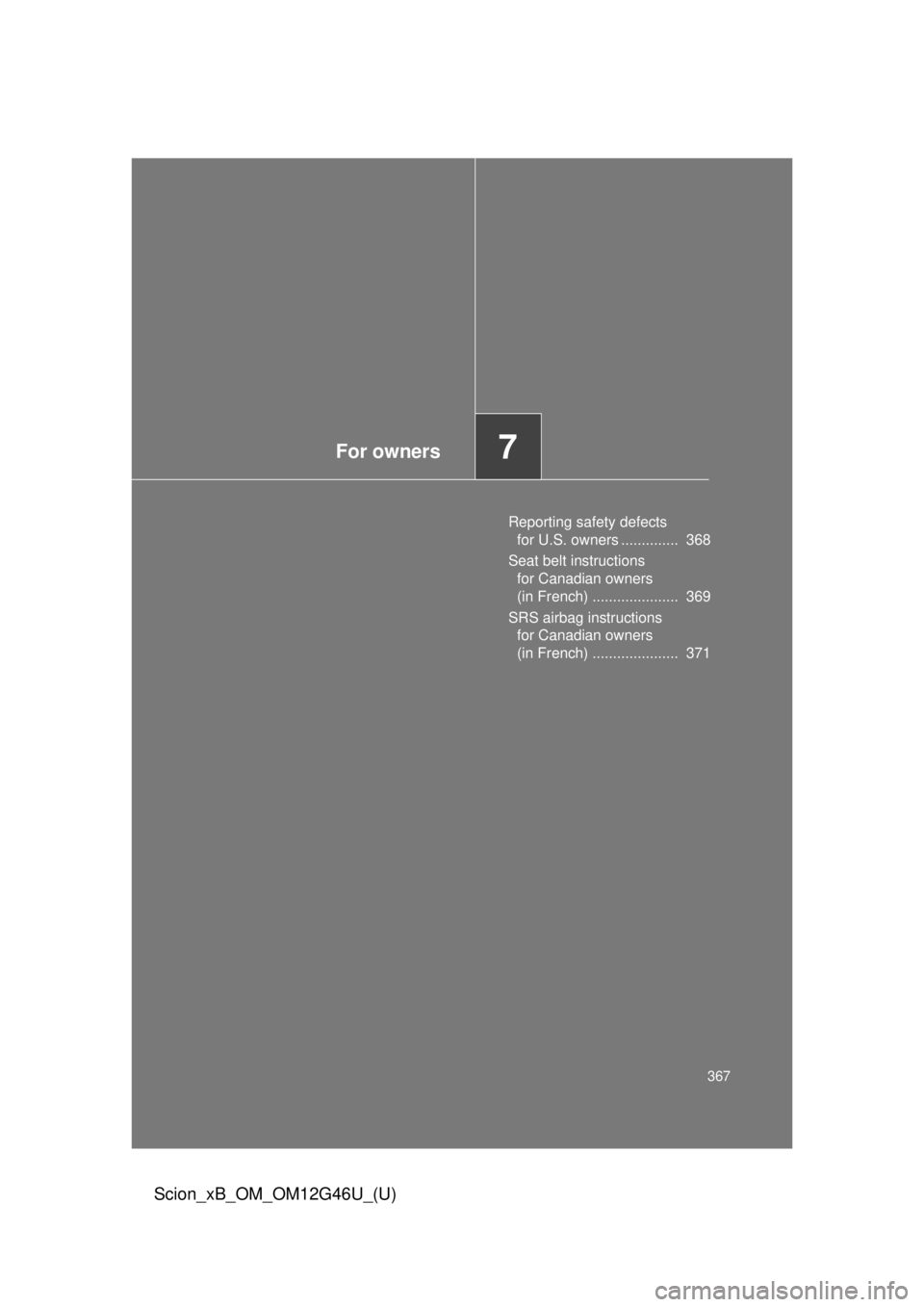

For owners7
367
Scion_xB_OM_OM12G46U_(U)
Reporting safety defects for U.S. owners .............. 368
Seat belt instructions for Canadian owners
(in French) ..................... 369
SRS airbag instructions for Canadian owners
(in French) ..................... 371

368
Scion_xB_OM_OM12G46U_(U)

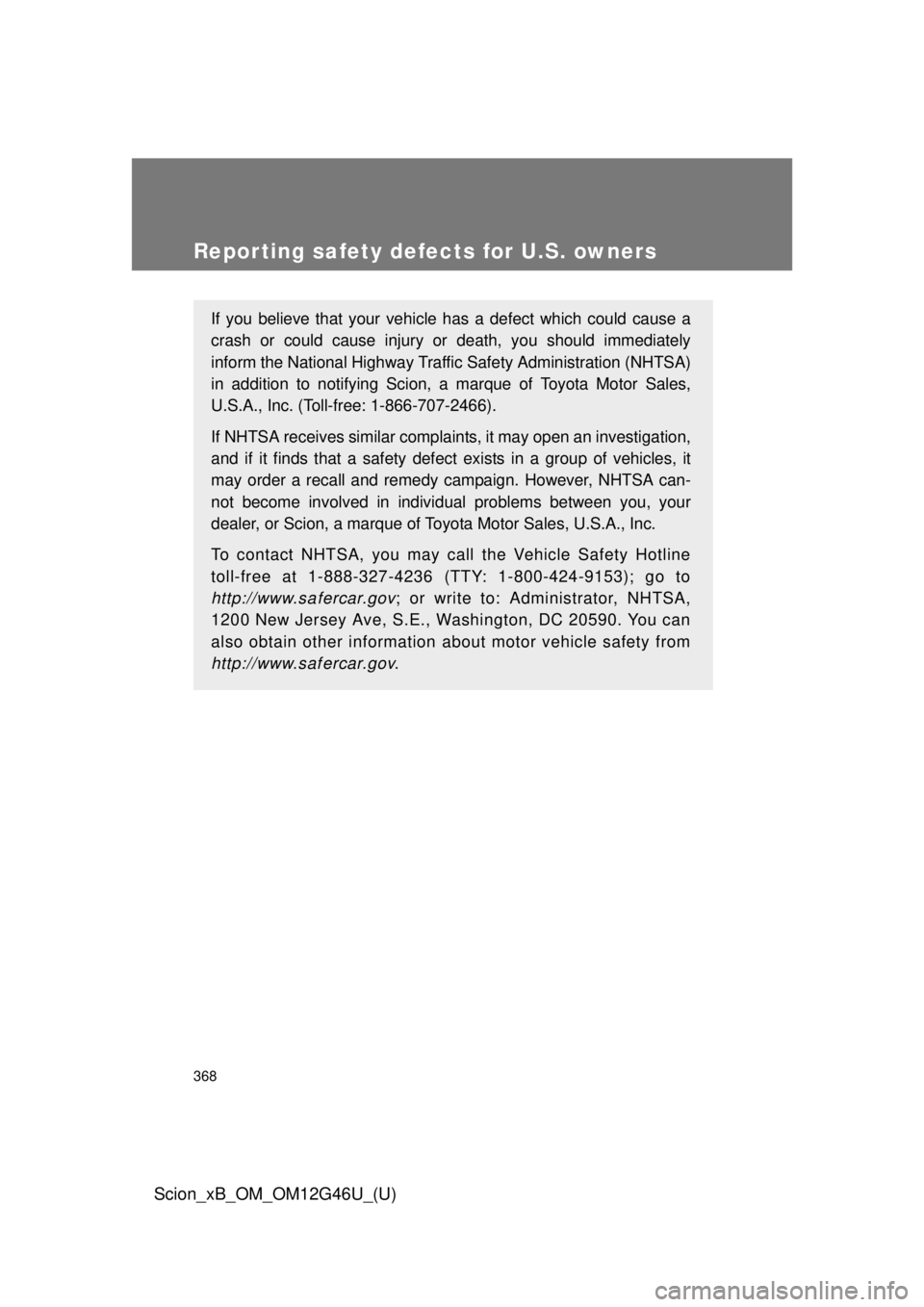

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Scion, a marque of Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-866-707-2466).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Scion, a marque of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

369
7
For owners
Scion_xB_OM_OM12G46U_(U)

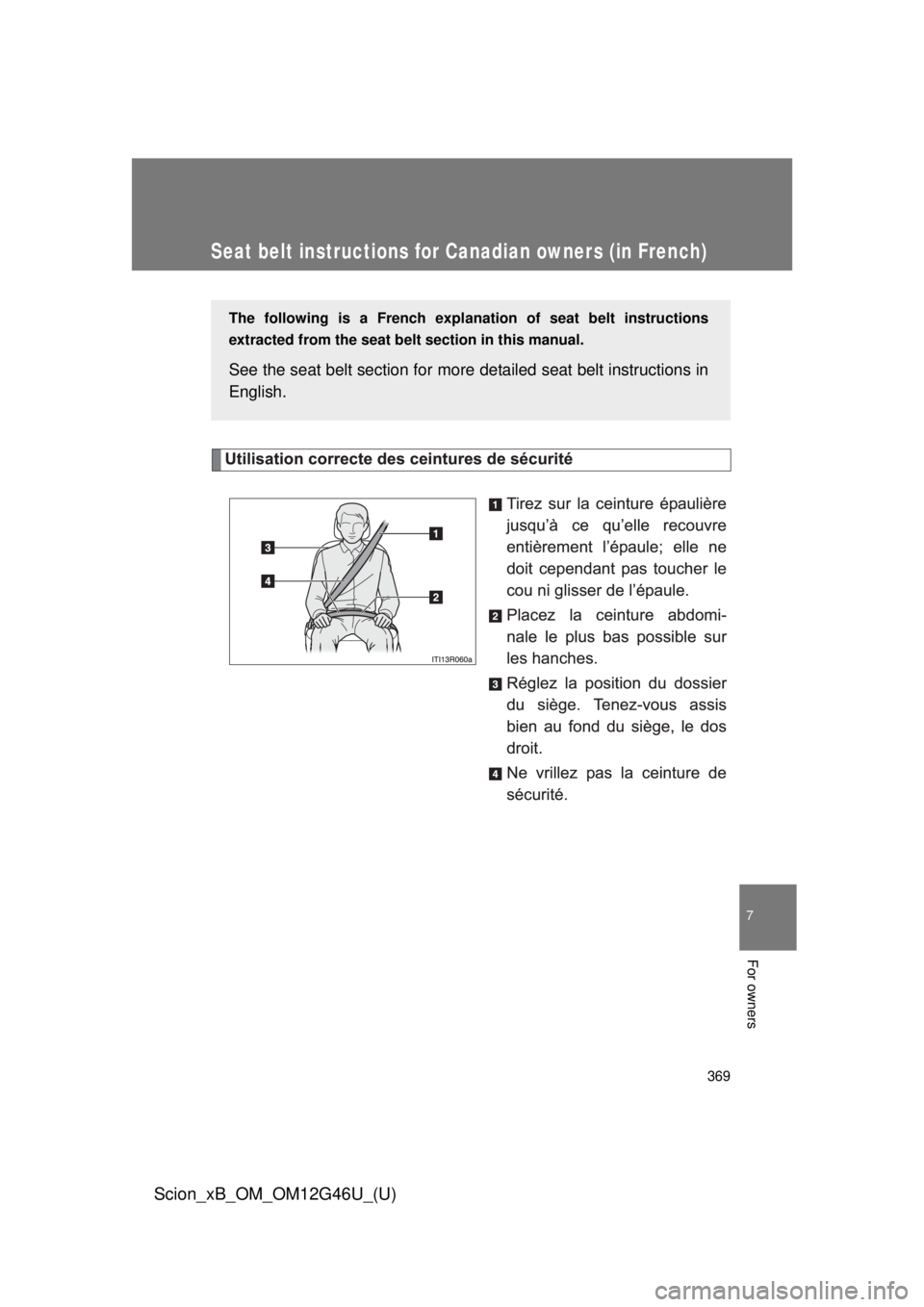

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.

370
