When trouble arises
311
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
Stowing the flat tire
Pass the belt through the two of
anchor brackets. Then return the
luggage storage box to the origi-
nal position.
Lay the flat tire on the luggage
floor so that the outer side of the
wheel faces toward the rear of
the vehicle. Pass the belt
through the center hole of the
wheel as shown above.
Pass the belt in front of the rear
center head restraint as shown
and attach the belt end.
STEP 1
STEP 2
STEP 3 Lock release
button

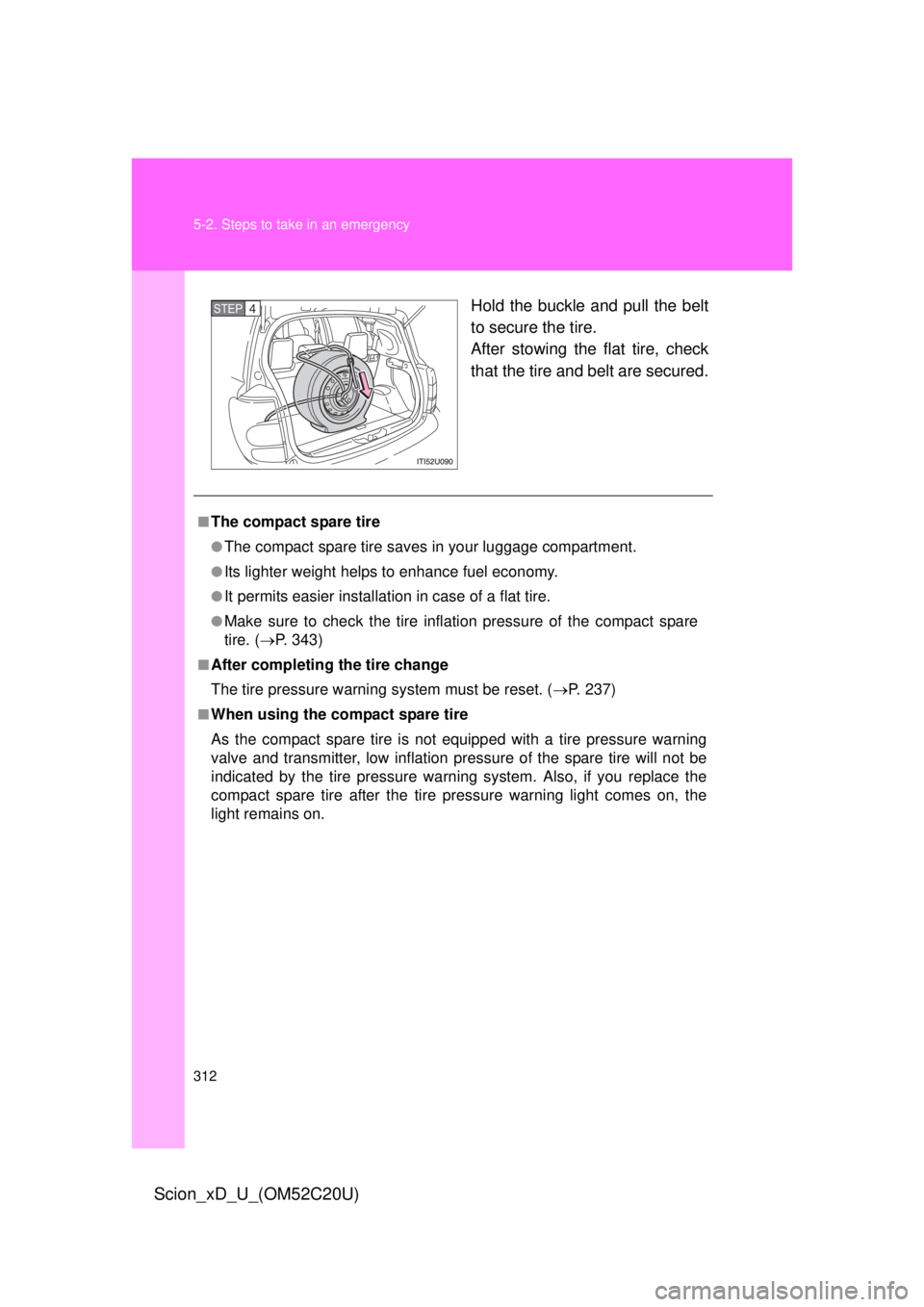

312 5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
Hold the buckle and pull the belt
to secure the tire. 
After stowing the flat tire, check
that the tire and belt are secured.STEP 4
■The compact spare tire
●The compact spare tire saves in your luggage compartment.
●Its lighter weight helps to enhance fuel economy.
●It permits easier installation in case of a flat tire.
●Make sure to check the tire inflation pressu re of the compact spare
tire. ( P. 343)
■After completing the tire change
The tire pressure warnin g system must be reset. ( P. 237)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.

5
When trouble arises
313
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with t he tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure
to observe this precaution may lead to an accident causing death or seri-
ous injury.
STEP 1
STEP 2
STEP 3

314 5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire. 
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a heigh t greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

5
When trouble arises
315
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
CAUTION
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. T ouching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N
•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Scion
dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( P. 249)
■
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
■When stowing the flat tire
●Make sure the rear seats are in their original position.
●When carrying the flat tire, secure it using a tire tie-down belts. Other-
wise, the flat tire may fly out in case of the sudden braking or an acci-
dent, resulting in death or serious injury.

316 5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a fl at tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire. 
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 237)

5
When trouble arises
317
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)

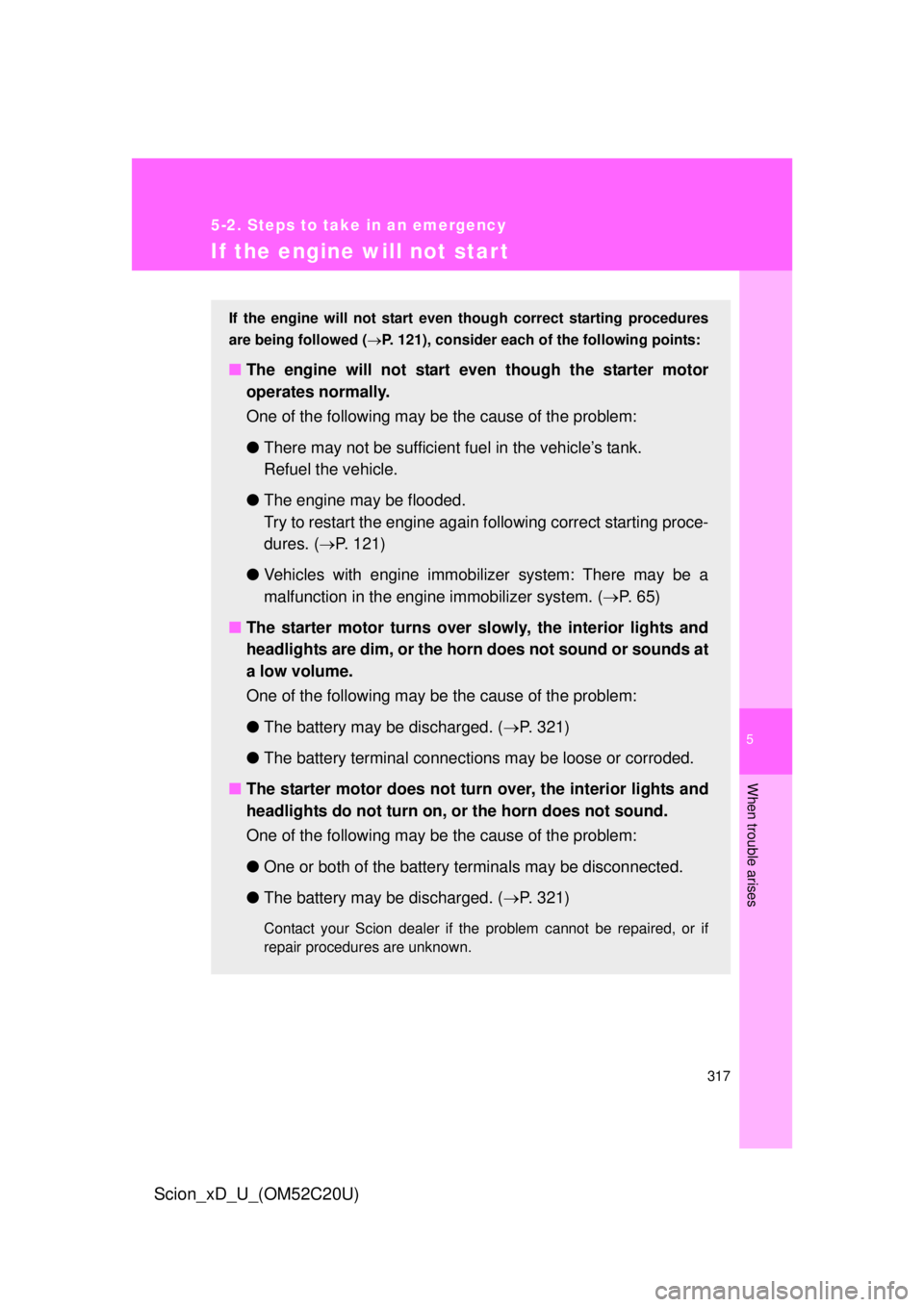

If the engine will not star t
If the engine will not start even though correct starting procedures
are being followed ( P. 121), consider each of the following points:
■The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank. 
Refuel the vehicle.
● The engine may be flooded. 
Try to restart the engine again following correct starting proce-
dures. ( P. 121)
● Vehicles with engine immobilizer system: There may be a
malfunction in the engine immobilizer system. (P. 6 5 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 321)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 321)
Contact your Scion dealer if the problem cannot be repaired, or if
repair procedures are unknown.

318
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
If the shift lever cannot be shifted from P (automatic transmission)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by your Scion dealer immediately. 
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Turn the engine switch to the “ACC” position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent tool.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
319
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
If you lose your keys
New genuine keys can be made by your Scion dealer. Bring a master
key and the key number stamped on the key number plate.

320
5-2. Steps to take in an emergency
Scion_xD_U_(OM52C20U)
If you cannot operate the back door opener
Remove the cover on the back
door trim.
Push the lever with the back
door motor, open the back door.
If the back door opener does not operate, there may be a problem
with the back door opener system . Have the vehicle inspected by
your Scion dealer immediately. 
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.
STEP 1
STEP 2
