3-7. Fuel Economy Monitor
3
When Driving

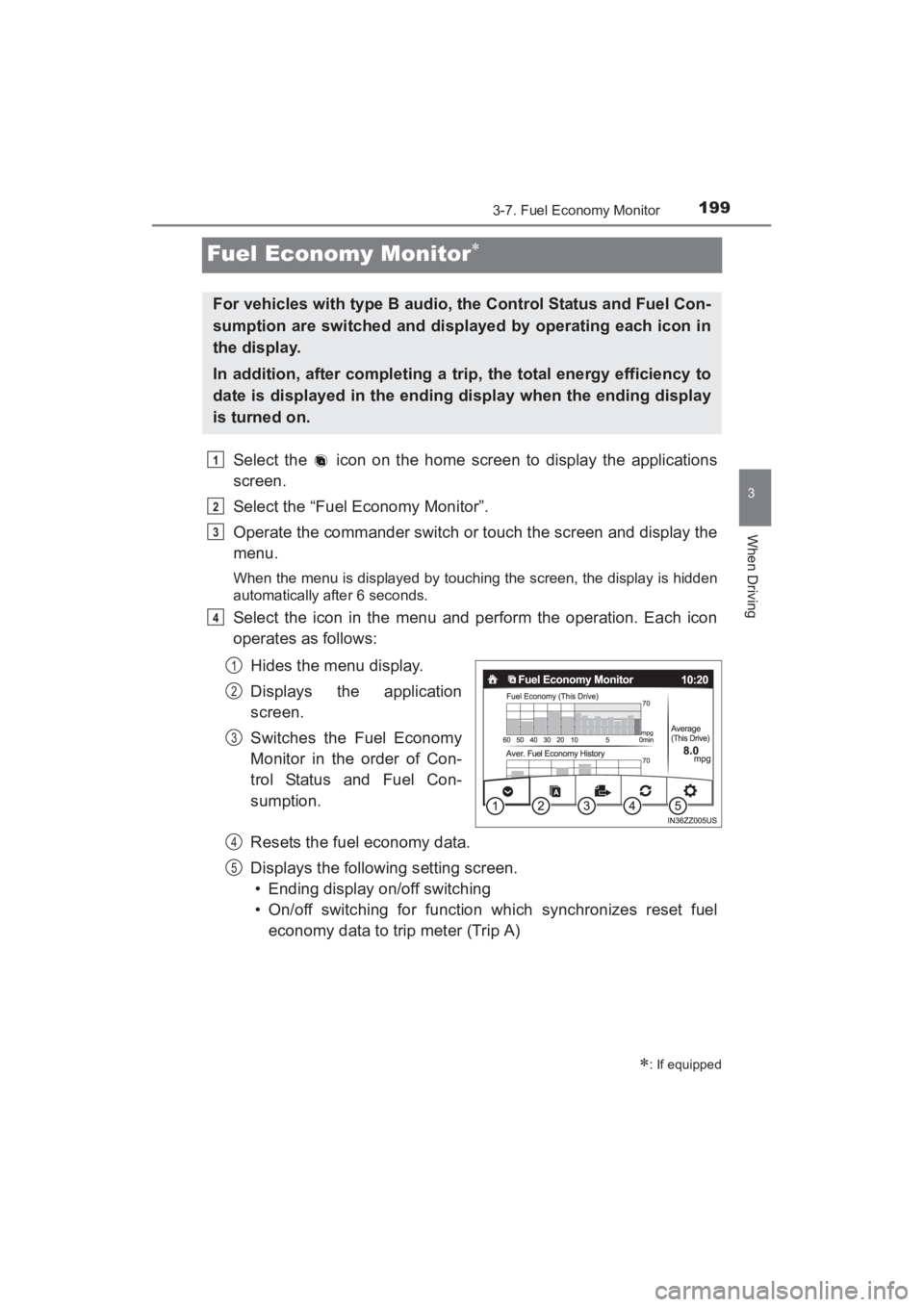

Fuel Economy Monitor∗
Select the icon on the home screen to display the applications
screen.
Select the “Fuel Economy Monitor”.
Operate the commander switch or touch the screen and display the
menu.
When the menu is displayed by touching the screen, the display is hidden
automatically after 6 seconds.
Select the icon in the menu and perform the operation. Each icon
operates as follows:Hides the menu display.
Displays the application
screen.
Switches the Fuel Economy
Monitor in the order of Con-
trol Status and Fuel Con-
sumption.
Resets the fuel economy data.
Displays the following setting screen.• Ending display on/off switching
• On/off switching for function which synchronizes reset fuel economy data to trip meter (Trip A)
∗: If equipped
For vehicles with type B audio, the Control Status and Fuel Con-
sumption are switched and displayed by operating each icon in
the display.
In addition, after completing a trip, the total energy efficiency to
date is displayed in the ending display when the ending display
is turned on.
1
2
3
4
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 199 Monday, June 1, 2015 9:22 PM

200
YARIS_SEDAN_OM_OM99M18z_(U)
3-7. Fuel Economy Monitor

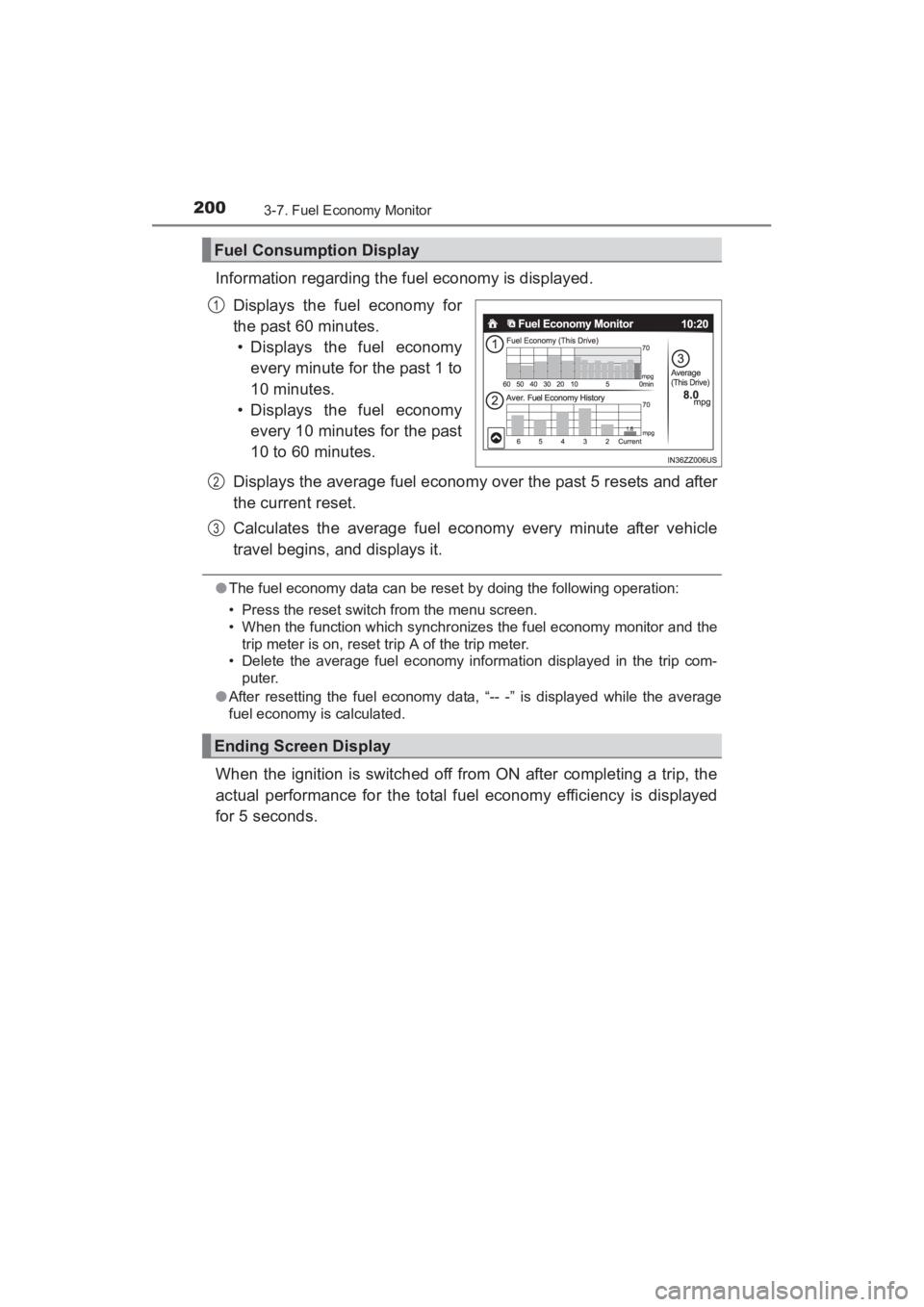

Information regarding the fuel economy is displayed.Displays the fuel economy for
the past 60 minutes.• Displays the fuel economy every minute for the past 1 to
10 minutes.
• Displays the fuel economy
every 10 minutes for the past
10 to 60 minutes.
Displays the average fuel economy over the past 5 resets and after
the current reset.
Calculates the average fuel economy every minute after vehicle
travel begins, and displays it.
● The fuel economy data can be reset by doing the following operation:
• Press the reset switch from the menu screen.
• When the function which synchronizes the fuel economy monitor and the
trip meter is on, reset trip A of the trip meter.
• Delete the average fuel economy information displayed in the trip com-
puter.
● After resetting the fuel economy data, “-- -” is displayed while the average
fuel economy is calculated.
When the ignition is switched off from ON after completing a trip, the
actual performance for the total fuel economy efficiency is displayed
for 5 seconds.
Fuel Consumption Display
1
Ending Screen Display
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 200 Monday, June 1, 2015 9:22 PM

201
YARIS_SEDAN_OM_OM99M18z_(U)
3-8. Drive Selection
3
When Driving
Drive Selection (Automatic Transaxle)∗
●When the sport mode is selected, driving at higher engine speeds increases
and it may increase fuel consumption. Toyota recommends that you cancel
the sport mode on normal driving.
● Drive mode cannot be switched in the following conditions:
• ABS/TCS/DSC is operating
• Steering wheel is being operated abruptly

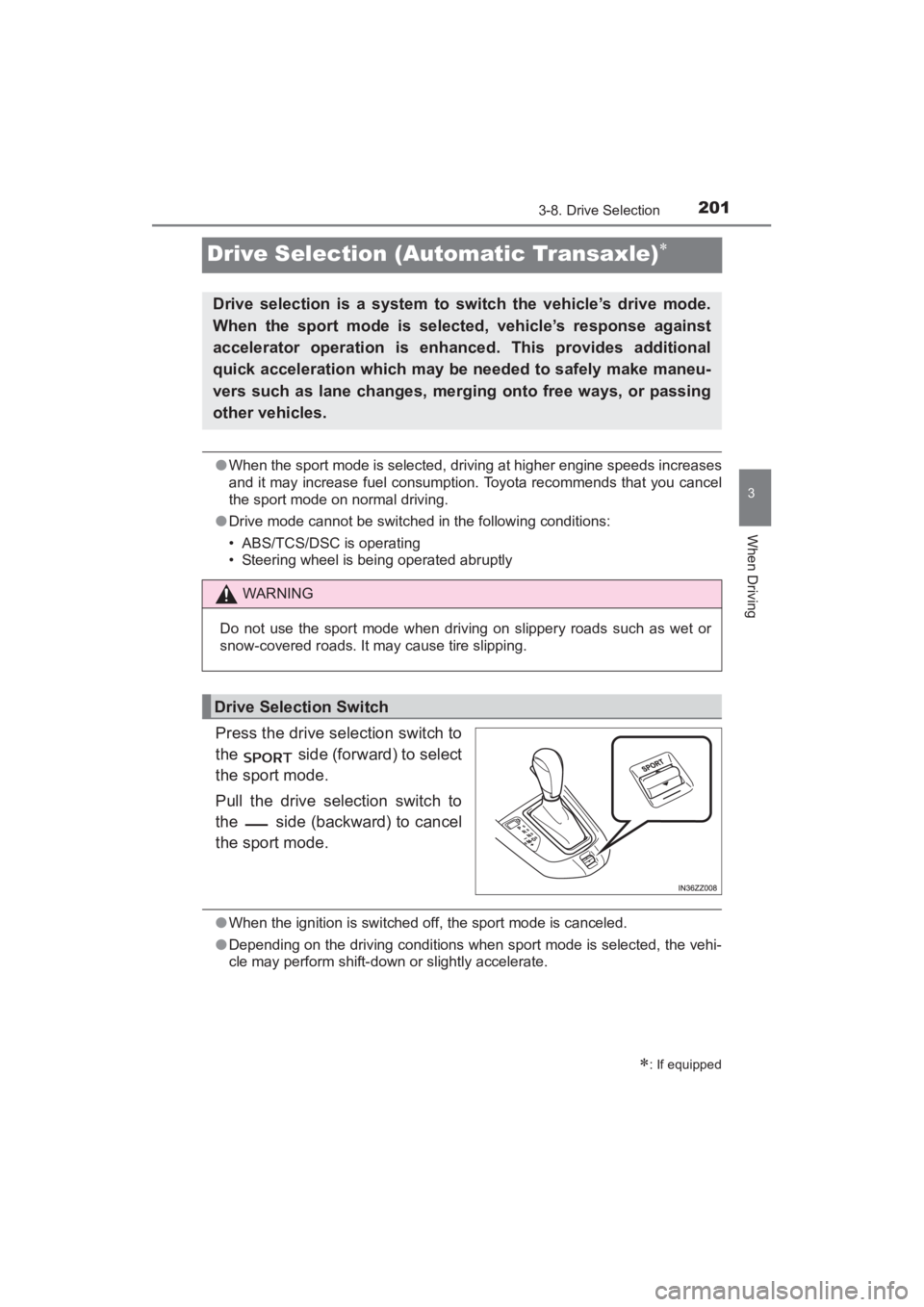

Press the drive selection switch to
the side (forward) to select
the sport mode.
Pull the drive selection switch to
the side (backward) to cancel
the sport mode.
●When the ignition is switched off, the sport mode is canceled.
● Depending on the driving conditions when sport mode is selected, the vehi-
cle may perform shift-down or slightly accelerate.
∗: If equipped
Drive selection is a system to switch the vehicle’s drive mode.
When the sport mode is selected, vehicle’s response against
accelerator operation is enhanced. This provides additional
quick acceleration which may be needed to safely make maneu-
vers such as lane changes, merging onto free ways, or passing
other vehicles.
WARNING
Do not use the sport mode when driving on slippery roads such as wet or
snow-covered roads. It may cause tire slipping.
Drive Selection Switch
YARIS_SEDAN_OM_OM99M18z_(U).book Page 201 Monday, June 1, 2015 9:22 PM

202
YARIS_SEDAN_OM_OM99M18z_(U)
3-8. Drive Selection
When the sport mode is selected,
the select mode indicator light
turns on in the combination meter.
If the mode cannot be switched to drive mode, the select mode indicator light
flashes to notify the driver.
Select Mode Indicator Light
YARIS_SEDAN_OM_OM99M18z_(U).book Page 202 Monday, June 1, 2015 9:22 PM

203
YARIS_SEDAN_OM_OM99M18z_(U)
3-9. Power Steering
3
When Driving
Power Steering

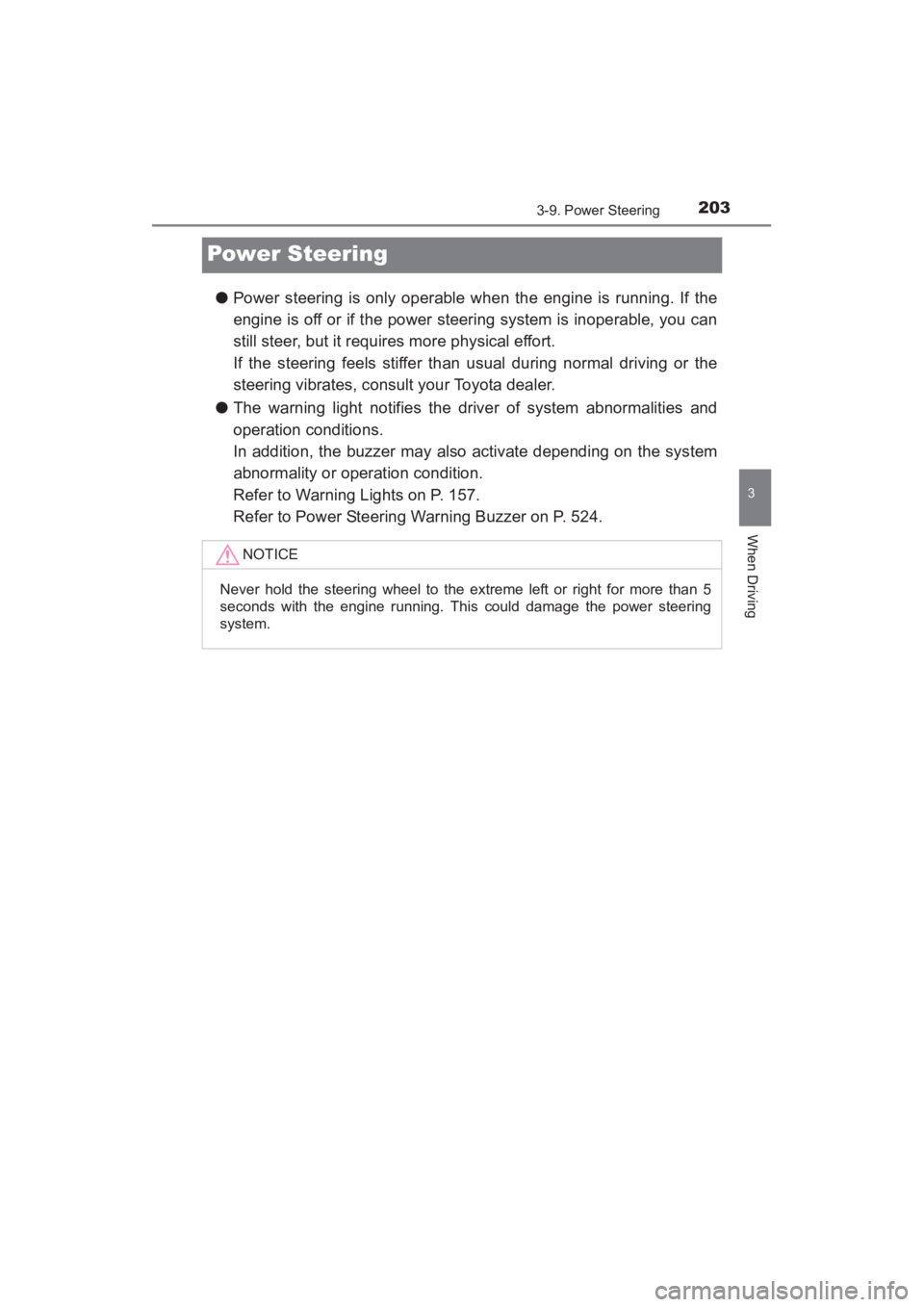

●Power steering is only operable when the engine is running. If the
engine is off or if the power steering system is inoperable, you can
still steer, but it requires more physical effort.
If the steering feels stiffer than usual during normal driving or the
steering vibrates, consult your Toyota dealer.
● The warning light notifies the driver of system abnormalities and
operation conditions.
In addition, the buzzer may also activate depending on the system
abnormality or operation condition.
Refer to Warning Lights on P. 157.
Refer to Power Steering Warning Buzzer on P. 524.
NOTICE
Never hold the steering wheel to the extreme left or right for more than 5
seconds with the engine running. This could damage the power steering
system.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 203 Monday, June 1, 2015 9:22 PM

204
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
Active Safety System∗

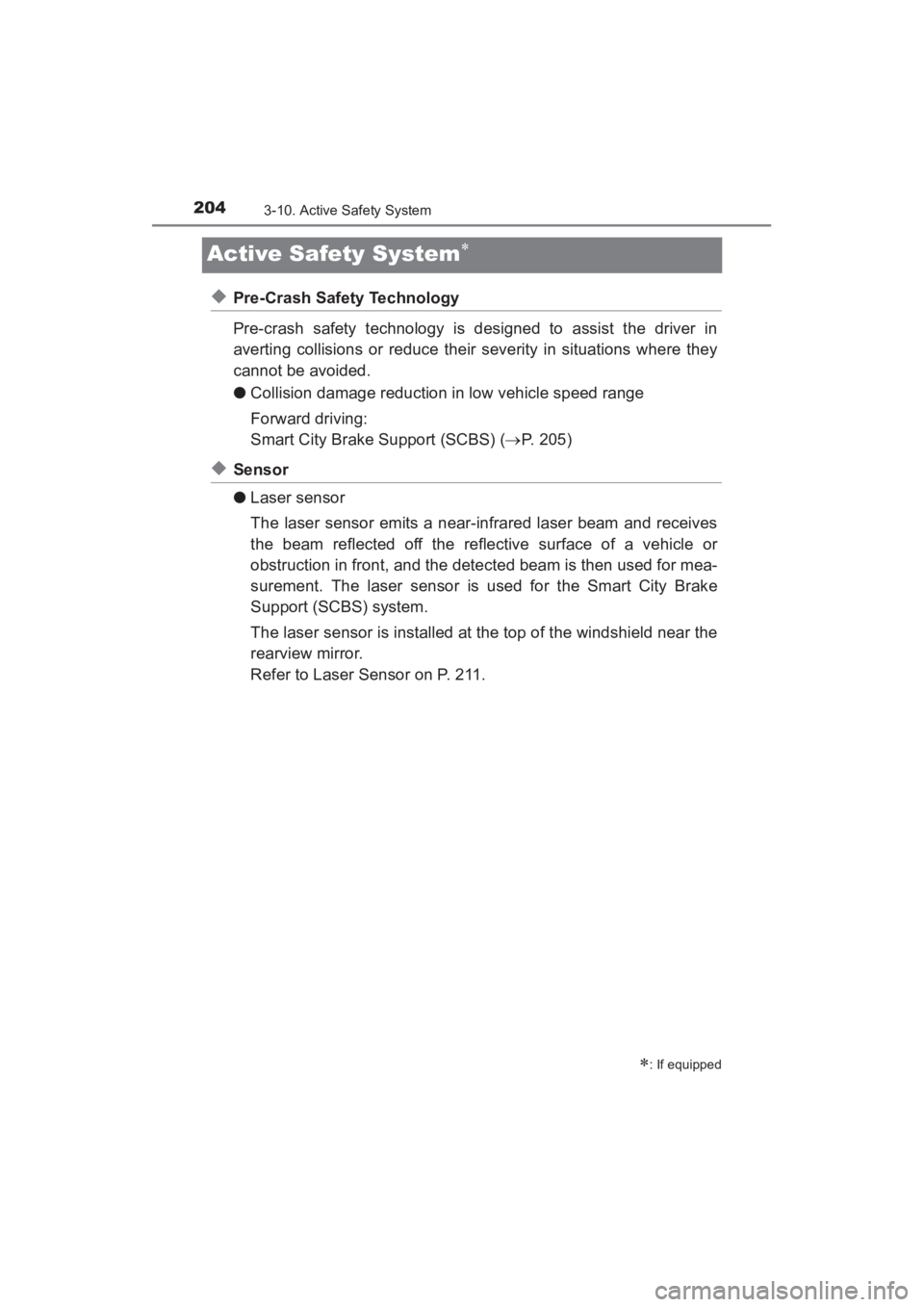

◆Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in
averting collisions or reduce their severity in situations where they
cannot be avoided.
●Collision damage reduction in low vehicle speed range
Forward driving:
Smart City Brake Support (SCBS) ( →P. 205)
◆Sensor
● Laser sensor
The laser sensor emits a near-infrared laser beam and receives
the beam reflected off the reflective surface of a vehicle or
obstruction in front, and the detected beam is then used for mea-
surement. The laser sensor is used for the Smart City Brake
Support (SCBS) system.
The laser sensor is installed at the top of the windshield near the
rearview mirror.
Refer to Laser Sensor on P. 211.
∗: If equipped
YARIS_SEDAN_OM_OM99M18z_(U).book Page 204 Monday, June 1, 2015 9:22 PM

205
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
3
When Driving
Smart City Brake Suppor t (SCBS)∗
∗: If equipped

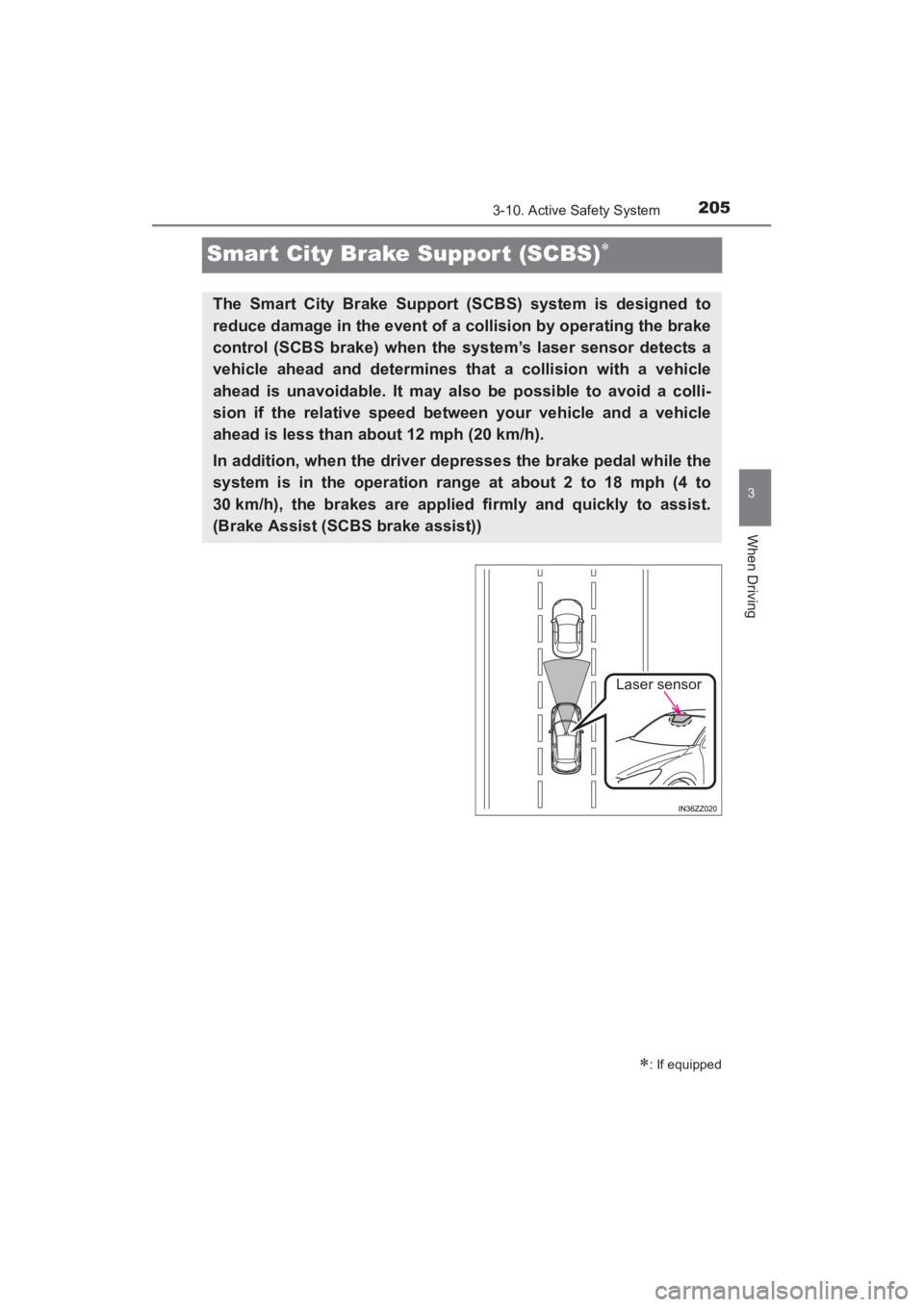

The Smart City Brake Support (SCBS) system is designed to
reduce damage in the event of a collision by operating the brake
control (SCBS brake) when the system’s laser sensor detects a
vehicle ahead and determines that a collision with a vehicle
ahead is unavoidable. It may also be possible to avoid a colli-
sion if the relative speed between your vehicle and a vehicle
ahead is less than about 12 mph (20 km/h).
In addition, when the driver depresses the brake pedal while the
system is in the operation range at about 2 to 18 mph (4 to
30 km/h), the brakes are applied firmly and quickly to assist.
(Brake Assist (SCBS brake assist))
Laser sensor
YARIS_SEDAN_OM_OM99M18z_(U).book Page 205 Monday, June 1, 2015 9:22 PM

206
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System

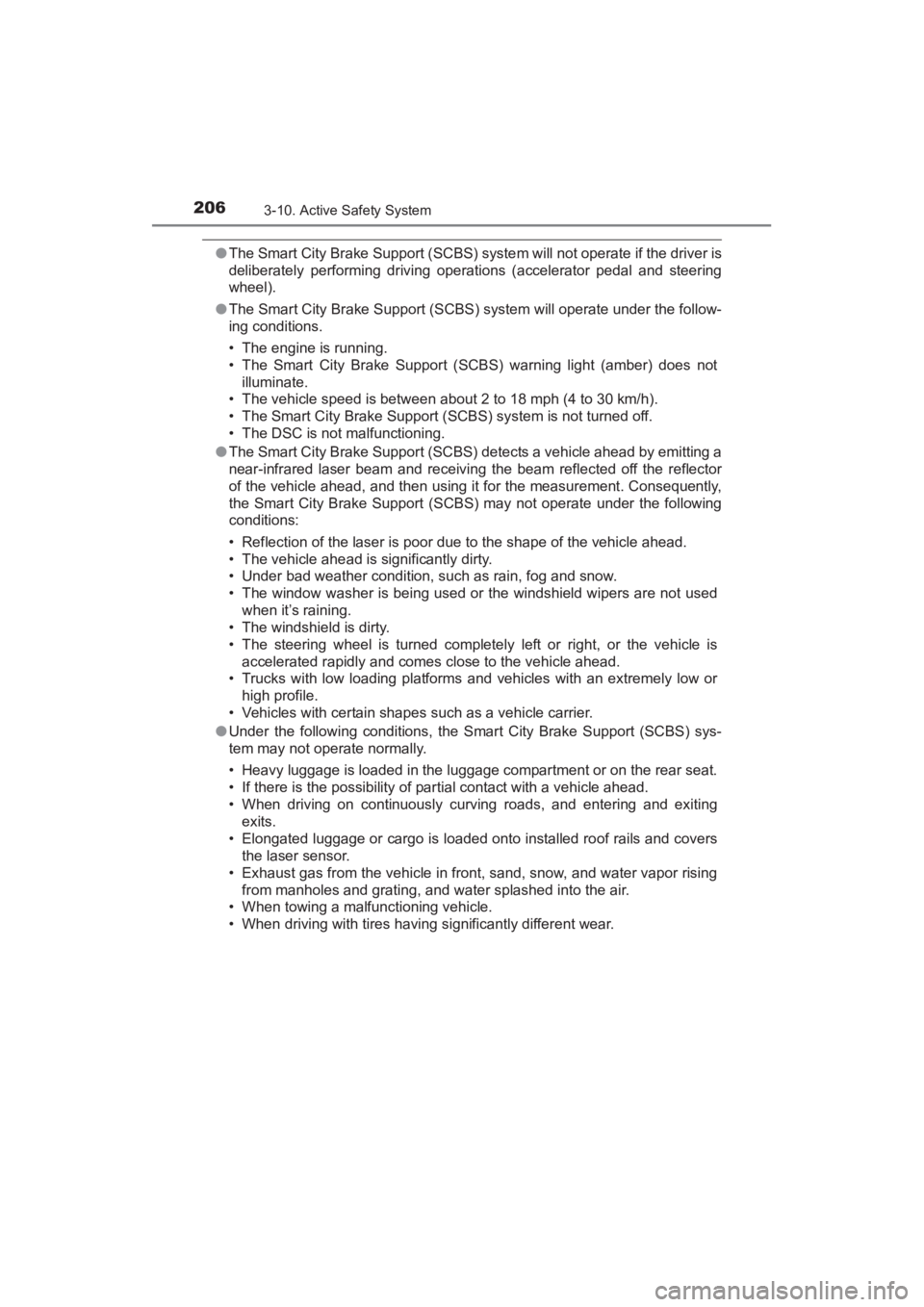

●The Smart City Brake Support (SCBS) sy stem will not operate if the driver is
deliberately performing driving operations (accelerator pedal and steering
wheel).
● The Smart City Brake Support (SCBS) system will operate under the follow-
ing conditions.
• The engine is running.
• The Smart City Brake Support (SCBS) warning light (amber) does not
illuminate.
• The vehicle speed is between about 2 to 18 mph (4 to 30 km/h).
• The Smart City Brake Support (SCBS) system is not turned off.
• The DSC is not malfunctioning.
● The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a
near-infrared laser beam and receiving the beam reflected off the reflector
of the vehicle ahead, and then using it for the measurement. Consequently,
the Smart City Brake Support (SCBS) may not operate under the following
conditions:
• Reflection of the laser is poor due to the shape of the vehicle ahead.
• The vehicle ahead is significantly dirty.
• Under bad weather condition, such as rain, fog and snow.
• The window washer is being used or the windshield wipers are not used
when it’s raining.
• The windshield is dirty.
• The steering wheel is turned completely left or right, or the vehicle is
accelerated rapidly and comes close to the vehicle ahead.
• Trucks with low loading platforms and vehicles with an extremely low or
high profile.
• Vehicles with certain shapes such as a vehicle carrier.
● Under the following conditions, the Sm art City Brake Support (SCBS) sys-
tem may not operate normally.
• Heavy luggage is loaded in the luggage compartment or on the rear seat.
• If there is the possibility of partial contact with a vehicle ahead.
• When driving on continuously curving roads, and entering and exiting
exits.
• Elongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor.
• Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from manholes and grating, and water splashed into the air.
• When towing a malfunctioning vehicle.
• When driving with tires having significantly different wear.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 206 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2073-10. Active Safety System
3
When Driving

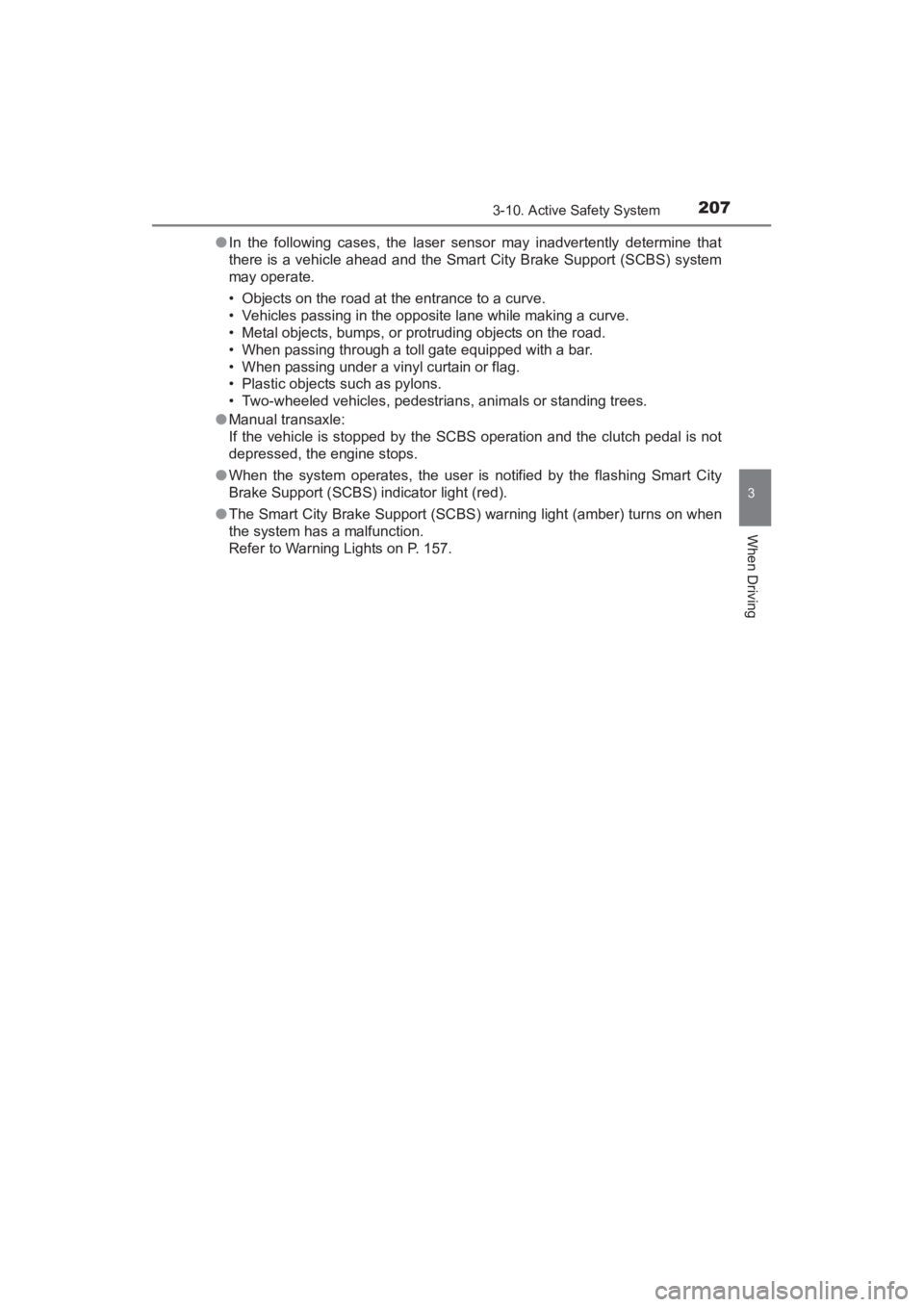

●In the following cases, the laser sensor may inadvertently determine that
there is a vehicle ahead and the Smart City Brake Support (SCBS) system
may operate.
• Objects on the road at the entrance to a curve.
• Vehicles passing in the opposite lane while making a curve.
• Metal objects, bumps, or protruding objects on the road.
• When passing through a toll gate equipped with a bar.
• When passing under a vinyl curtain or flag.
• Plastic objects such as pylons.
• Two-wheeled vehicles, pedestrians, animals or standing trees.
● Manual transaxle:
If the vehicle is stopped by the SCBS operation and the clutch pedal is not
depressed, the engine stops.
● When the system operates, the user is notified by the flashing Smart City
Brake Support (SCBS) indicator light (red).
● The Smart City Brake Support (SCBS) warning light (amber) turns on when
the system has a malfunction.
Refer to Warning Lights on P. 157.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 207 Monday, June 1, 2015 9:22 PM

208
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
WARNING
■Do not rely on the Smart City Brake Support System (SCBS) as a sub-
stitute for safer driving
The Smart City Brake Support (SCBS) system cannot compensate for
unsafe and reckless driving, excessive speed, tailgating (following another
vehicle too closely), and driving on slippery roads such as wet, snowy, and
icy roads (reduced tire friction and road contact because of water on the
road surface). You can still have an accident.
■ Do not rely completely on the Smart City Brake Support (SCBS) system
●The Smart City Brake Support (SCBS) system is only designed to reduce
damage in the event of a collision. Over reliance on the system leading to
the accelerator pedal or brake pedal being mistakenly operated could
result in an accident.
● The Smart City Brake Support (SCBS) is a system which operates in
response to a vehicle ahead. The system may not be able to detect or
react to two-wheeled vehicles or pedestrians.
● The laser sensor for the Smart Ci ty Brake Support (SCBS) system is
installed near the rearview mirror. To assure the correct operation of the
Smart City Brake Support (SCBS), heed the following cautions.
• Do not apply stickers to the surface of the windshield near the laser sensor (including transparent stickers). Otherwise, the laser sensor
may not be able to detect vehicles ahead which could result in an acci-
dent.
• Do not apply coating agent to the windshield. Otherwise, the laser sen- sor may not be able to detect vehicles or obstructions in front which
could result in an accident.
• Do not disassemble the laser sensor.
• If cracks or damage caused by flying gravel or debris is visible near the laser sensor, stop using the Smart City Brake Support (SCBS)
system immediately and have your vehicle inspected by your Toyota
dealer. If the vehicle continues to be driven with cracks or scratch
marks left on the windshield near the laser sensor, the system may
operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System
Operation on P. 210.
• When replacing the windshield wipers or windshield, consult your Toyota dealer.
● The laser sensor includes a functi on for detecting a soiled windshield and
informing the driver, however, depending on the conditions, it may not
detect plastic shopping bags, ice or snow on the windshield. In such
cases, the system cannot accurately determine a vehicle ahead and may
not be able to operate normally. Always drive carefully and pay attention to
the road ahead.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 208 Monday, June 1, 2015 9:22 PM
