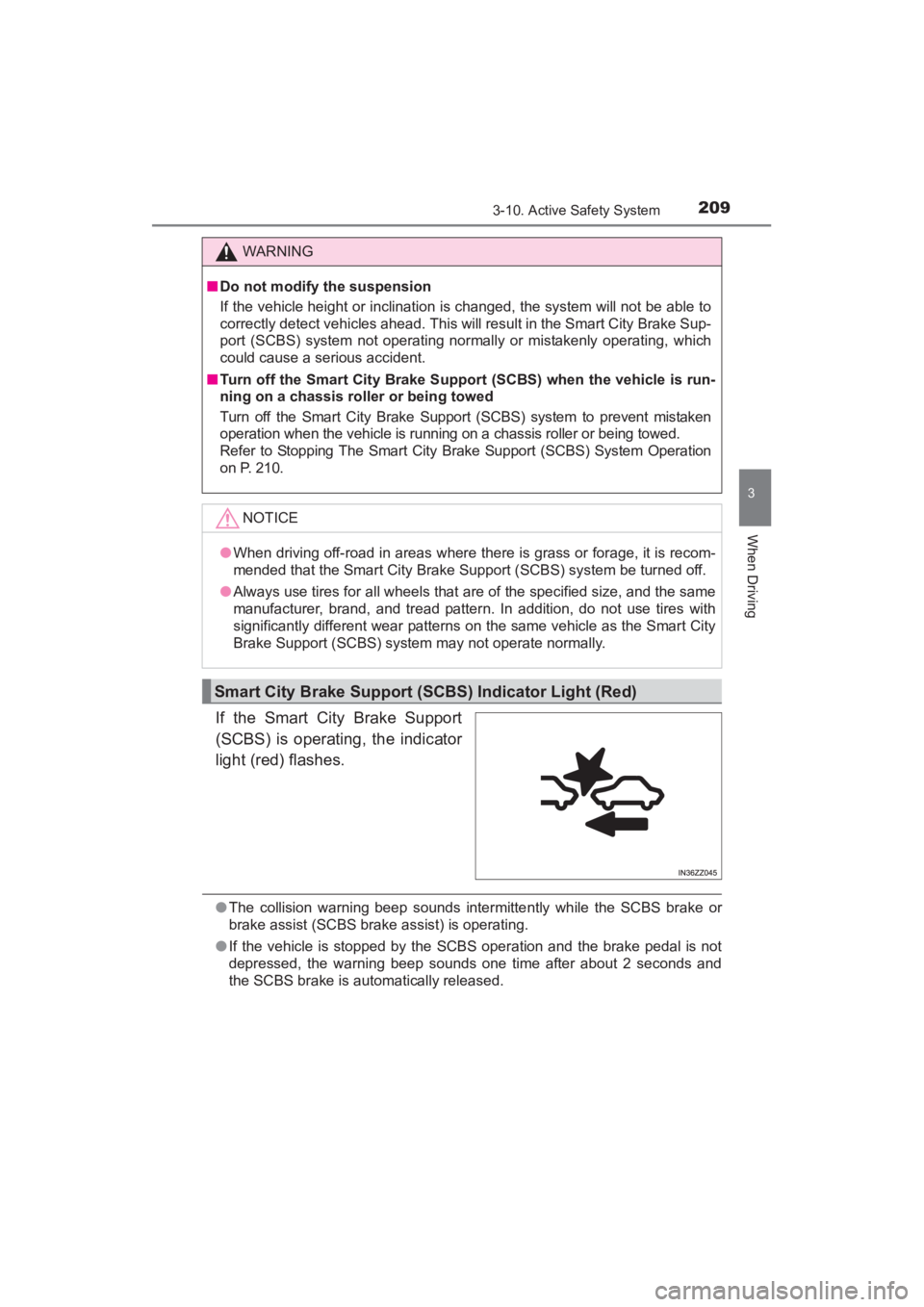

2093-10. Active Safety System
3
When Driving
If the Smart City Brake Support
(SCBS) is operating, the indicator
light (red) flashes.
●The collision warning beep sounds intermittently while the SCBS brake or
brake assist (SCBS brake assist) is operating.
● If the vehicle is stopped by the SCBS operation and the brake pedal is not
depressed, the warning beep sounds one time after about 2 seconds and
the SCBS brake is automatically released.
WARNING
■Do not modify the suspension
If the vehicle height or inclination is changed, the system will not be able to
correctly detect vehicles ahead. This will result in the Smart City Brake Sup-
port (SCBS) system not operating normally or mistakenly operating, which
could cause a serious accident.
■ Turn off the Smart City Brake Suppor t (SCBS) when the vehicle is run-
ning on a chassis roller or being towed
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken
operation when the vehicle is running on a chassis roller or being towed.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation
on P. 210.
NOTICE
●When driving off-road in ar eas where there is grass or forage, it is recom-
mended that the Smart City Brake Support (SCBS) system be turned off.
● Always use tires for all wheels that are of the specified size, and the same
manufacturer, brand, and tread pattern. In addition, do not use tires with
significantly different wear patterns on the same vehicle as the Smart City
Brake Support (SCBS) system may not operate normally.
Smart City Brake Support (SCBS) Indicator Light (Red)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 209 Monday, June 1, 2015 9:22 PM

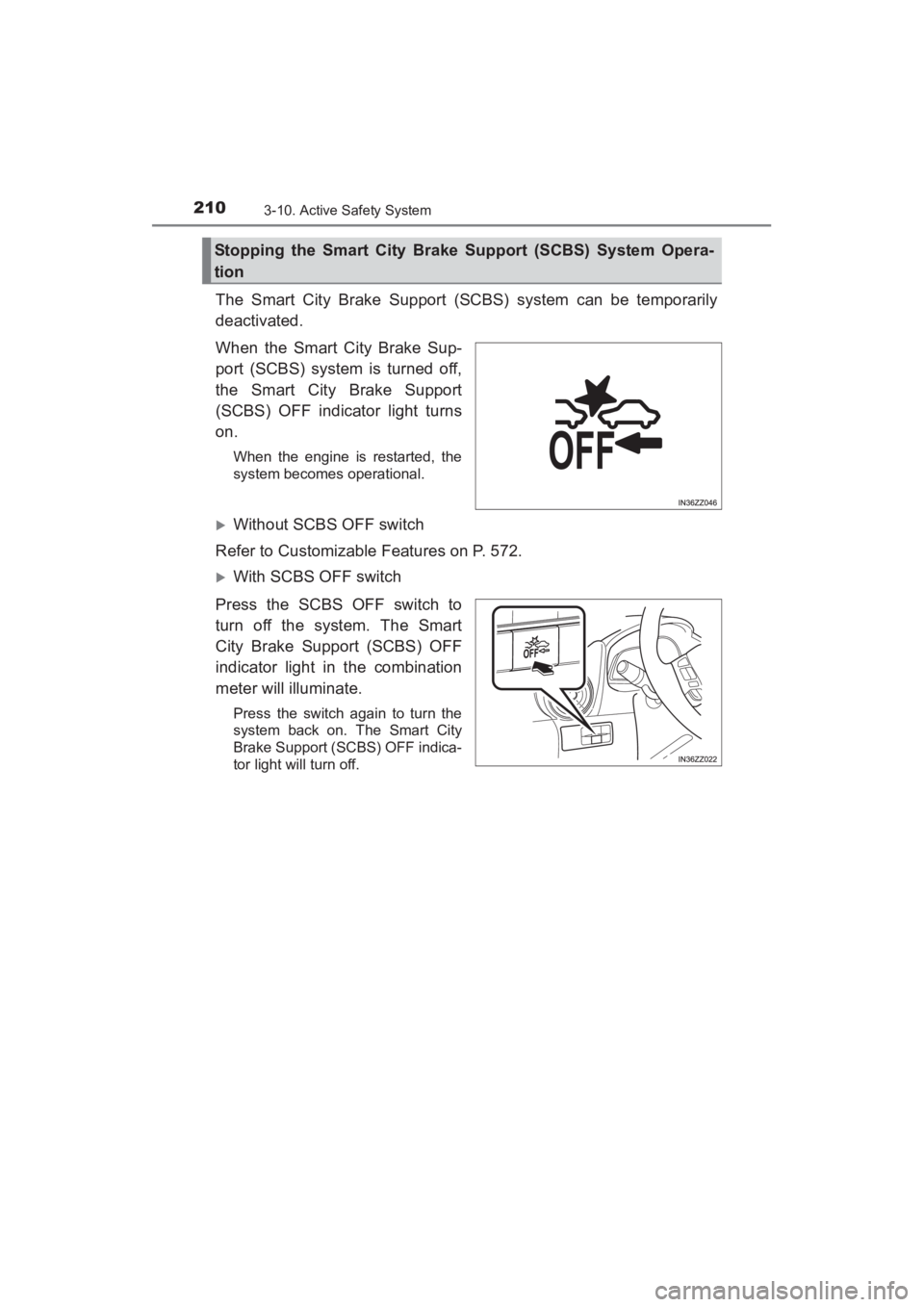

210
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
The Smart City Brake Support (SCBS) system can be temporarily
deactivated.
When the Smart City Brake Sup-
port (SCBS) system is turned off,
the Smart City Brake Support
(SCBS) OFF indicator light turns
on.
When the engine is restarted, the
system becomes operational.
XWithout SCBS OFF switch
Refer to Customizable Features on P. 572.
XWith SCBS OFF switch
Press the SCBS OFF switch to
turn off the system. The Smart
City Brake Support (SCBS) OFF
indicator light in the combination
meter will illuminate.
Press the switch again to turn the
system back on. The Smart City
Brake Support (SCBS) OFF indica-
tor light will turn off.
Stopping the Smart City Brake Support (SCBS) System Opera-
tion
YARIS_SEDAN_OM_OM99M18z_(U).book Page 210 Monday, June 1, 2015 9:22 PM

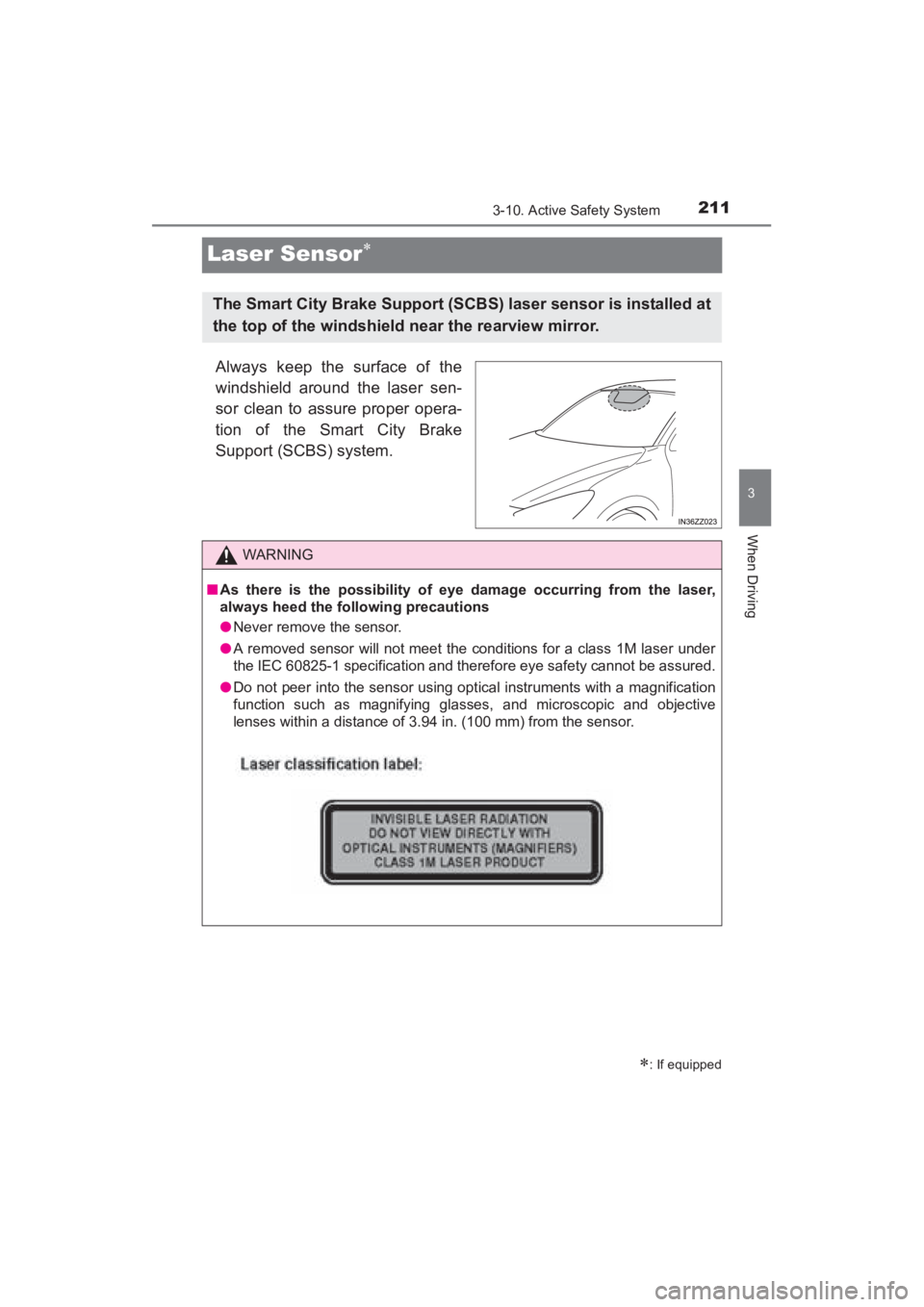

211
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
3
When Driving
Laser Sensor∗
Always keep the surface of the
windshield around the laser sen-
sor clean to assure proper opera-
tion of the Smart City Brake
Support (SCBS) system.
∗: If equipped
The Smart City Brake Support (SCBS) laser sensor is installed at
the top of the windshield near the rearview mirror.
WARNING
■As there is the possibility of eye damage occurring from the laser,
always heed the following precautions
●Never remove the sensor.
● A removed sensor will not meet the conditions for a class 1M laser under
the IEC 60825-1 specification and therefore eye safety cannot be assured.
● Do not peer into the sensor using opt ical instruments with a magnification
function such as magnifying glasses, and microscopic and objective
lenses within a distance of 3.94 in. (100 mm) from the sensor.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 211 Monday, June 1, 2015 9:22 PM

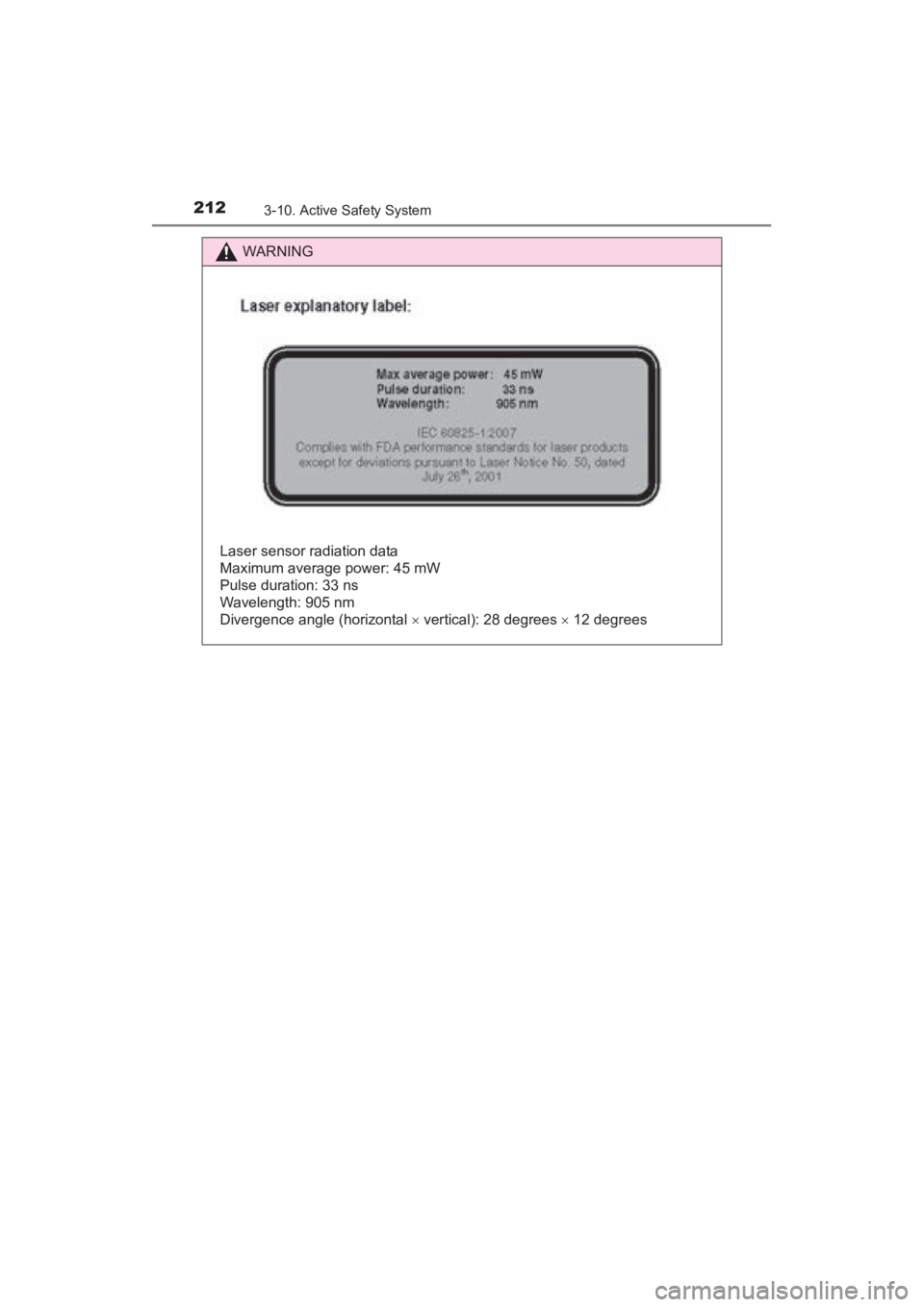

212
YARIS_SEDAN_OM_OM99M18z_(U)
3-10. Active Safety System
WARNING
Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal × vertical): 28 degrees × 12 degrees
YARIS_SEDAN_OM_OM99M18z_(U).book Page 212 Monday, June 1, 2015 9:22 PM

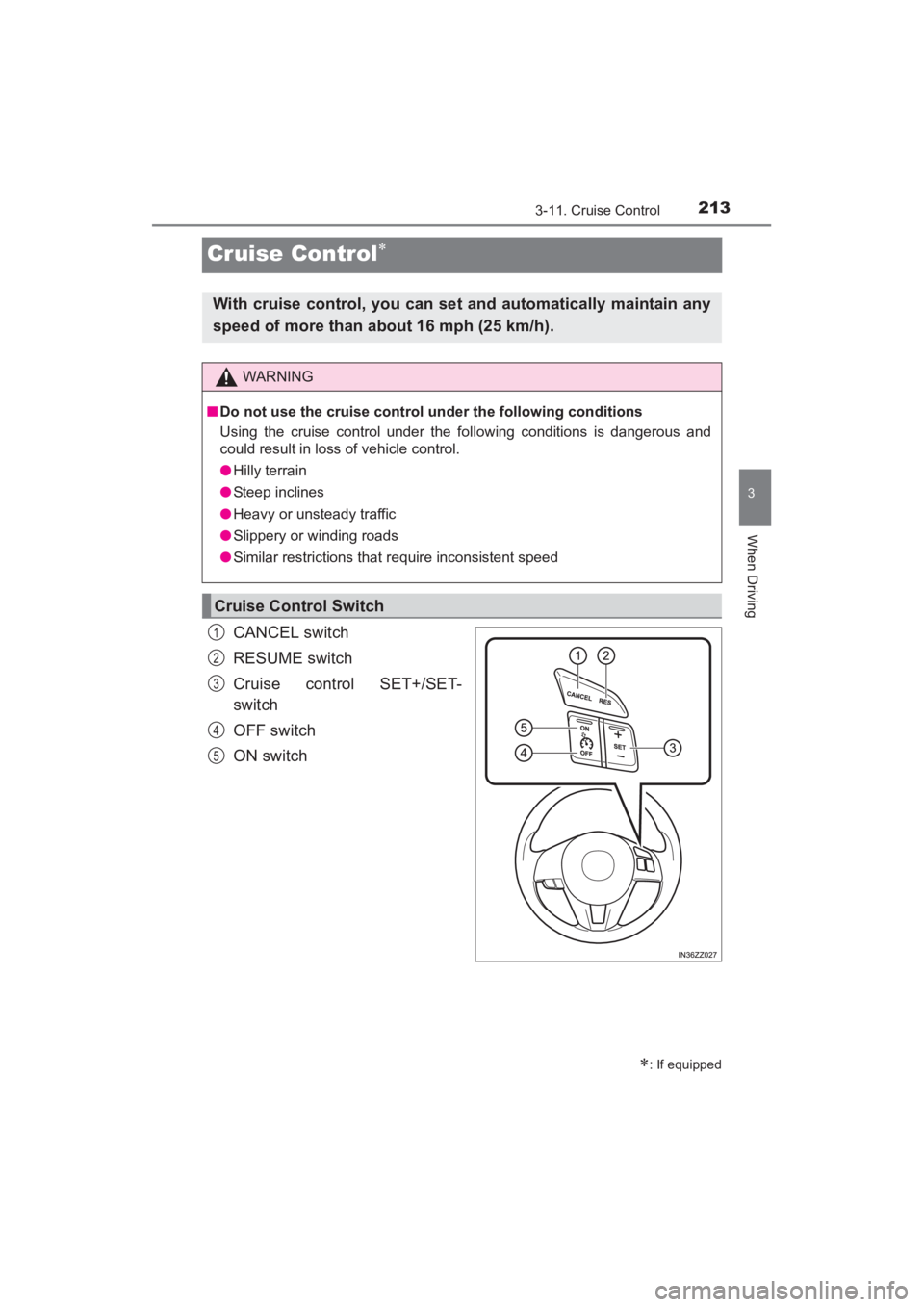

213
YARIS_SEDAN_OM_OM99M18z_(U)
3-11. Cruise Control
3
When Driving
Cruise Control∗
CANCEL switch
RESUME switch
Cruise control SET+/SET-
switch
OFF switch
ON switch
∗: If equipped
With cruise control, you can set and automatically maintain any
speed of more than about 16 mph (25 km/h).
WARNING
■Do not use the cruise control under the following conditions
Using the cruise control under the following conditions is dangerous and
could result in loss of vehicle control.
●Hilly terrain
● Steep inclines
● Heavy or unsteady traffic
● Slippery or winding roads
● Similar restrictions that require inconsistent speed
Cruise Control Switch
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 213 Monday, June 1, 2015 9:22 PM

214
YARIS_SEDAN_OM_OM99M18z_(U)
3-11. Cruise Control
The indicator light has two colors.
●Cruise Main Indicator Light (Amber)
The indicator light illuminates amber when the cruise control sys-
tem is activated.
● Cruise Set Indicator Light (Green)
The indicator light illuminates green when a cruising speed has
been set.
To activate the system, press the ON switch. The cruise main indica-
tor light (Amber) illuminates.
To deactivate the system, press the OFF switch.
The cruise main indicator light (Amber) turns off.
When the ignition is switched OFF, the system status before it was turned off
is maintained. For example, if the ignition is switched OFF with the cruise
control system operable, the system will be operable when the ignition is
switched ON the next time.
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light
(Green)
Activation/Deactivation
WARNING
■ Always turn off the cruise control system when it is not in use
Leaving the cruise control system in an activation-ready state while the
cruise control is not in use is dangerous as the cruise control could unex-
pectedly activate if the activation button is accidentally pressed, and result
in loss of vehicle control and an accident.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 214 Monday, June 1, 2015 9:22 PM

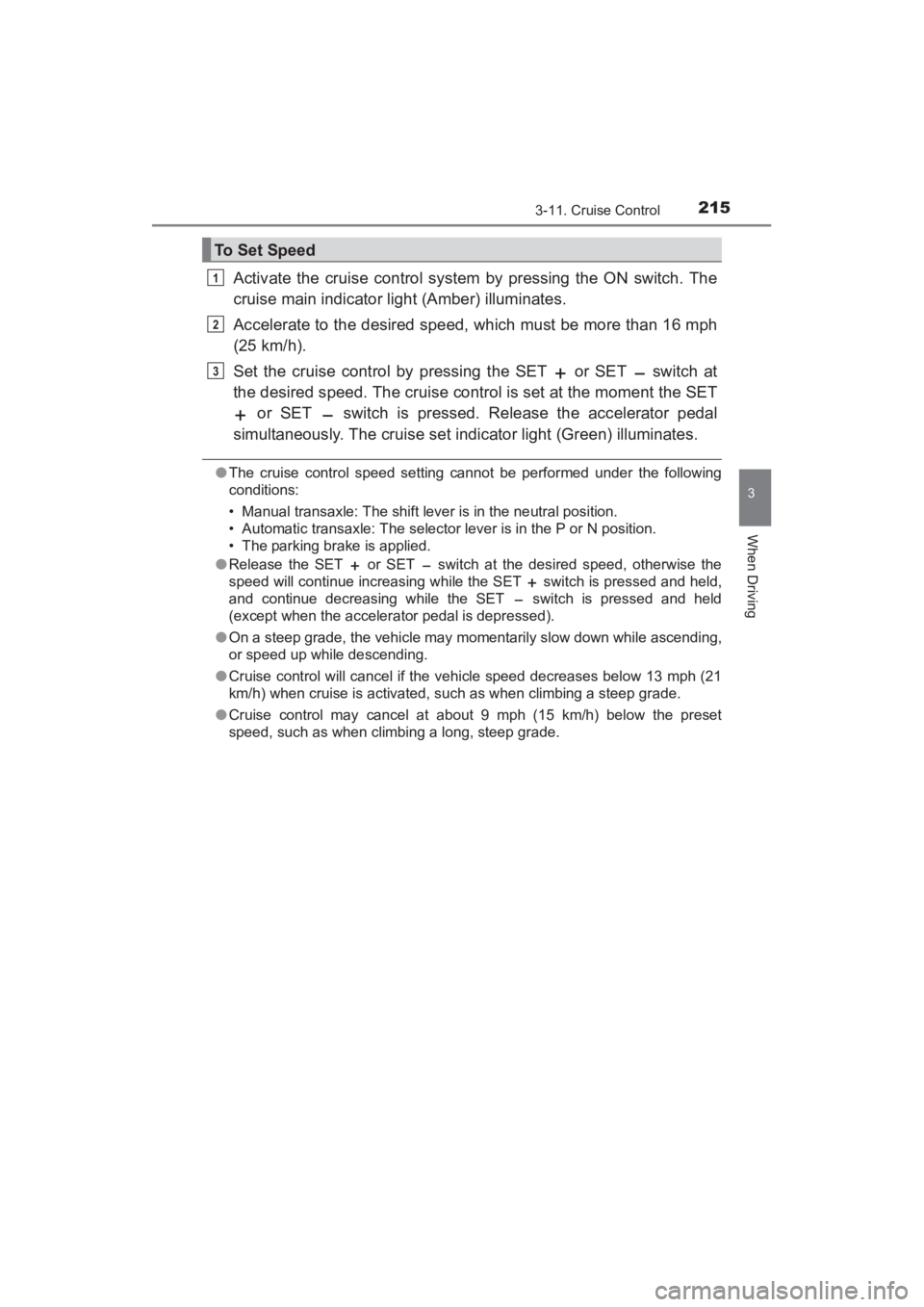

YARIS_SEDAN_OM_OM99M18z_(U)
2153-11. Cruise Control
3
When Driving
Activate the cruise control system by pressing the ON switch. The
cruise main indicator light (Amber) illuminates.
Accelerate to the desired speed, which must be more than 16 mph
(25 km/h).
Set the cruise control by pressing the SET or SET switch at
the desired speed. The cruise control is set at the moment the SET or SET switch is pressed. Release the accelerator pedal
simultaneously. The cruise set indicator light (Green) illuminates.
● The cruise control speed setting cannot be performed under the following
conditions:
• Manual transaxle: The shift lever is in the neutral position.
• Automatic transaxle: The selector lever is in the P or N position.
• The parking brake is applied.
● Release the SET or SET switch at the desired speed, otherwise the
speed will continue increasing while the SET switch is pressed and held,
and continue decreasing while the SET switch is pressed and held
(except when the accelerator pedal is depressed).
● On a steep grade, the vehicle may momentarily slow down while ascending,
or speed up while descending.
● Cruise control will cancel if the vehicle speed decreases below 13 mph (21
km/h) when cruise is activated, such as when climbing a steep grade.
● Cruise control may cancel at about 9 mph (15 km/h) below the preset
speed, such as when climbing a long, steep grade.
To S e t S p e e d
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 215 Monday, June 1, 2015 9:22 PM

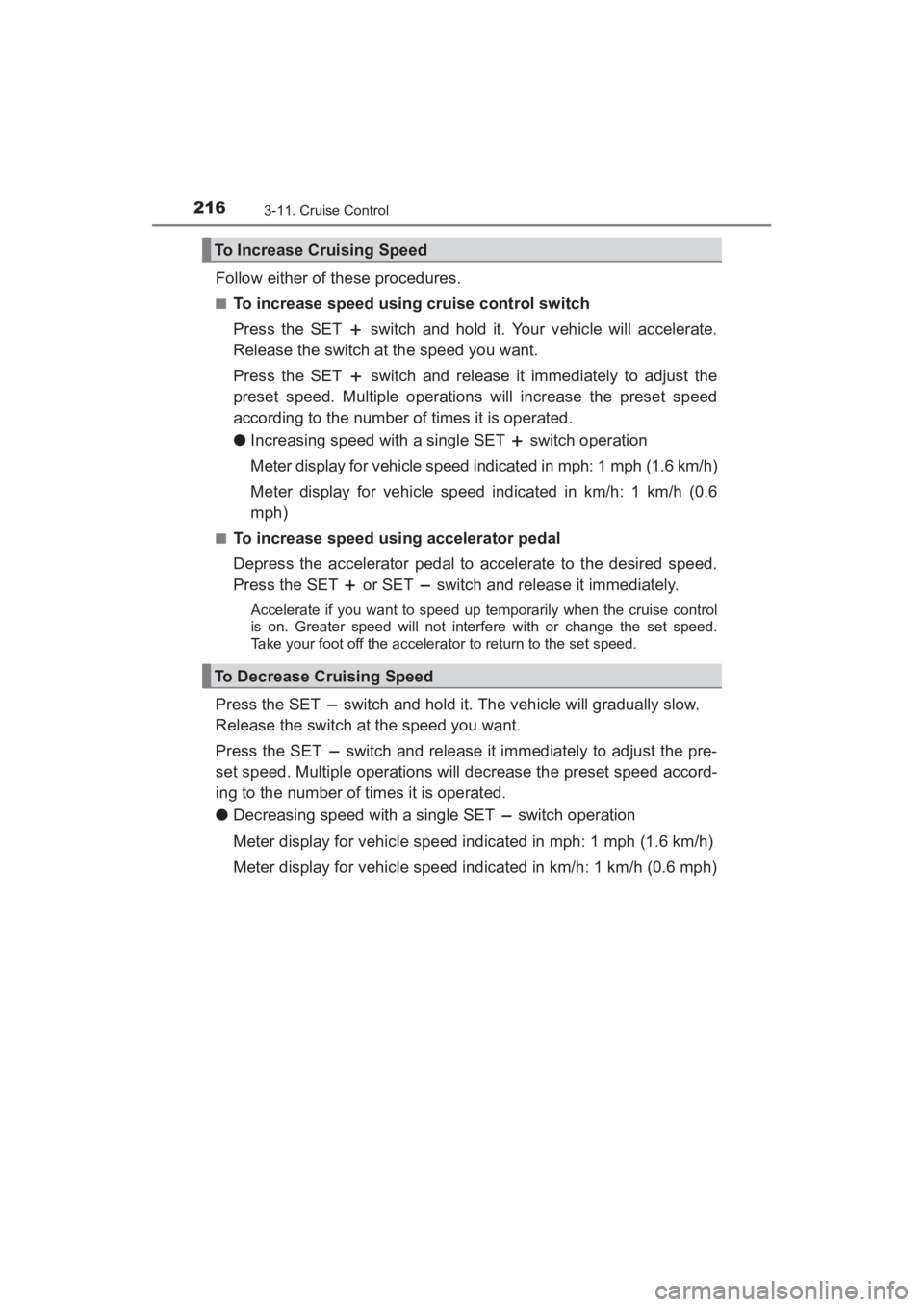

216
YARIS_SEDAN_OM_OM99M18z_(U)
3-11. Cruise Control
Follow either of these procedures.
■To increase speed using cruise control switch
Press the SET switch and hold it. Your vehicle will accelerate.
Release the switch at the speed you want.
Press the SET switch and release it immediately to adjust the
preset speed. Multiple operations will increase the preset speed
according to the number of times it is operated.
●Increasing speed with a single SET switch operation
Meter display for vehicle speed indicated in mph: 1 mph (1.6 km/h)
Meter display for vehicle speed indicated in km/h: 1 km/h (0.6
mph)
■To increase speed using accelerator pedal
Depress the accelerator pedal to accelerate to the desired speed.
Press the SET or SET switch and release it immediately.
Accelerate if you want to speed up temporarily when the cruise control
is on. Greater speed will not interfere with or change the set speed.
Take your foot off the accelerator to return to the set speed.
Press the SET switch and hold it. The vehicle will gradually slow.
Release the switch at the speed you want.
Press the SET switch and release it immediately to adjust the pre-
set speed. Multiple operations will decrease the preset speed accord-
ing to the number of times it is operated.
● Decreasing speed with a single SET switch operation
Meter display for vehicle speed indicated in mph: 1 mph (1.6 km/h)
Meter display for vehicle speed indicated in km/h: 1 km/h (0.6 mph)
To Increase Cruising Speed
To Decrease Cruising Speed
YARIS_SEDAN_OM_OM99M18z_(U).book Page 216 Monday, June 1, 2015 9:22 PM

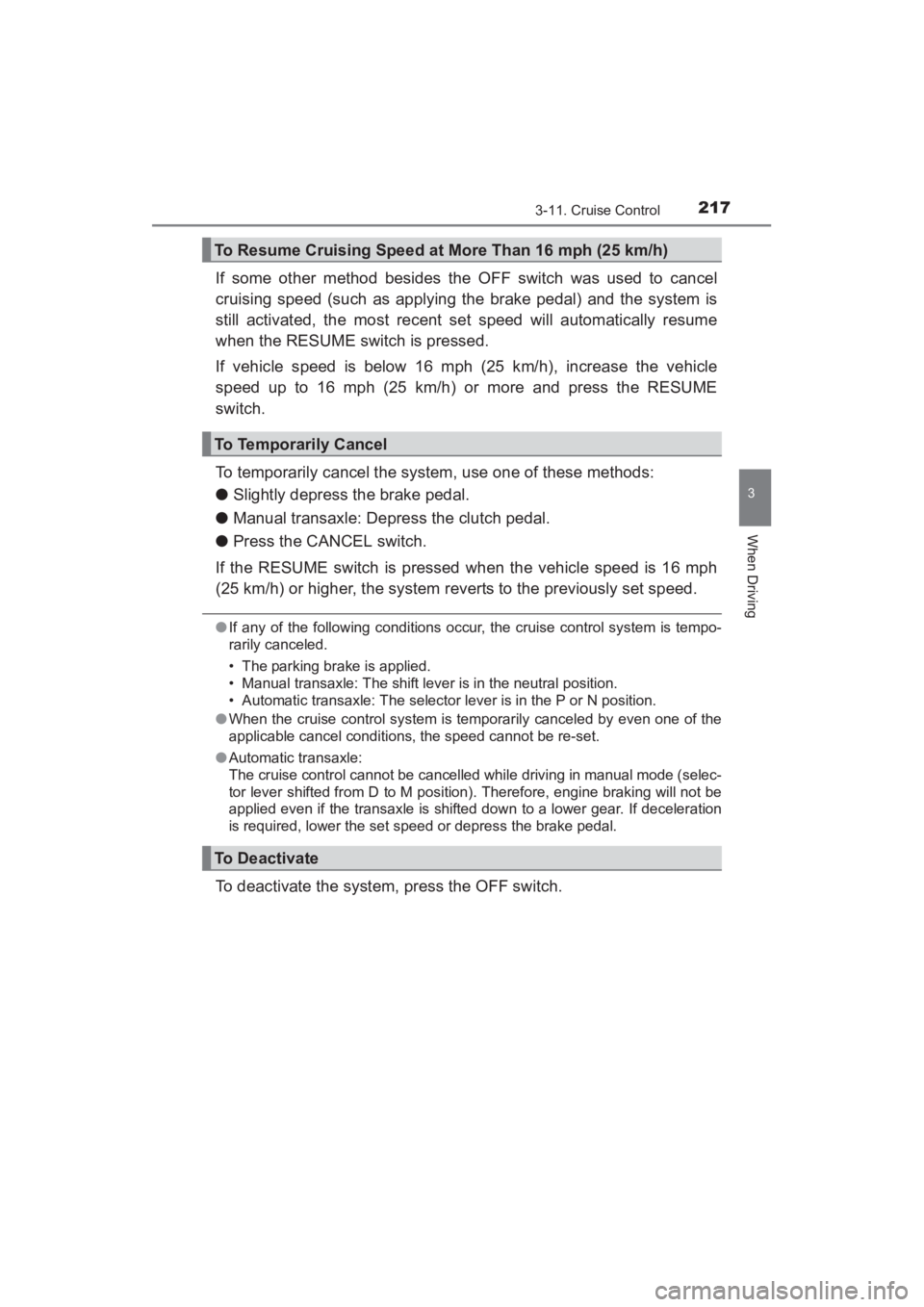

YARIS_SEDAN_OM_OM99M18z_(U)
2173-11. Cruise Control
3
When Driving
If some other method besides the OFF switch was used to cancel
cruising speed (such as applying the brake pedal) and the system is
still activated, the most recent set speed will automatically resume
when the RESUME switch is pressed.
If vehicle speed is below 16 mph (25 km/h), increase the vehicle
speed up to 16 mph (25 km/h) or more and press the RESUME
switch.
To temporarily cancel the system, use one of these methods:
●Slightly depress the brake pedal.
● Manual transaxle: Depress the clutch pedal.
● Press the CANCEL switch.
If the RESUME switch is pressed when the vehicle speed is 16 mph
(25 km/h) or higher, the system reverts to the previously set speed.
● If any of the following conditions occur, the cruise control system is tempo-
rarily canceled.
• The parking brake is applied.
• Manual transaxle: The shift lever is in the neutral position.
• Automatic transaxle: The selector lever is in the P or N position.
● When the cruise control system is temporarily canceled by even one of the
applicable cancel conditions, the speed cannot be re-set.
● Automatic transaxle:
The cruise control cannot be cancelled while driving in manual mode (selec-
tor lever shifted from D to M position) . Therefore, engine braking will not be
applied even if the transaxle is shifted down to a lower gear. If deceleration
is required, lower the set speed or depress the brake pedal.
To deactivate the system, press the OFF switch.
To Resume Cruising Speed at More Than 16 mph (25 km/h)
To Temporarily Cancel
To Deactivate
YARIS_SEDAN_OM_OM99M18z_(U).book Page 217 Monday, June 1, 2015 9:22 PM

218
YARIS_SEDAN_OM_OM99M18z_(U)
3-12. Tire Pressure Monitoring System
Tire Pressure Monitoring System∗
The system monitors the tire pres-
sures indirectly using the data
sent from the ABS wheel speed
sensors.
To allow the system to operate correctly, the system needs to be ini-
tialized with the specified tire pressure (value on the tire pressure
label). Follow the procedure and perform the initialization.
Refer to Tire Pressure Monitoring System Initialization on P. 221.
The warning light flashes when the system has a malfunction.
Refer to Warning Lights on P. 157.
∗: If equipped
The Tire Pressure Monitoring System (TPMS) monitors the air
pressure of all four tires. If the air pressure of one or more tires
is too low, the system warns the driver by indicating the tire
pressure monitoring system warning light in the combination
meter and operating a beep sound.

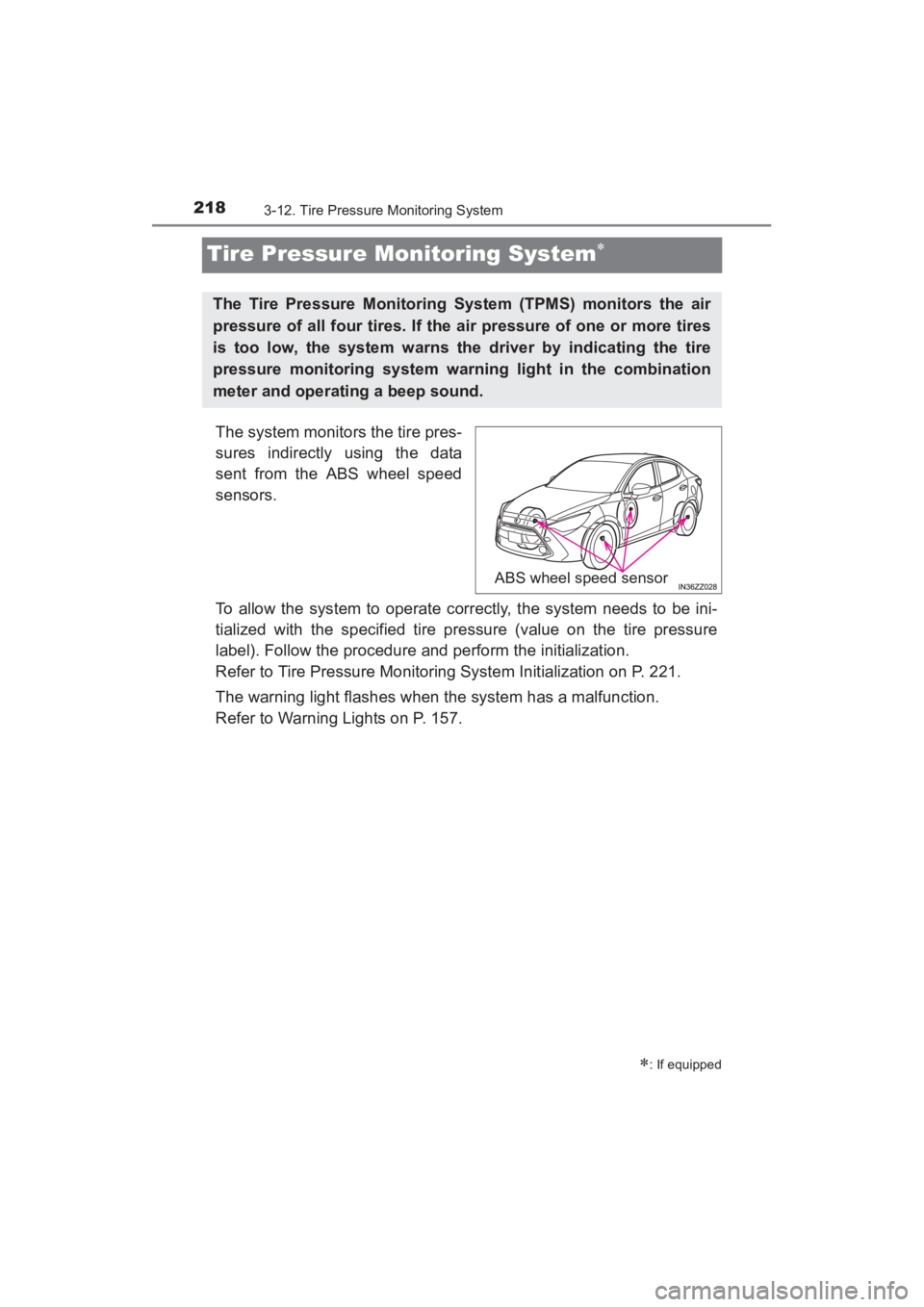

ABS wheel speed sensor
YARIS_SEDAN_OM_OM99M18z_(U).book Page 218 Monday, June 1, 2015 9:22 PM
