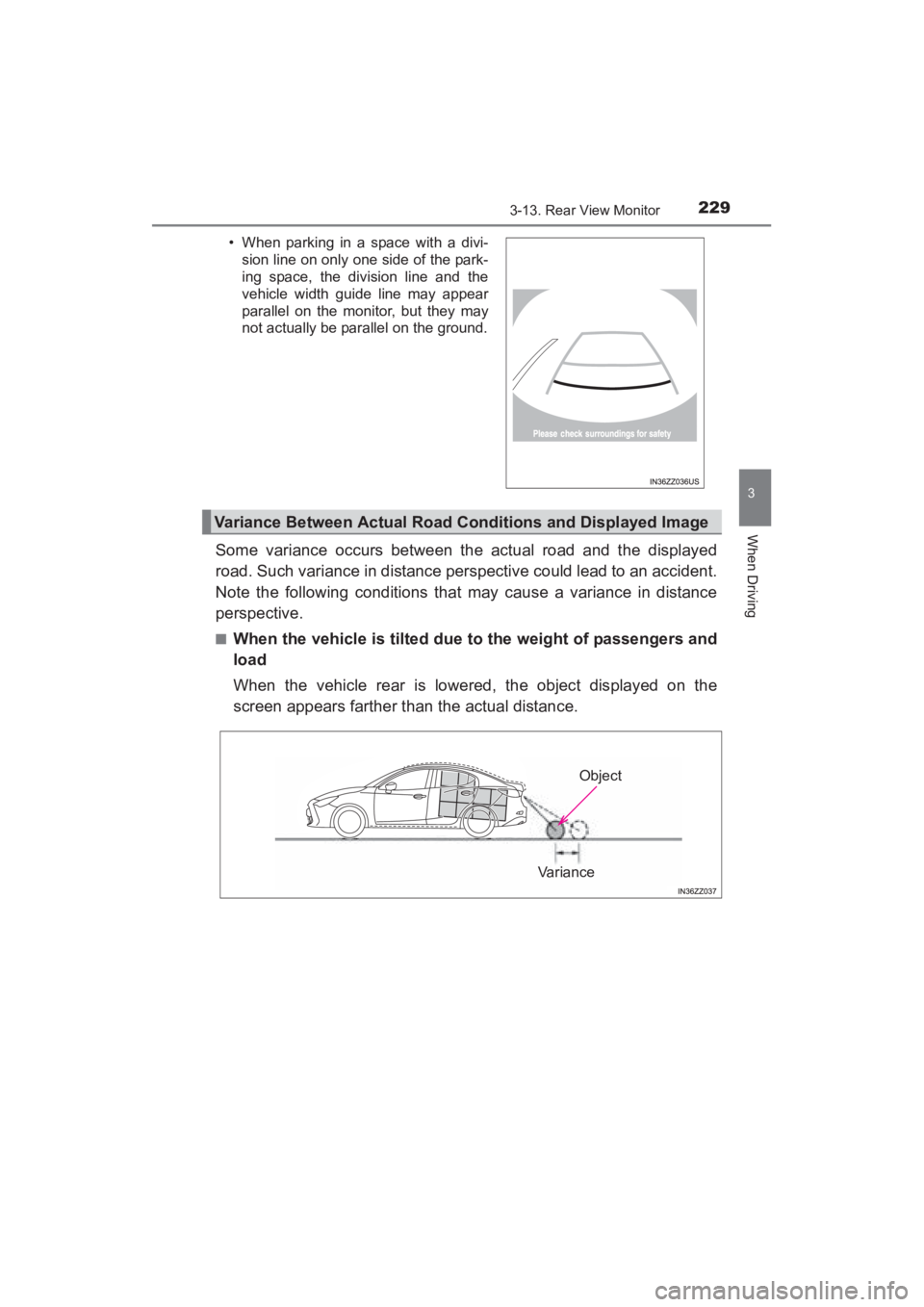

2293-13. Rear View Monitor
3
When Driving
Some variance occurs between the actual road and the displayed
road. Such variance in distance perspective could lead to an accident.
Note the following conditions that may cause a variance in distance
perspective.
■When the vehicle is tilted due to the weight of passengers and
load
When the vehicle rear is lowered, the object displayed on the
screen appears farther than the actual distance.
• When parking in a space with a divi-sion line on only one side of the park-
ing space, the division line and the
vehicle width guide line may appear
parallel on the monitor, but they may
not actually be parallel on the ground.
Variance Between Actual Road Conditions and Displayed Image
Object
Variance
;#4+5_5'&#0_1M_1MM18\_
7.DQQM Page 22 MQnday, June 1, 2015 :22 PM

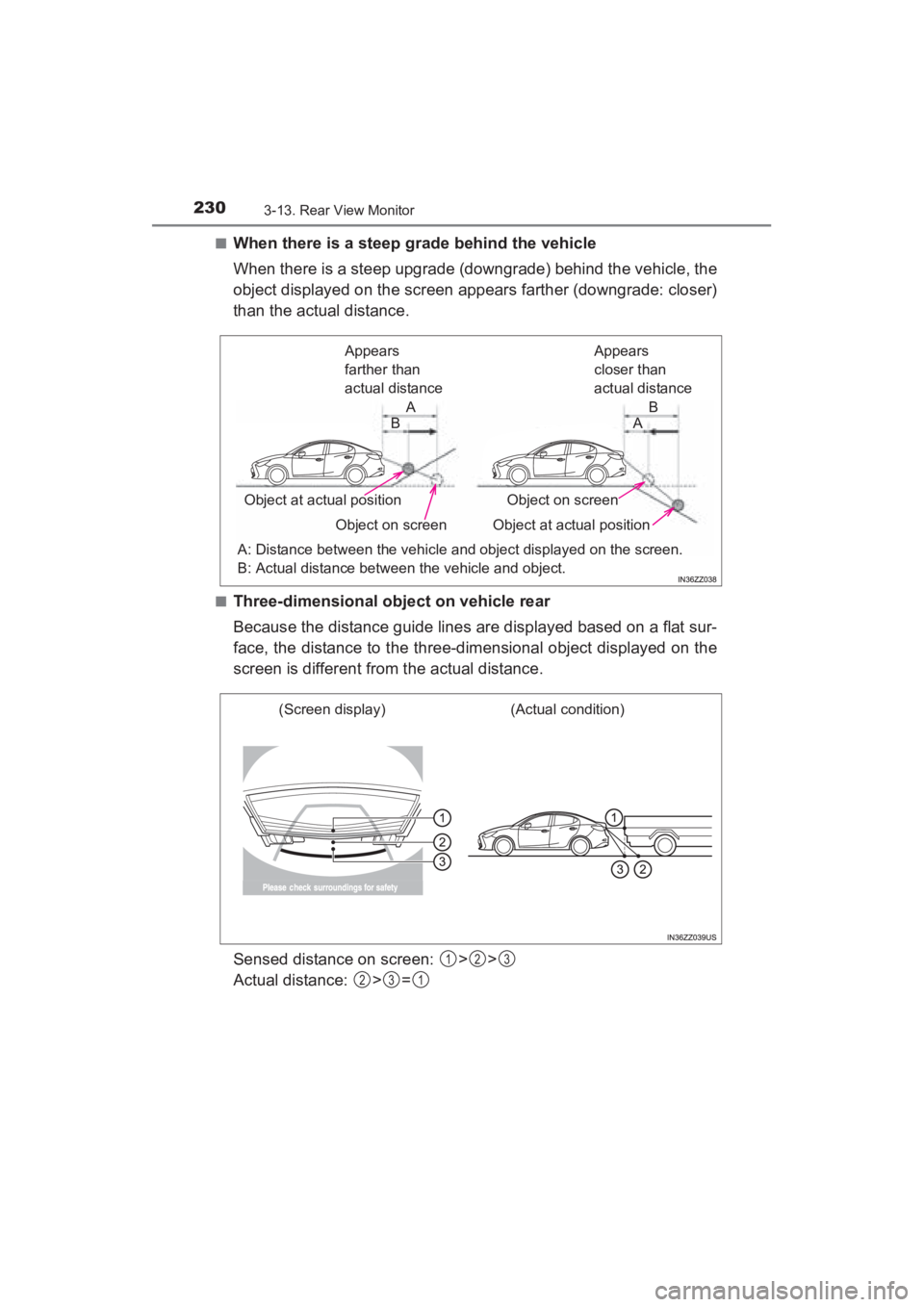

230
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
■When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the
object displayed on the screen appears farther (downgrade: closer)
than the actual distance.
■Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat sur-
face, the distance to the three-dimensional object displayed on the
screen is different from the actual distance.
Sensed distance on screen: > >
Actual distance: > =
Appears
farther than
actual distanceAppears
closer than
actual distance
Object at actual position Object on screen Object at actual position Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object. A
B B
A
(Actual condition)
(Screen display)
123
231
YARIS_SEDAN_OM_OM99M18z_(U).book Page 230 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

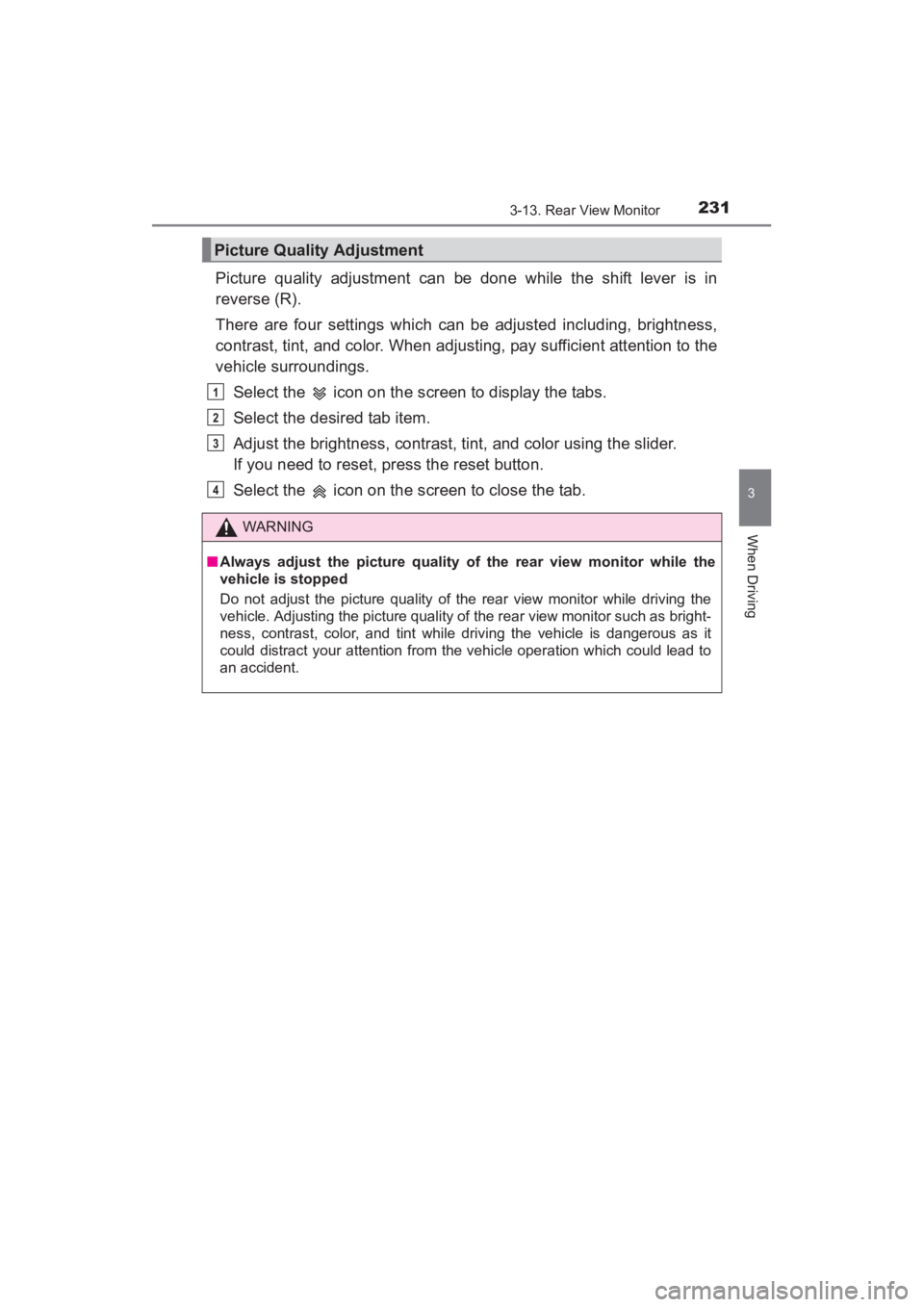

2313-13. Rear View Monitor
3
When Driving
Picture quality adjustment can be done while the shift lever is in
reverse (R).
There are four settings which can be adjusted including, brightness,
contrast, tint, and color. When adjusting, pay sufficient attention to the
vehicle surroundings.Select the icon on the screen to display the tabs.
Select the desired tab item.
Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
Select the icon on the screen to close the tab.
Picture Quality Adjustment
WARNING
■Always adjust the picture quality of the rear view monitor while the
vehicle is stopped
Do not adjust the picture quality of the rear view monitor while driving the
vehicle. Adjusting the picture quality of the rear view monitor such as bright-
ness, contrast, color, and tint while driving the vehicle is dangerous as it
could distract your attention from the vehicle operation which could lead to
an accident.
1
2
3
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 231 Monday, June 1, 2015 9:22 PM

232
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
YARIS_SEDAN_OM_OM99M18z_(U).book Page 232 Monday, June 1, 2015 9:22 PM

233
YARIS_SEDAN_OM_OM99M18z_(U)

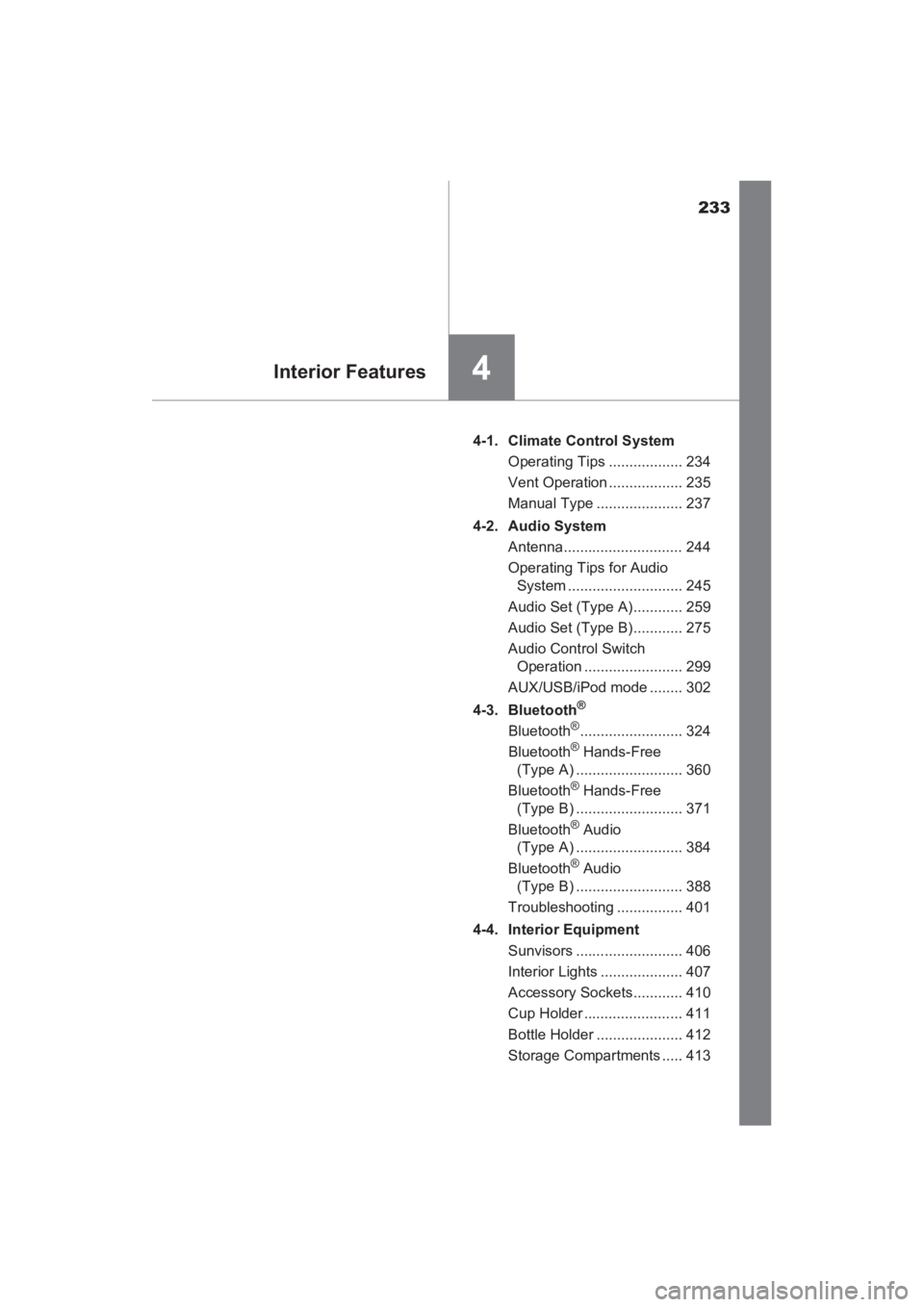

4Interior Features
4-1. Climate Control SystemOperating Tips .................. 234
Vent Operation .................. 235
Manual Type ..................... 237
4-2. Audio System Antenna............................. 244
Operating Tips for Audio System ............................ 245
Audio Set (Type A)............ 259
Audio Set (Type B)............ 275
Audio Control Switch Operation ........................ 299
AUX/USB/iPod mode ........ 302
4-3. Bluetooth
®
Bluetooth®......................... 324
Bluetooth® Hands-Free
(Type A) .......................... 360
Bluetooth
® Hands-Free
(Type B) .......................... 371
Bluetooth
® Audio
(Type A) .......................... 384
Bluetooth
® Audio
(Type B) .......................... 388
Troubleshooting ................ 401
4-4. Interior Equipment Sunvisors .......................... 406
Interior Lights .................... 407
Accessory Sockets............ 410
Cup Holder ........................ 411
Bottle Holder ..................... 412
Storage Compartments ..... 413
YARIS_SEDAN_OM_OM99M18z_(U).book Page 233 Monday, June 1, 2015 9:22 PM

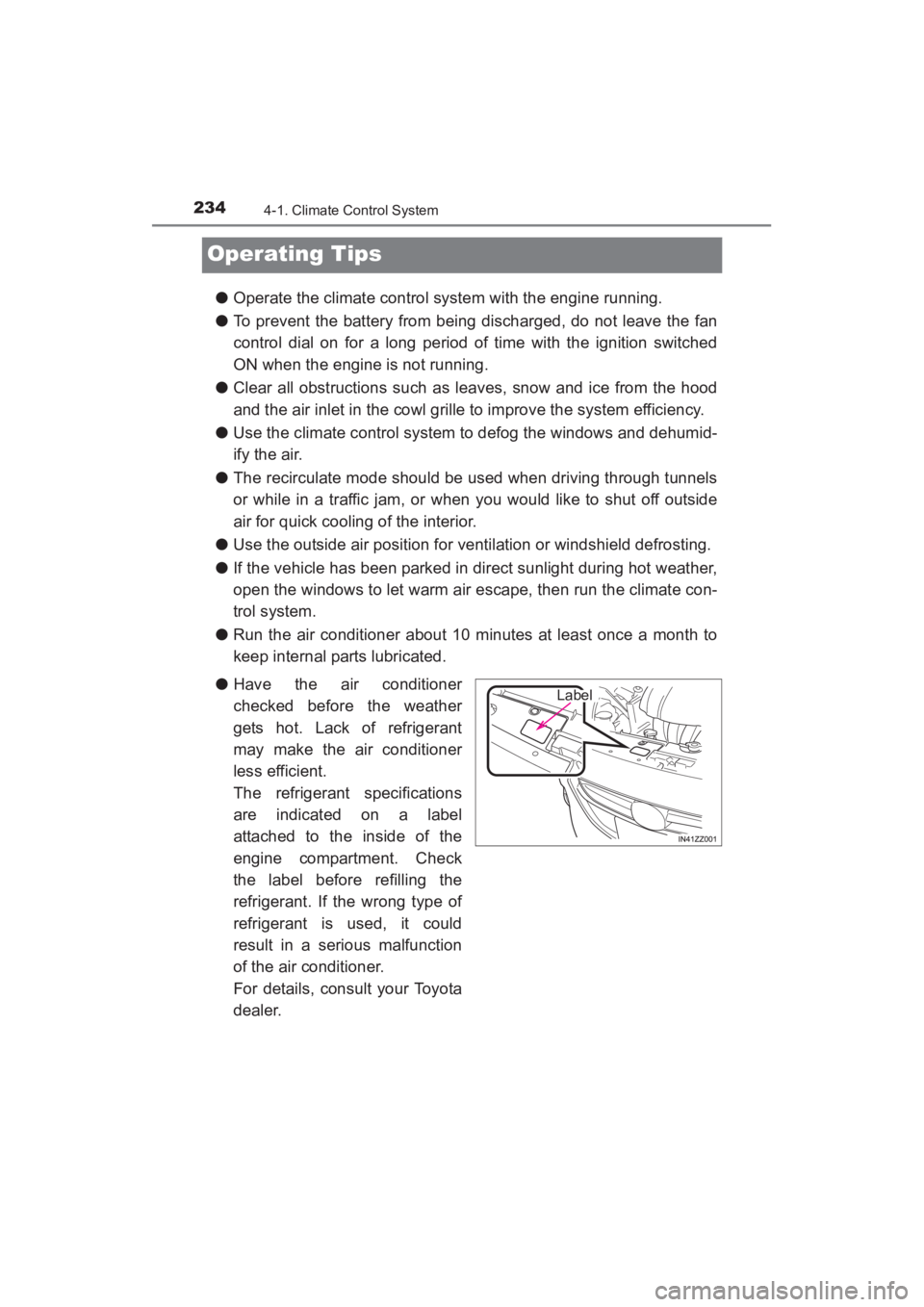

234
YARIS_SEDAN_OM_OM99M18z_(U)
4-1. Climate Control System
Operating Tips
●Operate the climate control system with the engine running.
● To prevent the battery from being discharged, do not leave the fan
control dial on for a long period of time with the ignition switched
ON when the engine is not running.
● Clear all obstructions such as leaves, snow and ice from the hood
and the air inlet in the cowl grille to improve the system efficiency.
● Use the climate control system to defog the windows and dehumid-
ify the air.
● The recirculate mode should be used when driving through tunnels
or while in a traffic jam, or when you would like to shut off outside
air for quick cooling of the interior.
● Use the outside air position for ventilation or windshield defrosting.
● If the vehicle has been parked in direct sunlight during hot weather,
open the windows to let warm air escape, then run the climate con-
trol system.
● Run the air conditioner about 10 minutes at least once a month to
keep internal parts lubricated.
● Have the air conditioner
checked before the weather
gets hot. Lack of refrigerant
may make the air conditioner
less efficient.
The refrigerant specifications
are indicated on a label
attached to the inside of the
engine compartment. Check
the label before refilling the
refrigerant. If the wrong type of
refrigerant is used, it could
result in a serious malfunction
of the air conditioner.
For details, consult your Toyota
dealer.
Label
YARIS_SEDAN_OM_OM99M18z_(U).book Page 234 Monday, June 1, 2015 9:22 PM

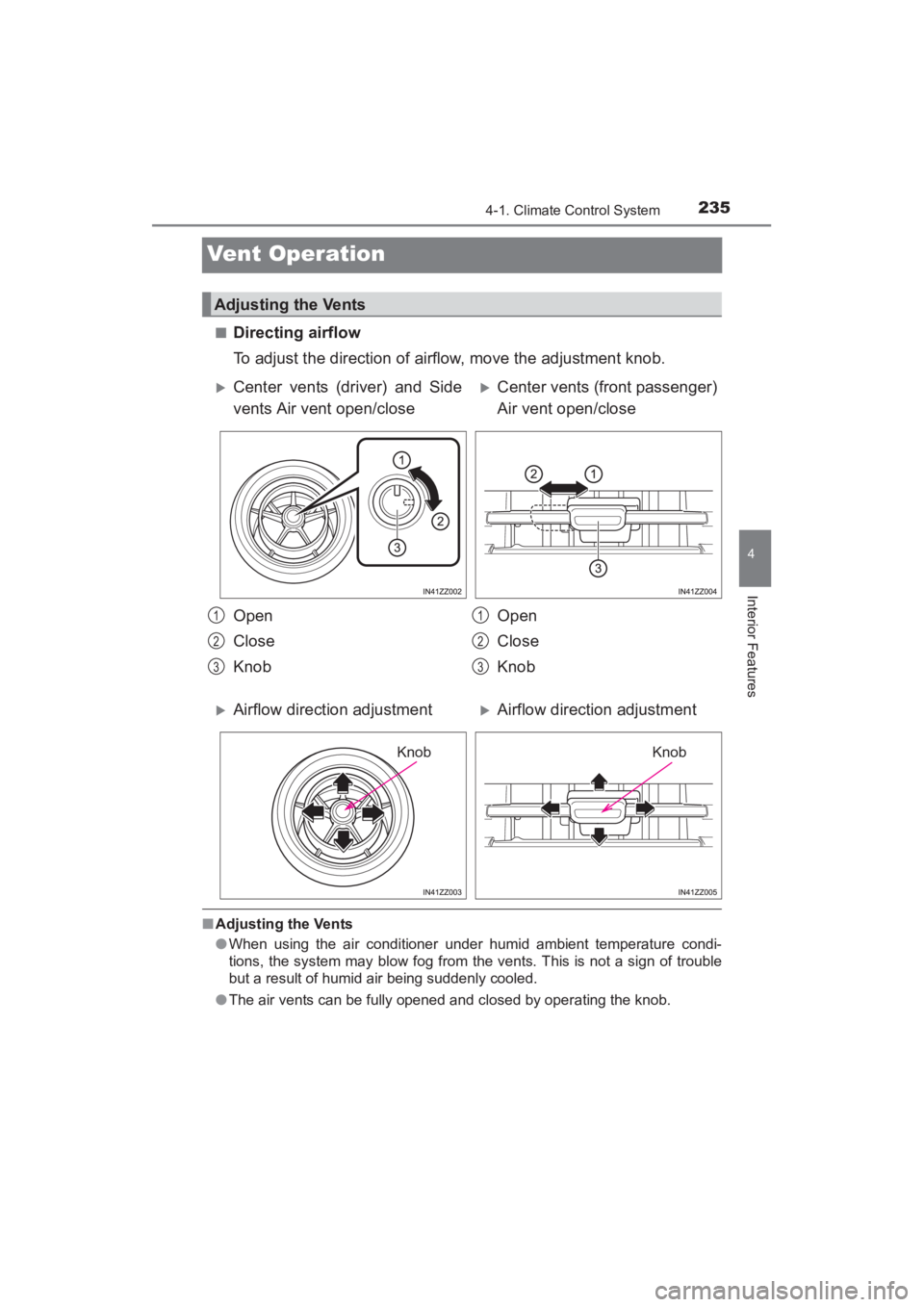

235
YARIS_SEDAN_OM_OM99M18z_(U)
4-1. Climate Control System
4
Interior Features
Vent Operation
■Directing airflow
To adjust the direction of airflow, move the adjustment knob.
■Adjusting the Vents
●When using the air conditioner under humid ambient temperature condi-
tions, the system may blow fog from the vents. This is not a sign of trouble
but a result of humid air being suddenly cooled.
● The air vents can be fully opened and closed by operating the knob.
Adjusting the Vents
XCenter vents (driver) and Side
vents Air vent open/closeXCenter vents (front passenger)
Air vent open/close
Open
Close
Knob Open
Close
Knob
XAirflow direction adjustmentXAirflow direction adjustment
1
2
3
1
2
3
KnobKnob
YARIS_SEDAN_OM_OM99M18z_(U).book Page 235 Monday, June 1, 2015 9:22 PM

236
YARIS_SEDAN_OM_OM99M18z_(U)
4-1. Climate Control System
Selecting the Airflow Mode
XDashboard VentsXDefroster and Floor Vents
XDashboard and Floor VentsXDefroster Vents
XFloor Vents
YARIS_SEDAN_OM_OM99M18z_(U).book Page 236 Monday, June 1, 2015 9:22 PM

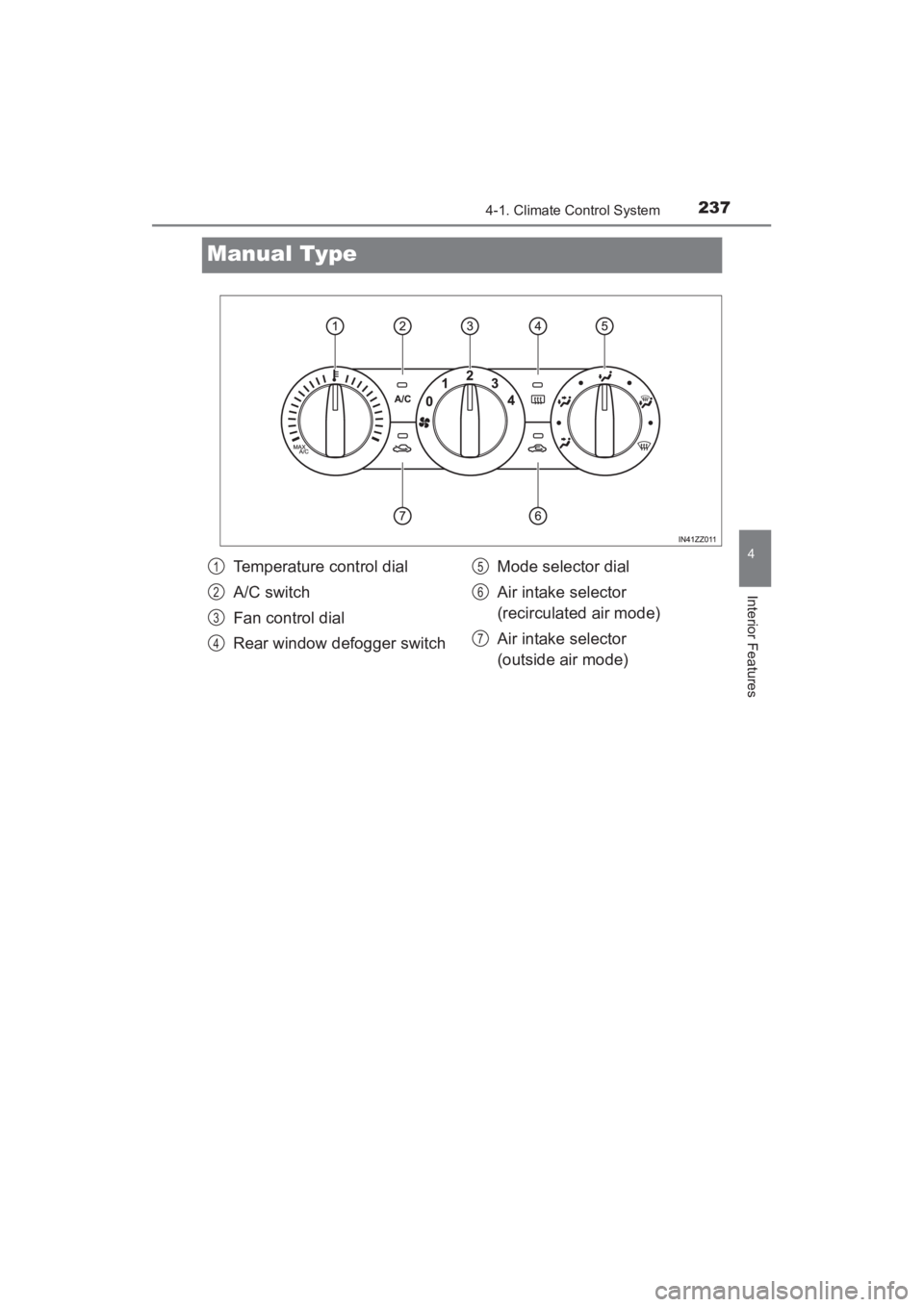

237
YARIS_SEDAN_OM_OM99M18z_(U)
4-1. Climate Control System
4
Interior Features
Manual Type
Temperature control dial
A/C switch
Fan control dial
Rear window defogger switchMode selector dial
Air intake selector
(recirculated air mode)
Air intake selector
(outside air mode)1
2
3
4
5
6
7
YARIS_SEDAN_OM_OM99M18z_(U).book Page 237 Monday, June 1, 2015 9:22 PM

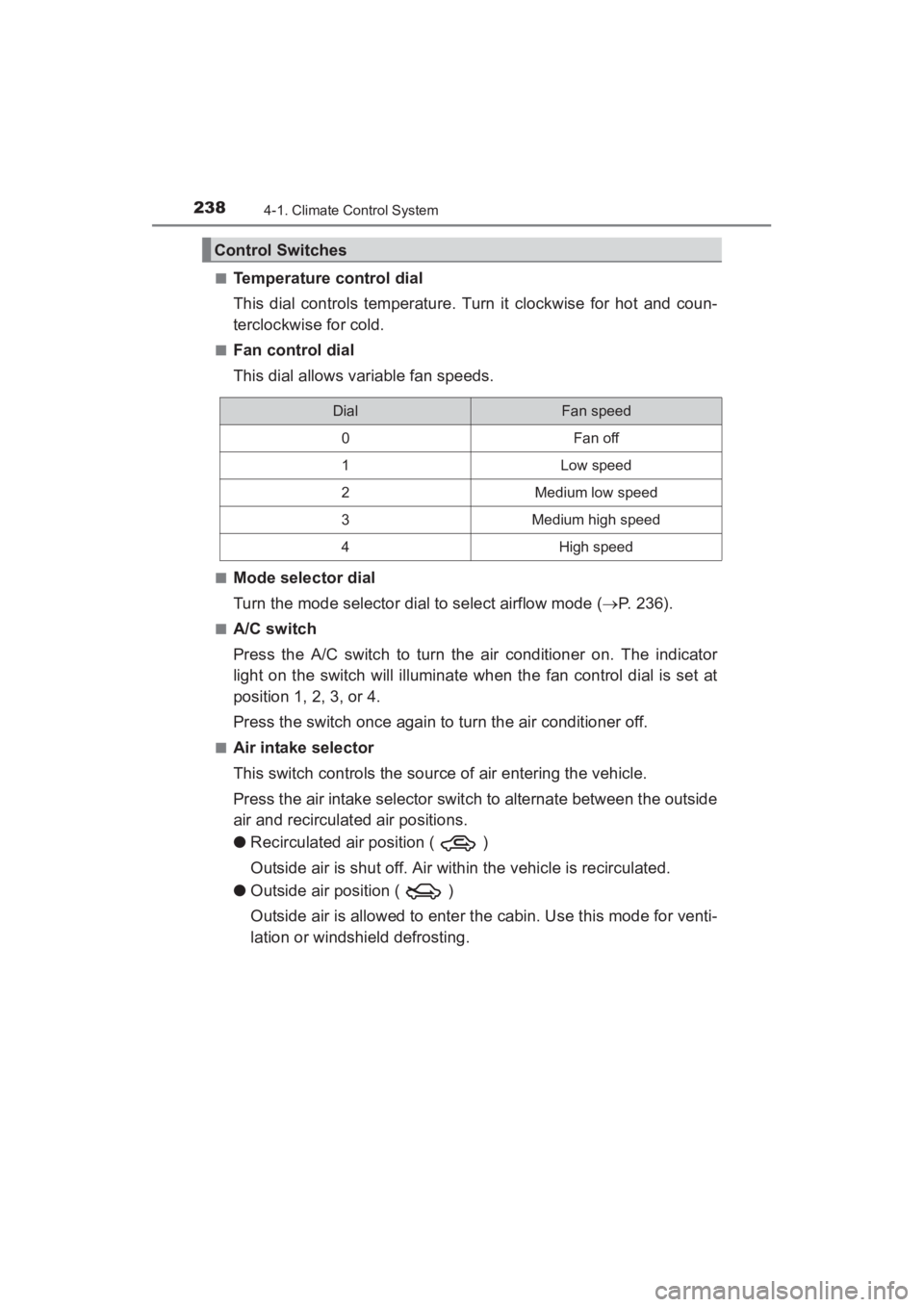

238
YARIS_SEDAN_OM_OM99M18z_(U)
4-1. Climate Control System
■Temperature control dial
This dial controls temperature. Turn it clockwise for hot and coun-
terclockwise for cold.
■Fan control dial
This dial allows variable fan speeds.
■Mode selector dial
Turn the mode selector dial to select airflow mode (→P. 236).
■A/C switch
Press the A/C switch to turn the air conditioner on. The indicator
light on the switch will illuminate when the fan control dial is set at
position 1, 2, 3, or 4.
Press the switch once again to turn the air conditioner off.
■Air intake selector
This switch controls the source of air entering the vehicle.
Press the air intake selector switch to alternate between the outside
air and recirculated air positions.
● Recirculated air position ( )
Outside air is shut off. Air within the vehicle is recirculated.
● Outside air position ( )
Outside air is allowed to enter the cabin. Use this mode for venti-
lation or windshield defrosting.
Control Switches
DialFan speed
0Fan off
1Low speed
2Medium low speed
3Medium high speed
4High speed
YARIS_SEDAN_OM_OM99M18z_(U).book Page 238 Monday, June 1, 2015 9:22 PM
