TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)

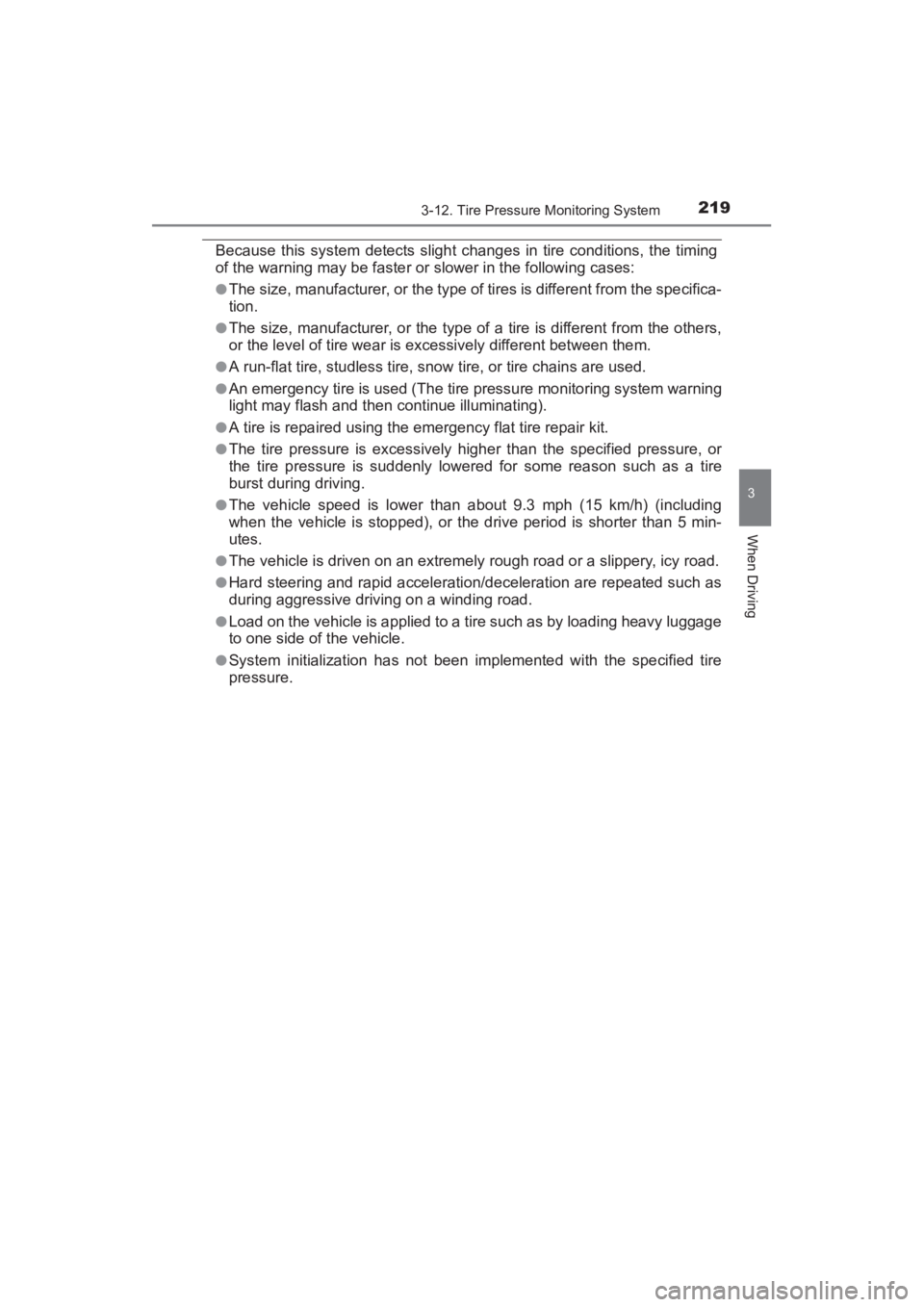

2193-12. Tire Pressure Monitoring System
3
When Driving
Because this system detects slight changes in tire conditions, the timing
of the warning may be faster or slower in the following cases:
●The size, manufacturer, or the type of tires is different from the specifica-
tion.
●The size, manufacturer, or the type of a tire is different from the others,
or the level of tire wear is excessively different between them.
●A run-flat tire, studless tire, snow tire, or tire chains are used.
●An emergency tire is used (The tire pressure monitoring system warning
light may flash and then continue illuminating).
●A tire is repaired using the emergency flat tire repair kit.
●The tire pressure is excessively higher than the specified pressure, or
the tire pressure is suddenly lowered for some reason such as a tire
burst during driving.
●The vehicle speed is lower than about 9.3 mph (15 km/h) (including
when the vehicle is stopped), or the drive period is shorter than 5 min-
utes.
●The vehicle is driven on an extremely rough road or a slippery, icy road.
●Hard steering and rapid acceleration/deceleration are repeated such as
during aggressive driving on a winding road.
●Load on the vehicle is applied to a tire such as by loading heavy luggage
to one side of the vehicle.
●System initialization has not been implemented with the specified tire
pressure.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 219 Monday, June 1, 2015 9:22 PM

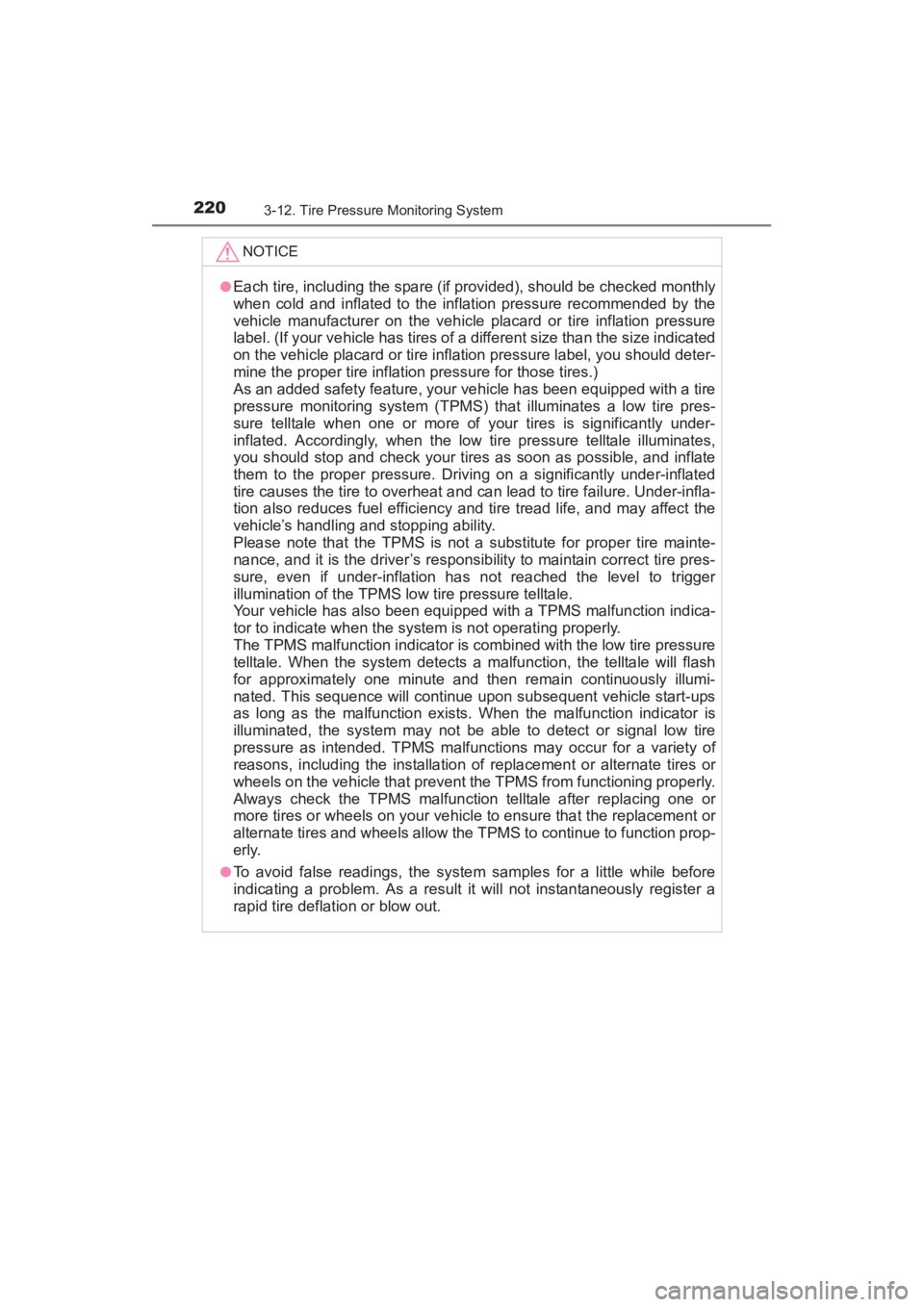

220
YARIS_SEDAN_OM_OM99M18z_(U)
3-12. Tire Pressure Monitoring System
NOTICE
●Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you should deter-
mine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is significantly under-
inflated. Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to tire failure. Under-infla-
tion also reduces fuel efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire mainte-
nance, and it is the driver’s responsibility to maintain correct tire pres-
sure, even if under-inflation has not reached the level to trigger
illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indica-
tor to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure
telltale. When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is
illuminated, the system may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to continue to function prop-
erly.
●To avoid false readings, the system samples for a little while before
indicating a problem. As a result it will not instantaneously register a
rapid tire deflation or blow out.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 220 Monday, June 1, 2015 9:22 PM

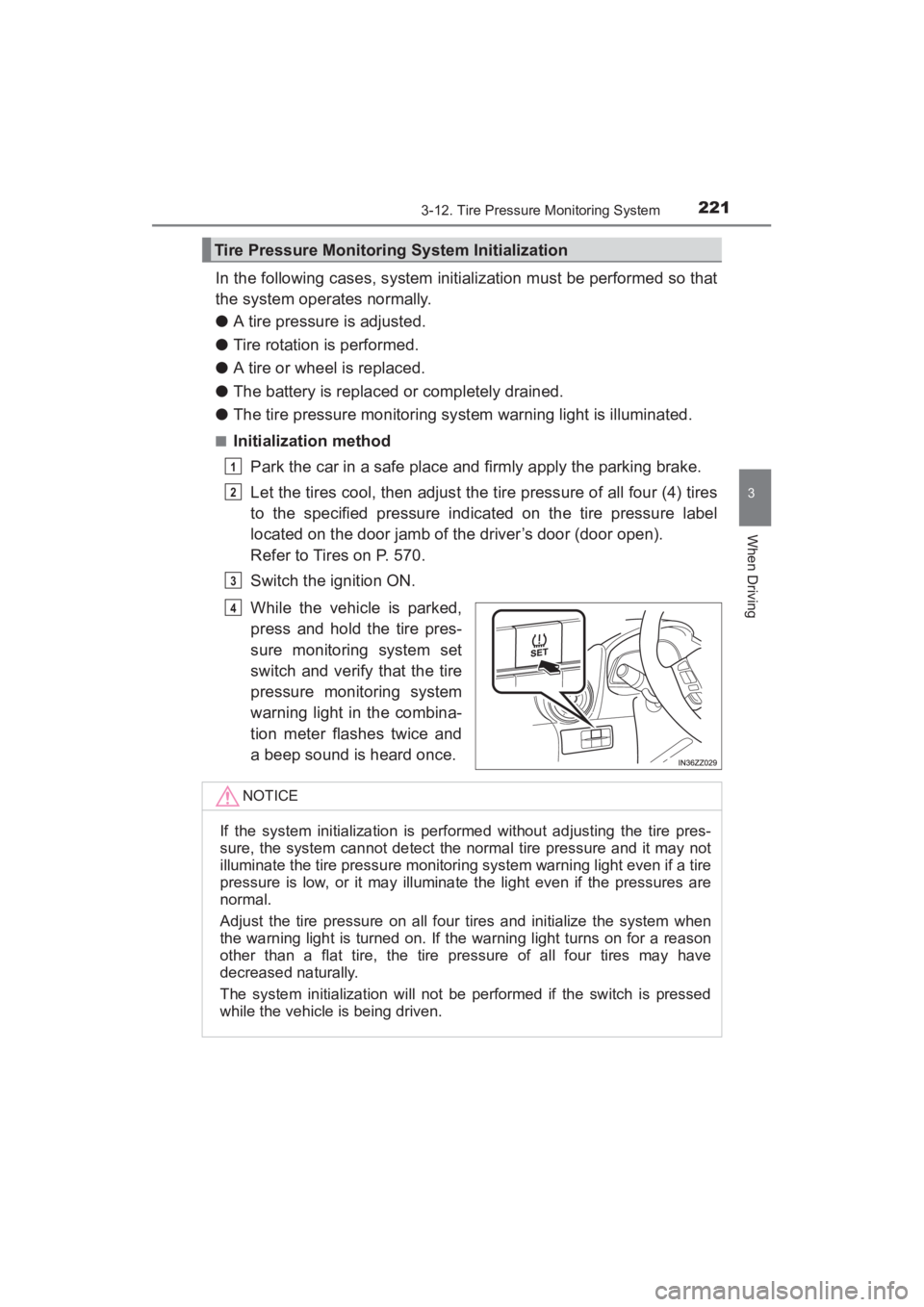

YARIS_SEDAN_OM_OM99M18z_(U)
2213-12. Tire Pressure Monitoring System
3
When Driving
In the following cases, system initialization must be performed so that
the system operates normally.
●A tire pressure is adjusted.
● Tire rotation is performed.
● A tire or wheel is replaced.
● The battery is replaced or completely drained.
● The tire pressure monitoring system warning light is illuminated.
■Initialization method
Park the car in a safe place and firmly apply the parking brake.
Let the tires cool, then adjust the tire pressure of all four (4) tires
to the specified pressure indicated on the tire pressure label
located on the door jamb of the driver’s door (door open).
Refer to Tires on P. 570.
Switch the ignition ON.
While the vehicle is parked,
press and hold the tire pres-
sure monitoring system set
switch and verify that the tire
pressure monitoring system
warning light in the combina-
tion meter flashes twice and
a beep sound is heard once.
Tire Pressure Monitoring System Initialization
1
2
3
4
NOTICE
If the system initialization is performed without adjusting the tire pres-
sure, the system cannot detect the normal tire pressure and it may not
illuminate the tire pressure monitoring system warning light even if a tire
pressure is low, or it may illuminate the light even if the pressures are
normal.
Adjust the tire pressure on all four tires and initialize the system when
the warning light is turned on. If the warning light turns on for a reason
other than a flat tire, the tire pressure of all four tires may have
decreased naturally.
The system initialization will not be performed if the switch is pressed
while the vehicle is being driven.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 221 Monday, June 1, 2015 9:22 PM

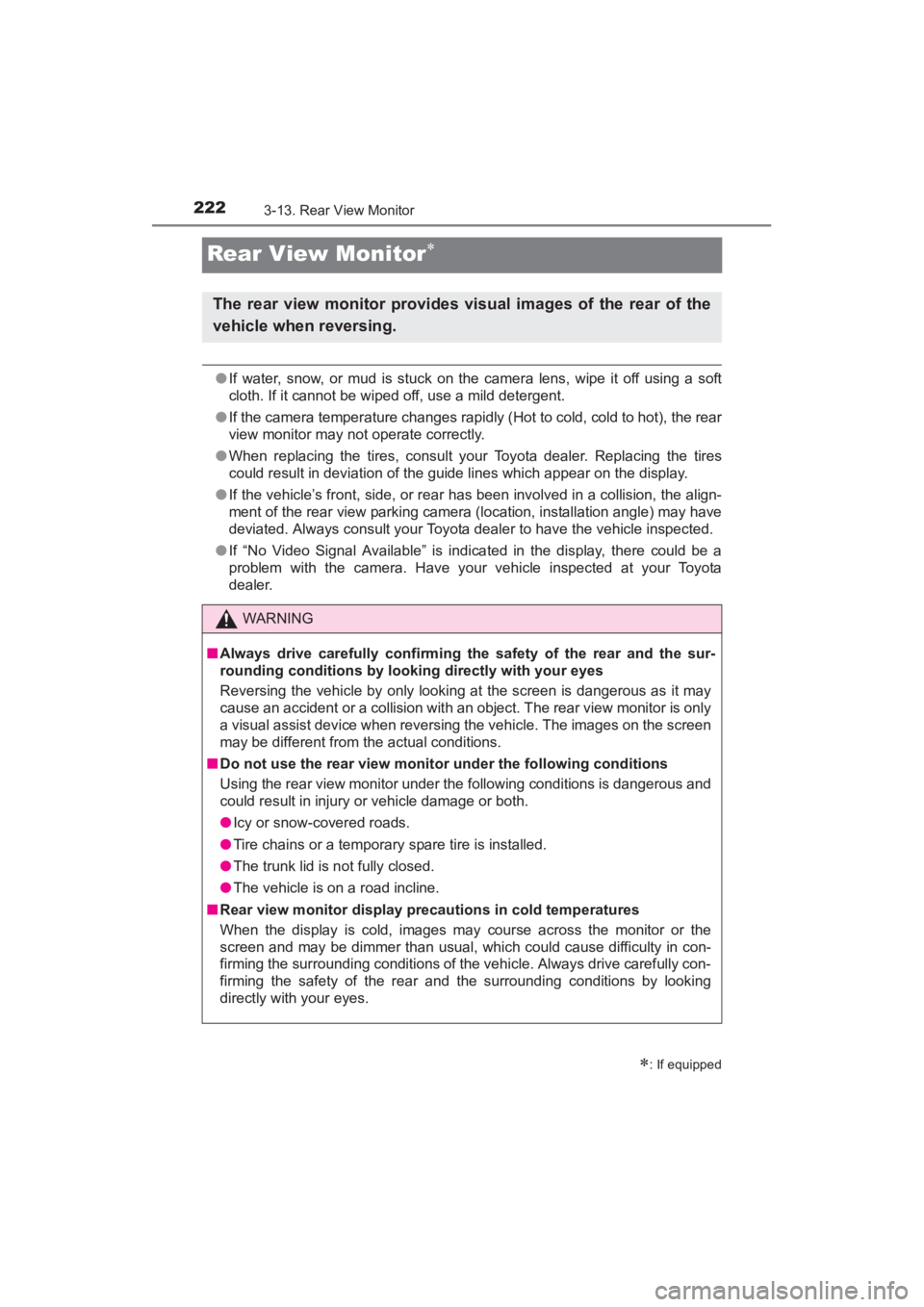

222
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
Rear View Monitor∗
●If water, snow, or mud is stuck on the camera lens, wipe it off using a soft
cloth. If it cannot be wiped off, use a mild detergent.
● If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear
view monitor may not operate correctly.
● When replacing the tires, consult your Toyota dealer. Replacing the tires
could result in deviation of the guide lines which appear on the display.
● If the vehicle’s front, side, or rear has been involved in a collision, the align-
ment of the rear view parking camera (location, installation angle) may have
deviated. Always consult your Toyota dealer to have the vehicle inspected.
● If “No Video Signal Available” is indica ted in the display, there could be a
problem with the camera. Have your vehicle inspected at your Toyota
dealer.
∗: If equipped
The rear view monitor provides visual images of the rear of the
vehicle when reversing.
WARNING
■ Always drive carefully confirming the safety of the rear and the sur-
rounding conditions by looking directly with your eyes
Reversing the vehicle by only looking at the screen is dangerous as it may
cause an accident or a collision with an object. The rear view monitor is only
a visual assist device when reversing the vehicle. The images on the screen
may be different from the actual conditions.
■ Do not use the rear view monitor under the following conditions
Using the rear view monitor under the following conditions is dangerous and
could result in injury or vehicle damage or both.
●Icy or snow-covered roads.
● Tire chains or a temporary spare tire is installed.
● The trunk lid is not fully closed.
● The vehicle is on a road incline.
■ Rear view monitor display precautions in cold temperatures
When the display is cold, images may course across the monitor or the
screen and may be dimmer than usual, which could cause difficulty in con-
firming the surrounding conditions of the vehicle. Always drive carefully con-
firming the safety of the rear and the surrounding conditions by looking
directly with your eyes.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 222 Monday, June 1, 2015 9:22 PM

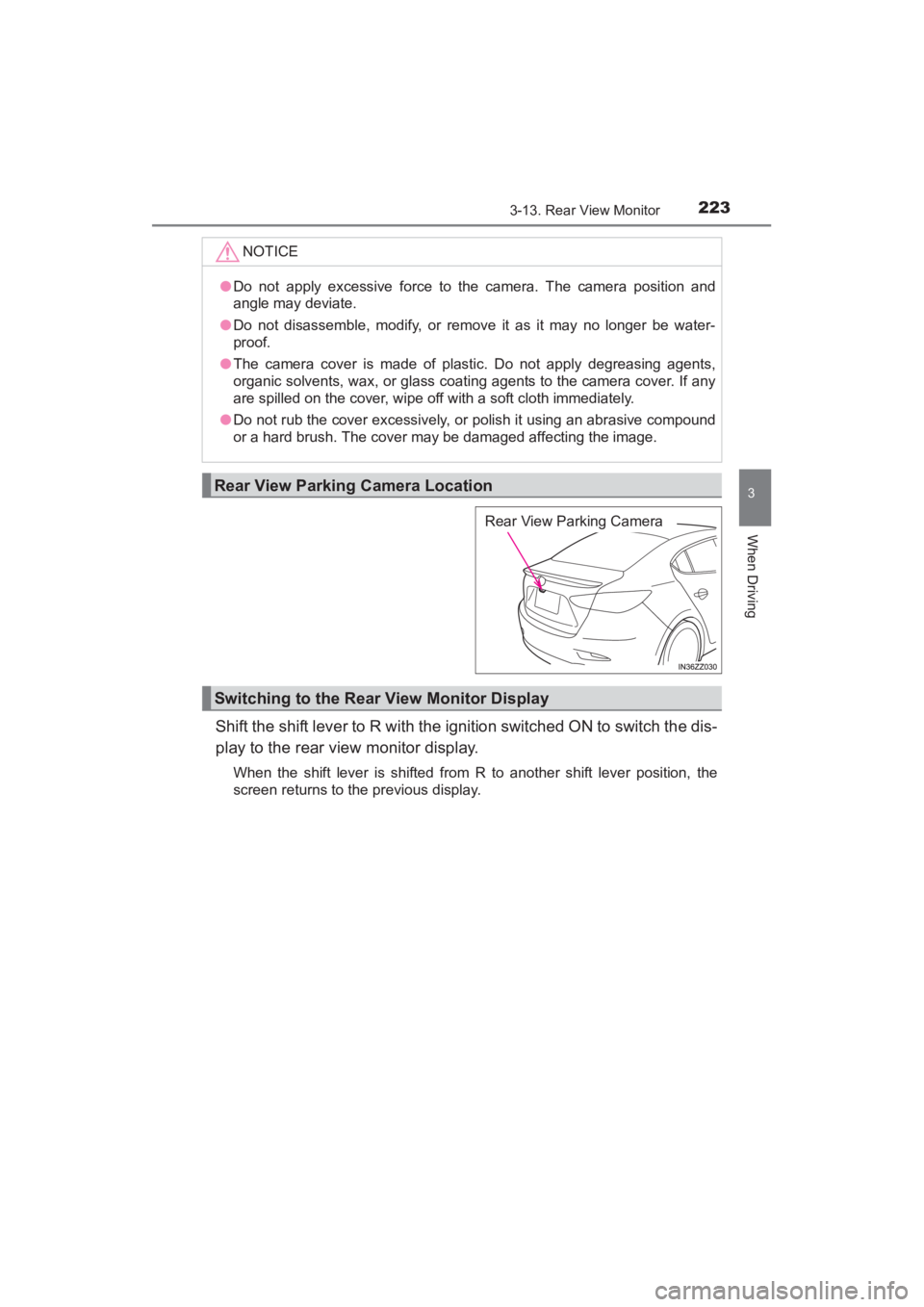

YARIS_SEDAN_OM_OM99M18z_(U)
2233-13. Rear View Monitor
3
When Driving
Shift the shift lever to R with the ignition switched ON to switch the dis-
play to the rear view monitor display.
When the shift lever is shifted from R to another shift lever position, the
screen returns to the previous display.NOTICE
●
Do not apply excessive force to the camera. The camera position and
angle may deviate.
● Do not disassemble, modify, or remove it as it may no longer be water-
proof.
● The camera cover is made of plastic. Do not apply degreasing agents,
organic solvents, wax, or glass coating agents to the camera cover. If any
are spilled on the cover, wipe off with a soft cloth immediately.
● Do not rub the cover excessively, or polish it using an abrasive compound
or a hard brush. The cover may be damaged affecting the image.
Rear View Parking Camera Location
Rear View Parking Camera
Switching to the Rear View Monitor Display
YARIS_SEDAN_OM_OM99M18z_(U).book Page 223 Monday, June 1, 2015 9:22 PM

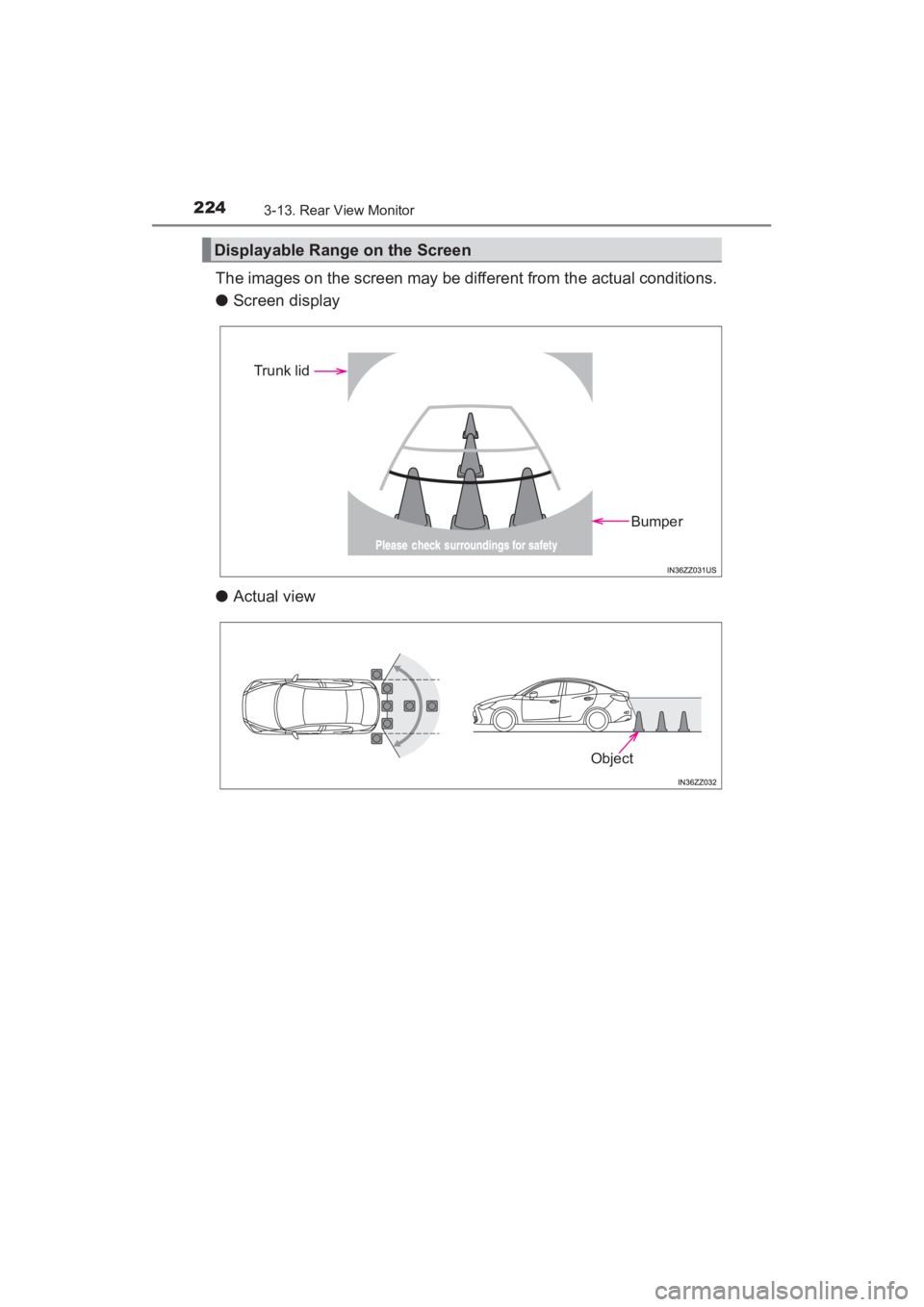

224
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
The images on the screen may be different from the actual conditions.
●Screen display
● Actual view
Displayable Range on the Screen
Trunk lid
Bumper
Object
;#4+5_5'&#0_1M_1MM18\_
7.DQQM Page 224 MQnday, June 1, 2015 :22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2253-13. Rear View Monitor
3
When Driving
●The displayable range varies depending on the vehicle and road conditions.
● The displayable range is limited. Objects under the bumper or around the
bumper ends cannot be displayed.
● The distance appearing in the displayed image is different from the actual
distance because the rear view parking camera is equipped with a specific
lens.
● Some optionally installed vehicle accessories may be picked up by the cam-
era. Do not install any optional parts that can interfere with the camera view,
such as illuminating parts or parts made of reflective material.
● It may be difficult to see the display under the following conditions, however,
it does not indicate a malfunction.
• In darkened areas.
• When the temperature around the lens is high/low.
• When the camera is wet such as on a rainy day or during periods of high
humidity.
• When foreign material such as mud is stuck around the camera.
• When the camera lens reflects sunlight or headlight beams.
● Image display may be delayed if the temperature around the camera is low.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 225 Monday, June 1, 2015 9:22 PM

226
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
Guide lines which indicate the width of the vehicle (yellow) are dis-
played on the screen as a reference to the approximate width of the
vehicle in comparison to the width of the parking space you are about
to back into.
Use this display view for parking your vehicle in a parking space or
garage.Vehicle width guide lines (yel-
low)
These guide lines serve as a
reference to the approximate
width of the vehicle.
Distance guide lines
These guide lines indicate the
approximate distance to a point
measured from the vehicle’s
rear (from the end of the
bumper).
The red and yellow lines indicate the points about 19 in. (500 mm)
for the red line and 39.3 in. (1000 mm) for the yellow lines from the
rear bumper (at the center point of each of the lines).
Viewing the Display
1
2
WARNING
The guide lines on the screen are fixed lines. They are not synced to the
driver’s turning of the steering wheel. Always be careful and check the area
to the vehicle’s rear and the surrounding area directly with your eyes while
backing up.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 226 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2273-13. Rear View Monitor
3
When Driving
The operation of the rear view monitor when reversing the vehicle var-
ies depending on the traffic, road, and vehicle conditions. The amount
of steering and the timing also varies depending on conditions, so
confirm the surrounding conditions directly with your eyes and steer
the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view moni-
tor.Shift the shift lever to R to switch the display to the rear view moni-
tor display.
Confirming the surrounding conditions, reverse the vehicle.
After your vehicle begins entering the parking space, continue
backing up slowly so that the distance between the vehicle width
lines and the sides of the parking space on the left and right are
roughly equal.
Continue to adjust the steering wheel until the vehicle width guide
lines are parallel to the left and right sides of the parking space.
Rear View Monitor Operation
1
2
(Display condition) (Vehicle condition)
3
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 227 Monday, June 1, 2015 9:22 PM

228
YARIS_SEDAN_OM_OM99M18z_(U)
3-13. Rear View Monitor
Once they are parallel, straighten the wheels and back your vehicle
slowly into the parking space. Continue checking the vehicle’s sur-
roundings and then stop the vehicle in the best possible position. (If
the parking space has division lines, check whether the vehicle
width guide lines are parallel to them.)
When the shift lever is shifted from R to another shift lever position,
the screen returns to the previous display.
●Images displayed on the monitor from the rear view parking camera are
reversed images (mirror images).
● Because there may be a difference between the displayed image, such as
indicated below, and the actual conditions when parking, always verify the
safety at the rear of the vehicle and the surrounding area directly with your
eyes.
• In the image of the parking space (or garage) displayed below, even though the back end and distance guide lines appear parallel in the mon-
itor, they may not actually be parallel on the ground.
5
(Display condition) (Vehicle condition)
6
YARIS_SEDAN_OM_OM99M18z_(U).book Page 228 Monday, June 1, 2015 9:22 PM
