TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
2494-2. Audio System
4
Interior Features

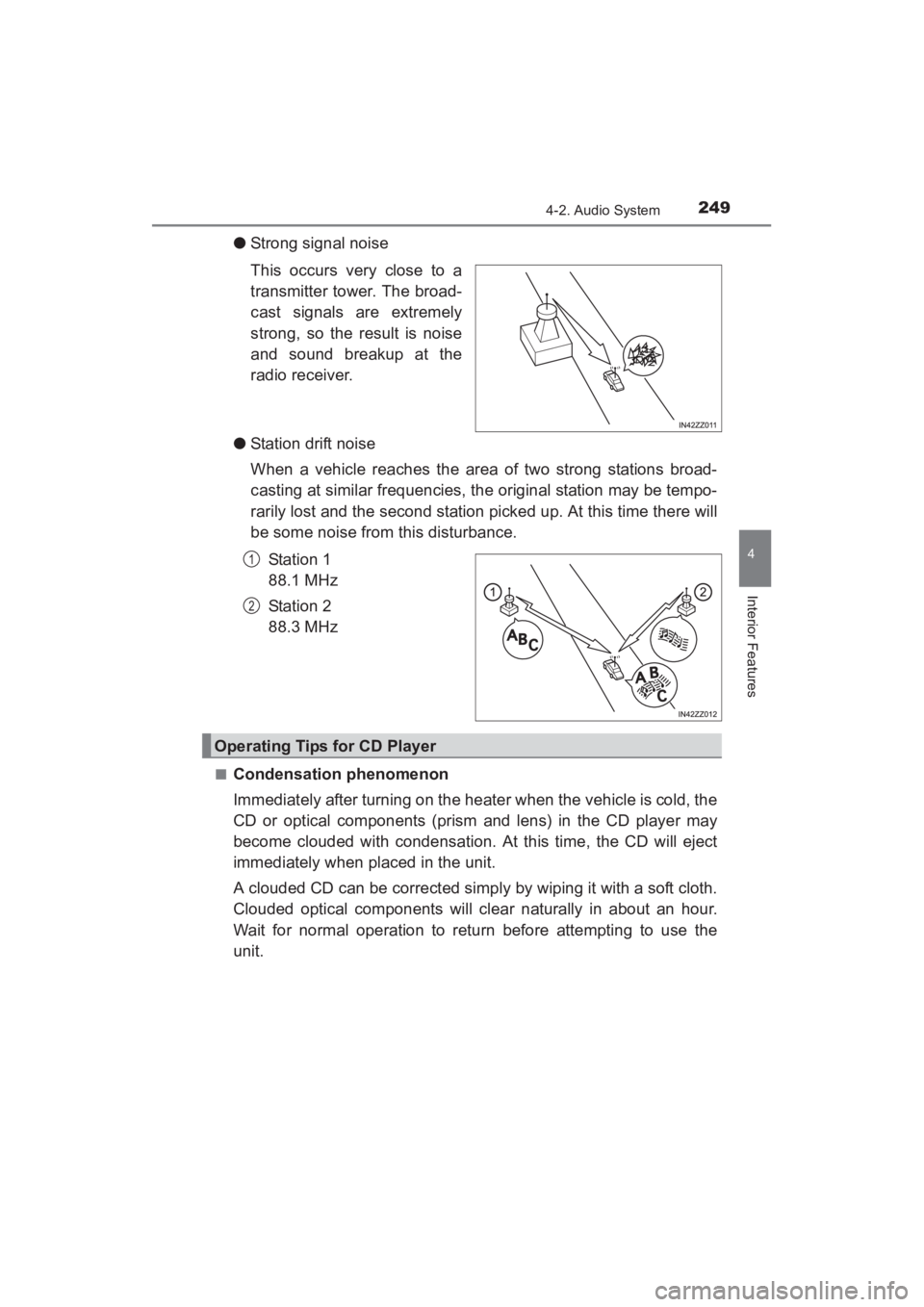

●Strong signal noise
This occurs very close to a
transmitter tower. The broad-
cast signals are extremely
strong, so the result is noise
and sound breakup at the
radio receiver.
● Station drift noise
When a vehicle reaches the area of two strong stations broad-
casting at similar frequencies, the original station may be tempo-
rarily lost and the second station picked up. At this time there will
be some noise from this disturbance.
Station 1
88.1 MHz
Station 2
88.3 MHz
■Condensation phenomenon
Immediately after turning on the heater when the vehicle is cold, the
CD or optical components (prism and lens) in the CD player may
become clouded with condensation. At this time, the CD will eject
immediately when placed in the unit.
A clouded CD can be corrected simply by wiping it with a soft cloth.
Clouded optical components will clear naturally in about an hour.
Wait for normal operation to return before attempting to use the
unit.
1
2
Operating Tips for CD Player
YARIS_SEDAN_OM_OM99M18z_(U).book Page 249 Monday, June 1, 2015 9:22 PM

250
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

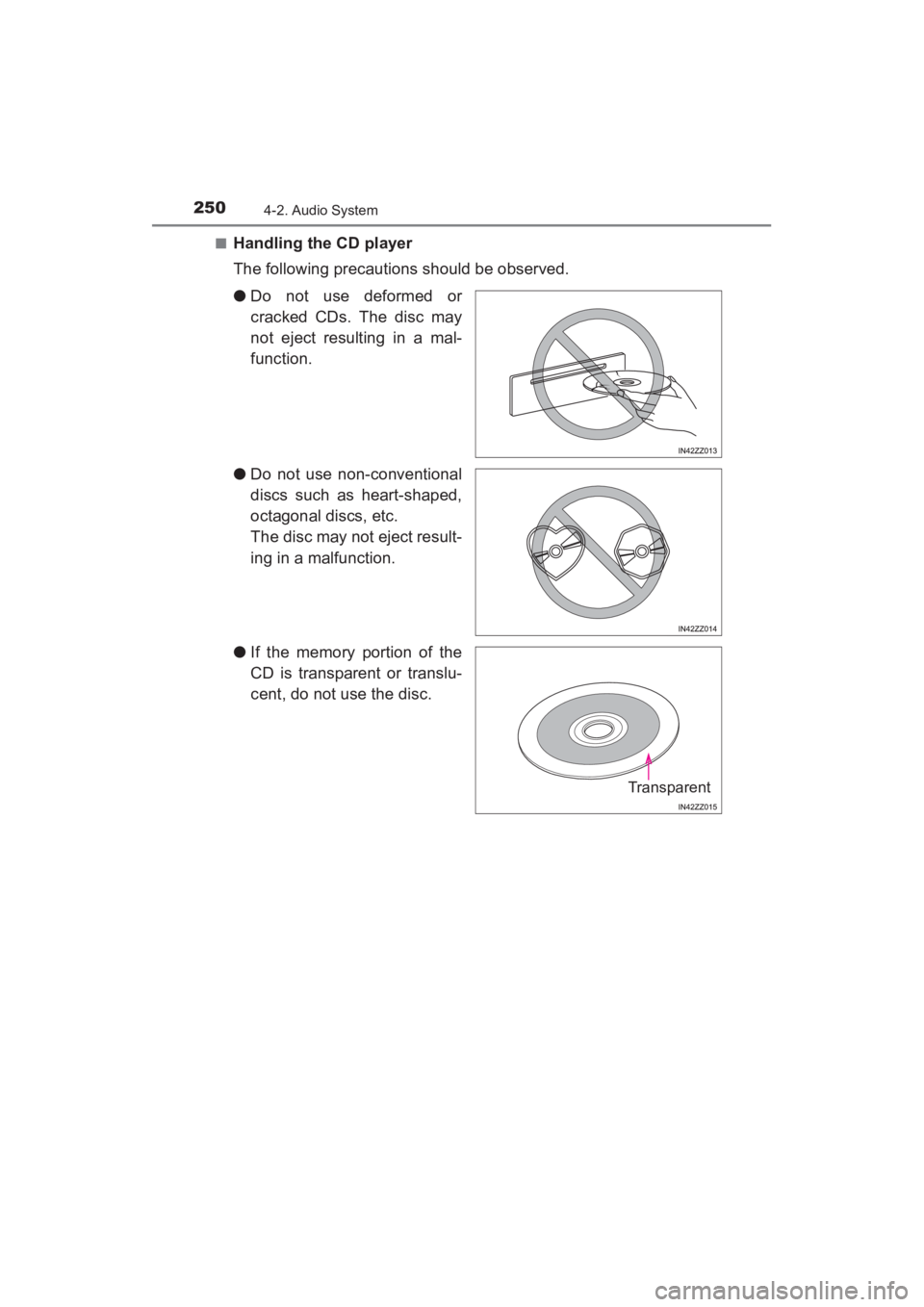

■Handling the CD player
The following precautions should be observed.
●Do not use deformed or
cracked CDs. The disc may
not eject resulting in a mal-
function.
● Do not use non-conventional
discs such as heart-shaped,
octagonal discs, etc.
The disc may not eject result-
ing in a malfunction.
● If the memory portion of the
CD is transparent or translu-
cent, do not use the disc.
Transparent
YARIS_SEDAN_OM_OM99M18z_(U).book Page 250 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2514-2. Audio System
4
Interior Features

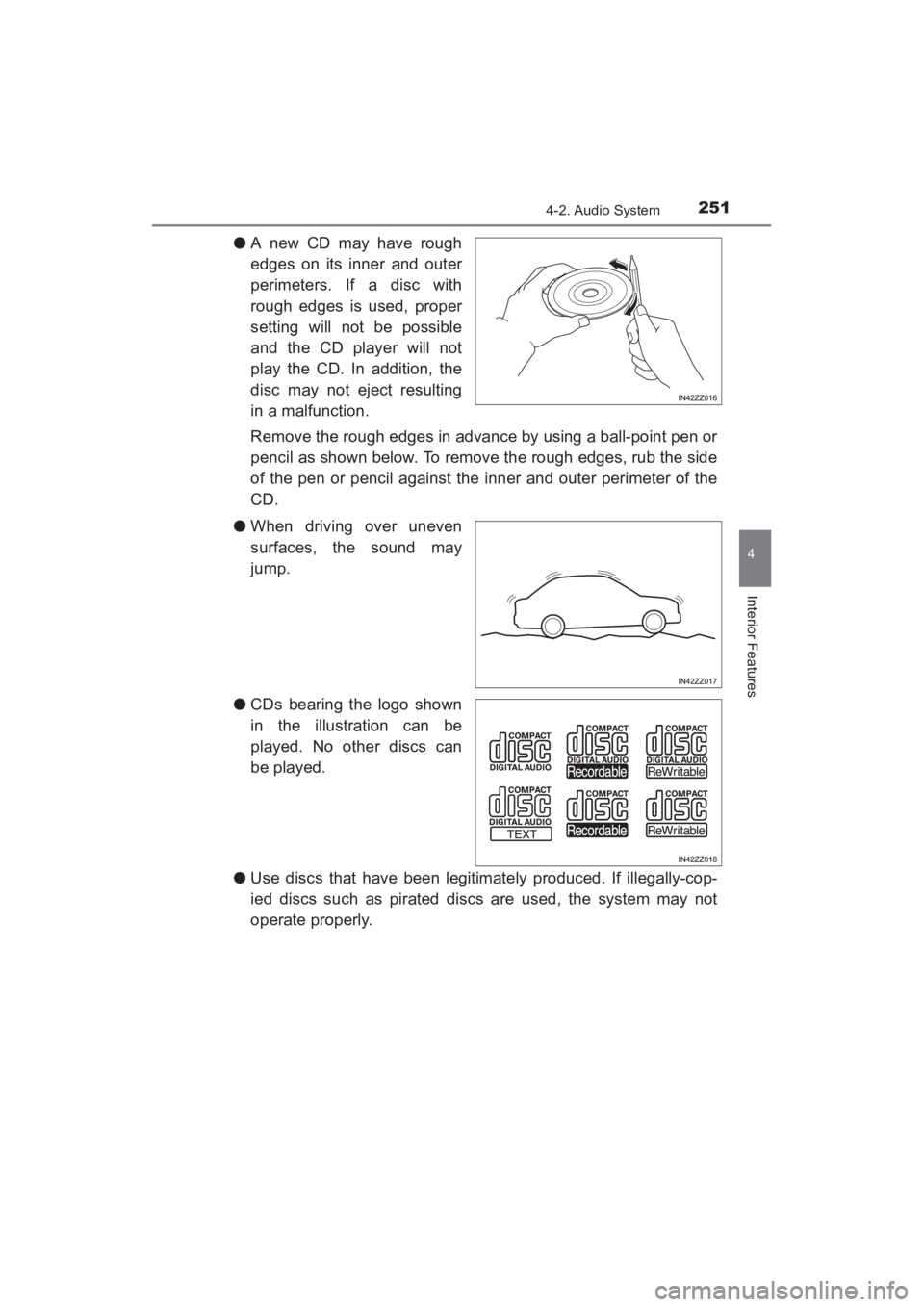

●A new CD may have rough
edges on its inner and outer
perimeters. If a disc with
rough edges is used, proper
setting will not be possible
and the CD player will not
play the CD. In addition, the
disc may not eject resulting
in a malfunction.
Remove the rough edges in advance by using a ball-point pen or
pencil as shown below. To remove the rough edges, rub the side
of the pen or pencil against the inner and outer perimeter of the
CD.
● When driving over uneven
surfaces, the sound may
jump.
● CDs bearing the logo shown
in the illustration can be
played. No other discs can
be played.
● Use discs that have been legitimately produced. If illegally-cop-
ied discs such as pirated discs are used, the system may not
operate properly.
;#4+5_5'&#0_1M_1MM18\_
7.DQQM Page 251 MQnday, June 1, 2015 :22 PM

252
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

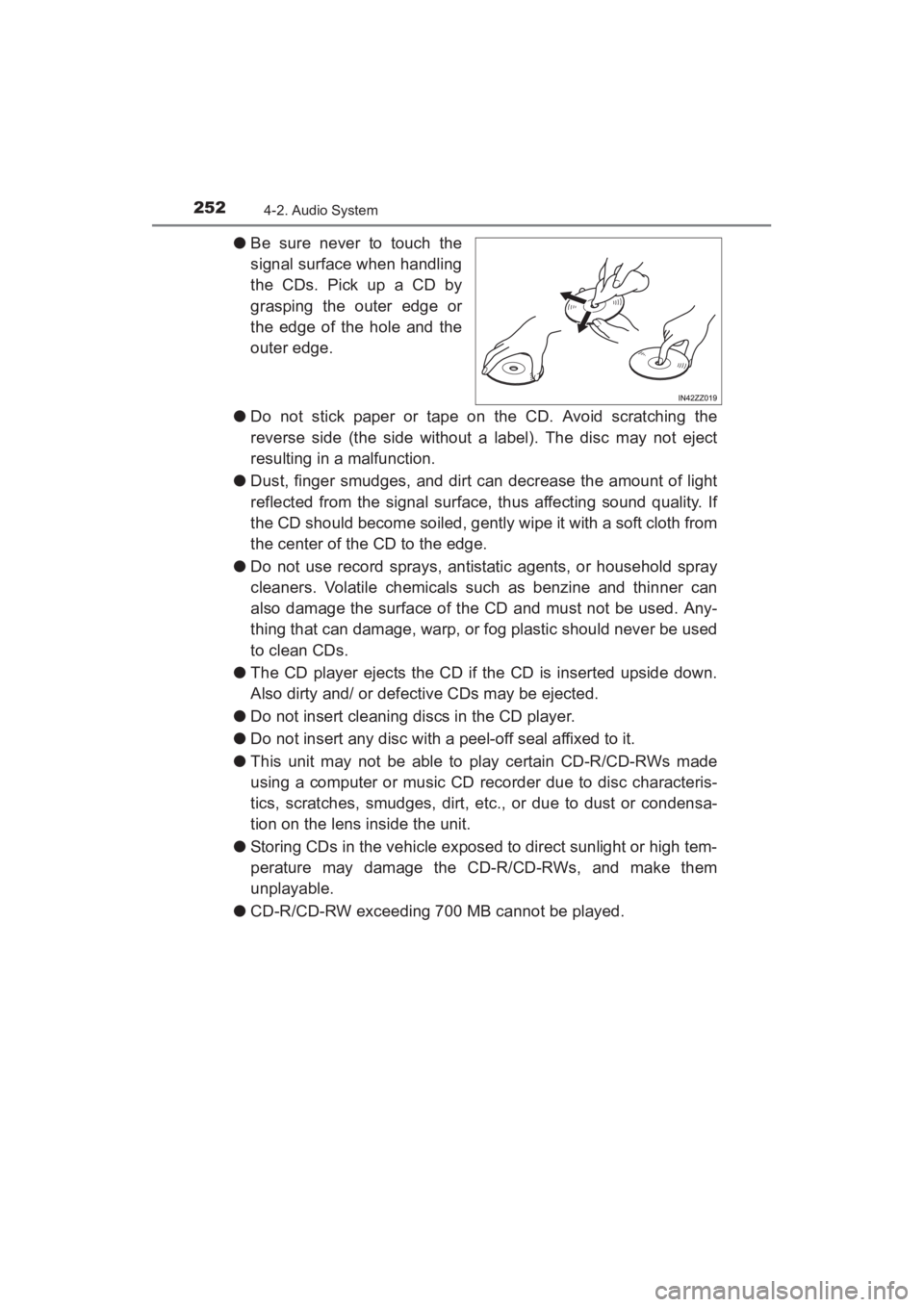

●Be sure never to touch the
signal surface when handling
the CDs. Pick up a CD by
grasping the outer edge or
the edge of the hole and the
outer edge.
● Do not stick paper or tape on the CD. Avoid scratching the
reverse side (the side without a label). The disc may not eject
resulting in a malfunction.
● Dust, finger smudges, and dirt can decrease the amount of light
reflected from the signal surface, thus affecting sound quality. If
the CD should become soiled, gently wipe it with a soft cloth from
the center of the CD to the edge.
● Do not use record sprays, antistatic agents, or household spray
cleaners. Volatile chemicals such as benzine and thinner can
also damage the surface of the CD and must not be used. Any-
thing that can damage, warp, or fog plastic should never be used
to clean CDs.
● The CD player ejects the CD if the CD is inserted upside down.
Also dirty and/ or defective CDs may be ejected.
● Do not insert cleaning discs in the CD player.
● Do not insert any disc with a peel-off seal affixed to it.
● This unit may not be able to play certain CD-R/CD-RWs made
using a computer or music CD recorder due to disc characteris-
tics, scratches, smudges, dirt, etc., or due to dust or condensa-
tion on the lens inside the unit.
● Storing CDs in the vehicle exposed to direct sunlight or high tem-
perature may damage the CD-R/CD-RWs, and make them
unplayable.
● CD-R/CD-RW exceeding 700 MB cannot be played.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 252 Monday, June 1, 2015 9:22 PM

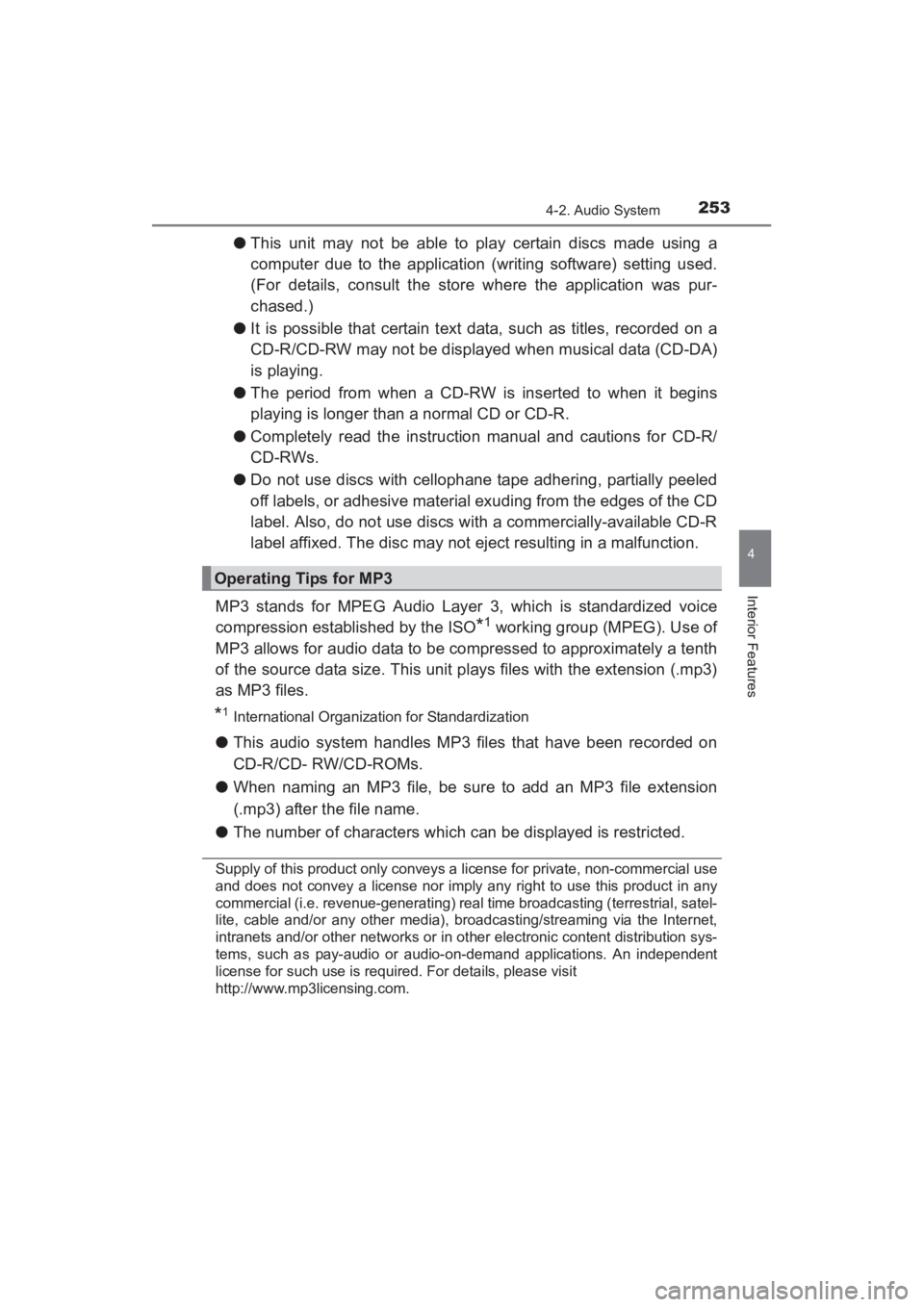

YARIS_SEDAN_OM_OM99M18z_(U)
2534-2. Audio System
4
Interior Features
●This unit may not be able to play certain discs made using a
computer due to the application (writing software) setting used.
(For details, consult the store where the application was pur-
chased.)
● It is possible that certain text data, such as titles, recorded on a
CD-R/CD-RW may not be displayed when musical data (CD-DA)
is playing.
● The period from when a CD-RW is inserted to when it begins
playing is longer than a normal CD or CD-R.
● Completely read the instruction manual and cautions for CD-R/
CD-RWs.
● Do not use discs with cellophane tape adhering, partially peeled
off labels, or adhesive material exuding from the edges of the CD
label. Also, do not use discs with a commercially-available CD-R
label affixed. The disc may not eject resulting in a malfunction.
MP3 stands for MPEG Audio Layer 3, which is standardized voice
compression established by the ISO
*1 working group (MPEG). Use of
MP3 allows for audio data to be compressed to approximately a tenth
of the source data size. This unit plays files with the extension (.mp3)
as MP3 files.
*1International Organization for Standardization
● This audio system handles MP3 files that have been recorded on
CD-R/CD- RW/CD-ROMs.
● When naming an MP3 file, be sure to add an MP3 file extension
(.mp3) after the file name.
● The number of characters which can be displayed is restricted.
Supply of this product only conveys a license for private, non-commercial use
and does not convey a license nor imply any right to use this product in any
commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satel-
lite, cable and/or any other media), broadcasting/streaming via the Internet,
intranets and/or other networks or in ot her electronic content distribution sys-
tems, such as pay-audio or audio-on-demand applications. An independent
license for such use is required. For details, please visit
http://www.mp3licensing.com.
Operating Tips for MP3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 253 Monday, June 1, 2015 9:22 PM

254
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System

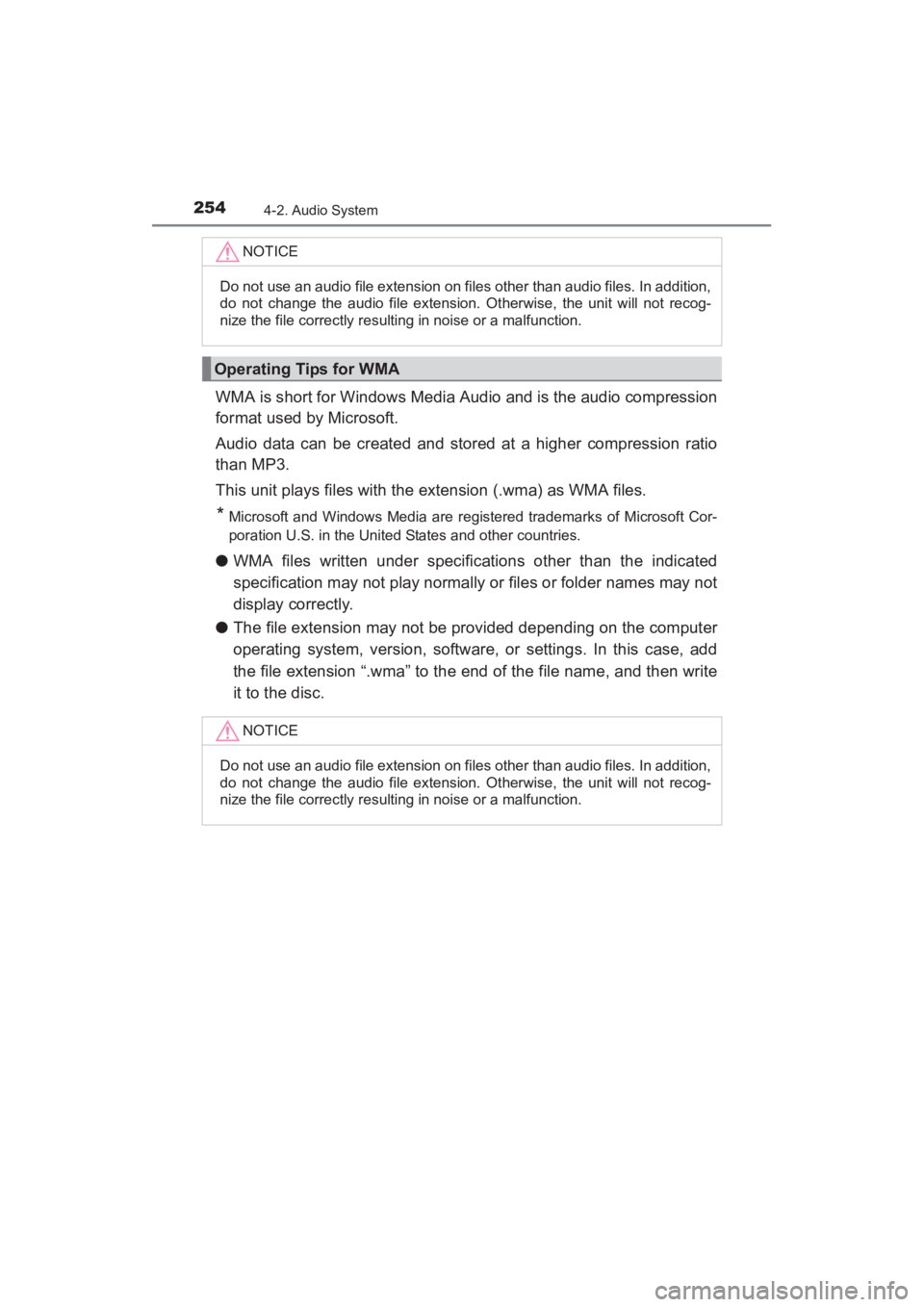

WMA is short for Windows Media Audio and is the audio compression
format used by Microsoft.
Audio data can be created and stored at a higher compression ratio
than MP3.
This unit plays files with the extension (.wma) as WMA files.
*Microsoft and Windows Media are registered trademarks of Microsoft Cor-
poration U.S. in the United States and other countries.
●WMA files written under specifications other than the indicated
specification may not play normally or files or folder names may not
display correctly.
● The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.wma” to the end of the file name, and then write
it to the disc.
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for WMA
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 254 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2554-2. Audio System
4
Interior Features

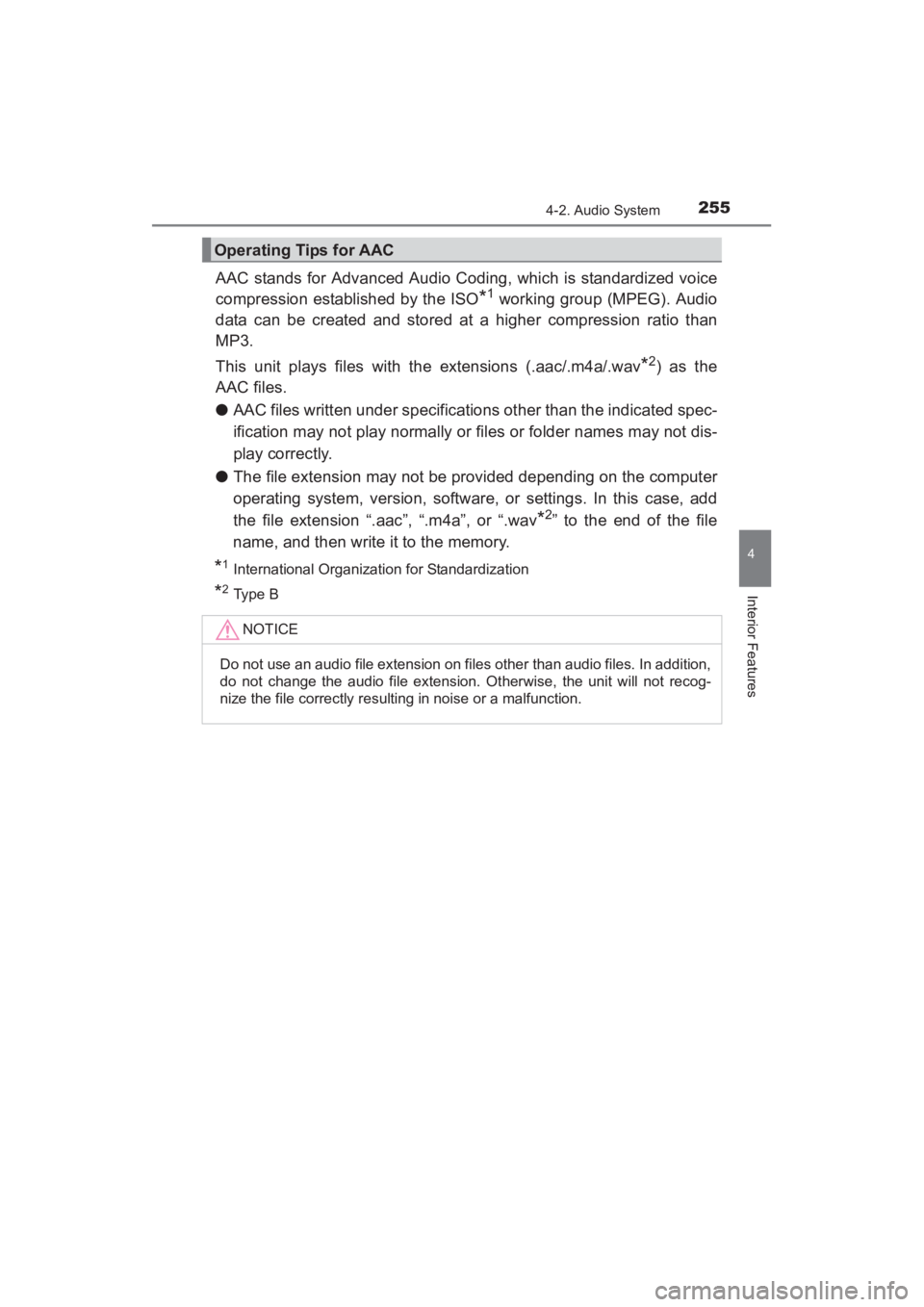

AAC stands for Advanced Audio Coding, which is standardized voice
compression established by the ISO
*1 working group (MPEG). Audio
data can be created and stored at a higher compression ratio than
MP3.
This unit plays files with the extensions (.aac/.m4a/.wav
*2) as the
AAC files.
● AAC files written under specifications other than the indicated spec-
ification may not play normally or files or folder names may not dis-
play correctly.
● The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.aac”, “.m4a”, or “.wav
*2” to the end of the file
name, and then write it to the memory.
*1International Organization for Standardization
*2Type B
Operating Tips for AAC
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 255 Monday, June 1, 2015 9:22 PM

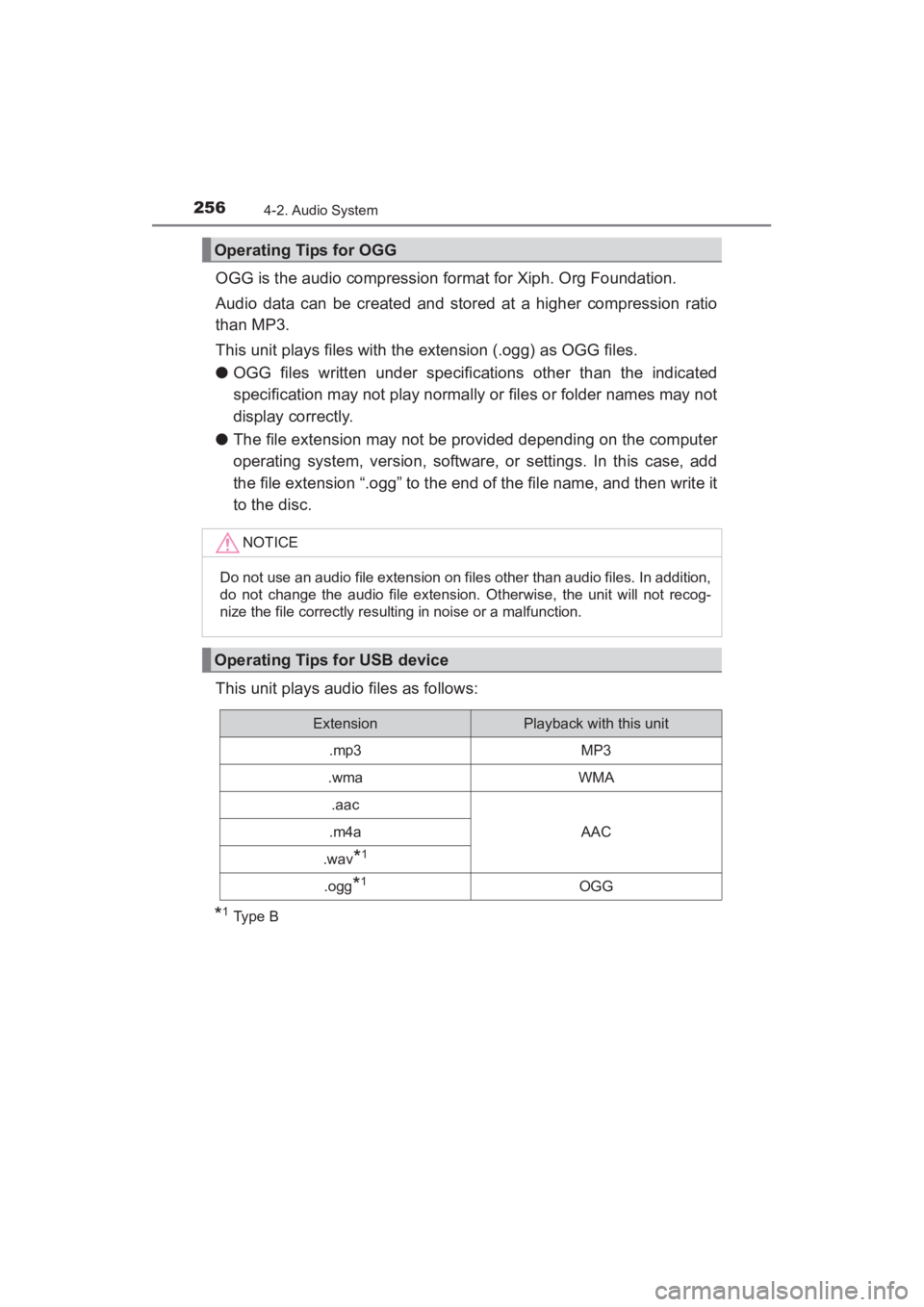

256
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
OGG is the audio compression format for Xiph. Org Foundation.
Audio data can be created and stored at a higher compression ratio
than MP3.
This unit plays files with the extension (.ogg) as OGG files.
●OGG files written under specifications other than the indicated
specification may not play normally or files or folder names may not
display correctly.
● The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.ogg” to the end of the file name, and then write it
to the disc.
This unit plays audio files as follows:
*1Type B
Operating Tips for OGG
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for USB device
ExtensionPlayback with this unit
.mp3MP3
.wmaWMA
.aac
AAC.m4a
.wav*1
.ogg*1OGG
YARIS_SEDAN_OM_OM99M18z_(U).book Page 256 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
2574-2. Audio System
4
Interior Features

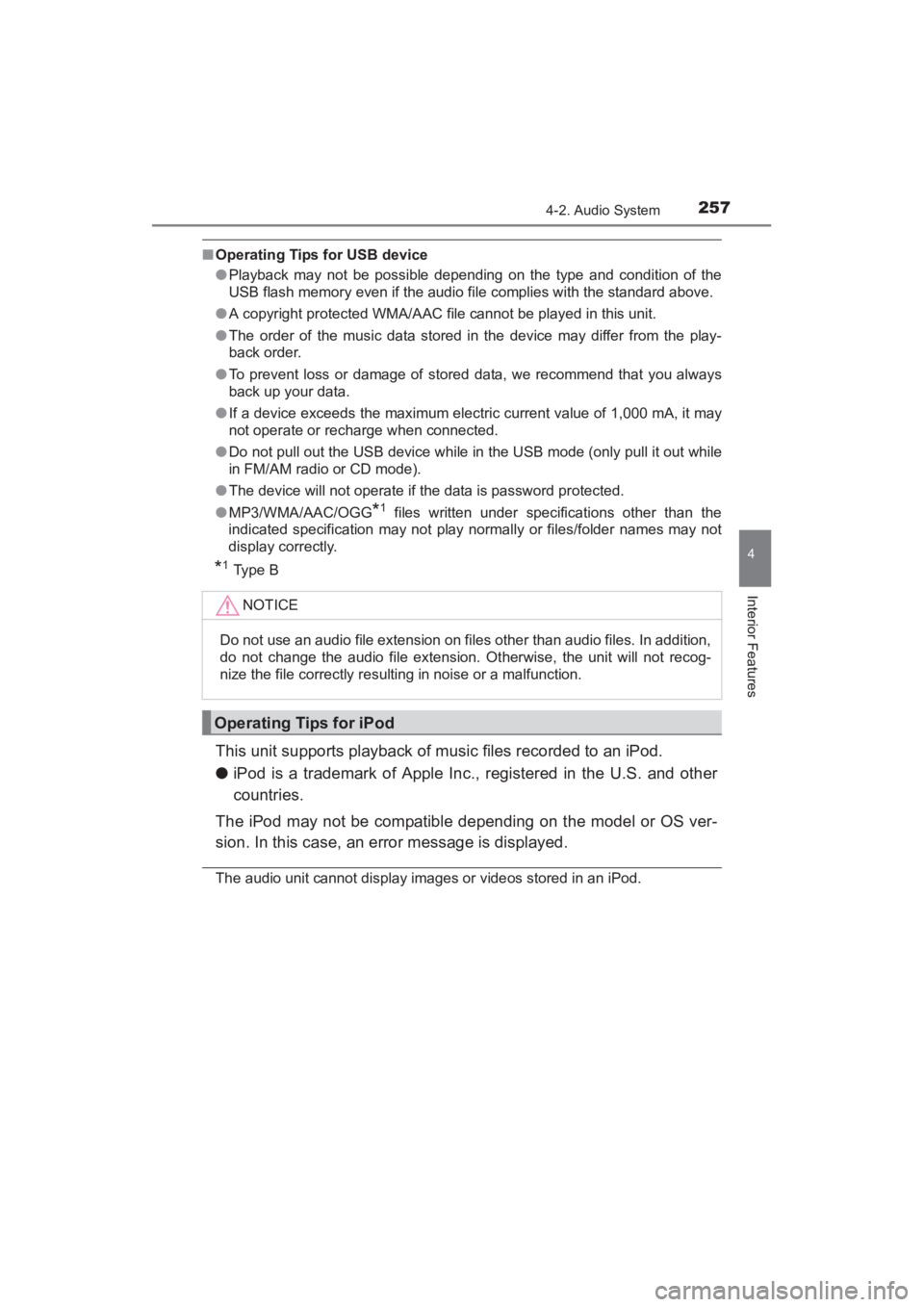

■Operating Tips for USB device
●Playback may not be possible depending on the type and condition of the
USB flash memory even if the audio file complies with the standard above.
● A copyright protected WMA/AAC file cannot be played in this unit.
● The order of the music data stored in the device may differ from the play-
back order.
● To prevent loss or damage of stored data, we recommend that you always
back up your data.
● If a device exceeds the maximum electric current value of 1,000 mA, it may
not operate or recharge when connected.
● Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio or CD mode).
● The device will not operate if the data is password protected.
● MP3/WMA/AAC/OGG
*1 files written under specifications other than the
indicated specification may not play normally or files/folder names may not
display correctly.
*1Type B
This unit supports playback of music files recorded to an iPod.
● iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
The iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.
The audio unit cannot display images or videos stored in an iPod. NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension.
Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for iPod
YARIS_SEDAN_OM_OM99M18z_(U).book Page 257 Monday, June 1, 2015 9:22 PM

258
YARIS_SEDAN_OM_OM99M18z_(U)
4-2. Audio System
NOTICE
●Remove the iPod when it is not in use. Because the iPod is not designed
to withstand excessive changes in temperature inside the cabin, it could
be damaged or the battery may deteriorate due to the excessive tempera-
ture or humidity inside the cabin if it is left in the vehicle.
● If data in the iPod is lost while it is connected to the unit, Toyota cannot
guarantee recovery of any lost data.
● If the iPod battery is deteriorated, the iPod may not recharge and playback
may not be possible when it is connected to the unit.
● For details on using the iPod, refer to the iPod instruction manual.
● When connecting the iPod to a USB port, all commands are made from
the audio unit. iPod control is not possible.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 258 Monday, June 1, 2015 9:22 PM
