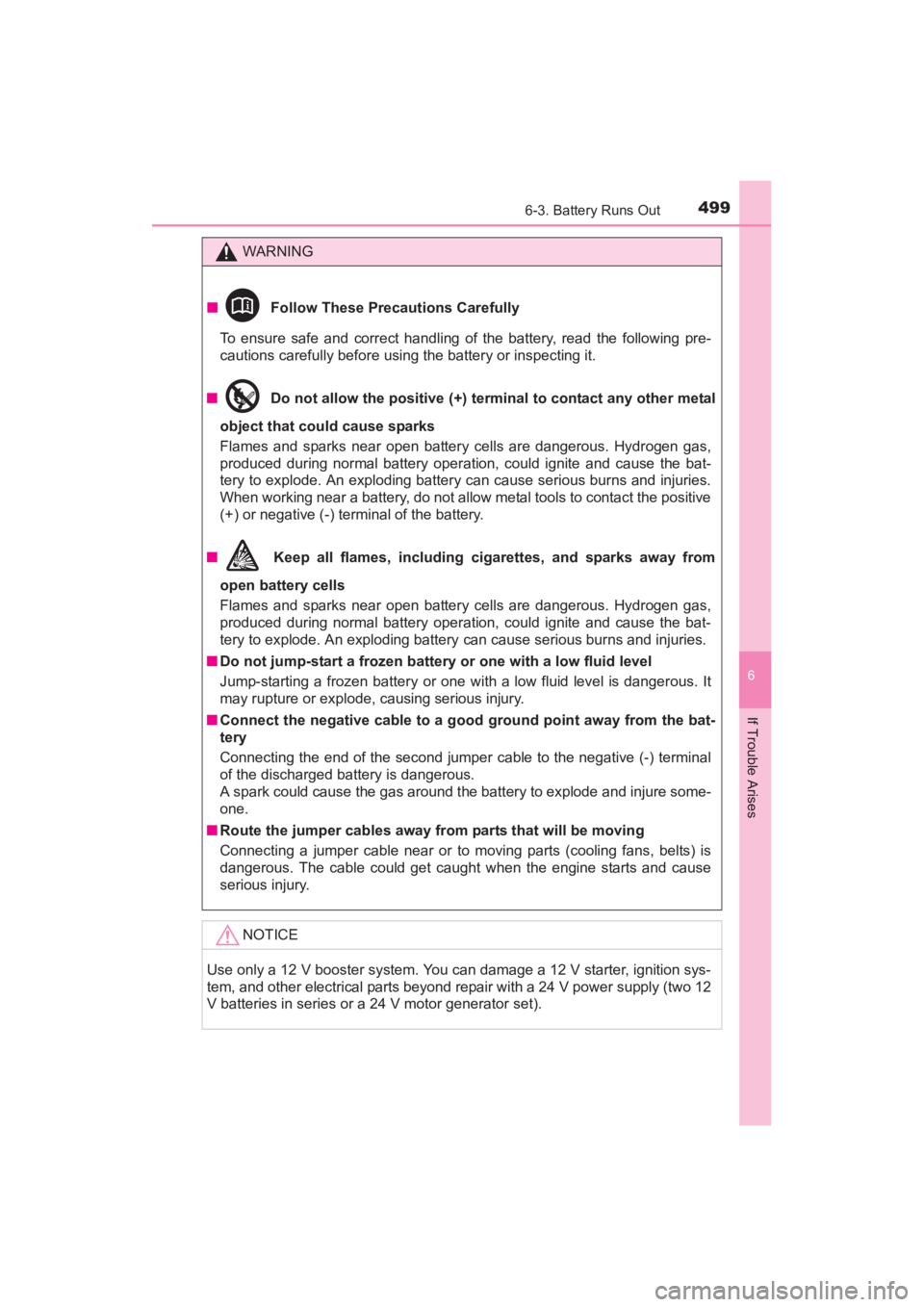

4996-3. Battery Runs Out
6
If Trouble Arises
WARNING
■ Follow These Precautions Carefully
To ensure safe and correct handling of the battery, read the following pre-
cautions carefully before using the battery or inspecting it.
■ Do not allow the positive (+) terminal to contact any other metal
object that could cause sparks
Flames and sparks near open battery cells are dangerous. Hydrogen gas,
produced during normal battery operation, could ignite and cause the bat-
tery to explode. An exploding battery can cause serious burns and injuries.
When working near a battery, do not allow metal tools to contact the positive
(+) or negative (-) terminal of the battery.
■ Keep all flames, including cigarettes, and sparks away from
open battery cells
Flames and sparks near open battery cells are dangerous. Hydrogen gas,
produced during normal battery operation, could ignite and cause the bat-
tery to explode. An exploding battery can cause serious burns and injuries.
■ Do not jump-start a frozen battery or one with a low fluid level
Jump-starting a frozen battery or one with a low fluid level is dangerous. It
may rupture or explode, causing serious injury.
■ Connect the negative cable to a good ground point away from the bat-
tery
Connecting the end of the second jumper cable to the negative (-) terminal
of the discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure some-
one.
■ Route the jumper cables away from parts that will be moving
Connecting a jumper cable near or to moving parts (cooling fans, belts) is
dangerous. The cable could get caught when the engine starts and cause
serious injury.
NOTICE
Use only a 12 V booster system. You can damage a 12 V starter, ignition sys-
tem, and other electrical parts beyond re pair with a 24 V power supply (two 12
V batteries in series or a 24 V motor generator set).
YARIS_SEDAN_OM_OM99M18z_(U).book Page 499 Monday, June 1, 2015 9:22 PM

500
YARIS_SEDAN_OM_OM99M18z_(U)
6-4. Emergency Starting

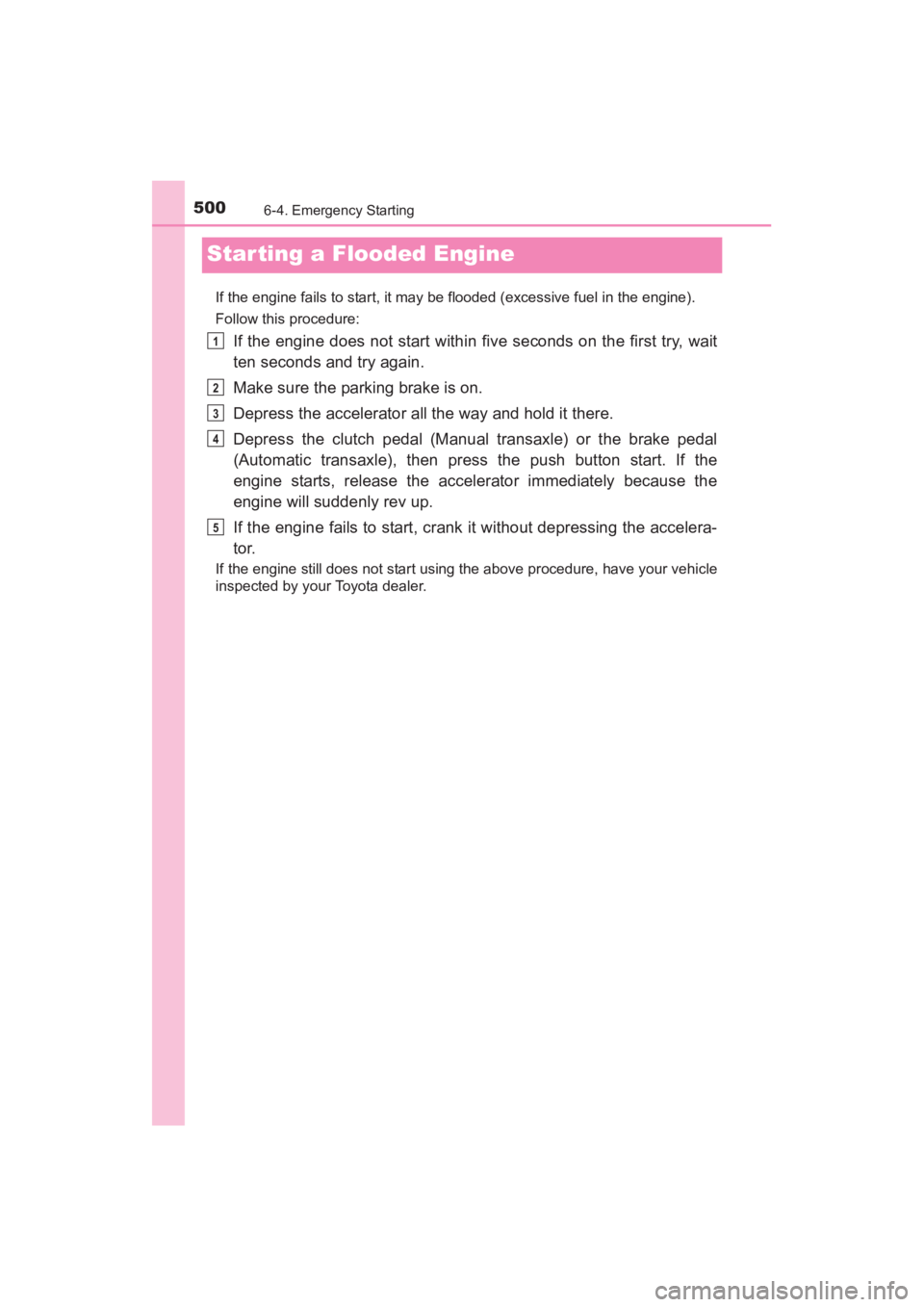

Star ting a Flooded Engine
If the engine fails to start, it may be flooded (excessive fuel in the engine).
Follow this procedure:
If the engine does not start within five seconds on the first try, wait
ten seconds and try again.
Make sure the parking brake is on.
Depress the accelerator all the way and hold it there.
Depress the clutch pedal (Manual transaxle) or the brake pedal
(Automatic transaxle), then press the push button start. If the
engine starts, release the accelerator immediately because the
engine will suddenly rev up.
If the engine fails to start, crank it without depressing the accelera-
tor.
If the engine still does not start using the above procedure, have your vehicle
inspected by your Toyota dealer.
1
2
3
4
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 500 Monday, June 1, 2015 9:22 PM

501
YARIS_SEDAN_OM_OM99M18z_(U)
6-4. Emergency Starting
6
If Trouble Arises

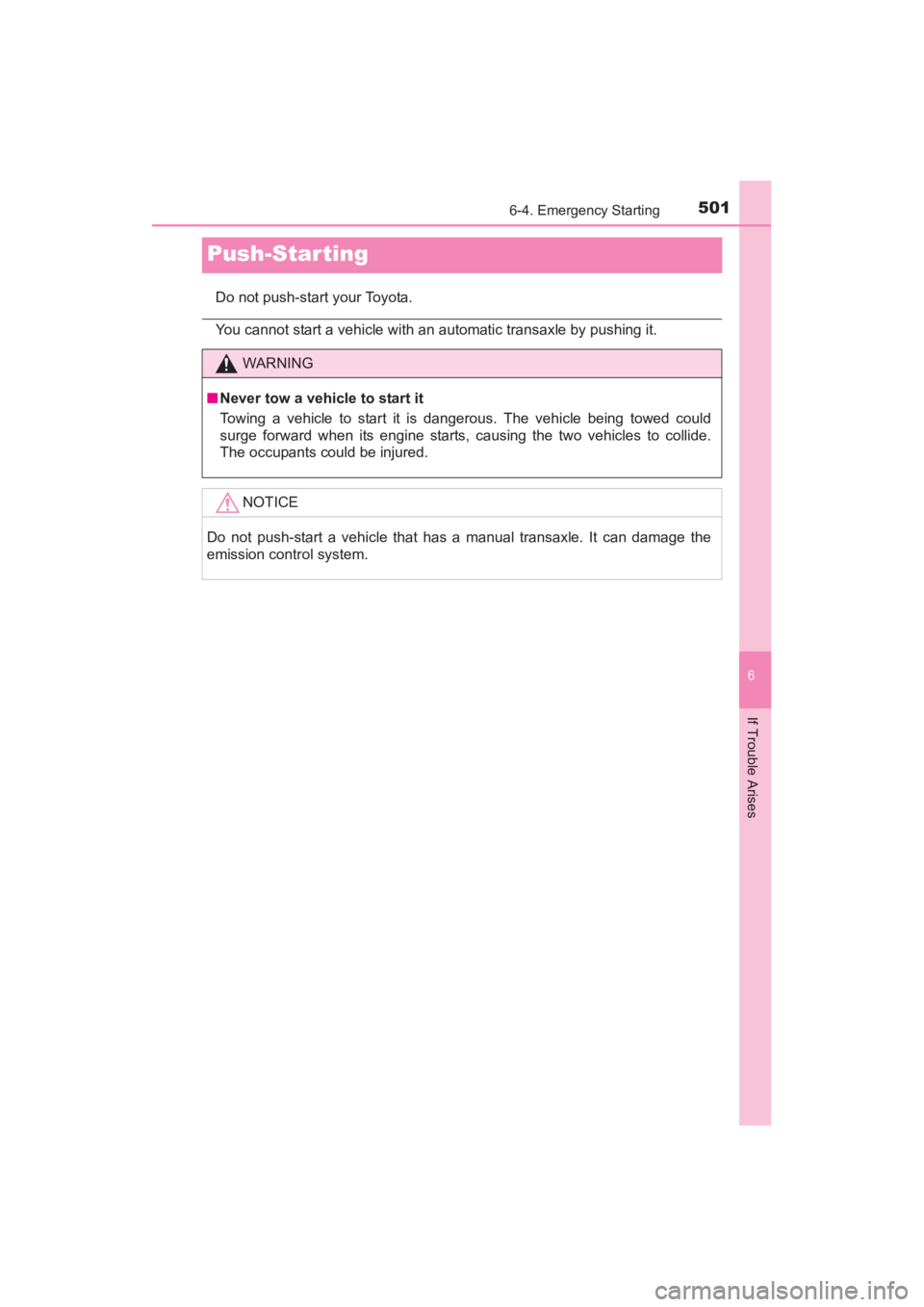

Push-Starting
Do not push-start your Toyota.
You cannot start a vehicle with an automatic transaxle by pushing it.
WARNING
■Never tow a vehicle to start it
Towing a vehicle to start it is dangerous. The vehicle being towed could
surge forward when its engine starts, causing the two vehicles to collide.
The occupants could be injured.
NOTICE
Do not push-start a vehicle that has a manual transaxle. It can damage the
emission control system.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 501 Monday, June 1, 2015 9:22 PM

502
YARIS_SEDAN_OM_OM99M18z_(U)
6-5. Overheating

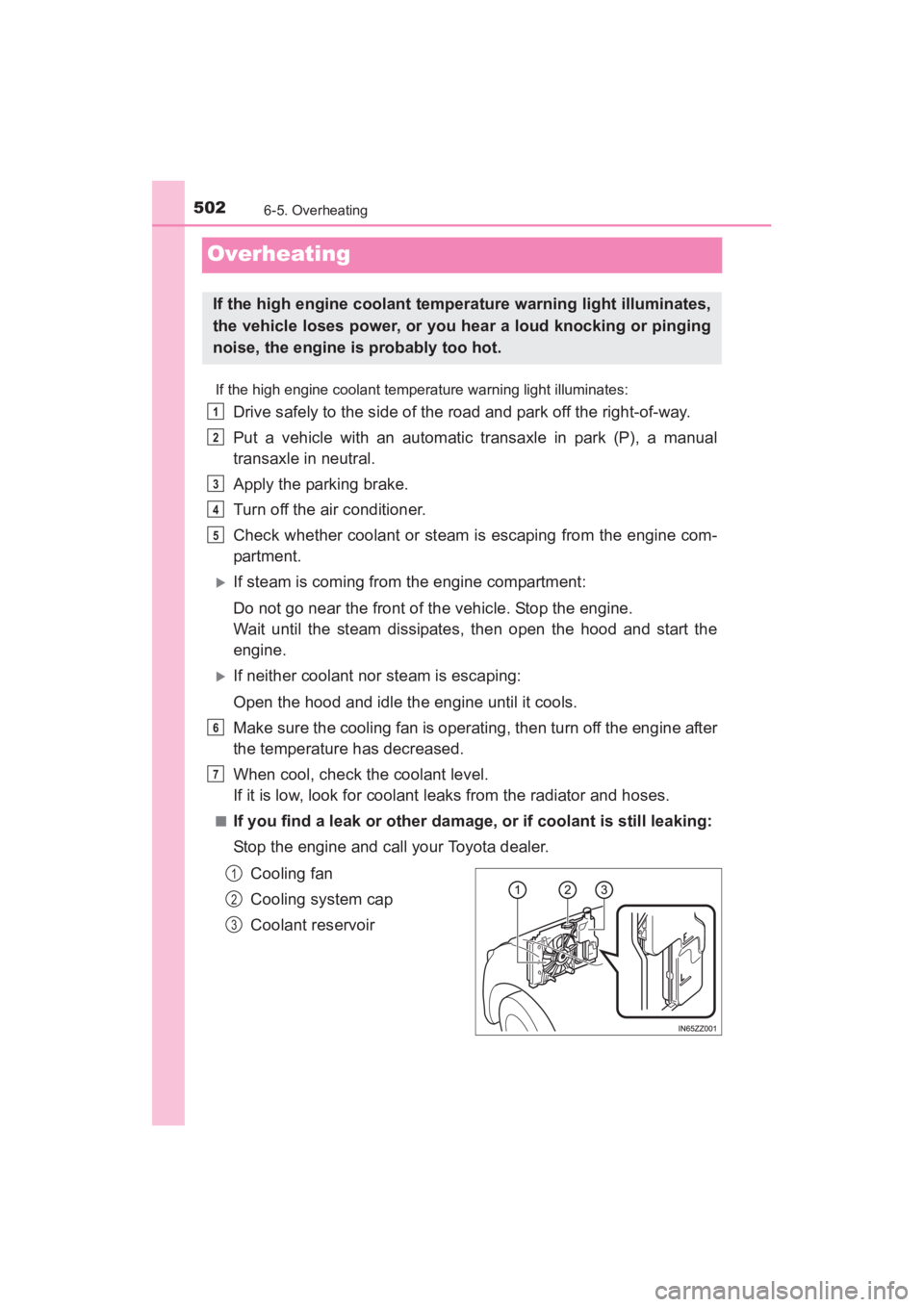

Overheating
If the high engine coolant temperature warning light illuminates:
Drive safely to the side of the road and park off the right-of-way.
Put a vehicle with an automatic transaxle in park (P), a manual
transaxle in neutral.
Apply the parking brake.
Turn off the air conditioner.
Check whether coolant or steam is escaping from the engine com-
partment.
XIf steam is coming from the engine compartment:
Do not go near the front of the vehicle. Stop the engine.
Wait until the steam dissipates, then open the hood and start the
engine.
XIf neither coolant nor steam is escaping:
Open the hood and idle the engine until it cools.
Make sure the cooling fan is operating, then turn off the engine after
the temperature has decreased.
When cool, check the coolant level.
If it is low, look for coolant leaks from the radiator and hoses.
■If you find a leak or other damage, or if coolant is still leaking:
Stop the engine and call your Toyota dealer.Cooling fan
Cooling system cap
Coolant reservoir
If the high engine coolant temperature warning light illuminates,
the vehicle loses power, or you hear a loud knocking or pinging
noise, the engine is probably too hot.
1
2
3
4
5
6
7
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 502 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
5036-5. Overheating
6
If Trouble Arises

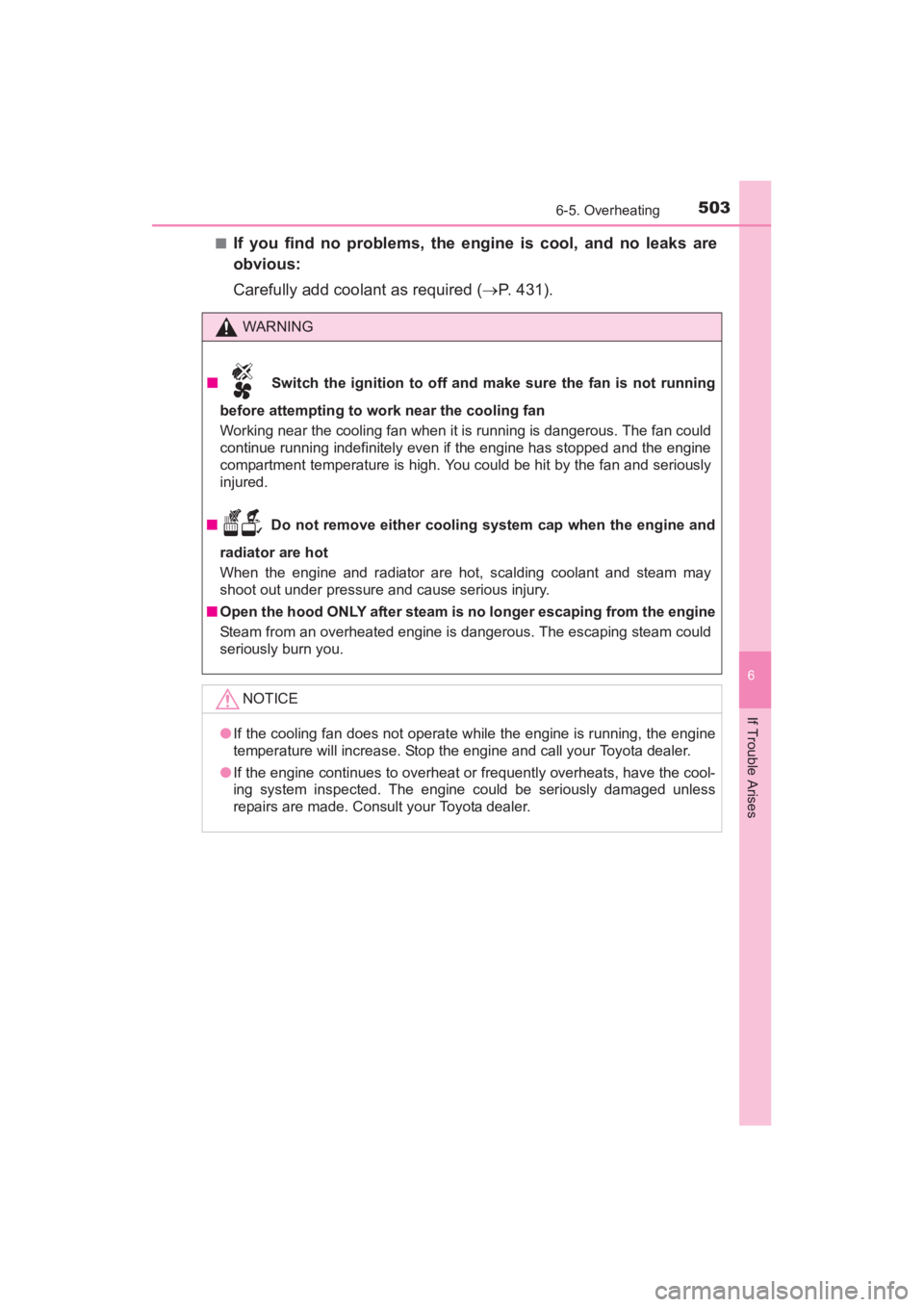

■If you find no problems, the engine is cool, and no leaks are
obvious:
Carefully add coolant as required (→P. 431).
WARNING
■ Switch the ignition to off and make sure the fan is not running
before attempting to work near the cooling fan
Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously
injured.
■ Do not remove either cooling system cap when the engine and
radiator are hot
When the engine and radiator are hot, scalding coolant and steam may
shoot out under pressure and cause serious injury.
■ Open the hood ONLY after steam is no longer escaping from the engine
Steam from an overheated engine is dangerous. The escaping steam could
seriously burn you.
NOTICE
●If the cooling fan does not operate while the engine is running, the engine
temperature will increase. Stop the engine and call your Toyota dealer.
● If the engine continues to overheat or frequently overheats, have the cool-
ing system inspected. The engine could be seriously damaged unless
repairs are made. Consult your Toyota dealer.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 503 Monday, June 1, 2015 9:22 PM

504
YARIS_SEDAN_OM_OM99M18z_(U)
6-6. Emergency Towing
Towing Description
We recommend that towing be
done only by your Toyota dealer
or a commercial tow-truck service.
Proper lifting and towing are nec-
essary to prevent damage to the
vehicle.
Government and local laws must
be followed.
A towed vehicle usually should
have its drive wheels (front
wheels) off the ground. If exces-
sive damage or other conditions
prevent this, use wheel dollies.
When towing with the rear wheels on the ground, release the parking
brake.
Wheel dollies
NOTICE
●Do not tow the vehicle pointed back-
ward with driving wheels on the ground.
This may cause internal damage to the
transaxle.
● Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 504 Monday, June 1, 2015 9:22 PM

505
YARIS_SEDAN_OM_OM99M18z_(U)
6-6. Emergency Towing
6
If Trouble Arises

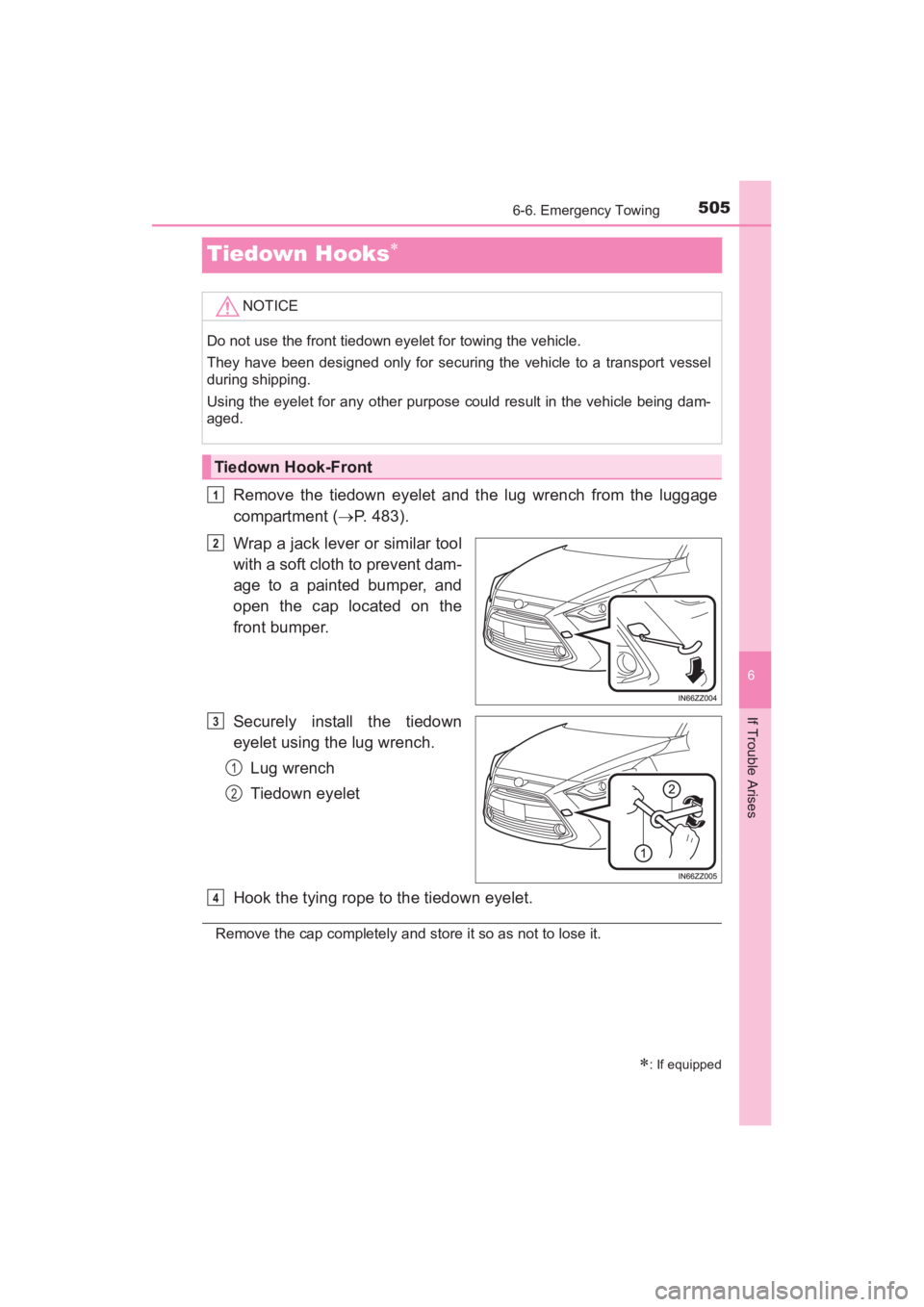

Tiedown Hooks∗
Remove the tiedown eyelet and the lug wrench from the luggage
compartment (→P. 483).
Wrap a jack lever or similar tool
with a soft cloth to prevent dam-
age to a painted bumper, and
open the cap located on the
front bumper.
Securely install the tiedown
eyelet using the lug wrench. Lug wrench
Tiedown eyelet
Hook the tying rope to the tiedown eyelet.
Remove the cap completely and store it so as not to lose it.
∗: If equipped
NOTICE
Do not use the front tiedown eyelet for towing the vehicle.
They have been designed only for securing the vehicle to a transport vessel
during shipping.
Using the eyelet for any other purpose could result in the vehicle being dam-
aged.
Tiedown Hook-Front
1
2
3
1
2
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 505 Monday, June 1, 2015 9:22 PM

5066-6. Emergency Towing
YARIS_SEDAN_OM_OM99M18z_(U)
The hook positioned under the
rear bumper on the driver’s side is
for tying down the vehicle during
transport, and it cannot be used
for towing other vehicles. It can be
used as a towing hook only when
the vehicle must be towed by
another vehicle in an emergency
case such as when the vehicle is
stuck in snow, however, it may
damage the bumper.
NOTICE
●Do not use excessive force as it may damage the cap or scratch the
painted bumper surface.
● If the tiedown eyelet is not securely tightened, it may loosen or disengage
from the bumper when tying the vehicle. Make sure that the tiedown eyelet
is securely tightened to the bumper.

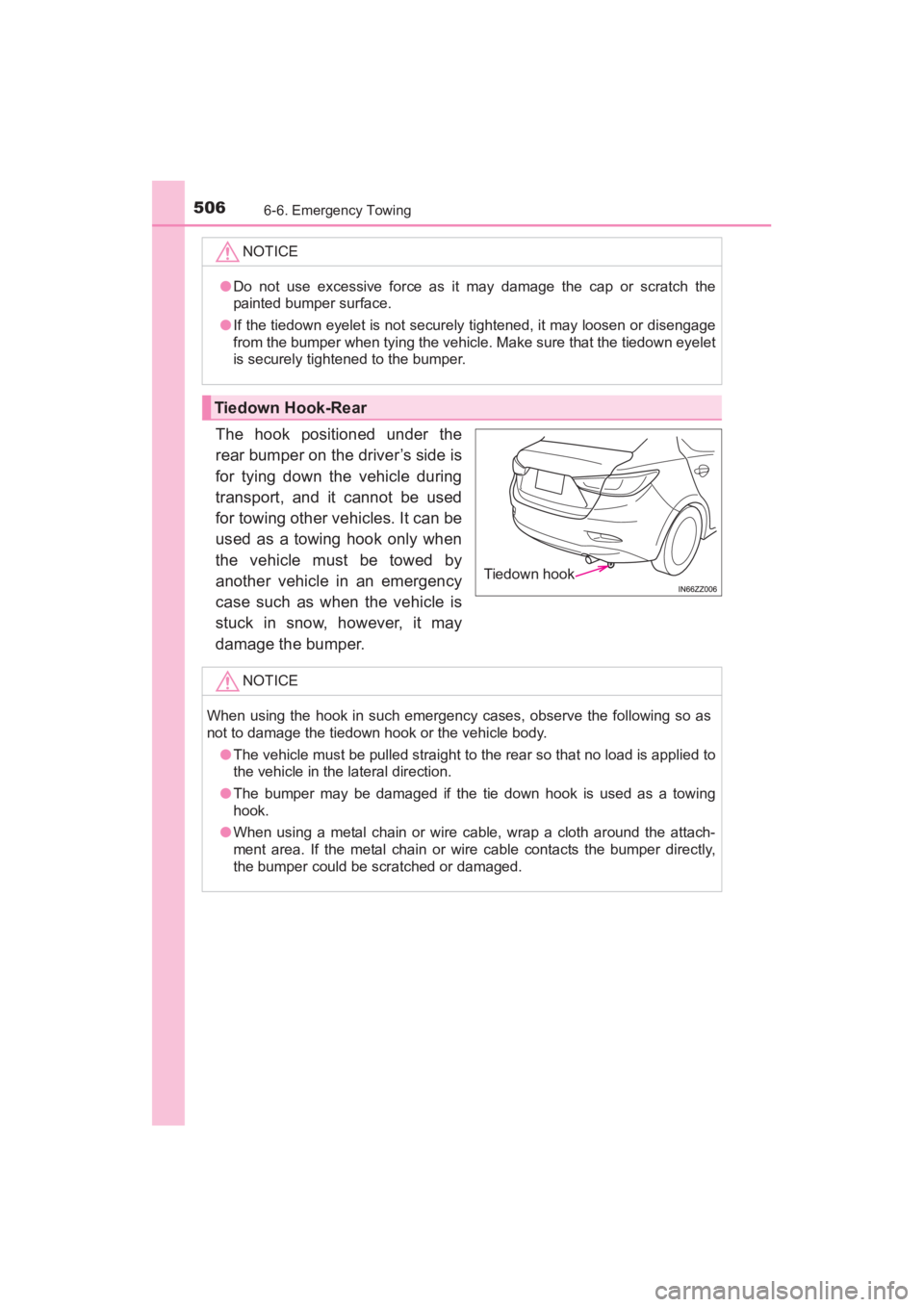

Tiedown Hook-Rear
Tiedown hook
NOTICE
When using the hook in such emergency cases, observe the following so as
not to damage the tiedown hook or the vehicle body.
●The vehicle must be pulled straight to the rear so that no load is applied to
the vehicle in the lateral direction.
● The bumper may be damaged if the tie down hook is used as a towing
hook.
● When using a metal chain or wire cable, wrap a cloth around the attach-
ment area. If the metal chain or wire cable contacts the bumper directly,
the bumper could be scratched or damaged.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 506 Monday, June 1, 2015 9:22 PM

507
YARIS_SEDAN_OM_OM99M18z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

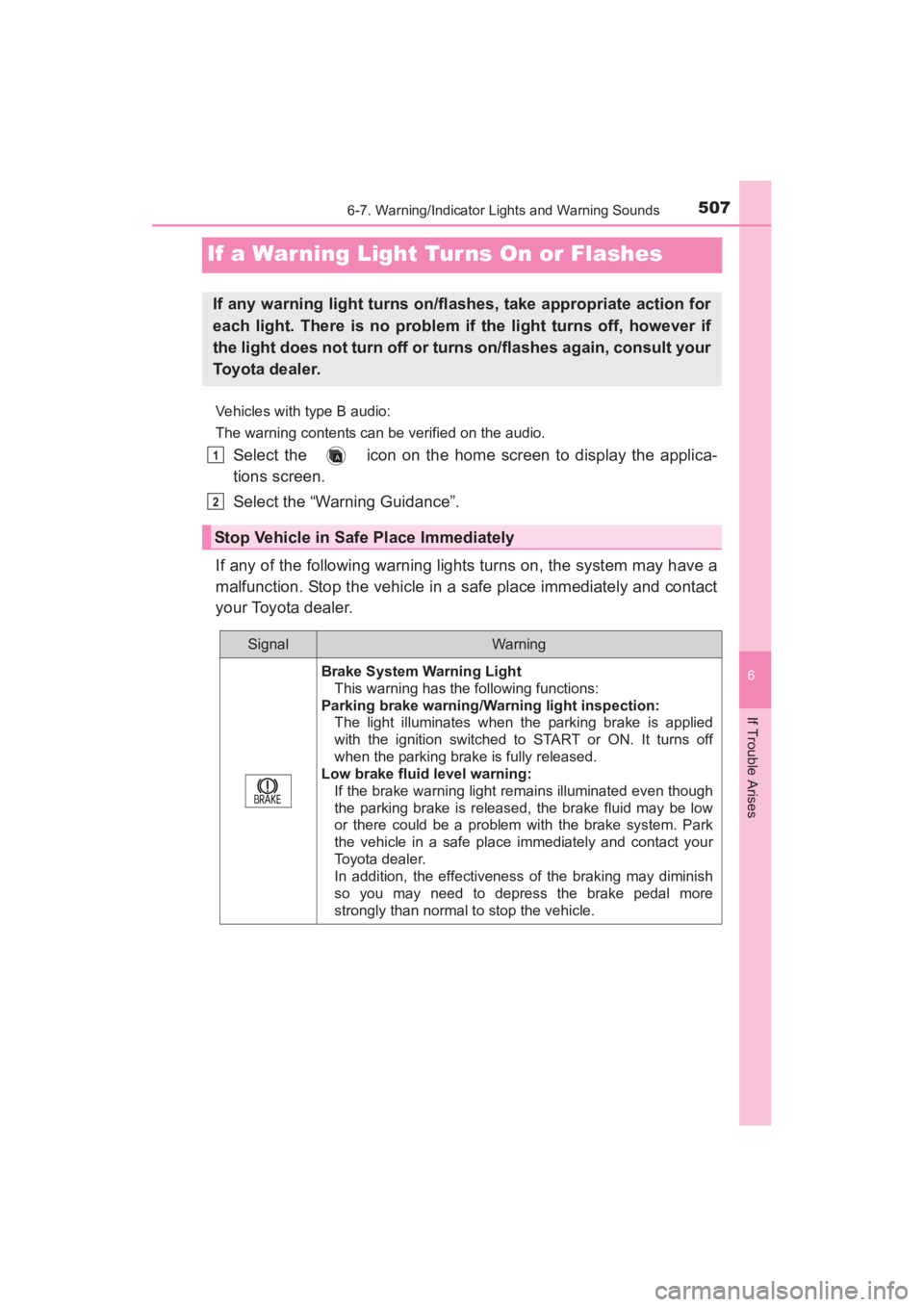

If a Warning Light Tur ns On or Flashes
Vehicles with type B audio:
The warning contents can be verified on the audio.
Select the icon on the home screen to display the applica-
tions screen.
Select the “Warning Guidance”.
If any of the following warning lights turns on, the system may have a
malfunction. Stop the vehicle in a safe place immediately and contact
your Toyota dealer.
If any warning light turns on/flashes, take appropriate action for
each light. There is no problem if the light turns off, however if
the light does not turn off or turns on/flashes again, consult your
Toyota dealer.
Stop Vehicle in Safe Place Immediately
SignalWar ning
Brake System Warning Light This warning has the following functions:
Parking brake warning/Wa rning light inspection:
The light illuminates when the parking brake is applied
with the ignition switched to START or ON. It turns off
when the parking brake is fully released.
Low brake fluid level warning:
If the brake warning light remains illuminated even though
the parking brake is released, the brake fluid may be low
or there could be a problem with the brake system. Park
the vehicle in a safe place immediately and contact your
Toyota dealer.
In addition, the effectiveness of the braking may diminish
so you may need to depress the brake pedal more
strongly than normal to stop the vehicle.
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 507 Monday, June 1, 2015 9:22 PM

5086-7. Warning/Indicator Lights and Warning Sounds
YARIS_SEDAN_OM_OM99M18z_(U)

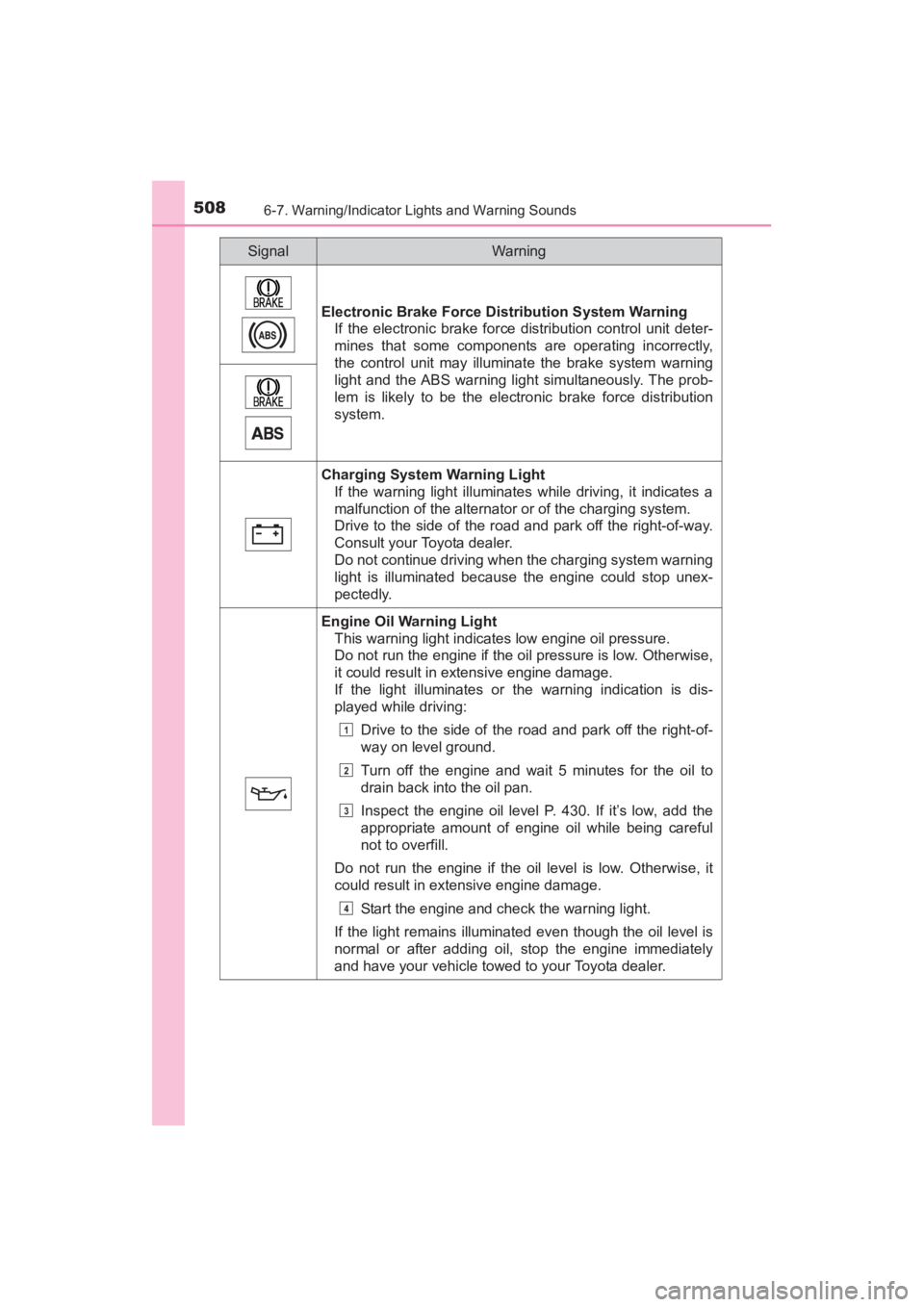

Electronic Brake Force Distribution System WarningIf the electronic brake force distribution control unit deter-
mines that some components are operating incorrectly,
the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The prob-
lem is likely to be the electronic brake force distribution
system.
Charging System Warning Light
If the warning light illuminates while driving, it indicates a
malfunction of the alternator or of the charging system.
Drive to the side of the road and park off the right-of-way.
Consult your Toyota dealer.
Do not continue driving when the charging system warning
light is illuminated because the engine could stop unex-
pectedly.
Engine Oil Warning LightThis warning light indicates low engine oil pressure.
Do not run the engine if the oil pressure is low. Otherwise,
it could result in extensive engine damage.
If the light illuminates or the warning indication is dis-
played while driving:
Drive to the side of the road and park off the right-of-
way on level ground.
Turn off the engine and wait 5 minutes for the oil to
drain back into the oil pan.
Inspect the engine oil level P. 430. If it’s low, add the
appropriate amount of engine oil while being careful
not to overfill.
Do not run the engine if the oil level is low. Otherwise, it
could result in extensive engine damage. Start the engine and check the warning light.
If the light remains illuminated even though the oil level is
normal or after adding oil, stop the engine immediately
and have your vehicle towed to your Toyota dealer.
SignalWar ning
1
2
3
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 508 Monday, June 1, 2015 9:22 PM
