TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)

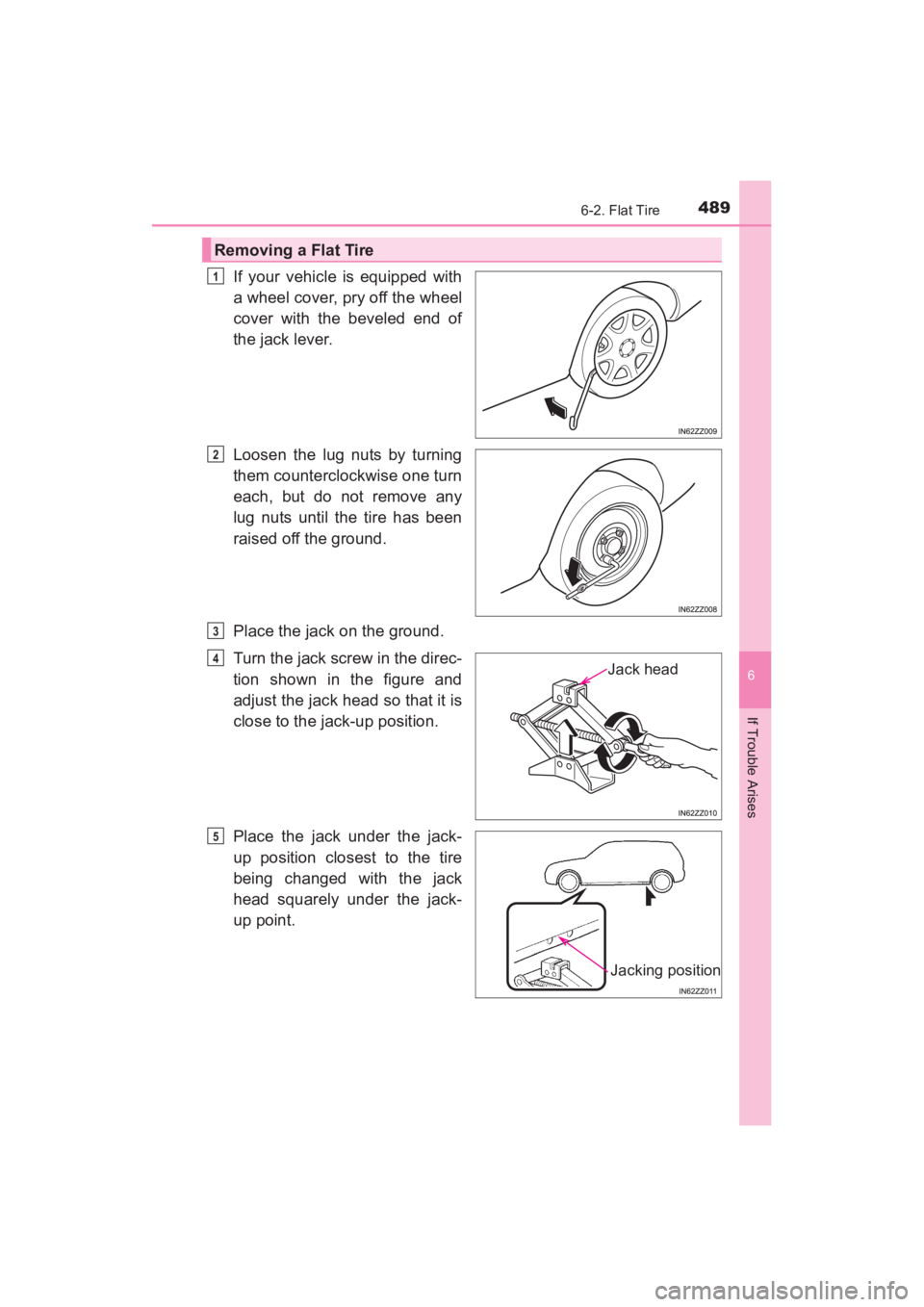

4896-2. Flat Tire
6
If Trouble Arises
If your vehicle is equipped with
a wheel cover, pry off the wheel
cover with the beveled end of
the jack lever.
Loosen the lug nuts by turning
them counterclockwise one turn
each, but do not remove any
lug nuts until the tire has been
raised off the ground.
Place the jack on the ground.
Turn the jack screw in the direc-
tion shown in the figure and
adjust the jack head so that it is
close to the jack-up position.
Place the jack under the jack-
up position closest to the tire
being changed with the jack
head squarely under the jack-
up point.
Removing a Flat Tire
1
2
3
Jack head4
Jacking position
5
YARIS_SEDAN_OM_OM99M18z_(U).book Page 489 Monday, June 1, 2015 9:22 PM

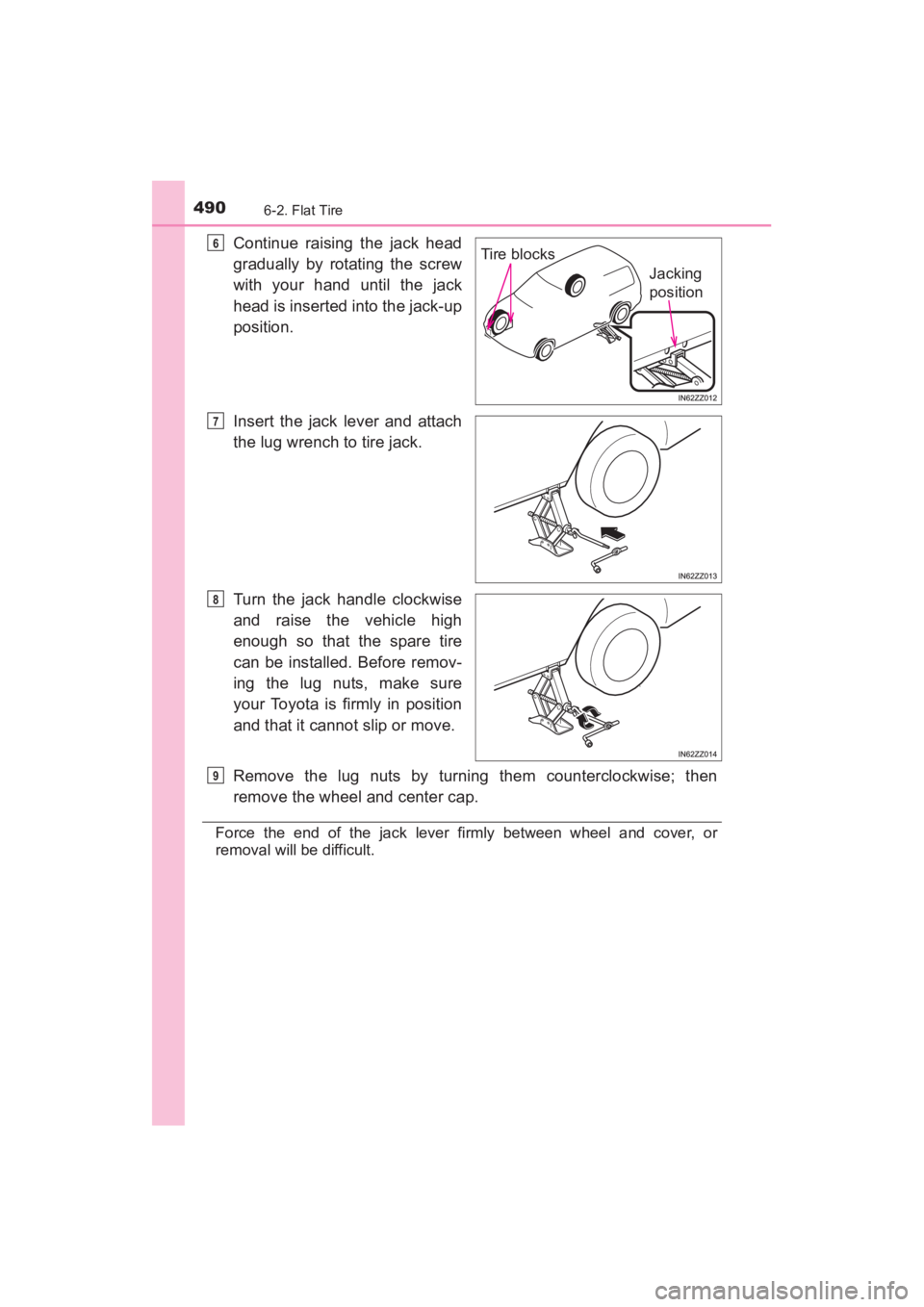

4906-2. Flat Tire
YARIS_SEDAN_OM_OM99M18z_(U)
Continue raising the jack head
gradually by rotating the screw
with your hand until the jack
head is inserted into the jack-up
position.
Insert the jack lever and attach
the lug wrench to tire jack.
Turn the jack handle clockwise
and raise the vehicle high
enough so that the spare tire
can be installed. Before remov-
ing the lug nuts, make sure
your Toyota is firmly in position
and that it cannot slip or move.
Remove the lug nuts by turning them counterclockwise; then
remove the wheel and center cap.
Force the end of the jack lever firmly between wheel and cover, or
removal will be difficult.
Tire blocksJacking
position6
7
8
9
YARIS_SEDAN_OM_OM99M18z_(U).book Page 490 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

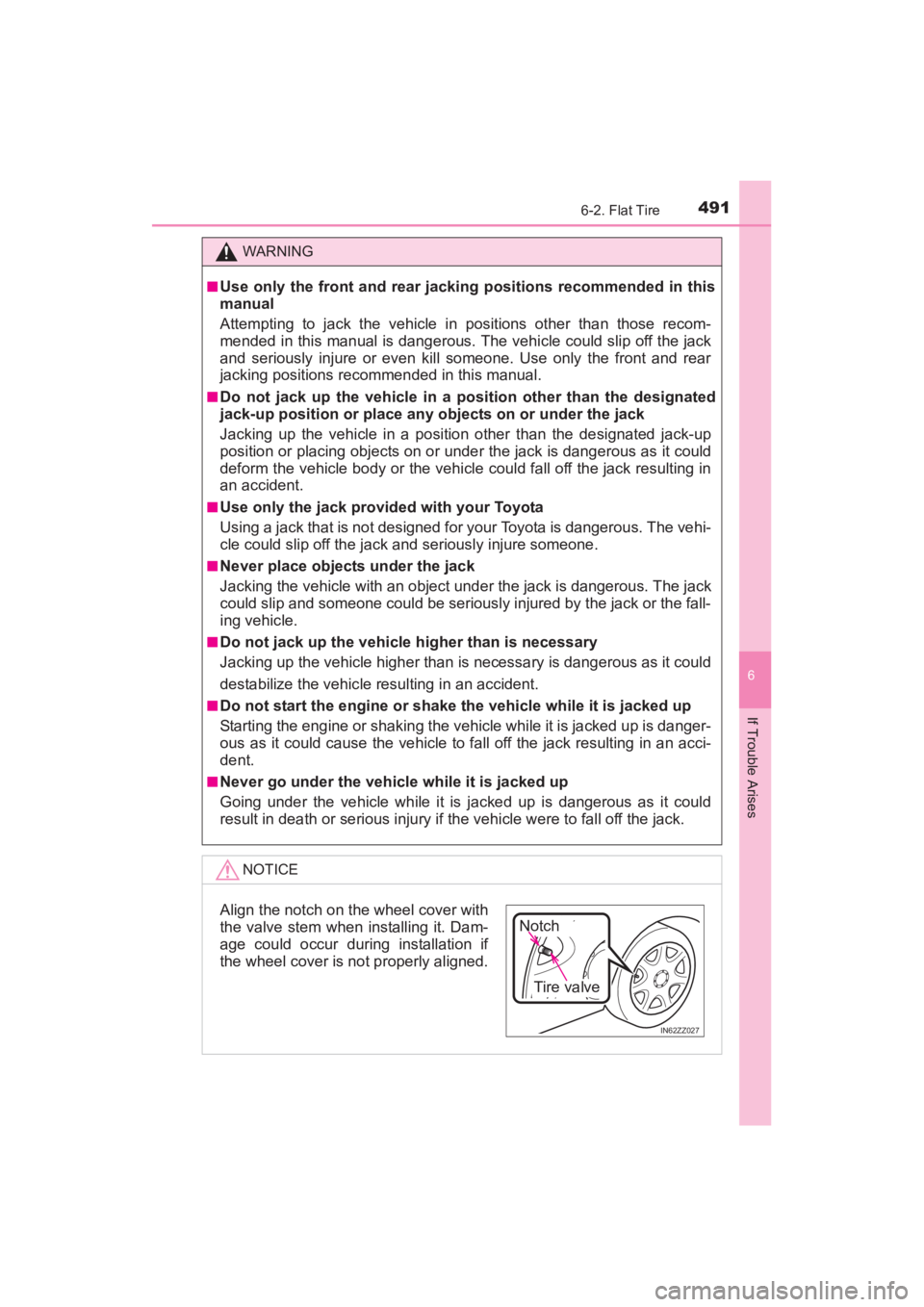

4916-2. Flat Tire
6
If Trouble Arises
WARNING
■Use only the front and rear jacking positions recommended in this
manual
Attempting to jack the vehicle in positions other than those recom-
mended in this manual is dangerous. The vehicle could slip off the jack
and seriously injure or even kill someone. Use only the front and rear
jacking positions recommended in this manual.
■Do not jack up the vehicle in a position other than the designated
jack-up position or place any objects on or under the jack
Jacking up the vehicle in a position other than the designated jack-up
position or placing objects on or under the jack is dangerous as it could
deform the vehicle body or the vehicle could fall off the jack resulting in
an accident.
■Use only the jack provided with your Toyota
Using a jack that is not designed for your Toyota is dangerous. The vehi-
cle could slip off the jack and seriously injure someone.
■Never place objects under the jack
Jacking the vehicle with an object under the jack is dangerous. The jack
could slip and someone could be seriously injured by the jack or the fall-
ing vehicle.
■Do not jack up the vehicle higher than is necessary
Jacking up the vehicle higher than is necessary is dangerous as it could
destabilize the vehicle resulting in an accident.
■Do not start the engine or shake the vehicle while it is jacked up
Starting the engine or shaking the vehicle while it is jacked up is danger-
ous as it could cause the vehicle to fall off the jack resulting in an acci-
dent.
■Never go under the vehicle while it is jacked up
Going under the vehicle while it is jacked up is dangerous as it could
result in death or serious injury if the vehicle were to fall off the jack.
NOTICE
Align the notch on the wheel cover with
the valve stem when installing it. Dam-
age could occur during installation if
the wheel cover is not properly aligned.
IN62ZZ027
Notch
Tire valve
YARIS_SEDAN_OM_OM99M18z_(U).book Page 491 Monday, June 1, 2015 9:22 PM

4926-2. Flat Tire
YARIS_SEDAN_OM_OM99M18z_(U)

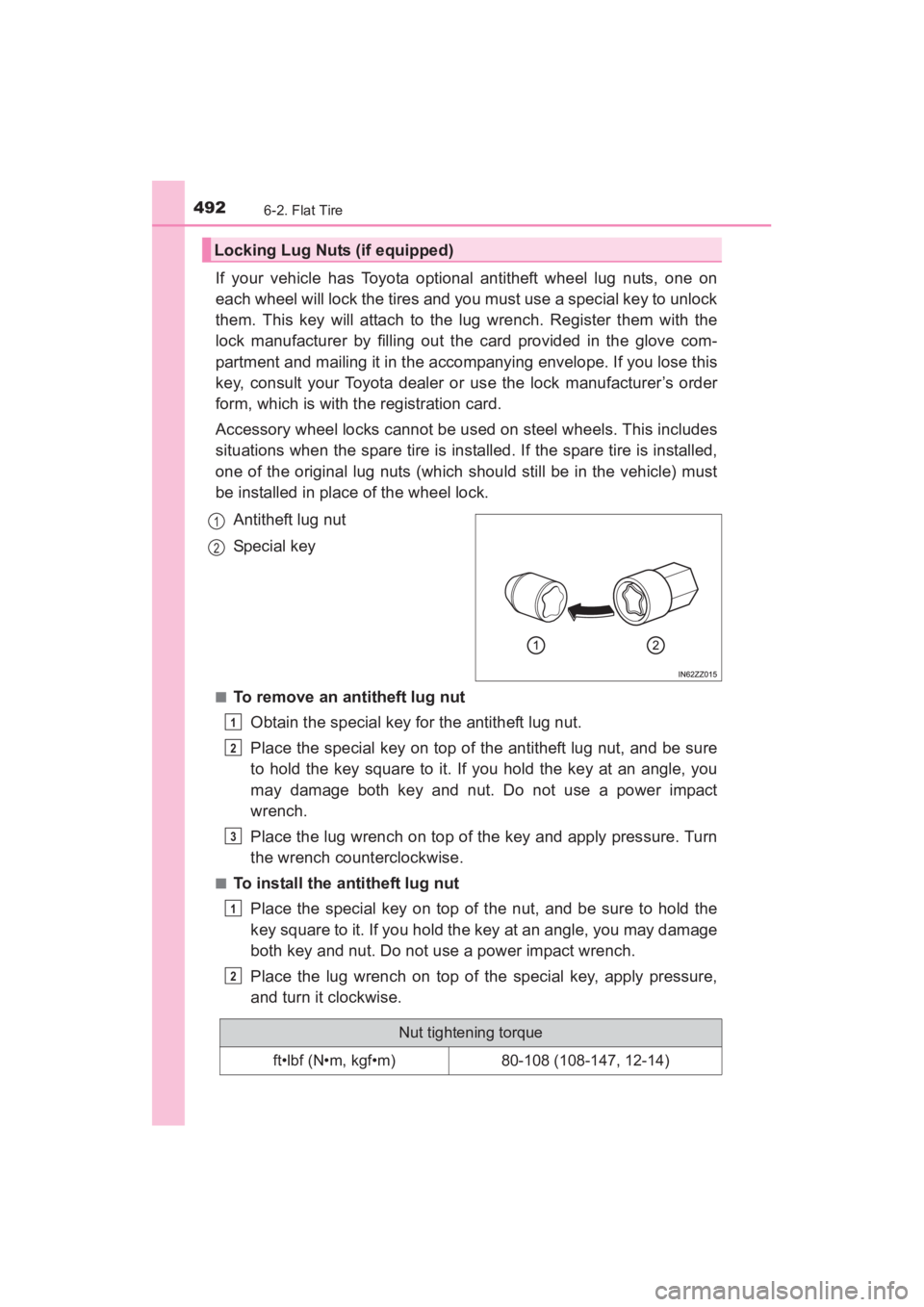

If your vehicle has Toyota optional antitheft wheel lug nuts, one on
each wheel will lock the tires and you must use a special key to unlock
them. This key will attach to the lug wrench. Register them with the
lock manufacturer by filling out the card provided in the glove com-
partment and mailing it in the accompanying envelope. If you lose this
key, consult your Toyota dealer or use the lock manufacturer’s order
form, which is with the registration card.
Accessory wheel locks cannot be used on steel wheels. This includes
situations when the spare tire is installed. If the spare tire is installed,
one of the original lug nuts (which should still be in the vehicle) must
be installed in place of the wheel lock.Antitheft lug nut
Special key
■To remove an antitheft lug nutObtain the special key for the antitheft lug nut.
Place the special key on top of the antitheft lug nut, and be sure
to hold the key square to it. If you hold the key at an angle, you
may damage both key and nut. Do not use a power impact
wrench.
Place the lug wrench on top of the key and apply pressure. Turn
the wrench counterclockwise.
■To install the antitheft lug nutPlace the special key on top of the nut, and be sure to hold the
key square to it. If you hold the key at an angle, you may damage
both key and nut. Do not use a power impact wrench.
Place the lug wrench on top of the special key, apply pressure,
and turn it clockwise.
Locking Lug Nuts (if equipped)
1
2
1
2
3
1
2
Nut tightening torque
ft•lbf (N•m, kgf•m)80-108 (108-147, 12-14)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 492 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

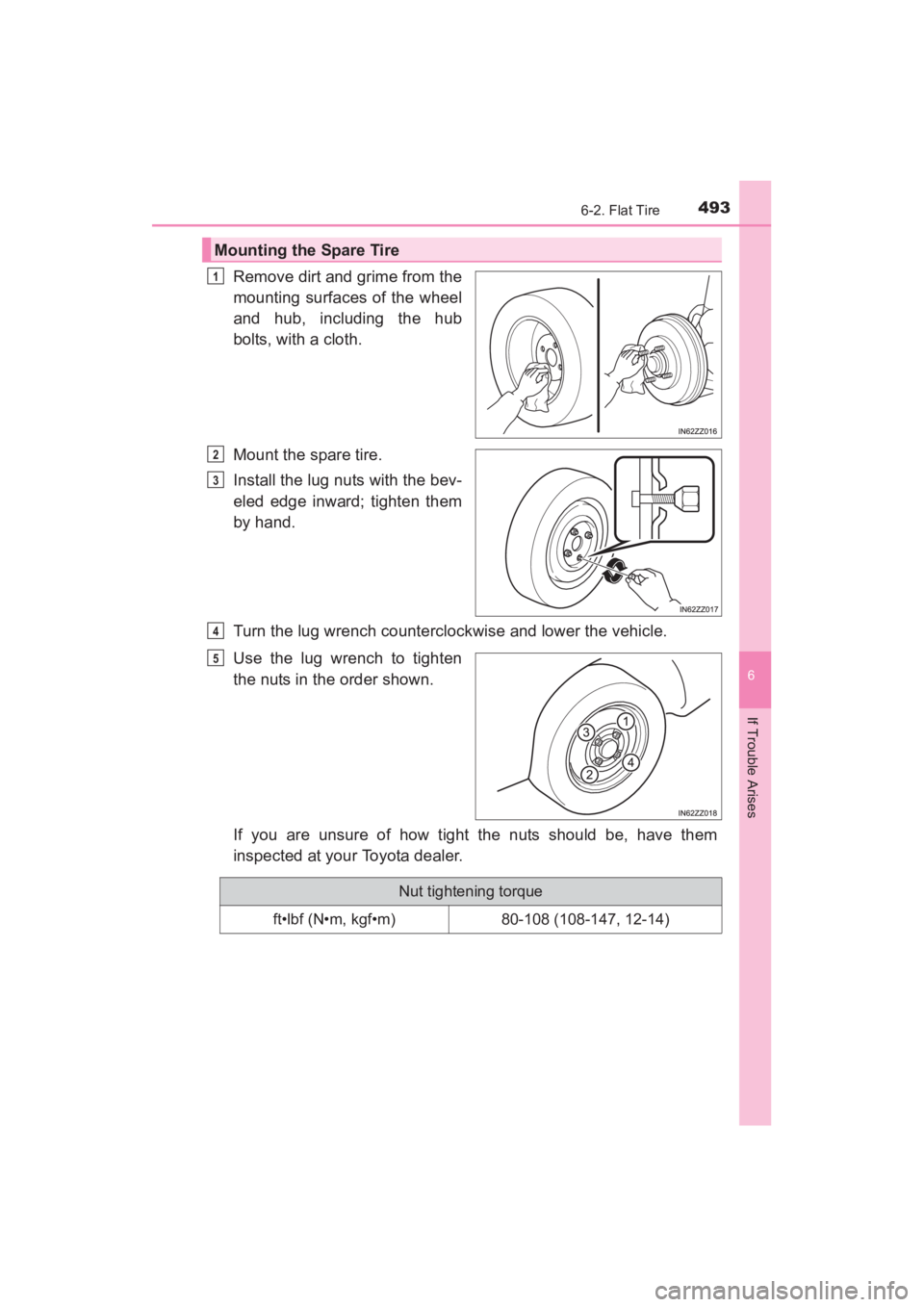

4936-2. Flat Tire
6
If Trouble Arises
Remove dirt and grime from the
mounting surfaces of the wheel
and hub, including the hub
bolts, with a cloth.
Mount the spare tire.
Install the lug nuts with the bev-
eled edge inward; tighten them
by hand.
Turn the lug wrench counterclockwise and lower the vehicle.
Use the lug wrench to tighten
the nuts in the order shown.
If you are unsure of how tight the nuts should be, have them
inspected at your Toyota dealer.
Mounting the Spare Tire
1
2
3
4
5
Nut tightening torque
ft•lbf (N•m, kgf•m)80-108 (108-147, 12-14)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 493 Monday, June 1, 2015 9:22 PM

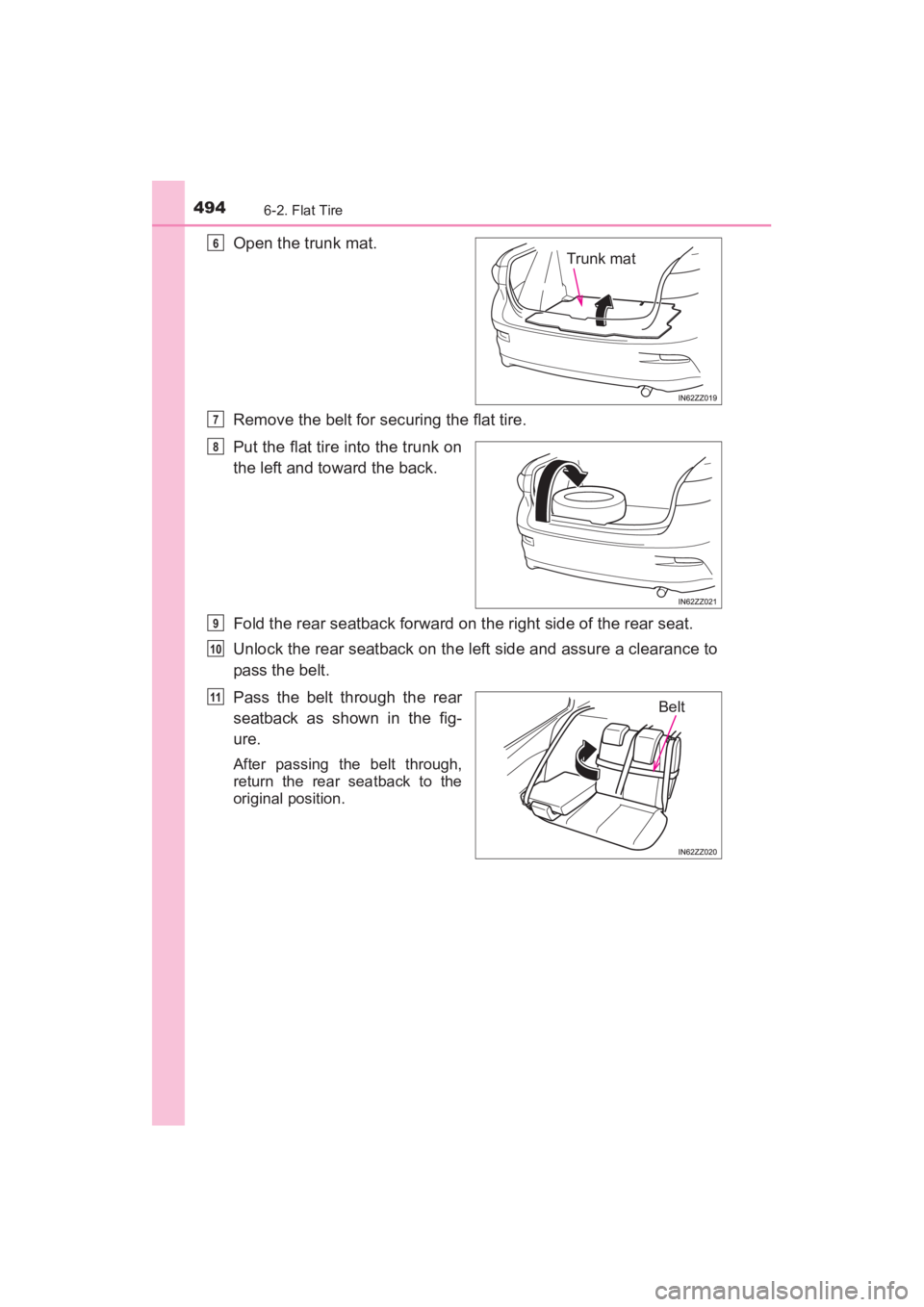

4946-2. Flat Tire
YARIS_SEDAN_OM_OM99M18z_(U)
Open the trunk mat.
Remove the belt for securing the flat tire.
Put the flat tire into the trunk on
the left and toward the back.
Fold the rear seatback forward on the right side of the rear seat.
Unlock the rear seatback on the left side and assure a clearance to
pass the belt.
Pass the belt through the rear
seatback as shown in the fig-
ure.
After passing the belt through,
return the rear seatback to the
original position.
Trunk mat
6
7
8
9
10
Belt11
YARIS_SEDAN_OM_OM99M18z_(U).book Page 494 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)

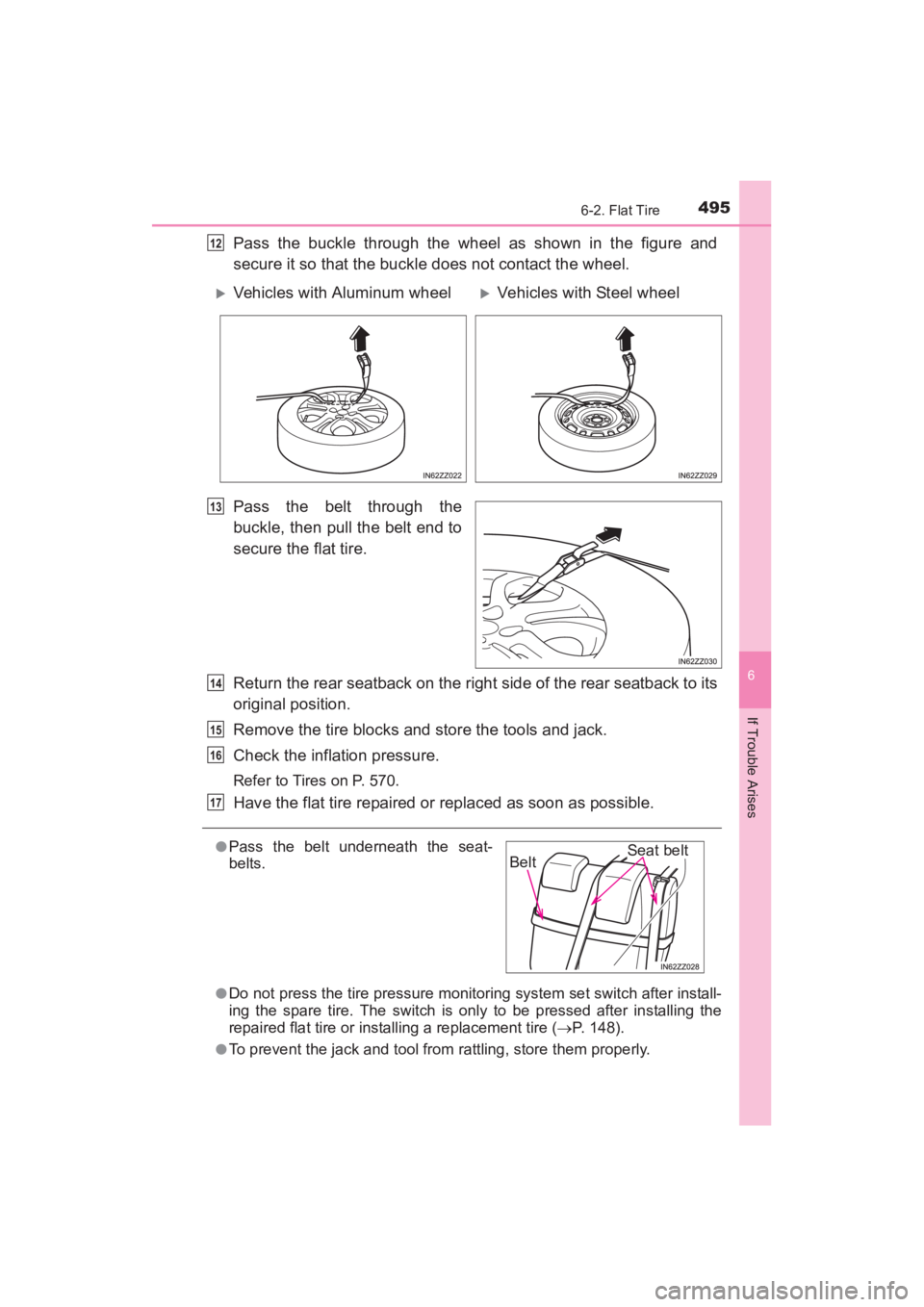

4956-2. Flat Tire
6
If Trouble Arises
Pass the buckle through the wheel as shown in the figure and
secure it so that the buckle does not contact the wheel.
Pass the belt through the
buckle, then pull the belt end to
secure the flat tire.
Return the rear seatback on the right side of the rear seatback to its
original position.
Remove the tire blocks and store the tools and jack.
Check the inflation pressure.
Refer to Tires on P. 570.
Have the flat tire repaired or replaced as soon as possible.
●Do not press the tire pressure monitoring system set switch after install-
ing the spare tire. The switch is only to be pressed after installing the
repaired flat tire or installing a replacement tire (→P. 148).
●To prevent the jack and tool from rattling, store them properly.
12
XVehicles with Aluminum wheelXVehicles with Steel wheel
13
●Pass the belt underneath the seat-
belts.
114
15
16
17
Seat beltBelt
YARIS_SEDAN_OM_OM99M18z_(U).book Page 495 Monday, June 1, 2015 9:22 PM

4966-2. Flat Tire
YARIS_SEDAN_OM_OM99M18z_(U)
WARNING
■Make sure the mounting surfaces of the wheel, hub and lug nuts
are clean before changing or replacing tires
When changing or replacing a tire, not removing dirt and grime from the
mounting surfaces of the wheel, hub and hub bolts is dangerous. The
lug nuts could loosen while driving and cause the tire to come off, result-
ing in an accident.
■Do not apply oil or grease to lug nuts and bolts and do not tighten
the lug nuts beyond the recommended tightening torque
Applying oil or grease to lug nuts and bolts is dangerous. The lug nuts
could loosen while driving and cause the tire to come off, resulting in an
accident. In addition, lug nuts and bolts could be damaged if tightened
more than necessary.
■Always securely and correctly tighten the lug nuts
Improperly or loosely tightened lug nuts are dangerous. The wheel
could wobble or come off. This could result in loss of vehicle control and
cause a serious accident.
■Be sure to reinstall the same nuts you removed or replace them
with metric nuts of the same configuration
Because the wheel studs and lug nuts on your Toyota have metric
threads, using a non-metric nut is dangerous. On a metric stud, it would
not secure the wheel and would damage the stud, which could cause
the wheel to slip off and cause an accident.
■Do not drive with any tires that have incorrect air pressure
Driving on tires with incorrect air pressure is dangerous. Tires with
incorrect pressure could affect handling and result in an accident. When
you check the regular tires’ air pressure, check the spare tire, too.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 496 Monday, June 1, 2015 9:22 PM

497
YARIS_SEDAN_OM_OM99M18z_(U)
6-3. Battery Runs Out
6
If Trouble Arises
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure care-
fully. If you feel unsure about jump-starting, we strongly recommend that you
have a competent service technician do the work.
Jumper cables
Booster battery
Discharged battery
YARIS_SEDAN_OM_OM99M18z_(U).book Page 497 Monday, June 1, 2015 9:22 PM

4986-3. Battery Runs Out
YARIS_SEDAN_OM_OM99M18z_(U)
Remove the battery cover.
Make sure the booster battery is 12 V and that its negative terminal
is grounded.
If the booster battery is in another vehicle, do not allow both vehi-
cles to touch. Turn off the engine of the vehicle with the booster bat-
tery and all unnecessary electrical loads in both vehicles.
Connect the jumper cables in the exact sequence as in the illustra-
tion.
• Connect one end of a cable to the positive terminal on the dis- charged battery (1).
• Attach the other end to the positive terminal on the booster battery (2).
• Connect one end of the other cable to the negative terminal of the booster battery (3).
• Connect the other end to the ground point indicated in the illustra- tion away from the discharged battery (4).
Start the engine of the booster vehicle and run it a few minutes.
Then start the engine of the other vehicle.
When finished, carefully disconnect the cables in the reverse order
described in the illustration.
If the battery cover has been removed, install it in the reverse order
of removal.
Verify that the covers are securely installed.
1
2
3
4
5
6
7
YARIS_SEDAN_OM_OM99M18z_(U).book Page 498 Monday, June 1, 2015 9:22 PM
