TOYOTA YARIS 2019 Owners Manual (in English)

YARIS SEDAN_OM_OM99S50z_(U)
1212-6. Mirrors
2
Before Driving
■Folding mirror
Fold the outside mirror rear-
ward until it is flush with the
vehicle.
■Rearview mirror adjustment
Before driving, adjust the rear-
view mirror to center on the
scene through the rear window.
WARNING
■Be sure to look over your shoulder before changing lanes
Changing lanes without taking into account the actual distance of the vehi-
cle in the convex mirror is dangerous. You could have a serious accident.
What you see in the convex mirror is closer than it appears.
■ Always return the outside mirrors to the driving position before you
start driving
Driving with the outside mirrors folded in is dangerous. Your r ear view will
be restricted, and you could have an accident.
Rearview Mirror

122
YARIS SEDAN_OM_OM99S50z_(U)
2-6. Mirrors
■Reducing glare from headlights
Adjust the mirror with the day/night lever in the day position.
Push the day/night lever for-
ward for day driving. Pull it back
to reduce glare of headlights
from vehicles at the rear. Day
Night
Day/Night lever
1
2
WARNING
■Do not stack cargo or object s higher than the seatbacks
Cargo stacked higher than the seatbacks is dangerous. It can bl ock your
view in the rearview mirror, which might cause you to hit another car when
changing lanes.
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an ac cident,
resulting in death or serious injury.

123
YARIS SEDAN_OM_OM99S50z_(U)
2-7. Windows
2
Before Driving
Power W indows
The windows can be opened/closed by operating the power window
switches.
When driving with only one of the rear windows open, your ears might experi-
ence a resonating sound. However, this does not indicate a prob lem. The
sound can be reduced by slightly opening a front window or by changing the
size of the rear window opening.
WARNING
■ Make sure the opening is clear before closing a window
Closing a power window is dangerous. A person’s hands, head, or even
neck could be caught by the window and result in serious injury or even
death. This warning applies especially to children.
■ Never allow children to play with power window switches
Power window switches that are not locked with the power window lock
switch would allow children to operate power windows unintentio nally,
which could result in serious injury if a child’s hands, head o r neck becomes
caught by the window.
■ Make sure nothing blocks the window just before it reaches the fully
closed position or while holding up the power window switch
Blocking the power window just before it reaches the fully clos ed position or
while holding up the power window switch is dangerous.
In this case, the jam-safe function cannot prevent the window f rom closing
all the way. If fingers are caught, serious injuries could occu r.

124
YARIS SEDAN_OM_OM99S50z_(U)
2-7. Windows
The window opens while the switch is pressed and it closes while the
switch is pulled up with the ignition switched ON. Do not open or close
three or more window s at the same time.
The front passenger’s side and re ar windows can be opened/closed
when the power window lock switch on the driver’s door is in th e
unlock position. Keep this swit ch in the locked position while children
are in the vehicle.
■ Opening/Closing windows
●A power window may no longer open/close if you continue to press the
switch after fully opening/closing the power window. If the pow er window
does not open/close, wait a moment and then operate the switch again.
● The passenger windows may be opened or closed using the master control
switches on the driver’s door.
● The power window can be operated for about 40 seconds after the ignition
is switched from ON to ACC or off with all doors closed. If any door is
opened, the power window will stop operating.
For engine-off operation of the power window, the switch must b e held up
firmly throughout window closure because the auto-closing funct ion will be
inoperable.

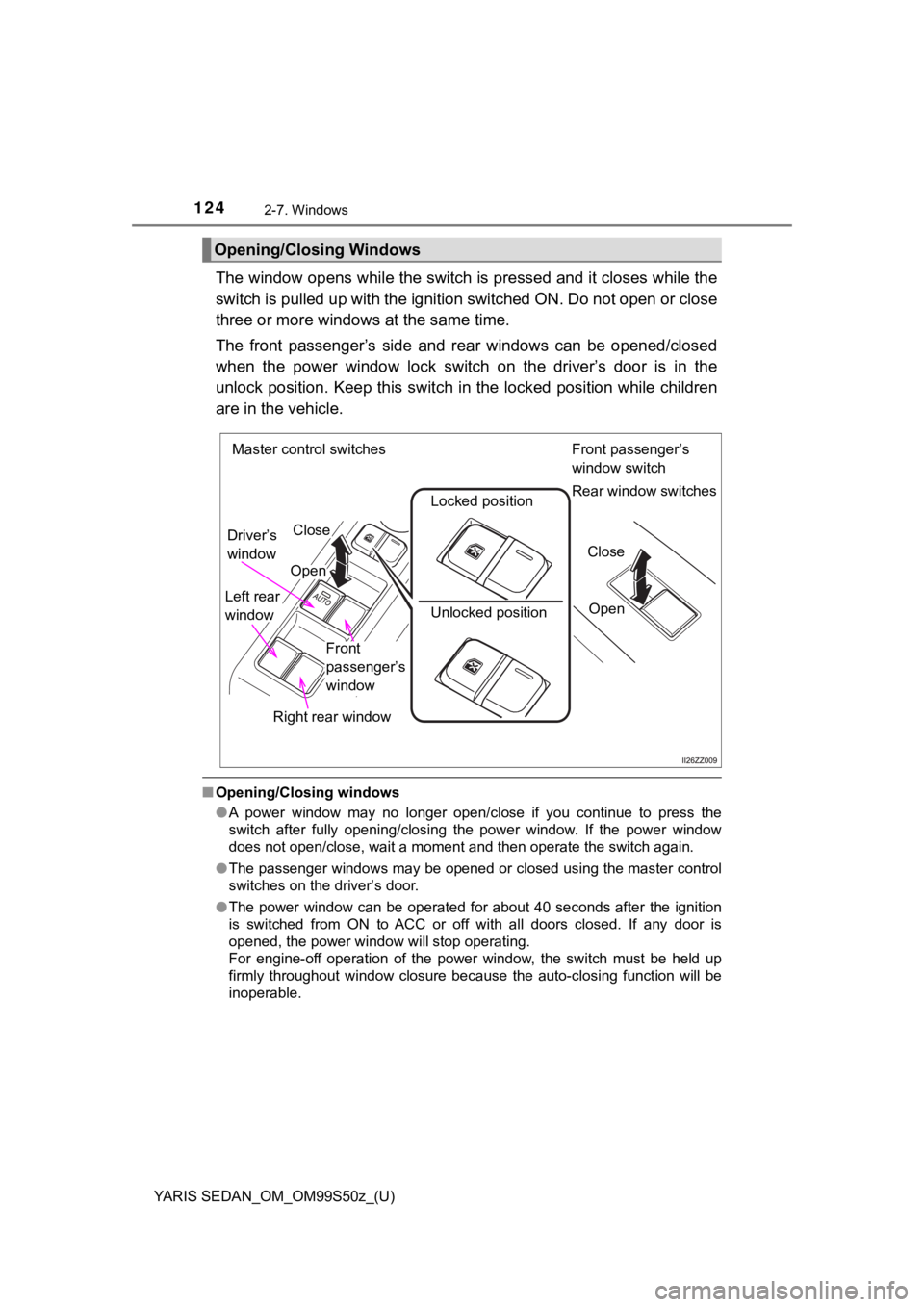

Opening/Closing Windows
Driver’s
window Close
Open
Right rear window Locked position
Unlocked position
Front
passenger’s
window
Left rear
window
Open
Close
Master control switches
Front passenger’s
window switch
Rear window switches

YARIS SEDAN_OM_OM99S50z_(U)
1252-7. Windows
2
Before Driving
To fully open the window automatically, press the switch completely
down, then release. The window will fully open automatically.
To fully close the window automatically, pull the switch comple tely up,
then release. The window will fully close automatically.
To stop the window partway, pull or press the switch in the opp osite
direction and then release it.
This function is only equi pped on the driver’s side.
Power window system initialization procedure
If the battery was disconnected during vehicle maintenance, or for other rea-
sons (such as a switch continues to be operated after the windo w is fully
open/closed), the window will not fully open and close automati cally.
The power window auto function will only resume on a power window that has
been reset.
Switch the ignition ON.
Make sure that the power window lock switch located on the driv er’s door
is not depressed.
Press the switch and fully open the window.
Pull up the switch to fully close the window and continue holdi ng the
switch for about 2 seconds after the window fully closed.
Make sure that the power windows operate correctly using the do or
switches.
If foreign matter is detected between the window and the window
frame while the window is closi ng automatically, the window sto ps
closing and automatic ally opens partway.
■Jam-safe window
●The jam-safe function may operate under the following condition s
• A strong impact is detected while the window is closing automa tically.
• Window is closing automatically in very low temperatures.
● In the event the jam-safe function activates and the power window cannot
be closed automatically, pull and hold the switch and the windo w will close.
● The jam-safe window function does not operate until the system has been
reset.
Auto-opening/closing
Jam-safe window
1
2
3
4
5

126
YARIS SEDAN_OM_OM99S50z_(U)
2-8. Security System
Modification and Add-On Equipment
Toyota cannot guarantee the immobilizer and the theft deterrent
systems’ operation if the system has been modified or if any
add-on equipment has been installed.
NOTICE
To avoid damage to the vehicle, do not modify the system or install any add-
on equipment to the immobilizer and the theft deterrent systems or the vehi-
cle.

127
YARIS SEDAN_OM_OM99S50z_(U)
2-8. Security System
2
Before Driving
Immobilizer System
If someone attempts to start the engine with an unrecognized ke y, the
engine will not start, thereby helping to pre vent vehicle theft.
If you have a problem with the i mmobilizer system or the key, consult
your Toyota dealer.
● The keys carry a unique electronic code. For this reason, and t o assure your
safety, obtaining a replacement key requires some waiting time. They are
only available through your Toyota dealer.
● Always keep a spare key in case one is lost. If a key is lost, consult your
Toyota dealer as soon as possible.
● If you lose a key, your Toyota dealer will reset the electronic codes of your
remaining keys and immobilizer system. Bring all the remaining keys to your
Toyota dealer to reset.
Starting the vehicle with a key that has not been reset is not possible.
The immobilizer system allows the engine to start only with a
key the system recognizes.
NOTICE
● Radio equipment like this is governed by laws in the United Sta tes.
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.
● To avoid damage to the key, do not:
• Drop the key.
• Get the key wet.
• Expose the key to any kind of magnetic field.
• Expose the key to high temperatures on places such as the dash board
or hood, under direct sunlight.
● If the engine does not start with the correct key, and the secu rity indicator
light keeps illuminating or flashing, the system may have a mal function.
Consult your Toyota dealer.

128
YARIS SEDAN_OM_OM99S50z_(U)
2-8. Security System
■Arming
The system is armed when the
ignition is switched from ON to
off.
The security indicator light in
the combination meter flashes
every 2 seconds until the sys-
tem is disarmed.
■Disarming
The system is disarmed when the ignition is switched ON with the
correct programmed key. The sec urity indicator light illuminates for
about 3 seconds and then turns off. If the engine does not star t with
the correct key, and the security indicator light remains illuminated
or flashing, try the following:
Make sure the key is within the operational range for signal tr ans-
mission. Switch the ignition of f, and then restart the engine. If the
engine does not start after 3 or more tries, contact your Toyota
dealer.
● The engine may not start and security indicator light may illum inate or flash
if the key is placed in an area where it is difficult for the system to detect the
signal, such as on the dashboard or in the glove compartment. M ove the
key to a location within the signal range, switch the ignition off, and then
restart the engine.
● Signals from a TV or radio station, or from a transceiver or mo bile telephone
could interfere with your immobilizer system. If you are using the proper key
and the engine fails to start, check the security indicator light.
● If the security indicator light flashes continuously while you are driving, do
not shut off the engine. Go to your Toyota dealer and have it checked. If the
engine is shut off while the indicator light is flashing, you w ill not be able to
restart it.
● Because the electronic codes are reset when the immobilizer sys tem is
repaired, the keys are needed. Make sure to bring all the keys to your Toy-
ota dealer so that they can be programmed.
Operation

129
YARIS SEDAN_OM_OM99S50z_(U)
2-8. Security System
2
Before Driving
Theft Deterrent System
The system will not function unless it’s properly armed. So when you
leave the vehicle, follow the arming procedure correctly.
■System triggering conditions
The horn sounds intermittently and the hazard warning lights fl ash
for about 30 seconds when the system is triggered by any one of
the following: • Unlocking a door with the auxiliary key, door lock switch, or an
inside door-lock knob.
• Forcing open a door, the hood or the trunk lid.
• Opening the hood by operatin g the hood release handle.
• Switching the ignition ON without using the push button start.
If the system is triggered agai n, the lights and horn will activate until
the driver’s door or the trunk lid is unlocked with the smart key.
With the advanced ke yless function:
The lights and horn can also be deactivated by pressing the req uest
switch on a door.
● The trunk lid does not open while the theft deterrent system is operating.
● If the battery goes dead while the theft deterrent system is ar med, the horn
will activate and the hazard warning lights will flash when the battery is
charged or replaced.
: If equipped
If the theft deterrent system detects an inappropriate entry in to
the vehicle, which could result in the vehicle or its contents
being stolen, the alarm alerts the surrounding area of an abnor -
mality by sounding the horn and flashing the hazard warning
lights.
Operation

130
YARIS SEDAN_OM_OM99S50z_(U)
2-8. Security System
Close the windows securely.
Switch the ignition OFF.
Make sure the hood, the doors, and the trunk lid are closed.
Press the lock button on the smart key or lock the driver’s doo r from
the outside with t he auxiliary key.
The hazard warning li ghts will flash once.
The following method will also arm the theft deterrent system:
Press the door-lock switch “ ” while any door is open and then
close all of the doors.
With the advanced ke yless function:
Press a request switch.
The security indicator light in
the instrument panel flashes
twice per second for 20 sec-
onds.
After 20 seconds, the s ystem is fully armed.
●The theft deterrent system can also be armed by activating the auto relock
function with all the doors, the trunk lid and the hood closed. Refer to Smart
Key on P. 89.
● The system will disarm if one of the following operations takes place within
20 seconds after pressing the lock button:
• Unlocking any door.
• Opening any door.
• Opening the hood.
• Switching the ignition ON.
To rearm the system, do the arming procedure again.
● When the doors are locked by pressing the lock button on the sm art key or
using the auxiliary key while the theft deterrent system is arm ed, the hazard
warning lights will flash once to indicate that the system is a rmed.
How to Arm the System
1
2
3
4
5
