TOYOTA YARIS 2019 Owners Manual (in English)

YARIS SEDAN_OM_OM99S50z_(U)
2213-10. Active Safety System
3
When Driving
If the Smart City Brake Support
(SCBS) is operating, the indicator
light (red) flashes.
WARNING
■Do not modify the suspension
If the vehicle height or inclination is changed, the system will not be able to
correctly detect vehicles ahead. This will result in the Smart City Brake Sup-
port (SCBS) system not operating normally or mistakenly operati ng, which
could cause a serious accident.
■ Turn off the Smart City Brake S upport (SCBS) when the vehicle is run-
ning on a chassis roller or being towed
Turn off the Smart City Brake Su pport (SCBS) system to prevent mistaken
operation when the vehicle is running on a chassis roller or be ing towed.
Refer to Stopping The Smart City Brake Support (SCBS) System Op eration
on P. 222.
NOTICE
● When driving off-road in areas where there is grass or forage, it is recom-
mended that the Smart City Brake Support (SCBS) system be turne d off.
● Always use tires for all wheels that are of the specified size, and the same
manufacturer, brand, and tread pattern. In addition, do not use tires with
significantly different wear patterns on the same vehicle as th e Smart City
Brake Support (SCBS) system may not operate normally.
Smart City Brake Support (S CBS) Indicator Light (Red)

222
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
The Smart City Brake Support (SCBS) system can be temporarily
deactivated.
When the Smart City Brake Sup-
port (SCBS) system is turned off,
the Smart City Brake Support
(SCBS) OFF indicator light turns
on.
When the engine is restarted, the
system becomes operational.
Without SCBS OFF switch
Refer to Customizabl e Features on P. 584.
With SCBS OFF switch
Press the SCBS OFF switch to
turn off the system. The Smart
City Brake Support (SCBS) OFF
indicator light in the combination
meter will illuminate.
Press the switch again to turn the
system back on. The Smart City
Brake Support (SCBS) OFF indica-
tor light will turn off.
Stopping the Smart City Brake Support (SCBS) System Opera-
tion

223
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
3
When Driving
Laser Sensor
Always keep the surface of the
windshield around the laser sen-
sor clean to assure proper opera-
tion of the Smart City Brake
Support (SCBS) system.
: If equipped
The Smart City Brake Support (SCBS) laser sensor is installed at
the top of the windshield near the rearview mirror.
WARNING
■ As there is the possibility of eye damage occurring from the la ser,
always heed the following precautions
● Never remove the sensor.
● A removed sensor will not meet the conditions for a class 1M la ser under
the IEC 60825-1 specification and therefore eye safety cannot b e assured.
● Do not peer into the sensor using optical instruments with a ma gnification
function such as magnifying glasses, and microscopic and object ive
lenses within a distance of 3.94 in. (100 mm) from the sensor.

224
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
WARNING

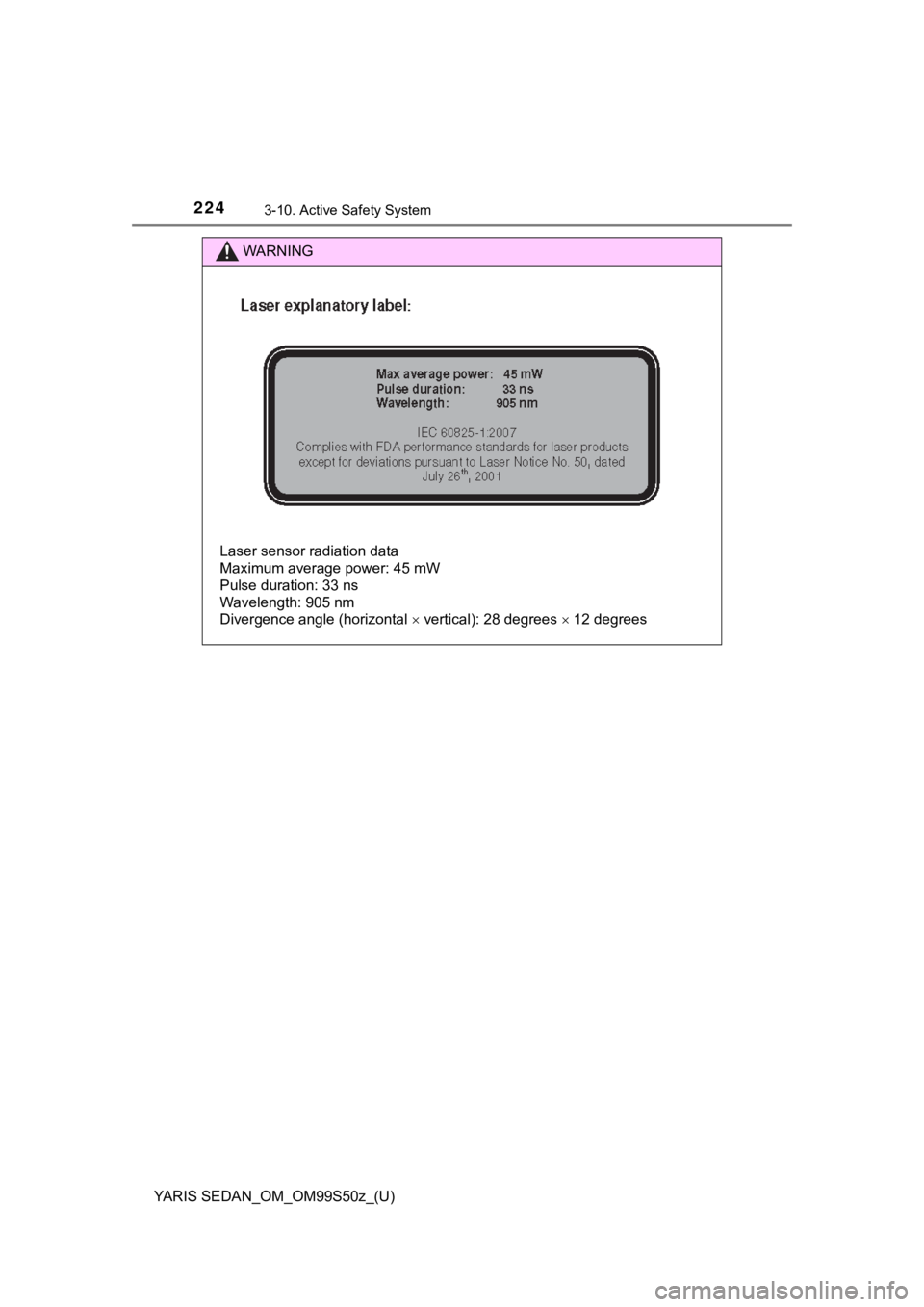

Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal  vertical): 28 degrees  12 degrees

225
YARIS SEDAN_OM_OM99S50z_(U)
3-11. Cruise Control
3
When Driving
Cruise Control
OFF/CAN switch
ON switch
RES/+ switch
SET/- switch
With cruise control, you can set and automatically maintain any
speed of more than about 16 mph (25 km/h).
WARNING
■Do not use the cruise control un der the following conditions
Using the cruise control under the following conditions is dang erous and
could result in loss of vehicle control.
● Hilly terrain
● Steep inclines
● Heavy or unsteady traffic
● Slippery or winding roads
● Similar restrictions that require inconsistent speed
Cruise Control Switch
1
2
3
4

226
YARIS SEDAN_OM_OM99S50z_(U)
3-11. Cruise Control
■Cruise main indication (white)
The cruise main indication
(white) is displayed in the
instrument cluster when the
cruise control system is acti-
vated.
■Cruise set indication (white)/indicator light (green)
The cruise set indication (white)
is displayed in the instrument
cluster and the cruise set indi-
cator light (green) turns on
when a cruising speed has
been set.
To activate the system, press t he ON switch. The cruise main in dica-
tion (white) is displayed.
To deactivate the s ystem, press the OFF/CAN switch.
The cruise main indication (white) turns off.
When the ignition is switched OFF, the system status before it was turned off
is maintained. For example, if the ignition is switched OFF with the cruise
control system operable, the system will be operable when the i gnition is
switched ON the next time.
Cruise Main Indicati on (White), Cruise Se t Indication (White)/
Indicator Light (Green)
Activation/Deactivation
WARNING
■ Always turn off the cruise cont rol system when it is not in use
Leaving the cruise control system in an activation-ready state while the
cruise control is not in use is dangerous as the cruise control could unex-
pectedly activate if the activation button is accidentally pres sed, and result
in loss of vehicle control and an accident.

YARIS SEDAN_OM_OM99S50z_(U)
2273-11. Cruise Control
3
When Driving
Activate the cruise control system by pressing the ON switch. The
cruise main indication (white) is displayed.
Accelerate to the desired speed, which must be more than 16 mph
(25 km/h).
Set the cruise control by pressing the SET/ switch at the desir ed
speed. The cruise control is set at the moment the SET/ switch is
pressed. Release the accelerator pedal simultaneously. The crui se
set indication (white) is displayed and the cruise set indicato r light
(green) turns on.
● The cruise control speed setting cannot be performed under the following
conditions:
• Manual transaxle: The shift lever is in the neutral position.
• Automatic transaxle: The select or lever is in the P or N position.
• The parking brake is applied.
● Release the SET/ or RES/ switch at the desired speed, otherwise the
speed will continue increasing while the RES/ switch is pressed and held,
and continue decreasing while the SET/ switch is pressed and he ld
(except when the accelerator pedal is depressed).
● On a steep grade, the vehicle may momentarily slow down while a scending,
or speed up while descending.
● The cruise control will cancel if the vehicle speed decreases b elow 13 mph
(21 km/h) when climbing a steep grade.
● The cruise control may cancel at about 9 mph (15 km/h) below th e preset
speed such as when climbing a long, steep grade.
To Set Speed
1
2
3

228
YARIS SEDAN_OM_OM99S50z_(U)
3-11. Cruise Control
Follow either of these procedures.
■To increase speed using cruise control switch
Press the RES/ switch and hold it. Your vehicle will accelerate .
Release the switch a t the desired speed.
Press the RES/ switch and release it immediately to adjust the
preset speed. Multiple operations will increase the preset spee d
according to the number of times it is operated.
● Increasing speed with a sing le RES/ switch operation
Instrument cluster display for ve hicle speed indicated in mph:
1 mph (1.6 km/h)
Instrument cluster dis play for vehicle speed indicated in km/h:
1 km/h (0.6 mph)
■To increase speed using accelerator pedal
Depress the accelerator pedal to accelerate to the desired spee d.
Press the SET/ switch a nd release it immediately.
Accelerate if you want to speed up temporarily when the cruise control
is on. Greater speed will not interfere with or change the set speed.
Take your foot off the accelerator to return to the set speed.
Press the SET/ switch and hold it. The vehicle will gradually s low.
Release the switch a t the desired speed.
Press the SET/ switch and release it immediately to adjust the pre-
set speed. Multiple operations will decrease the preset speed accord-
ing to the number of times it is operated.
● Decreasing speed with a single SET/ switch operation
Instrument cluster display for vehicle speed indicated in mph:
1 mph (1.6 km/h)
Instrument cluster display for v ehicle speed indicated in km/h:
1 km/h (0.6 mph)
To Increase Cruising Speed
To Decrease Cruising Speed

YARIS SEDAN_OM_OM99S50z_(U)
2293-11. Cruise Control
3
When Driving
If the cruise control system temporarily canceled (such as applying
the brake pedal) and the system i s still activated, the most recent set
speed will automatically resume when the RES/ switch is pressed .
If vehicle speed is below 16 mph (25 km/h), increase the vehicl e
speed up to 16 mph (25 km/h) or m ore and press the RES/ switch.
To temporarily cancel the syst em, use one of these methods:
• Slightly depress the brake pedal.
• Manual transaxle: Depress the clutch pedal.
• Press the OFF/CAN switch.
If the RES/ switch is pressed w hen the vehicle speed is 16 mph (25
km/h) or higher, the system rev erts to the previously set speed .
●If any of the following conditions occur, the cruise control sy stem is tempo-
rarily canceled.
• The parking brake is applied.
• Manual transaxle: The shift lever is in the neutral position.
• Automatic transaxle: The select or lever is in the P or N position.
● When the cruise control system is temporarily canceled by even one of the
applicable cancel conditions, the speed cannot be re-set.
● Automatic transaxle:
The cruise control cannot be cancelled while driving in manual mode (selec-
tor lever shifted from D to M position). Therefore, engine brak ing will not be
applied even if the transaxle is shifted down to a lower gear. If deceleration
is required, lower the set speed or depress the brake pedal.
■
When a cruising speed has been set (cruise set indication
(white) is displayed/cruise set indicator light (green) turns on)
Long-press the OFF/CAN switch o r press the OFF/CAN switch 2
times.
■When a cruising speed has not been set (cruise main indica-
tion (white) is displayed)
Press the OFF/CAN switch.
To Resume Cruising Speed at More Than 16 mph (25 km/h)
To Temporarily Cancel
To Deactivate

230
YARIS SEDAN_OM_OM99S50z_(U)
3-12. Tire Pressure Monitoring System

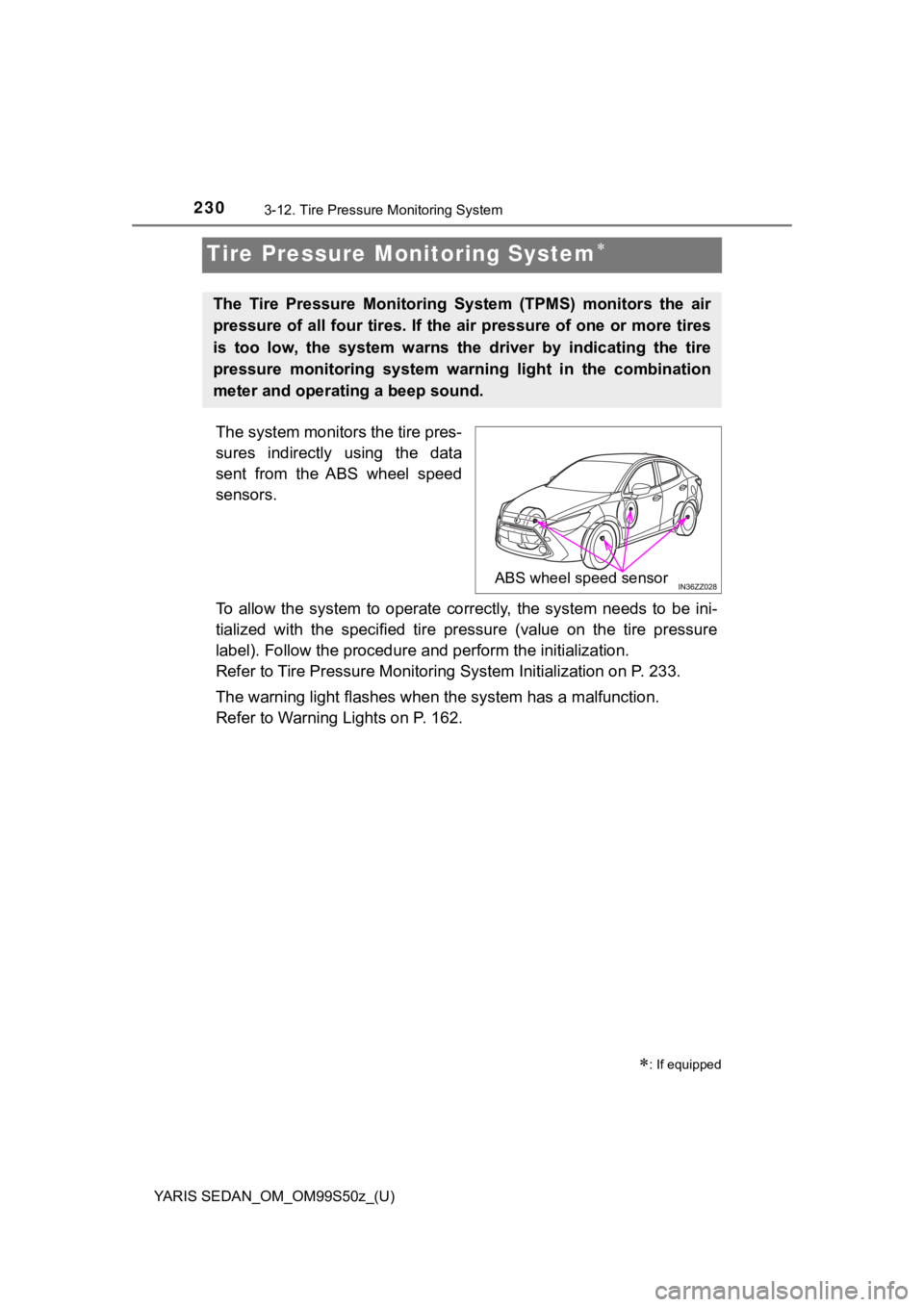

Tire Pressure Monitoring System
The system monitors the tire pres-
sures indirectly using the data
sent from the ABS wheel speed
sensors.
To allow the system to operate correctly, the system needs to be ini-
tialized with the specified tire pressure (value on the tire pressure
label). Follow the procedure and perform the initialization.
Refer to Tire Pressure Monitorin g System Initialization on P. 233.
The warning light flashes when the system has a malfunction.
Refer to Warning Lights on P. 162.
: If equipped
The Tire Pressure Monitoring S ystem (TPMS) monitors the air
pressure of all four tires. If the air pressure of one or more tires
is too low, the system warns the driver by indicating the tire
pressure monitoring system warning light in the combination
meter and operating a beep sound.
ABS wheel sp eed sensor
