TOYOTA YARIS 2019 Owners Manual (in English)

YARIS SEDAN_OM_OM99S50z_(U)
2113-7. Fuel Economy Monitor
3
When Driving
Information regarding the fuel economy is displayed.
Displays the fuel economy for
the past 60 minutes. • Displays the fuel economy
every minute for the past 1 to
10 minutes.
• Displays the fuel economy
every 10 minutes for the past
10 to 60 minutes.
Displays the average fuel econom y over the past 5 resets and after
the current reset.
Calculates the average fuel econo my every minute after vehicle
travel begins, and displays it.
● The fuel economy data is synchronized (linked) with the average fuel econ-
omy displayed in the trip computer.
● To reset the fuel economy data, press the icon in the menu. (The aver-
age fuel economy displayed in the trip computer resets at the same time.)
● After resetting the fuel economy data, “-- -” is displayed whil e the average
fuel economy is being calculated.
If the ending display on the fuel economy monitor is on when th e igni-
tion is switched from ON to OFF, the information regarding the fuel
economy is displayed.
Fuel Consumption Display
1
Ending Screen Display
2
3

212
YARIS SEDAN_OM_OM99S50z_(U)
3-7. Fuel Economy Monitor
Because the average fuel economy indication on the instrument clus-
ter display is linked with the “ Average Fuel Economy History” ( Cur-
rent) indication on the center d isplay, when one is reset the other is
also reset.
In addition, switching between reset and no reset of the averag e fuel
economy indication on the instrument cluster display and the “A ver-
age Fuel Economy History” (Curre nt) indication on the center display
when resetting the trip meter (Trip A) is possible.
X: Reset
-: Not reset
*1: Can be personalized. Refer to Customizable Features on P. 584.
Fuel Economy Data Reset and Trip Meter (TRIP A) Synchroniza-
tion (Linking)
Reset operation item
Synchronized (linked) and reset information
Trip meter (Trip A)
Average fuel economy on
instrument
cluster display
“Average Fuel Economy History”
(Current) indi- cation on the
center display
Trip meter (Trip A)XX/-*1X/-*1
Average fuel economy on
instrument cluster display-XX
“Average Fuel Economy
History” (Current) indica-
tion on the center display
-XX

213
YARIS SEDAN_OM_OM99S50z_(U)
3-8. Drive Selection
3
When Driving
Drive Selection (Automatic Transaxle)
●When the sport mode is selected, driving at higher engine speed s increases
and it may increase fuel consumption. Toyota recommends that yo u cancel
the sport mode on normal driving.
● Drive mode cannot be switched in the following conditions:
• ABS/TCS/DSC is operating
• Cruise control is operating.
• Steering wheel is being operated abruptly
Press the drive selection switch to
the side (forward) to select
the sport mode.
Pull the drive selection switch to
the side (backward) to cancel
the sport mode.
●When the ignition is switched off, the sport mode is canceled.
● Depending on the driving conditions when sport mode is selected , the vehi-
cle may perform shift-down or slightly accelerate.
Drive selection is a system to switch the vehicle’s drive mode.
When the sport mode is selected, vehicle’s response against
accelerator operation is enhanc ed. This provides additional
quick acceleration which may be needed to safely make maneu-
vers such as lane changes, merging onto free ways, or passing
other vehicles.
WARNING
Do not use the sport mode when driving on slippery roads such a s wet or
snow-covered roads. It may cause tire slipping.
Drive Selection Switch

214
YARIS SEDAN_OM_OM99S50z_(U)
3-8. Drive Selection
When the sport mode is selected,
the select mode indicator light
turns on in the combination meter.
If the mode cannot be switched to drive mode, the select mode indicator light
flashes to notify the driver.
Select Mode Indicator Light

215
YARIS SEDAN_OM_OM99S50z_(U)
3-9. Power Steering
3
When Driving
Power Steering
• Power steering is only operable when the engine is running. If the
engine is off or if the power steering system is inoperable, you can
still steer, but it require s more physical effort.
If the steering feels stiffer than usual during normal driving or the
steering vibrates, consul t your Toyota dealer.
• The warning light notifies the driver of system abnormalities and
operation conditions.
In addition, the buzzer may als o activate depending on the syst em
abnormality or operation condition.
Refer to Stop Vehicl e in Safe Place Imme diately on P. 522.
Refer to Power Steering Warning Buzzer on P. 538.
NOTICE
Never hold the steering wheel to the extreme left or right for more than 5
seconds with the engine running. This could damage the power steering
system.

216
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
Active Safety System
◆Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in
averting collisions or reduce their severity in situations where they
cannot be avoided.
● Collision damage reducti on in low vehicle speed range
Forward driving:
Smart City Brake Support (SCBS) ( P. 217)
◆Sensor
● Laser sensor
The laser sensor emits a near-infrared laser beam and receives
the beam reflected off the refl ective surface of a vehicle or
obstruction in front, and the det ected beam is then used for me a-
surement. The laser sensor is used for the Smart City Brake
Support (SCBS) system.
The laser sensor is installed at the top of the windshield near the
rearview mirror.
Refer to Laser Sensor on P. 223.

217
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
3
When Driving

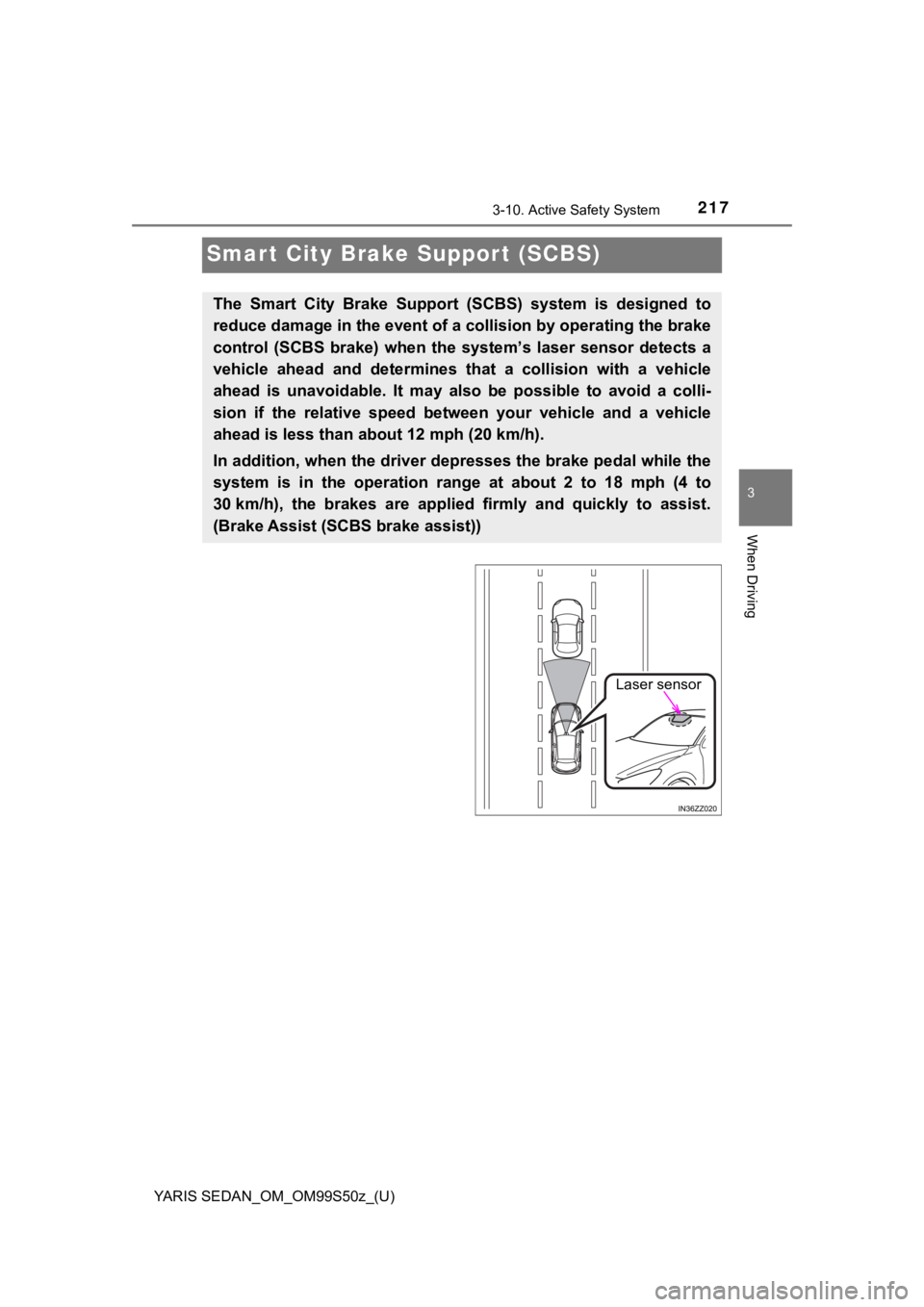

Smart City Brake Support (SCBS)
The Smart City Brake Support (SCBS) system is designed to
reduce damage in the event of a c ollision by operating the brake
control (SCBS brake) when the system’s laser sensor detects a
vehicle ahead and determines that a collision with a vehicle
ahead is unavoidable. It may also be possible to avoid a colli-
sion if the relative speed between your vehicle and a vehicle
ahead is less than about 12 mph (20 km/h).
In addition, when the driver depresses the brake pedal while th e
system is in the operation range at about 2 to 18 mph (4 to
30 km/h), the brakes are applied firmly and quickly to assist.
(Brake Assist (SCBS brake assist))
Laser sensor

218
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
●The Smart City Brake Support (SCBS) system will not operate if the driver is
deliberately performing driving operations (accelerator pedal a nd steering
wheel).
● The Smart City Brake Support (SCBS) system will operate under t he follow-
ing conditions.
• The engine is running.
• The Smart City Brake Support (SCBS) warning light (amber) does not
illuminate.
• The vehicle speed is between about 2 to 18 mph (4 to 30 km/h).
• The Smart City Brake Support (SCBS) system is not turned off.
• The DSC is not malfunctioning.
● The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a
near-infrared laser beam and receiving the beam reflected off the reflector
of the vehicle ahead, and then using it for the measurement. Co nsequently,
the Smart City Brake Support (SCBS) may not operate under the f ollowing
conditions:
• Reflection of the laser is poor due to the shape of the vehicl e ahead.
• The vehicle ahead is significantly dirty.
• Under bad weather condition, such as rain, fog and snow.
• The window washer is being used or the windshield wipers are not used when it’s raining.
• The windshield is dirty.
• The steering wheel is turned completely left or right, or the vehicle is
accelerated rapidly and comes close to the vehicle ahead.
• Trucks with low loading platforms and vehicles with an extreme ly low or
high profile.
• Vehicles with certain shapes such as a vehicle carrier.
● Under the following conditions, the Smart City Brake Support (SCBS) sys-
tem may not operate normally.
• Heavy luggage is loaded in the luggage compartment or on the r ear seat.
• If there is the possibility of partial contact with a vehicle ahead.
• When driving on continuously curving roads, and entering and e xiting
exits.
• Elongated luggage or cargo is loaded onto installed roof rails and covers
the laser sensor.
• Exhaust gas from the vehicle in front, sand, snow, and water v apor rising
from manholes and grating, and water splashed into the air.
• When towing a malfunctioning vehicle.
• When driving with tires having significantly different wear.

YARIS SEDAN_OM_OM99S50z_(U)
2193-10. Active Safety System
3
When Driving
●In the following cases, the laser sensor may inadvertently dete rmine that
there is a vehicle ahead and the Smart City Brake Support (SCBS ) system
may operate.
• Objects on the road at the entrance to a curve.
• Vehicles passing in the opposite lane while making a curve.
• Metal objects, bumps, or protruding objects on the road.
• When passing through a toll gate equipped with a bar.
• When passing under a vinyl curtain or flag.
• Plastic objects such as pylons.
• Two-wheeled vehicles, pedestrians, animals or standing trees.
● Manual transaxle:
If the vehicle is stopped by the SCBS operation and the clutch pedal is not
depressed, the engine stops.
● The Smart City Brake Support (SCBS) warning light (amber) turns on when
the system has a malfunction.
Refer to Warning Lights on P. 162.

220
YARIS SEDAN_OM_OM99S50z_(U)
3-10. Active Safety System
WARNING
■Do not rely on the Smart City B rake Support System (SCBS) as a sub-
stitute for safer driving
The Smart City Brake Support (SCBS) system cannot compensate for
unsafe and reckless driving, excessive speed, tailgating (follo wing another
vehicle too closely), and driving on slippery roads such as wet , snowy, and
icy roads (reduced tire friction and road contact because of wa ter on the
road surface). You can still have an accident.
■ Do not rely completely on the Smart City Brake Support (SCBS) s ystem
● The Smart City Brake Support (SCBS) system is only designed to reduce
damage in the event of a collision. Over reliance on the system leading to
the accelerator pedal or brake pedal being mistakenly operated could
result in an accident.
● The Smart City Brake Support (SCBS) is a system which operates in
response to a vehicle ahead. The system may not be able to detect or
react to two-wheeled vehicles or pedestrians.
● The laser sensor for the Smart City Brake Support (SCBS) system is
installed near the rearview mirror. To assure the correct opera tion of the
Smart City Brake Support (SCBS), heed the following cautions.
• Do not apply stickers to the surface of the windshield near the laser sensor (including transparent stickers). Otherwise, the laser s ensor
may not be able to detect vehicles ahead which could result in an acci-
dent.
• Do not apply coating agent to the windshield. Otherwise, the l aser sen-
sor may not be able to detect vehicles or obstructions in front which
could result in an accident.
• Do not disassemble the laser sensor.
• If cracks or damage caused by flying gravel or debris is visib le near
the laser sensor, stop using the Smart City Brake Support (SCBS )
system immediately and have your vehicle inspected by your Toyo ta
dealer. If the vehicle continues to be driven with cracks or sc ratch
marks left on the windshield near the laser sensor, the system may
operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System
Operation on P. 222.
• When replacing the windshield wi pers or windshield, consult your
Toyota dealer.
● The laser sensor includes a function for detecting a soiled windshield and
informing the driver, however, depending on the conditions, it may not
detect plastic shopping bags, ice or snow on the windshield. In such
cases, the system cannot accurately determine a vehicle ahead a nd may
not be able to operate normally. Always drive carefully and pay attention to
the road ahead.
