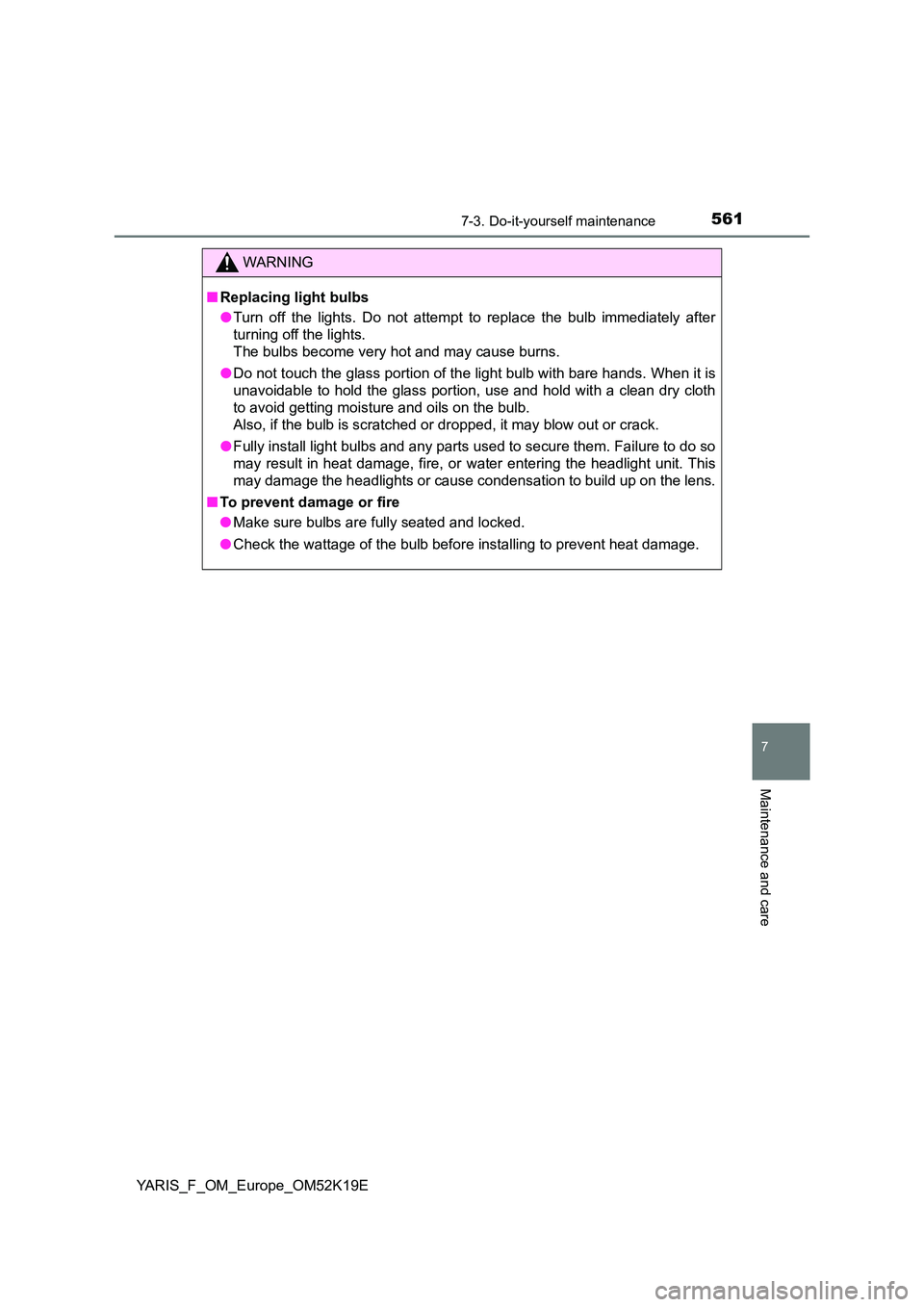

Page 561 of 700
5617-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

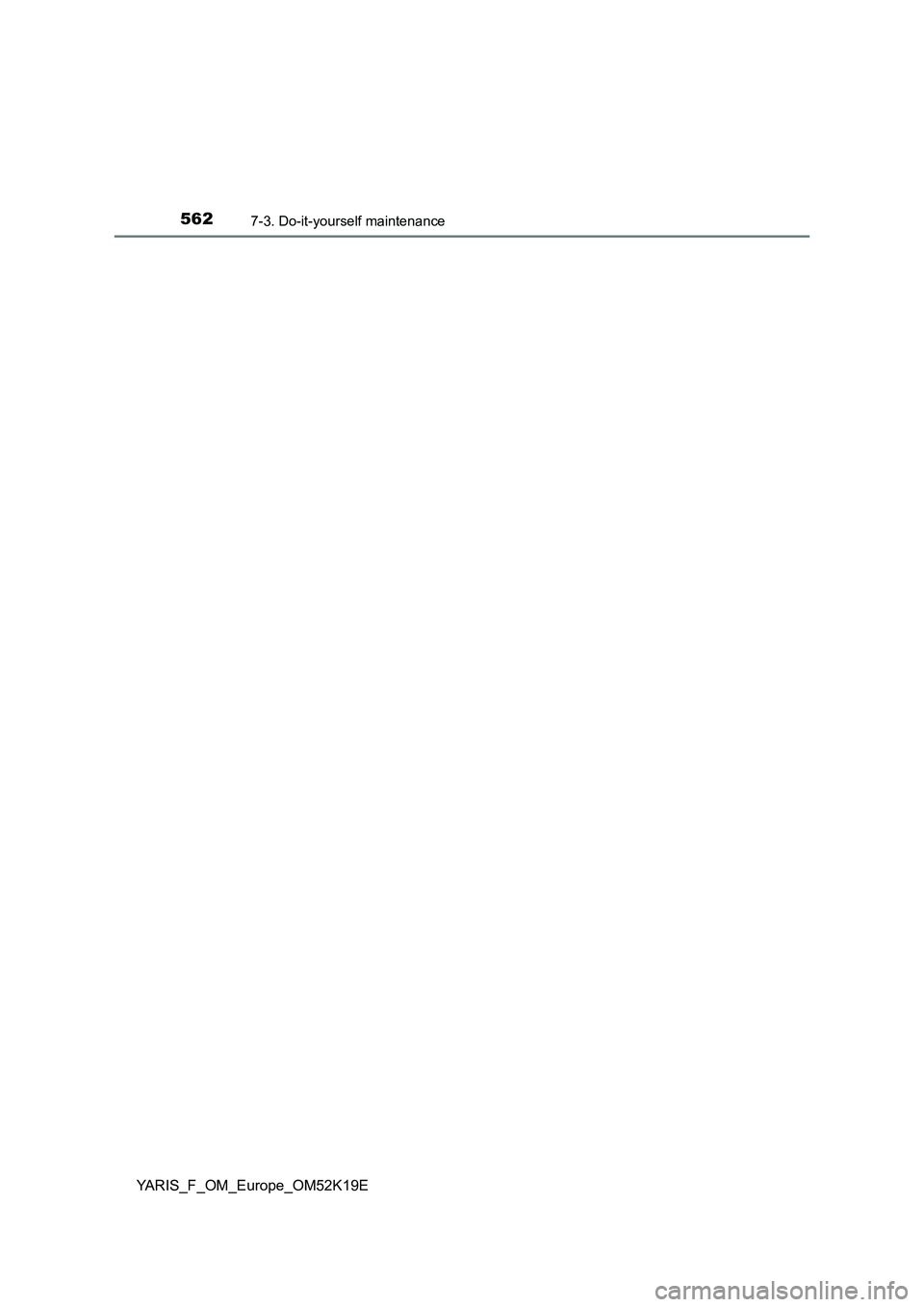

Page 562 of 700
5627-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

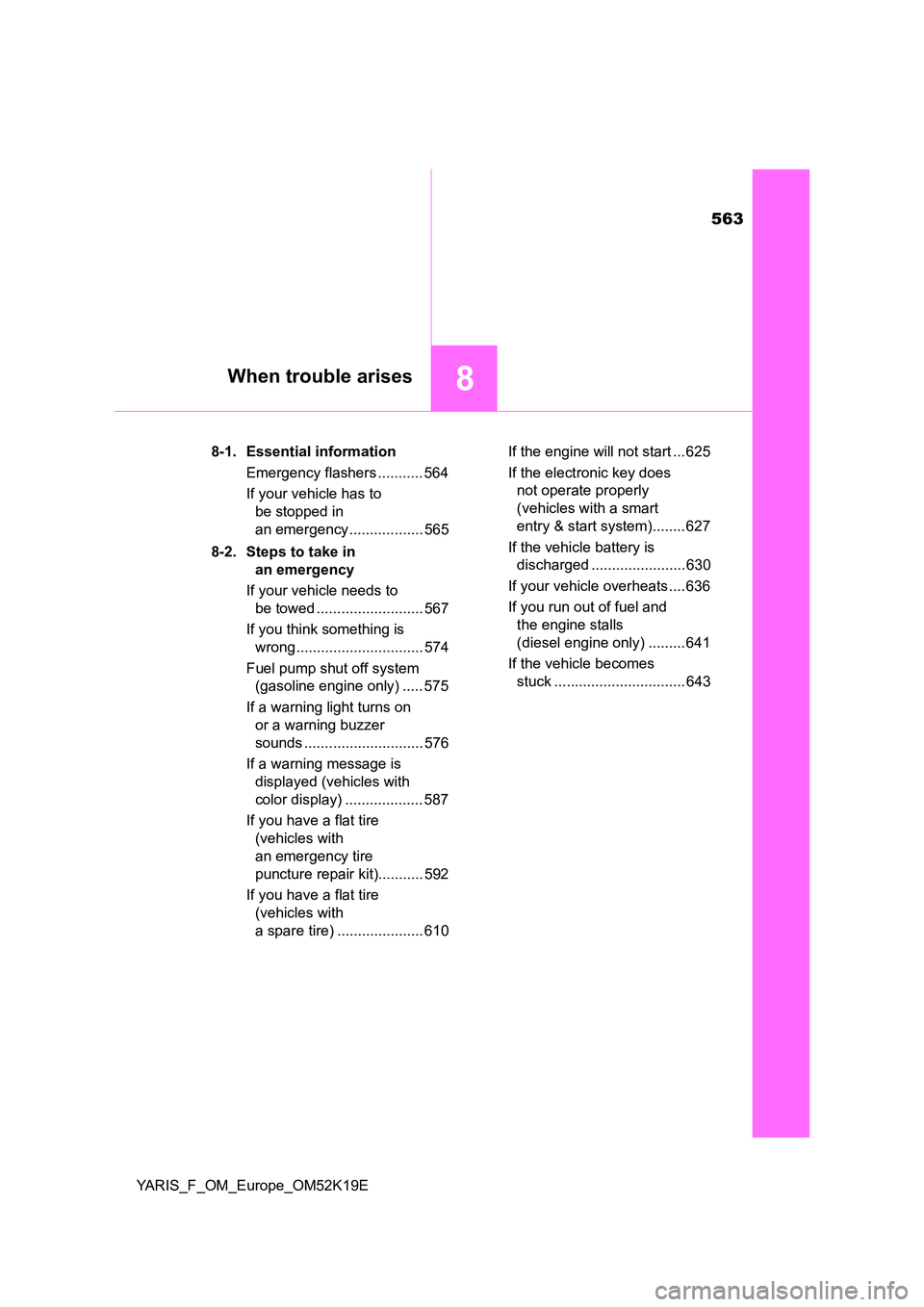

Page 563 of 700

563
8When trouble arises
YARIS_F_OM_Europe_OM52K19E
8-1. Essential information
Emergency flashers ........... 564
If your vehicle has to
be stopped in
an emergency .................. 565
8-2. Steps to take in
an emergency
If your vehicle needs to
be towed .......................... 567
If you think something is
wrong ............................... 574
Fuel pump shut off system
(gasoline engine only) ..... 575
If a warning light turns on
or a warning buzzer
sounds ............................. 576
If a warning message is
displayed (vehicles with
color display) ................... 587
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)........... 592
If you have a flat tire
(vehicles with
a spare tire) ..................... 610
If the engine will not start ... 625
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system)........ 627
If the vehicle battery is
discharged ....................... 630
If your vehicle overheats .... 636
If you run out of fuel and
the engine stalls
(diesel engine only) ......... 641
If the vehicle becomes
stuck ................................ 643

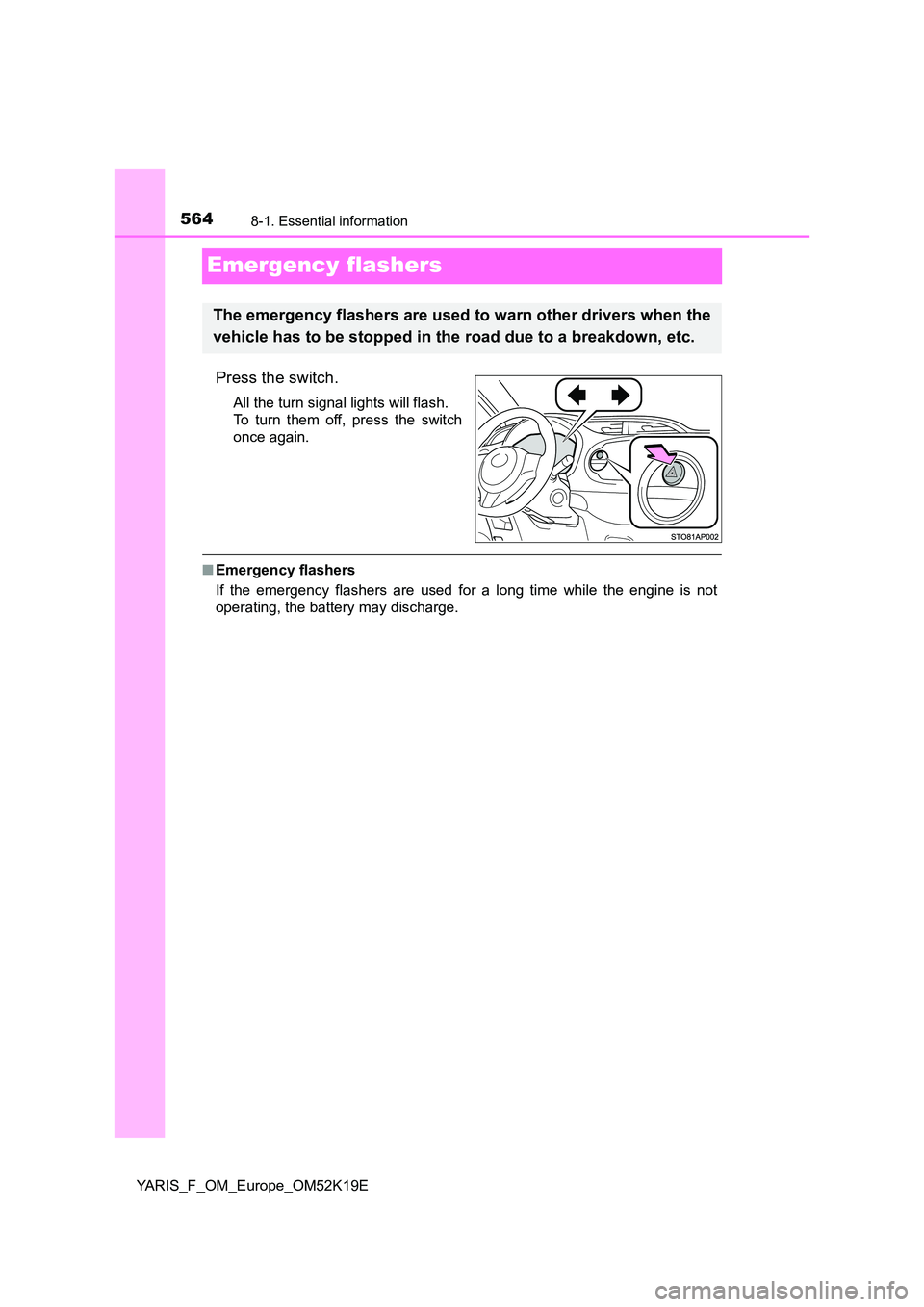

Page 564 of 700
5648-1. Essential information
YARIS_F_OM_Europe_OM52K19E
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

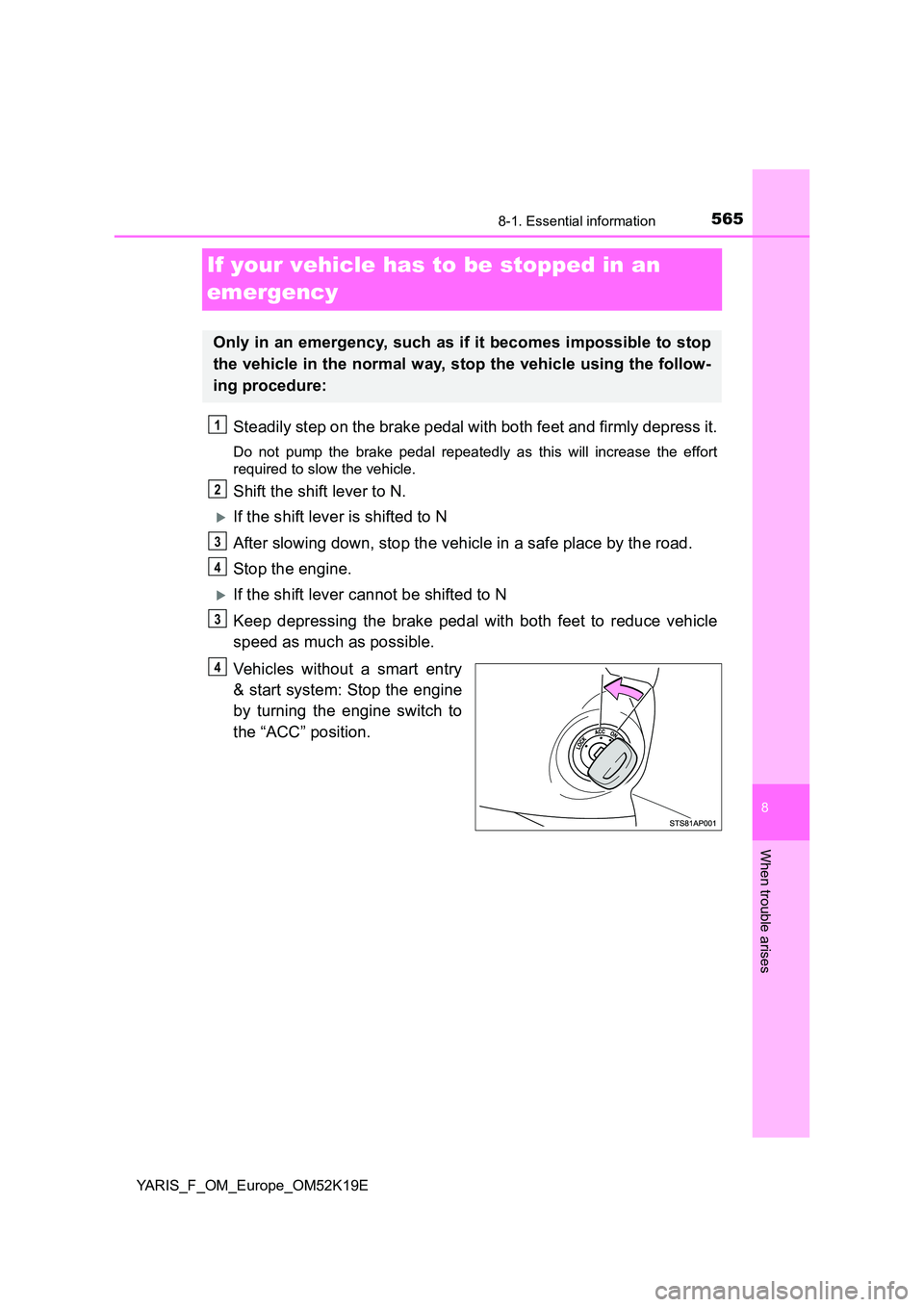

Page 565 of 700
5658-1. Essential information
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4

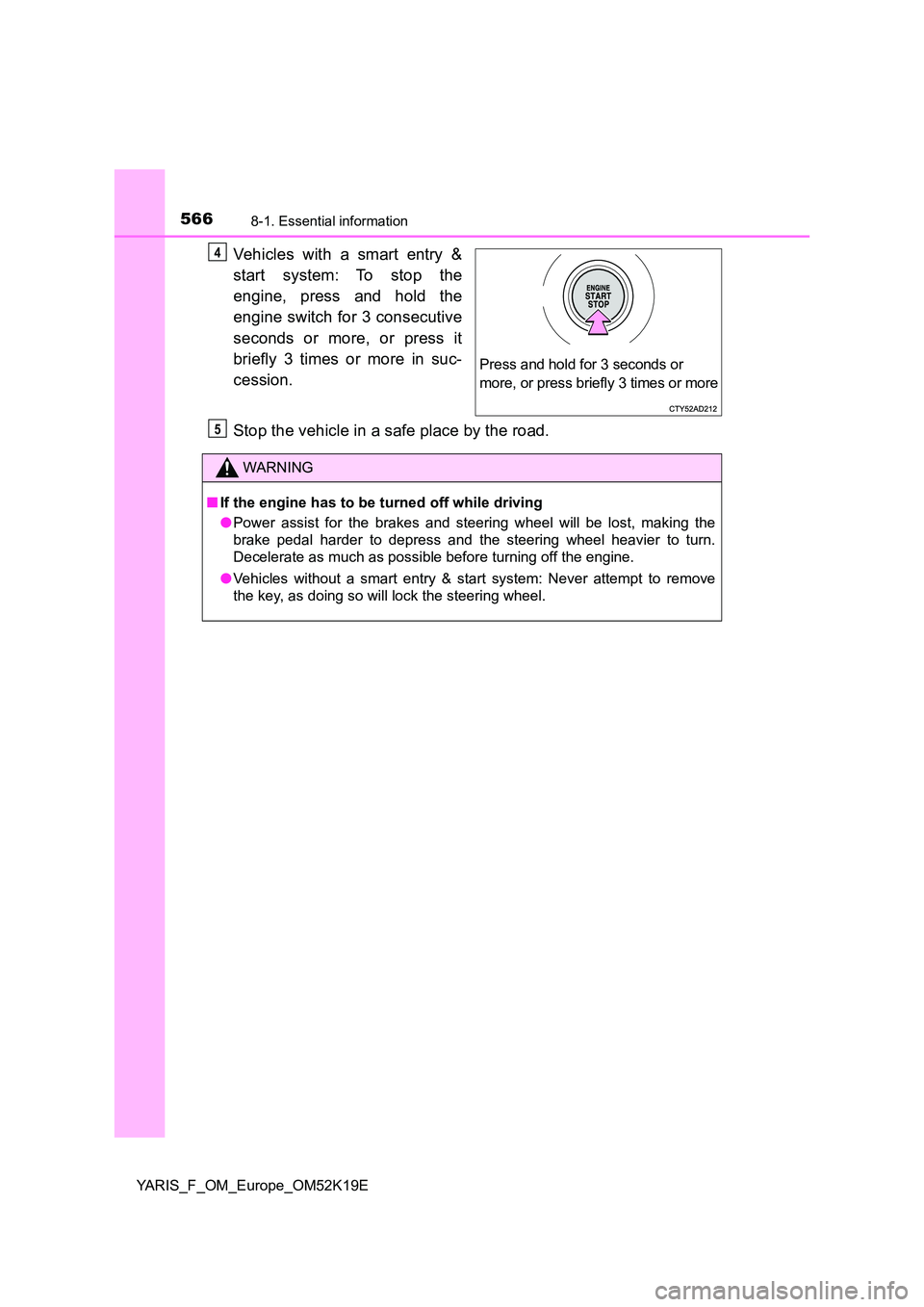

Page 566 of 700
5668-1. Essential information
YARIS_F_OM_Europe_OM52K19E
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 3 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or
more, or press briefly 3 times or more
4
WARNING
■ If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
5

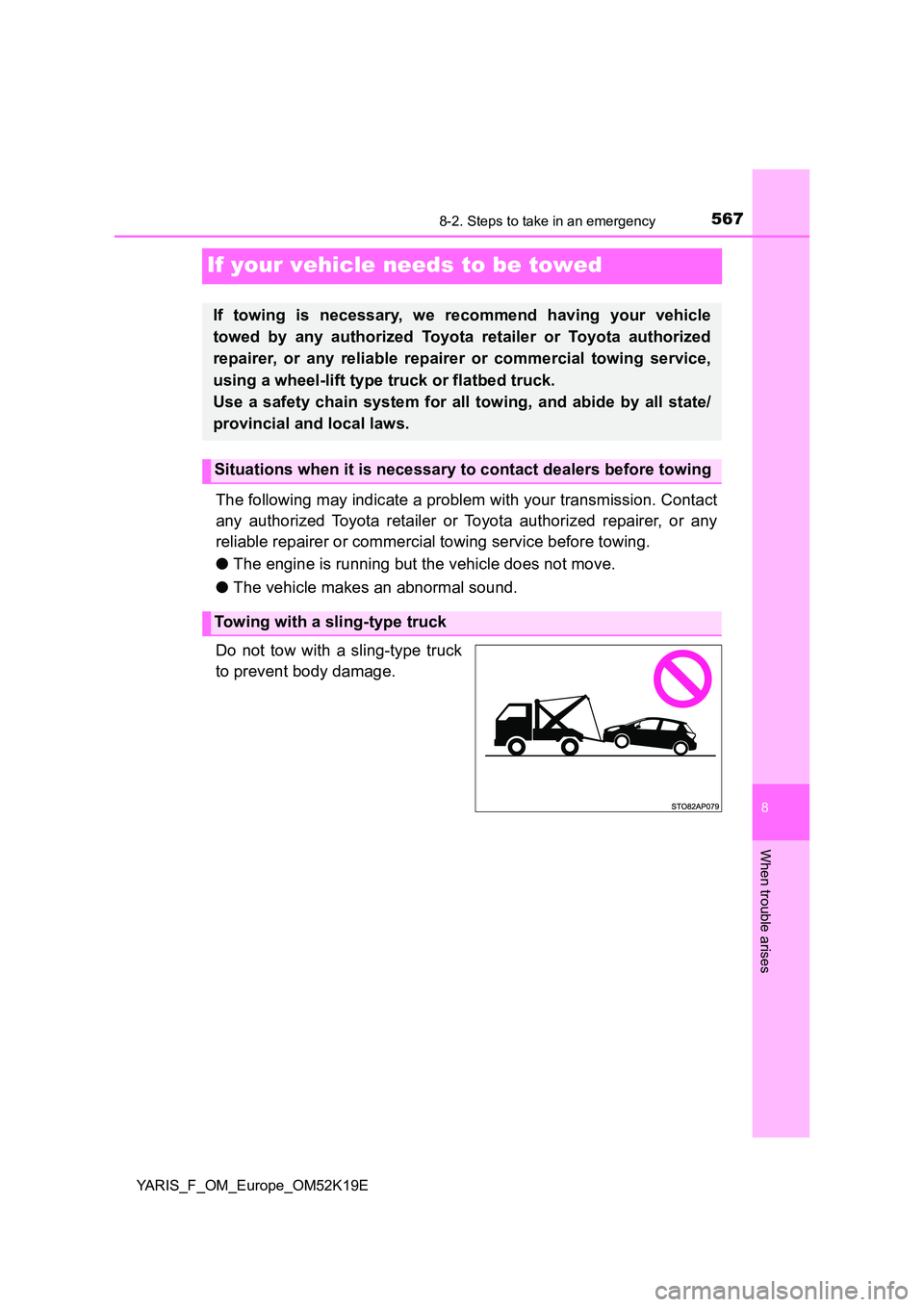

Page 567 of 700
5678-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or commercial towing service before towing.
● The engine is running but the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

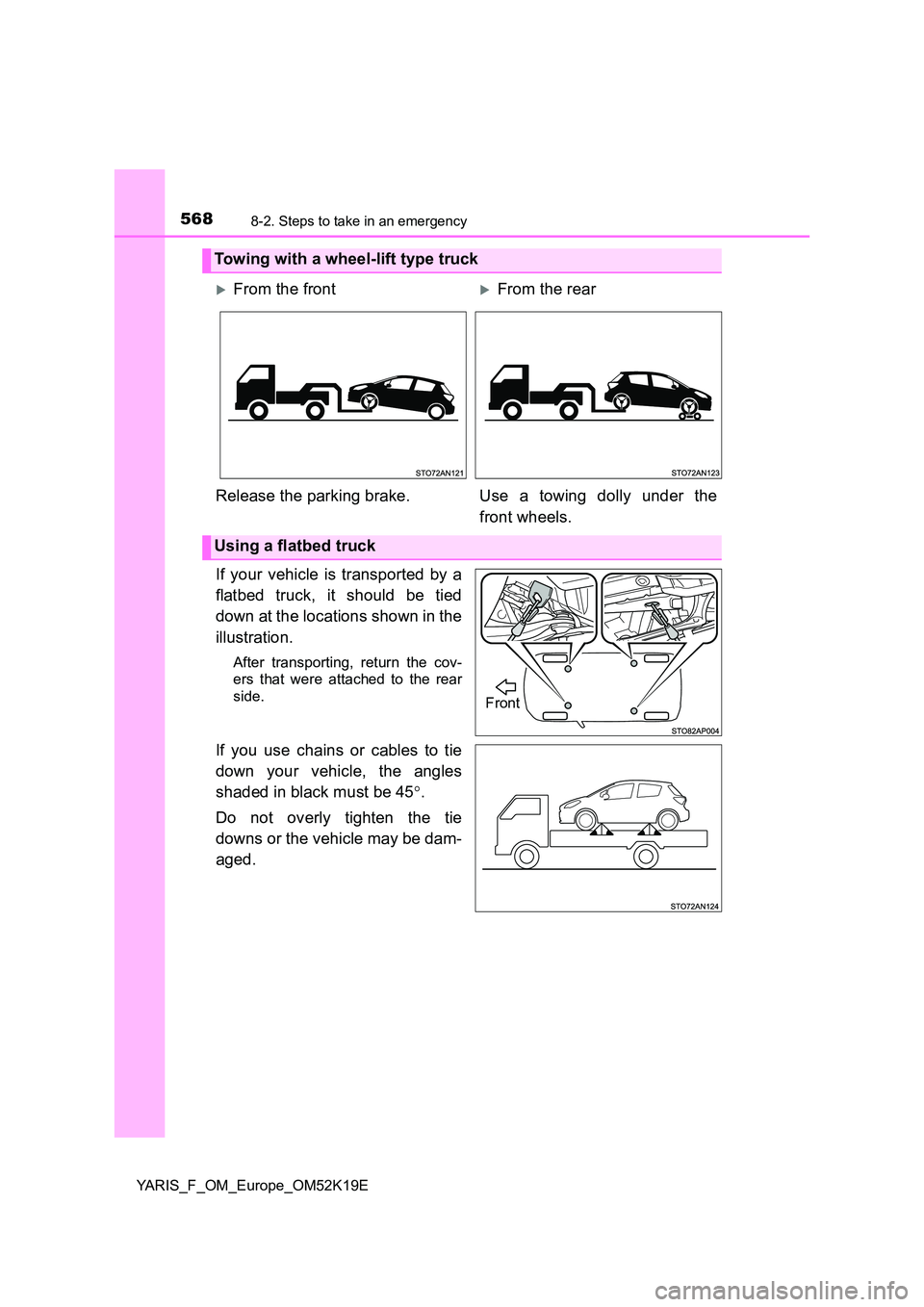

Page 568 of 700
5688-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
After transporting, return the cov-
ers that were attached to the rear
side.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Front

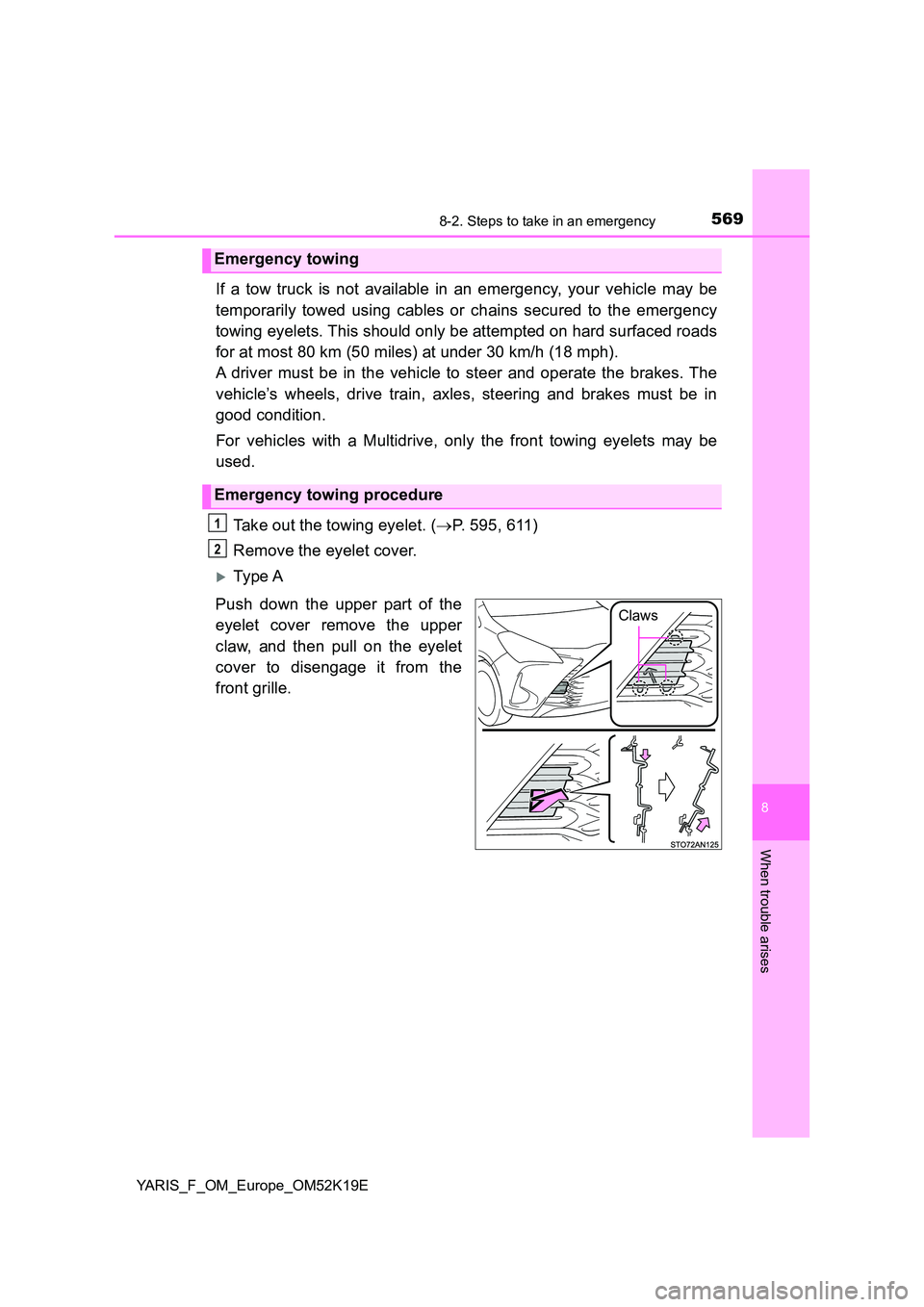

Page 569 of 700
5698-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for at most 80 km (50 miles) at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
For vehicles with a Multidrive, only the front towing eyelets may be
used.
Take out the towing eyelet. ( P. 595, 611)
Remove the eyelet cover.
Ty pe A
Push down the upper part of the
eyelet cover remove the upper
claw, and then pull on the eyelet
cover to disengage it from the
front grille.
Emergency towing
Emergency towing procedure
1
2
Claws

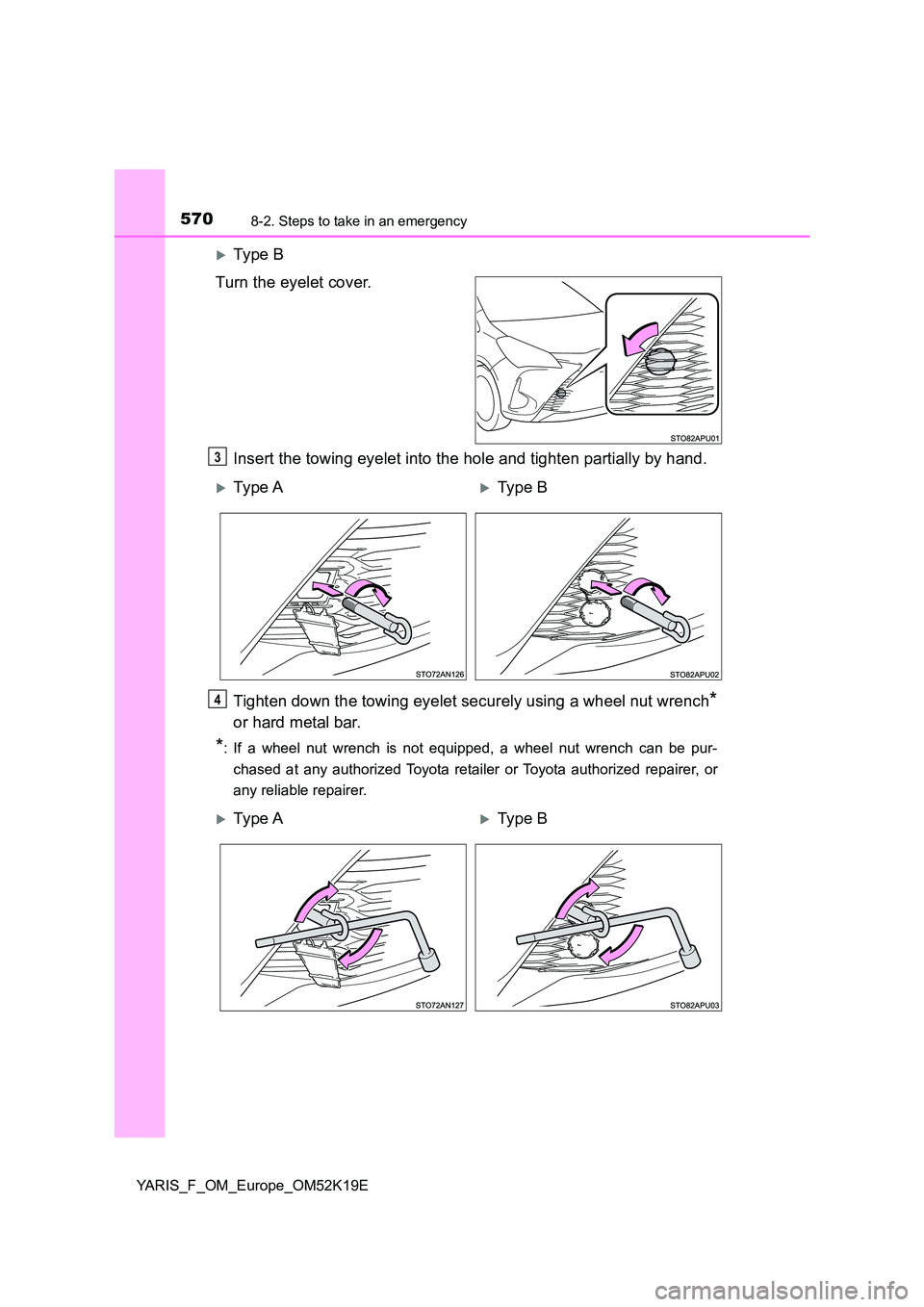

Page 570 of 700
5708-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
Ty pe B
Turn the eyelet cover.
Insert the towing eyelet into the hole and tighten partially by hand.
Tighten down the towing eyelet securely using a wheel nut wrench*
or hard metal bar.
*: If a wheel nut wrench is not equipped, a wheel nut wrench can be pur-
chased at any authorized Toyota retail er or Toyota authorized repairer, or
any reliable repairer.
3
Ty pe AType B
4
Ty pe AType B
