5417-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

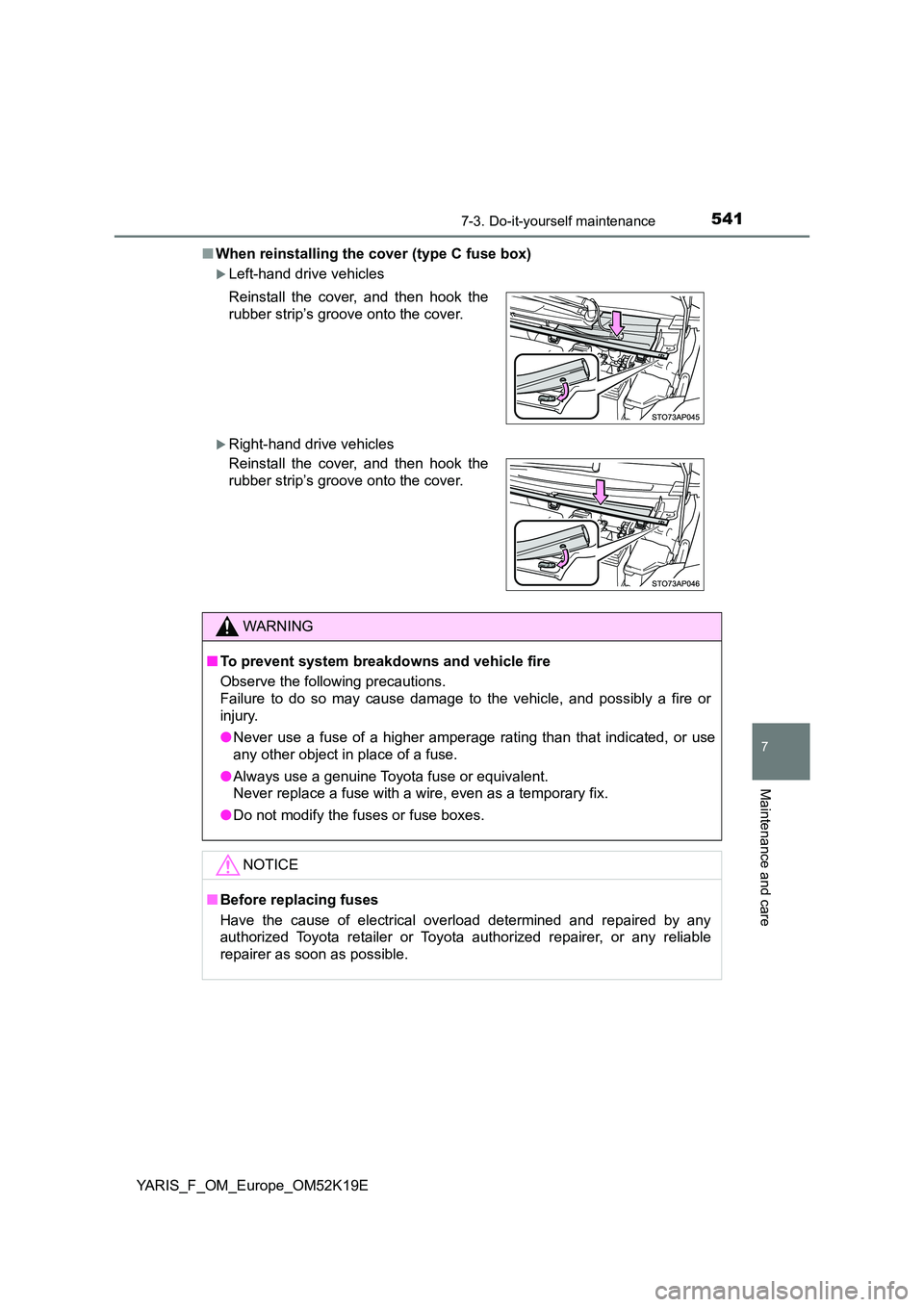

■ When reinstalling the cover (type C fuse box)
Left-hand drive vehicles
Right-hand drive vehicles
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
Page 542 of 700
5427-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 667)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
For more information about replacing other light bulbs, contact
any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Front position lights/daytime
running lights (bulb type)
Front turn signal lights
Headlights
Front fog lights (if equipped)
Side turn signal lights
1
2
3
4
5
Page 543 of 700
5437-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

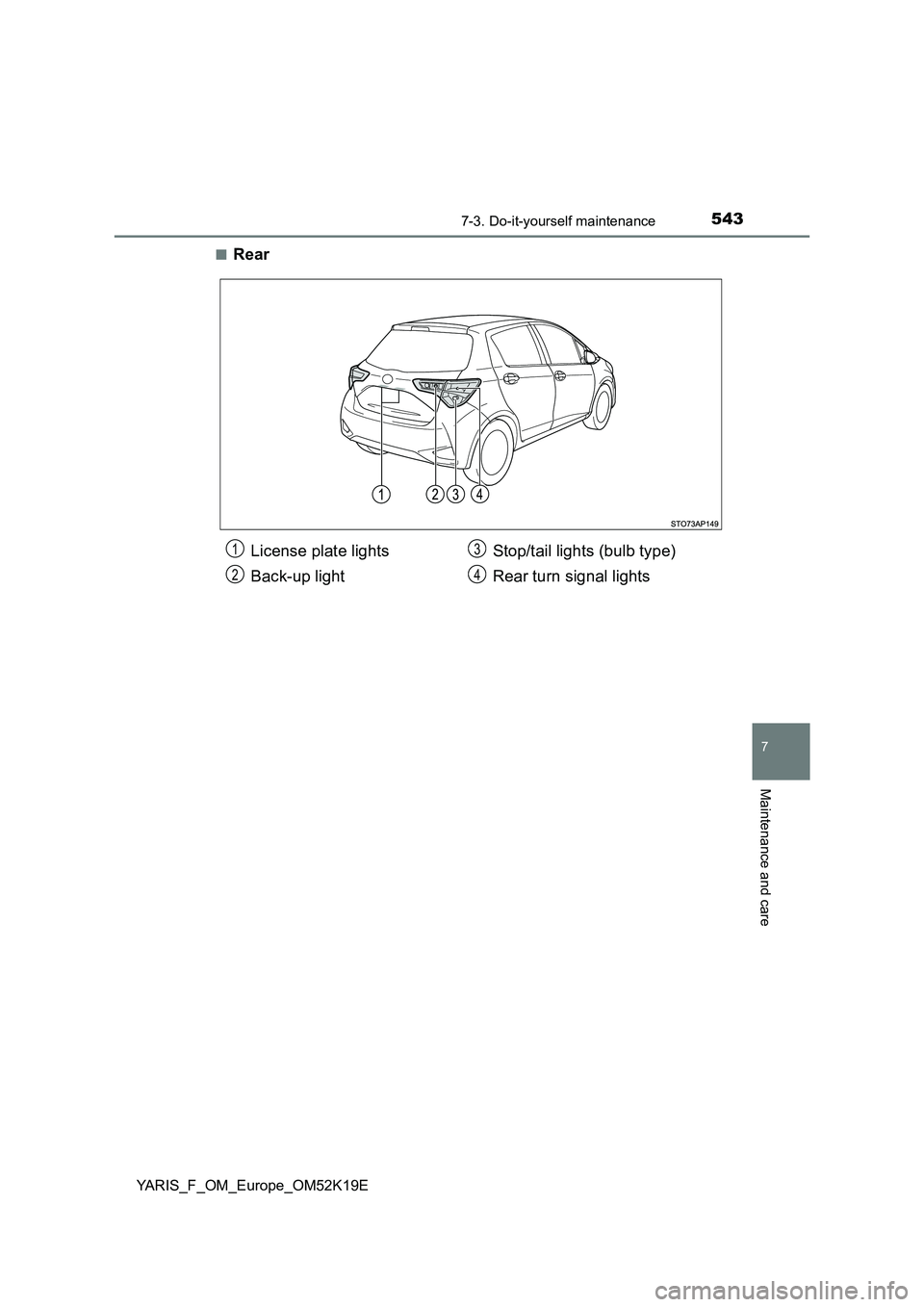

■Rear
License plate lights
Back-up light
Stop/tail lights (bulb type)
Rear turn signal lights
1
2
3
4
Page 544 of 700
5447-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

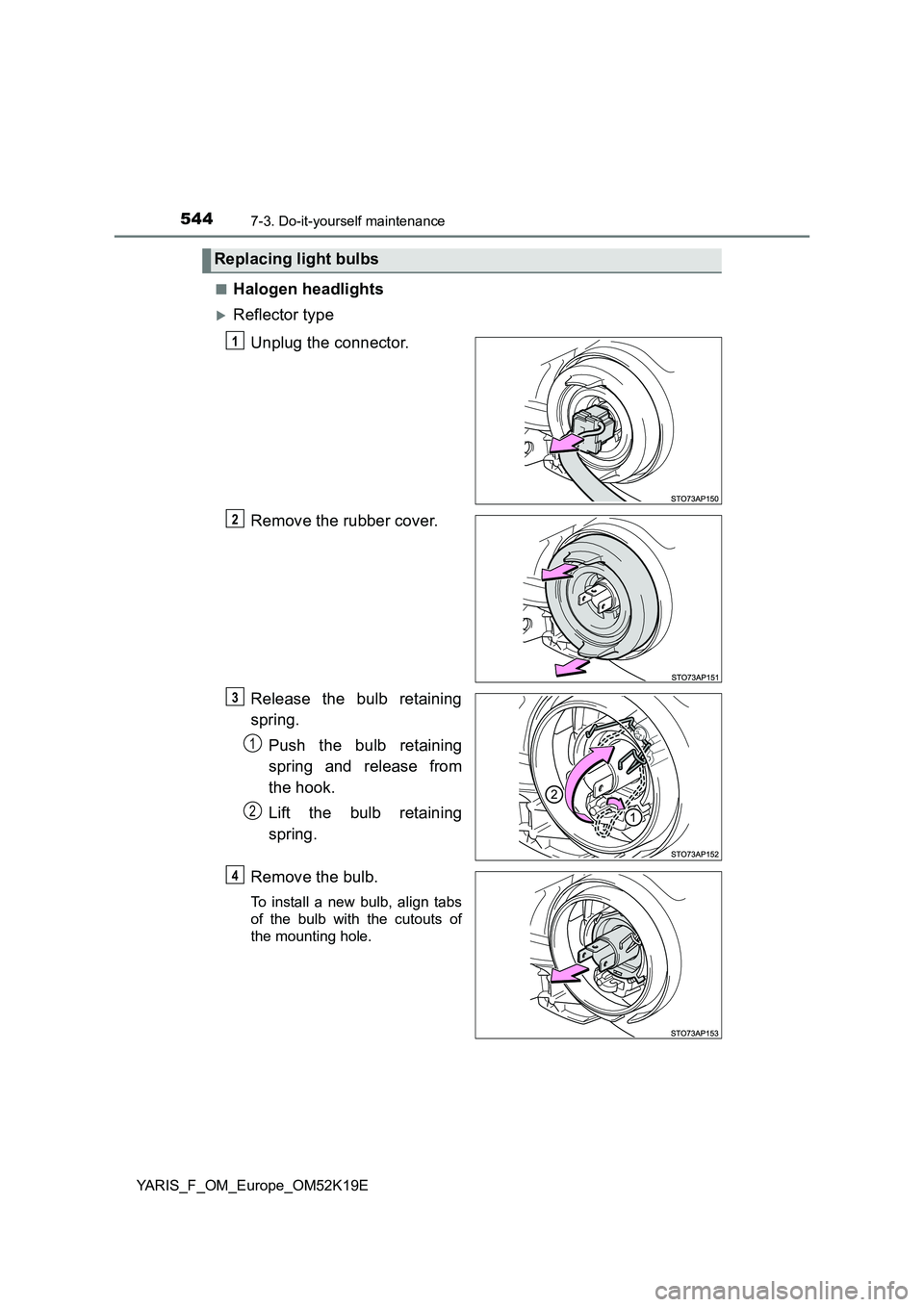

■Halogen headlights
Reflector type
Unplug the connector.
Remove the rubber cover.
Release the bulb retaining
spring.
Push the bulb retaining
spring and release from
the hook.
Lift the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align tabs
of the bulb with the cutouts of
the mounting hole.
Replacing light bulbs
1
2
3
1
2
4
Page 545 of 700
5457-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Install the bulb retaining
spring.
Lower the bulb retaining
spring.
Push the bulb retaining
spring and then engage
and fix the hook.
Install the rubber cover.
Ensure the rubber cover is
securely attached.
Fit the rubber cover outer
circumference in firmly.
Fit the rubber cover
around the light bulb in
until the light bulb plug can
be seen.
Install the connector.
5
6
1
2
7
1
2
8
Page 546 of 700
5467-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

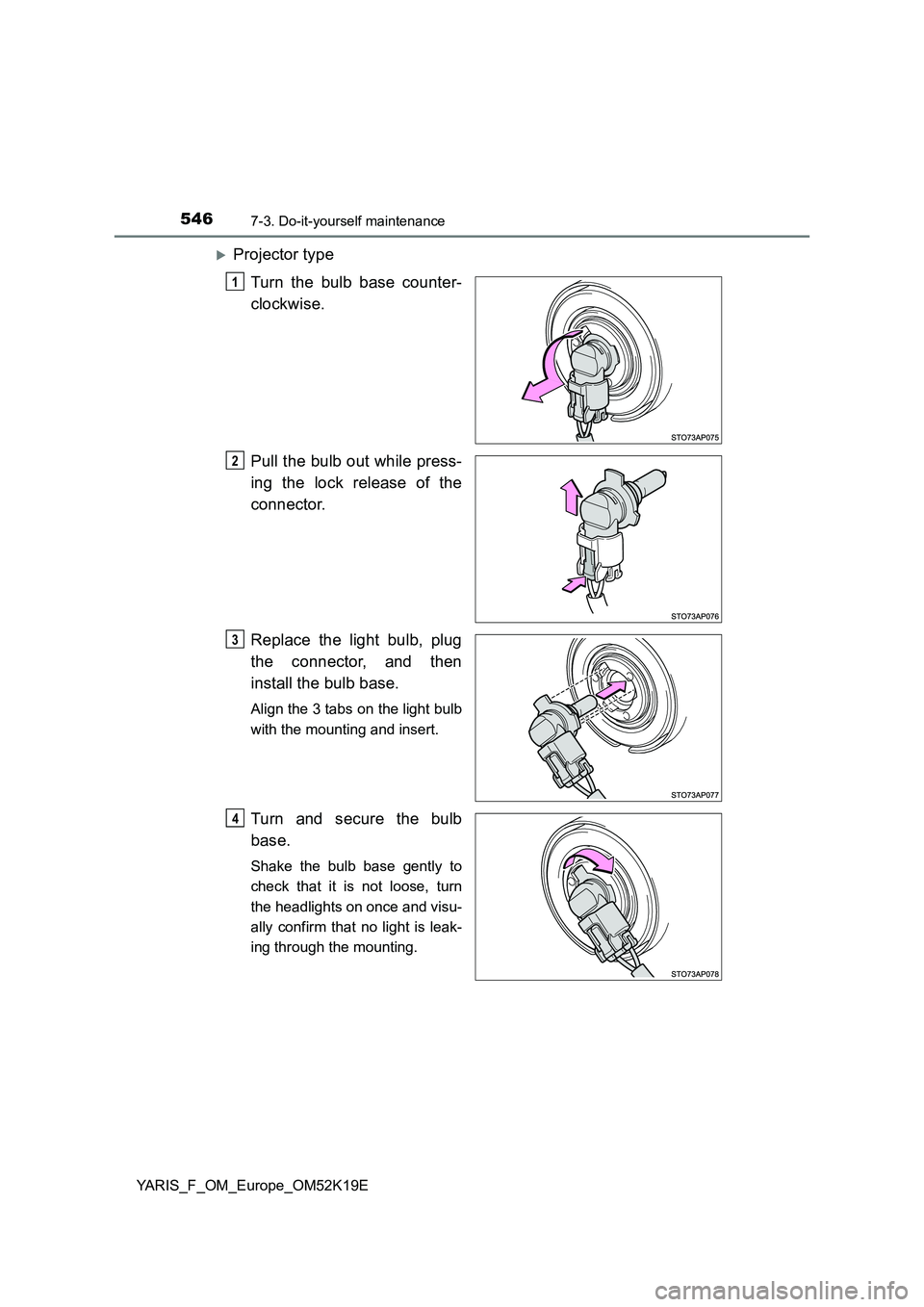

Projector type
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Replace the light bulb, plug
the connector, and then
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
1
2
3
14
Page 547 of 700
5477-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

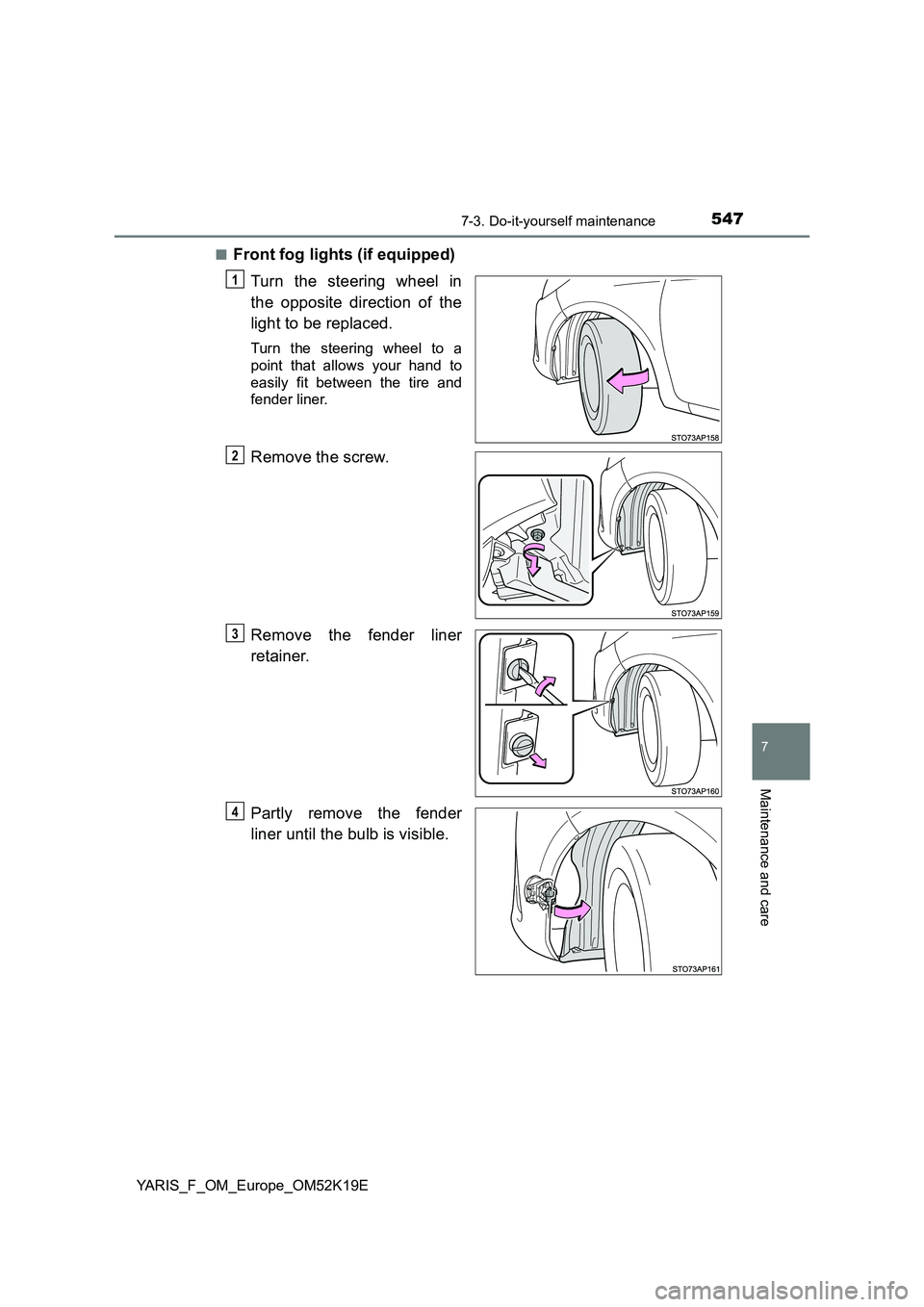

■Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the screw.
Remove the fender liner
retainer.
Partly remove the fender
liner until the bulb is visible.
1
2
3
4
Page 548 of 700
5487-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

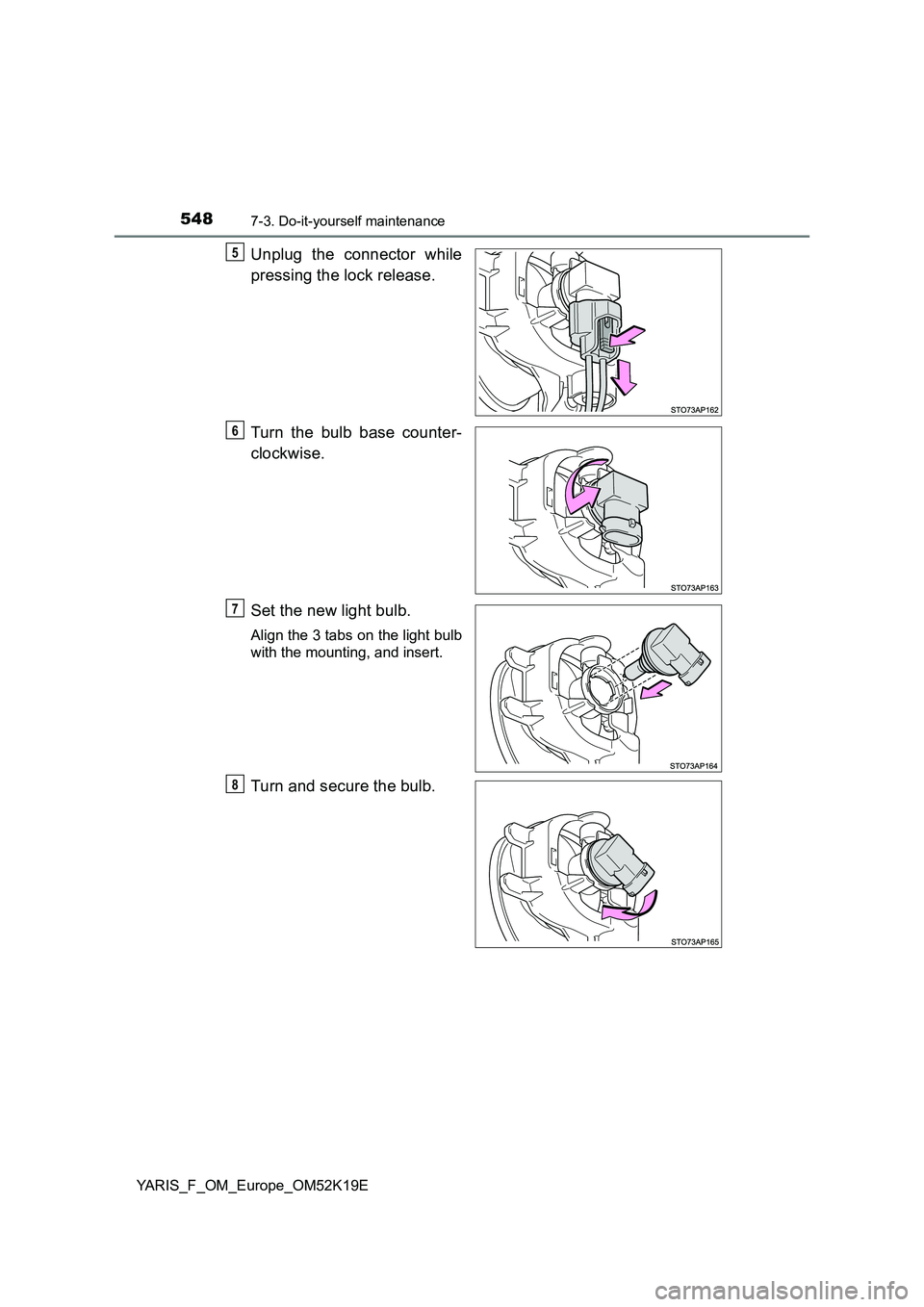

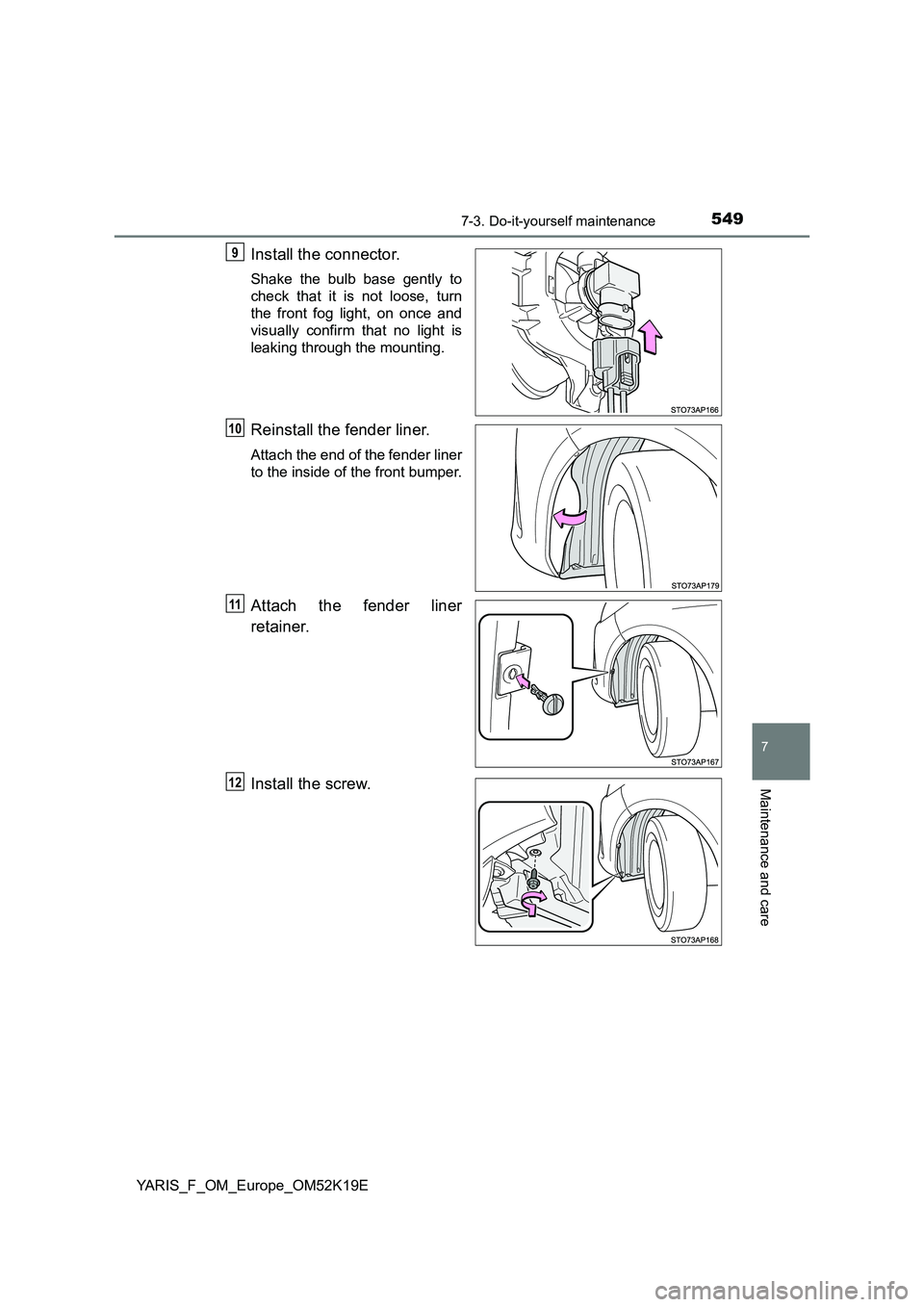

Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
5
6
7
8
Page 549 of 700
5497-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Attach the fender liner
retainer.
Install the screw.
9
10
11
12
Page 550 of 700
5507-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

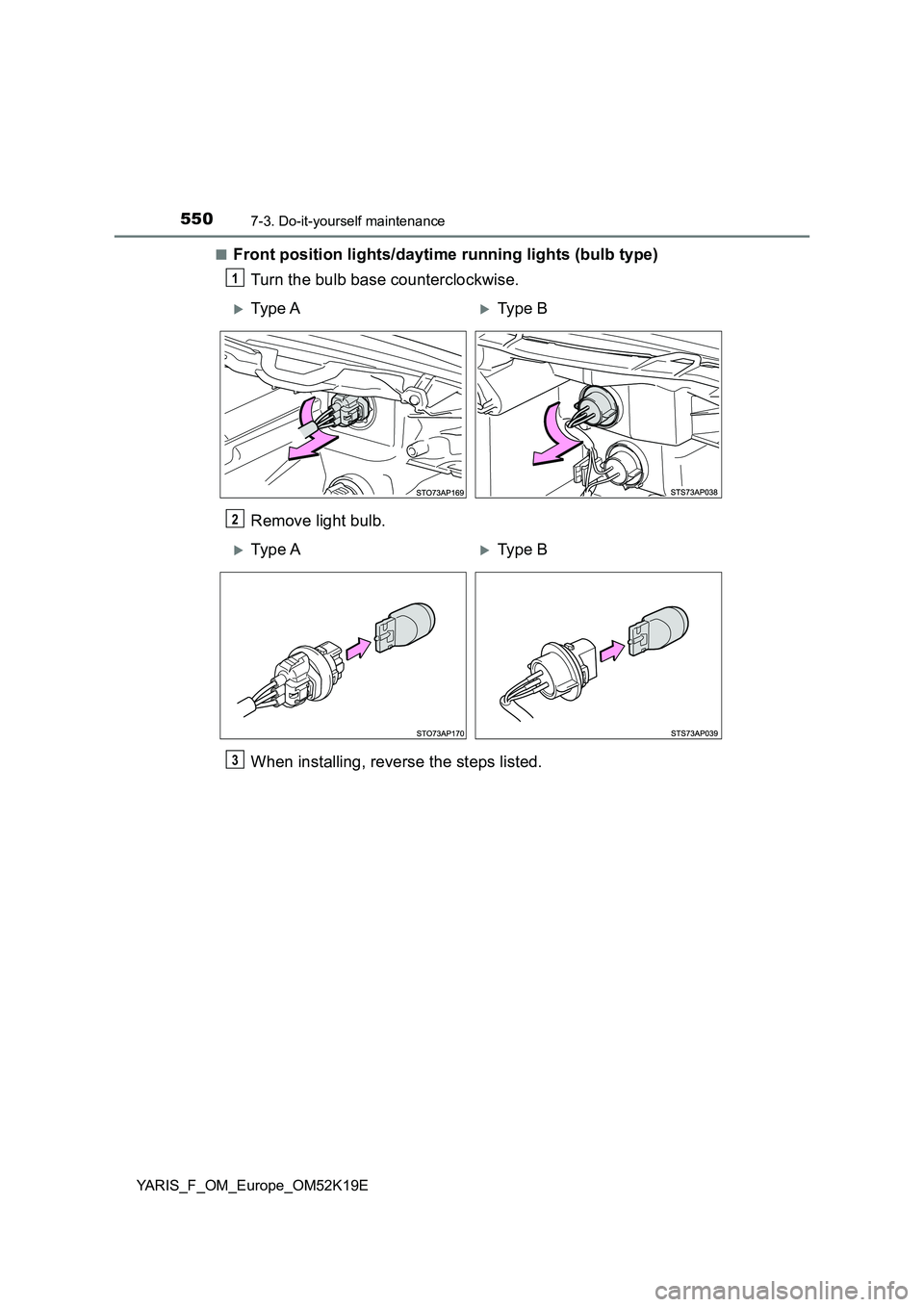

■Front position lights/daytime running lights (bulb type)
Turn the bulb base counterclockwise.
Remove light bulb.
When installing, reverse the steps listed.
1
Type AType B
2
Type AType B
3
