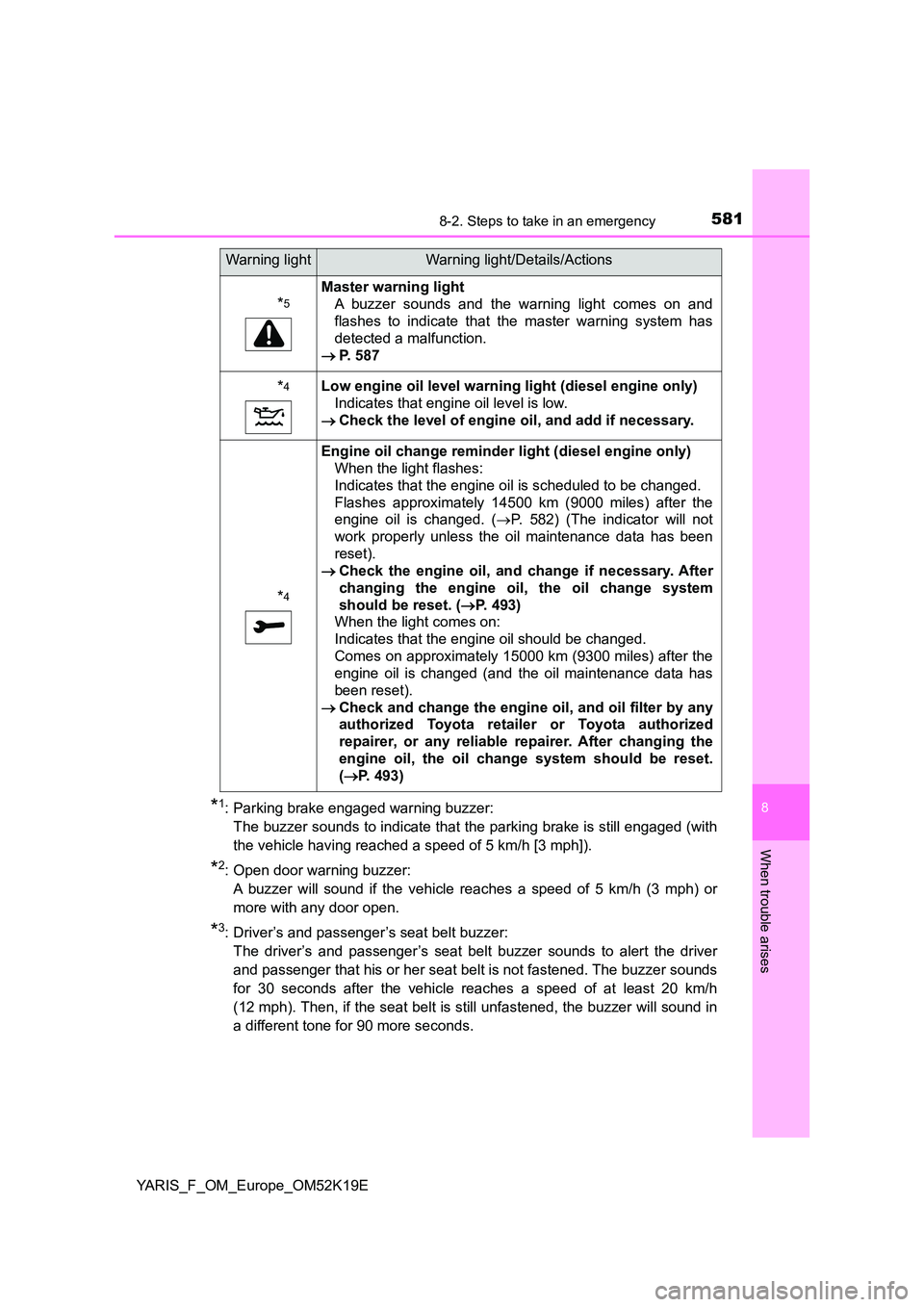

TOYOTA YARIS 2019 Owners Manual

5818-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*3: Driver’s and passenger’s seat belt buzzer:
The driver’s and passenger’s seat belt buzzer sounds to alert the driver
and passenger that his or her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle reaches a speed of at least 20 km/h
(12 mph). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 90 more seconds.
*5
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 587
*4Low engine oil level warning light (diesel engine only)
Indicates that engine oil level is low.
 Check the level of engine oil, and add if necessary.
*4
Engine oil change reminder light (diesel engine only)
When the light flashes:
Indicates that the engine oil is scheduled to be changed.
Flashes approximately 14500 km (9000 miles) after the
engine oil is changed. ( P. 582) (The indicator will not
work properly unless the oil maintenance data has been
reset).
 Check the engine oil, and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 493)
When the light comes on:
Indicates that the engine oil should be changed.
Comes on approximately 15000 km (9300 miles) after the
engine oil is changed (and the oil maintenance data has
been reset).
 Check and change the engine oil, and oil filter by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. After changing the
engine oil, the oil change system should be reset.
( P. 493)
Warning lightWarning light/Details/Actions

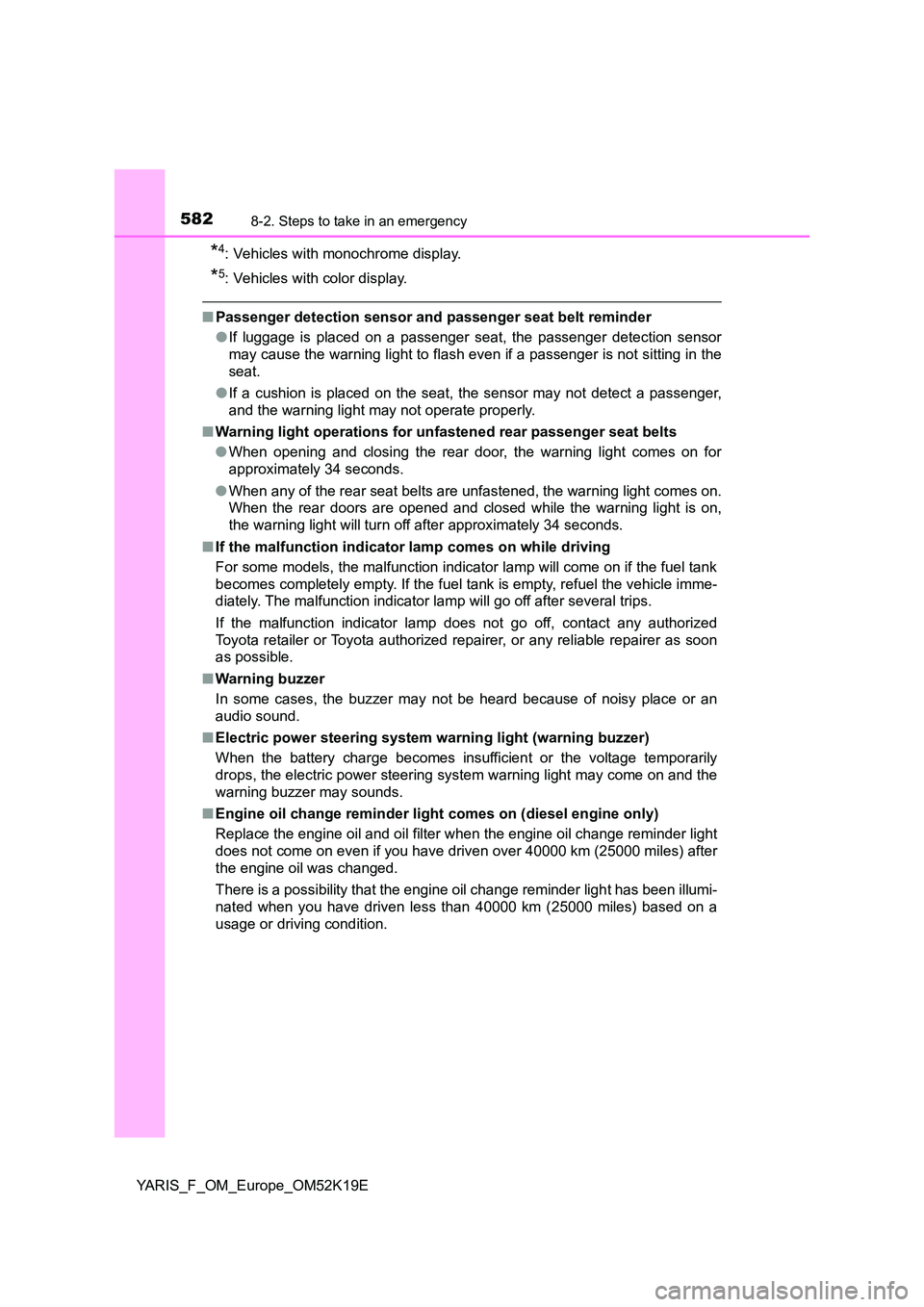

5828-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
*4: Vehicles with monochrome display.
*5: Vehicles with color display.
■Passenger detection sensor and passenger seat belt reminder
● If luggage is placed on a passenger seat, the passenger detection sensor
may cause the warning light to flash even if a passenger is not sitting in the
seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Warning light operations for unfastened rear passenger seat belts
● When opening and closing the rear door, the warning light comes on for
approximately 34 seconds.
● When any of the rear seat belts are unfastened, the warning light comes on.
When the rear doors are opened and closed while the warning light is on,
the warning light will turn off after approximately 34 seconds.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer as soon
as possible.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sounds.
■ Engine oil change reminder light comes on (diesel engine only)
Replace the engine oil and oil filter when the engine oil change reminder light
does not come on even if you have driven over 40000 km (25000 miles) after
the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 40000 km (25000 miles) based on a
usage or driving condition.

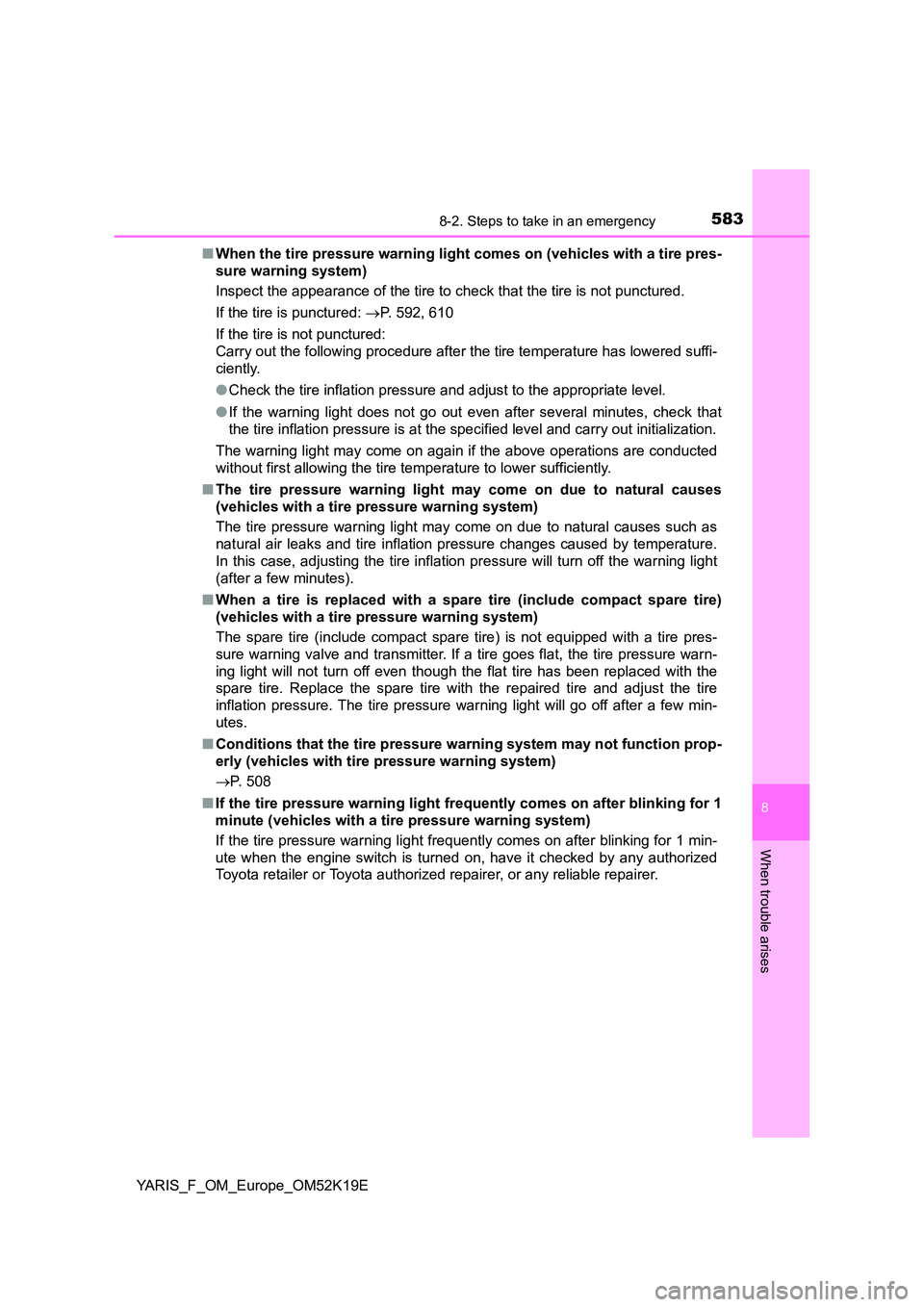

5838-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 592, 610
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (include compact spare tire)
(vehicles with a tire pressure warning system)
The spare tire (include compact spare tire) is not equipped with a tire pres-
sure warning valve and transmitter. If a tire goes flat, the tire pressure warn-
ing light will not turn off even though the flat tire has been replaced with the
spare tire. Replace the spare tire wi th the repaired tire and adjust the tire
inflation pressure. The tire pressure warning light will go off after a few min-
utes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with tire pressure warning system)
 P. 508
■ If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

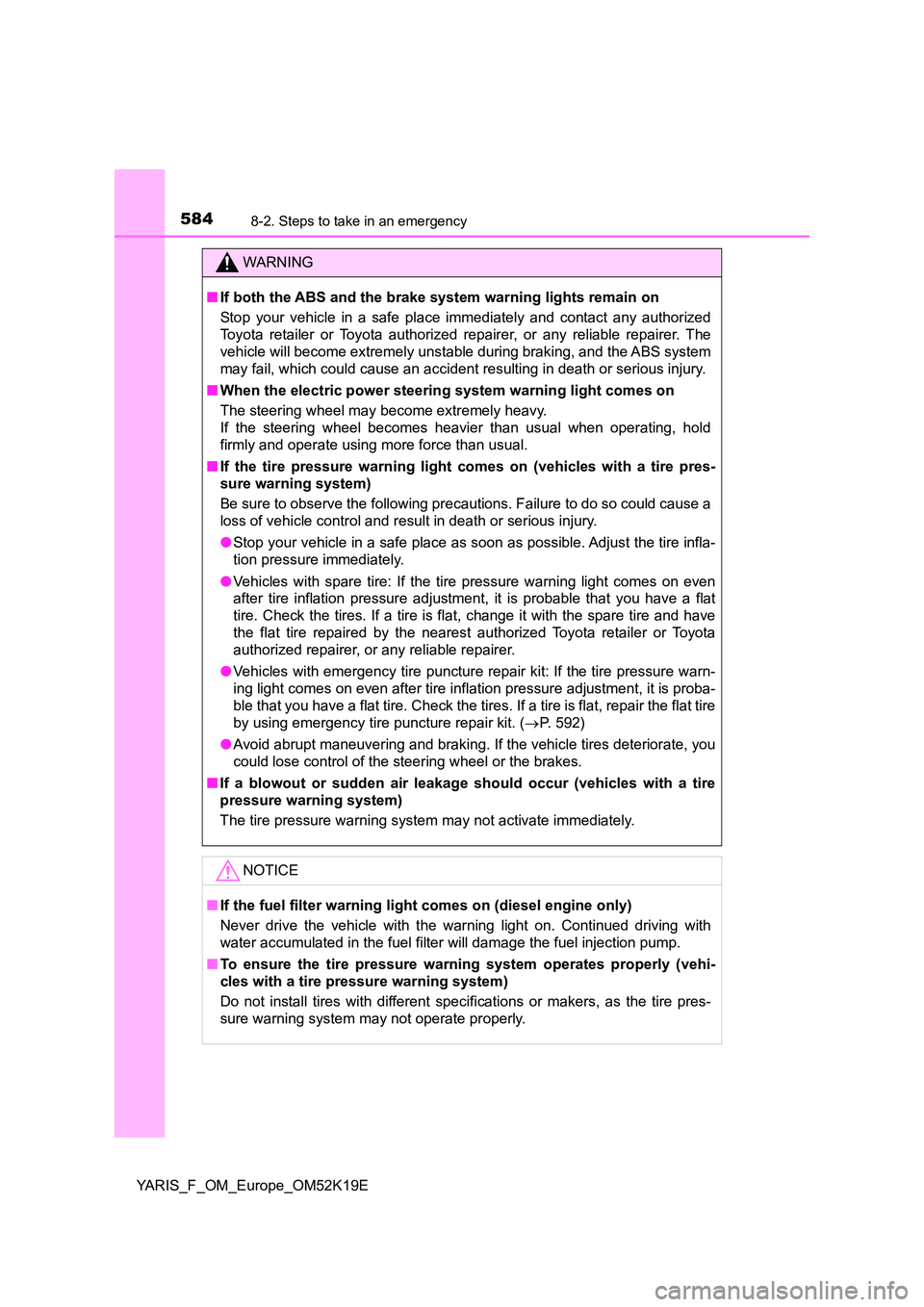

5848-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflat ion pressure adjustment, it is proba-
ble that you have a flat tire. Check the tire s. If a tire is flat, repair the flat tire
by using emergency tire puncture repair kit. ( P. 592)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ If the fuel filter warning light comes on (diesel engine only)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

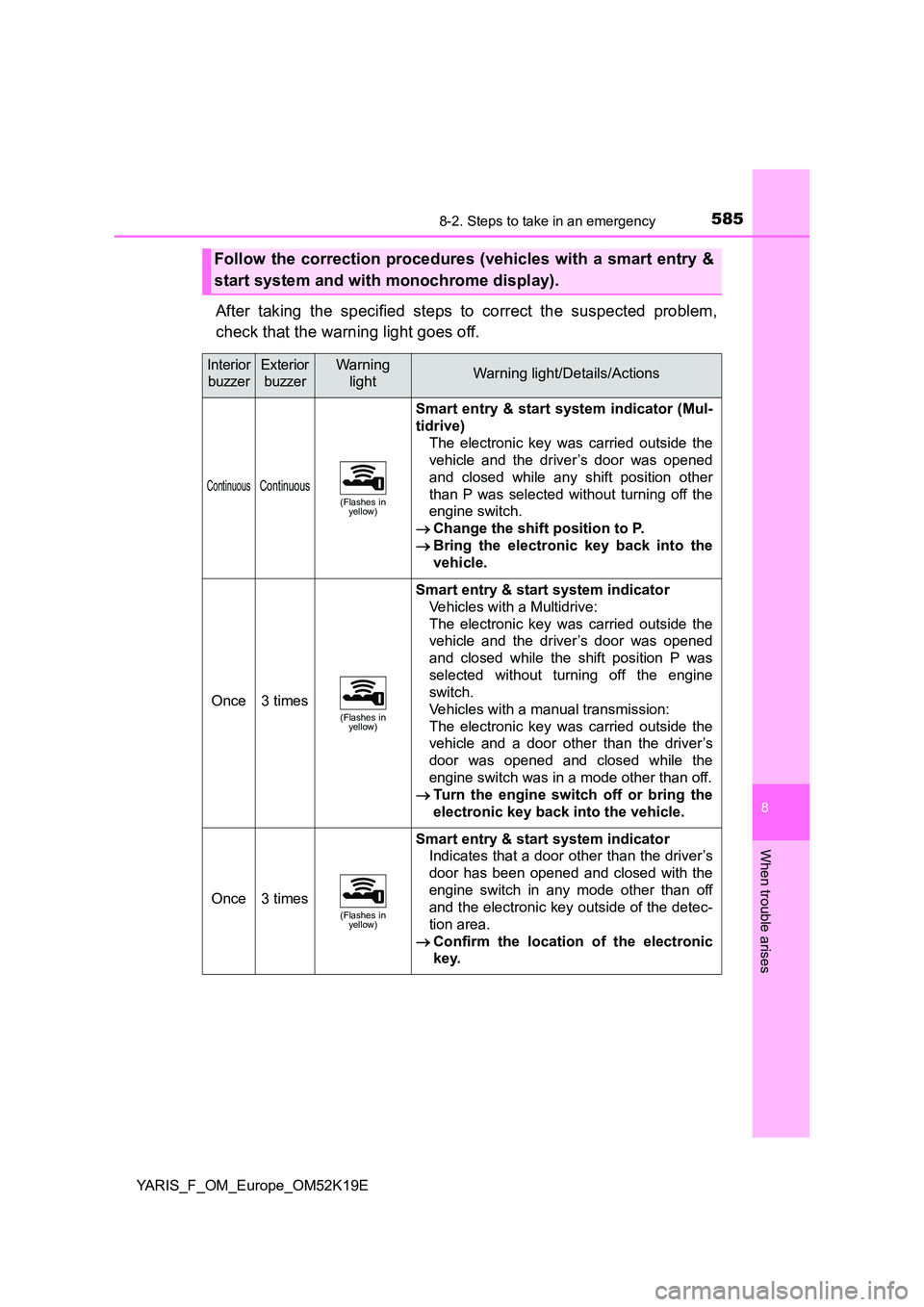

5858-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Follow the correction procedures (vehicles with a smart entry &
start system and with monochrome display).
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions
ContinuousContinuous(Flashes in yellow)
Smart entry & start system indicator (Mul-
tidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while any shift position other
than P was selected without turning off the
engine switch.
 Change the shift position to P.
 Bring the electronic key back into the
vehicle.
Once3 times(Flashes in yellow)
Smart entry & start system indicator
Vehicles with a Multidrive:
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while the shift position P was
selected without turning off the engine
switch.
Vehicles with a manual transmission:
The electronic key was carried outside the
vehicle and a door other than the driver’s
door was opened and closed while the
engine switch was in a mode other than off.
 Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times(Flashes in yellow)
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off
and the electronic key outside of the detec-
tion area.
 Confirm the location of the electronic
key.

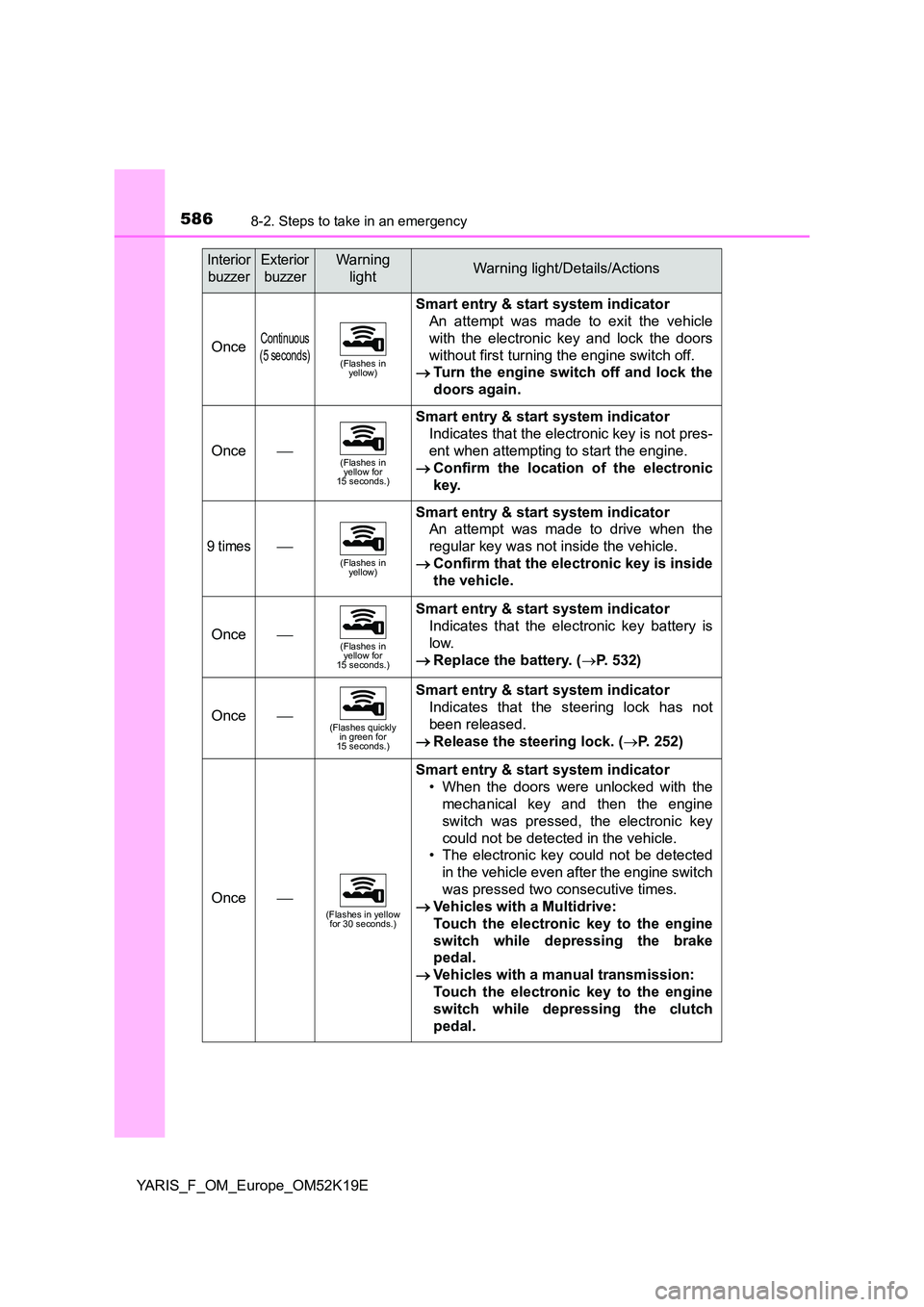

5868-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
OnceContinuous
(5 seconds)(Flashes in yellow)
Smart entry & start system indicator
An attempt was made to exit the vehicle
with the electronic key and lock the doors
without first turning the engine switch off.
 Turn the engine switch off and lock the
doors again.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator
Indicates that the electronic key is not pres-
ent when attempting to start the engine.
 Confirm the location of the electronic
key.
9 times(Flashes in yellow)
Smart entry & start system indicator
An attempt was made to drive when the
regular key was not inside the vehicle.
 Confirm that the electronic key is inside
the vehicle.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator
Indicates that the electronic key battery is
low.
 Replace the battery. (P. 532)
Once(Flashes quickly in green for 15 seconds.)
Smart entry & start system indicator
Indicates that the steering lock has not
been released.
 Release the steering lock. (P. 252)
Once(Flashes in yellow for 30 seconds.)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the engine
switch was pressed, the electronic key
could not be detected in the vehicle.
• The electronic key could not be detected
in the vehicle even after the engine switch
was pressed two consecutive times.
 Vehicles with a Multidrive:
Touch the electronic key to the engine
switch while depressing the brake
pedal.
 Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch
pedal.
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions

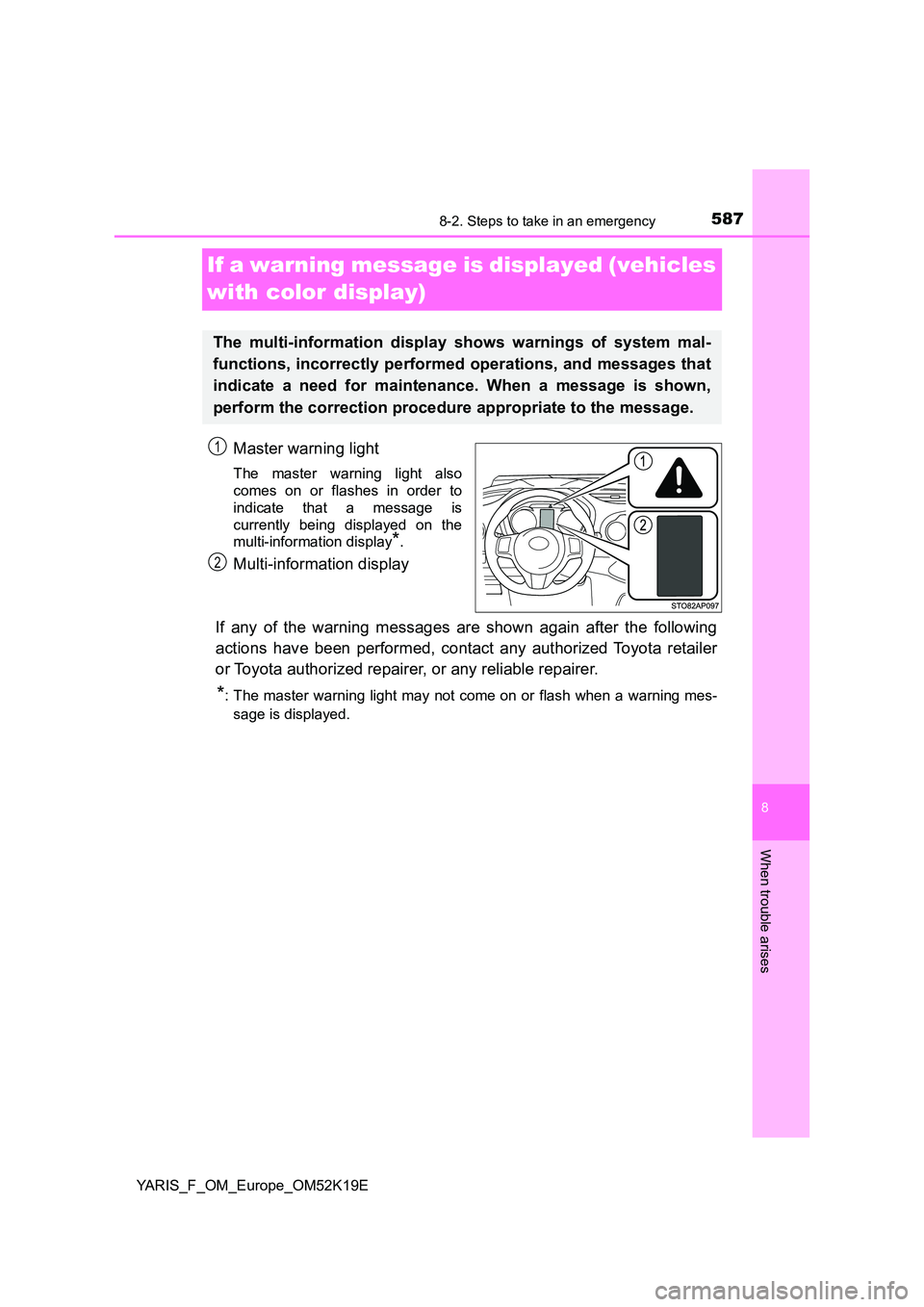

5878-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
If a warning message is displayed (vehicles
with color display)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is
currently being displayed on the
multi-information display*.
Multi-information display
If any of the warning messages are shown again after the following
actions have been performed, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2

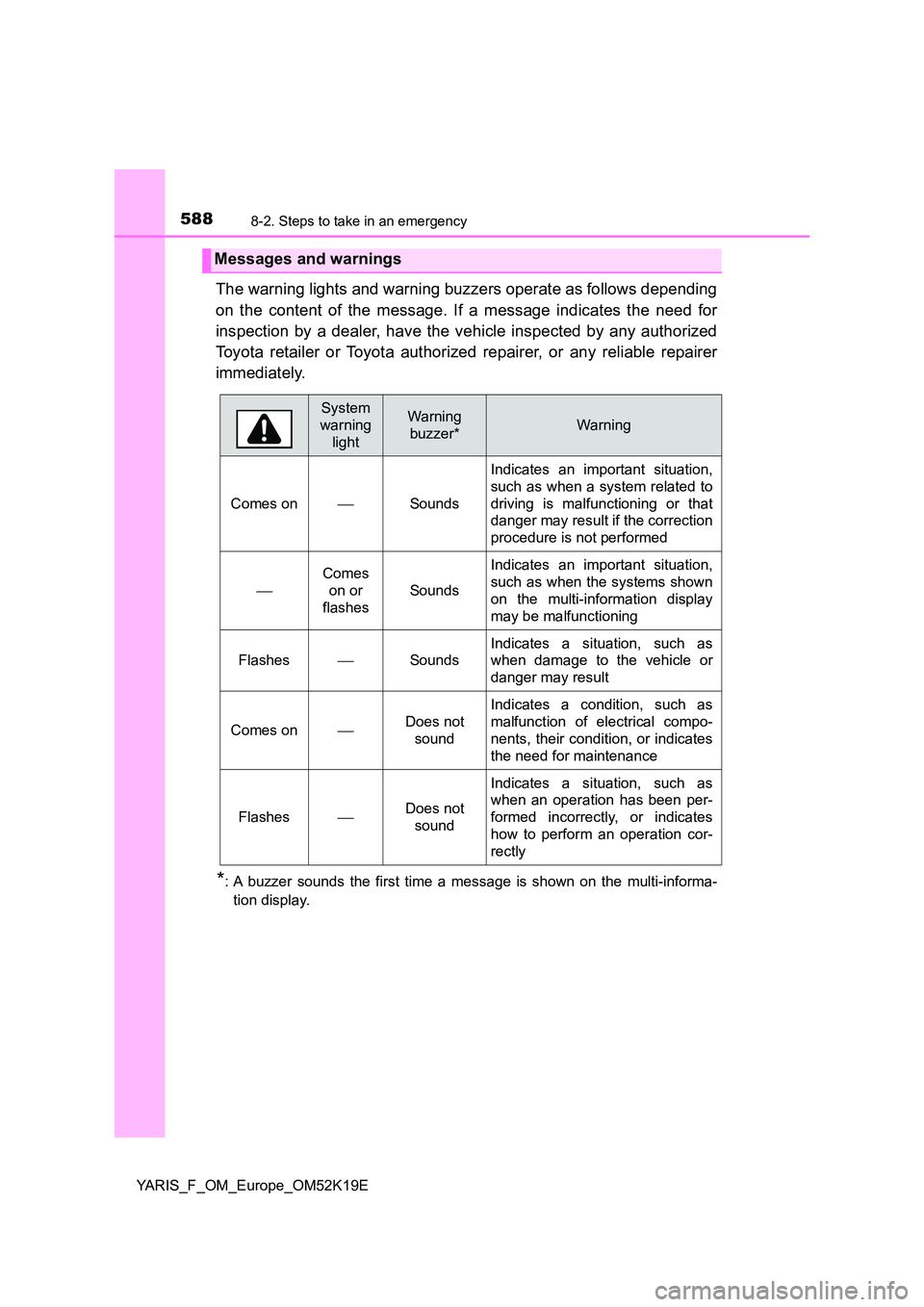

5888-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes on Sounds
Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed

Comes
on or
flashes
Sounds
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes onDoes not
sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
FlashesDoes not
sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly

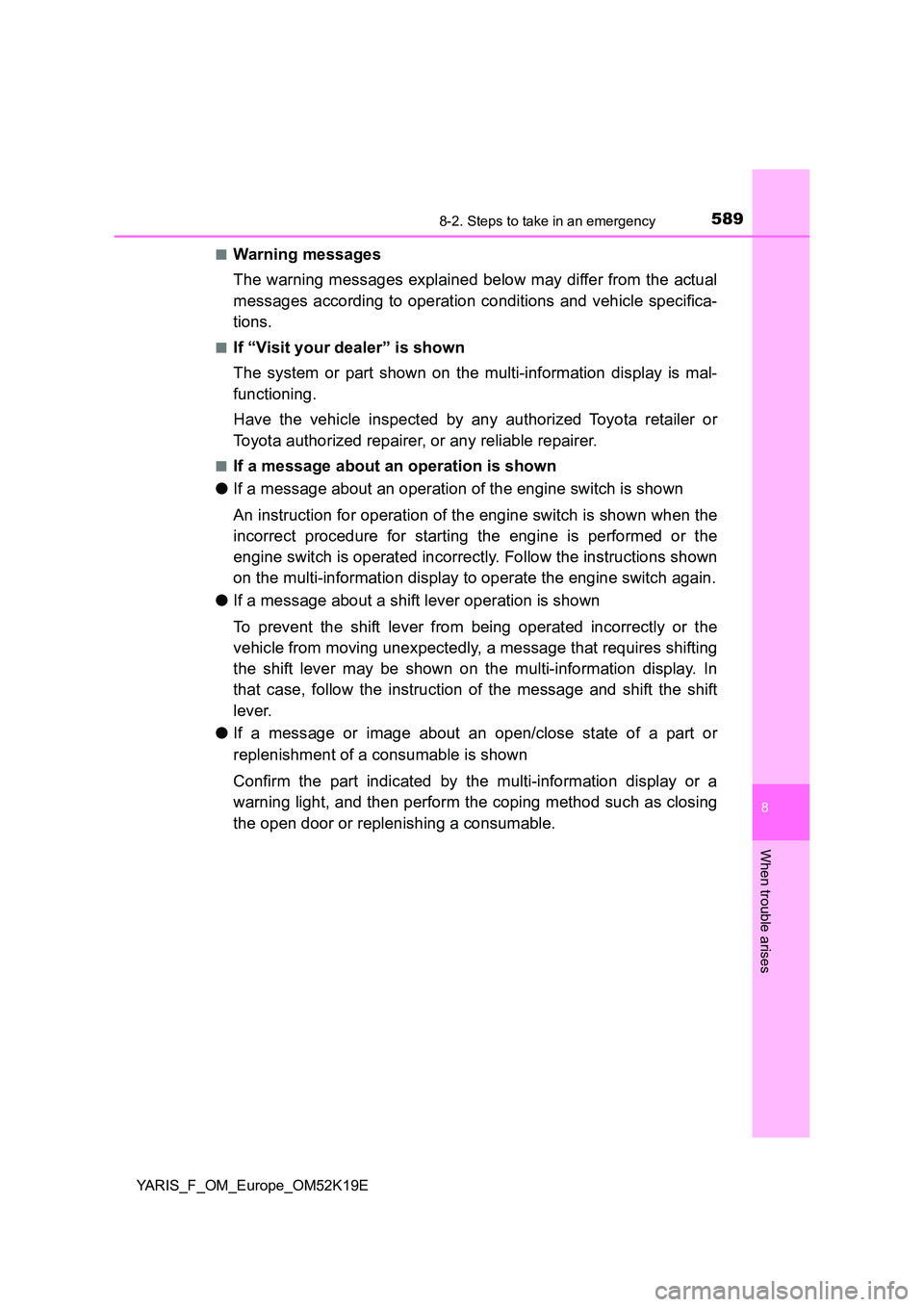

5898-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
■Warning messages
The warning messages explained below may differ from the actual
messages according to operation conditions and vehicle specifica-
tions.
■If “Visit your dealer” is shown
The system or part shown on the multi-information display is mal-
functioning.
Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■If a message about an operation is shown
● If a message about an operation of the engine switch is shown
An instruction for operation of the engine switch is shown when the
incorrect procedure for starting the engine is performed or the
engine switch is operated incorrectly. Follow the instructions shown
on the multi-information display to operate the engine switch again.
● If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the
vehicle from moving unexpectedly, a message that requires shifting
the shift lever may be shown on the multi-information display. In
that case, follow the instruction of the message and shift the shift
lever.
● If a message or image about an open/close state of a part or
replenishment of a consumable is shown
Confirm the part indicated by the multi-information display or a
warning light, and then perform the coping method such as closing
the open door or replenishing a consumable.

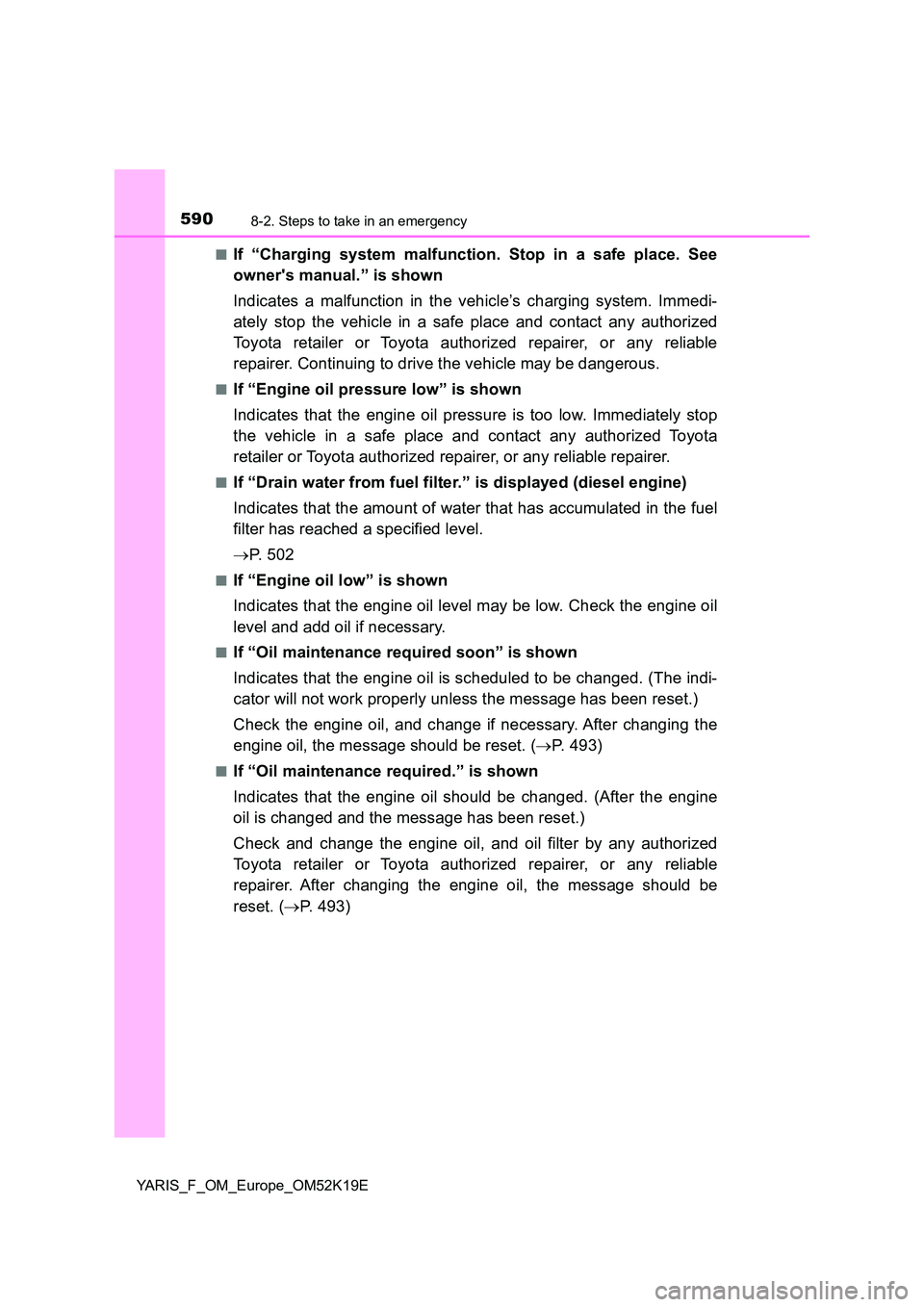

5908-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
■If “Charging system malfunction. Stop in a safe place. See
owner's manual.” is shown
Indicates a malfunction in the vehicle’s charging system. Immedi-
ately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.
■If “Engine oil pressure low” is shown
Indicates that the engine oil pressure is too low. Immediately stop
the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■If “Drain water from fuel filter.” is displayed (diesel engine)
Indicates that the amount of water that has accumulated in the fuel
filter has reached a specified level.
 P. 5 0 2
■If “Engine oil low” is shown
Indicates that the engine oil level may be low. Check the engine oil
level and add oil if necessary.
■If “Oil maintenance required soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indi-
cator will not work properly unless the message has been reset.)
Check the engine oil, and change if necessary. After changing the
engine oil, the message should be reset. ( P. 493)
■If “Oil maintenance required.” is shown
Indicates that the engine oil should be changed. (After the engine
oil is changed and the message has been reset.)
Check and change the engine oil, and oil filter by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. After changing the engine oil, the message should be
reset. ( P. 493)
