5517-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

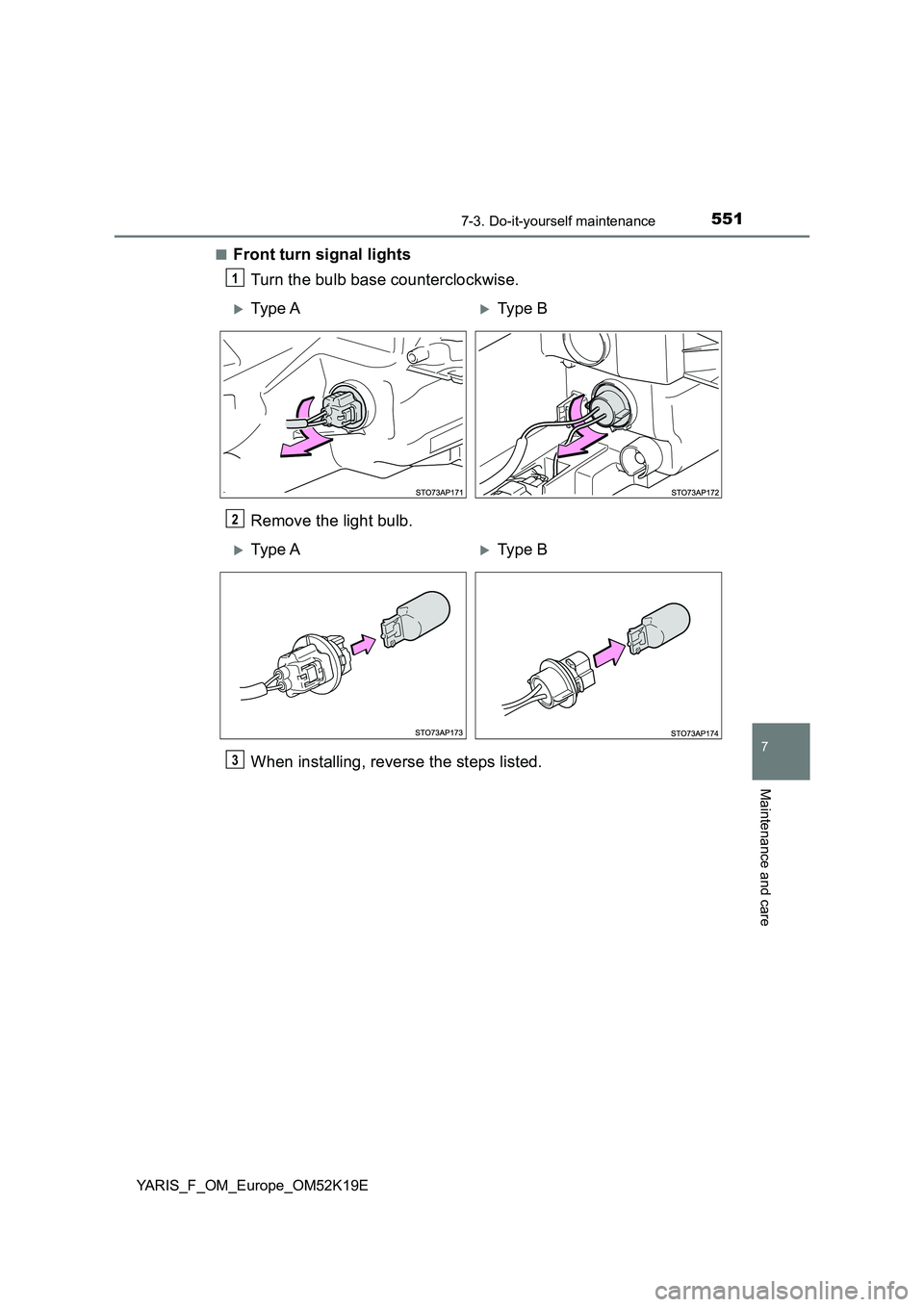

■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
Type AType B
2
Type AType B
3
Page 552 of 700
5527-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

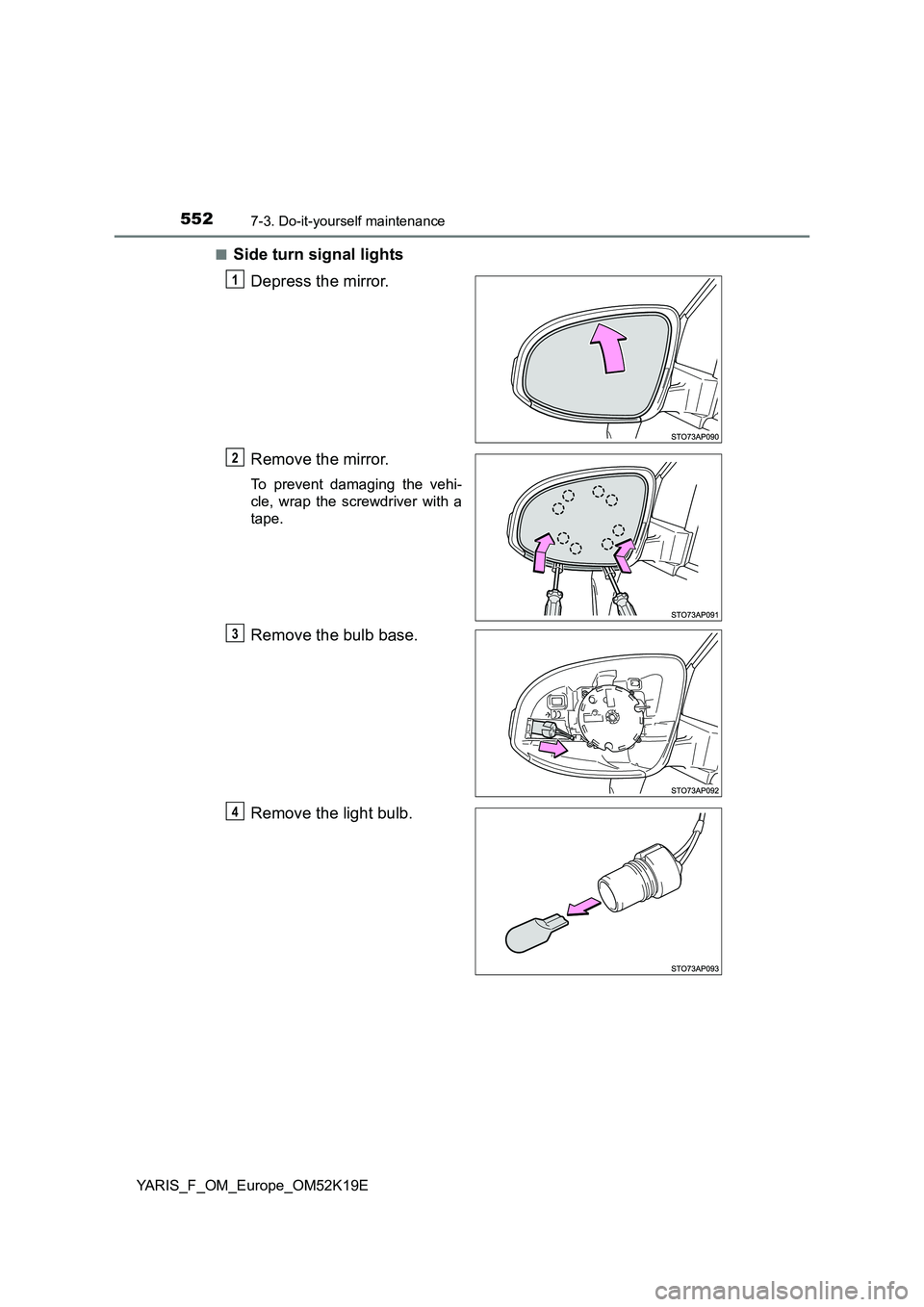

■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
1
2
3
4
Page 553 of 700
5537-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

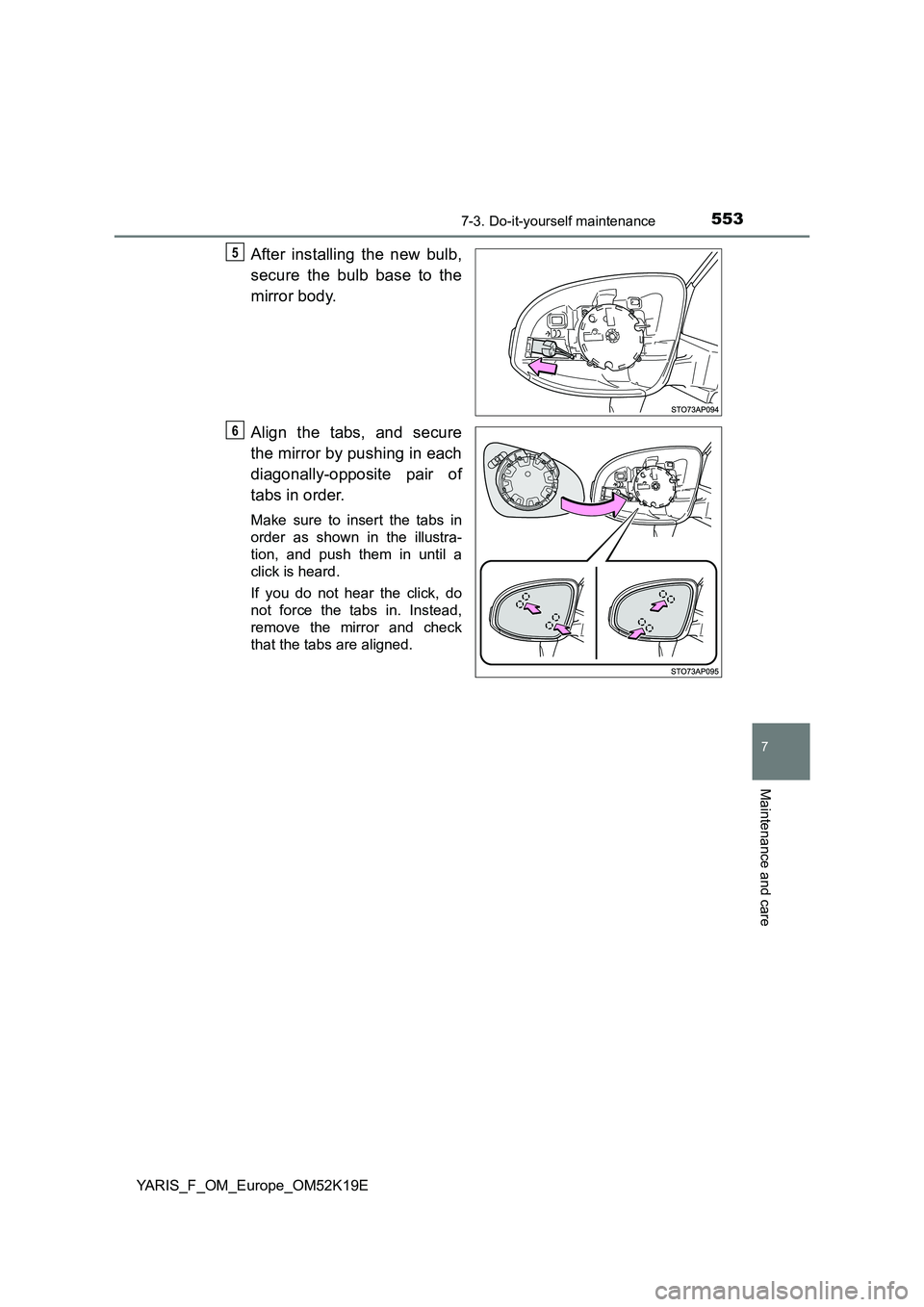

After installing the new bulb,
secure the bulb base to the
mirror body.
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
5
6
Page 554 of 700
5547-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

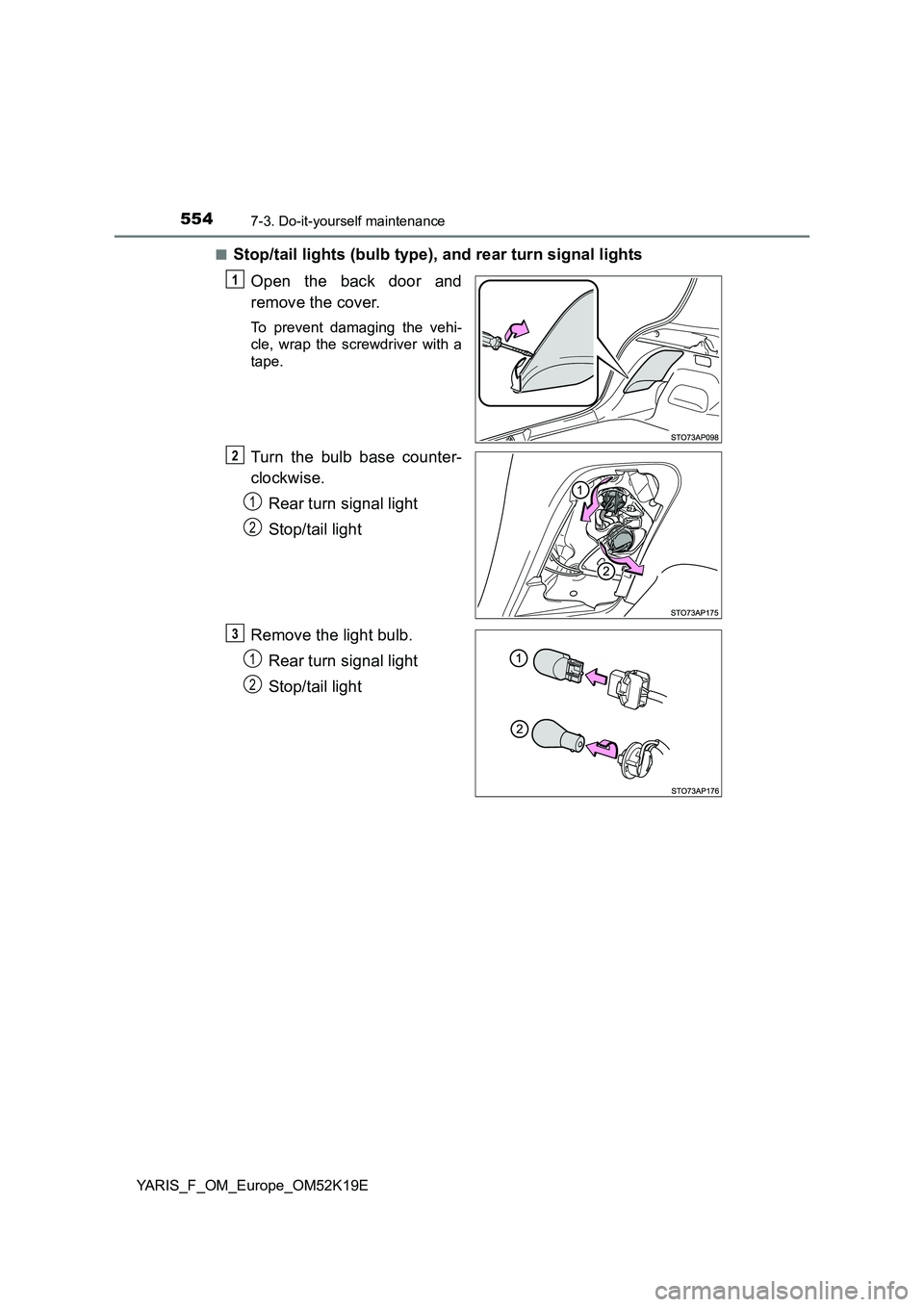

■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
1
2
1
2
3
1
2
Page 555 of 700
5557-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

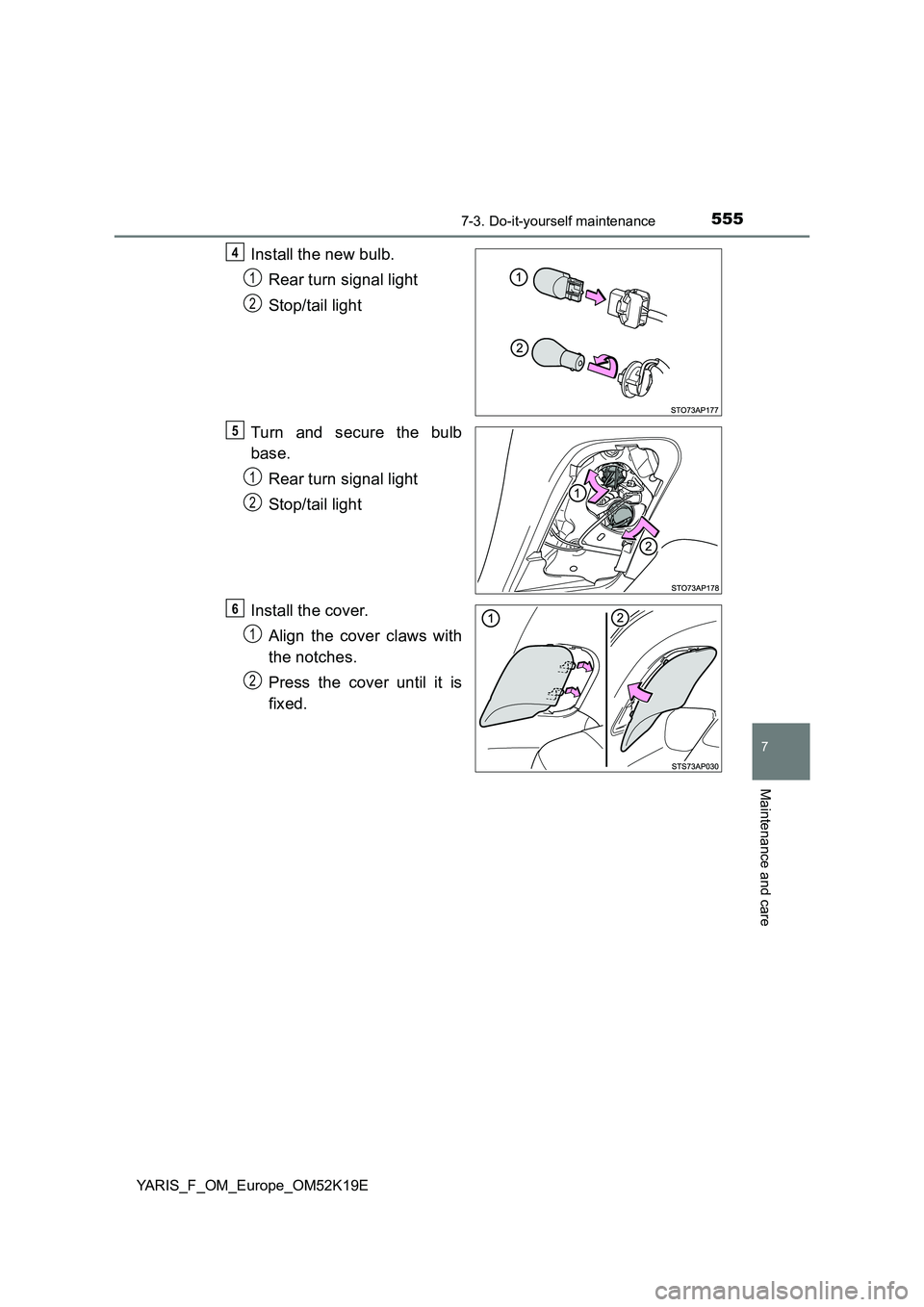

Install the new bulb.
Rear turn signal light
Stop/tail light
Turn and secure the bulb
base.
Rear turn signal light
Stop/tail light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
4
1
2
5
1
2
6
1
2
Page 556 of 700
5567-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

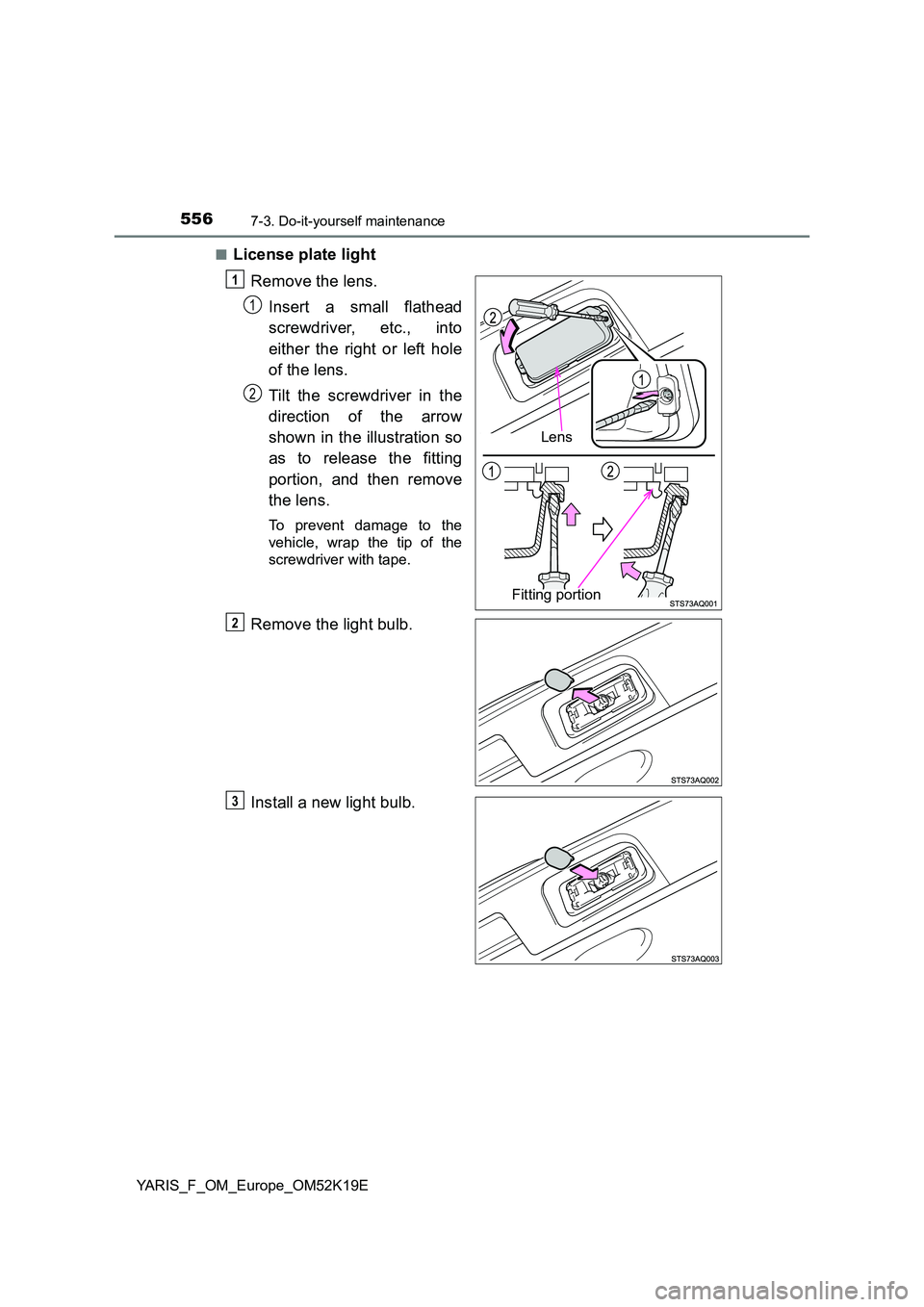

■License plate light
Remove the lens.
Insert a small flathead
screwdriver, etc., into
either the right or left hole
of the lens.
Tilt the screwdriver in the
direction of the arrow
shown in the illustration so
as to release the fitting
portion, and then remove
the lens.
To prevent damage to the
vehicle, wrap the tip of the
screwdriver with tape.
Remove the light bulb.
Install a new light bulb.
Lens
Fitting portion
1
1
2
2
3
Page 557 of 700
5577-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

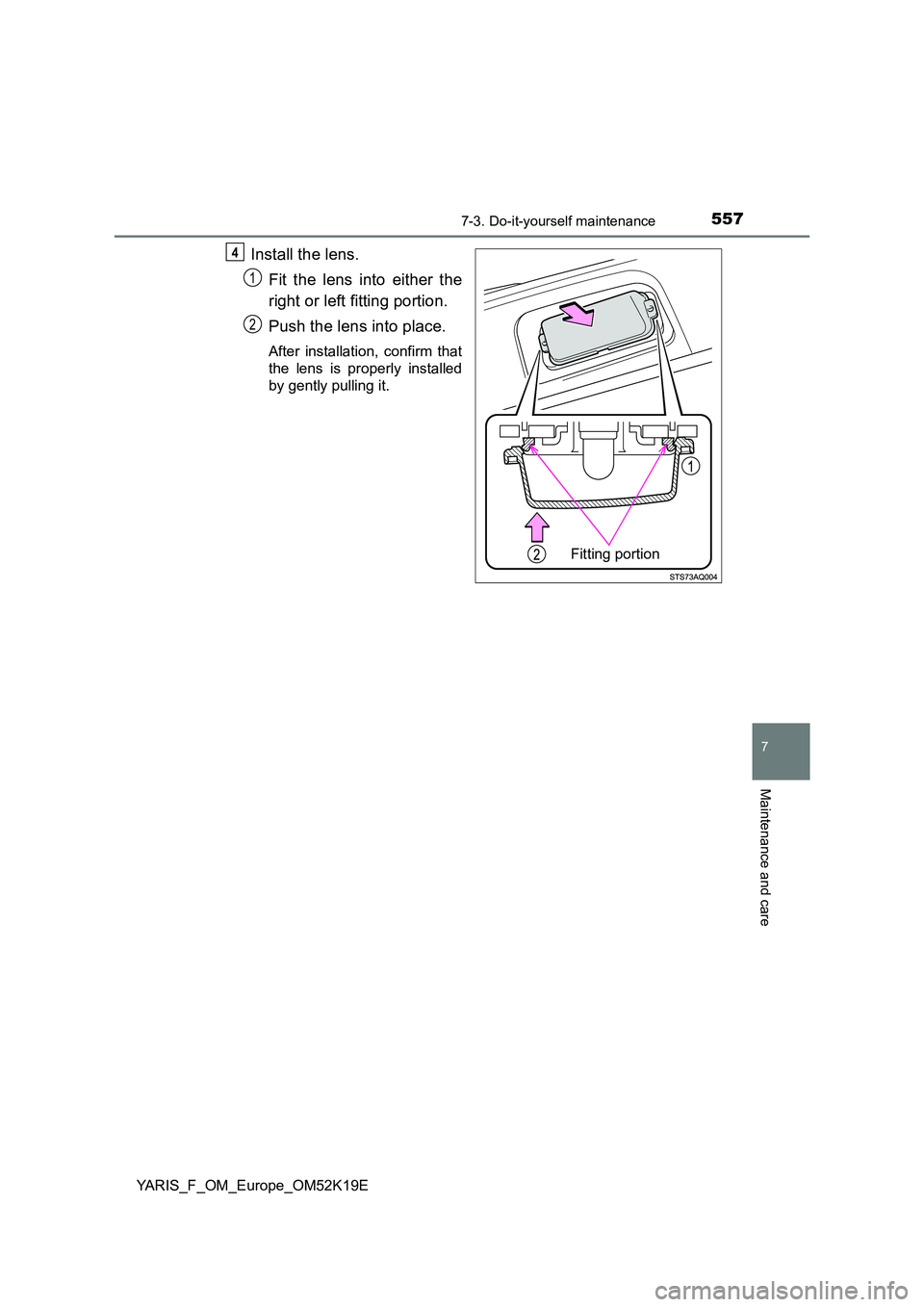

Install the lens.
Fit the lens into either the
right or left fitting portion.
Push the lens into place.
After installation, confirm that
the lens is properly installed
by gently pulling it.
Fitting portion
4
1
2
Page 558 of 700
5587-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

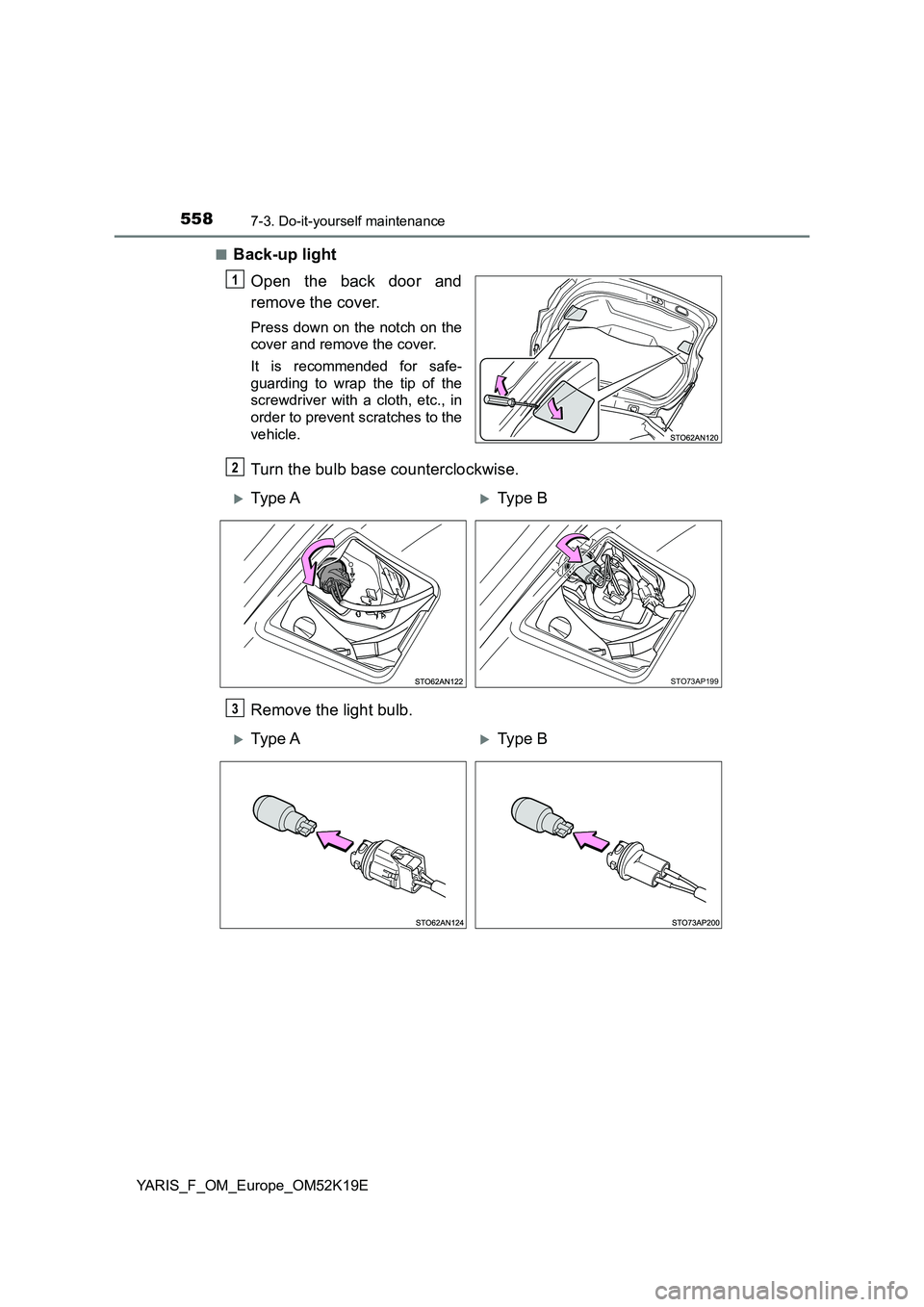

■Back-up light
Open the back door and
remove the cover.
Press down on the notch on the
cover and remove the cover.
It is recommended for safe-
guarding to wrap the tip of the
screwdriver with a cloth, etc., in
order to prevent scratches to the
vehicle.
Turn the bulb base counterclockwise.
Remove the light bulb.
1
2
Type AType B
STO73AP199
3
Type AType B
Page 559 of 700
5597-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

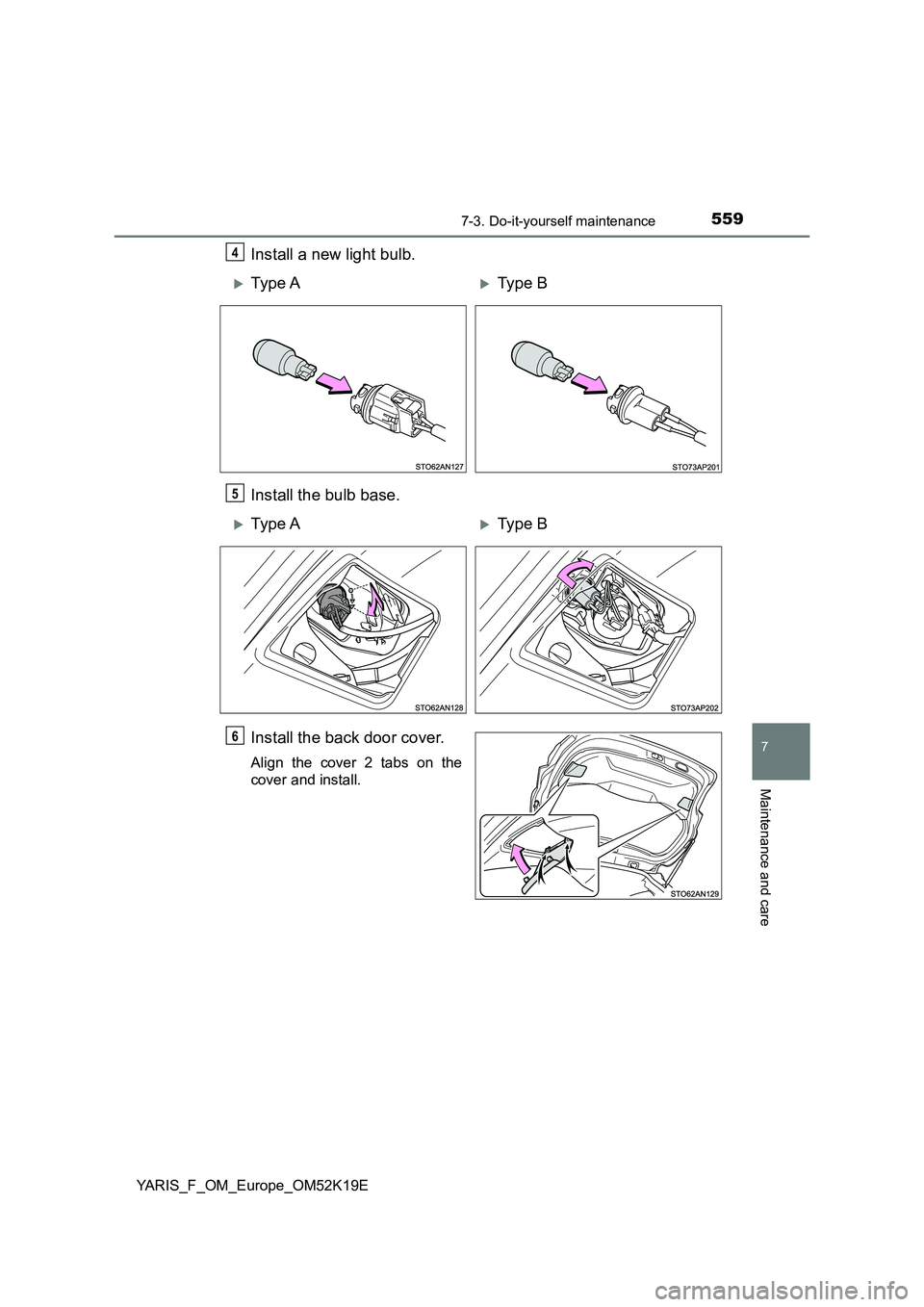

Install a new light bulb.
Install the bulb base.
Install the back door cover.
Align the cover 2 tabs on the
cover and install.
4
Type AType B
5
Type AType B
6
Page 560 of 700

5607-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

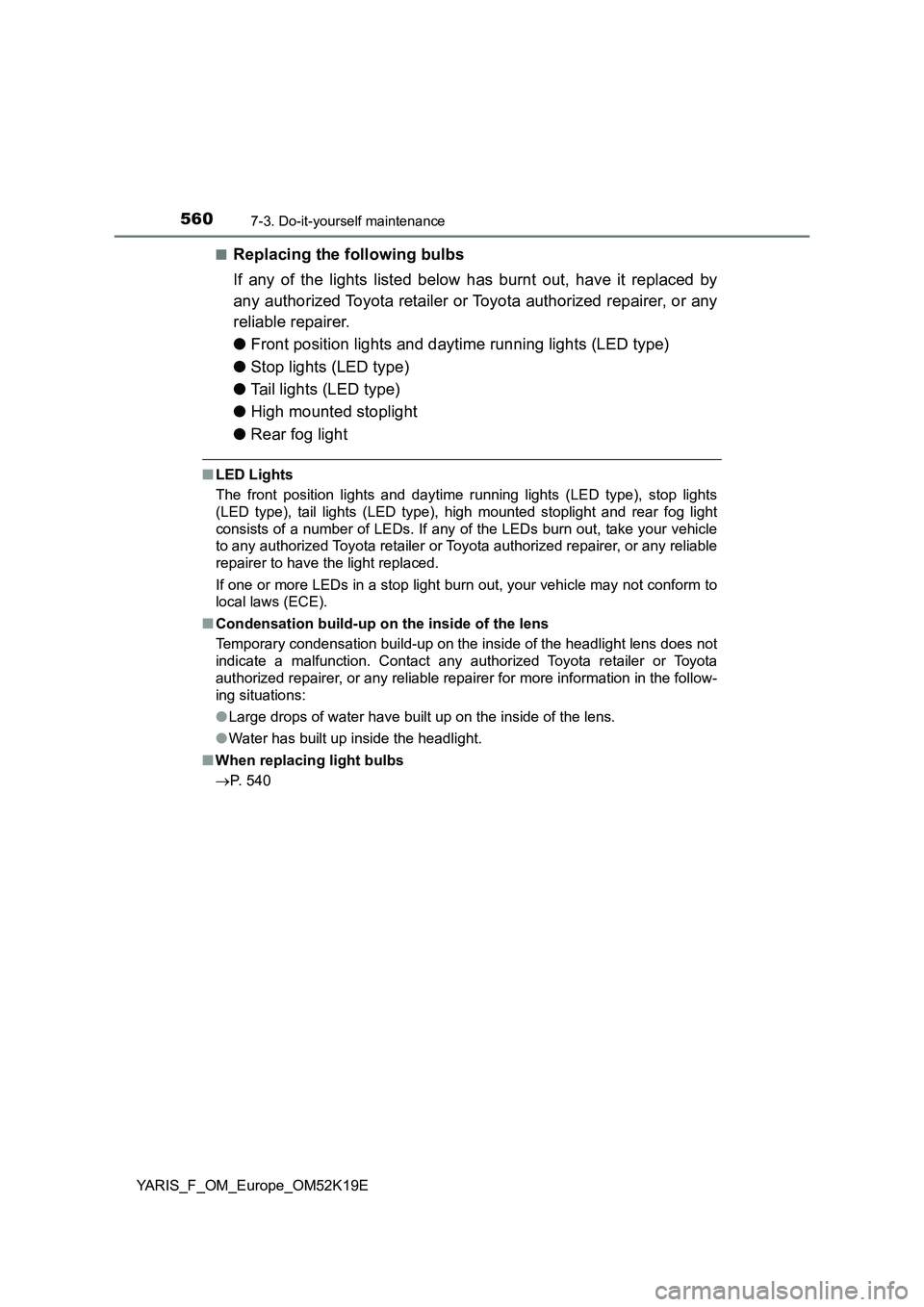

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Front position lights and daytime running lights (LED type)
● Stop lights (LED type)
● Tail lights (LED type)
● High mounted stoplight
● Rear fog light
■LED Lights
The front position lights and daytime running lights (LED type), stop lights
(LED type), tail lights (LED type), high mounted stoplight and rear fog light
consists of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer to have the light replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 540
