Page 15 of 698
13
Owners Manual_Europe_M52N75_en
Pictorial index
Precautions for car wash (vehicles with rain-sensing windshield wipers)
............................................................... ..........................................P.369
Fuel filler door ............................................... .................................P.224
Refueling method ............................................... ..............................P.225
Fuel type/fuel tank capacity ................................... ..........................P.486
Tires .......................................................... ......................................P.390
Tire size/inflation pressure ................................... ............................P.490
Winter tires/tire chains ....................................... ..............................P.337
Checking/rotation/tire pressure warning system ................. .............P.390
Coping with flat tires......................................... ........................P.448, 459
Hood ........................................................... .....................................P.380
Opening ........................................................ ...................................P.380
Engine oil ..................................................... ....................................P.486
Coping with overheating ........................................ ..........................P.477
Headlights/front position lights ............................... .............P.200, 206
Turn signal lights/daytime running lights ...................... ......P.200, 206
Front fog lights*2............................................................... .............P.218
Tail lights/turn signal lights ................................. .................P.200, 206
Stop lights
Tail lights*2 /turn signal lights*2............................................P.200, 206
Rear fog light*2............................................................... ................P.218
Back-up light*2
Shifting the shift position to R ............................... ...........................P.197
Side turn signal lights ........................................ ...........................P.200
License plate lights........................................... .............................P.206
*1: Vehicles with a smart entry & start system
Light bulbs of the exterior lights for driving
(Replacing method: P.417, Watts: P.492)
Page 419 of 698
417
6
Owners Manual_Europe_M52N75_en
6-3. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. ( P.492)
Front
Headlights (bulb type)
Front turn signal lights (bulb
type)
NOTICE
■When installing the fuse box cover (Engine compartment: type
A and type B fuse boxes)
Press the fuse box cover, when installing, after aligning all of the claw
positions. Otherwise, the claws may be damaged.
Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Bulb locations
Page 420 of 698
418
Owners Manual_Europe_M52N75_en
6-3. Do-it-yourself maintenance

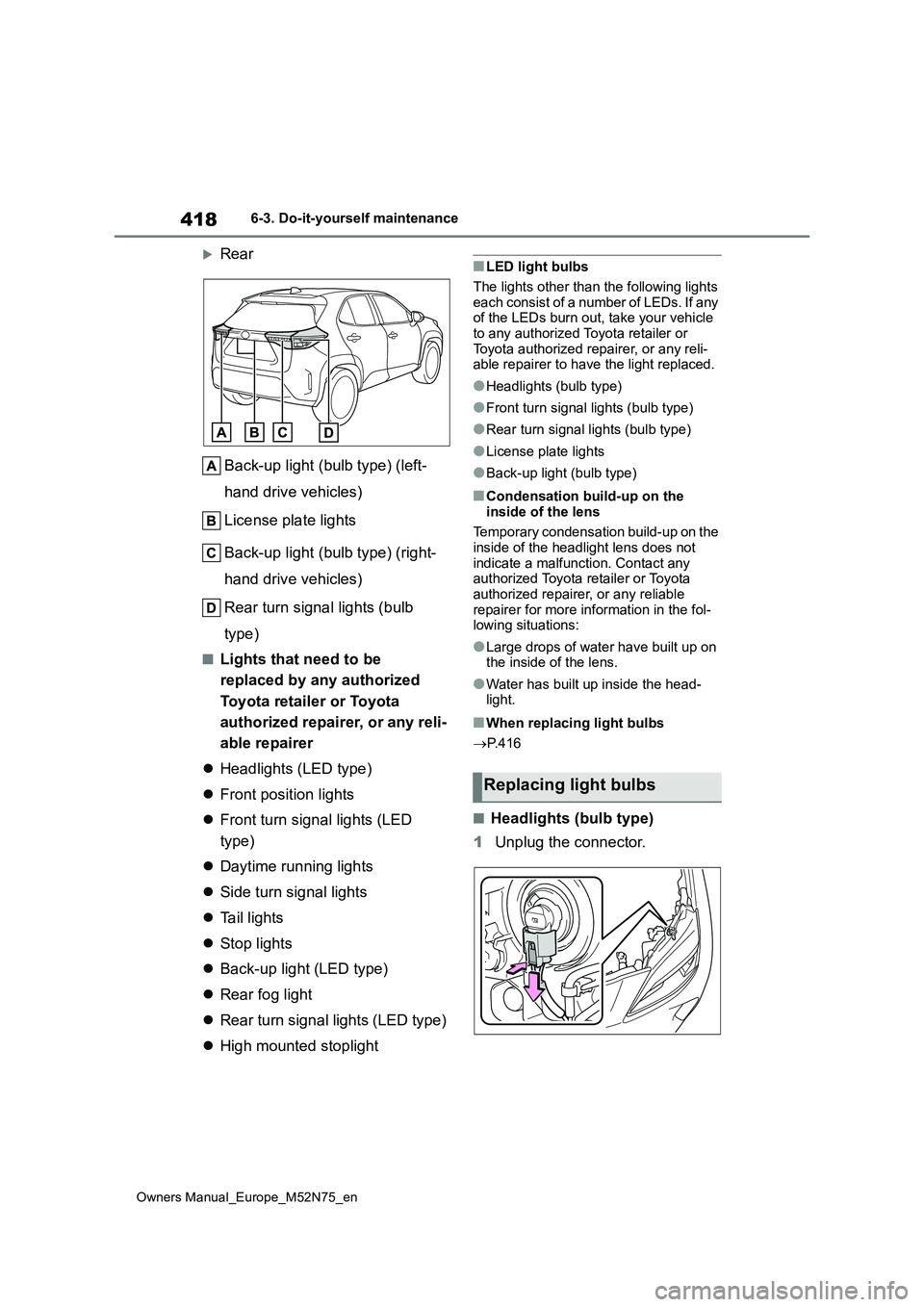

Rear
Back-up light (bulb type) (left-
hand drive vehicles)
License plate lights
Back-up light (bulb type) (right-
hand drive vehicles)
Rear turn signal lights (bulb
type)
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer
Headlights (LED type)
Front position lights
Front turn signal lights (LED
type)
Daytime running lights
Side turn signal lights
Tail lights
Stop lights
Back-up light (LED type)
Rear fog light
Rear turn signal lights (LED type)
High mounted stoplight
■LED light bulbs
The lights other than the following lights
each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer to have the light replaced.
●Headlights (bulb type)
●Front turn signal lights (bulb type)
●Rear turn signal lights (bulb type)
●License plate lights
●Back-up light (bulb type)
■Condensation build-up on the
inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for more information in the fol- lowing situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the head-light.
■When replacing light bulbs
P. 4 1 6
■Headlights (bulb type)
1 Unplug the connector.
Replacing light bulbs
Page 421 of 698
419
6
Owners Manual_Europe_M52N75_en
6-3. Do-it-yourself maintenance
Maintenance and care

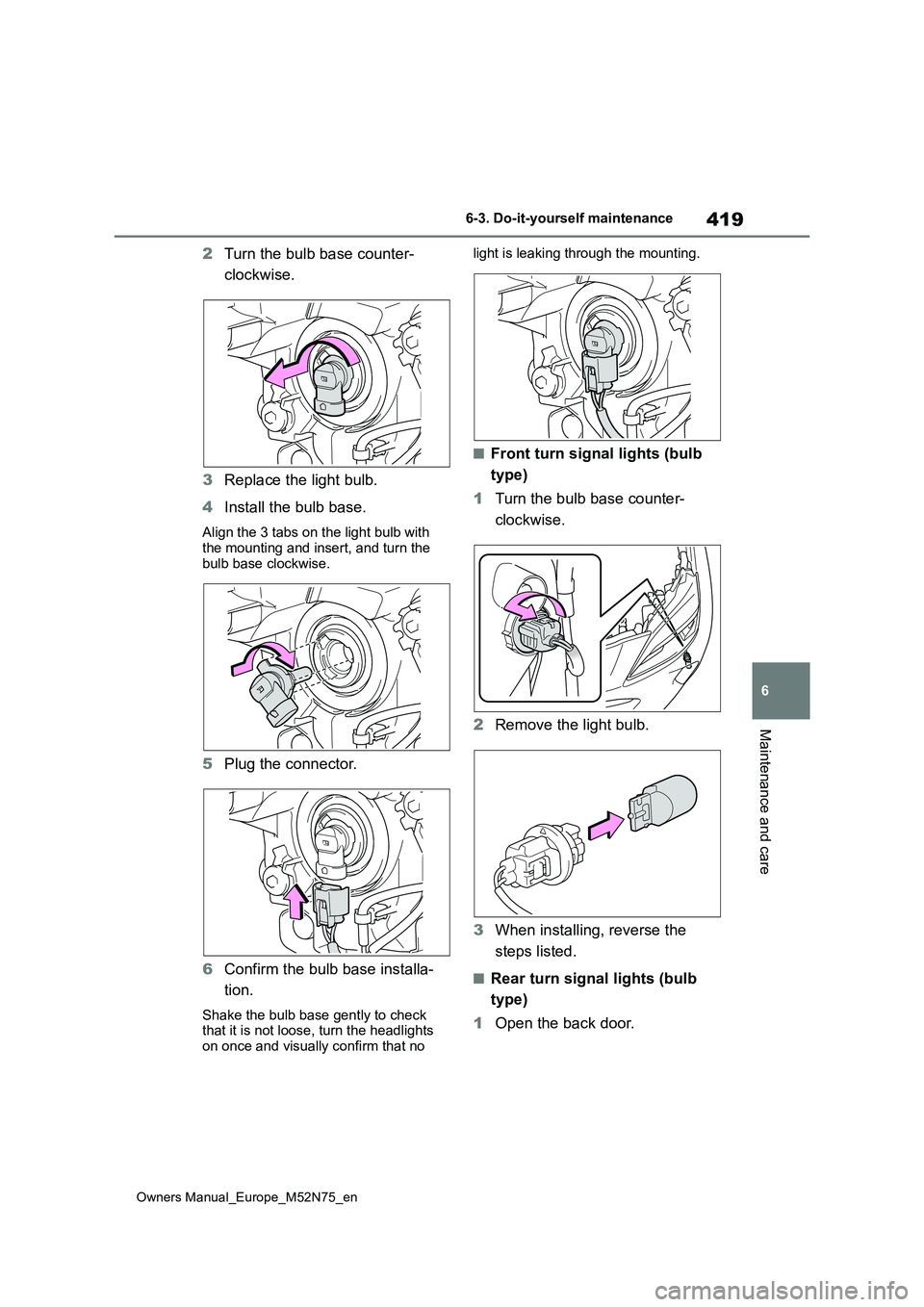

2Turn the bulb base counter-
clockwise.
3 Replace the light bulb.
4 Install the bulb base.
Align the 3 tabs on the light bulb with the mounting and insert, and turn the
bulb base clockwise.
5 Plug the connector.
6 Confirm the bulb base installa-
tion.
Shake the bulb base gently to check that it is not loose, turn the headlights
on once and visually confirm that no
light is leaking through the mounting.
■Front turn signal lights (bulb
type)
1 Turn the bulb base counter-
clockwise.
2 Remove the light bulb.
3 When installing, reverse the
steps listed.
■Rear turn signal lights (bulb
type)
1 Open the back door.
Page 494 of 698
492
Owners Manual_Europe_M52N75_en

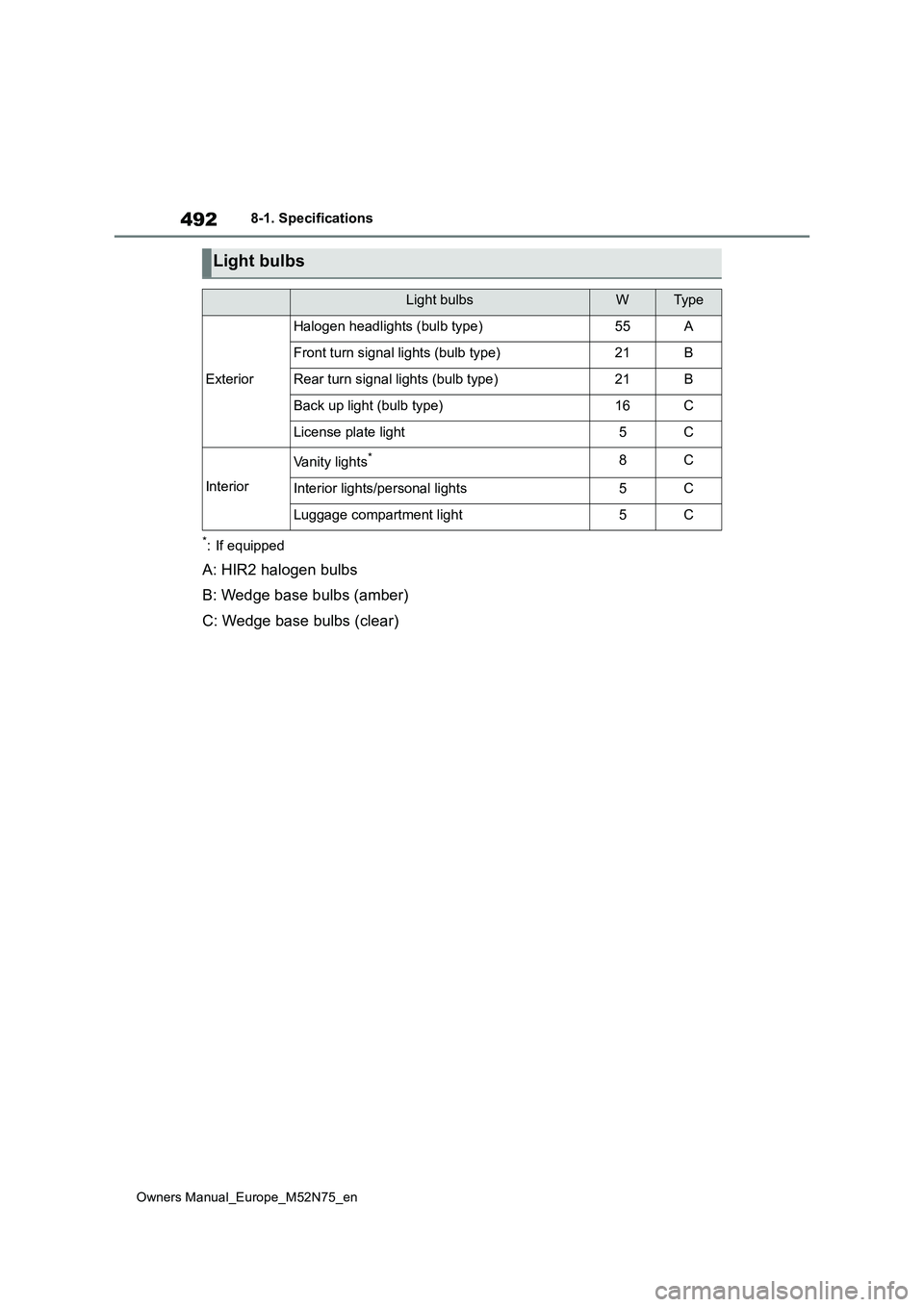

8-1. Specifications
*: If equipped
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
Light bulbs
Light bulbsWTyp e
Exterior
Halogen headlights (bulb type)55A
Front turn signal lights (bulb type)21B
Rear turn signal lights (bulb type)21B
Back up light (bulb type)16C
License plate light5C
Interior
Vanity lights*8C
Interior lights/personal lights5C
Luggage compartment light5C
Page 513 of 698
511
Owners Manual_Europe_M52N75_en

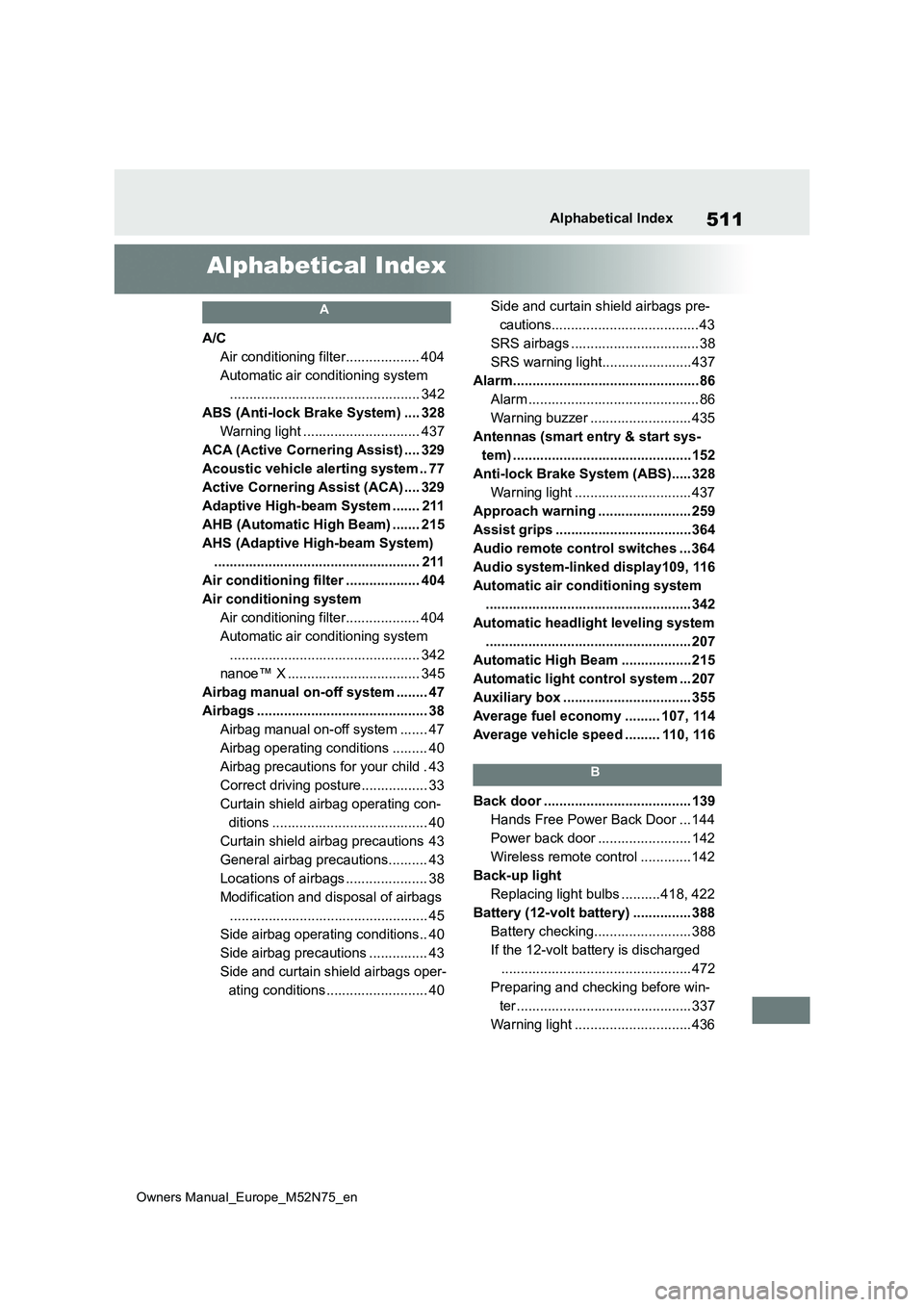

Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 404
Automatic air conditioning system
................................................. 342
ABS (Anti-lock Brake System) .... 328
Warning light .............................. 437
ACA (Active Cornering Assist) .... 329
Acoustic vehicle alerting system .. 77
Active Cornering Assist (ACA) .... 329
Adaptive High-beam System ....... 211
AHB (Automatic High Beam) ....... 215
AHS (Adaptive High-beam System)
..................................................... 211
Air conditioning filter ................... 404
Air conditioning system
Air conditioning filter................... 404
Automatic air conditioning system
................................................. 342
nanoe™ X .................................. 345
Airbag manual on-off system ........ 47
Airbags ............................................ 38
Airbag manual on-off system ....... 47
Airbag operating conditions ......... 40
Airbag precautions for your child . 43
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 40
Curtain shield airbag precautions 43
General airbag precautions.......... 43
Locations of airbags ..................... 38
Modification and disposal of airbags
................................................... 45
Side airbag operating conditions.. 40
Side airbag precautions ............... 43
Side and curtain shield airbags oper-
ating conditions.......................... 40
Side and curtain shield airbags pre-
cautions...................................... 43
SRS airbags ................................. 38
SRS warning light.......................437
Alarm................................................86
Alarm ............................................ 86
Warning buzzer .......................... 435
Antennas (smart entry & start sys-
tem) ..............................................152
Anti-lock Brake System (ABS)..... 328
Warning light .............................. 437
Approach warning ........................ 259
Assist grips ...................................364
Audio remote control switches ... 364
Audio system-linked display109, 116
Automatic air conditioning system
..................................................... 342
Automatic headlight leveling system
..................................................... 207
Automatic High Beam ..................215
Automatic light control system ... 207
Auxiliary box ................................. 355
Average fuel economy ......... 107, 114
Average vehicle speed ......... 110, 116
B
Back door ...................................... 139
Hands Free Power Back Door ... 144
Power back door ........................ 142
Wireless remote control ............. 142
Back-up light
Replacing light bulbs ..........418, 422
Battery (12-volt battery) ............... 388
Battery checking......................... 388
If the 12-volt battery is discharged
................................................. 472
Preparing and checking before win-
ter ............................................. 337
Warning light .............................. 436
Page 517 of 698
515
Owners Manual_Europe_M52N75_en
Alphabetical Index
Front fog lights
Switch ........................................ 218
Wattage ...................................... 492
Front position lights
Replacing light bulbs .................. 418
Wattage ...................................... 492
Front seat center airbags............... 38
Front seats .................................... 157
Adjustment ................................. 157
Cleaning ..................................... 371
Correct driving posture................. 33
Head restraints........................... 160
Seat heaters............................... 348
Front turn signal lights ................ 200
Replacing light bulbs .......... 418, 419
Turn signal lever ........................ 200
Wattage ...................................... 492
Fuel ................................................ 224
Capacity ..................................... 486
Fuel gauge ........................... 95, 100
Information ................................. 493
Refueling .................................... 224
Type ........................................... 486
Warning light .............................. 438
Fuel consumption
Average fuel economy ....... 107, 114
Current fuel consumption ... 107, 114
Fuel economy ....................... 107, 114
Fuel filler door .............................. 224
Refueling .................................... 224
Fuel gauge .............................. 95, 100
Fuses ............................................. 413
G
Gauges .................................... 95, 100
Glove box ...................................... 353
GPF (Gasoline Particulate Filter)
system ......................................... 327
H
Hands Free Power Back Door ..... 144
Head restraints.............................. 160
Head-up display ............................ 119
Driving information display area . 119
Driving support system display area
................................................. 121
Hybrid System Indicator ............. 122
Navigation system-linked display
area .......................................... 121
Pop-up display ........................... 121
Settings ...................................... 120
Headlights
Adaptive High-beam System...... 211
Automatic High Beam system .... 215
Extended headlight lighting function
................................................. 208
Light switch ................................ 206
Replacing light bulbs ..................418
Wattage ...................................... 492
Heated steering wheel ..................348
Heaters
Automatic air conditioning system
................................................. 342
Heated steering wheel ............... 348
Outside rear view mirrors ........... 344
Seat heaters ............................... 348
High mounted stoplight
Replacing light bulbs ..................418
High-voltage components..............79
Hill-start assist control ................. 329
Hood............................................... 380
Open .......................................... 380
Hooks
Coat hooks ................................. 365
Retaining hooks (floor mat) .......... 32
Horn ............................................... 164
Page 519 of 698
517
Owners Manual_Europe_M52N75_en

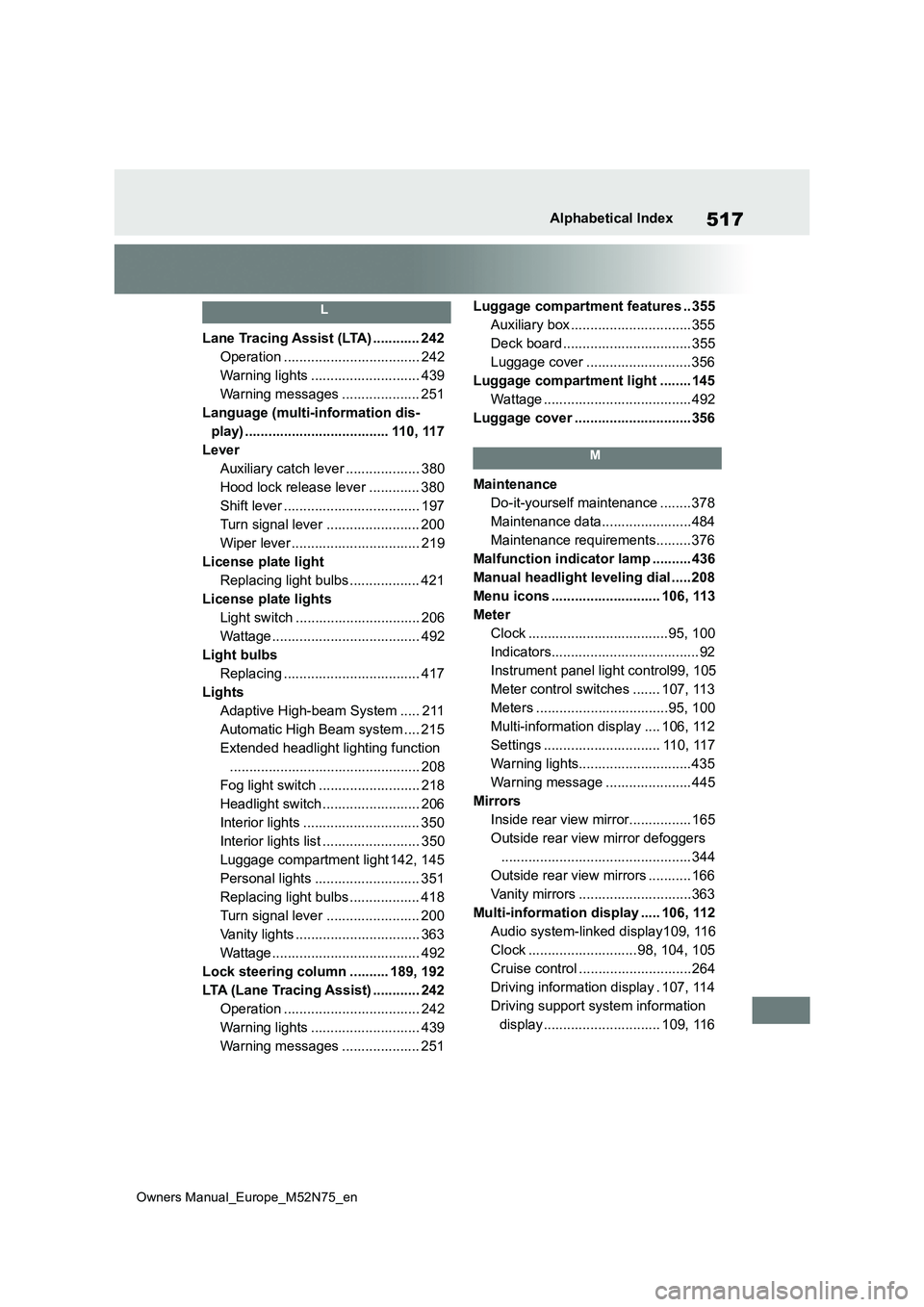

Alphabetical Index
L
Lane Tracing Assist (LTA) ............ 242
Operation ................................... 242
Warning lights ............................ 439
Warning messages .................... 251
Language (multi-information dis-
play) ..................................... 110, 117
Lever
Auxiliary catch lever ................... 380
Hood lock release lever ............. 380
Shift lever ................................... 197
Turn signal lever ........................ 200
Wiper lever ................................. 219
License plate light
Replacing light bulbs .................. 421
License plate lights
Light switch ................................ 206
Wattage ...................................... 492
Light bulbs
Replacing ................................... 417
Lights
Adaptive High-beam System ..... 211
Automatic High Beam system .... 215
Extended headlight lighting function
................................................. 208
Fog light switch .......................... 218
Headlight switch ......................... 206
Interior lights .............................. 350
Interior lights list ......................... 350
Luggage compartment light 142, 145
Personal lights ........................... 351
Replacing light bulbs .................. 418
Turn signal lever ........................ 200
Vanity lights ................................ 363
Wattage ...................................... 492
Lock steering column .......... 189, 192
LTA (Lane Tracing Assist) ............ 242
Operation ................................... 242
Warning lights ............................ 439
Warning messages .................... 251
Luggage compartment features .. 355
Auxiliary box ............................... 355
Deck board ................................. 355
Luggage cover ........................... 356
Luggage compartment light ........ 145
Wattage ...................................... 492
Luggage cover .............................. 356
M
Maintenance
Do-it-yourself maintenance ........ 378
Maintenance data.......................484
Maintenance requirements......... 376
Malfunction indicator lamp .......... 436
Manual headlight leveling dial ..... 208
Menu icons ............................ 106, 113
Meter
Clock ....................................95, 100
Indicators...................................... 92
Instrument panel light control99, 105
Meter control switches ....... 107, 113
Meters ..................................95, 100
Multi-information display .... 106, 112
Settings .............................. 110, 117
Warning lights.............................435
Warning message ...................... 445
Mirrors
Inside rear view mirror................ 165
Outside rear view mirror defoggers
................................................. 344
Outside rear view mirrors ........... 166
Vanity mirrors .............................363
Multi-information display ..... 106, 112
Audio system-linked display109, 116
Clock ............................ 98, 104, 105
Cruise control .............................264
Driving information display . 107, 114
Driving support system information
display .............................. 109, 116
Page 522 of 698
520
Owners Manual_Europe_M52N75_en
Alphabetical Index
Regenerative braking ..................... 76
Warning lights ............................ 435
Replacing
Electronic key battery................. 409
Fuses ......................................... 413
Light bulbs.................................. 417
Tires ........................................... 459
Wireless remote control battery . 409
Road accident cautions ................. 80
Road Sign Assist .......................... 266
RSA (Road Sign Assist) ............... 266
S
Seat belt reminder light................ 438
Seat belts ........................................ 35
Child restraint system installation 49
Cleaning and maintaining the seat
belt ........................................... 371
Emergency Locking Retractor...... 37
How to wear your seat belt .......... 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer ......... 438
Seat belt pretensioners ................ 37
SRS warning light ...................... 437
Seat heaters .................................. 348
Seats ...................................... 157, 158
Adjustment ................................. 157
Adjustment precautions ............. 157
Child seats/child restraint system
installation .................................. 49
Cleaning ..................................... 371
Head restraints........................... 160
Properly sitting in the seat............ 33
Seat heaters............................... 348
Secondary Collision Brake .......... 329
Sensor
Automatic headlight system ....... 207
Automatic High Beam system .... 215
BSM (Blind Spot Monitor)........... 270
Inside rear view mirror................ 166
LTA (Lane Tracing Assist)........... 242
Parking Support Brake function
(static objects) .......................... 275
Radar sensor...................... 226, 271
Rain-sensing windshield wipers .221
RCTA (Rear Crossing Traffic Alert)
................................................. 285
Toyota parking assist-sensor...... 275
Service plug .................................... 79
Shift lever
Hybrid transmission.................... 197
If the shift lever cannot be shifted
from P ...................................... 198
Shift lock system .......................... 198
Side airbags .................................... 38
Side mirrors
Adjustment ................................. 166
BSM (Blind Spot Monitor)........... 270
Folding ....................................... 167
RCTA (Rear Crossing Traffic Alert)
................................................. 285
Side turn signal lights ..................200
Replacing light bulbs ..................418
Turn signal lever ......................... 200
Side windows ................................ 169
Smart entry & start system .......... 152
Antenna location ........................ 152
Entry functions ................... 135, 141
Starting the hybrid system.......... 191
Snow mode.................................... 325
Snow tires...................................... 337
Spare tire ....................................... 459
Inflation pressure........................ 490
Storage location ......................... 460
